Alfa Romeo 4C Spider 2018 User Guide

REAR VIEW
Rear View
1 — Rear Lights2 — Decklid
2
GRAPHICAL TABLE OF CONTENTS 9

INSTRUMENT PANEL
Instrument Panel
1—AirVents
2 — Multifunction Lever
3 — Steering Wheel4 — Instrument Cluster
5 — Windshield Wiper Lever
6 — Radio
10 GRAPHICAL TABLE OF CONTENTS

INTERIOR
Interior
1 — Seats
2 — Gear Selector
3 — Climate Controls4 — Door Locks/Window Switches
5 — Passenger Front Air Bag Location
2
GRAPHICAL TABLE OF CONTENTS 11

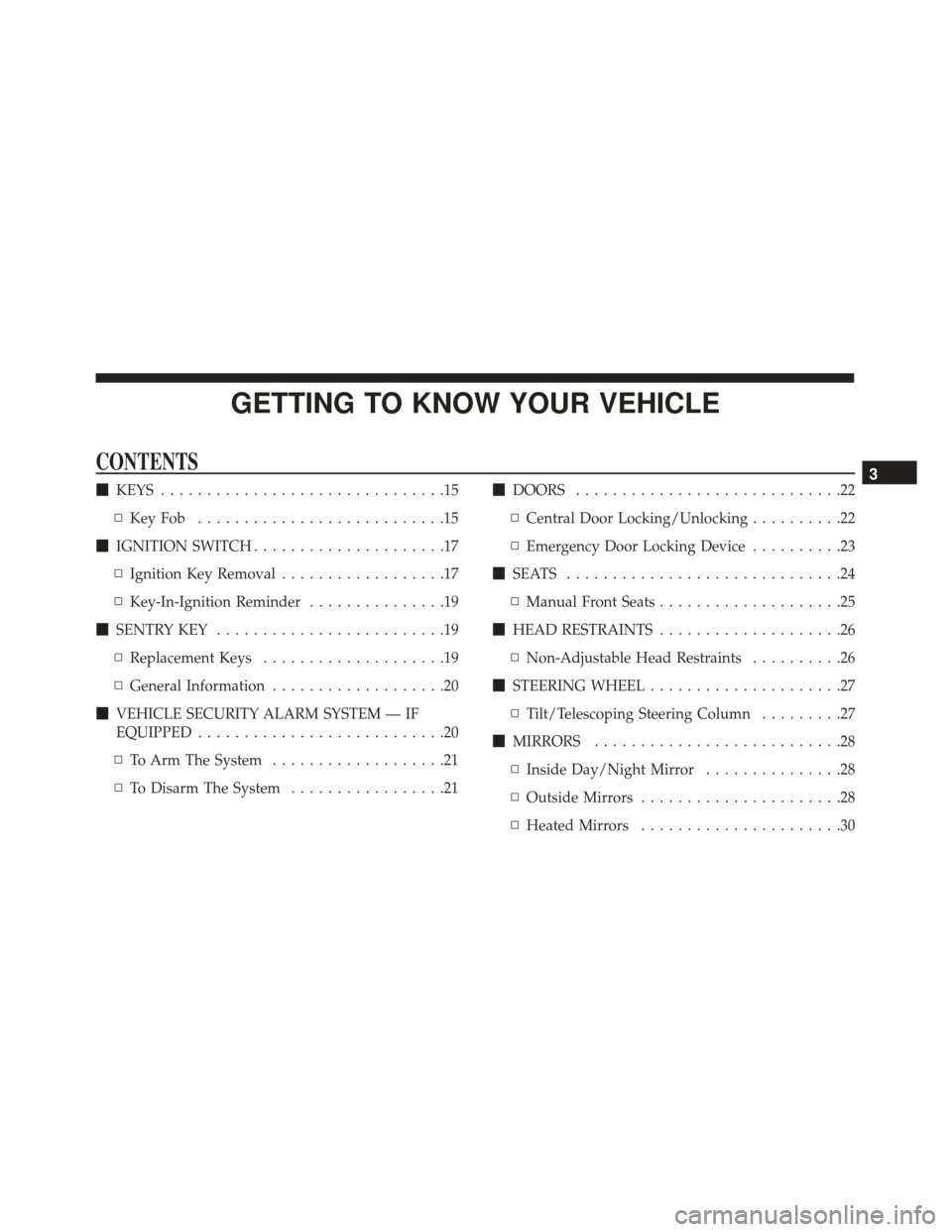

GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEYS ...............................15
▫ KeyFob ...........................15
 IGNITION SWITCH .....................17
▫ Ignition Key Removal ..................17
▫ Key-In-Ignition Reminder ...............19
 SENTRY KEY .........................19
▫ Replacement Keys ....................19
▫ General Information ...................20
 VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED ...........................20
▫ To Arm The System ...................21
▫ To Disarm The System .................21
DOORS .............................22
▫ Central Door Locking/Unlocking ..........22
▫ Emergency Door Locking Device ..........23
 SEATS ..............................24
▫ Manual Front Seats ....................25
 HEAD RESTRAINTS ....................26
▫ Non-Adjustable Head Restraints ..........26
 STEERING WHEEL .....................27
▫ Tilt/Telescoping Steering Column .........27
 MIRRORS ...........................28
▫ Inside Day/Night Mirror ...............28
▫ Outside Mirrors ......................28
▫ Heated Mirrors ......................303

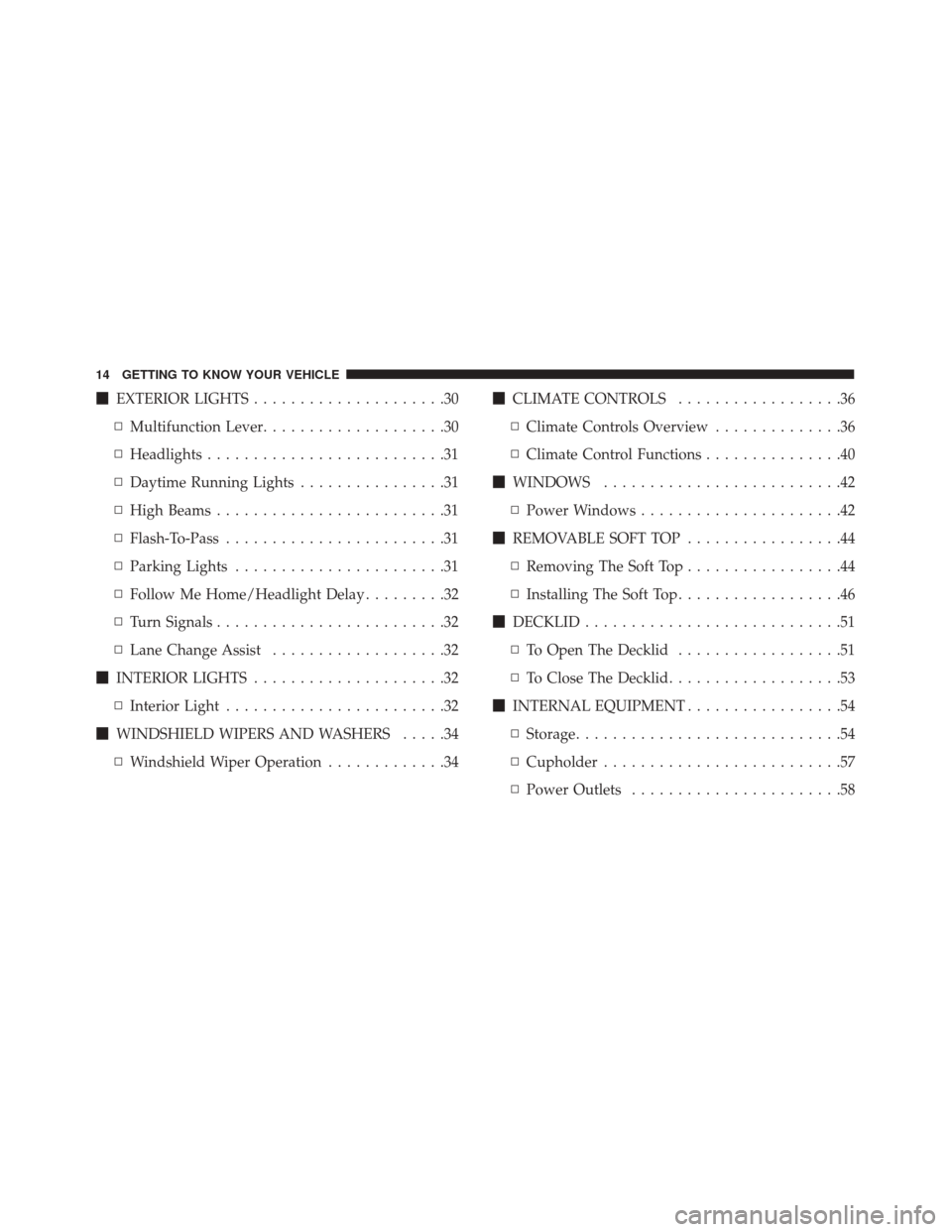

EXTERIOR LIGHTS .....................30
▫ Multifunction Lever ....................30
▫ Headlights ..........................31
▫ Daytime Running Lights ................31
▫ High Beams .........................31
▫ Flash-To-Pass ........................31
▫ Parking Lights .......................31
▫ Follow Me Home/Headlight Delay .........32
▫ Turn Signals .........................32
▫ Lane Change Assist ...................32
 INTERIOR LIGHTS .....................32
▫ Interior Light ........................32
 WINDSHIELD WIPERS AND WASHERS .....34
▫ Windshield Wiper Operation .............34
CLIMATE CONTROLS ..................36
▫ Climate Controls Overview ..............36
▫ Climate Control Functions ...............40
 WINDOWS ..........................42
▫ Power Windows ......................42
 REMOVABLE SOFT TOP .................44
▫ Removing The Soft Top .................44
▫ Installing The Soft Top ..................46
 DECKLID ............................51
▫ To Open The Decklid ..................51
▫ To Close The Decklid ...................53
 INTERNAL EQUIPMENT .................54
▫ Storage .............................54
▫ Cupholder ..........................57
▫ Power Outlets .......................58
14 GETTING TO KNOW YOUR VEHICLE

KEYS
Key Fob
The key fob contains the key fob with an integrated
mechanical key. To use the mechanical key, simply push
the key release button.
Lock or unlock the door with a push of the button.
To Unlock The Doors
Push and release the unlock button on the key fob to
unlock the doors. The park lights and turn signal lights
will flash to acknowledge the signal and the illuminated
entry system will turn on.
To Lock The Doors
With Integrated Key
You can insert the key with either side up. To lock the
door, turn the key to the left. To unlock the door, turn
the key to the right. Refer to “Bodywork” in “Servicing
And Maintenance” for further information.
With Button On Key Fob
Push and release the lock button on the key fob will lock
the doors, switching off the internal roof light and
single flashing of direction indicators.
If one or more doors are open, the doors will not be
locked. This is indicated by a rapid flashing of the
direction indicators. The doors will be locked if the
decklid is open however.
Key Fob
1 — Vehicle Key
2 — Push To Open/Close Vehicle Key
3 — Unlock Button
4 — Lock Button
3
GETTING TO KNOW YOUR VEHICLE 15

When a speed of more than 12 mph (20 km/h) is
reached, the doors will be locked automatically if the
Autoclose function was selected. Refer to “Instrument
Cluster Display — If Equipped” in “Getting To Know
Your Instrument Panel” for further information.
When the doors are locked from outside the vehicle
(using the key fob), the door lock indicator will illumi-
nate for a few seconds and then start flashing (deterrent
function).Replacing The Battery In The Key Fob
NOTE:Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate
The recommended replacement battery is CR2032.
Door LED Lock Indicator
Battery Replacement Procedure
1 — Mechanical Key
2 — Release Button
3 — Battery
4 — Battery Compartment
5—Screw
16 GETTING TO KNOW YOUR VEHICLE

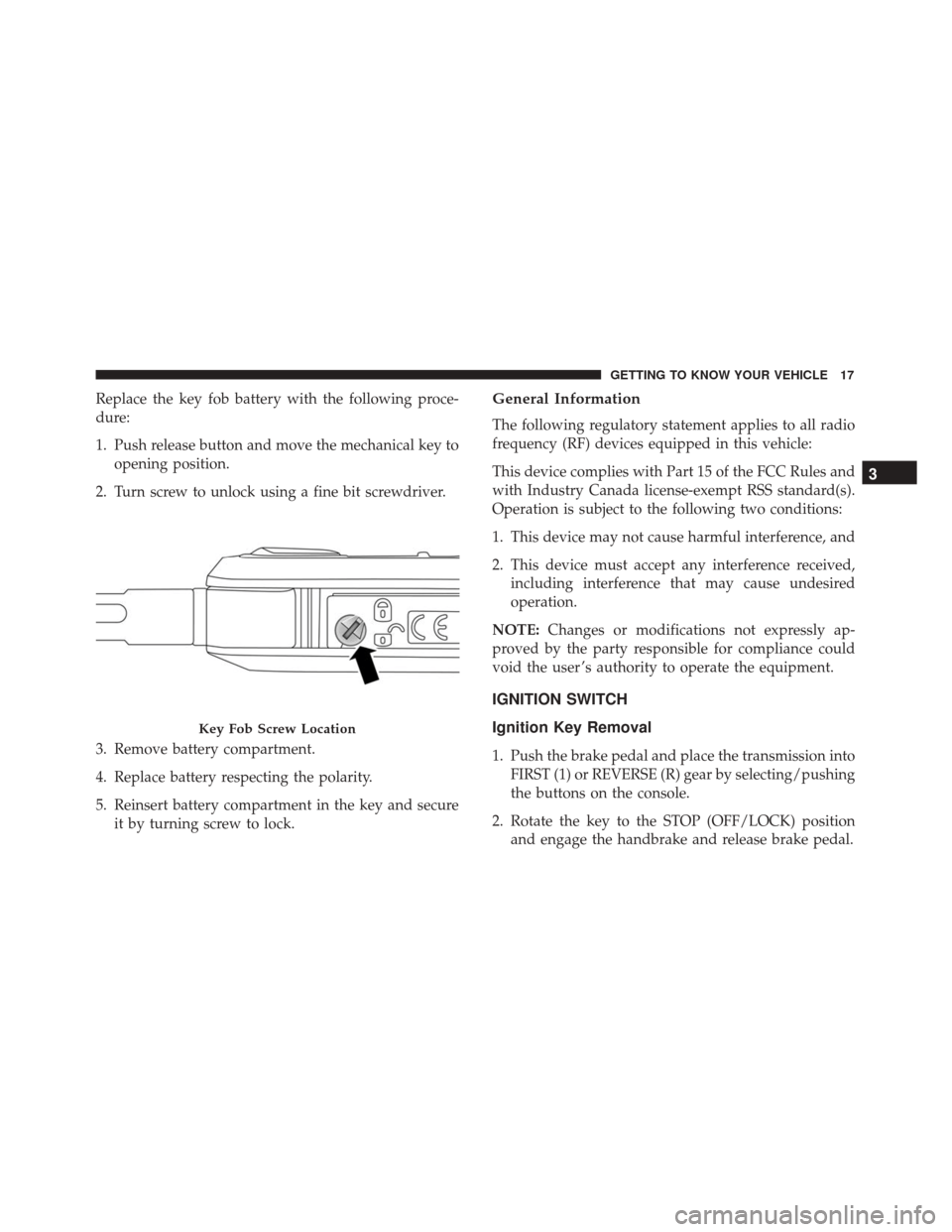

Replace the key fob battery with the following proce-
dure:
1. Push release button and move the mechanical key toopening position.
2. Turn screw to unlock using a fine bit screwdriver.
3. Remove battery compartment.
4. Replace battery respecting the polarity.
5. Reinsert battery compartment in the key and secure it by turning screw to lock.General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
IGNITION SWITCH
Ignition Key Removal
1. Push the brake pedal and place the transmission into FIRST (1) or REVERSE (R) gear by selecting/pushing
the buttons on the console.
2. Rotate the key to the STOP (OFF/LOCK) position and engage the handbrake and release brake pedal.
Key Fob Screw Location
3
GETTING TO KNOW YOUR VEHICLE 17

3.Remove the key from the ignition switch lock cylinder.
WARNING!
•Before exiting a vehicle, always shift the auto-
matic transmission into PARK or the manual
transmission into REVERSE, apply the parking
(Continued)
WARNING! (Continued)
brake, turn the engine OFF, remove the key fob
from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up
may cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always re-
move the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Ignition Switch Positions
1 — STOP (OFF/LOCK)
2 — MAR (ON/RUN)
3 — AVV (START) 18 GETTING TO KNOW YOUR VEHICLE
