fig. 1

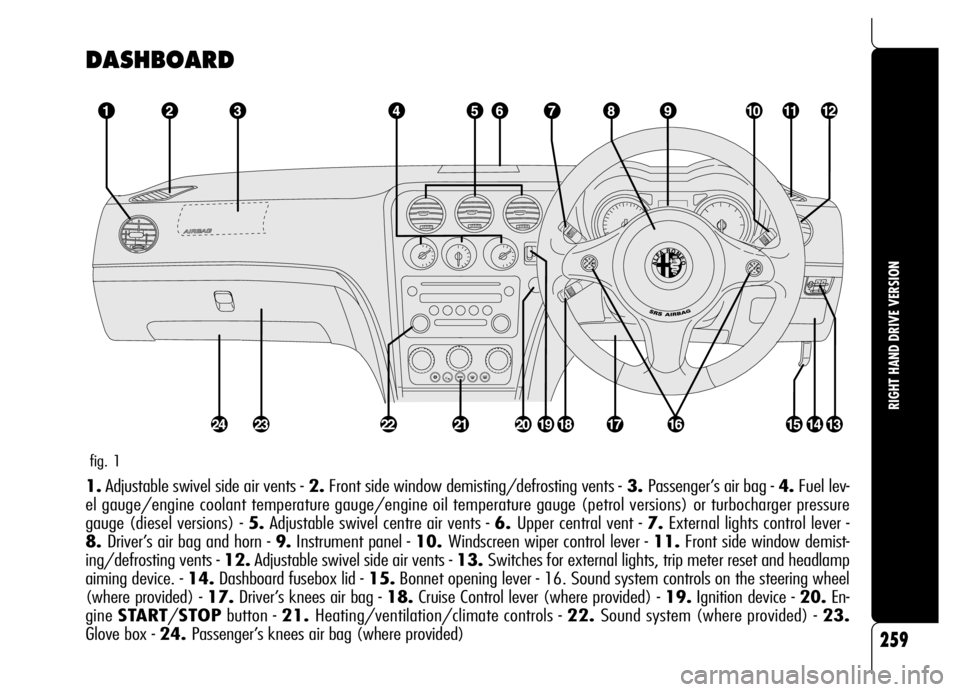

1.Adjustable swivel side air vents -2.Front side window demisting/defrosting vents -3. Passenger’s air bag - 4.Fuel lev-
el gauge/engine coolant temperature gauge/engine oil temperature gauge (petrol versions) or turbocharger pressure
gauge (diesel versions) - 5.Adjustable swivel centre air vents - 6. Upper central vent - 7.External lights control lever -
8. Driver’s air bag and horn - 9.Instrument panel - 10. Windscreen wiper control lever - 11.Front side window demist-
ing/defrosting vents - 12.Adjustable swivel side air vents - 13. Switches for external lights, trip meter reset and headlamp
aiming device. - 14.Dashboard fusebox lid - 15.Bonnet opening lever - 16. Sound system controls on the steering wheel
(where provided) - 17.Driver’s knees air bag - 18.Cruise Control lever (where provided) - 19.Ignition device - 20.En-
gine START/STOPbutton - 21. Heating/ventilation/climate controls - 22. Sound system (where provided) - 23.
Glove box - 24. Passenger’s knees air bag (where provided)
DASHBOARD
259
RIGHT HAND DRIVE VERSION
Page 262 of 267
INSTRUMENT PANEL

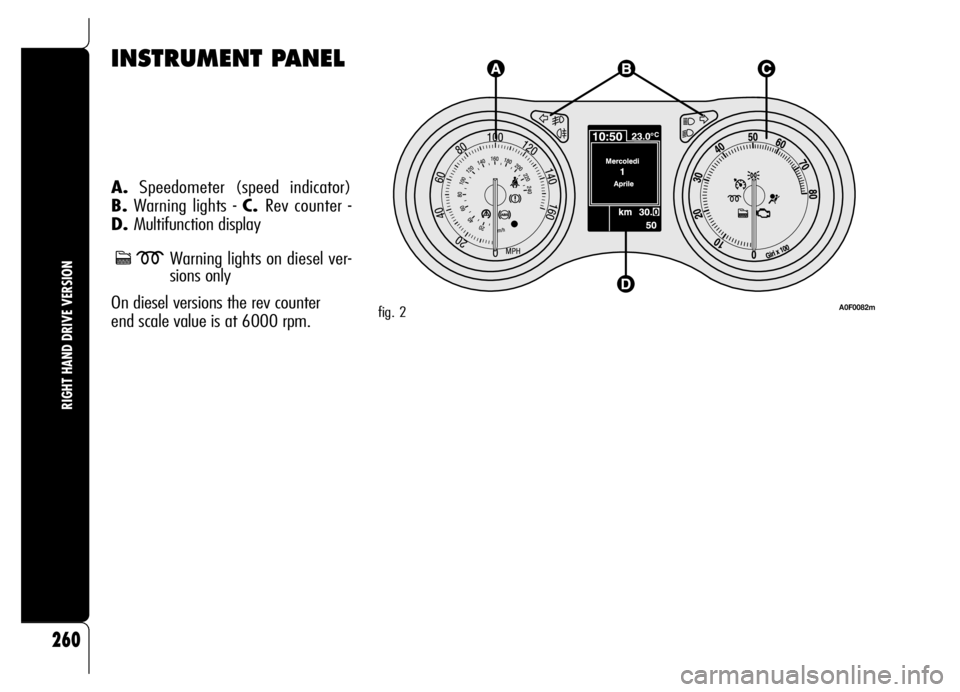

A.Speedometer (speed indicator)
B.Warning lights - C. Rev counter -
D. Multifunction display
cmWarning lights on diesel ver-
sions only
On diesel versions the rev counter
end scale value is at 6000 rpm.
A0F0082mfig. 2
260
RIGHT HAND DRIVE VERSION
Page 263 of 267
N N N N
O O O O
T T T T
E E E E
S S S S
Page 264 of 267
Page 265 of 267
Page 266 of 267
ENGINE OIL CHANGE (litres)
REFUELLING (litres)
QUALITYASSISTENZA TECNICA - INGEGNERIA ASSISTENZIALE
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Fiat Auto S.p.A.
Publication no. 60431435 - 2
ndEdition - 03/2006All rights reserved. Reproduction, even in part is prohibited without written permission
from Fiat Auto S.p.A.
SERVICE
2.2 JTS - 3.2 JTS 2.4 JTDM
Engine oil circuit 5.4 6.4
Do not discard used oil in the environment.

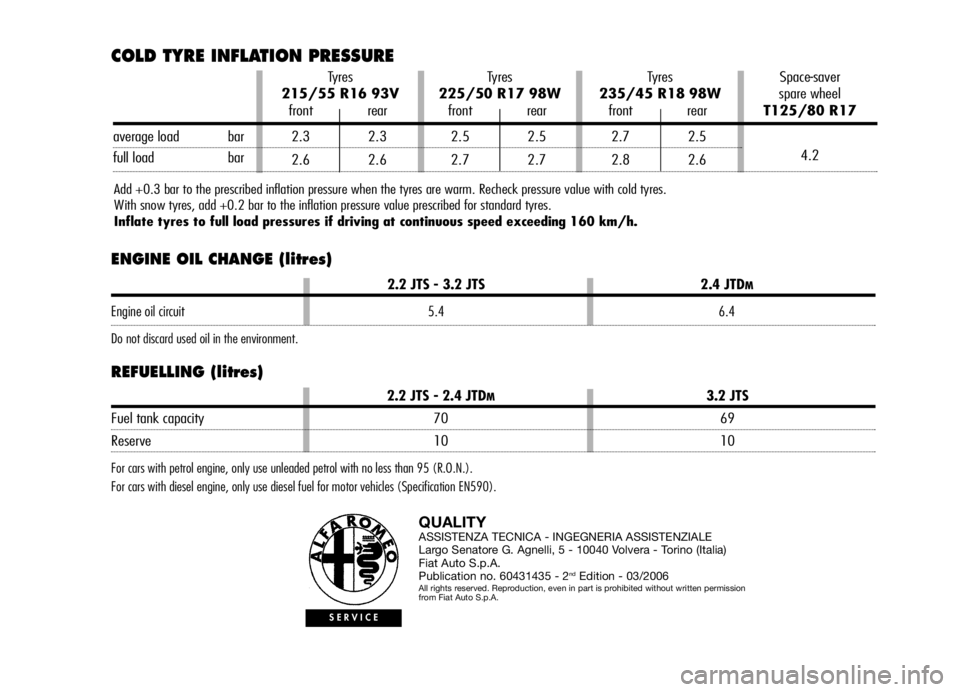

COLD TYRE INFLATION PRESSURE
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h.
2.2 JTS - 2.4 JTDM3.2 JTS
Fuel tank capacity 70 69
Reserve 10 10
For cars with petrol engine, only use unleaded petrol with no less than 95 (R.O.N.).
For cars with diesel engine, only use diesel fuel for motor vehicles (Specification EN590).
Space-saver
spare wheel
T125/80 R17
4.2 Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7Tyres
235/45 R18 98W
front rear
2.7 2.5
2.8 2.6Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6
average load bar
full load bar
