Switching the ASR system
on/off
The ASR system switches on automati-
cally each time the instrument panel is
turned on.
When travelling the ASR can be
switched off by pressing briefly the
ASR/VDC button on the central console.
When the ASR is switched off this is
shown by the lighting up of the
ASR/VDC button led and by symbol
V
on the display.
If the ASR is switched off when travel-
ling, it will turn on again automatically
the next time the engine is started.
When travelling on snowy roads with
snow chains, it may be helpful to turn
the ASR off: in fact, in these conditions,
slipping of the driving wheels when mov-
ing off makes it possible to obtain bet-
ter drive.MSR system (engine braking
torque control)
It is an integral part of the ASR system
that in case of sudden gear shifting, cuts
in providing torque to the engine thus
preventing excessive driving wheel dri-
ve that, specially in poor grip conditions,
can lead to loss of stability.
For correct operation of
the ASR system, all
tyres must absolutely be of
the same brand, size and type,
in normal conditions of use and
at the pressure values speci-
fied in paragraph “Wheels” in
section “Technical Specifica-
tions”).
WARNING
Failure warnings
In the event of malfunctioning, the ASR
system is automatically disconnected
and symbol
Vwill be displayed. In this
case contact Alfa Romeo Authorized Ser-
vices as soon as possible.

106
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
SOUND SYSTEM
The car is fitted with sound system with
CD or MP3 CD player (where provided).
As concerns sound system operation, re-
fer to the Supplement attached to this
Owner’s Manual.

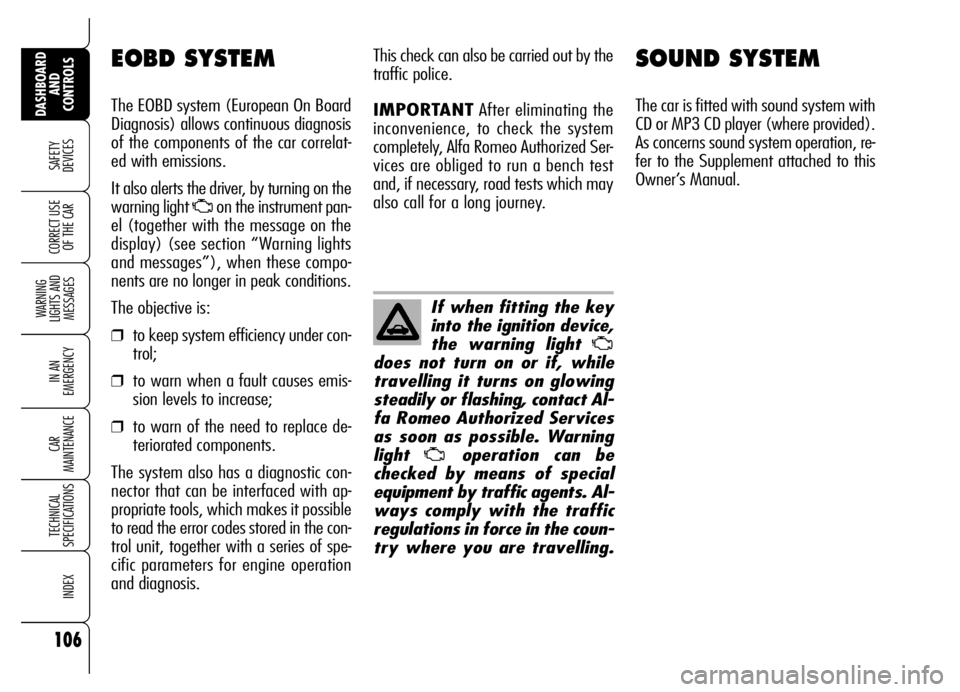

EOBD SYSTEM
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis
of the components of the car correlat-
ed with emissions.
It also alerts the driver, by turning on the
warning light
Uon the instrument pan-
el (together with the message on the
display) (see section “Warning lights
and messages”), when these compo-
nents are no longer in peak conditions.
The objective is:
❒to keep system efficiency under con-
trol;
❒to warn when a fault causes emis-
sion levels to increase;
❒to warn of the need to replace de-
teriorated components.
The system also has a diagnostic con-
nector that can be interfaced with ap-
propriate tools, which makes it possible
to read the error codes stored in the con-
trol unit, together with a series of spe-
cific parameters for engine operation
and diagnosis.
If when fitting the key
into the ignition device,
the warning light
U
does not turn on or if, while
travelling it turns on glowing
steadily or flashing, contact Al-
fa Romeo Authorized Services
as soon as possible. Warning
light
Uoperation can be
checked by means of special
equipment by traffic agents. Al-
ways comply with the traffic
regulations in force in the coun-
try where you are travelling.
This check can also be carried out by the
traffic police.
IMPORTANTAfter eliminating the
inconvenience, to check the system
completely, Alfa Romeo Authorized Ser-
vices are obliged to run a bench test
and, if necessary, road tests which may
also call for a long journey.

107
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

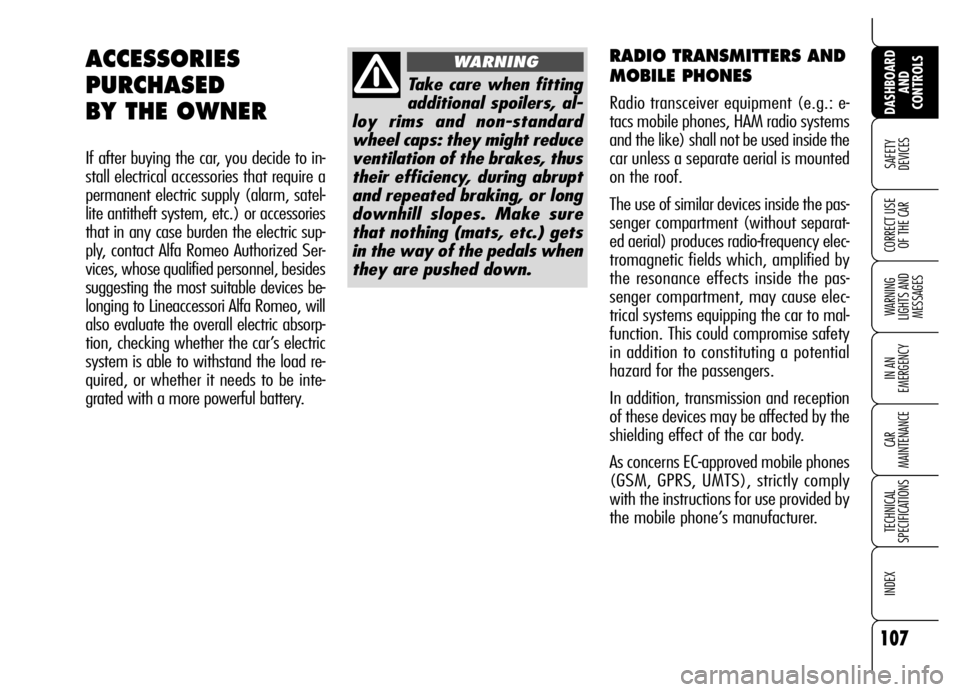

RADIO TRANSMITTERS AND
MOBILE PHONES
Radio transceiver equipment (e.g.: e-
tacs mobile phones, HAM radio systems
and the like) shall not be used inside the
car unless a separate aerial is mounted
on the roof.
The use of similar devices inside the pas-
senger compartment (without separat-
ed aerial) produces radio-frequency elec-
tromagnetic fields which, amplified by
the resonance effects inside the pas-
senger compartment, may cause elec-
trical systems equipping the car to mal-
function. This could compromise safety
in addition to constituting a potential
hazard for the passengers.
In addition, transmission and reception
of these devices may be affected by the
shielding effect of the car body.
As concerns EC-approved mobile phones
(GSM, GPRS, UMTS), strictly comply
with the instructions for use provided by
the mobile phone’s manufacturer.
ACCESSORIES
PURCHASED
BY THE OWNER
If after buying the car, you decide to in-
stall electrical accessories that require a
permanent electric supply (alarm, satel-
lite antitheft system, etc.) or accessories
that in any case burden the electric sup-
ply, contact Alfa Romeo Authorized Ser-
vices, whose qualified personnel, besides
suggesting the most suitable devices be-
longing to Lineaccessori Alfa Romeo, will
also evaluate the overall electric absorp-
tion, checking whether the car’s electric
system is able to withstand the load re-
quired, or whether it needs to be inte-
grated with a more powerful battery.
Take care when fitting
additional spoilers, al-
loy rims and non-standard
wheel caps: they might reduce
ventilation of the brakes, thus
their efficiency, during abrupt
and repeated braking, or long
downhill slopes. Make sure
that nothing (mats, etc.) gets
in the way of the pedals when
they are pushed down.
WARNING

108
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

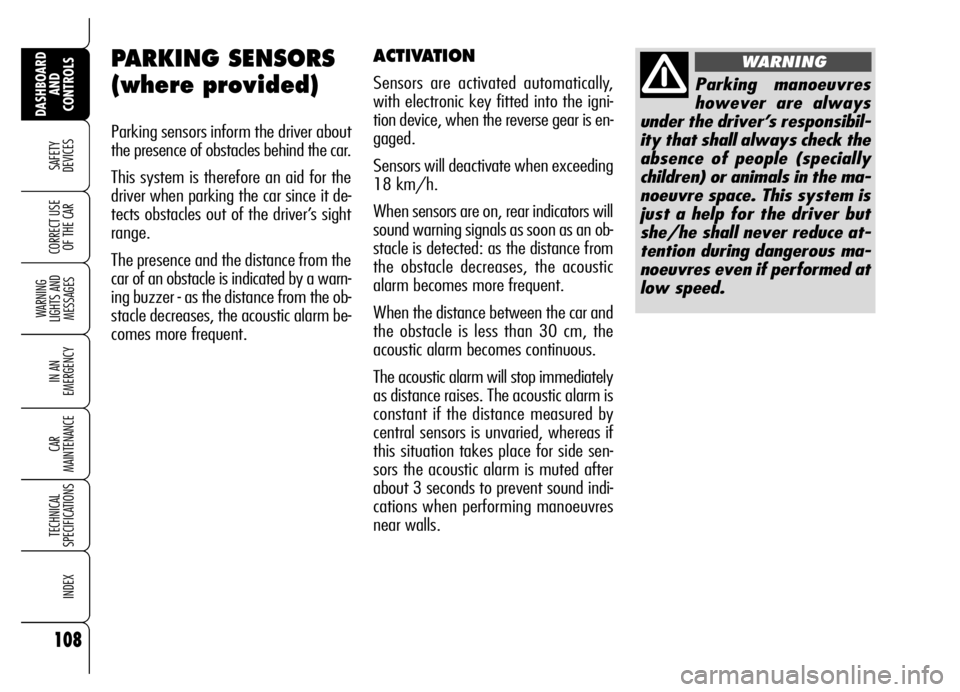

PARKING SENSORS
(where provided)
Parking sensors inform the driver about
the presence of obstacles behind the car.
This system is therefore an aid for the
driver when parking the car since it de-
tects obstacles out of the driver’s sight
range.
The presence and the distance from the
car of an obstacle is indicated by a warn-
ing buzzer - as the distance from the ob-
stacle decreases, the acoustic alarm be-
comes more frequent.
Parking manoeuvres
however are always
under the driver’s responsibil-
ity that shall always check the
absence of people (specially
children) or animals in the ma-
noeuvre space. This system is
just a help for the driver but
she/he shall never reduce at-
tention during dangerous ma-
noeuvres even if performed at
low speed.
WARNINGACTIVATION
Sensors are activated automatically,
with electronic key fitted into the igni-
tion device, when the reverse gear is en-
gaged.
Sensors will deactivate when exceeding
18 km/h.
When sensors are on, rear indicators will
sound warning signals as soon as an ob-
stacle is detected: as the distance from
the obstacle decreases, the acoustic
alarm becomes more frequent.
When the distance between the car and
the obstacle is less than 30 cm, the
acoustic alarm becomes continuous.
The acoustic alarm will stop immediately
as distance raises. The acoustic alarm is
constant if the distance measured by
central sensors is unvaried, whereas if
this situation takes place for side sen-
sors the acoustic alarm is muted after
about 3 seconds to prevent sound indi-
cations when performing manoeuvres
near walls.

109
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARSENSORS

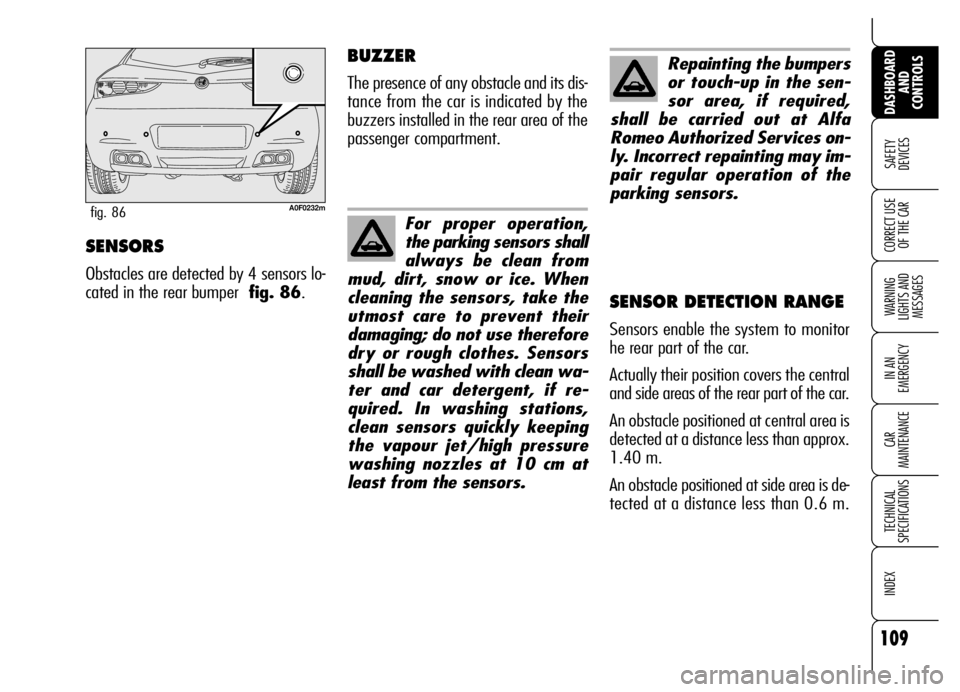

Obstacles are detected by 4 sensors lo-
cated in the rear bumper fig. 86.
A0F0232mfig. 86
BUZZER
The presence of any obstacle and its dis-
tance from the car is indicated by the
buzzers installed in the rear area of the
passenger compartment.
SENSOR DETECTION RANGE
Sensors enable the system to monitor
he rear part of the car.
Actually their position covers the central
and side areas of the rear part of the car.
An obstacle positioned at central area is
detected at a distance less than approx.
1.40 m.
An obstacle positioned at side area is de-
tected at a distance less than 0.6 m.
For proper operation,
the parking sensors shall
always be clean from
mud, dirt, snow or ice. When
cleaning the sensors, take the
utmost care to prevent their
damaging; do not use therefore
dry or rough clothes. Sensors
shall be washed with clean wa-
ter and car detergent, if re-
quired. In washing stations,
clean sensors quickly keeping
the vapour jet/high pressure
washing nozzles at 10 cm at
least from the sensors.
Repainting the bumpers
or touch-up in the sen-
sor area, if required,
shall be carried out at Alfa
Romeo Authorized Services on-
ly. Incorrect repainting may im-
pair regular operation of the
parking sensors.

If a failure is indicated, stop the car, turn
the engine off and then clean the sen-
sors. Make sure to be far from possible
ultrasound sources (e.g.: truck pneu-
matic brakes or pneumatic hammers).
If failure cause has been eliminated the
system will resume regular operation
and message + symbol on the display
will turn off.
If the warning light stays on, contact Al-
fa Romeo Authorized Services to have
the system inspected, although the sys-
tem keeps on working. If the failure de-
tected does not impair system operation,
the system keeps on working and fail-
ure is stored in order to be then detect-
ed by Alfa Romeo Authorized Services
at next inspection.GENERAL WARNINGS
When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors. Objects set close to the
car, under certain circumstances are not
detected and could therefore cause dam-
ages to the car or be damaged.
Indications sent by the sensors can be
altered by dirt, snow or ice deposited on
the sensors or by ultrasound systems
(e.g.: truck pneumatic brakes or pneu-
matic hammers) set nearby the car.

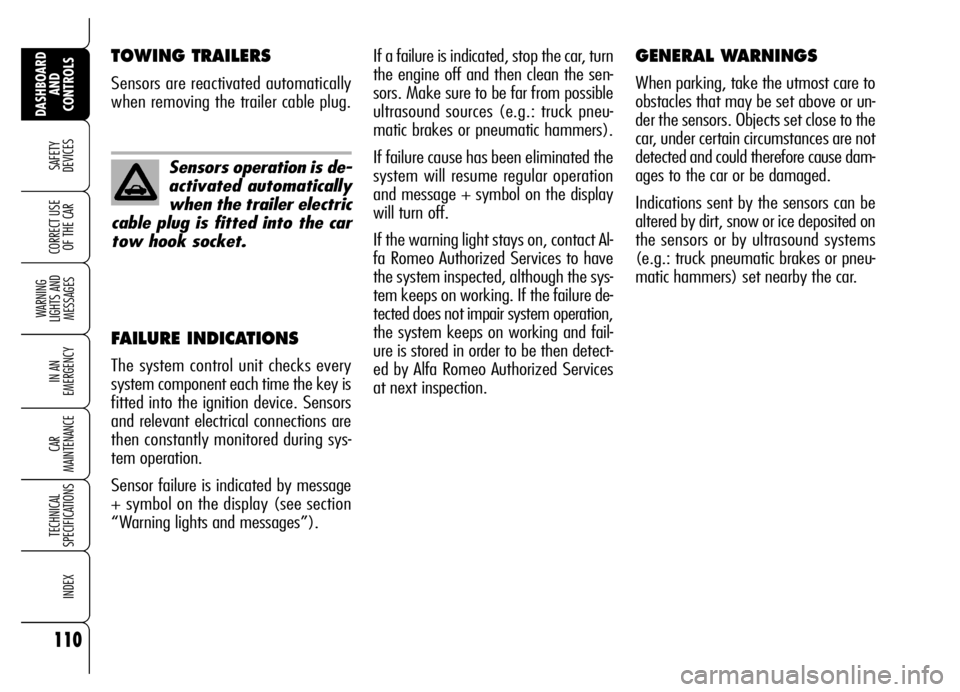

TOWING TRAILERS
Sensors are reactivated automatically
when removing the trailer cable plug.
FAILURE INDICATIONS
The system control unit checks every
system component each time the key is
fitted into the ignition device. Sensors
and relevant electrical connections are
then constantly monitored during sys-
tem operation.
Sensor failure is indicated by message
+ symbol on the display (see section
“Warning lights and messages”).
Sensors operation is de-
activated automatically
when the trailer electric
cable plug is fitted into the car
tow hook socket.
110
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

111
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

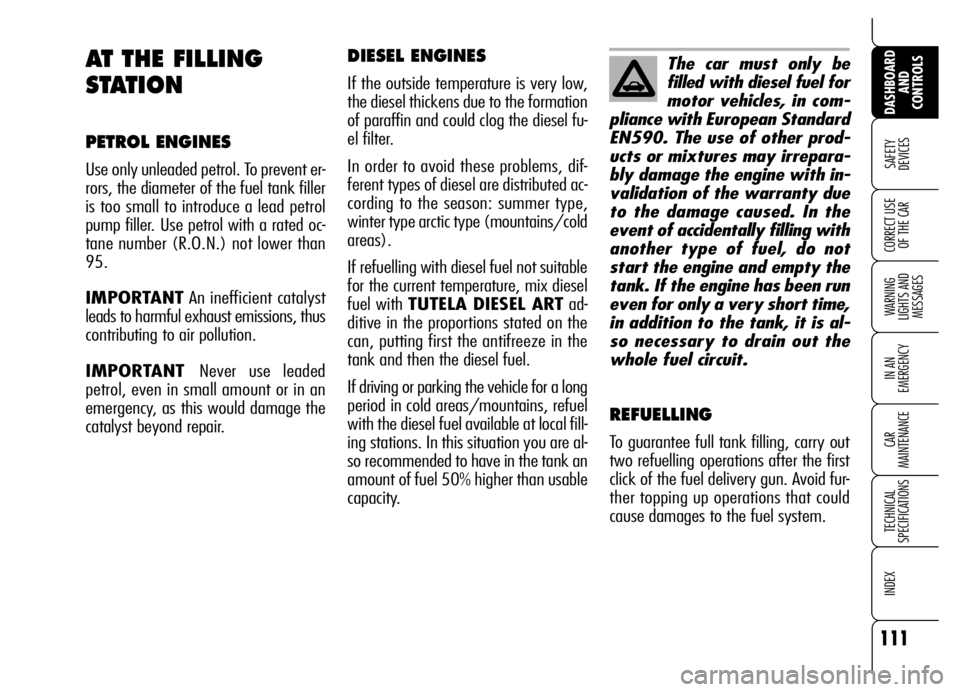

DIESEL ENGINES
If the outside temperature is very low,
the diesel thickens due to the formation
of paraffin and could clog the diesel fu-
el filter.
In order to avoid these problems, dif-
ferent types of diesel are distributed ac-
cording to the season: summer type,
winter type arctic type (mountains/cold
areas).
If refuelling with diesel fuel not suitable
for the current temperature, mix diesel
fuel with TUTELA DIESEL ARTad-
ditive in the proportions stated on the
can, putting first the antifreeze in the
tank and then the diesel fuel.
If driving or parking the vehicle for a long
period in cold areas/mountains, refuel
with the diesel fuel available at local fill-
ing stations. In this situation you are al-
so recommended to have in the tank an
amount of fuel 50% higher than usable
capacity.
AT THE FILLING
STATION
PETROL ENGINES
Use only unleaded petrol. To prevent er-
rors, the diameter of the fuel tank filler
is too small to introduce a lead petrol
pump filler. Use petrol with a rated oc-
tane number (R.O.N.) not lower than
95.
IMPORTANTAn inefficient catalyst
leads to harmful exhaust emissions, thus
contributing to air pollution.
IMPORTANT Never use leaded
petrol, even in small amount or in an
emergency, as this would damage the
catalyst beyond repair.
The car must only be
filled with diesel fuel for
motor vehicles, in com-
pliance with European Standard
EN590. The use of other prod-
ucts or mixtures may irrepara-
bly damage the engine with in-
validation of the warranty due
to the damage caused. In the
event of accidentally filling with
another type of fuel, do not
start the engine and empty the
tank. If the engine has been run
even for only a very short time,
in addition to the tank, it is al-
so necessary to drain out the
whole fuel circuit.
REFUELLING
To guarantee full tank filling, carry out
two refuelling operations after the first
click of the fuel delivery gun. Avoid fur-
ther topping up operations that could
cause damages to the fuel system.

112
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAREMERGENCY OPENING OF
THE FUEL FILLER CAP
In case of failure, the fuel filler cap can
be opened by pulling string set on the
right side of the boot fig. 89.
A0F0130mfig. 89
FUEL FILLER CAP
The fuel tank lid can only be opened
with doors unlocked and engine
switched off.
To open the fuel filler cap, operate as
shown by the arrow infig. 87.
The fuel filler cap A-fig. 88 is fitted
with an antiloss device Bwhich fastens
it to the flap Cso it cannot be mislaid.
A0F0159mfig. 87A0F0160mfig. 88
Do not put naked
flames or lighted ciga-
rettes near the fuel filler hole
as there is danger of fire. Do
not bend too close to the hole
either so as not to breathe in
harmful vapours.
WARNING
When refuelling, position the cap on the
device inside the flap as shown in the
figure.
IMPORTANTThe sealing of the tank
may cause light pressurising in the tank.
A little breathing off, while slackening
the cap, is absolutely normal.

113
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

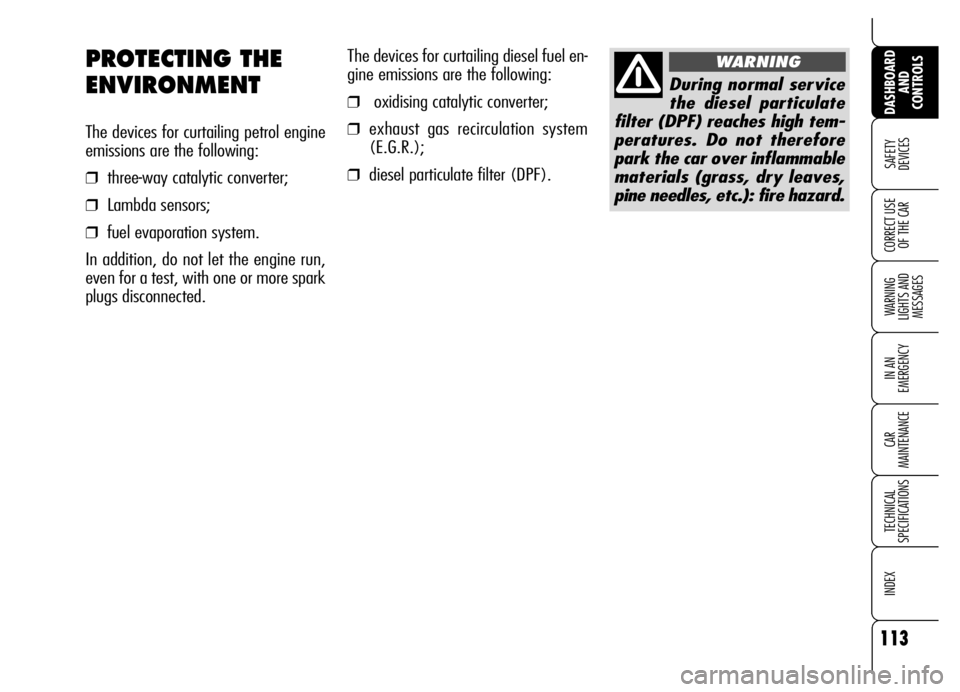

The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒diesel particulate filter (DPF).
PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
During normal service
the diesel particulate
filter (DPF) reaches high tem-
peratures. Do not therefore
park the car over inflammable
materials (grass, dry leaves,
pine needles, etc.): fire hazard.
WARNING

114
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

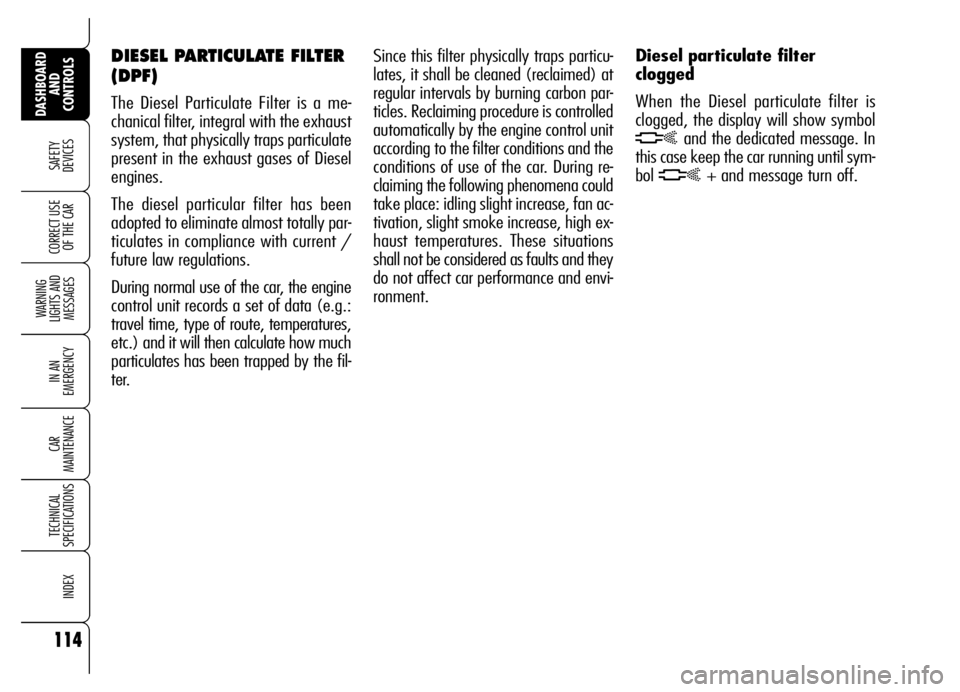

Since this filter physically traps particu-
lates, it shall be cleaned (reclaimed) at
regular intervals by burning carbon par-
ticles. Reclaiming procedure is controlled
automatically by the engine control unit
according to the filter conditions and the
conditions of use of the car. During re-
claiming the following phenomena could
take place: idling slight increase, fan ac-
tivation, slight smoke increase, high ex-
haust temperatures. These situations
shall not be considered as faults and they
do not affect car performance and envi-
ronment. DIESEL PARTICULATE FILTER
(DPF)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particulate
present in the exhaust gases of Diesel
engines.
The diesel particular filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current /
future law regulations.
During normal use of the car, the engine
control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the fil-
ter.Diesel particulate filter
clogged
When the Diesel particulate filter is
clogged, the display will show symbol
hand the dedicated message. In
this case keep the car running until sym-
bol
h+ and message turn off.
