technical specifications Alfa Romeo Brera/Spider 2008 Owner handbook (in English)

15
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

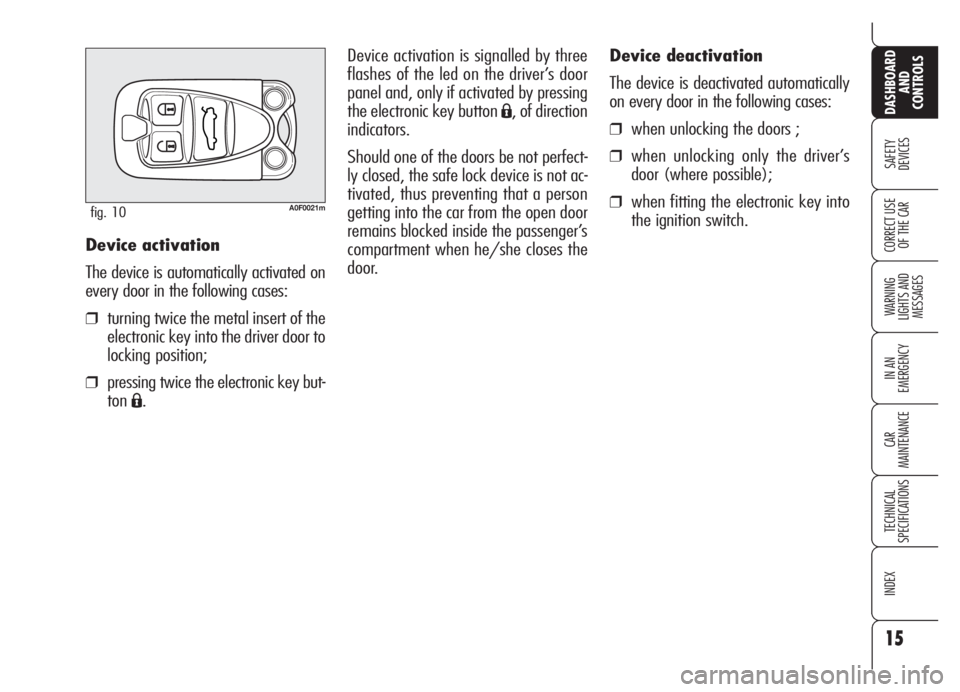

Device deactivation
The device is deactivated automatically
on every door in the following cases:
❒when unlocking the doors ;
❒when unlocking only the driver’s
door (where possible);
❒when fitting the electronic key into
the ignition switch. Device activation is signalled by three
flashes of the led on the driver’s door
panel and, only if activated by pressing
the electronic key button
Á, of direction
indicators.
Should one of the doors be not perfect-
ly closed, the safe lock device is not ac-
tivated, thus preventing that a person
getting into the car from the open door
remains blocked inside the passenger’s
compartment when he/she closes the
door.
A0F0021mfig. 10
Device activation
The device is automatically activated on
every door in the following cases:
❒turning twice the metal insert of the
electronic key into the driver door to
locking position;
❒pressing twice the electronic key but-
ton
Á.

16
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
The main functions that can be activated with the electronic key or with the emergency metals insert are the following:
(*) It is possible to set the option “Unlocking front door only” through the “Setup Menu” (see paragraph “Reconfigurable multifunction display” in this sec-
tion). In this case pressing button
Áand turning the metal insert of the electronic key counter-clockwise will unlock the driver’s door only. To unlock all
the doors, press twice button
Ëwithin 1 second or turn twice the metal insert of the electronic key counter-clockwise.
IMPORTANTWindow opening operation is a consequence of a door unlocking control. Window closing operation is a consequence of a door lock-
ing control.
Electronic
key
Emergency
metal
insert
Direction
indicators
flashing
Led on
driver’s door
Doors,
tailgate
and fuel cap
unlocking
Brief press on
button
Ë(*)
Electronic key
rotation
clockwise (*)
2 flashings
Deterrence
led offDoors,
tailgate
and fuel
cap
locking
Brief press on
button
Á
Electronic key
rotation
counter-clockwise
1 flashing
Turning on fixed
for 3 seconds,
followed by deter-
rence led
flashingWindow
opening
Prolonged
pressing
(over 2 seconds)
on button
Ë
Electronic key
rotation
for over
2 seconds
clockwise
2 flashings
Deterrence led offWindow
closing
Prolonged
pressing
(over 2 seconds)
on button
Á
Electronic key
rotation
for over
2 seconds
counter-clockwise
1 flashing
Turning on fixed
for 3 seconds,
followed by
deterrence led
flashingSafe lock
(where
provided)
Double pressing
(within 1 second)
on button
Á
Double electronic
key rotation
within 1 second
counter-clockwise
3 flashings
Double
flashing,
followed by
deterrence led
flashingTailgate
opening
Brief press on
button
`
–
2 flashings
–

17
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

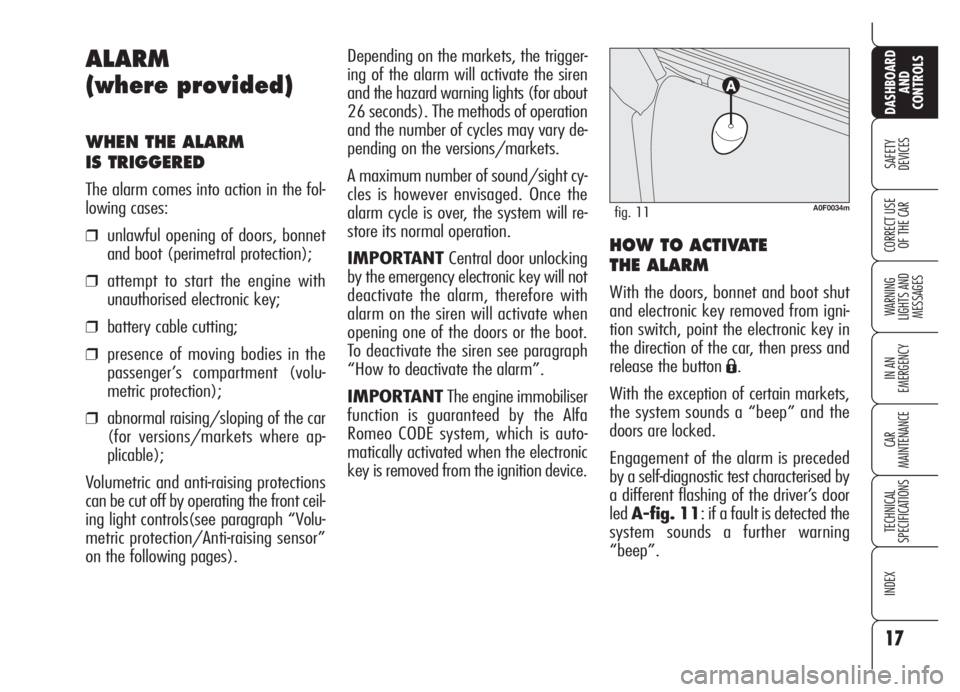

Depending on the markets, the trigger-
ing of the alarm will activate the siren
and the hazard warning lights (for about
26 seconds). The methods of operation
and the number of cycles may vary de-
pending on the versions/markets.
A maximum number of sound/sight cy-
cles is however envisaged. Once the
alarm cycle is over, the system will re-
store its normal operation.
IMPORTANTCentral door unlocking
by the emergency electronic key will not
deactivate the alarm, therefore with
alarm on the siren will activate when
opening one of the doors or the boot.
To deactivate the siren see paragraph
“How to deactivate the alarm”.
IMPORTANTThe engine immobiliser
function is guaranteed by the Alfa
Romeo CODE system, which is auto-
matically activated when the electronic
key is removed from the ignition device.
HOW TO ACTIVATE
THE ALARM
With the doors, bonnet and boot shut
and electronic key removed from igni-
tion switch, point the electronic key in
the direction of the car, then press and
release the button
Á.
With the exception of certain markets,
the system sounds a “beep” and the
doors are locked.
Engagement of the alarm is preceded
by a self-diagnostic test characterised by
a different flashing of the driver’s door
ledA-fig. 11: if a fault is detected the
system sounds a further warning
“beep”.
ALARM
(where provided)
WHEN THE ALARM
IS TRIGGERED
The alarm comes into action in the fol-
lowing cases:
❒unlawful opening of doors, bonnet
and boot (perimetral protection);
❒attempt to start the engine with
unauthorised electronic key;
❒battery cable cutting;
❒presence of moving bodies in the
passenger’s compartment (volu-
metric protection);
❒abnormal raising/sloping of the car
(for versions/markets where ap-
plicable);
Volumetric and anti-raising protections
can be cut off by operating the front ceil-
ing light controls(see paragraph “Volu-
metric protection/Anti-raising sensor”
on the following pages).
A0F0034mfig. 11

18
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
HOW TO DEACTIVATE
THE ALARM
Press button Ë. The system will react as
follows (with the exception of certain
markets):
❒two brief flashes of the direction in-
dicators;
❒two brief “beeps”;
❒door unlocking.
The alarm can be deactivated by fitting
the electronic key into the ignition
switch.
IMPORTANTOn certain versions any
attempt to break in detected by the sys-
tem will be indicated by a warning mes-
sage on the instrument panel display
when fitting the electronic key into the
ignition switch.VOLUMETRIC PROTECTION/
ANTI-RAISING SENSORS
To make sure that the protection sensors
are working properly, check that win-
dows are shut.
This function can be cut out (for exam-
ple if you leave animals on the car) by
pressing button A-fig. 12on the front
ceiling light within 1 minute after in-
strument panel turning off.
When this function is off the button led
will turn on. Volumetric protection/an-
ti-raising sensors cut out shall be re-
peated at each instrument panel turning
off. Surveillance
When the system has been turned on,
the led A-fig. 11will flash to indicate
that the system is in the surveillance
mode. The led will flash continuously
while the system is under surveillance.
IMPORTANTOperation of the alarm
is adapted at the origin to the regula-
tions of the different countries.
Self-diagnosis and monitoring
of doors/bonnet/boot
If, after the alarm has been activated, a
second acoustic signal is heard, turn the
system off by pressing button
Ë, check
for proper locking of doors, bonnet and
boot, then turn the system on again by
pressing button
Á.
Otherwise if a door or bonnet/boot lid
is not correctly closed it will not be con-
trolled by the system. If the control sig-
nal is repeated when the doors and bon-
net/boot are closed properly this means
that the self-diagnosis function has de-
tected a system operating fault, in which
case it is necessary to contact Alfa
Romeo Authorized Services.
A0F0086mfig. 12

19
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IGNITION
DEVICE
The ignition device is located on the
dashboard and it consists of the fol-
lowing:
❒electronic key reading device A-
fig. 13(set near the steering
wheel);
❒buttonSTART/STOP(set under
the electronic key reading device).
IMPORTANTTo prevent running
down the battery do not leave the elec-
tronic key into the ignition device when
the engine is off.
HOW TO CUT OFF THE
ALARM SYSTEM
To deactivate the alarm system com-
pletely (for instance during prolonged
inactivity of the car) simply lock the car
by rotating the metal insert (provided
inside the electronic key) into the dri-
ver’s door lock.
MINISTERIAL
HOMOLOGATION
In keeping with the laws in force in each
country on the subject of radio fre-
quency, for markets in which the trans-
mitter needs to be marked the certifi-
cation number is given on the compo-
nent. For certain versions/markets, the
code may also be marked on the trans-
mitter and/or on the receiver.
A0F0219mfig. 13
If the ignition device is
tampered with (for ex-
ample during an attempted
break-in) have it checked over
by Alfa Romeo Authorized
Services before travelling
again.
WARNING
When leaving the car
always remove the
electronic key from the ignition
device to prevent any passen-
ger in the car from inadver-
tently activating the controls.
Remember to engage the
handbrake and if the car is fac-
ing uphill, first gear and if the
car is facing downhill, reverse.
Never leave children unat-
tended in the car.
WARNING

20
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IMPORTANTIf when fitting the elec-
tronic key into the ignition device, sym-
bol
Yis displayed (on certain versions
together with a message) check
whether the electronic key is the prop-
er one and then try to refit it into the
ignition device. If the problem persists
contact Alfa Romeo Authorized Services.
TURNING THE INSTRUMENT
PANEL OFF
With the engine off and brake and clutch
pedal released, press button
START/STOPor take the electronic
key out of the ignition device.
Few seconds after the instrument pan-
el will gradually turn off.
IMPORTANTIf when removing the
electronic key from the ignition device
the instrument panel stays on, contact
Alfa Romeo Authorized Services.
TURNING THE INSTRUMENT
PANEL ON
Proceed as follows:
❒fit the electronic key into the ignition
device;
❒if the electronic key is fitted yet,
press button START/STOPwith-
out pressing the clutch or brake ped-
al.
To safeguard the battery, when leaving
the car with the instrument panel on,
electric and electronic devices will be de-
activated after approx. 1 hour.
IMPORTANT Fit the electronic key in-
to the ignition device completely until
it locks into place.
IMPORTANTIf when fitting the elec-
tronic key into the ignition device the in-
strument panel stays off, contact Alfa
Romeo Authorized Services.
A0F0028mfig. 14
ENGINE STARTING
See paragraph “Engine starting” in sec-
tion “Correct use of the car”.
START/STOP BUTTON
fig. 14
ButtonSTART/STOP, set on the
dashboard, controls car electric systems
and engine starting/stopping.
ButtonSTART/STOPis fitted with
knurled ring and led. When the led and
the instrument panel are on, the engine
can be started.

21
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
It is absolutely forbidden
to carry out whatever
after-market operation involv-
ing steering system or steering
column modifications (e.g.: in-
stallation of anti-theft device)
that could badly affect perfor-
mance and safety, cause the
lapse of warranty and also re-
sult in non-compliance of the car
with homologation require-
ments.
WARNING
Disengaging
The steering column lock will disengage
after fitting the electronic key into the
ignition device.
IMPORTANTSwitching the engine off
when the car is running will not engage
the steering column lock till next switch-
ing off of the engine with car stopped. In
this event a dedicated message will be dis-
played.
IMPORTANTSteering column lock fail-
ure is indicated by symbol + message on
the display. In this event contact Alfa
Romeo Authorized Services.STEERING COLUMN LOCK
Engaging
The steering column lock will engage
5 seconds after removing the electron-
ic key from the ignition device and if the
following conditions are present:
❒engine off;
❒ instrument panel off with car at a
standstill;
❒electronic key removed from ignition
device.IMPORTANTIf after turning the in-
strument panel on and/or starting the en-
gine, the display shows the message “Car
protection system not available”, repeat
the operation using the moving the steer-
ing wheel to facilitate steering column un-
locking. Displaying of the warning mes-
sage will not impair steering column lock
regular operation.

22
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
FUEL GAUGE fig. 15
The pointer shows the amount of fuel
left in the tank.
0- tank empty.
1- tank full (see the indications given
in paragraph “At the filling station").
The fuel gauge warning light turns on to
indicate that approx. 10 litres of fuel are
left in the tank. When range falls below
50 km (or 31 mi) the display will show
a dedicated warning message.
If warning light
Kstarts
flashing when travel-
ling, contact Alfa Romeo
Authorized Services.
A0F00177mfig. 15
INSTRUMENTS
REV. COUNTER
Rev counter shows engine rpm. The dan-
ger zone (red) indicates excessive high
engine revs. Do not drive for long peri-
ods with the pointer in this area.
IMPORTANTThe electronic injection
control system gradually shuts off the
flow of fuel when the engine is “over-
revving” (rev counter pointer in red
area) resulting in a gradual loss of en-
gine power, in order to bring back rpm
below the safety limit.The rev counter may, when the engine is
idling, indicate gradual or sudden increase
of engine revs as the case may be; such
behaviour is normal and must not be in-
terpreted as a faulty condition as it occurs
during normal operation, for instance when
climate control or electric fan are switched
on. In particular, slow revs variation helps
keep the battery charged.

23
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

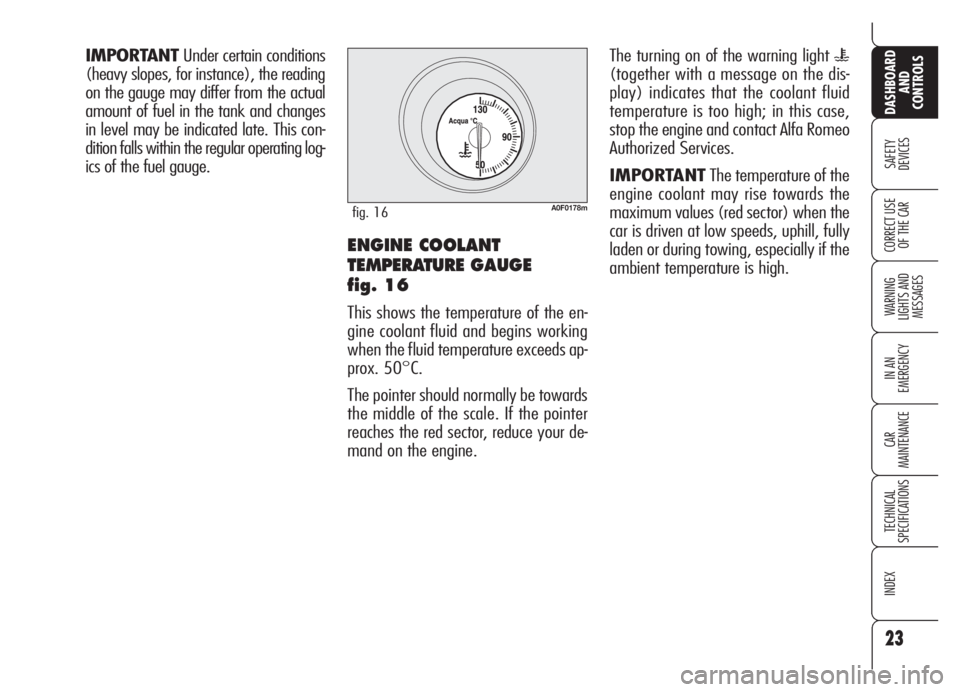

IMPORTANTUnder certain conditions
(heavy slopes, for instance), the reading
on the gauge may differ from the actual
amount of fuel in the tank and changes
in level may be indicated late. This con-
dition falls within the regular operating log-
ics of the fuel gauge.The turning on of the warning light u
(together with a message on the dis-
play) indicates that the coolant fluid
temperature is too high; in this case,
stop the engine and contact Alfa Romeo
Authorized Services.
IMPORTANTThe temperature of the
engine coolant may rise towards the
maximum values (red sector) when the
car is driven at low speeds, uphill, fully
laden or during towing, especially if the
ambient temperature is high.
A0F0178mfig. 16
ENGINE COOLANT
TEMPERATURE GAUGE
fig. 16
This shows the temperature of the en-
gine coolant fluid and begins working
when the fluid temperature exceeds ap-
prox. 50°C.
The pointer should normally be towards
the middle of the scale. If the pointer
reaches the red sector, reduce your de-
mand on the engine.

24
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARENGINE OIL TEMPERATURE
GAUGE
(petrol versions) fig. 17
This shows the temperature of the en-
gine oil and begins working when the
oil temperature exceeds approx. 70°C.
If the pointer reaches the red sector, re-
duce your demand on the engine.
A0F0179mfig. 17
The turning on of the warning light `
when travelling (together with a mes-
sage on the display) indicates that the
oil temperature is too high; in this case,
stop the engine and contact Alfa Romeo
Authorized Services.
IMPORTANTThe temperature of the
engine oil may rise towards the maxi-
mum values (red sector) when the car
is driven at low speeds, uphill, fully
laden or during towing, especially if the
ambient temperature is high.
A0F0180mfig. 18
TURBOCHARGER PRESSURE
GAUGE (diesel versions)
fig. 18
This shows the turbocharger pressure
value.
