CAPACITIES
2.4 JTDM
70❍10❍
7.35
6.4
❑
2.8
6.0
2.2 JTS
70●10●
8.15
5.4
■
2.3
6.0
3.2 JTS
70●10●
10.3
5.4
■
2.8
6.0
Fuel tank: litres
– including a reserve of litres
Engine cooling systemlitres
Lubrication system
engine litres
Mechanical gearbox/
differential litres
Windscreen washer fluid reservoir
with headlight washer litres
Specified fuelsand original lubricants
●Unleaded petrol with no less than
95 R.O.N. (Specifica EN228)
❍Diesel fuel for motor vehicles
(EN590 Specification)
Mixture of 50% water and
PARAFLU UP (
❑)
■SELENIA StAR
❑SELENIA WR
TUTELA CAR MATRYX
Mixture of water and
TUTELA PROFESSIONAL SC 35
(
❑)For particularly hard climate conditions, we recommend use of a 60% PARAFLU UP and 40% demineralized water mixture.

251
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-H2qualification
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-N2qualificationSELENIA StAR
SELENIA WRAccording to
Service Schedule
According to
Service Schedule
For regular operation of Multijet versions with DPF, use only original oil. In an emergency (lacking the original product) only top up with
max. 0,5 l and then drive immediately to the nearest Alfa Romeo Authorized Service.
If using non original SAE 5W-40 products, oils with minimum ACEA A3 specifications for petrol engines and ACEA B4 specifications for
Diesel engines are admitted; in this event top engine performance is not guaranteed.
Use of products with low-quality properties than ACEA A3 and ACEA B4 could cause damages to the engine that are not covered by the
warranty. For very cold climate conditions, ask Alfa Romeo Authorized Service for the appropriate Seleniaproduct to use.

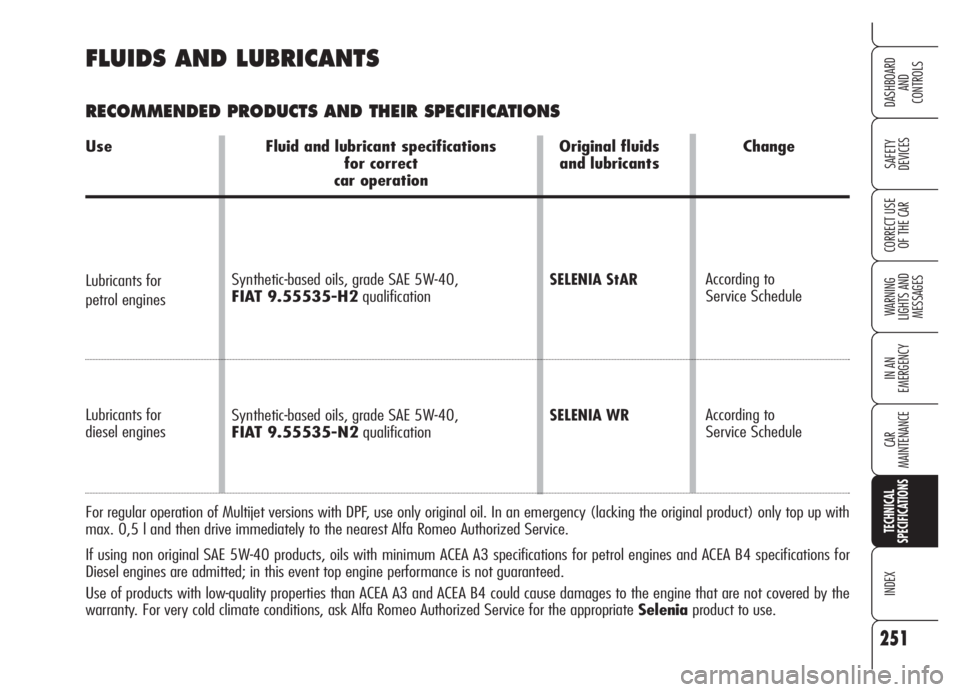

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Fluid and lubricant specifications Original fluids Change
for correct and lubricants
car operation
Lubricants for
petrol engines
Lubricants for
diesel engines

252
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Synthetic-based oil, grade SAE 75W-85
that passes API GL 4 specifications
Synthetic-based oil, grade SAE 75W-90 that passes
API GL-5 specifications
Lubricant for hydrostatic transmissions that passes
“ATF DEXRON III” specification
Grease containing Molybdenum bisulphide for high temperature
appliances. N.L.G.I. 1-2 consistency.
Specifc grease to be used for constant-velocity joints with low
friction coefficient. N.L.G.I. 0-1 consistency.
Synthetic fluid FMVSS no. 116, DOT 4, ISO 4925, SAE J-1704
CUNA NC 956-01
Protective with antifreeze action, red colour based on inhibited
monoethylen glycol and organic formula,
that passes CUNA NC 956-16, ASTM D 3306 specifications
Additive for diesel fuels with protective action for Diesel engines
Mixture of alcohol, water and surfactants CUNA NC 956-11TUTELA CAR
MATRYX
TUTELA CAR
MULTIAXLE
TUTELA GI/E
TUTELA ALL STAR
TUTELA STAR 700
TUTELA TOP 4
PARAFLU UP
TUTELA
DIESEL ART
TUTELA
PROFESSIONAL
SC 35Mechanical gearbox and
differential
Rear differential and
transmission unit
(3.2 JTS version)
Power steering
CV joints
on wheel side
CV joints
on differential side
Hydraulic brake and
clutch controls
Cooling circuits
Proportion:
50% water and
50% PARAFLU UP
(❑)
To be used diluted or
undiluted
To be used diluted
or undiluted Brake fluid
Windscreen/
headlight washer
fluid

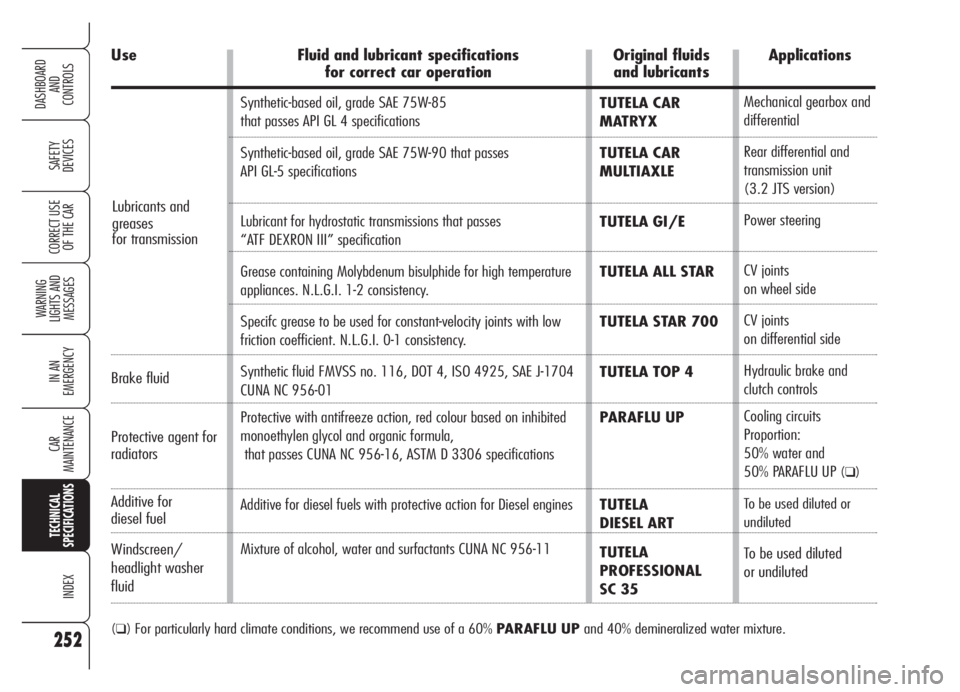

Use Fluid and lubricant specifications Original fluids Applications
for correct car operation and lubricants
Protective agent for
radiatorsLubricants and
greases
for transmission
(❑)For particularly hard climate conditions, we recommend use of a 60% PARAFLU UP and 40% demineralized water mixture.
Additive for
diesel fuel

253
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
–extra-urban cycle: frequent ac-
celerating in all gears, simulating ex-
traurban use of the car; the speed varies
between 0 and 120 km/h;
–combined consumption: is cal-
culated weighing about 37% of urban
cycle consumption and about 63% of
extraurban consumption.IMPORTANT The type of route,
traffic situations, weather condi-
tions, driving style, general con-
ditions of the car, trim level/
equipment/accessories, load, cli-
mate control system, roof rack,
other situations that affect air
drag may lead to different fuel
consumption levels than those

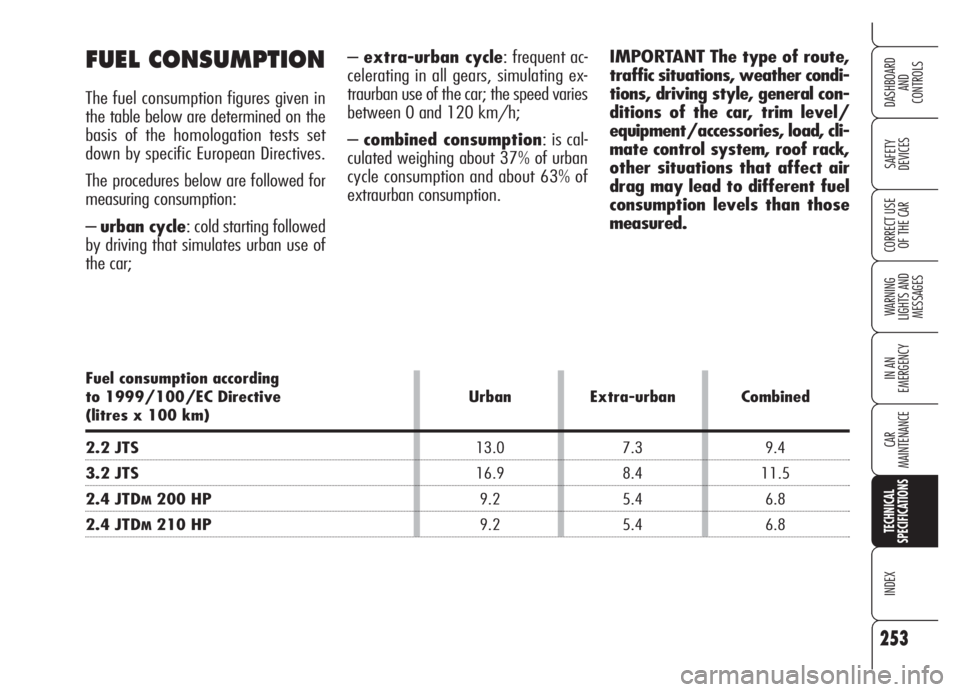

measured.FUEL CONSUMPTION
The fuel consumption figures given in
the table below are determined on the
basis of the homologation tests set
down by specific European Directives.
The procedures below are followed for
measuring consumption:
–urban cycle: cold starting followed
by driving that simulates urban use of
the car;
Fuel consumption according
to 1999/100/EC Directive Urban Extra-urban Combined
(litres x 100 km)
2.2 JTS13.0 7.3 9.4
3.2 JTS 16.9 8.4 11.5
2.4 JTDM200 HP9.2 5.4 6.8
2.4 JTDM210 HP9.2 5.4 6.8

254
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

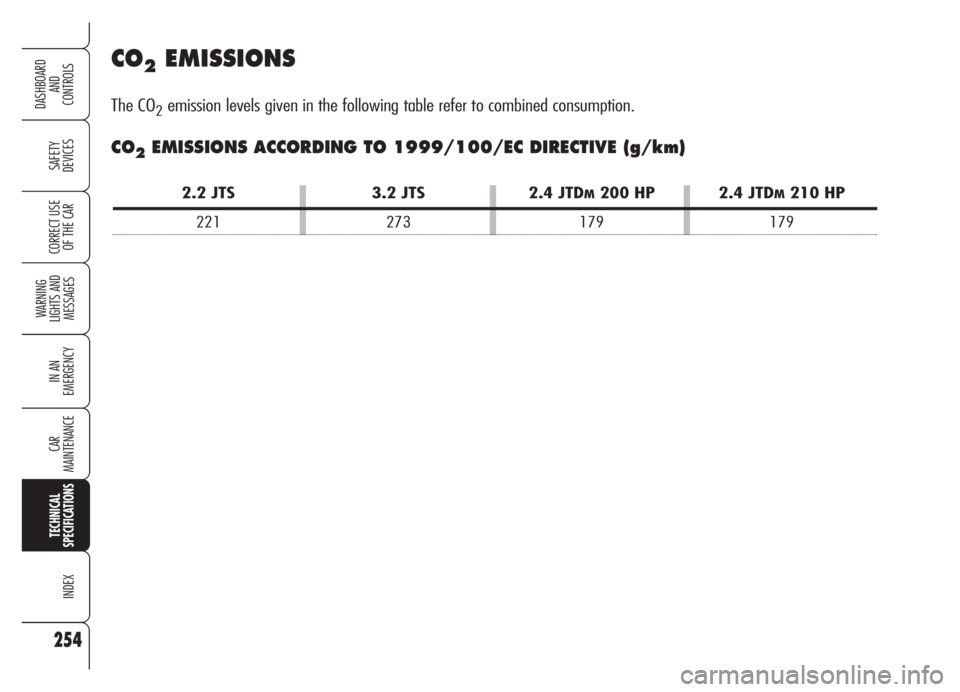

CO2EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
CO2EMISSIONS ACCORDING TO 1999/100/EC DIRECTIVE (g/km)
2.2 JTS 3.2 JTS 2.4 JTDM200 HP 2.4 JTDM210 HP
221 273 179 179
