Alfa Romeo Brera/Spider 2009 Owner handbook (in English)

89
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

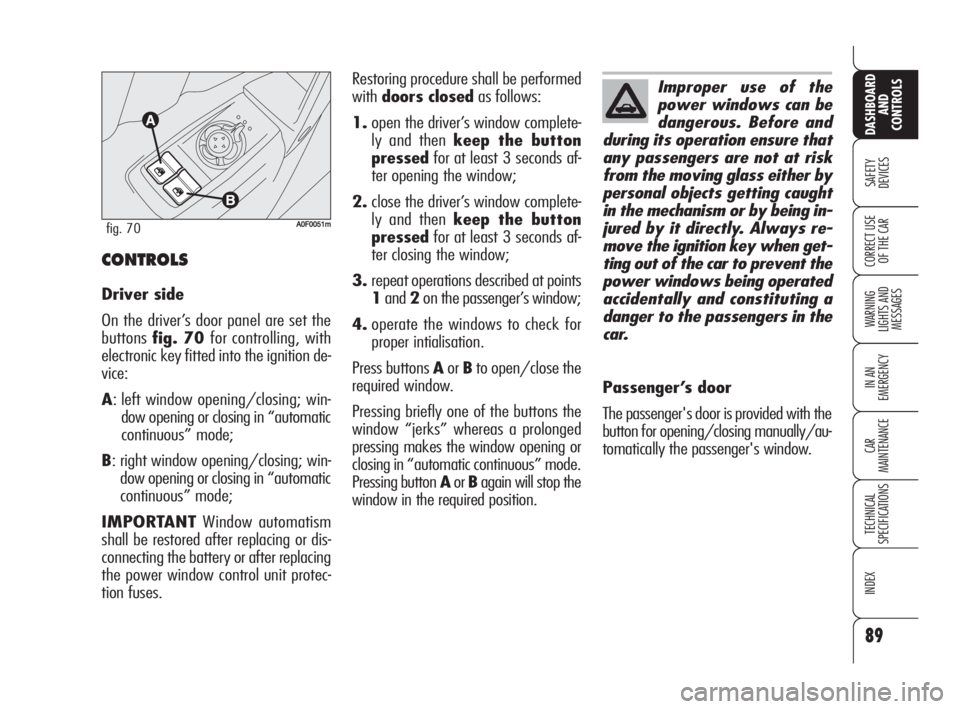

A0F0051mfig. 70
CONTROLS
Driver side
On the driver’s door panel are set the
buttonsfig. 70 for controlling, with
electronic key fitted into the ignition de-
vice:
A: left window opening/closing; win-
dow opening or closing in “automatic
continuous” mode;
B: right window opening/closing; win-
dow opening or closing in “automatic
continuous” mode;
IMPORTANTWindow automatism
shall be restored after replacing or dis-
connecting the battery or after replacing
the power window control unit protec-
tion fuses. Restoring procedure shall be performed
withdoors closedas follows:
1.open the driver’s window complete-
ly and then keep the button
pressedfor at least 3 seconds af-
ter opening the window;
2.close the driver’s window complete-
ly and then keep the button
pressedfor at least 3 seconds af-
ter closing the window;
3.repeat operations described at points
1and2on the passenger’s window;
4.operate the windows to check for
proper intialisation.
Press buttons AorBto open/close the
required window.
Pressing briefly one of the buttons the
window “jerks” whereas a prolonged
pressing makes the window opening or
closing in “automatic continuous” mode.
Pressing button AorBagain will stop the
window in the required position.
Improper use of the
power windows can be
dangerous. Before and
during its operation ensure that
any passengers are not at risk
from the moving glass either by
personal objects getting caught
in the mechanism or by being in-
jured by it directly. Always re-
move the ignition key when get-
ting out of the car to prevent the
power windows being operated
accidentally and constituting a
danger to the passengers in the
car.
Passenger’s door
The passenger's door is provided with the
button for opening/closing manually/au-
tomatically the passenger's window.
080-114 Alfa BRERA gb 28-08-2008 11:05 Pagina 89

90
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Tailgate raising is facilitated by the side
gas shock springs.
Opening the boot its internal light will
turn on and it will go off automatically
when re-closing the tailgate. Leaving the
tailgate inadvertently open, the light will
turn off automatically after a few min-

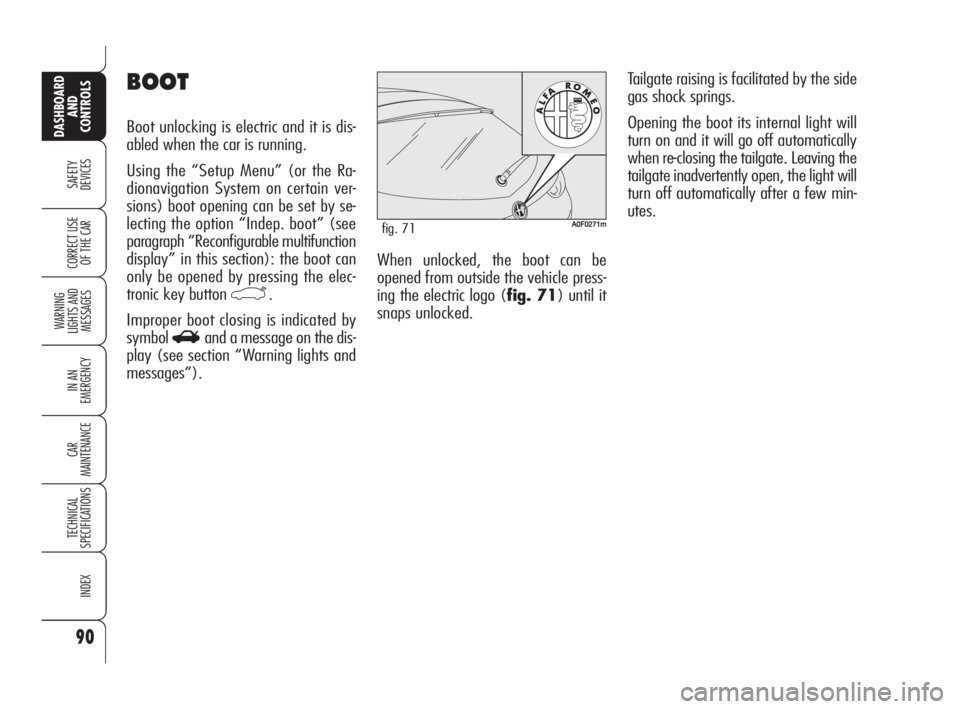

utes.BOOT
Boot unlocking is electric and it is dis-
abled when the car is running.
Using the “Setup Menu” (or the Ra-
dionavigation System on certain ver-
sions) boot opening can be set by se-
lecting the option “Indep. boot” (see
paragraph “Reconfigurable multifunction
display” in this section): the boot can
only be opened by pressing the elec-
tronic key button
`.
Improper boot closing is indicated by
symbol
Rand a message on the dis-
play (see section “Warning lights and
messages”).
A0F0271mfig. 71
When unlocked, the boot can be
opened from outside the vehicle press-
ing the electric logo (fig. 71) until it
snaps unlocked.
080-114 Alfa BRERA gb 28-08-2008 11:05 Pagina 90

91
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

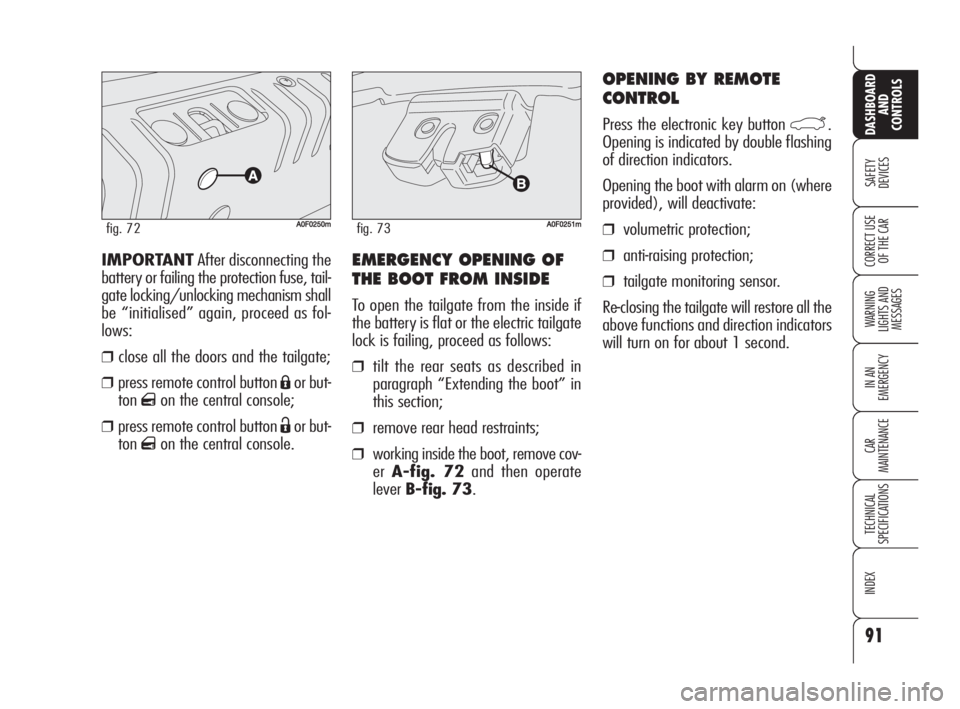

OF THE CAREMERGENCY OPENING OF
THE BOOT FROM INSIDE
To open the tailgate from the inside if
the battery is flat or the electric tailgate
lock is failing, proceed as follows:
❒tilt the rear seats as described in
paragraph “Extending the boot” in
this section;
❒remove rear head restraints;
❒working inside the boot, remove cov-
erA-fig. 72and then operate
leverB-fig. 73. IMPORTANTAfter disconnecting the
battery or failing the protection fuse, tail-
gate locking/unlocking mechanism shall
be “initialised” again, proceed as fol-
lows:
❒close all the doors and the tailgate;
❒press remote control button Áor but-
ton
qon the central console;
❒press remote control button Ëor but-
ton
qon the central console.
A0F0250mfig. 72
OPENING BY REMOTE
CONTROL
Press the electronic key button `.
Opening is indicated by double flashing
of direction indicators.
Opening the boot with alarm on (where
provided), will deactivate:
❒volumetric protection;
❒anti-raising protection;
❒tailgate monitoring sensor.
Re-closing the tailgate will restore all the
above functions and direction indicators
will turn on for about 1 second.
A0F0251mfig. 73
080-114 Alfa BRERA gb 28-08-2008 11:05 Pagina 91

92
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

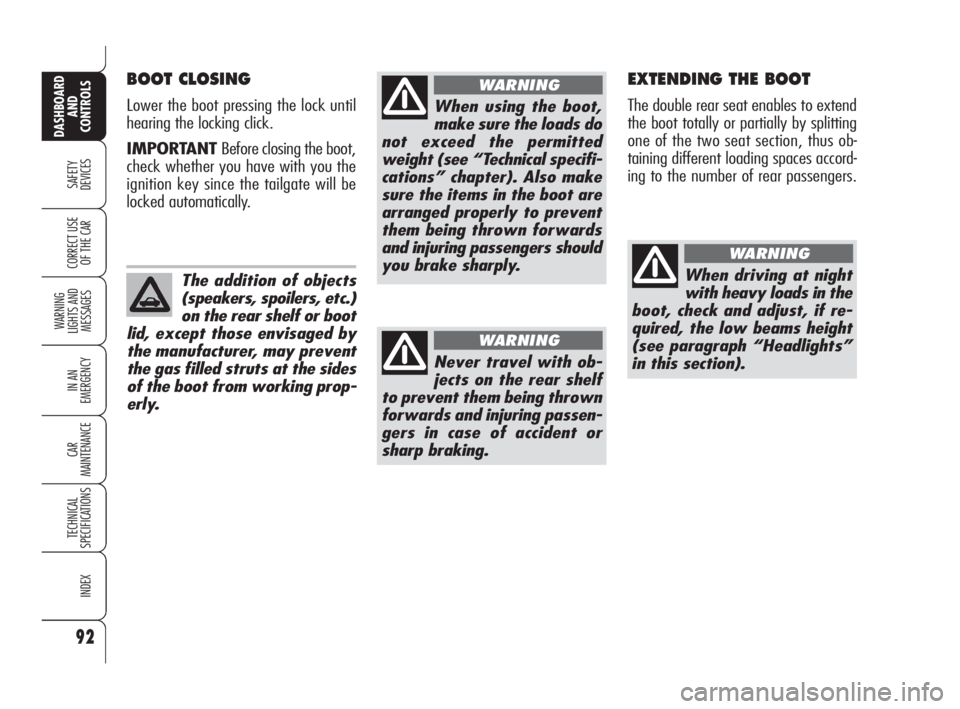

BOOT CLOSING
Lower the boot pressing the lock until
hearing the locking click.
IMPORTANT Before closing the boot,
check whether you have with you the
ignition key since the tailgate will be
locked automatically.
The addition of objects
(speakers, spoilers, etc.)
on the rear shelf or boot
lid, except those envisaged by
the manufacturer, may prevent
the gas filled struts at the sides
of the boot from working prop-
erly.
When using the boot,
make sure the loads do
not exceed the permitted
weight (see “Technical specifi-
cations” chapter). Also make
sure the items in the boot are
arranged properly to prevent
them being thrown forwards
and injuring passengers should
you brake sharply.
WARNING
Never travel with ob-
jects on the rear shelf
to prevent them being thrown
forwards and injuring passen-
gers in case of accident or
sharp braking.
WARNING
EXTENDING THE BOOT
The double rear seat enables to extend
the boot totally or partially by splitting
one of the two seat section, thus ob-
taining different loading spaces accord-
ing to the number of rear passengers.
When driving at night
with heavy loads in the
boot, check and adjust, if re-
quired, the low beams height
(see paragraph “Headlights”
in this section).
WARNING
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 92

93
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

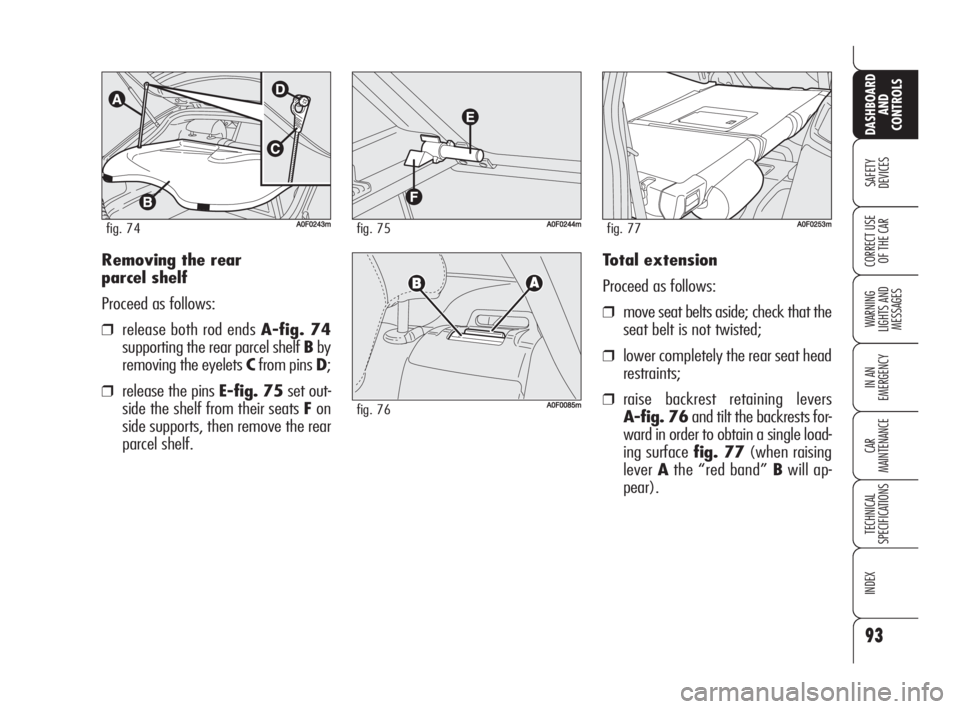

OF THE CARTotal extension
Proceed as follows:
❒move seat belts aside; check that the
seat belt is not twisted;
❒lower completely the rear seat head
restraints;
❒raise backrest retaining levers
A-fig. 76and tilt the backrests for-
ward in order to obtain a single load-
ing surface fig. 77(when raising
leverAthe “red band” Bwill ap-
pear). Removing the rear
parcel shelf
Proceed as follows:
❒release both rod ends A-fig. 74
supporting the rear parcel shelf Bby
removing the eyelets Cfrom pins D;
❒release the pins E-fig. 75set out-
side the shelf from their seats Fon
side supports, then remove the rear
parcel shelf.
A0F0243mfig. 74A0F0244mfig. 75
A0F0085mfig. 76
A0F0253mfig. 77
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 93

94
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

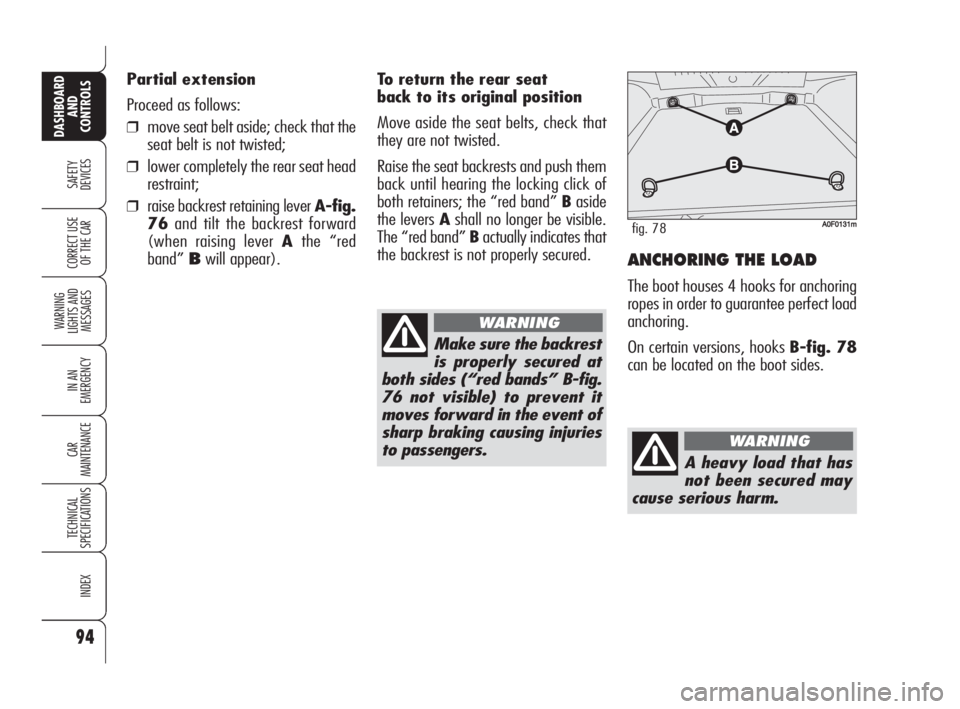

Partial extension
Proceed as follows:
❒move seat belt aside; check that the
seat belt is not twisted;
❒lower completely the rear seat head
restraint;
❒raise backrest retaining lever A-fig.
76and tilt the backrest forward
(when raising lever Athe “red
band”Bwill appear).
Make sure the backrest
is properly secured at
both sides (“red bands” B-fig.
76 not visible) to prevent it
moves forward in the event of
sharp braking causing injuries
to passengers.
WARNING
ANCHORING THE LOAD
The boot houses 4 hooks for anchoring
ropes in order to guarantee perfect load
anchoring.
On certain versions, hooks B-fig. 78
can be located on the boot sides.
A0F0131mfig. 78
A heavy load that has
not been secured may
cause serious harm.
WARNING
To return the rear seat
back to its original position
Move aside the seat belts, check that
they are not twisted.
Raise the seat backrests and push them
back until hearing the locking click of
both retainers; the “red band” Baside
the levers Ashall no longer be visible.
The “red band” Bactually indicates that
the backrest is not properly secured.
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 94

95
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
If you want to carry
reserve fuel in a can,
follow law regulations, only
using a certified can, suitably
fastened to the load securing
eyelets. Even in this way the
risk of fire is increased in the
case of an accident.
WARNING

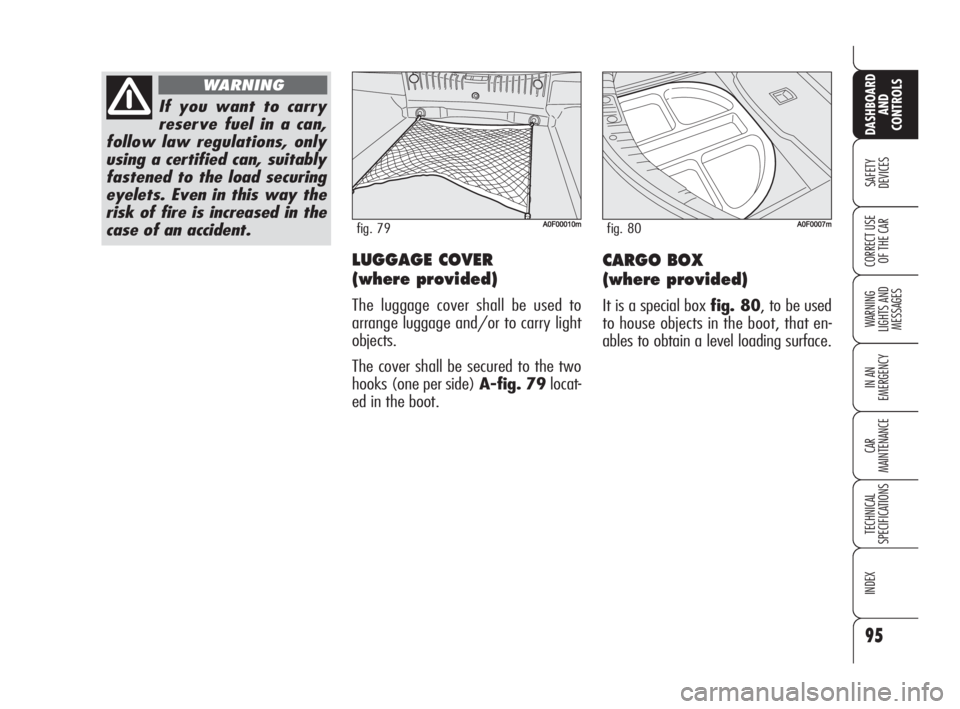

LUGGAGE COVER
(where provided)
The luggage cover shall be used to
arrange luggage and/or to carry light
objects.
The cover shall be secured to the two
hooks (one per side) A-fig. 79locat-
ed in the boot.
A0F00010mfig. 79
CARGO BOX
(where provided)
It is a special box fig. 80, to be used
to house objects in the boot, that en-
ables to obtain a level loading surface.
A0F0007mfig. 80
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 95

96
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
BONNET
TO OPEN THE BONNET
Proceed as follows:
❒pull lever A-fig. 81until hearing
the releasing click;
❒keep the lever B-fig. 82 pulled
and raise the bonnet
IMPORTANT Bonnet raising is aid-
ed by two gas springs. Do not tamper
with these springs and guide the bonnet
while raising it.
IMPORTANT Before opening the bon-
net, check that windscreen wiper arms
are not lifted from the windscreen or the
wiper is working.A0F0122mfig. 81
A0F0158mfig. 82
Improper bonnet closing is indicated by
symbol
Sand a message on the dis-
play (see section “Warning lights and
messages”).
IMPORTANTAlways check that the
bonnet is closed properly to avoid its
opening while the car is travelling.
Carry out operations
only when the car is
stationary.
WARNING
For safety reasons the
bonnet must be closed
properly to avoid its opening
while the car is travelling.
Therefore, always check it is
properly closed and the catch
engaged. Should you notice
that the catch is not perfectly
engaged when travelling, stop
the car immediately and close
the bonnet.
WARNING
TO CLOSE THE BONNET
Lower the bonnet at approx. 20 cen-
timetres from the engine compartment
and then let it drop, ensuring that it is
fully closed and not just held in position
by the safety catch. If the bonnet does
not close properly, do not push it down
but open it again and repeat the above
procedure.
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 96

97
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

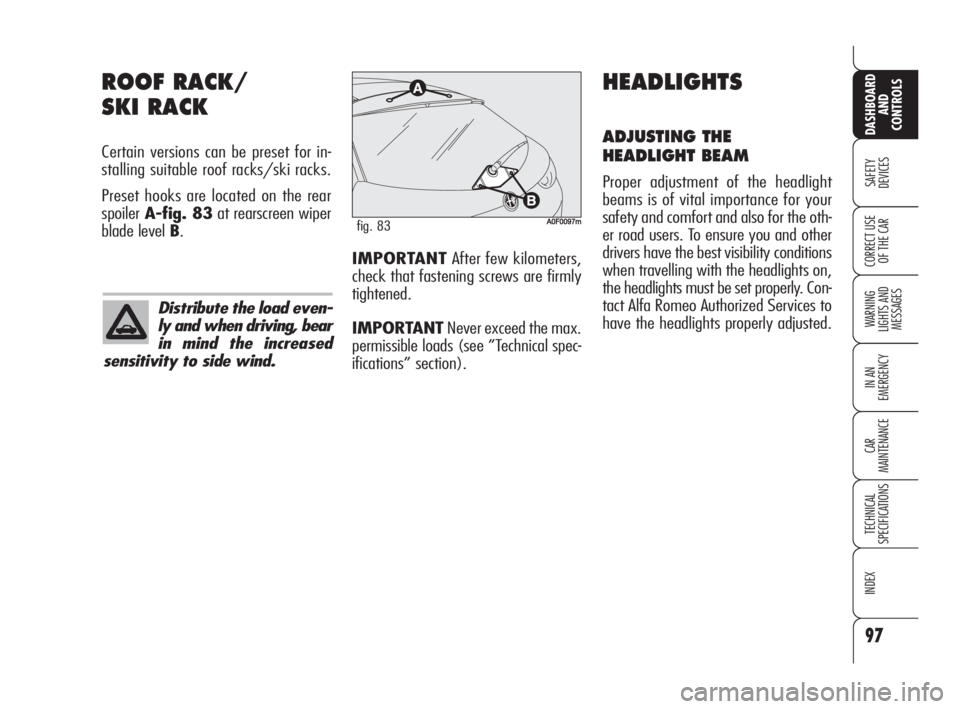

ROOF RACK/
SKI RACK
Certain versions can be preset for in-
stalling suitable roof racks/ski racks.
Preset hooks are located on the rear
spoilerA-fig. 83at rearscreen wiper
blade level B.
A0F0097mfig. 83
HEADLIGHTS
ADJUSTING THE
HEADLIGHT BEAM
Proper adjustment of the headlight
beams is of vital importance for your
safety and comfort and also for the oth-
er road users. To ensure you and other
drivers have the best visibility conditions
when travelling with the headlights on,
the headlights must be set properly. Con-
tact Alfa Romeo Authorized Services to
have the headlights properly adjusted.
Distribute the load even-
ly and when driving, bear
in mind the increased
sensitivity to side wind.
IMPORTANTAfter few kilometers,
check that fastening screws are firmly
tightened.
IMPORTANTNever exceed the max.
permissible loads (see ”Technical spec-
ifications” section).
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 97

98
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

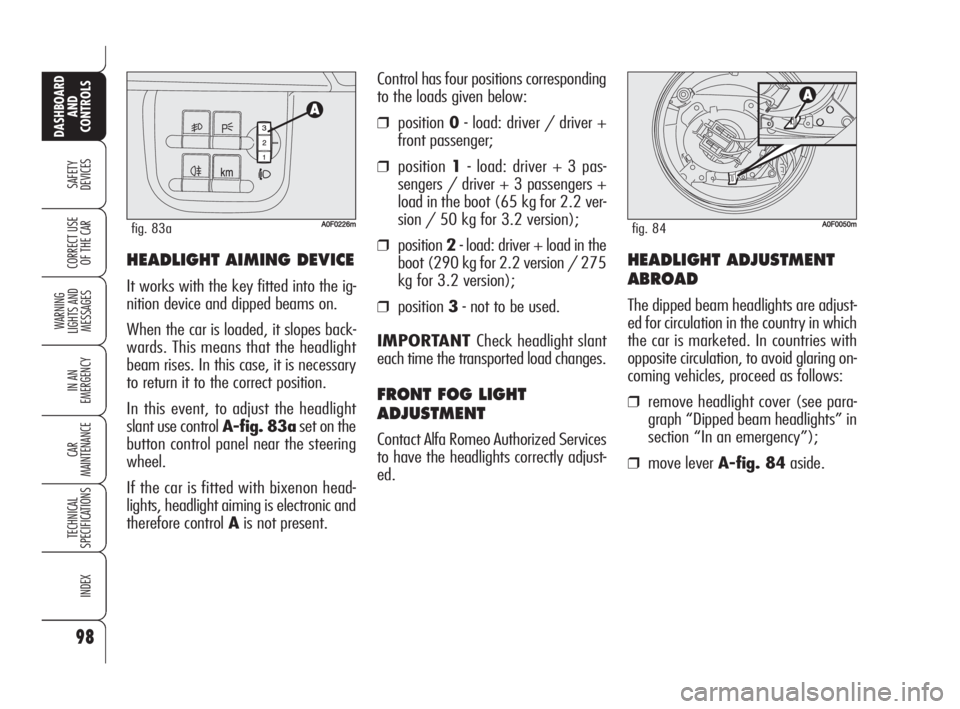

OF THE CARHEADLIGHT AIMING DEVICE
It works with the key fitted into the ig-
nition device and dipped beams on.
When the car is loaded, it slopes back-
wards. This means that the headlight
beam rises. In this case, it is necessary
to return it to the correct position.
In this event, to adjust the headlight
slant use control A-fig. 83aset on the
button control panel near the steering
wheel.
If the car is fitted with bixenon head-
lights, headlight aiming is electronic and
therefore control Ais not present.Control has four positions corresponding
to the loads given below:
❒position0- load: driver / driver +
front passenger;
❒position1- load: driver + 3 pas-
sengers / driver + 3 passengers +
load in the boot (65 kg for 2.2 ver-
sion / 50 kg for 3.2 version);
❒position2- load: driver + load in the
boot (290 kg for 2.2 version / 275
kg for 3.2 version);
❒position3- not to be used.
IMPORTANT Check headlight slant
each time the transported load changes.
FRONT FOG LIGHT
ADJUSTMENT
Contact Alfa Romeo Authorized Services
to have the headlights correctly adjust-
ed.
A0F0226mfig. 83a
HEADLIGHT ADJUSTMENT
ABROAD
The dipped beam headlights are adjust-
ed for circulation in the country in which
the car is marketed. In countries with
opposite circulation, to avoid glaring on-
coming vehicles, proceed as follows:
❒remove headlight cover (see para-
graph “Dipped beam headlights” in
section “In an emergency”);
❒move lever A-fig. 84aside.
A0F0050mfig. 84
080-114 Alfa BRERA gb 28-08-2008 11:06 Pagina 98
