CORRECT USE
OF THE CAR
THE ALFA ROMEO
CODE SYSTEM

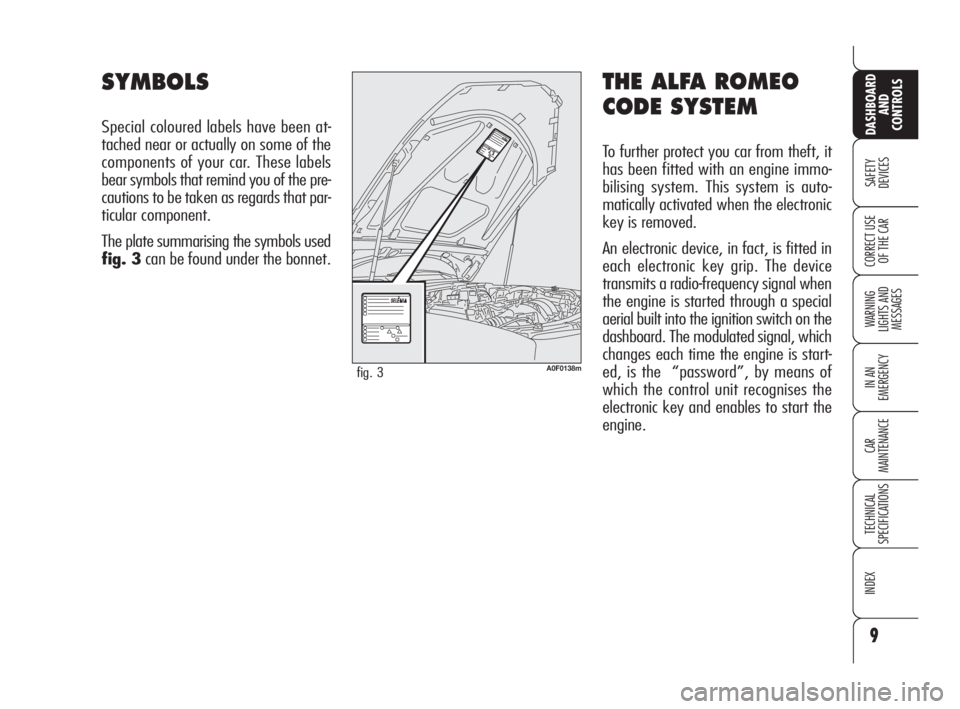

To further protect you car from theft, it
has been fitted with an engine immo-
bilising system. This system is auto-
matically activated when the electronic
key is removed.
An electronic device, in fact, is fitted in
each electronic key grip. The device
transmits a radio-frequency signal when
the engine is started through a special
aerial built into the ignition switch on the
dashboard. The modulated signal, which
changes each time the engine is start-
ed, is the “password”, by means of
which the control unit recognises the
electronic key and enables to start the
engine.
SYMBOLS
Special coloured labels have been at-
tached near or actually on some of the
components of your car. These labels
bear symbols that remind you of the pre-
cautions to be taken as regards that par-
ticular component.
The plate summarising the symbols used
fig. 3can be found under the bonnet.
A0F0138mfig. 3
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 9
Page 12 of 271
10
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Message + symbol Y
displaying when driving
If message + symbol
Yare displayed
this means that the system is running
a self-test (for example for a voltage
drop).
If message + symbol
Ycontinue to
stay on the display, contact Alfa Romeo
Authorized Services.
IMPORTANTEvery electronic key has
its own code, which must be memorised
by the system control unit. To memorise
new keys, up to a maximum of eight,
apply solely to Alfa Romeo Authorized
Services taking with you all the keys in
your possession, the CODE card, a per-
sonal identity document and the car’s
possession documents. The codes of the
keys not provided during the new mem-
orising procedure are erased from the
memory. This is to ensure that any lost
or stolen keys can no longer be used
to start the car.

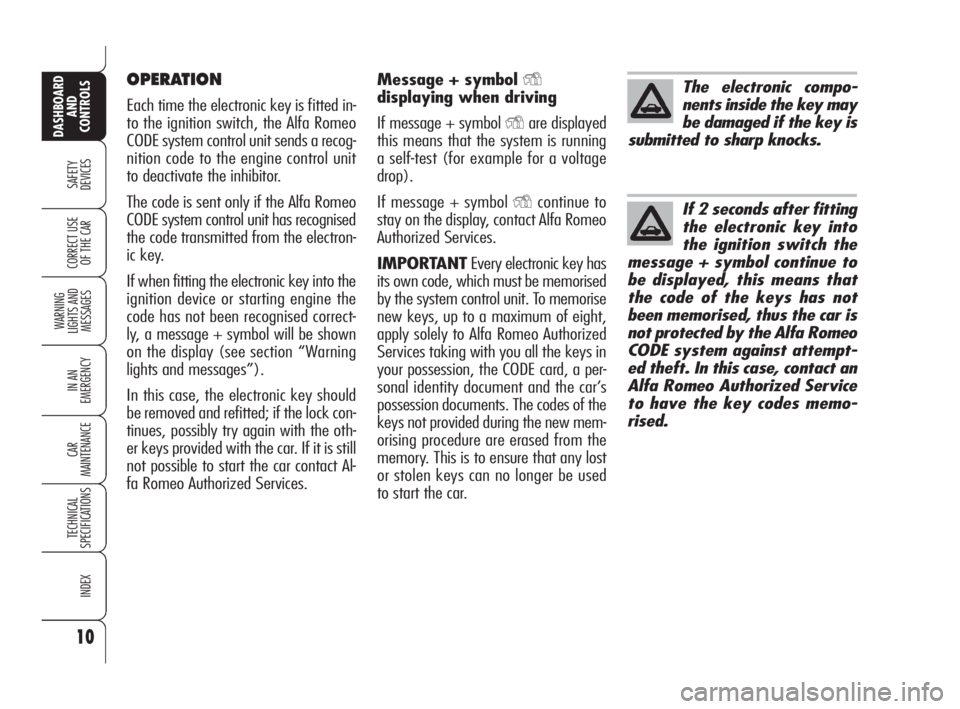

OPERATION
Each time the electronic key is fitted in-
to the ignition switch, the Alfa Romeo
CODE system control unit sends a recog-
nition code to the engine control unit
to deactivate the inhibitor.
The code is sent only if the Alfa Romeo
CODE system control unit has recognised
the code transmitted from the electron-
ic key.
If when fitting the electronic key into the
ignition device or starting engine the
code has not been recognised correct-
ly, a message + symbol will be shown
on the display (see section “Warning
lights and messages”).
In this case, the electronic key should
be removed and refitted; if the lock con-
tinues, possibly try again with the oth-
er keys provided with the car. If it is still
not possible to start the car contact Al-
fa Romeo Authorized Services.
The electronic compo-
nents inside the key may
be damaged if the key is
submitted to sharp knocks.
If 2 seconds after fitting
the electronic key into
the ignition switch the
message + symbol continue to
be displayed, this means that
the code of the keys has not
been memorised, thus the car is
not protected by the Alfa Romeo
CODE system against attempt-
ed theft. In this case, contact an
Alfa Romeo Authorized Service
to have the key codes memo-
rised.
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 10
Page 13 of 271
11
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARButtonËshall be used for central open-
ing of doors and fuel cap with alarm de-
activation (where provided).
Button
`shall be used to open the
tailgate.
When unlocking the doors by pressing
button
Ë, if by 2.5 minutes no door or
the boot is opened, the system will au-
tomatically lock the car again.
When unlocking the doors, the driver's
window will slightly open to facilitate
door opening. If the door is not opened,
the window will re-close automatically
3 minutes after. If the door is opened,
the window will re-close when re-closing
the door.

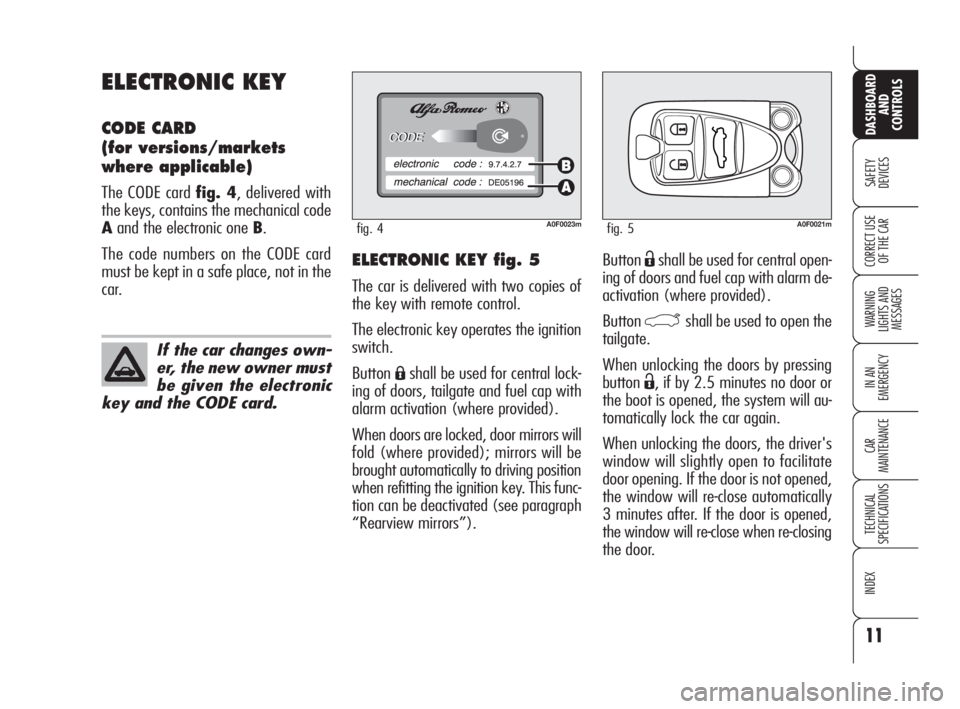

ELECTRONIC KEY fig. 5
The car is delivered with two copies of
the key with remote control.
The electronic key operates the ignition
switch.
Button
Áshall be used for central lock-
ing of doors, tailgate and fuel cap with
alarm activation (where provided).
When doors are locked, door mirrors will
fold (where provided); mirrors will be
brought automatically to driving position
when refitting the ignition key. This func-
tion can be deactivated (see paragraph
“Rearview mirrors”).
ELECTRONIC KEY
CODE CARD
(for versions/markets
where applicable)
The CODE card fig. 4, delivered with
the keys, contains the mechanical code
Aand the electronic one B.
The code numbers on the CODE card
must be kept in a safe place, not in the
car.
A0F0023mfig. 4A0F0021mfig. 5
If the car changes own-
er, the new owner must
be given the electronic
key and the CODE card.
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 11
Page 14 of 271
12
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARReplacing the battery of the
electronic key
If when pressing button
Ë,Á, or `,
control given is refused or failing, the
battery should be replaced with an
equivalent one that can be purchased at
common stores.
To be sure that the battery is to be re-
placed, try again to press buttons
Ë,
Á, or `with another electronic key.
When closing the tailgate again, pro-
tection sensors are restored and direc-
tion indicators will flash once. IMPORTANT Never expose the elec-
tronic key to direct sunlight: risk of dam-
ages.
IMPORTANTRemote control fre-
quency may be disturbed by radio trans-
missions outside the car (e.g. mobile
phones, hams, etc…). In this event re-
mote control may be failing.
The electronic key fig. 6 is fitted with
a metal insert A, that can be extracted
by pressing button B.
The metal insert operates the following:
❒central door locking/unlocking by
operating the driver’s door lock (with
flat car battery only the driver’s door
will open);
❒windows opening/closing;
❒switch (where provided) for deacti-
vating the passenger’s air bag and
knees air bag (where provided);
❒safe-lock device (where provided);
❒emergency unlocking of electronic
key from ignition switch.
A0F0022mfig. 6
Never leave the elec-
tronic key unattended
to prevent anyone, especially
children, from holding it and
pressing button B-fig. 6 inad-
vertently.
WARNING
A0F0021mfig. 7
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 12
Page 15 of 271
13
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

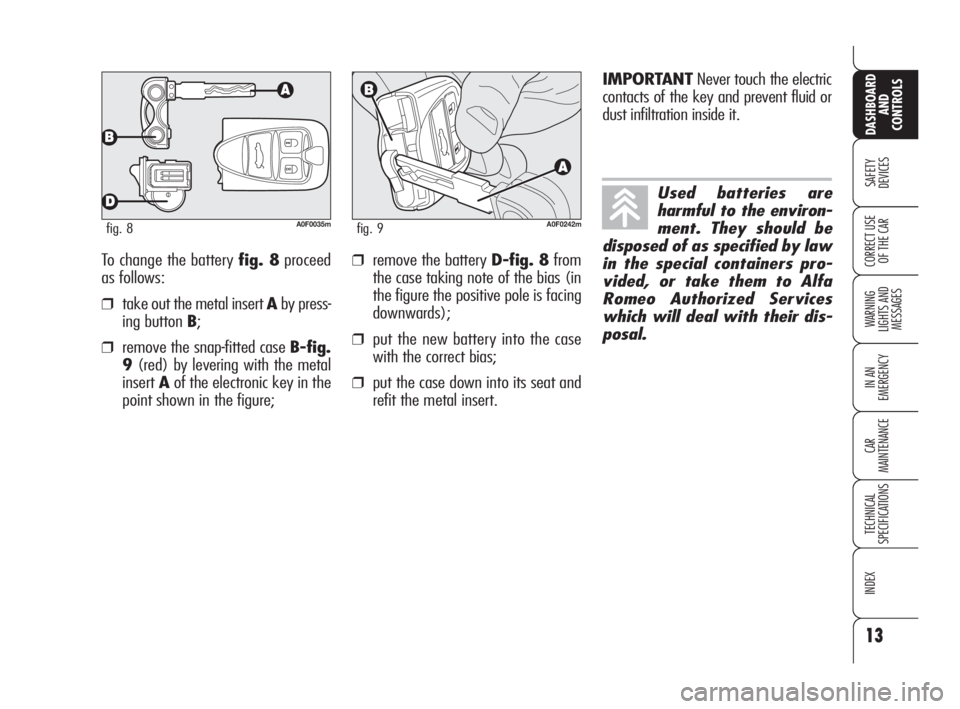

OF THE CARTo change the battery fig. 8proceed
as follows:
❒take out the metal insert Aby press-
ing button B;
❒remove the snap-fitted case B-fig.
9(red) by levering with the metal
insert Aof the electronic key in the
point shown in the figure;
❒remove the battery D-fig. 8from
the case taking note of the bias (in
the figure the positive pole is facing
downwards);
❒put the new battery into the case
with the correct bias;
❒put the case down into its seat and
refit the metal insert.
A0F0035mfig. 8A0F0242mfig. 9
Used batteries are
harmful to the environ-
ment. They should be
disposed of as specified by law
in the special containers pro-
vided, or take them to Alfa
Romeo Authorized Services
which will deal with their dis-
posal.
IMPORTANTNever touch the electric
contacts of the key and prevent fluid or
dust infiltration inside it.
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 13
Page 16 of 271
14
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

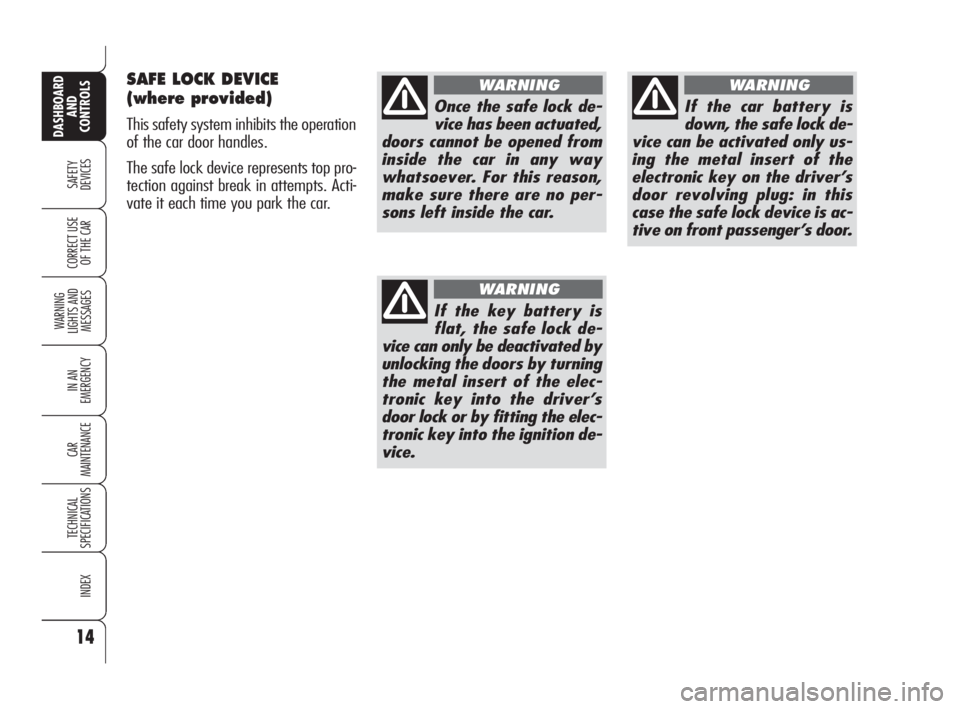

SAFE LOCK DEVICE
(where provided)
This safety system inhibits the operation
of the car door handles.
The safe lock device represents top pro-
tection against break in attempts. Acti-
vate it each time you park the car.
Once the safe lock de-
vice has been actuated,
doors cannot be opened from
inside the car in any way
whatsoever. For this reason,
make sure there are no per-
sons left inside the car.
WARNING
If the key battery is
flat, the safe lock de-
vice can only be deactivated by
unlocking the doors by turning
the metal insert of the elec-
tronic key into the driver’s
door lock or by fitting the elec-
tronic key into the ignition de-
vice.
WARNING
If the car battery is
down, the safe lock de-
vice can be activated only us-
ing the metal insert of the
electronic key on the driver’s
door revolving plug: in this
case the safe lock device is ac-
tive on front passenger’s door.
WARNING
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 14
Page 17 of 271
15
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Device deactivation
The device is deactivated automatically
on every door in the following cases:
❒when unlocking the doors ;
❒when unlocking only the driver’s
door (where possible);
❒when fitting the electronic key into
the ignition switch. Device activation is signalled by three
flashes of the led on the driver’s door
panel and, only if activated by pressing
the electronic key button
Á, of direction
indicators.
Should one of the doors be not perfect-
ly closed, the safe lock device is not ac-
tivated, thus preventing that a person
getting into the car from the open door
remains blocked inside the passenger’s
compartment when he/she closes the
door.
A0F0021mfig. 10

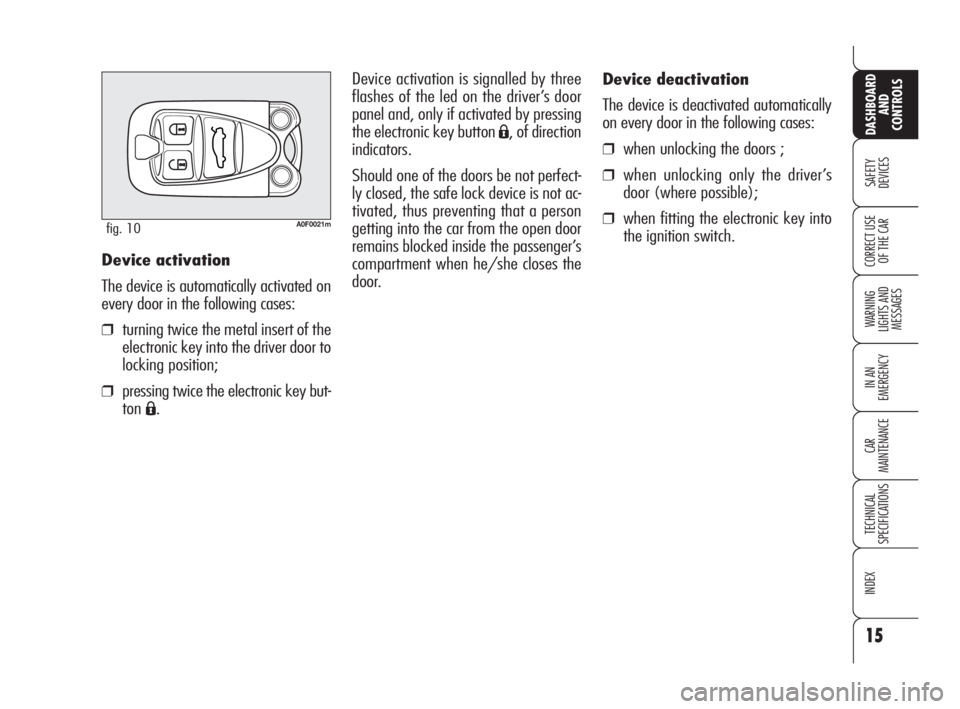

Device activation
The device is automatically activated on
every door in the following cases:
❒turning twice the metal insert of the
electronic key into the driver door to
locking position;
❒pressing twice the electronic key but-
ton
Á.
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 15
Page 18 of 271
16
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

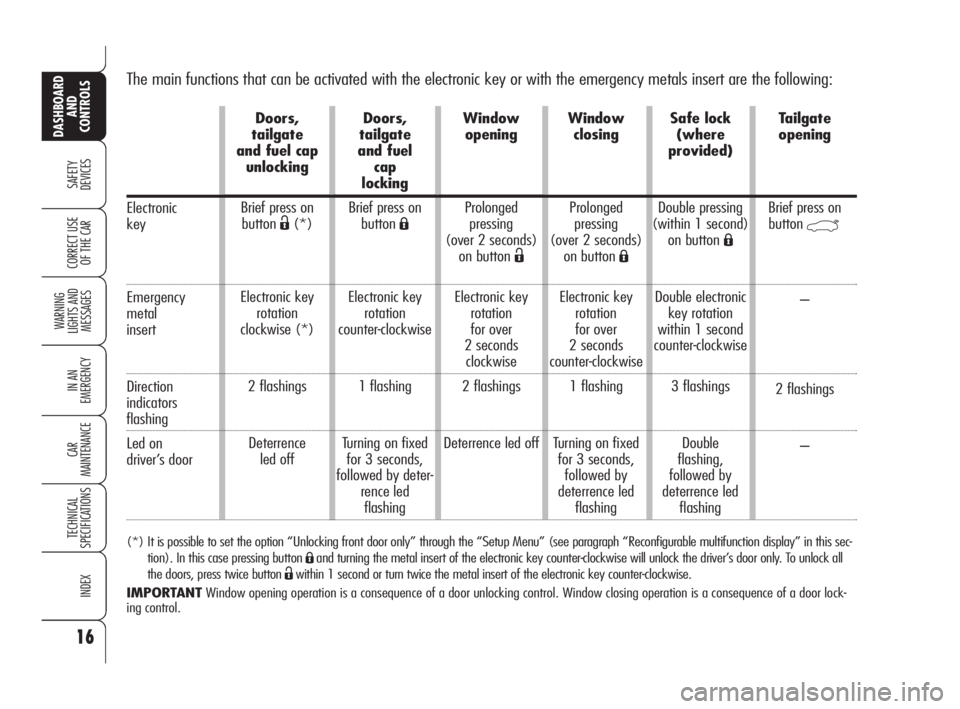

The main functions that can be activated with the electronic key or with the emergency metals insert are the following:
(*) It is possible to set the option “Unlocking front door only” through the “Setup Menu” (see paragraph “Reconfigurable multifunction display” in this sec-
tion). In this case pressing button
Áand turning the metal insert of the electronic key counter-clockwise will unlock the driver’s door only. To unlock all
the doors, press twice button
Ëwithin 1 second or turn twice the metal insert of the electronic key counter-clockwise.
IMPORTANTWindow opening operation is a consequence of a door unlocking control. Window closing operation is a consequence of a door lock-
ing control.
Electronic
key
Emergency
metal
insert
Direction
indicators
flashing
Led on
driver’s door
Doors,
tailgate
and fuel cap
unlocking
Brief press on
button
Ë(*)
Electronic key
rotation
clockwise (*)
2 flashings
Deterrence
led offDoors,
tailgate
and fuel
cap
locking
Brief press on
button
Á
Electronic key
rotation
counter-clockwise
1 flashing
Turning on fixed
for 3 seconds,
followed by deter-
rence led
flashingWindow
opening
Prolonged
pressing
(over 2 seconds)
on button
Ë
Electronic key
rotation
for over
2 seconds
clockwise
2 flashings
Deterrence led offWindow
closing
Prolonged
pressing
(over 2 seconds)
on button
Á
Electronic key
rotation
for over
2 seconds
counter-clockwise
1 flashing
Turning on fixed
for 3 seconds,
followed by
deterrence led
flashingSafe lock
(where
provided)
Double pressing
(within 1 second)
on button
Á
Double electronic
key rotation
within 1 second
counter-clockwise
3 flashings
Double
flashing,
followed by
deterrence led
flashingTailgate
opening
Brief press on
button
`
–
2 flashings
–
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 16
Page 19 of 271
17
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Depending on the markets, the trigger-
ing of the alarm will activate the siren
and the hazard warning lights (for about
26 seconds). The methods of operation
and the number of cycles may vary de-
pending on the versions/markets.
A maximum number of sound/sight cy-
cles is however envisaged. Once the
alarm cycle is over, the system will re-
store its normal operation.
IMPORTANTCentral door unlocking
by the emergency electronic key will not
deactivate the alarm, therefore with
alarm on the siren will activate when
opening one of the doors or the boot.
To deactivate the siren see paragraph
“How to deactivate the alarm”.
IMPORTANTThe engine immobiliser
function is guaranteed by the Alfa
Romeo CODE system, which is auto-
matically activated when the electronic
key is removed from the ignition device.
HOW TO ACTIVATE
THE ALARM
With the doors, bonnet and boot shut
and electronic key removed from igni-
tion switch, point the electronic key in
the direction of the car, then press and
release the button
Á.
With the exception of certain markets,
the system sounds a “beep” and the
doors are locked.
Engagement of the alarm is preceded
by a self-diagnostic test characterised by
a different flashing of the driver’s door
ledA-fig. 11: if a fault is detected the
system sounds a further warning
“beep”.
ALARM
(where provided)
WHEN THE ALARM
IS TRIGGERED
The alarm comes into action in the fol-
lowing cases:
❒unlawful opening of doors, bonnet
and boot (perimetral protection);
❒attempt to start the engine with
unauthorised electronic key;
❒battery cable cutting;
❒presence of moving bodies in the
passenger’s compartment (volu-
metric protection);
❒abnormal raising/sloping of the car
(for versions/markets where ap-
plicable);
Volumetric and anti-raising protections
can be cut off by operating the front ceil-
ing light controls(see paragraph “Volu-
metric protection/Anti-raising sensor”
on the following pages).
A0F0034mfig. 11
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 17
Page 20 of 271
18
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
HOW TO DEACTIVATE
THE ALARM
Press button Ë. The system will react as
follows (with the exception of certain
markets):
❒two brief flashes of the direction in-
dicators;
❒two brief “beeps”;
❒door unlocking.
The alarm can be deactivated by fitting
the electronic key into the ignition
switch.
IMPORTANTOn certain versions any
attempt to break in detected by the sys-
tem will be indicated by a warning mes-
sage on the instrument panel display
when fitting the electronic key into the
ignition switch.VOLUMETRIC PROTECTION/
ANTI-RAISING SENSORS
To make sure that the protection sensors
are working properly, check that win-
dows are shut.
This function can be cut out (for exam-
ple if you leave animals on the car) by
pressing button A-fig. 12on the front
ceiling light within 1 minute after in-
strument panel turning off.
When this function is off the button led
will turn on. Volumetric protection/an-
ti-raising sensors cut out shall be re-
peated at each instrument panel turning
off. Surveillance
When the system has been turned on,
the led A-fig. 11will flash to indicate
that the system is in the surveillance
mode. The led will flash continuously
while the system is under surveillance.
IMPORTANTOperation of the alarm
is adapted at the origin to the regula-
tions of the different countries.
Self-diagnosis and monitoring
of doors/bonnet/boot
If, after the alarm has been activated, a
second acoustic signal is heard, turn the
system off by pressing button
Ë, check
for proper locking of doors, bonnet and
boot, then turn the system on again by
pressing button
Á.
Otherwise if a door or bonnet/boot lid
is not correctly closed it will not be con-
trolled by the system. If the control sig-
nal is repeated when the doors and bon-
net/boot are closed properly this means
that the self-diagnosis function has de-
tected a system operating fault, in which
case it is necessary to contact Alfa
Romeo Authorized Services.
A0F0086mfig. 12
001-040 Alfa BRERA gb 28-08-2008 10:59 Pagina 18
