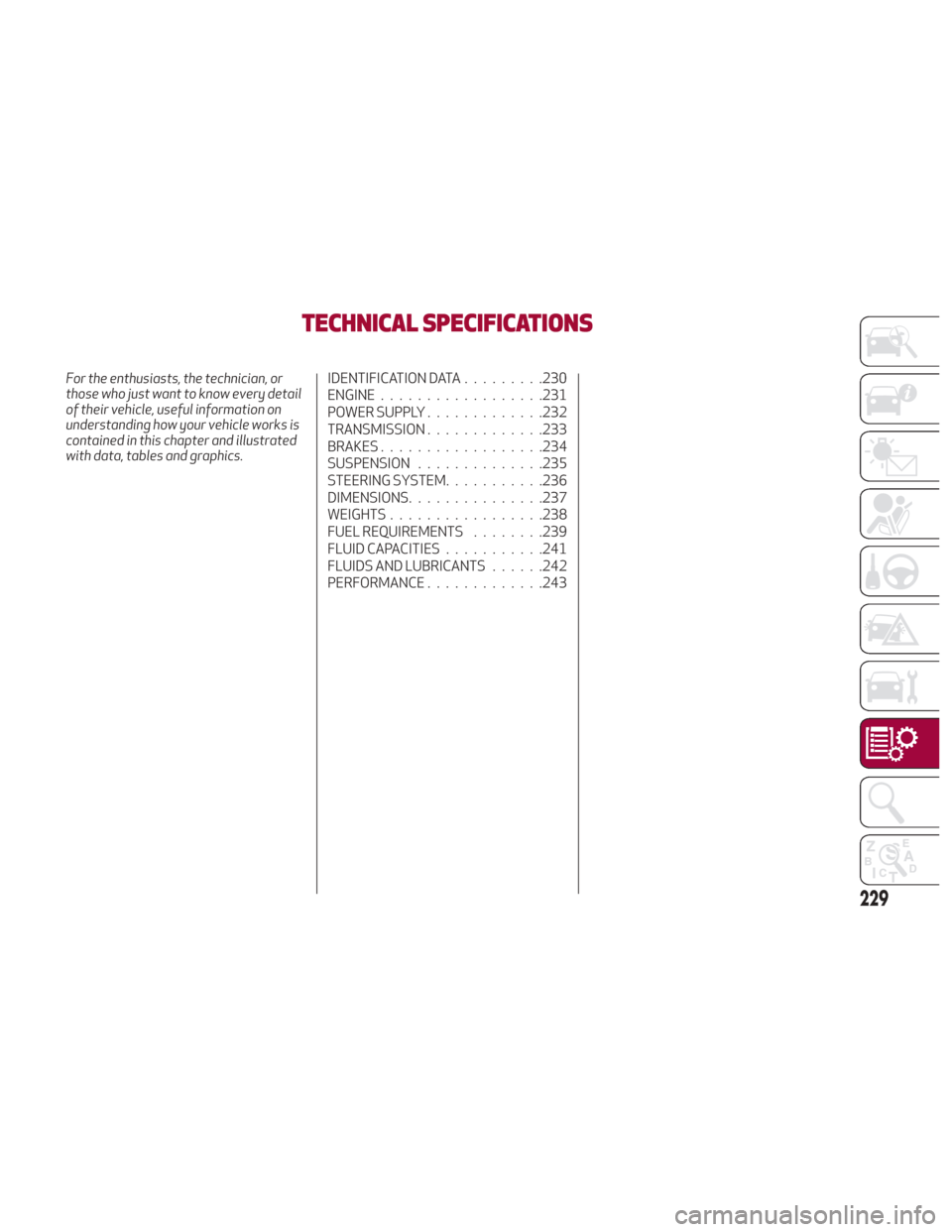

TECHNICAL SPECIFICATIONS
For the enthusiasts, the technician, or
those who just want to know every detail
of their vehicle, useful information on
understanding how your vehicle works is
contained in this chapter and illustrated
with data, tables and graphics.IDENTIFICATION DATA.........230
ENGINE ................. .231
POWER SUPPLY .............232
TRANSMISSION .............233
BRAKES ................. .234
SUSPENSION ............. .235
STEERING SYSTEM ...........236
DIMENSIONS .............. .237
WEIGHTS ................ .238
FUEL REQUIREMENTS ........239
FLUID CAPACITIES ...........241
FLUIDS AND LUBRICANTS ......242
PERFORMANCE .............243
229
Page 232 of 260

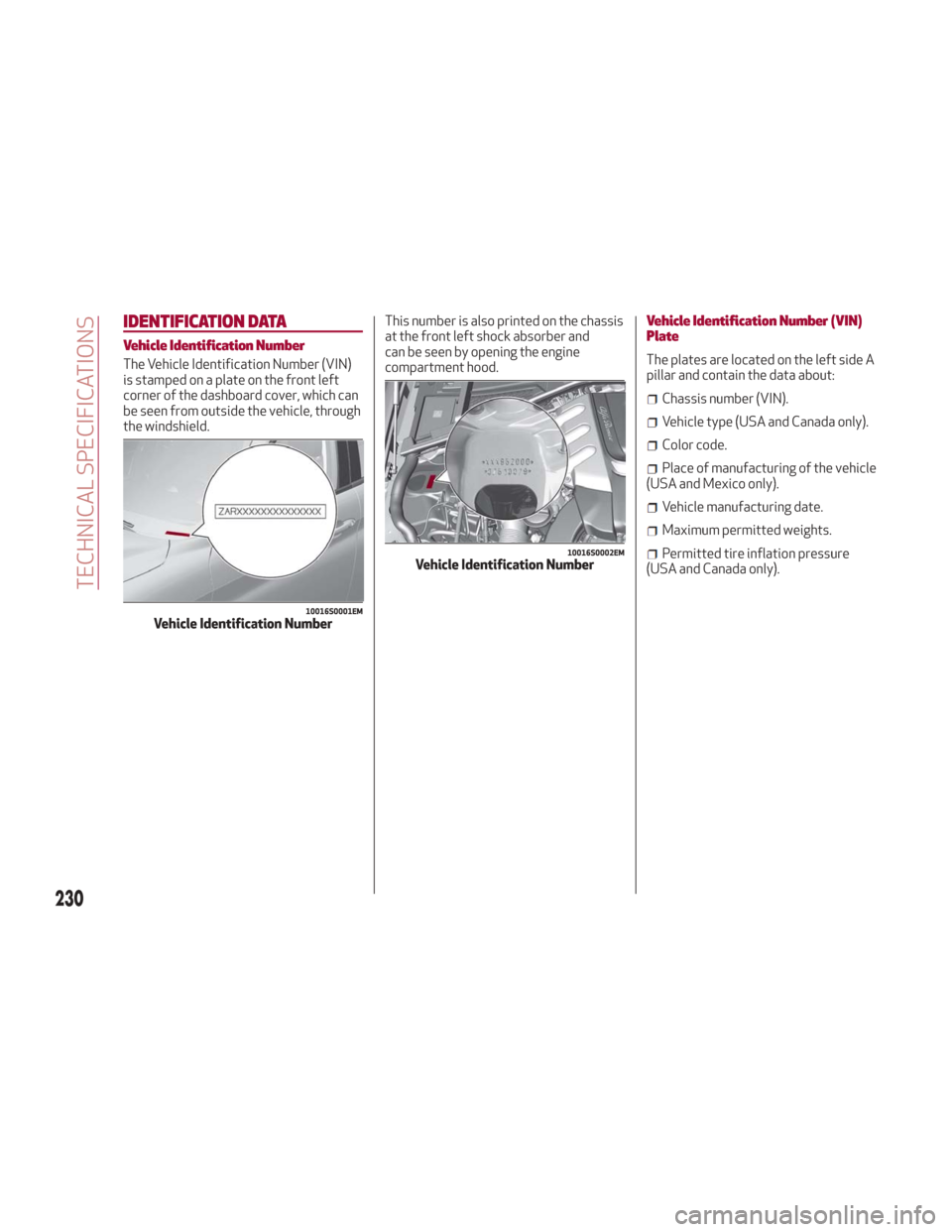

IDENTIFICATION DATA
Vehicle Identification Number
The Vehicle Identification Number (VIN)
is stamped on a plate on the front left
corner of the dashboard cover, which can
be seen from outside the vehicle, through
the windshield.This number is also printed on the chassis
at the front left shock absorber and
can be seen by opening the engine
compartment hood.
Vehicle Identification Number (VIN)
Plate
The plates are located on the left side A
pillar and contain the data about:
Chassis number (VIN).
Vehicle type (USA and Canada only).
Color code.
Place of manufacturing of the vehicle
(USA and Mexico only).
Vehicle manufacturing date.
Maximum permitted weights.
Permitted tire inflation pressure
(USA and Canada only).
10016S0001EMVehicle Identification Number
10016S0002EMVehicle Identification Number
230
TECHNICAL SPECIFICATIONS
Page 233 of 260

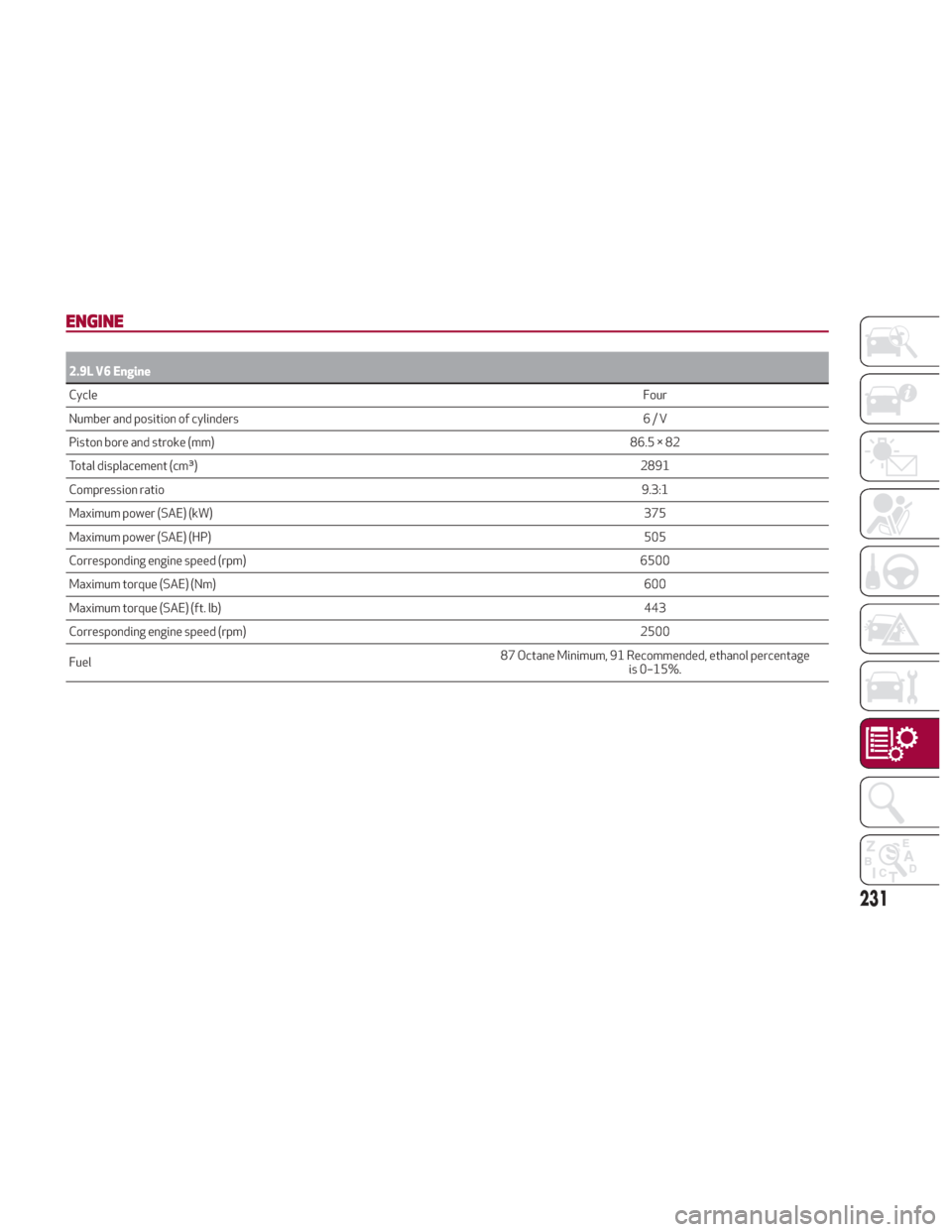

ENGINE
2.9L V6 Engine
CycleFo
ur
Number and position of cylinders 6/V
Piston bore and stroke (mm) 86.5 × 82
Total displacement (cm³) 2891
Compression ratio 9.3:1
Maximum power (SAE) (kW) 375
Maximum power (SAE) (HP) 505
Corresponding engine speed (rpm) 6500
Maximum torque (SAE) (Nm) 600
Maximum torque (SAE) (ft. lb) 443
Corresponding engine speed (rpm) 2500
Fuel 87 Octane Minimum, 91 Recommended, ethanol percentage
is 0–15%.
231
Page 234 of 260

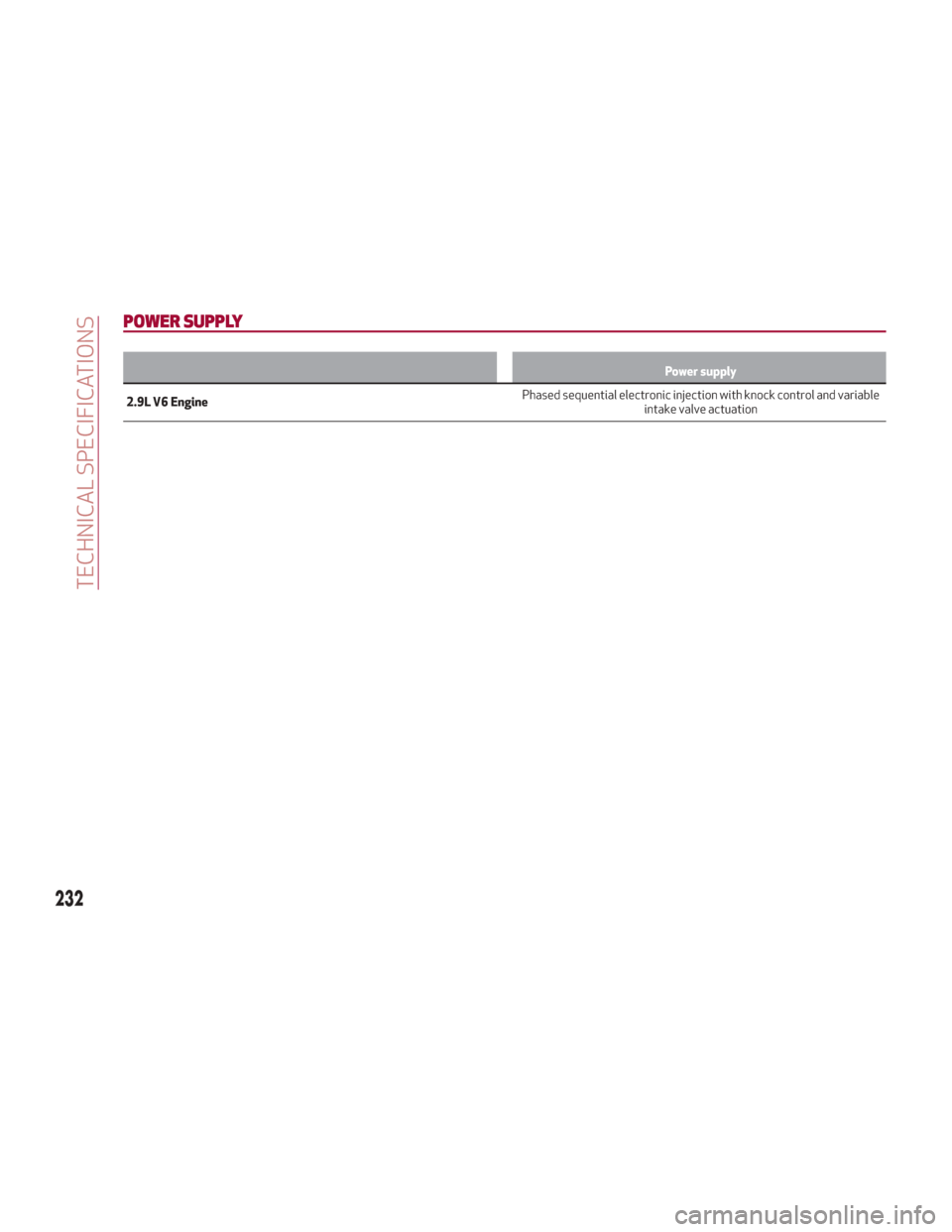

POWER SUPPLY
Power supply
2.9L V6 Engine Phased
sequential electronic injection with knock control and variable
intake valve actuation
232
TECHNICAL SPECIFICATIONS
Page 235 of 260
TRANSMISSION
ModelTransmissionTraction
2.9L V6 Engine Eight
forward gears plus reverseRear
233
Page 236 of 260
BRAKES
ModelFront brakesRear brakesParking brake
2.9L V6 Engine Disc
or
Carbon
Ceramic discDisc
or
Carbon Ceramic disc Electric
Caution!
Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time the brakes are applied.
To obtain the maximum efficiency of the braking system, a bedding-in period of about 300 miles (500 km) is needed: during this period it is
better to avoid sharp, repeated and prolonged braking.
234
TECHNICAL SPECIFICATIONS
Page 237 of 260

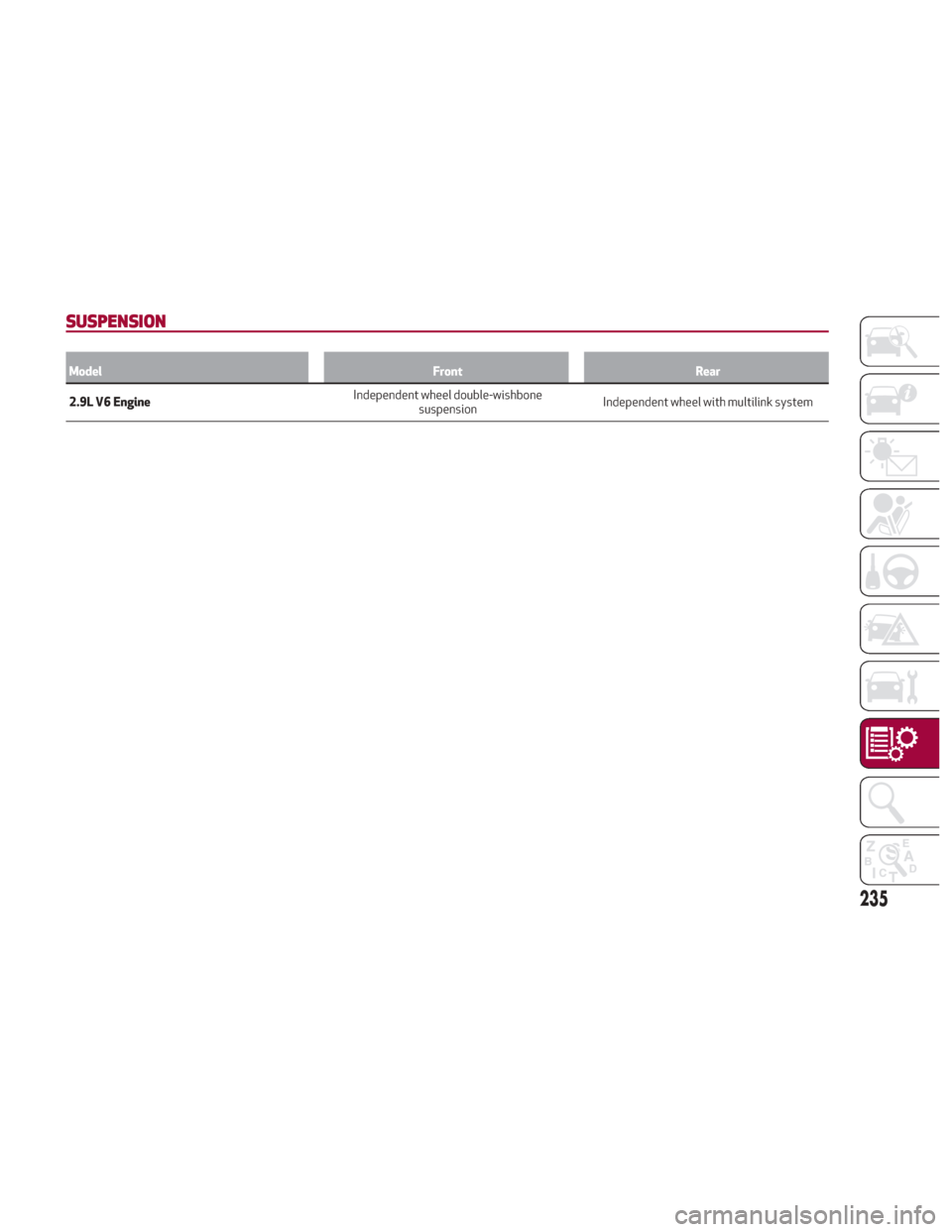

SUSPENSION
ModelFrontRear
2.9L V6 Engine Independent
wheel double-wishbone
suspension Independent wheel with multilink system
235
Page 238 of 260

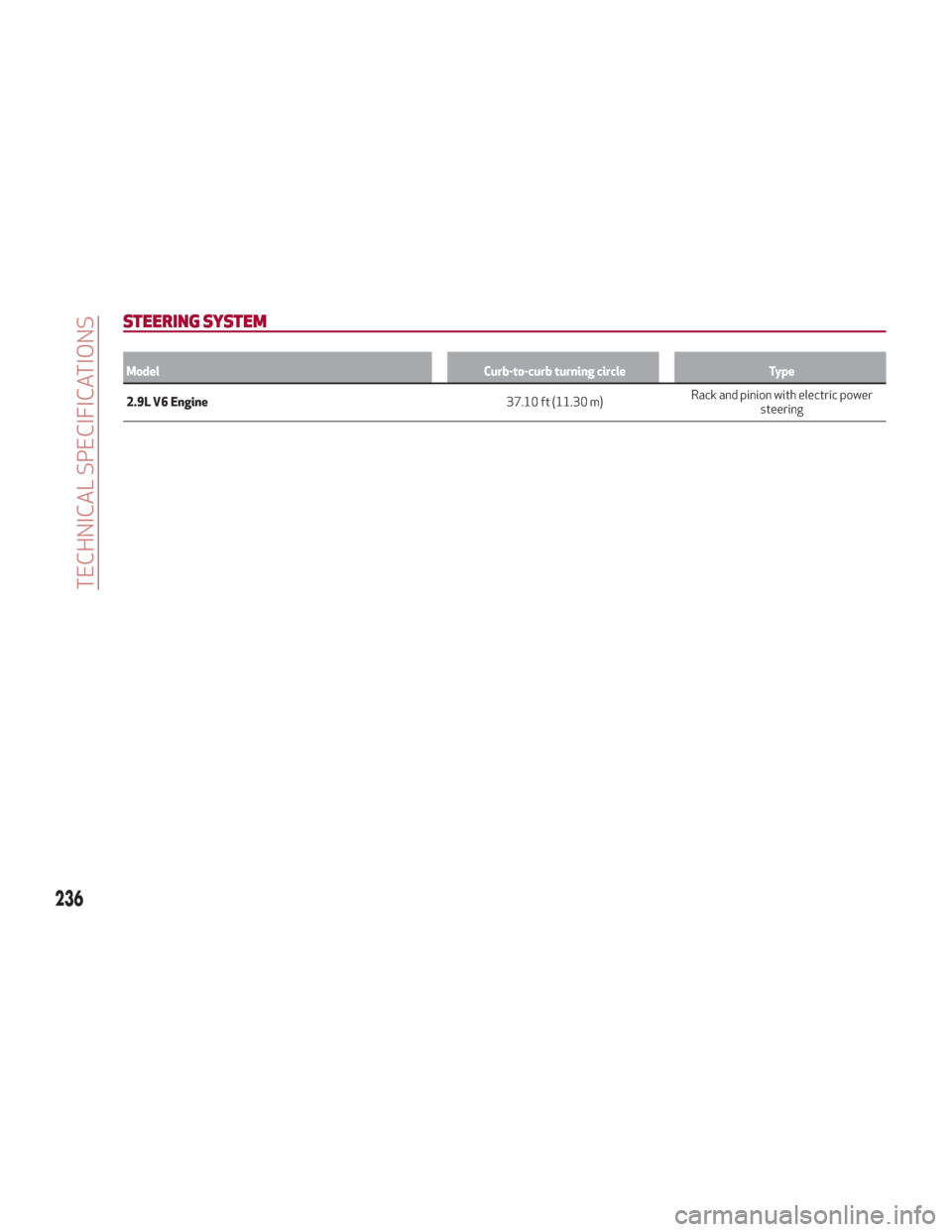

STEERINGSYSTEM
Model Curb-to-curb turning circleType
2.9L V6 Engine 37.10
ft (11.30 m)Rack and pinion with electric power
steering
236
TECHNICAL SPECIFICATIONS
Page 239 of 260

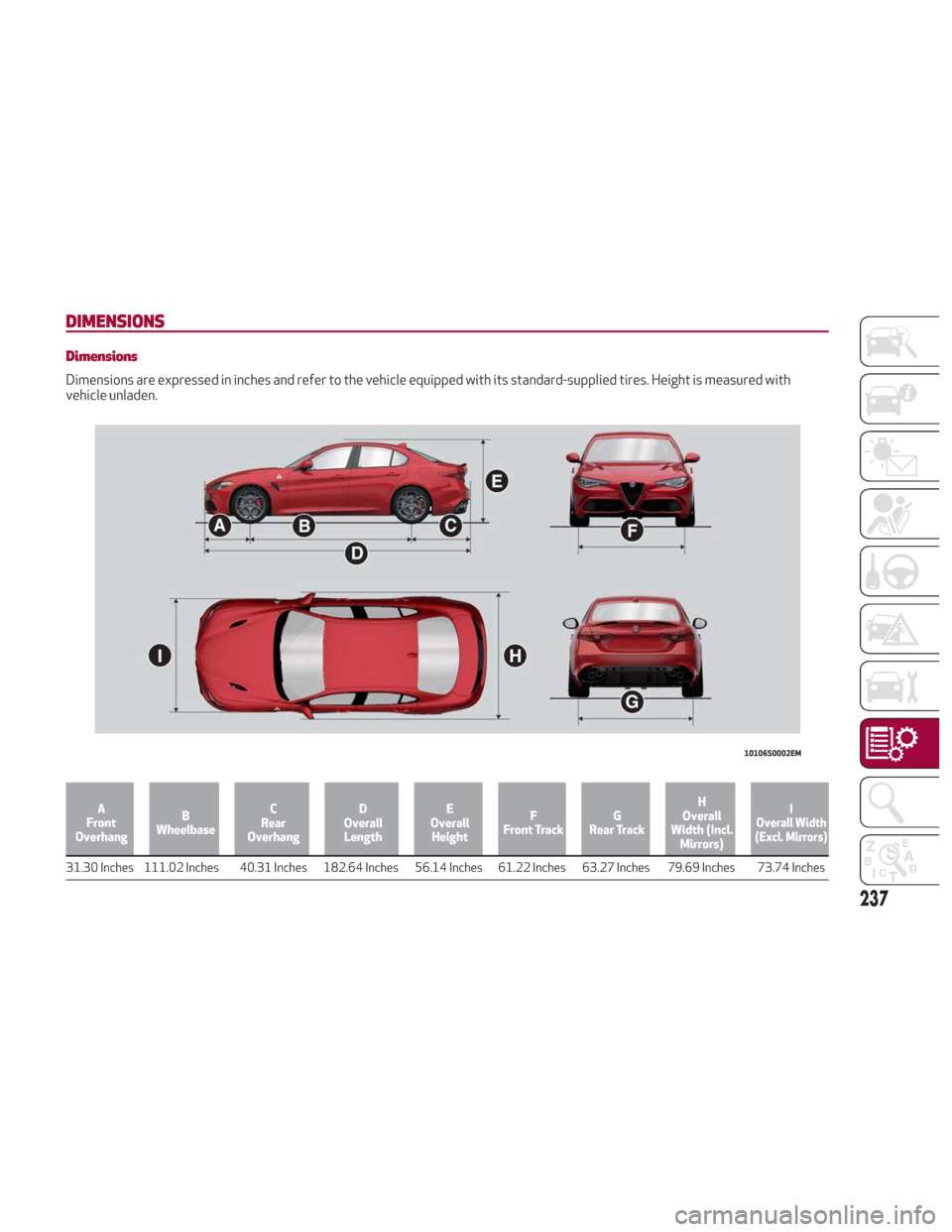

DIMENSIONS
Dimensions
Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with
vehicle unladen.
A
Front
Overhang B
Wheelbase C
Rear
Overhang D
Overall Length E
Overall Height F
Front Track G
Rear Track H
Overall
Width (Incl. Mirrors) IOverall Width
(Excl. Mirrors)
31.30 Inches 111.02 Inches 40.31 Inches 182.64 Inches 56.14 Inches 61.22 Inches 63.27 Inches 79.69 Inches 73.74 Inches
10106S0002EM
237
Page 240 of 260

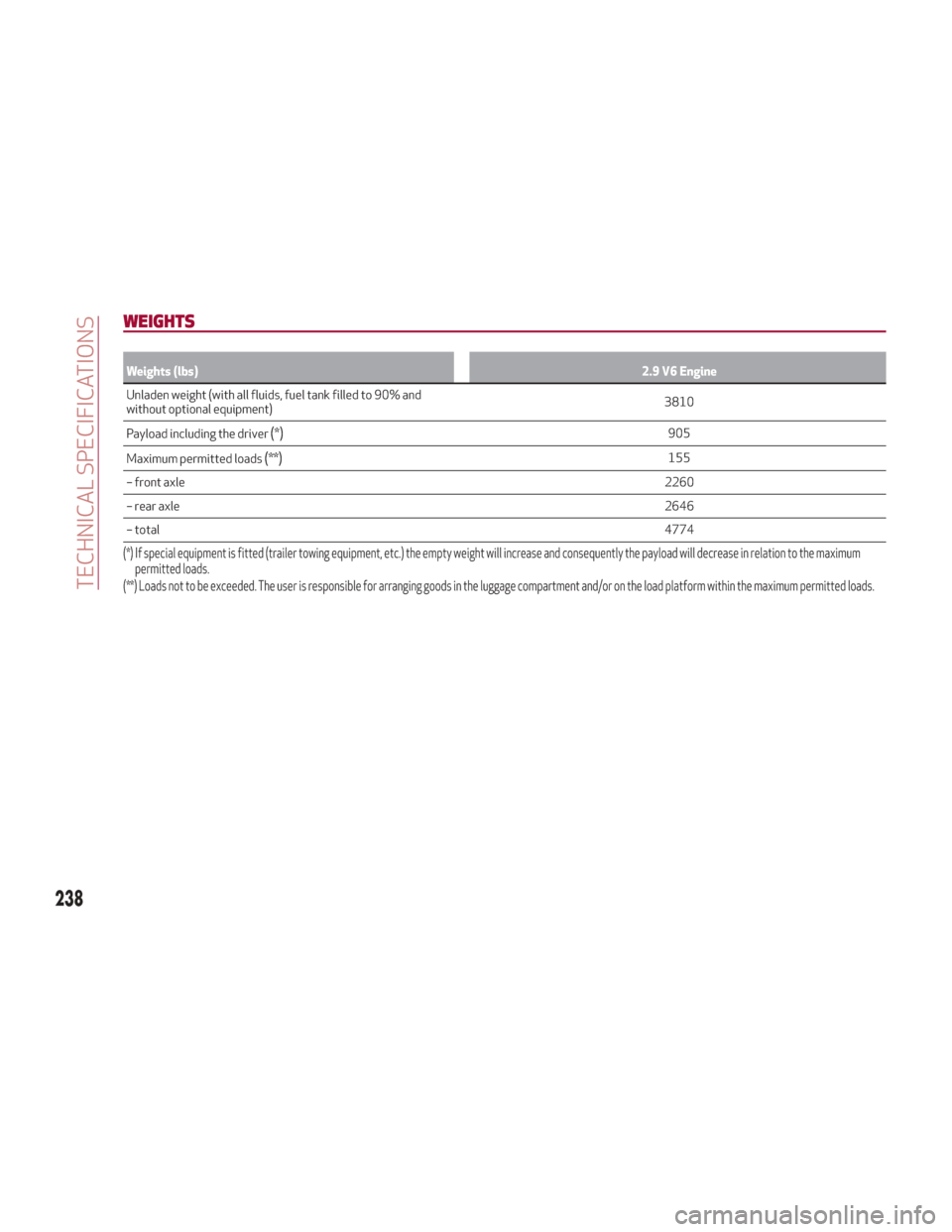

WEIGHTS
Weights (lbs)2.9 V6 Engine
Unladen weight (with all fluids, fuel tank filled to 90% and
without
optional equipment) 3810
Payload including the driver
(*)905
Maximum permitted loads
(**)155
– front axle 2260
– rear axle 2646
– total 4774
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
238
TECHNICAL SPECIFICATIONS
