sensor Alfa Romeo Giulia 2018 Owner's Guide

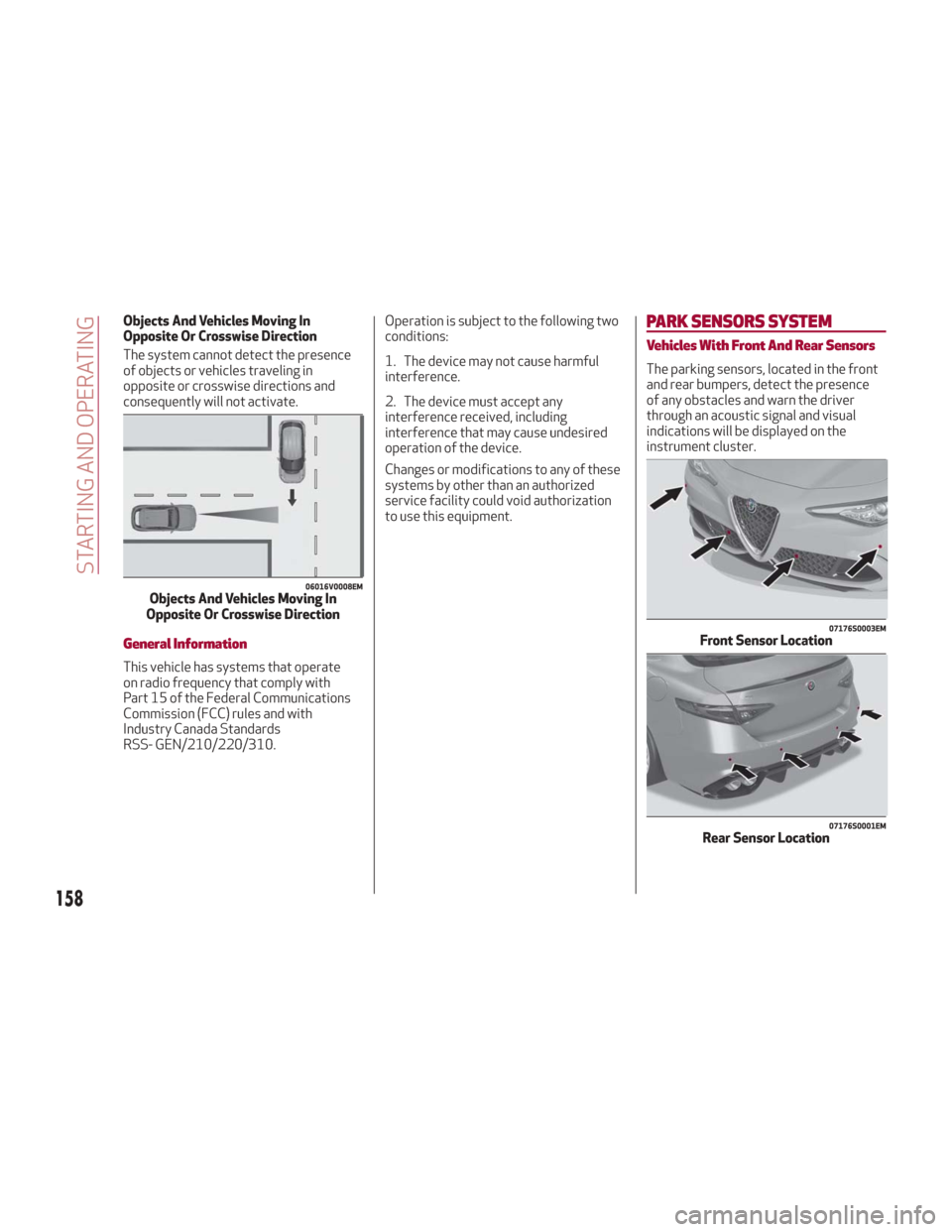

Objects And Vehicles Moving In
Opposite Or Crosswise Direction
The system cannot detect the presence
of objects or vehicles traveling in
opposite or crosswise directions and
consequently will not activate.
General Information
This vehicle has systems that operate
on radio frequency that comply with
Part 15 of the Federal Communications
Commission (FCC) rules and with
Industry Canada Standards
RSS- GEN/210/220/310.Operation is subject to the following two
conditions:
1. The device may not cause harmful
interference.
2. The device must accept any
interference received, including
interference that may cause undesired
operation of the device.
Changes or modifications to any of these
systems by other than an authorized
service facility could void authorization
to use this equipment.
PARK SENSORS
SYSTEM
Vehicles With Front And Rear Sensors
The parking sensors, located in the front
and rear bumpers, detect the presence
of any obstacles and warn the driver
through an acoustic signal and visual
indications will be displayed on the
instrument cluster.
06016V0008EMObjects And Vehicles Moving In
Opposite Or Crosswise Direction
07176S0003EMFront Sensor Location
07176S0001EMRear Sensor Location
158
STARTING AND OPERATING

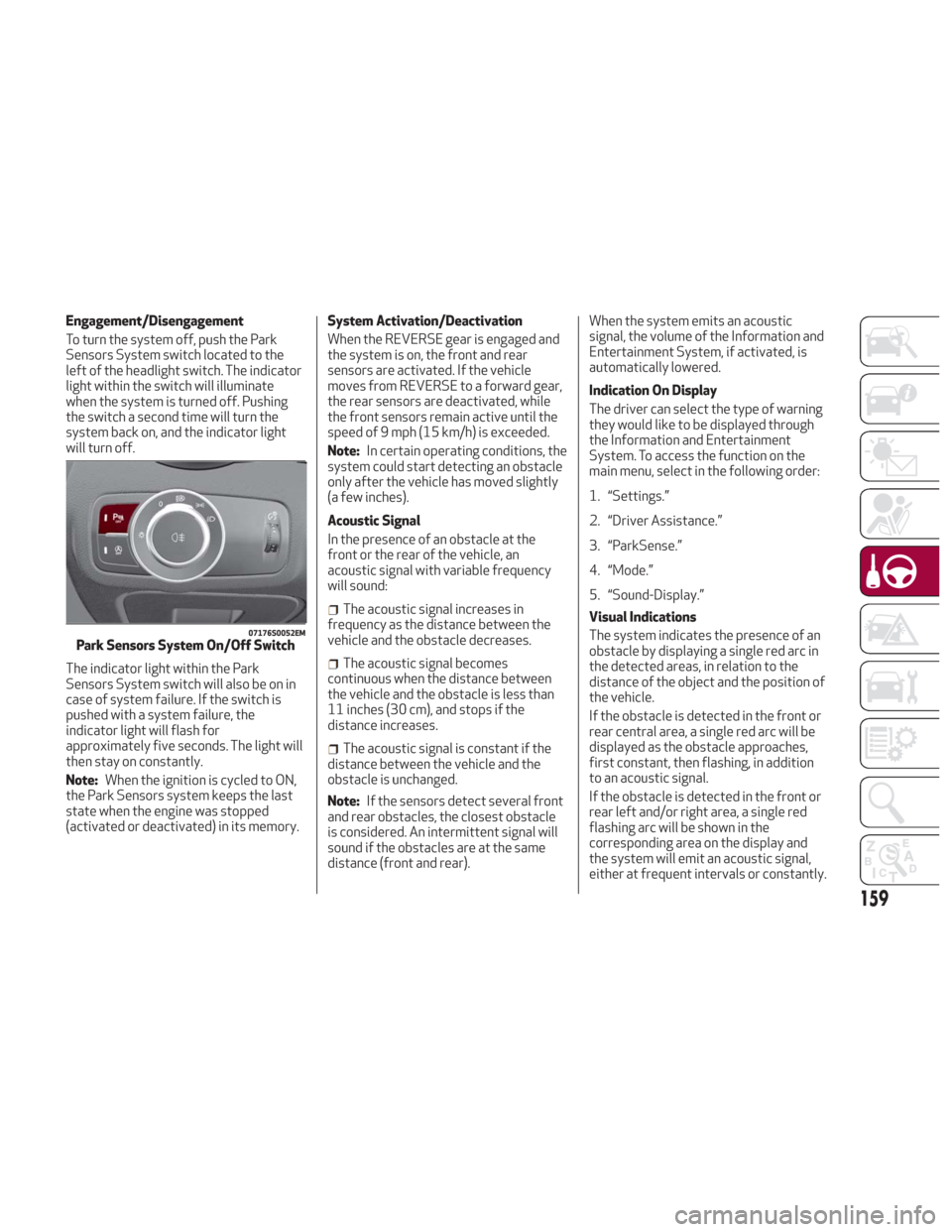

Engagement/Disengagement
To turn the system off, push the Park
Sensors System switch located to the
left of the headlight switch. The indicator
light within the switch will illuminate
when the system is turned off. Pushing
the switch a second time will turn the
system back on, and the indicator light
will turn off.
The indicator light within the Park
Sensors System switch will also be on in
case of system failure. If the switch is
pushed with a system failure, the
indicator light will flash for
approximately five seconds. The light will
then stay on constantly.
Note:When the ignition is cycled to ON,
the Park Sensors system keeps the last
state when the engine was stopped
(activated or deactivated) in its memory. System Activation/Deactivation
When the REVERSE gear is engaged and
the system is on, the front and rear
sensors are activated. If the vehicle
moves from REVERSE to a forward gear,
the rear sensors are deactivated, while
the front sensors remain active until the
speed of 9 mph (15 km/h) is exceeded.
Note:
In certain operating conditions, the
system could start detecting an obstacle
only after the vehicle has moved slightly
(a few inches).
Acoustic Signal
In the presence of an obstacle at the
front or the rear of the vehicle, an
acoustic signal with variable frequency
will sound:
The acoustic signal increases in
frequency as the distance between the
vehicle and the obstacle decreases.
The acoustic signal becomes
continuous when the distance between
the vehicle and the obstacle is less than
11 inches (30 cm), and stops if the
distance increases.
The acoustic signal is constant if the
distance between the vehicle and the
obstacle is unchanged.
Note: If the sensors detect several front
and rear obstacles, the closest obstacle
is considered. An intermittent signal will
sound if the obstacles are at the same
distance (front and rear). When the system emits an acoustic
signal, the volume of the Information and
Entertainment System, if activated, is
automatically lowered.
Indication On Display
The driver can select the type of warning
they would like to be displayed through
the Information and Entertainment
System. To access the function on the
main menu, select in the following order:
1. “Settings.”
2. “Driver Assistance.”
3. “ParkSense.”
4. “Mode.”
5. “Sound-Display.”
Visual Indications
The system indicates the presence of an
obstacle by displaying a single red arc in
the detected areas, in relation to the
distance of the object and the position of
the vehicle.
If the obstacle is detected in the front or
rear central area, a single red arc will be
displayed as the obstacle approaches,
first constant, then flashing, in addition
to an acoustic signal.
If the obstacle is detected in the front or
rear left and/or right area, a single red
flashing arc will be shown in the
corresponding area on the display and
the system will emit an acoustic signal,
either at frequent intervals or constantly.
07176S0052EMPark Sensors System On/Off Switch
159

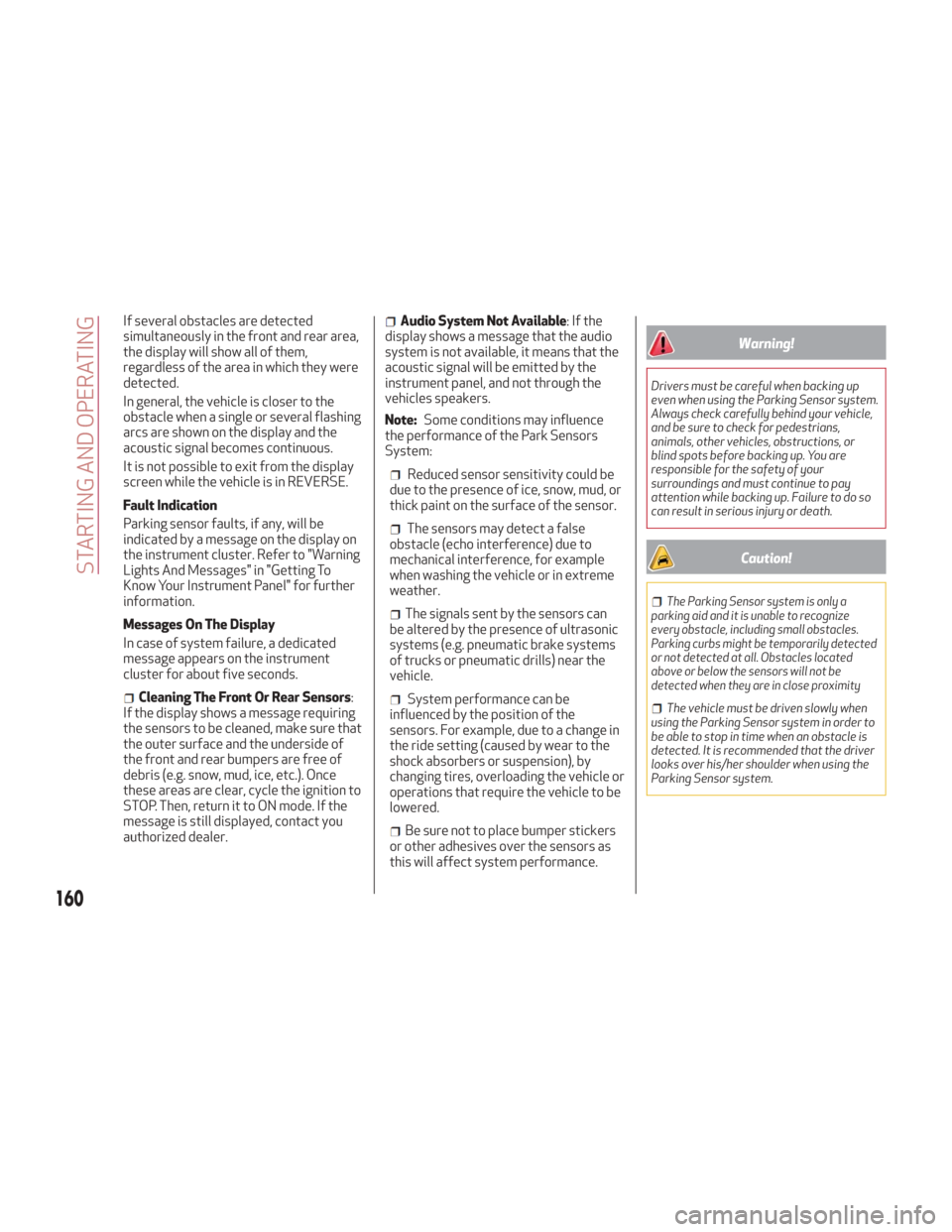

If several obstacles are detected
simultaneously in the front and rear area,
the display will show all of them,
regardless of the area in which they were
detected.
In general, the vehicle is closer to the
obstacle when a single or several flashing
arcs are shown on the display and the
acoustic signal becomes continuous.
It is not possible to exit from the display
screen while the vehicle is in REVERSE.
Fault Indication
Parking sensor faults, if any, will be
indicated by a message on the display on
the instrument cluster. Refer to "Warning
Lights And Messages" in "Getting To
Know Your Instrument Panel" for further
information.
Messages On The Display
In case of system failure, a dedicated
message appears on the instrument
cluster for about five seconds.
Cleaning The Front Or Rear Sensors:
If the display shows a message requiring
the sensors to be cleaned, make sure that
the outer surface and the underside of
the front and rear bumpers are free of
debris (e.g. snow, mud, ice, etc.). Once
these areas are clear, cycle the ignition to
STOP. Then, return it to ON mode. If the
message is still displayed, contact you
authorized dealer.
Audio System Not Available : If the
display shows a message that the audio
system is not available, it means that the
acoustic signal will be emitted by the
instrument panel, and not through the
vehicles speakers.
Note: Some conditions may influence
the performance of the Park Sensors
System:
Reduced sensor sensitivity could be
due to the presence of ice, snow, mud, or
thick paint on the surface of the sensor.
The sensors may detect a false
obstacle (echo interference) due to
mechanical interference, for example
when washing the vehicle or in extreme
weather.
The signals sent by the sensors can
be altered by the presence of ultrasonic
systems (e.g. pneumatic brake systems
of trucks or pneumatic drills) near the
vehicle.
System performance can be
influenced by the position of the
sensors. For example, due to a change in
the ride setting (caused by wear to the
shock absorbers or suspension), by
changing tires, overloading the vehicle or
operations that require the vehicle to be
lowered.
Be sure not to place bumper stickers
or other adhesives over the sensors as
this will affect system performance.
Warning!
Drivers must be careful when backing up
even when using the Parking Sensor system.
Always check carefully behind your vehicle,
and be sure to check for pedestrians,
animals, other vehicles, obstructions, or
blind spots before backing up. You are
responsible for the safety of your
surroundings and must continue to pay
attention while backing up. Failure to do so
can result in serious injury or death.
Caution!
The Parking Sensor system is only a
parking aid and it is unable to recognize
every obstacle, including small obstacles.
Parking curbs might be temporarily detected
or not detected at all. Obstacles located
above or below the sensors will not be
detected when they are in close proximity
The vehicle must be driven slowly when
using the Parking Sensor system in order to
be able to stop in time when an obstacle is
detected. It is recommended that the driver
looks over his/her shoulder when using the
Parking Sensor system.
160
STARTING AND OPERATING

The vehicle is equipped with an IBS
(Intelligent Battery Sensor), which is able
to measure the charge and discharge
voltage and calculate the charge level
and the general condition of the battery.
The sensor is placed next to the negative
terminal (-) of the battery.
For a correct charge/discharge
procedure, the charge voltage must go
through the IBS sensor.
1. Turn the charger on and follow the
instructions on the user's manual to
completely recharge the battery.
2. When the battery is charged, turn the
charger off before disconnecting it from
the battery.
3. Disconnect the black cable terminal of
the battery charger and then the red
cable terminal.
4. Refit the protective cover of the
positive terminal of the battery and the
access cover to the battery
compartment.
Note:If a "quick-type" battery charger is
used with the battery fitted on the
vehicle, before connecting it disconnect
both cables of the battery itself. Do not
use a "quick-type" battery charger to
provide the starting voltage.DEALER SERVICE
The following pages contain instructions
on the required maintenance from the
technical personnel who designed the
vehicle.
In addition to these specific maintenance
instructions specified for routine
scheduled servicing, there are other
components which may require periodic
maintenance or replacement over the
vehicle’s life cycle.
Engine Oil
Engine Oil Level Check
To ensure correct engine lubrication, the
oil must always be kept at the prescribed
level (see "Engine Compartment" in this
chapter).
Check the oil level at regular intervals, for
example every 1864 miles (3000 km).
It must be checked once full operating
temperature is reached.
The vehicle must also be parked on as
level a surface as possible.
The engine oil level can be checked using
the Information and Entertainment
system. To access the function, activate
the main menu (MENU button) and select
the following options in sequence:
“Applications”; “My Car”; “Oil level”.
Changing The Engine Oil
See the "Maintenance Plan" for the
correct servicing intervals. Choice Of Engine Oil Type
To ensure optimal performance and
maximum protection in all operating
conditions, it is advisable to use solely
certified engine oils (see description in
"Fluid And Lubricants" in the "Technical
Specifications" chapter).
Additives For Engine Oil
It is strongly recommended not to use
additives (other than leak detection dyes)
with the engine oil.
The engine oil is a product designed
specially for the vehicle and its
performance may be deteriorated
through the use of further additives.
Disposal Of Used Engine Oil And Filters
For the disposal of the engine oil and
filters, contact the appropriate body to
determine local regulations.
Note:
Used engine oil disposed of
incorrectly may seriously harm the
environment.
Engine Oil Filter
Replacing The Engine Oil Filter
The engine oil filter must be replaced
each time the engine oil is changed. It is
advised to replace it with a genuine spare
part, specifically designed for this
vehicle.
202
SERVICING AND MAINTENANCE

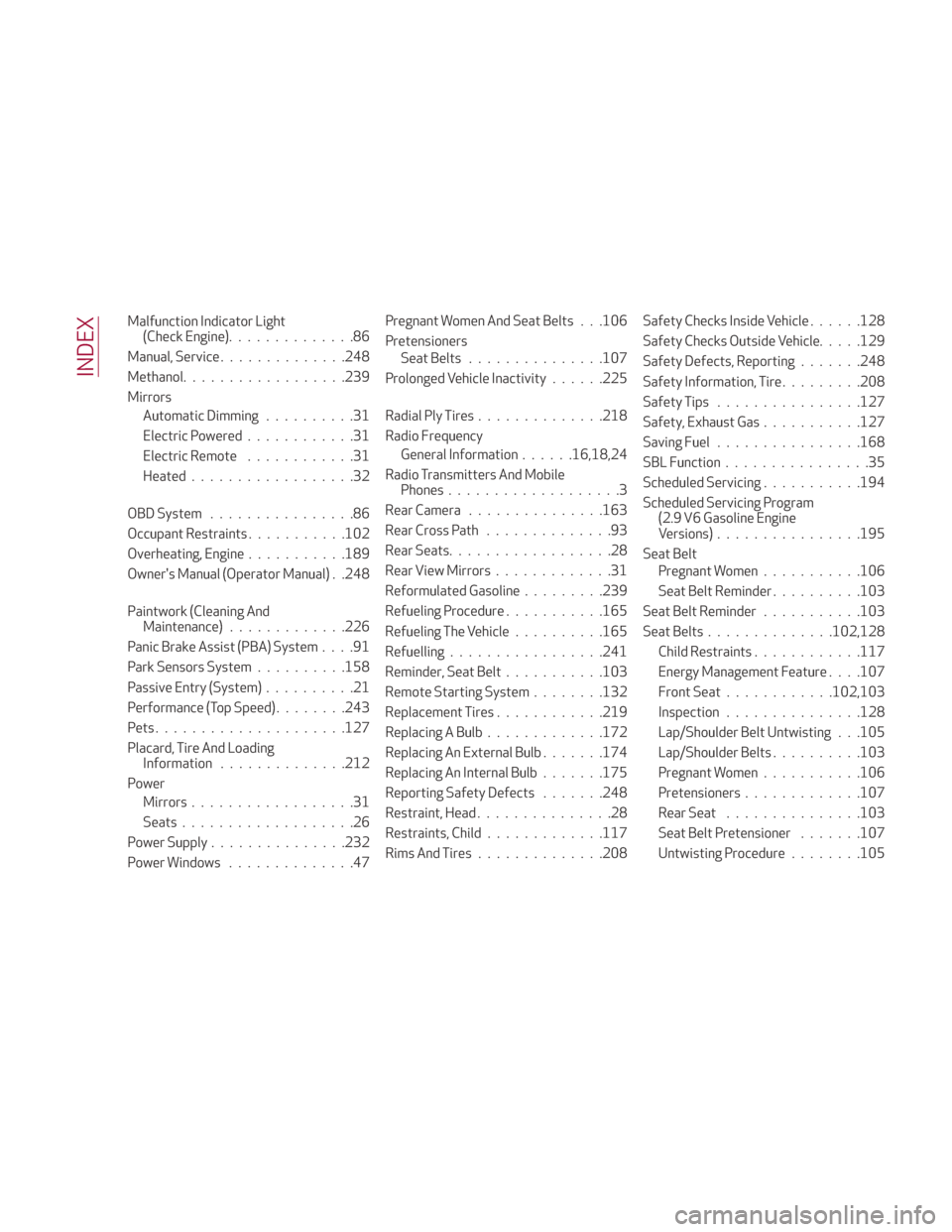

Malfunction Indicator Light(Check Engine) ..............86
Manual, Service ............. .248
Methanol ................. .239
Mirrors Automatic Dimming ..........31
Electric Powered ............31
Electric Remote ............31
Heated ..................32
OBD System ................86
Occupant Restraints ...........102
Overheating, Engine ...........189
Owner's Manual (Operator Manual) . .248
Paintwork (Cleaning And Maintenance) .............226
Panic Brake Assist (PBA) System ....91
Park Sensors System ..........158
Passive Entry (System) ..........21
Performance (Top Speed) ........243
Pets.................... .127
Placard, Tire And Loading Information ............. .212
Power Mirrors ..................31
Seats ...................26
Power Supply .............. .232
Power Windows ..............47 Pregnant Women And Seat Belts . . .106
Pretensioners
Seat Belts .............. .107
Prolonged Vehicle Inactivity ......225
Radial Ply Tires ............. .218
Radio Frequency General Information ......16,18,24
Radio Transmitters And Mobile Phones ...................3
Rear Camera .............. .163
Rear Cross Path ..............93
Rear Seats ..................28
Rear View Mirrors .............31
Reformulated Gasoline .........239
Refueling Procedure ...........165
Refueling The Vehicle ..........165
Refuelling ................ .241
Reminder, Seat Belt ...........103
Remote Starting System .......
.132
Replacement

Tires ............219
Replacing A Bulb .............172
Replacing An External Bulb .......174
Replacing An Internal Bulb .......175
Reporting Safety Defects .......248
Restraint, Head ...............28
Restraints, Child .............117
Rims And Tires ............. .208Safety Checks Inside Vehicle
......128
Safety Checks Outside Vehicle .....129
Safety Defects, Reporting .......248
Safety Information, Tire .........208
Safety Tips ............... .127
Safety, Exhaust Gas ...........127
Saving Fuel ............... .168
SBL Function ................35
Scheduled Servicing ...........194
Scheduled Servicing Program (2.9 V6 Gasoline Engine
Versions) ............... .195
Seat Belt Pregnant Women ...........106
Seat Belt Reminder ..........103
Seat Belt Reminder ...........103
Seat Belts ............. .102,128
Child Restraints ............117
Energy Management Feature . . . .107
Front Seat ............102,103
Inspection .............. .128
Lap/Shoulder Belt Untwisting . . .105
Lap/Shoulder Belts ..........103
Pregnant Women ...........106
Pretensioners .............107
Rear Seat .............. .103
Seat Belt Pretensioner .......107
Untwisting Procedure ........105
INDEX
