Tachometer
The Tachometer indicates the engine
Revolutions Per Minute (Giri).
Adjusting Instrument Panel Lighting
(Brightness Sensor)
Inside the Tachometer there is a light
sensor capable of detecting light and
adjusting the brightness of the
instrument panel and the Information
and Entertainment System display.
Engine Oil Temperature Gauge
The digital indicator monitors the
temperature of the engine oil and starts
supplying indications when the oil
temperature reaches approximately
122° F (50°C).
Under normal usage, the temperature
should remain around the middle of the
digital scale according to the working
conditions.
The
warning light will turn on to signal
the excessive increase of the engine oil
temperature.
In the event of excessive engine oil
temperature, stop the engine
immediately and contact an authorized
dealer.
Fuel Level Gauge
The digital fuel gauge monitors the
amount of fuel in the tank.
When the
warning light turns on, a
message is displayed, and a chime is
sound when 2.38 Gallons (9.0 L) of fuel
are left in the tank.
Note: If the low fuel warning light turns
on, refuel the vehicle at your nearest fuel
station.
Caution!
Do not travel with the fuel tank almost
empty: any gaps in fuel supply could damage
the catalytic converter.
Speedometer
The speedometer shows the vehicle
speed in miles per hour and/or kilometers
per hour (mph/km/h).
59

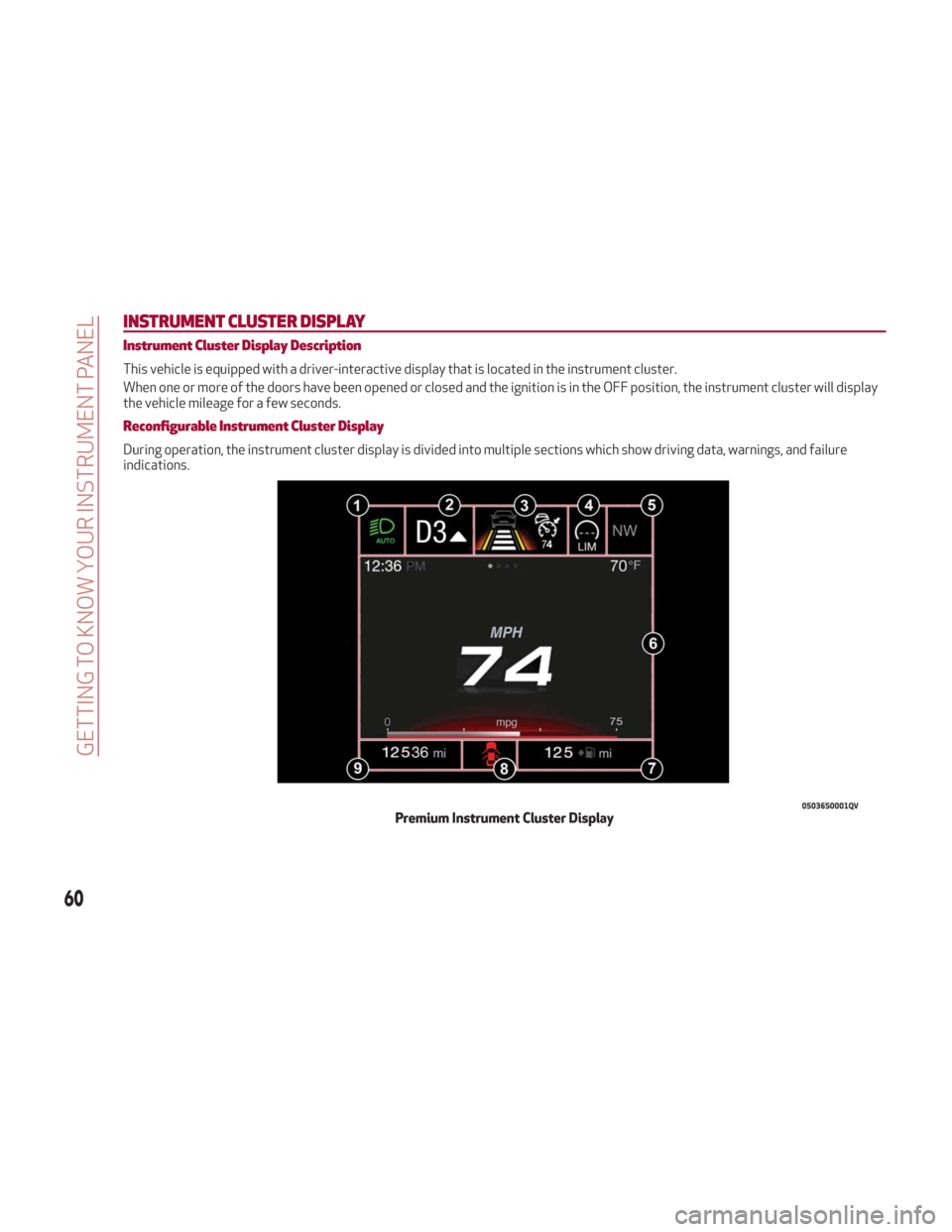

INSTRUMENT CLUSTER DISPLAY
Instrument Cluster Display Description
This vehicle is equipped with a driver-interactive display that is located in the instrument cluster.
When one or more of the doors have been opened or closed and the ignition is in the OFF position, the instrument cluster will display
the vehicle mileage for a few seconds.
Reconfigurable Instrument Cluster Display
During operation, the instrument cluster display is divided into multiple sections which show driving data, warnings, and failure
indications.
05036S0001QVPremium Instrument Cluster Display
60
GETTING TO KNOW YOUR INSTRUMENT PANEL

Reconfigurable Multifunctional
Display
1.Headlight Warning Lights
Displays the headlight warning light for
either of the following active modes:
Headlights
Automatic Headlights.
2. Gear Selector Information
Displays the following information
controlled by the gear selector function:
P = PARK
R = REVERSE
N = NEUTRAL
D= DRIVE, (automatic forward speed)
AutoStick: + shifting to higher gear in
manual (sequential) driving mode; –
shifting to lower gear in sequential
driving mode.
3. Forward Collision, Lane Departure,
Cruise Control
Displays operations for the following
modes:
Forward Collision Warning (FCW)
Lane Departure Warning (LDW) — If
Equipped
Cruise Control (CC) or Adaptive Cruise
Control (ACC) — If Equipped 4.
Speed Limit Warning Light
Shows information regarding the Speed
Limiter function.
5. Compass
6. Reconfigurable Main Area
Can display the following screens:
Home
Trip A
Trip B (can be activated/deactivated
through the Information and
Entertainment System)
Performance
The screens can be selected, on rotation,
by pushing the MENU selection button on
the windshield wiper stalk.
Depending on the driving mode chosen
using the “Alfa DNA Pro” (Dynamic,
Natural, Advanced Efficiency and RACE),
the screens can be graphically different. Navigation instructions and call
information can be repeated, besides on
the Information and Entertainment
System display, also in this area of the
display, these functions can be set on the
Information and Entertainment System.
Home
The parameters shown on the display,
for the modes: Dynamic, Natural and
Advanced Efficiency are:
Time
Outside Temperature
Current Speed (shown if the repeat
modes of the Phone and Navigation
functions are not active)
Range
05036S0002EMMENU Selection/Reset Button
05036S0004NAPremium Instrument Cluster Display
61

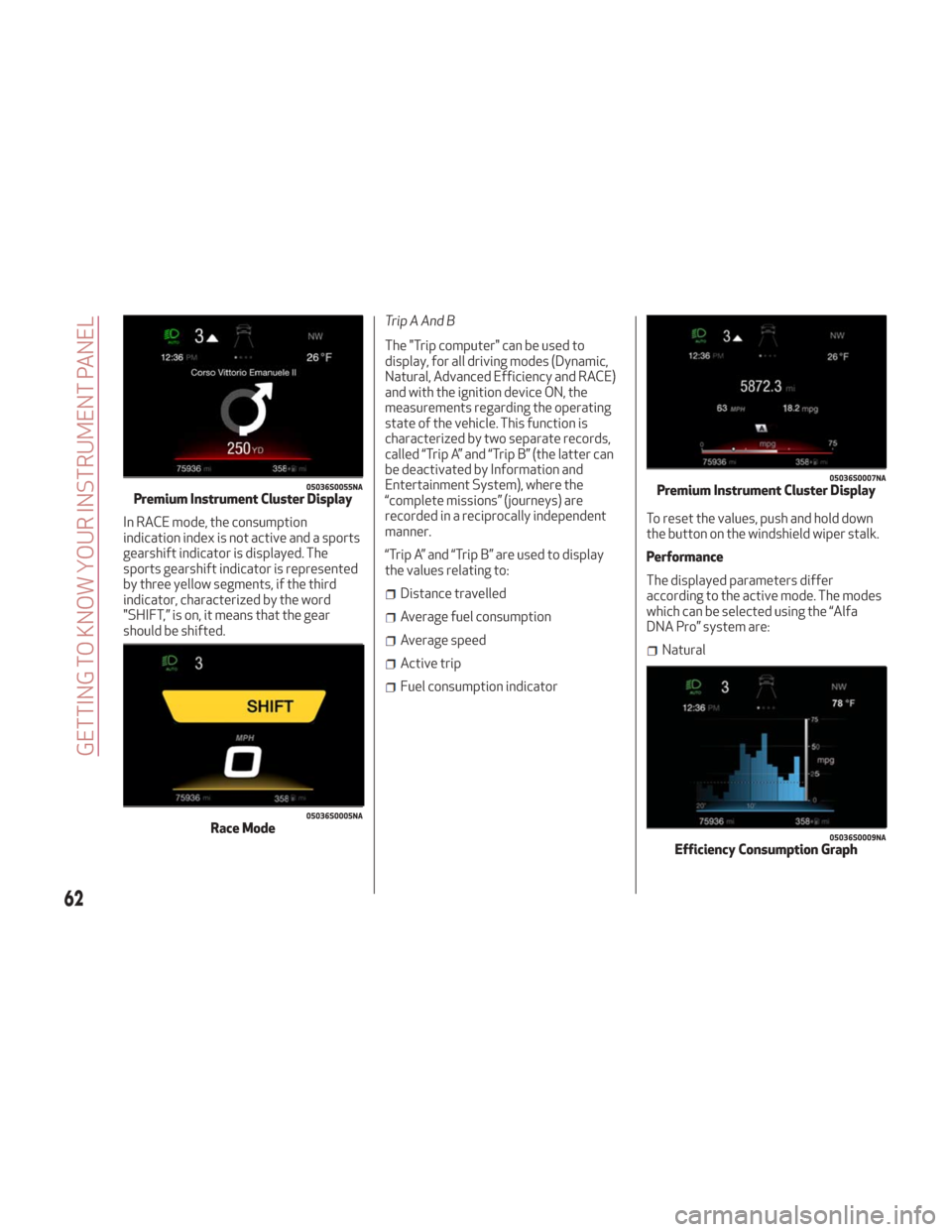

In RACE mode, the consumption
indication index is not active and a sports
gearshift indicator is displayed. The
sports gearshift indicator is represented
by three yellow segments, if the third
indicator, characterized by the word
"SHIFT,” is on, it means that the gear
should be shifted.Trip A And B
The "Trip computer" can be used to
display, for all driving modes (Dynamic,
Natural, Advanced Efficiency and RACE)
and with the ignition device ON, the
measurements regarding the operating
state of the vehicle. This function is
characterized by two separate records,
called “Trip A” and “Trip B” (the latter can
be deactivated by Information and
Entertainment System), where the
“complete missions” (journeys) are
recorded in a reciprocally independent
manner.
“Trip A” and “Trip B” are used to display
the values relating to:
Distance travelled
Average fuel consumption
Average speed
Active trip
Fuel consumption indicator
To reset the values, push and hold down
the button on the windshield wiper stalk.
Performance
The displayed parameters differ
according to the active mode. The modes
which can be selected using the “Alfa
DNA Pro” system are:
Natural
05036S0055NAPremium Instrument Cluster Display
05036S0005NARace Mode
05036S0007NAPremium Instrument Cluster Display
05036S0009NAEfficiency Consumption Graph
62
GETTING TO KNOW YOUR INSTRUMENT PANEL

The screen graphically reproduces some
parameters closely linked to the
efficiency of the driving style, with a view
to limiting consumption.

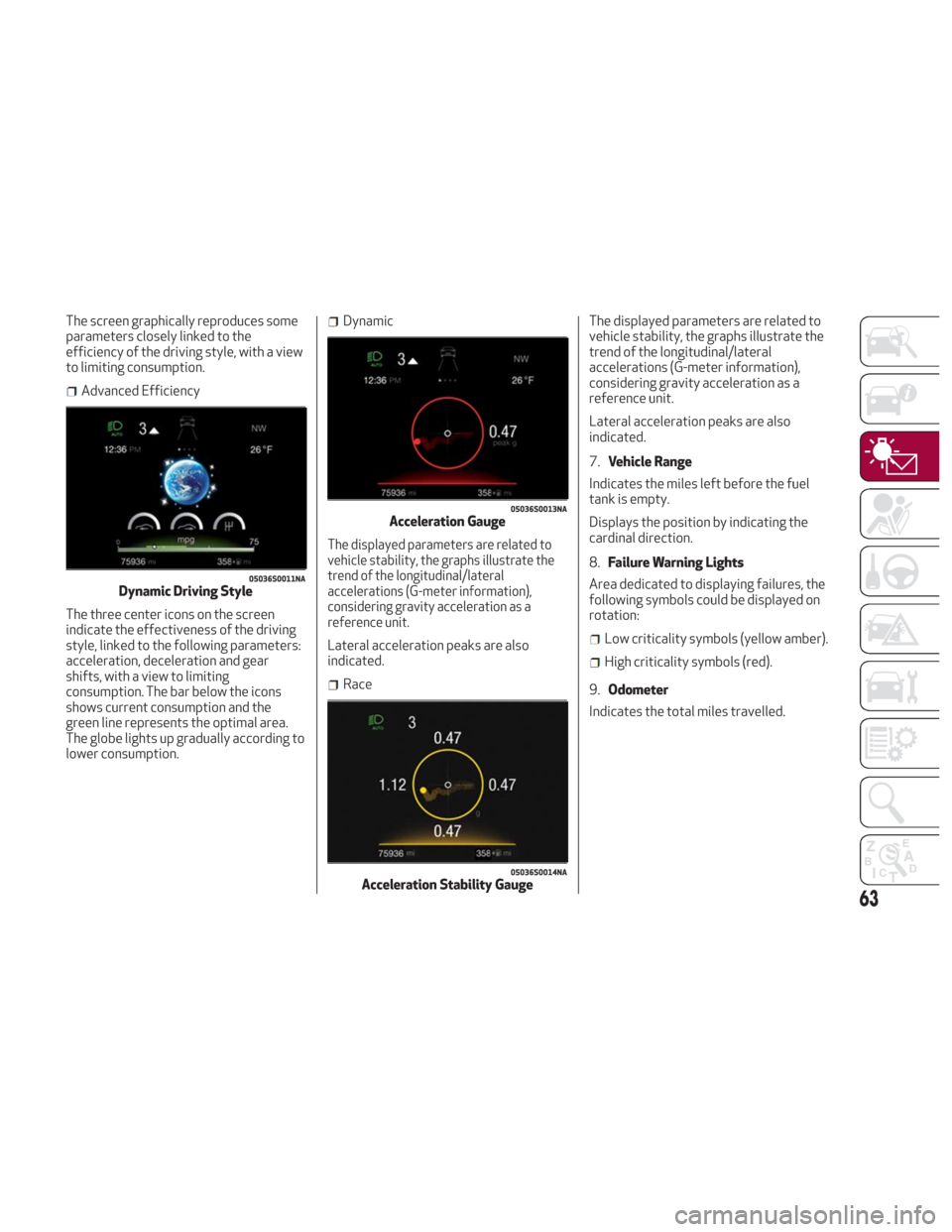

Advanced Efficiency
The three center icons on the screen
indicate the effectiveness of the driving
style, linked to the following parameters:
acceleration, deceleration and gear
shifts, with a view to limiting
consumption. The bar below the icons
shows current consumption and the
green line represents the optimal area.
The globe lights up gradually according to
lower consumption.
Dynamic
The displayed parameters are related to
vehicle stability, the graphs illustrate the
trend of the longitudinal/lateral
accelerations (G-meter information),
considering gravity acceleration as a
reference unit.
Lateral acceleration peaks are also
indicated.
Race The displayed parameters are related to
vehicle stability, the graphs illustrate the
trend of the longitudinal/lateral
accelerations (G-meter information),
considering gravity acceleration as a
reference unit.
Lateral acceleration peaks are also
indicated.
7.
Vehicle Range
Indicates the miles left before the fuel
tank is empty.
Displays the position by indicating the
cardinal direction.
8. Failure Warning Lights
Area dedicated to displaying failures, the
following symbols could be displayed on
rotation:
Low criticality symbols (yellow amber).
High criticality symbols (red).
9. Odometer
Indicates the total miles travelled.
05036S0011NADynamic Driving Style
05036S0013NAAcceleration Gauge
05036S0014NAAcceleration Stability Gauge
63

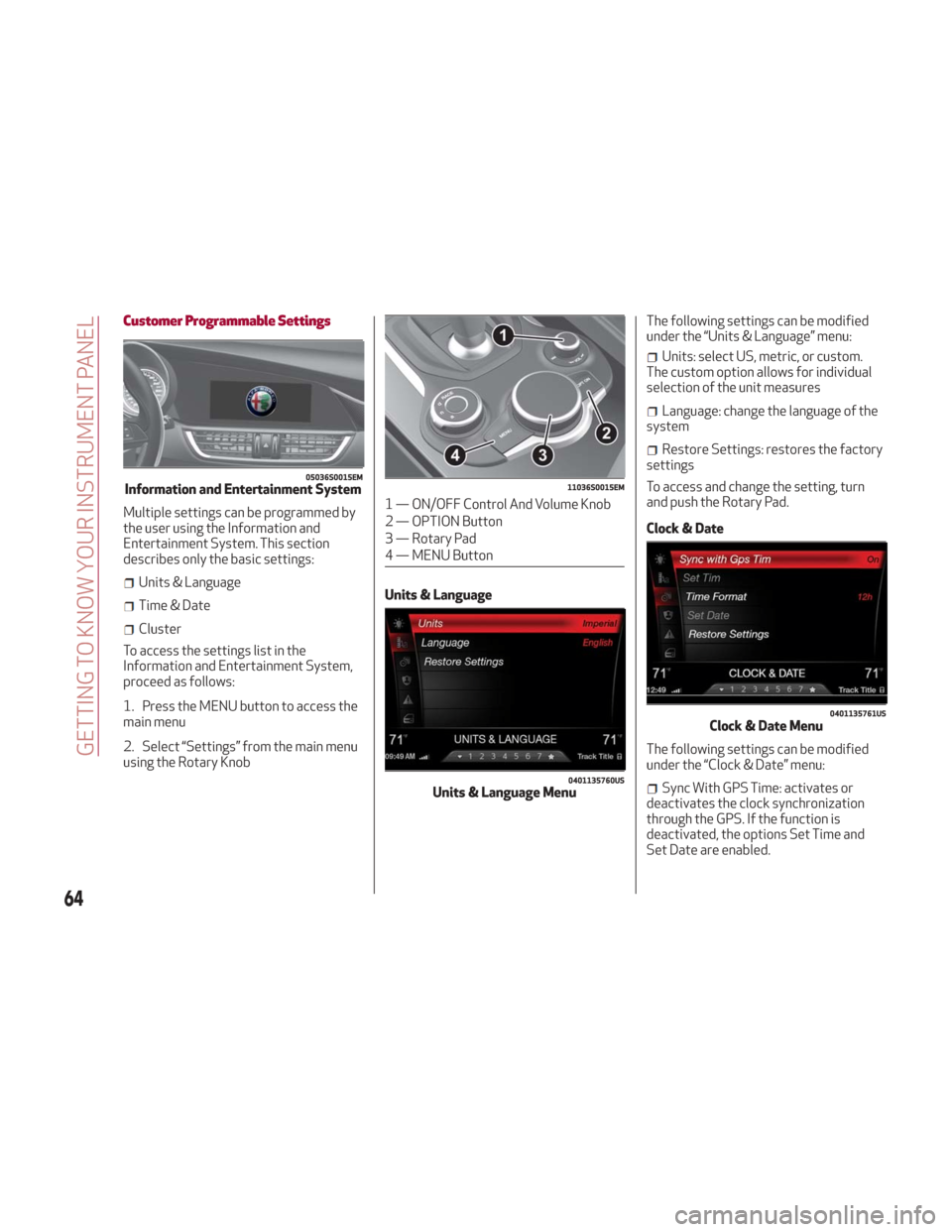

Customer Programmable Settings
Multiple settings can be programmed by
the user using the Information and
Entertainment System. This section
describes only the basic settings:
Units & Language
Time & Date
Cluster
To access the settings list in the
Information and Entertainment System,
proceed as follows:
1. Press the MENU button to access the
main menu
2. Select “Settings” from the main menu
using the Rotary Knob Units & LanguageThe following settings can be modified
under the “Units & Language” menu:
Units: select US, metric, or custom.
The custom option allows for individual
selection of the unit measures
Language: change the language of the
system
Restore Settings: restores the factory
settings
To access and change the setting, turn
and push the Rotary Pad.
Clock & Date
The following settings can be modified
under the “Clock & Date” menu:
Sync With GPS Time: activates or
deactivates the clock synchronization
through the GPS. If the function is
deactivated, the options Set Time and
Set Date are enabled.
05036S0015EMInformation and Entertainment System11036S0015EM
1 — ON/OFF Control And Volume Knob
2 — OPTION Button
3 — Rotary Pad
4 — MENU Button
0401135760USUnits & Language Menu
0401135761USClock & Date Menu
64
GETTING TO KNOW YOUR INSTRUMENT PANEL

Set Time: set the time manually
Time Format: set the time format to
either a 12-hour and a 24-hour clock
Set Date: set the date manually
Restore Settings: restores the factory
settings
To access and the change the setting,
turn and push the Rotary Pad.

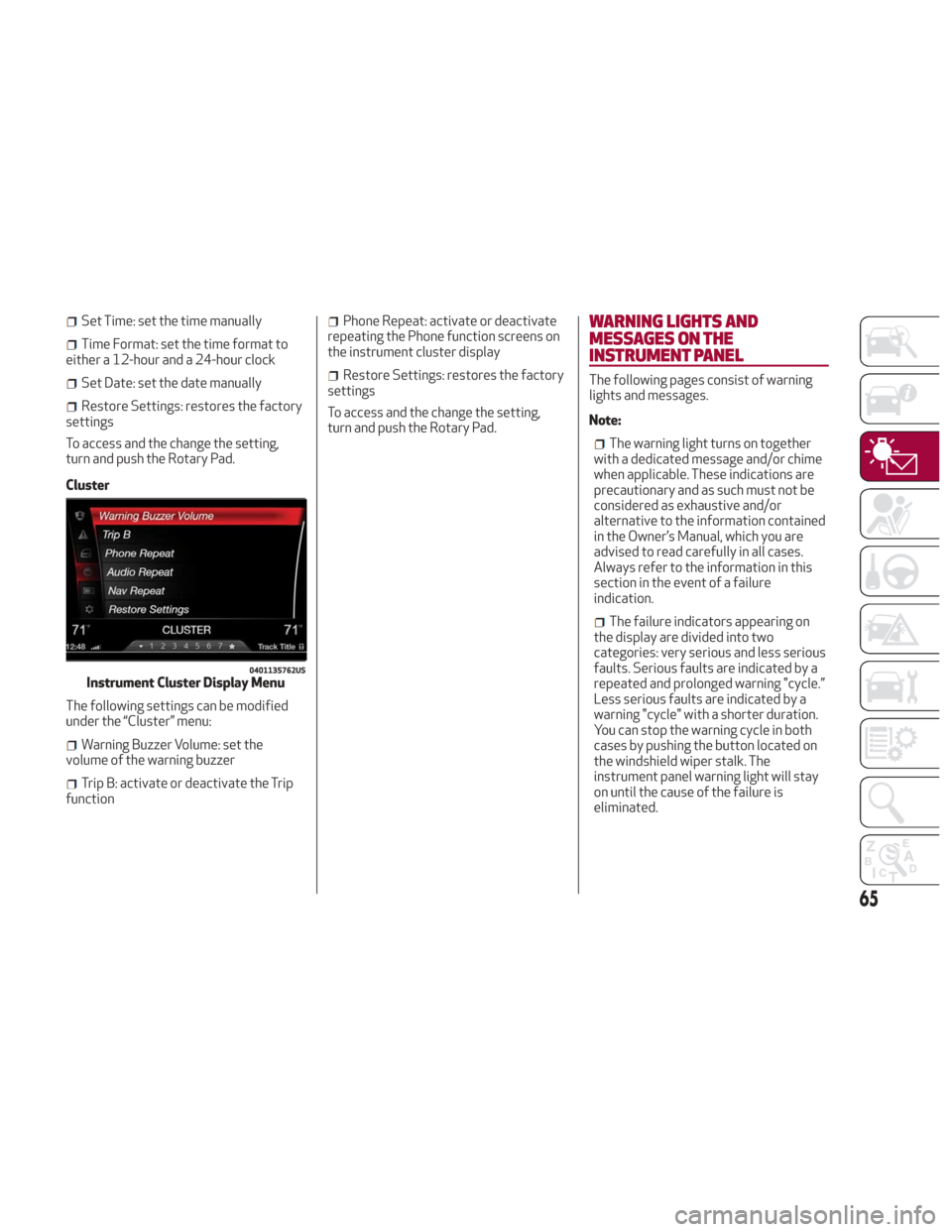

Cluster
The following settings can be modified
under the “Cluster” menu:
Warning Buzzer Volume: set the
volume of the warning buzzer
Trip B: activate or deactivate the Trip
function
Phone Repeat: activate or deactivate
repeating the Phone function screens on
the instrument cluster display
Restore Settings: restores the factory
settings
To access and the change the setting,
turn and push the Rotary Pad.
WARNING LIGHTS AND
MESSAGES ON THE
INSTRUMENT PANEL
The following pages consist of warning
lights and messages.
Note:
The warning light turns on together
with a dedicated message and/or chime
when applicable. These indications are
precautionary and as such must not be
considered as exhaustive and/or
alternative to the information contained
in the Owner’s Manual, which you are
advised to read carefully in all cases.
Always refer to the information in this
section in the event of a failure
indication.
The failure indicators appearing on
the display are divided into two
categories: very serious and less serious
faults. Serious faults are indicated by a
repeated and prolonged warning "cycle.”
Less serious faults are indicated by a
warning "cycle" with a shorter duration.
You can stop the warning cycle in both
cases by pushing the button located on
the windshield wiper stalk. The
instrument panel warning light will stay
on until the cause of the failure is
eliminated.
0401135762USInstrument Cluster Display Menu
65

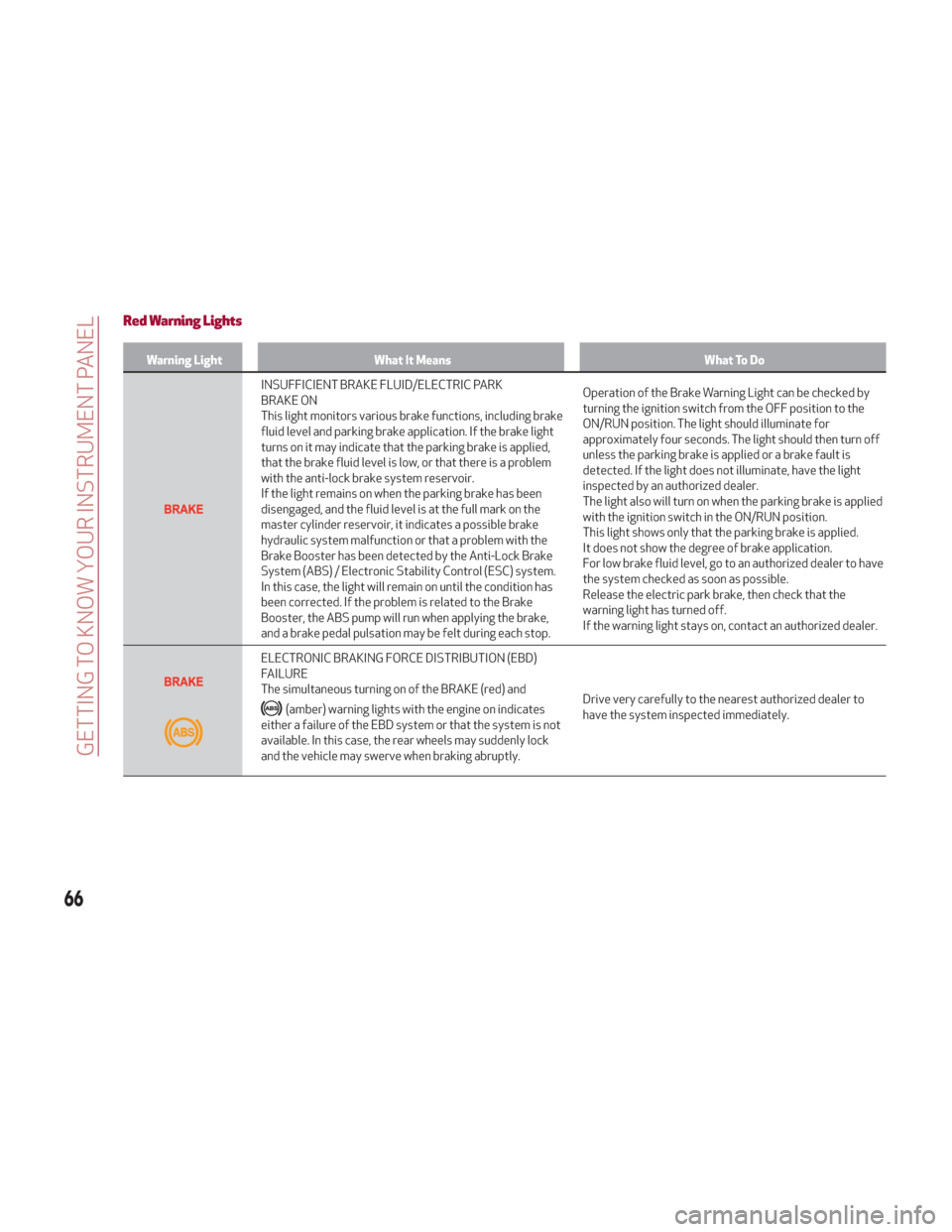

Red Warning Lights
Warning LightWhat It Means What To Do
INSUFFICIENT BRAKE FLUID/ELECTRIC PARK
BRAKE ON
This light monitors various brake functions, including brake
fluid level and parking brake application. If the brake light
turns on it may indicate that the parking brake is applied,
that the brake fluid level is low, or that there is a problem
with the anti-lock brake system reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
In this case, the light will remain on until the condition has
been corrected. If the problem is related to the Brake
Booster, the ABS pump will run when applying the brake,
and a brake pedal pulsation may be felt during each stop.Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF position to the
ON/RUN position. The light should illuminate for
approximately four seconds. The light should then turn off
unless the parking brake is applied or a brake fault is
detected. If the light does not illuminate, have the light
inspected by an authorized dealer.
The light also will turn on when the parking brake is applied
with the ignition switch in the ON/RUN position.
This light shows only that the parking brake is applied.
It does not show the degree of brake application.
For low brake fluid level, go to an authorized dealer to have
the system checked as soon as possible.
Release the electric park brake, then check that the
warning light has turned off.
If the warning light stays on, contact an authorized dealer.
ELECTRONIC BRAKING FORCE DISTRIBUTION (EBD)
FAILURE
The simultaneous turning on of the BRAKE (red) and
(amber) warning lights with the engine on indicates
either a failure of the EBD system or that the system is not
available. In this case, the rear wheels may suddenly lock
and the vehicle may swerve when braking abruptly. Drive very carefully to the nearest authorized dealer to
have the system inspected immediately.
66
GETTING TO KNOW YOUR INSTRUMENT PANEL

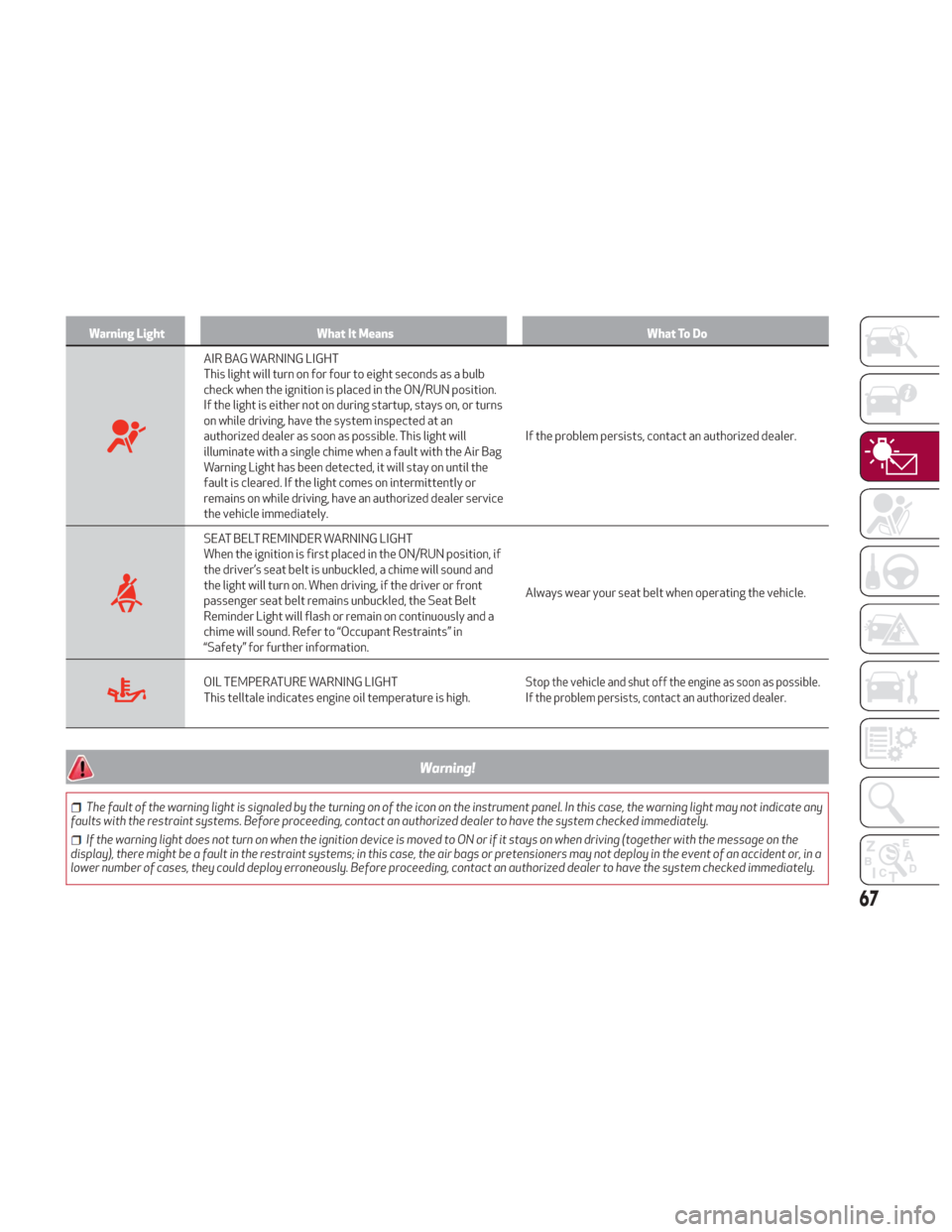

Warning LightWhat It Means What To Do
AIR BAG WARNING LIGHT
This light will turn on for four to eight seconds as a bulb
check when the ignition is placed in the ON/RUN position.
If the light is either not on during startup, stays on, or turns
on while driving, have the system inspected at an
authorized dealer as soon as possible. This light will
illuminate with a single chime when a fault with the Air Bag
Warning Light has been detected, it will stay on until the
fault is cleared. If the light comes on intermittently or
remains on while driving, have an authorized dealer service
the vehicle immediately.If the problem persists, contact an authorized dealer.
SEAT BELT REMINDER WARNING LIGHT
When the ignition is first placed in the ON/RUN position, if
the driver’s seat belt is unbuckled, a chime will sound and
the light will turn on. When driving, if the driver or front
passenger seat belt remains unbuckled, the Seat Belt
Reminder Light will flash or remain on continuously and a
chime will sound. Refer to “Occupant Restraints” in
“Safety” for further information.
Always wear your seat belt when operating the vehicle.
OIL TEMPERATURE WARNING LIGHT
This telltale indicates engine oil temperature is high.Stop the vehicle and shut off the engine as soon as possible.
If the problem persists, contact an authorized dealer.
Warning!
The fault of the warning light is signaled by the turning on of the icon on the instrument panel. In this case, the warning light may not indicate any
faults with the restraint systems. Before proceeding, contact an authorized dealer to have the system checked immediately.
If the warning light does not turn on when the ignition device is moved to ON or if it stays on when driving (together with the message on the
display), there might be a fault in the restraint systems; in this case, the air bags or pretensioners may not deploy in the event of an accident or, in a
lower number of cases, they could deploy erroneously. Before proceeding, contact an authorized dealer to have the system checked immediately.
67

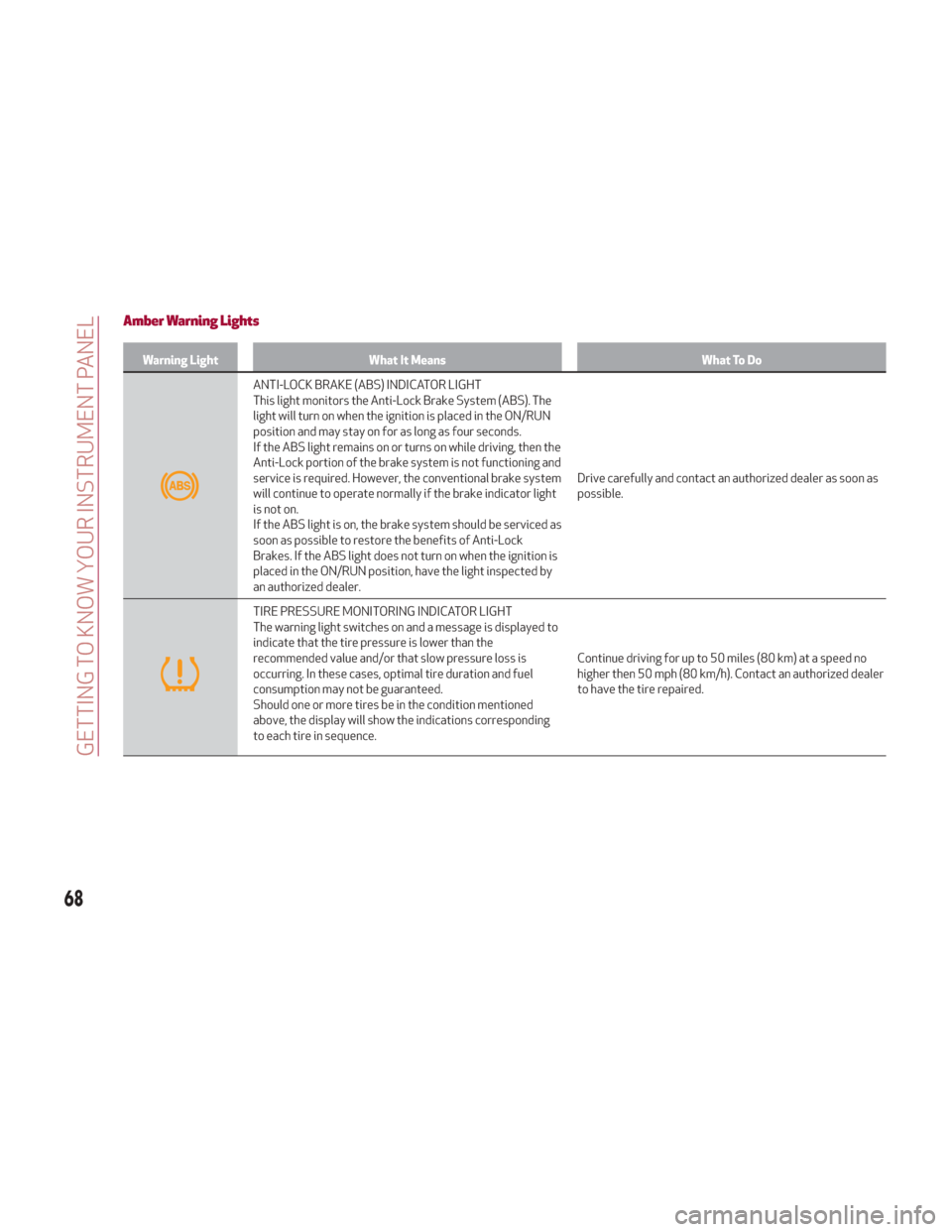

Amber Warning Lights
Warning LightWhat It Means What To Do
ANTI-LOCK BRAKE (ABS) INDICATOR LIGHT
This light monitors the Anti-Lock Brake System (ABS). The
light will turn on when the ignition is placed in the ON/RUN
position and may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, then the
Anti-Lock portion of the brake system is not functioning and
service is required. However, the conventional brake system
will continue to operate normally if the brake indicator light
is not on.
If the ABS light is on, the brake system should be serviced as
soon as possible to restore the benefits of Anti-Lock
Brakes. If the ABS light does not turn on when the ignition is
placed in the ON/RUN position, have the light inspected by
an authorized dealer.Drive carefully and contact an authorized dealer as soon as
possible.
TIRE PRESSURE MONITORING INDICATOR LIGHT
The warning light switches on and a message is displayed to
indicate that the tire pressure is lower than the
recommended value and/or that slow pressure loss is
occurring. In these cases, optimal tire duration and fuel
consumption may not be guaranteed.
Should one or more tires be in the condition mentioned
above, the display will show the indications corresponding
to each tire in sequence.
Continue driving for up to 50 miles (80 km) at a speed no
higher then 50 mph (80 km/h). Contact an authorized dealer
to have the tire repaired.
68
GETTING TO KNOW YOUR INSTRUMENT PANEL
