Warning LightWhat It Means What To Do
REAR FOG LIGHT
The indicator illuminates when the rear fog light is
activated.
ENGINE CHECK/MALFUNCTION INDICATOR LIGHT
(MIL)
In normal conditions, when the ignition is cycled to ON,
the indicator light illuminates, but it should turn off as
soon as the engine is started.
The operation of the indicator light may be checked by
the traffic police using specific devices. Comply with the
laws and regulations of the country where you are
driving.Under these conditions, the vehicle can continue
travelling at moderate speed but without demanding
excessive effort from the engine or high speed.
Prolonged use of the car with the indicator light on
constantly may cause damage. Contact an authorized
dealer as soon as possible.
Caution!
If, turning the ignition device to ON, the warning lightdoes not turn on or if it turns on steadily or flashing when travelling (on some versions
together with the message on the display), contact an authorized dealer as soon as possible.
79

Warning LightWhat It Means What To Do
FORWARD COLLISION WARNING SYSTEM (FCW) —
IF EQUIPPED
This indicator light informs the driver that the frontal
collision alarm function is not enabled.
FUEL RESERVE / LIMITED RANGE
The indicator light (or the symbol in the display)
illuminates when about 9 liters of fuel is left in the tank.
Warning!
If the warning light (or the icon on the display) flashes while driving, contact an authorized dealer.
80
GETTING TO KNOW YOUR INSTRUMENT PANEL

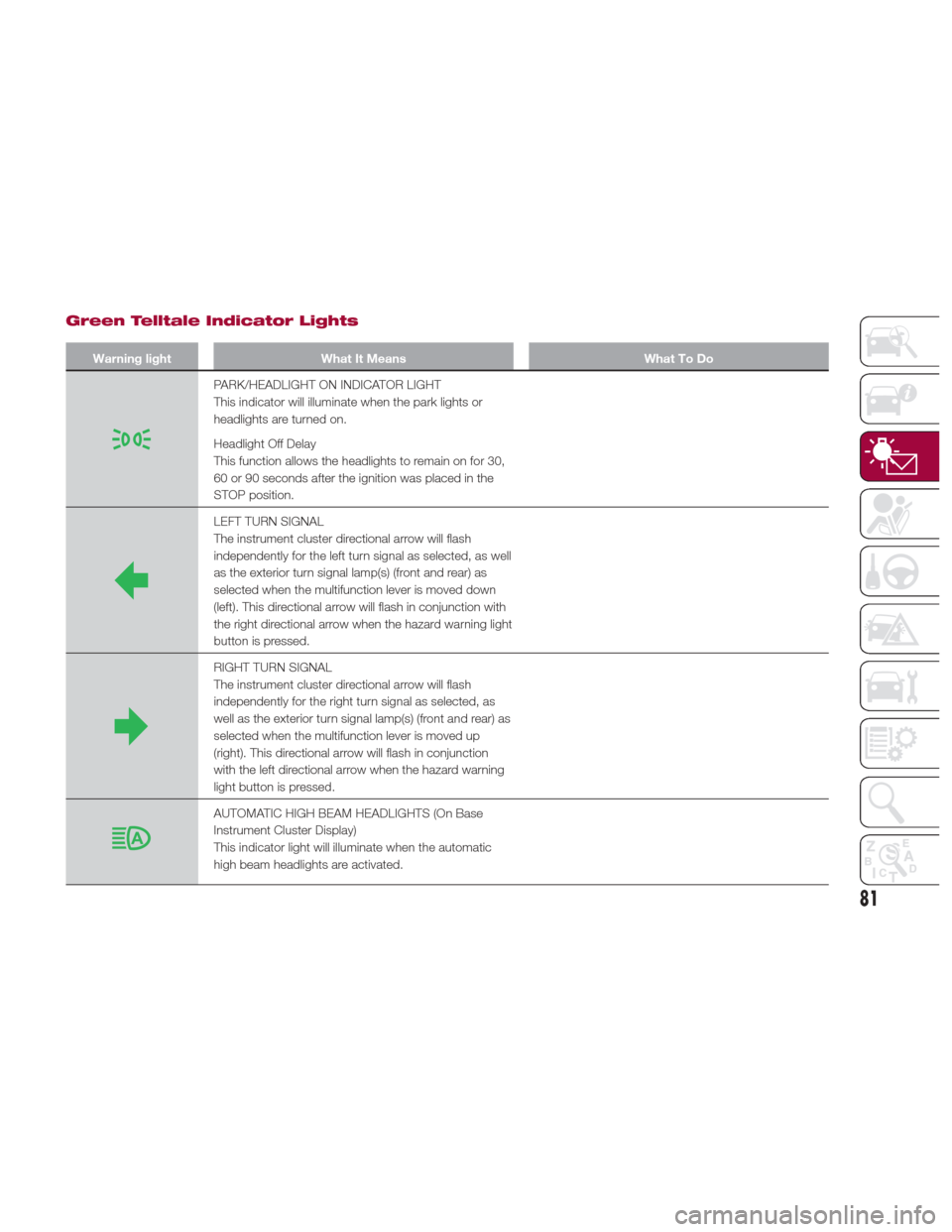

Green Telltale Indicator Lights
Warning lightWhat It Means What To Do
PARK/HEADLIGHT ON INDICATOR LIGHT
This indicator will illuminate when the park lights or
headlights are turned on.
Headlight Off Delay
This function allows the headlights to remain on for 30,
60 or 90 seconds after the ignition was placed in the
STOP position.
LEFT TURN SIGNAL
The instrument cluster directional arrow will flash
independently for the left turn signal as selected, as well
as the exterior turn signal lamp(s) (front and rear) as
selected when the multifunction lever is moved down
(left). This directional arrow will flash in conjunction with
the right directional arrow when the hazard warning light
button is pressed.
RIGHT TURN SIGNAL
The instrument cluster directional arrow will flash
independently for the right turn signal as selected, as
well as the exterior turn signal lamp(s) (front and rear) as
selected when the multifunction lever is moved up
(right). This directional arrow will flash in conjunction
with the left directional arrow when the hazard warning
light button is pressed.
AUTOMATIC HIGH BEAM HEADLIGHTS (On Base
Instrument Cluster Display)
This indicator light will illuminate when the automatic
high beam headlights are activated.
81

Blue Telltale Indicator Light
Warning LightWhat It Means What To Do
HIGH BEAM HEADLIGHTS (On Base Instrument Cluster
Display)
This indicator shows that the high beam headlights are
on. Push the multifunction control lever away from you
to switch the headlights to high beam. Push the lever a
second time to switch the headlights back to low beam.
Pull the lever toward you for a temporary high beam on,
“flash to pass” scenario.
Red Symbols
SymbolWhat It Means What To Do
LOW ENGINE OIL PRESSURE
This telltale indicates low engine oil pressure. If the
telltale turns on while driving, stop the vehicle and shut
off the engine as soon as possible. A chime will sound
when this telltale turns on. Do not operate the vehicle
until the cause is corrected. This telltale does not
indicate how much oil is in the engine. The engine oil
level must be checked under the hood.
Note:
Do not use the vehicle until the failure has been solved.
The illumination of the telltale does not indicate the
amount of oil in the engine: the oil level can be checked
on the display upon entering the vehicle and also by
activating the "Oil level" function on the Connect
system. The oil level can also be checked manually.Contact an authorized dealer as soon as possible.
82
GETTING TO KNOW YOUR INSTRUMENT PANEL

Caution!
If the LOW ENGINE OIL PRESSURE symbol switches on when driving, stop the engine immediately and contact an authorized dealer.
SymbolWhat It Means What To Do
ENGINE TEMPERATURE WARNING LIGHT
This telltale warns of an overheated engine condition.
If the engine coolant temperature is too high, this
indicator will illuminate and a single chime will sound.
If the temperature reaches the upper limit, a continuous
chime will be sound for 4 minutes or until the engine is
allowed to cool whichever comes first.In normal driving conditions
: stop the car, switch off the
engine and check that the coolant level in the reservoir
is not below the MIN mark. In this case, wait for the
engine to cool down, then slowly and carefully open the
cap, top up with coolant and check that the level is
between the MIN and MAX marks on the reservoir itself.
Also check visually for any fluid leaks. Contact an
authorized dealer if the telltale comes on when the
engine is started again.
If the vehicle is used under demanding conditions
(e.g. in high-performance driving): slow down and, if the
telltale stays on, stop the vehicle. Stop for two or three
minutes with the engine running and slightly accelerated
to facilitate better coolant circulation, then turn the
engine off. Check that the coolant level is correct as
described above.
POWER STEERING FAILURE
If the telltale remains on, you could not have steering
assistance and the effort required to operate the
steering wheel could be increased; steering is, however,
possible. Contact an authorized dealer as soon as possible.
83

SymbolWhat It Means What To Do

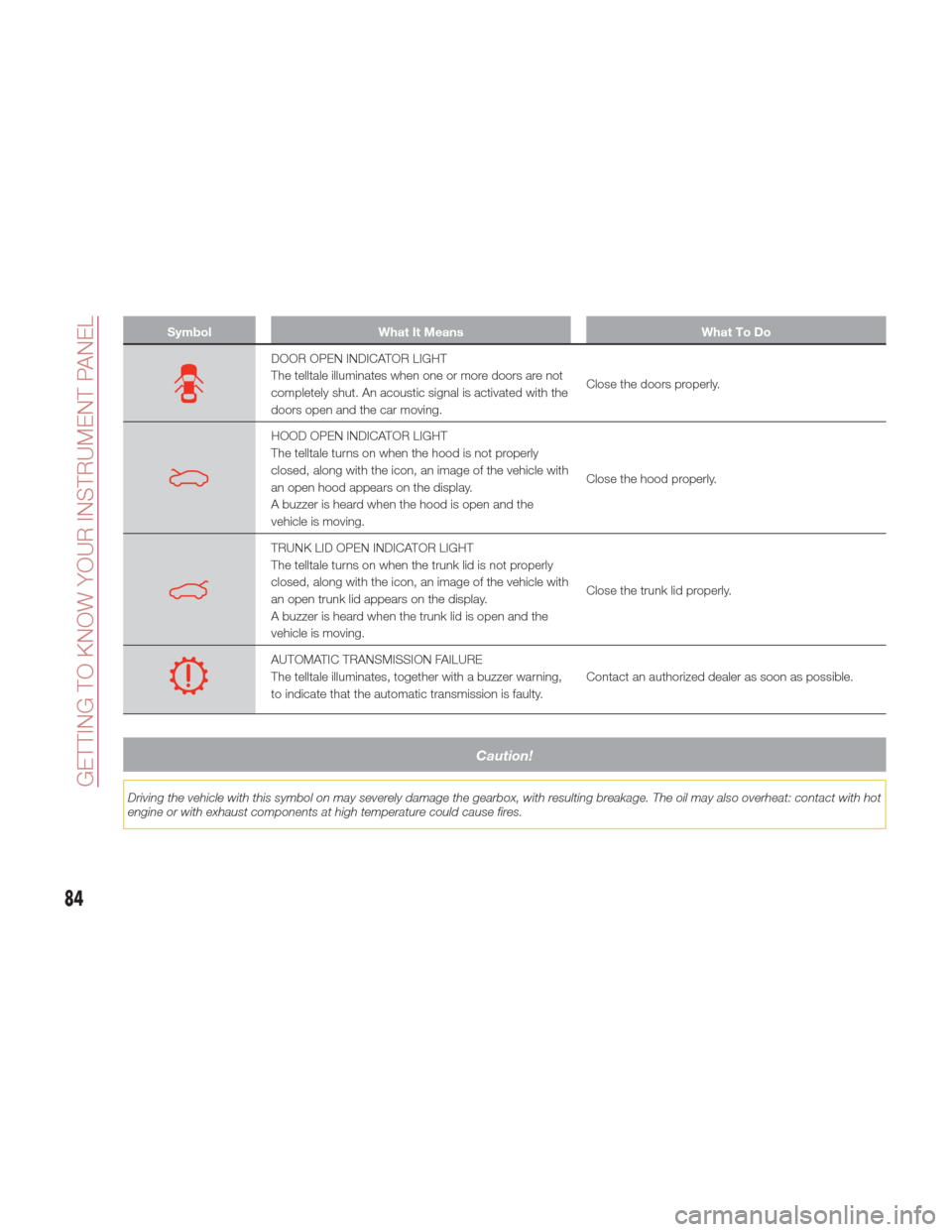

DOOR OPEN INDICATOR LIGHT
The telltale illuminates when one or more doors are not
completely shut. An acoustic signal is activated with the
doors open and the car moving.Close the doors properly.
HOOD OPEN INDICATOR LIGHT
The telltale turns on when the hood is not properly
closed, along with the icon, an image of the vehicle with
an open hood appears on the display.
A buzzer is heard when the hood is open and the
vehicle is moving.Close the hood properly.
TRUNK LID OPEN INDICATOR LIGHT
The telltale turns on when the trunk lid is not properly
closed, along with the icon, an image of the vehicle with
an open trunk lid appears on the display.
A buzzer is heard when the trunk lid is open and the
vehicle is moving.Close the trunk lid properly.
AUTOMATIC TRANSMISSION FAILURE
The telltale illuminates, together with a buzzer warning,
to indicate that the automatic transmission is faulty.
Contact an authorized dealer as soon as possible.
Caution!
Driving the vehicle with this symbol on may severely damage the gearbox, with resulting breakage. The oil may also overheat: contact with hot
engine or with exhaust components at high temperature could cause fires.
84
GETTING TO KNOW YOUR INSTRUMENT PANEL

SymbolWhat It Means What To Do
ELECTRONIC THROTTLE CONTROL (ETC) WARNING
LIGHTS
This telltale, along with the related message, signals a
failure in the electronic throttle control system (ETC).Contact an authorized dealer as soon as possible.
If a failure is detected, the telltale illuminates while the
engine is running.Place the ignition in the off position and the shift
selector in the park position: the telltale should switch
off. If the telltale stays on with engine running the vehicle
can still be driven.
Contact an authorized dealer as soon as possible to
have the failure eliminated.
If the telltale flashes with the engine running, immediate
intervention is required. A loss of performance,
irregular/high idling speed or engine stopping might take
place and the vehicle may need to be towed.
Contact an authorized dealer as soon as possible to
have the failure eliminated.
LOW ENGINE OIL LEVEL
This telltale appears on the panel when the engine oil
level falls below the minimum recommended value.
The level must also be checked using the dipstick in the
engine compartment (see chapter "Servicing and
Maintenance.")Contact an authorized dealer to have the system
checked.
ALFA STEERING TORQUE (AST) FAILURE
The illumination of the telltale signals a failure in the
automatic steering correction system.
Contact an authorized dealer to have the system
checked.
ALTERNATOR FAILURE
The illumination of the telltale with engine on
corresponds to an alternator failure.
Contact an authorized dealer as soon as possible.
85

Amber Symbols
SymbolWhat It Means What To Do
ENGINE IMMOBILIZER FAILURE / BREAK-IN ATTEMPT
Engine Immobilizer System Failure
The telltale will illuminate to report a failure of the Engine
Immobilizer system.Contact an authorized dealer as soon as possible.
Break-In Attempt
The telltale will illuminate when the ignition is moved to
ON position, to indicate a possible break-in attempt
detected by the alarm system.
Electronic Key Not Recognized
The telltale will illuminate when the engine is started and
the electronic key is not recognized by the system.
Alarm System Failure
The telltale will illuminate to report an alarm system
failure.
FUEL CUT-OFF INDICATOR LIGHT
The telltale will illuminate after an accident has occurred
and the system has shut the fuel off. For reactivating the fuel cut-off system, refer to
"Occupant Restraint Systems" in "Safety.” If it is not
possible to restore the fuel supply, contact an
authorized dealer.
PARK SENSORS SYSTEM FAILURE
The telltale will illuminate when the system has failed or
is not available.
Contact an authorized dealer to have the system
checked.
POSSIBLE ICE ON ROAD
The telltale will illuminate when the outside temperature
falls to or below 37°F.
86
GETTING TO KNOW YOUR INSTRUMENT PANEL

SymbolWhat It Means What To Do
ENGINE OIL CHANGE REQUIRED — IF EQUIPPED
The telltale is illuminated only for a limited time.
Note:
After the first indication, each time the engine is started
the symbol will continue to illuminate as described
above until the oil is changed.
If the telltale flashes, this does not mean that there is a
fault on the vehicle, rather it simply reports that it is now
necessary to change the oil as a result of regular use of
the vehicle. The deterioration of engine oil is accelerated
by using the vehicle for short drives, preventing the
engine from reaching operating temperature.Contact an authorized dealer as soon as possible.
Caution!
Deteriorated engine oil should be replaced as soon as possible after the symbol is switched on, and never more than 310 miles (500 km) after
it first switches on. Failure to observe the above may result in severe damage to the engine and invalidate the New Vehicle Limited Warranty.
When this symbol comes on, it does not mean that the level of engine oil is low, so if it flashes you do not need to top up the engine oil.
87

SymbolWhat It Means What To Do
ENGINE OIL PRESSURE SENSOR FAILURE
The telltale will illuminate in the event of engine oil
pressure sensor failure.Contact an authorized dealer as soon as possible.
ENGINE OIL LEVEL SENSOR FAILURE
The telltale will illuminate in the event of engine oil level
sensor failure.Contact an authorized dealer as soon as possible.
FORWARD COLLISION WARNING (FCW) SYSTEM
FAILURE
The telltale will illuminate in the case of failure of the
Forward Collision Warning system.Contact an authorized dealer as soon as possible.
START & STOP EVO SYSTEM FAILURE
This telltale will illuminate to report a Stop & Start Evo
system failure.Contact an authorized dealer as soon as possible to
have the failure eliminated.
RAIN SENSOR FAILURE
The telltale will illuminate in the case of failure of the
automatic windshield wiper.
Contact an authorized dealer as soon as possible.
DUSK SENSOR FAILURE
The telltale will illuminate in the case of failure of the
automatic low beam alignment.Contact an authorized dealer as soon as possible.
BLIND SPOT MONITORING SYSTEM FAILURE
The telltale will illuminate in the event of a Blind Spot
Monitoring system failure.Contact an authorized dealer as soon as possible.
FUEL LEVEL SENSOR FAILURE
The telltale will illuminate in the event of fuel level sensor
failure.Contact an authorized dealer as soon as possible.
88
GETTING TO KNOW YOUR INSTRUMENT PANEL
