CONTENTS
CONTROL PANEL AND INSTRUMENTS
VERSIONS WITH MULTIFUNCTION DISPLAY
A Speedometer (speed indicator)
B Multifunction display
C Rev counter
D Fuel gauge with reserve warning light
E Engine coolant temperature gauge with overheating warning light
mcWarning lights present on diesel versions only On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT Instrument panel graphics lighting may vary according to the versions.
A0K0002mfig. 2
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:32 Pagina 4

5
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAY
A Speedometer (speed indicator)
B Reconfigurable multifunction display
C Rev counter
D Fuel gauge with reserve warning light
E Engine coolant temperature gauge with overheating warning light
mcWarning lights present on diesel versions only On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT Instrument panel graphics lighting may vary according to the versions.
A0K0001mfig. 3
001-130 Alfa Giulietta EN 5ed 26-07-2010 16:32 Pagina 5

Unleaded petrol
not less than 95 R.O.N
(EN228 specifications)
Mixture of demineralised
water and PARAFLU
UP
in 50-50 proportion (▲)
SELENIA StAR P.E.
TUTELA TRANSMISSION
GEARFORCE
TUTELA TOP 4
Water and liquid mixture
TUTELA PROFESSIONAL SC 35
60 –
8 - 10 –
6.4–
–4.25
–4.35
1.87 1.7
–0,78
2.8–
(4.6) –60 –
8 - 10 –
5.7–
3.12.65
3.53.0
1.87 1.7
–0.78
2.8–
(4.6) –60 –
8 - 10 –
5.7–
2.75 2.4
3.12.7
1.87 1.7
–0.78
2.8–
(4.6) –
240
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IONS
CONTENTS
CAPACITIES
(▲) When the car is used under particularly harsh climate conditions, we recommend using a 60% mixture of PARAFLUUPand 40% of demineralised water.
(*) The figures in brackets refer to versions with headlight washers.
Prescribed fuel
1.4 Turbo Petrol1.4 Turbo Multi Air1750 Turbo Petrol and genuine lubricants
litres kg litres kg litres kg
Fuel tank:
including a reserve of:
Engine cooling system
–with climate
control:
Engine sump:
Engine sump and
filter:
Gearbox/differential
casing:
Hydraulic brake circuit
with ABS:
Windscreen/
rear window/
headlight
liquid reservoir (*):
225-246 Alfa Giulietta EN 3ed 13-04-2010 11:50 Pagina 240

Automotive diesel
(EN590 specifications)
Mixture of demineralised
water and PARAFLU
UPin
50-50 proportion (▲)
SELENIA WR P.E.
TUTELA TRANSMISSION
GEARFORCE
TUTELA TOP 4
Water and liquid mixture
TUTELA PROFESSIONAL SC 35
241
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IONS
CONTENTS
60 –
8 - 10 –
6.7–
4.03.4
4.23.54
1.87 1.7
–0.78
2.8–
(4.6) –60 –
8 - 10 –
6.8–
4.03.4
4.23.54
1.87 1.7
–0.78
2.8–
(4.6) –
(▲) When the car is used under particularly harsh climate conditions, we recommend using a 60% mixture of PARAFLUUPand 40% of demineralised water.
(*) The figures in brackets refer to versions with headlight washers.
Prescribed fuel
1.6 JTDM2.0 JTDMand genuine lubricants
litres kg litres kg
Fuel tank:including a reserve of:
Engine cooling system
- with climate
control:
Engine sump:
Engine sump and
filter:
Gearbox/differential
casing:
Hydraulic brake circuit
with ABS:
Windscreen/rear window/
headlight liquid reservoir (*):
225-246 Alfa Giulietta EN 3ed 13-04-2010 11:50 Pagina 241

283
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Electric sunroof ...................... 92
Electric windows ..................... 98
Electromechanical power
assisted steering ................... 121
Electronic Q2 (“E-Q2”) ............ 112
Engine
– identification codes .............. 227
– marking ............................ 226
– technical specifications .. 228-229
Engine codes .......................... 227
Engine compartment
– checking fluid levels ............ 207
– opening/closing the bonnet .. 107
– washing ........................... 222
Engine oil
– consumption ..................... 212
– level check ........................ 208
– specifications ..................... 242
Environment (protecting) ......... 129
EOBD system .......................... 121
External lights ........................ 74Fire extinguisher ..................... 91
Fix&Go Automatic device .......... 169
Fluids and lubricants
(specifications) ............... 242-243
Fog lights
– bulb replacement ................ 178
– control............................... 85
“Follow me home” device......... 76
Front ceiling lights ............. 81-82
– bulb replacement ................ 182
Fuel
– fuel cut-off system .............. 86
– how to save fuel ................ 155
Fuel cap ................................ 128
Fuel reserve ...................... 240-241
Fuel supply ............................. 230
Fuse replacement .................... 186
Fuseboxes (location).. 188-189-190
Fuses
– fuseboxes ........... 188-189-190– list of fuses ......... 191-192-193
– replacement ....................... 186
Gearbox use .......................... 154
Getting to know your car.. 3
Glove compartment light
– bulb replacement ................ 184
GSI (Gear Shift Indicator) ......... 22
Hazard warning lights ............. 85
Head restraint.................... 53-54
– “Anti Whiplash” device ....... 53
Headlight alignment corrector ... 108
Headlight washers
– checking liquid
level .......... 208-209-210-211
– control............................... 220
Headlights
– alignment corrector ............. 109
– bulb replacement ................ 177
281-292 Alfa Giulietta EN 5ed 26-07-2010 16:37 Pagina 283

289
RIGHT-HAND DRIVE VERSIONS

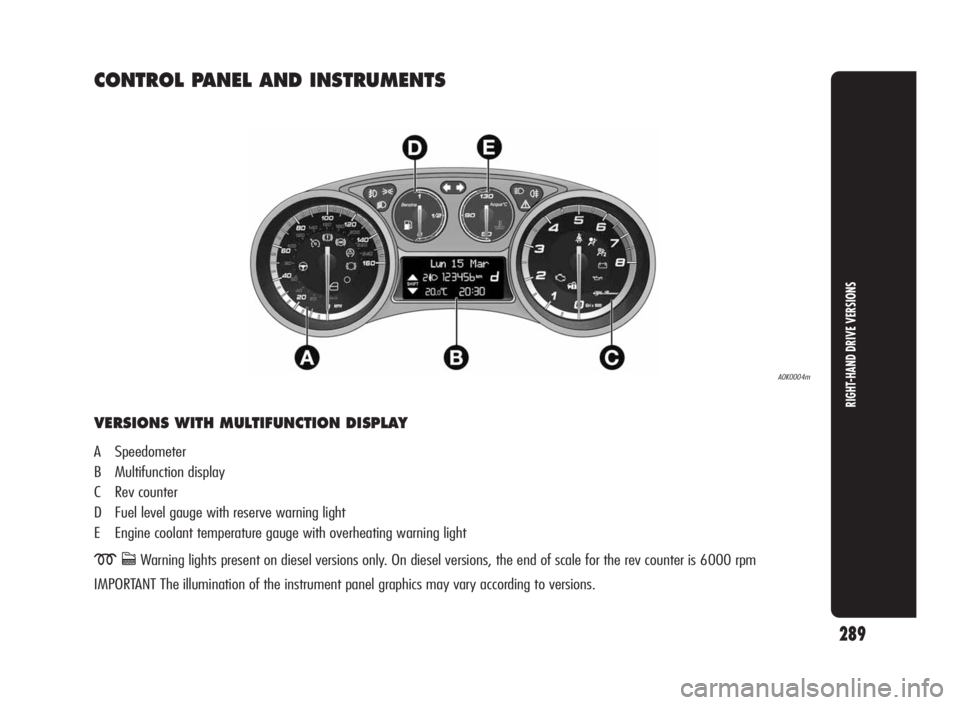

CONTROL PANEL AND INSTRUMENTS
VERSIONS WITH MULTIFUNCTION DISPLAY
A Speedometer
B Multifunction display
C Rev counter
D Fuel level gauge with reserve warning light
E Engine coolant temperature gauge with overheating warning light
mcWarning lights present on diesel versions only. On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT The illumination of the instrument panel graphics may vary according to versions.
A0K0004m
281-292 Alfa Giulietta EN 5ed 26-07-2010 16:37 Pagina 289

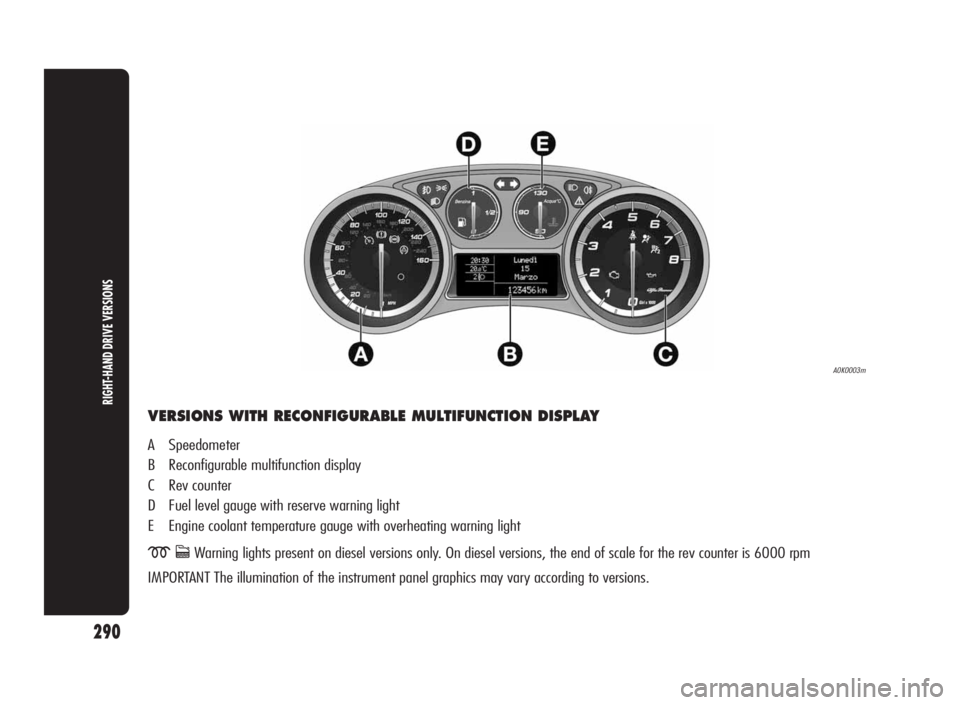

VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAY
