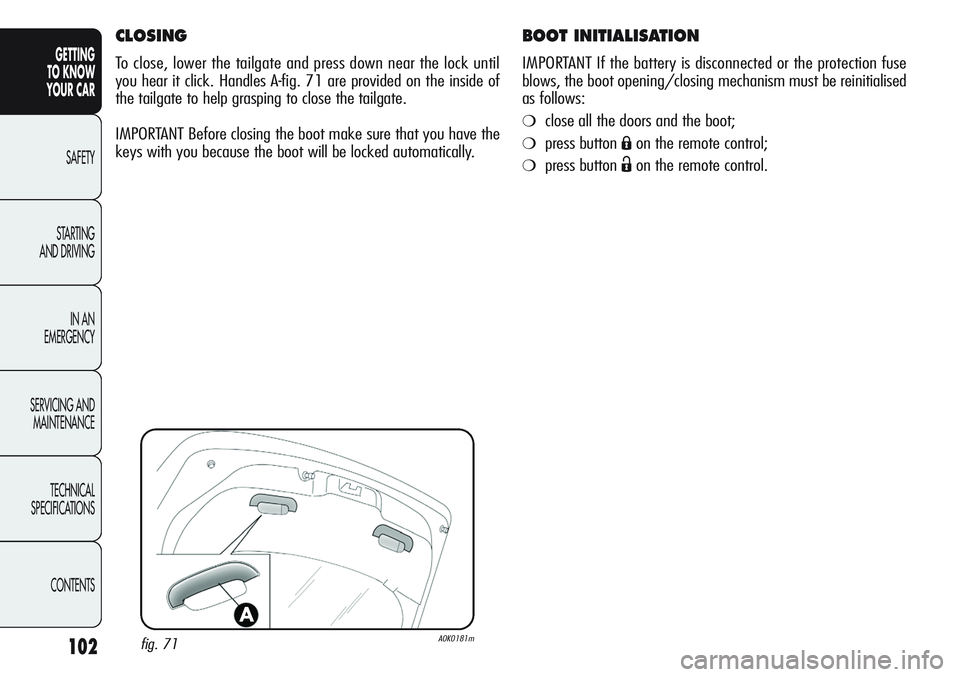

BOOT INITIALISATION
IMPORTANT If the battery is disconnected or the protection fuse
blows, the boot opening/closing mechanism must be reinitialised
as follows:
❍close all the doors and the boot;
❍press button Áon the remote control;
❍press button Ëon the remote control.
CLOSING
To close, lower the tailgate and press down near the lock until
you hear it click. Handles A-fig. 71 are provided on the inside of
the tailgate to help grasping to close the tailgate.
IMPORTANT Before closing the boot make sure that you have the
keys with you because the boot will be locked automatically.
fig. 71A0K0181m

103
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 72A0K0070m

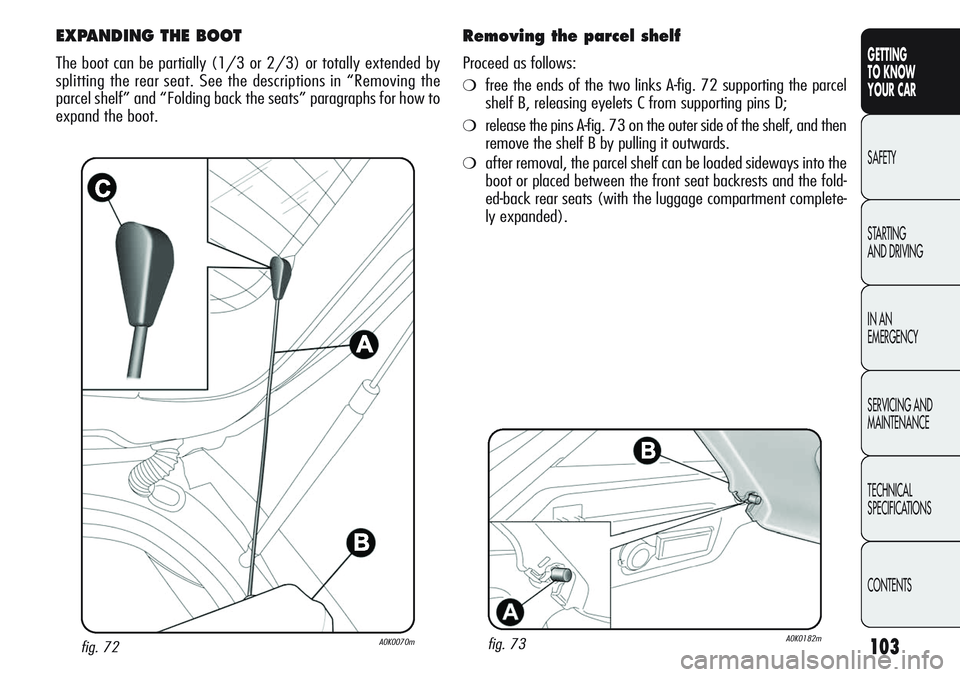

EXPANDING THE BOOT
The boot can be partially (1/3 or 2/3) or totally extended by
splitting the rear seat. See the descriptions in “Removing the
parcel shelf” and “Folding back the seats” paragraphs for how to
expand the boot.
fig. 73A0K0182m
Removing the parcel shelf
Proceed as follows:
❍free the ends of the two links A-fig. 72 supporting the parcel
shelf B, releasing eyelets C from supporting pins D;
❍release the pins A-fig. 73 on the outer side of the shelf, and then
remove the shelf B by pulling it outwards.
❍after removal, the parcel shelf can be loaded sideways into the
boot or placed between the front seat backrests and the fold-
ed-back rear seats (with the luggage compartment complete-
ly expanded).

104
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

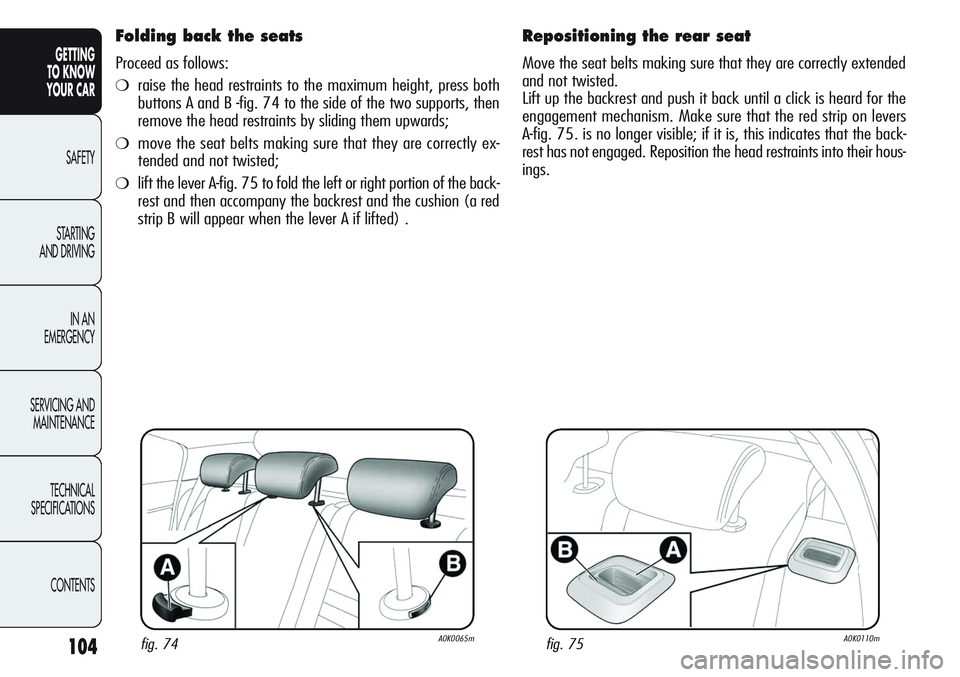

Folding back the seats
Proceed as follows:
❍raise the head restraints to the maximum height, press both
buttons A and B -fig. 74 to the side of the two supports, then
remove the head restraints by sliding them upwards;
❍move the seat belts making sure that they are correctly ex-
tended and not twisted;
❍lift the lever A-fig. 75 to fold the left or right portion of the back-
rest and then accompany the backrest and the cushion (a red
strip B will appear when the lever A if lifted) .
fig. 74A0K0065mfig. 75A0K0110m
Repositioning the rear seat
Move the seat belts making sure that they are correctly extended
and not twisted.
Lift up the backrest and push it back until a click is heard for the
engagement mechanism. Make sure that the red strip on levers
A-fig. 75. is no longer visible; if it is, this indicates that the back-
rest has not engaged. Reposition the head restraints into their hous-
ings.

105
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Heavy, unsecured baggage may cause severe injury
to passengers in case of an accident.
If you are travelling in areas with few refuelling
stations and you want to transport fuel in a spare
tank, comply with the law by using only an ap-
proved, suitably secured tank. In the event of a collision
the fire risk is increased all the same.

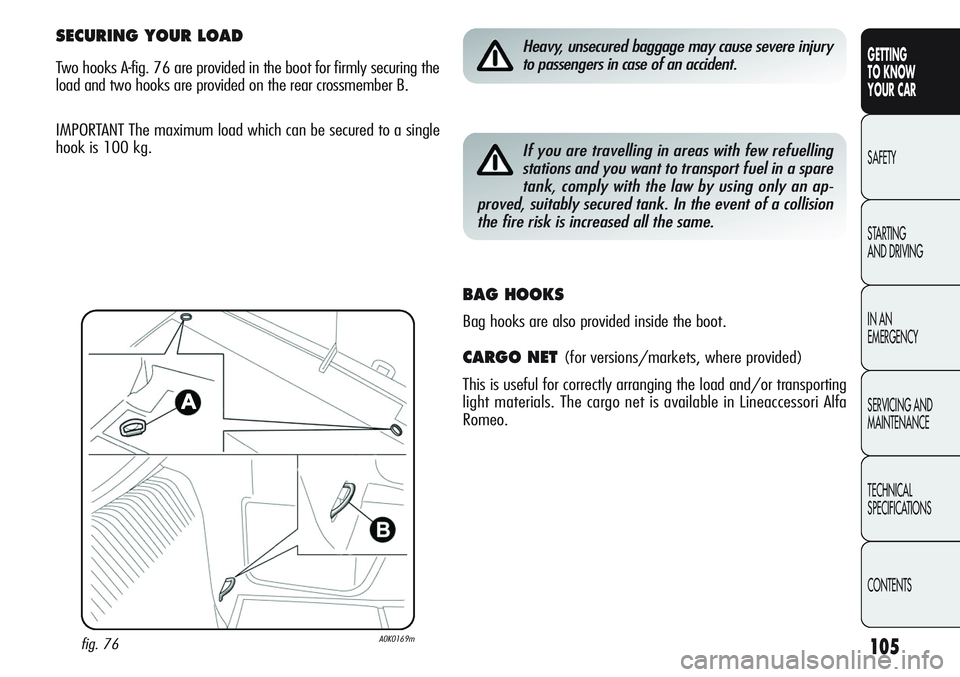

SECURING YOUR LOAD
Two hooks A-fig. 76 are provided in the boot for firmly securing the
load and two hooks are provided on the rear crossmember B.
IMPORTANT The maximum load which can be secured to a single
hook is 100 kg.
fig. 76A0K0169m
BAG HOOKS
Bag hooks are also provided inside the boot.
CARGO NET (for versions/markets, where provided)
This is useful for correctly arranging the load and/or transporting
light materials. The cargo net is available in Lineaccessori Alfa
Romeo.

106
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

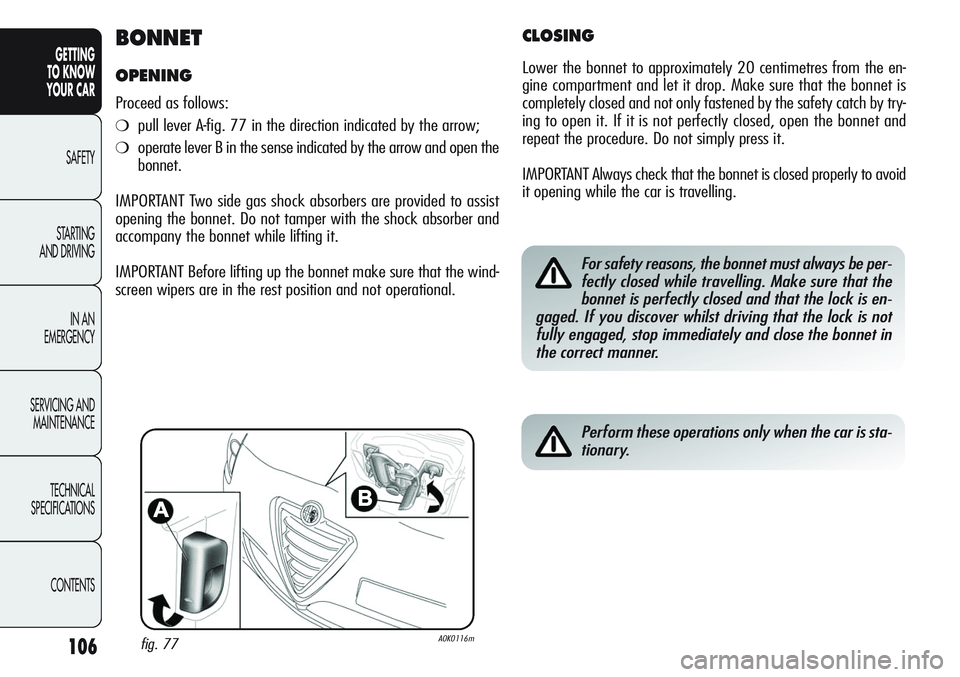

BONNET
OPENING
Proceed as follows:
❍pull lever A-fig. 77 in the direction indicated by the arrow;
❍operate lever B in the sense indicated by the arrow and open the
bonnet.
IMPORTANT Two side gas shock absorbers are provided to assist
opening the bonnet. Do not tamper with the shock absorber and
accompany the bonnet while lifting it.
IMPORTANT Before lifting up the bonnet make sure that the wind-
screen wipers are in the rest position and not operational.
fig. 77A0K0116m
CLOSING
Lower the bonnet to approximately 20 centimetres from the en-
gine compartment and let it drop. Make sure that the bonnet is
completely closed and not only fastened by the safety catch by try-
ing to open it. If it is not perfectly closed, open the bonnet and
repeat the procedure. Do not simply press it.
IMPORTANT Always check that the bonnet is closed properly to avoid
it opening while the car is travelling.
For safety reasons, the bonnet must always be per-
fectly closed while travelling. Make sure that the
bonnet is perfectly closed and that the lock is en-
gaged. If you discover whilst driving that the lock is not
fully engaged, stop immediately and close the bonnet in
the correct manner.
Perform these operations only when the car is sta-
tionary.

107
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

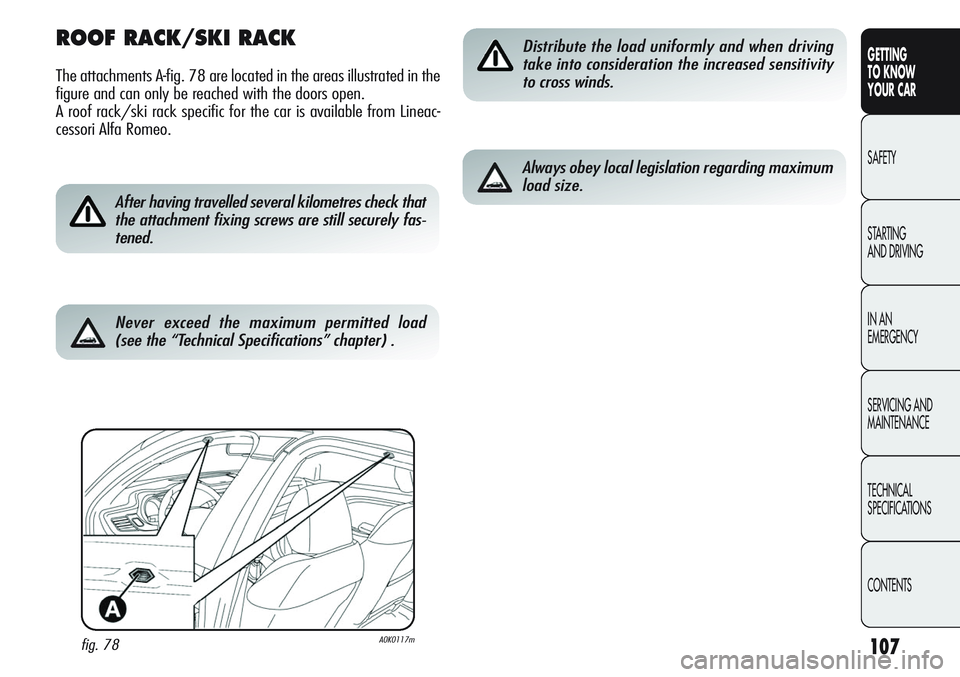

ROOF RACK/SKI RACK
The attachments A-fig. 78 are located in the areas illustrated in the
figure and can only be reached with the doors open.
A roof rack/ski rack specific for the car is available from Lineac-
cessori Alfa Romeo.
fig. 78A0K0117m
After having travelled several kilometres check that
the attachment fixing screws are still securely fas-
tened.
Distribute the load uniformly and when driving
take into consideration the increased sensitivity
to cross winds.
Always obey local legislation regarding maximum
load size.
Never exceed the maximum permitted load
(see the “Technical Specifications” chapter) .

108
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

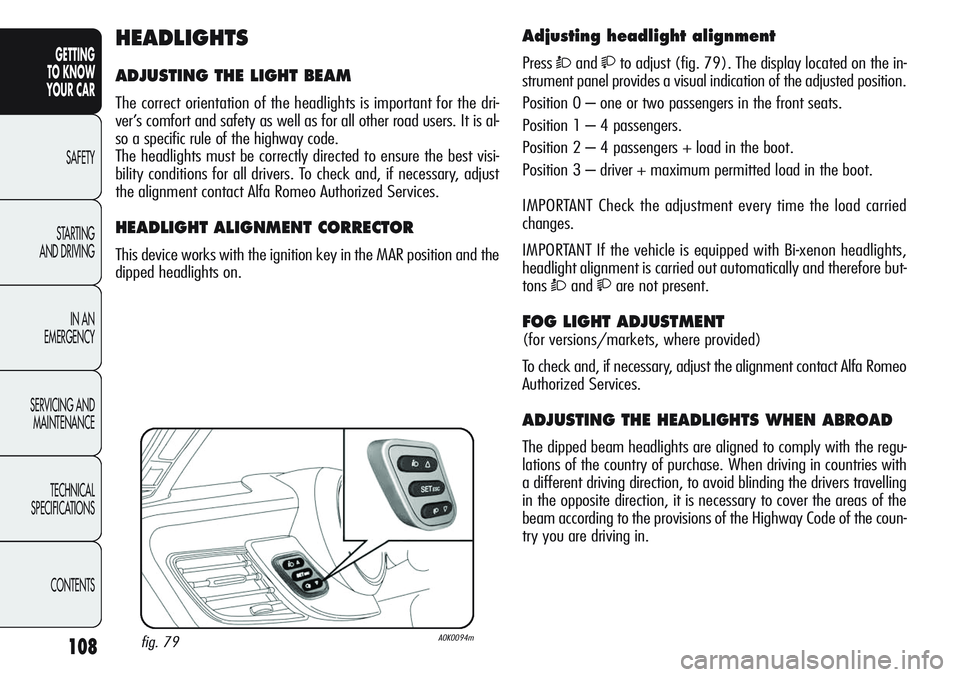

Adjusting headlight alignment
PressÒandto adjust (fig. 79). The display located on the in-
strument panel provides a visual indication of the adjusted position.
Position 0 – one or two passengers in the front seats.
Position 1 – 4 passengers.
Position 2 – 4 passengers + load in the boot.
Position 3 – driver + maximum permitted load in the boot.
IMPORTANT Check the adjustment every time the load carried
changes.
IMPORTANT If the vehicle is equipped with Bi-xenon headlights,
headlight alignment is carried out automatically and therefore but-
tons
Òandare not present.
FOG LIGHT ADJUSTMENT
(for versions/markets, where provided)
To check and, if necessary, adjust the alignment contact Alfa Romeo
Authorized Services.
ADJUSTING THE HEADLIGHTS WHEN ABROAD
The dipped beam headlights are aligned to comply with the regu-
lations of the country of purchase. When driving in countries with
a different driving direction, to avoid blinding the drivers travelling
in the opposite direction, it is necessary to cover the areas of the
beam according to the provisions of the Highway Code of the coun-
try you are driving in.
A0K0094mfig. 79
HEADLIGHTS
ADJUSTING THE LIGHT BEAM
The correct orientation of the headlights is important for the dri-
ver’s comfort and safety as well as for all other road users. It is al-
so a specific rule of the highway code.
The headlights must be correctly directed to ensure the best visi-
bility conditions for all drivers. To check and, if necessary, adjust
the alignment contact Alfa Romeo Authorized Services.
HEADLIGHT ALIGNMENT CORRECTOR
This device works with the ignition key in the MAR position and the
dipped headlights on.

109
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTSIf the ABS intervenes, it means you have almost
reached the limit of grip between the tyres and the
road surface: slow down to make sure you can use
the available grip.

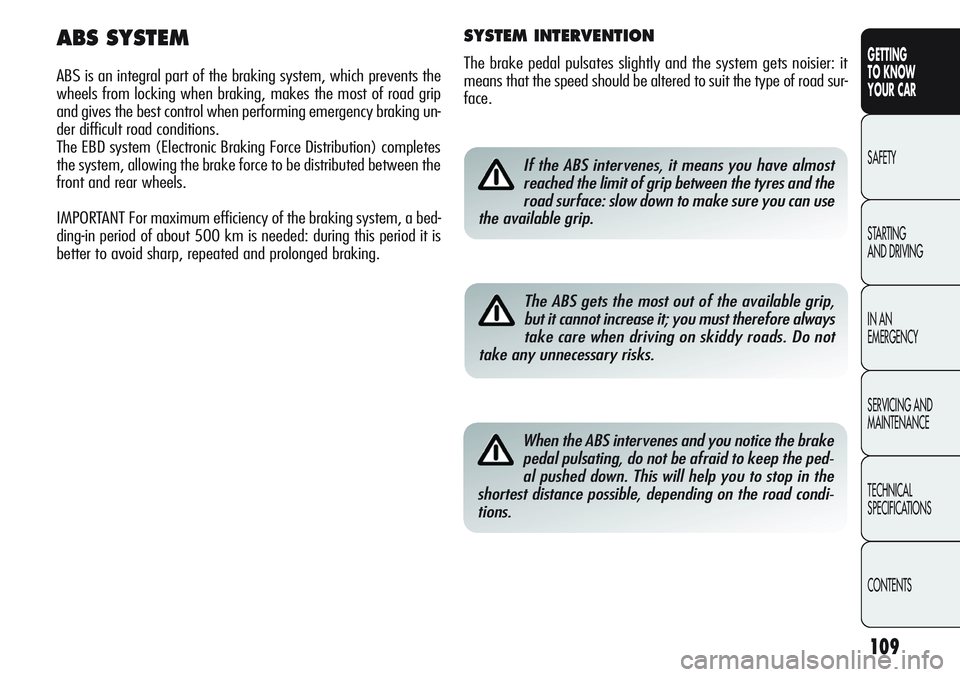

ABS SYSTEM
ABS is an integral part of the braking system, which prevents the
wheels from locking when braking, makes the most of road grip
and gives the best control when performing emergency braking un-
der difficult road conditions.
The EBD system (Electronic Braking Force Distribution) completes
the system, allowing the brake force to be distributed between the
front and rear wheels.
IMPORTANT For maximum efficiency of the braking system, a bed-
ding-in period of about 500 km is needed: during this period it is
better to avoid sharp, repeated and prolonged braking.
The ABS gets the most out of the available grip,
but it cannot increase it; you must therefore always
take care when driving on skiddy roads. Do not
take any unnecessary risks.
When the ABS intervenes and you notice the brake
pedal pulsating, do not be afraid to keep the ped-
al pushed down. This will help you to stop in the
shortest distance possible, depending on the road condi-
tions.
SYSTEM INTERVENTION
The brake pedal pulsates slightly and the system gets noisier: it
means that the speed should be altered to suit the type of road sur-
face.

110
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

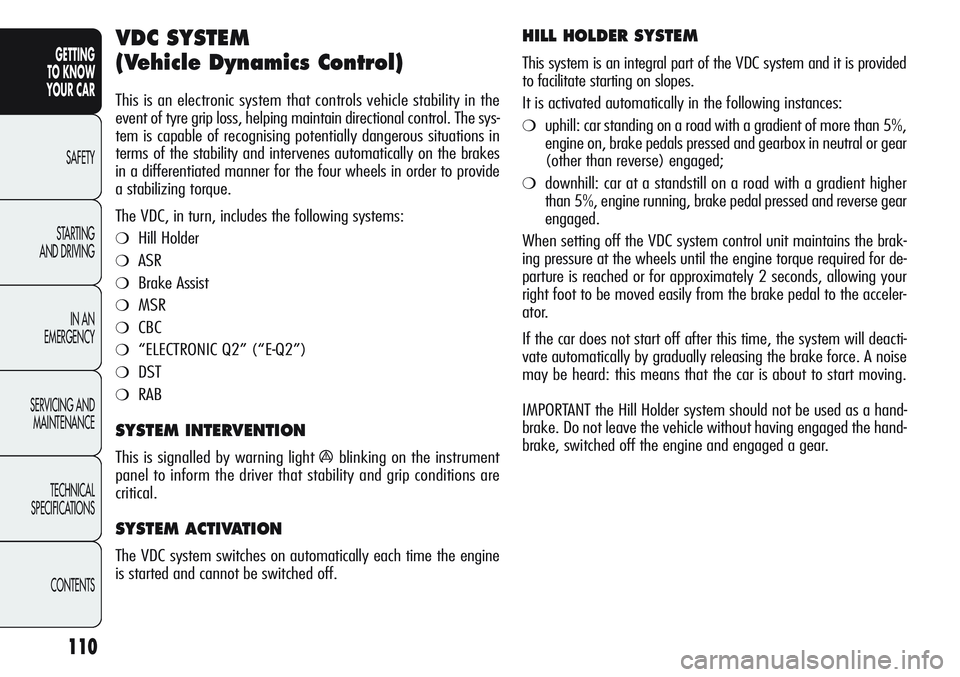

VDC SYSTEM
(Vehicle Dynamics Control)
This is an electronic system that controls vehicle stability in the
event of tyre grip loss, helping maintain directional control. The sys-
tem is capable of recognising potentially dangerous situations in
terms of the stability and intervenes automatically on the brakes
in a differentiated manner for the four wheels in order to provide
a stabilizing torque.
The VDC, in turn, includes the following systems:
❍Hill Holder
❍ASR
❍Brake Assist
❍MSR
❍CBC
❍“ELECTRONIC Q2” (“E-Q2”)
❍DST
❍RAB
SYSTEM INTERVENTION
This is signalled by warning light áblinking on the instrument
panel to inform the driver that stability and grip conditions are
critical.
SYSTEM ACTIVATION
The VDC system switches on automatically each time the engine
is started and cannot be switched off.
HILL HOLDER SYSTEM
This system is an integral part of the VDC system and it is provided
to facilitate starting on slopes.
It is activated automatically in the following instances:
❍uphill: car standing on a road with a gradient of more than 5%,
engine on, brake pedals pressed and gearbox in neutral or gear
(other than reverse) engaged;
❍downhill: car at a standstill on a road with a gradient higher
than 5%, engine running, brake pedal pressed and reverse gear
engaged.
When setting off the VDC system control unit maintains the brak-
ing pressure at the wheels until the engine torque required for de-
parture is reached or for approximately 2 seconds, allowing your
right foot to be moved easily from the brake pedal to the acceler-
ator.
If the car does not start off after this time, the system will deacti-
vate automatically by gradually releasing the brake force. A noise
may be heard: this means that the car is about to start moving.
IMPORTANT the Hill Holder system should not be used as a hand-
brake. Do not leave the vehicle without having engaged the hand-
brake, switched off the engine and engaged a gear.

111
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

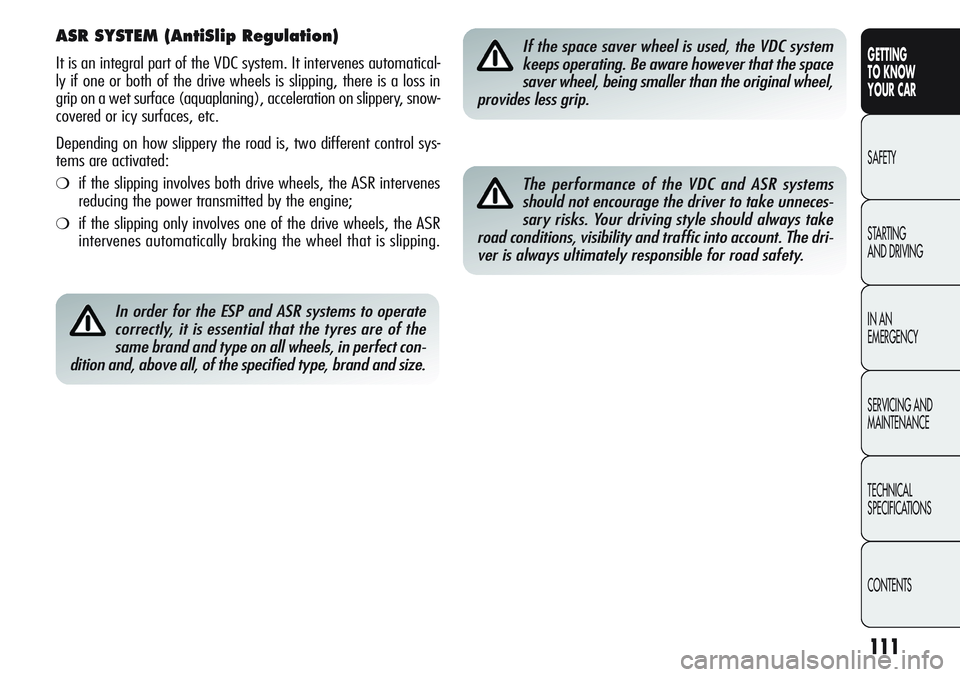

ASR SYSTEM (AntiSlip Regulation)
It is an integral part of the VDC system. It intervenes automatical-
ly if one or both of the drive wheels is slipping, there is a loss in
grip on a wet surface (aquaplaning), acceleration on slippery, snow-
covered or icy surfaces, etc.
Depending on how slippery the road is, two different control sys-
tems are activated:
❍if the slipping involves both drive wheels, the ASR intervenes
reducing the power transmitted by the engine;
❍if the slipping only involves one of the drive wheels, the ASR
intervenes automatically braking the wheel that is slipping.
In order for the ESP and ASR systems to operate
correctly, it is essential that the tyres are of the
same brand and type on all wheels, in perfect con-
dition and, above all, of the specified type, brand and size.
If the space saver wheel is used, the VDC system
keeps operating. Be aware however that the space
saver wheel, being smaller than the original wheel,
provides less grip.
The performance of the VDC and ASR systems
should not encourage the driver to take unneces-
sary risks. Your driving style should always take
road conditions, visibility and traffic into account. The dri-
ver is always ultimately responsible for road safety.
