technical specifications Alfa Romeo Giulietta 2011 Owner handbook (in English)

215
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

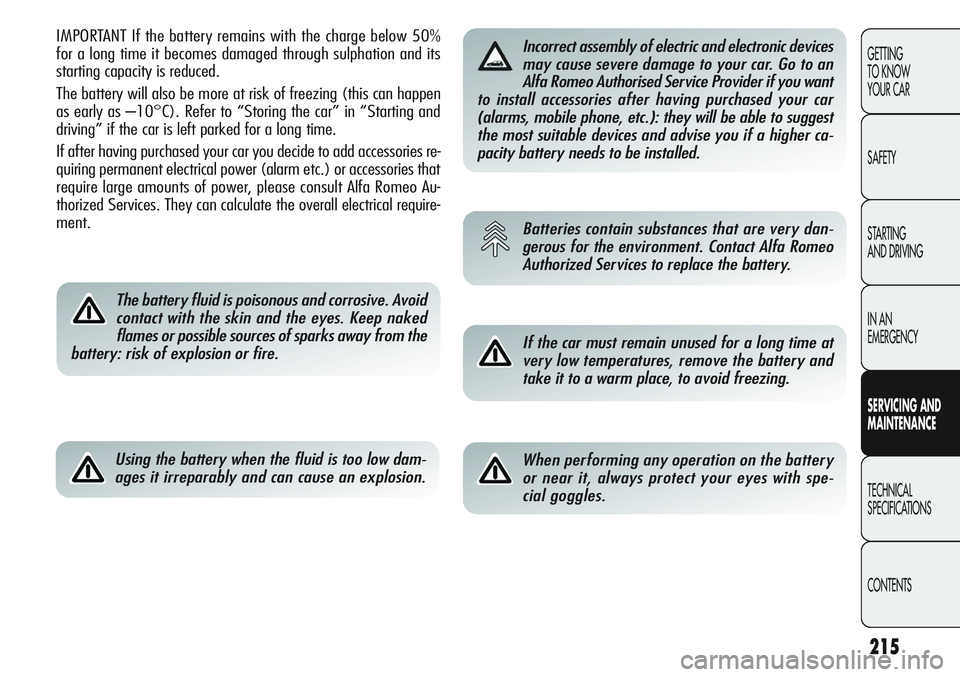

IMPORTANT If the battery remains with the charge below 50%
for a long time it becomes damaged through sulphation and its
starting capacity is reduced.
The battery will also be more at risk of freezing (this can happen
as early as –10°C). Refer to “Storing the car” in “Starting and
driving” if the car is left parked for a long time.
If after having purchased your car you decide to add accessories re-
quiring permanent electrical power (alarm etc.) or accessories that
require large amounts of power, please consult Alfa Romeo Au-
thorized Services. They can calculate the overall electrical require-
ment.
The battery fluid is poisonous and corrosive. Avoid
contact with the skin and the eyes. Keep naked
flames or possible sources of sparks away from the
battery: risk of explosion or fire.
Using the battery when the fluid is too low dam-
ages it irreparably and can cause an explosion.
Incorrect assembly of electric and electronic devices
may cause severe damage to your car. Go to an
Alfa Romeo Authorised Service Provider if you want
to install accessories after having purchased your car
(alarms, mobile phone, etc.): they will be able to suggest
the most suitable devices and advise you if a higher ca-
pacity battery needs to be installed.
Batteries contain substances that are very dan-
gerous for the environment. Contact Alfa Romeo
Authorized Services to replace the battery.
If the car must remain unused for a long time at
very low temperatures, remove the battery and
take it to a warm place, to avoid freezing.
When performing any operation on the battery
or near it, always protect your eyes with spe-
cial goggles.

216
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

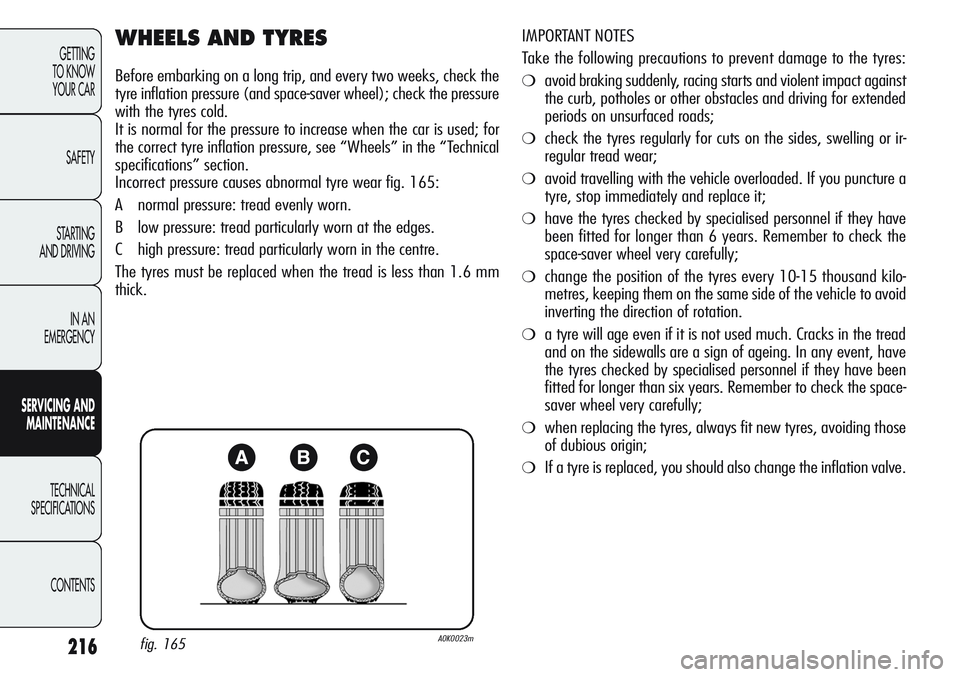

WHEELS AND TYRES
Before embarking on a long trip, and every two weeks, check the
tyre inflation pressure (and space-saver wheel); check the pressure
with the tyres cold.
It is normal for the pressure to increase when the car is used; for
the correct tyre inflation pressure, see “Wheels” in the “Technical
specifications” section.
Incorrect pressure causes abnormal tyre wear fig. 165:
A normal pressure: tread evenly worn.
B low pressure: tread particularly worn at the edges.
C high pressure: tread particularly worn in the centre.
The tyres must be replaced when the tread is less than 1.6 mm
thick.IMPORTANT NOTES
Take the following precautions to prevent damage to the tyres: ❍avoid braking suddenly, racing starts and violent impact against
the curb, potholes or other obstacles and driving for extended
periods on unsurfaced roads;
❍check the tyres regularly for cuts on the sides, swelling or ir-
regular tread wear;
❍avoid travelling with the vehicle overloaded. If you puncture a
tyre, stop immediately and replace it;
❍have the tyres checked by specialised personnel if they have
been fitted for longer than 6 years. Remember to check the
space-saver wheel very carefully;
❍change the position of the tyres every 10-15 thousand kilo-
metres, keeping them on the same side of the vehicle to avoid
inverting the direction of rotation.
❍a tyre will age even if it is not used much. Cracks in the tread
and on the sidewalls are a sign of ageing. In any event, have
the tyres checked by specialised personnel if they have been
fitted for longer than six years. Remember to check the space-
saver wheel very carefully;
❍when replacing the tyres, always fit new tyres, avoiding those
of dubious origin;
❍If a tyre is replaced, you should also change the inflation valve.
fig. 165A0K0023m

217
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

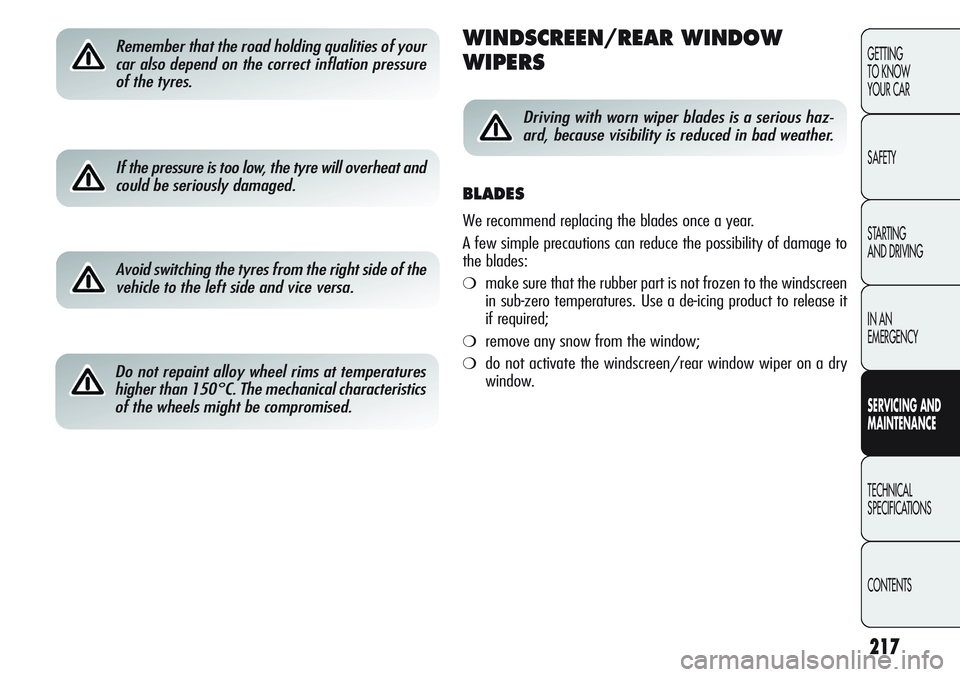

Remember that the road holding qualities of your
car also depend on the correct inflation pressure
of the tyres.WINDSCREEN/REAR WINDOW
WIPERS
Avoid switching the tyres from the right side of the
vehicle to the left side and vice versa.
Do not repaint alloy wheel rims at temperatures
higher than 150°C. The mechanical characteristics
of the wheels might be compromised.
Driving with worn wiper blades is a serious haz-
ard, because visibility is reduced in bad weather.
BLADES
We recommend replacing the blades once a year.
A few simple precautions can reduce the possibility of damage to
the blades:
❍make sure that the rubber part is not frozen to the windscreen
in sub-zero temperatures. Use a de-icing product to release it
if required;
❍remove any snow from the window;
❍do not activate the windscreen/rear window wiper on a dry
window.
If the pressure is too low, the tyre will overheat and
could be seriously damaged.

218
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

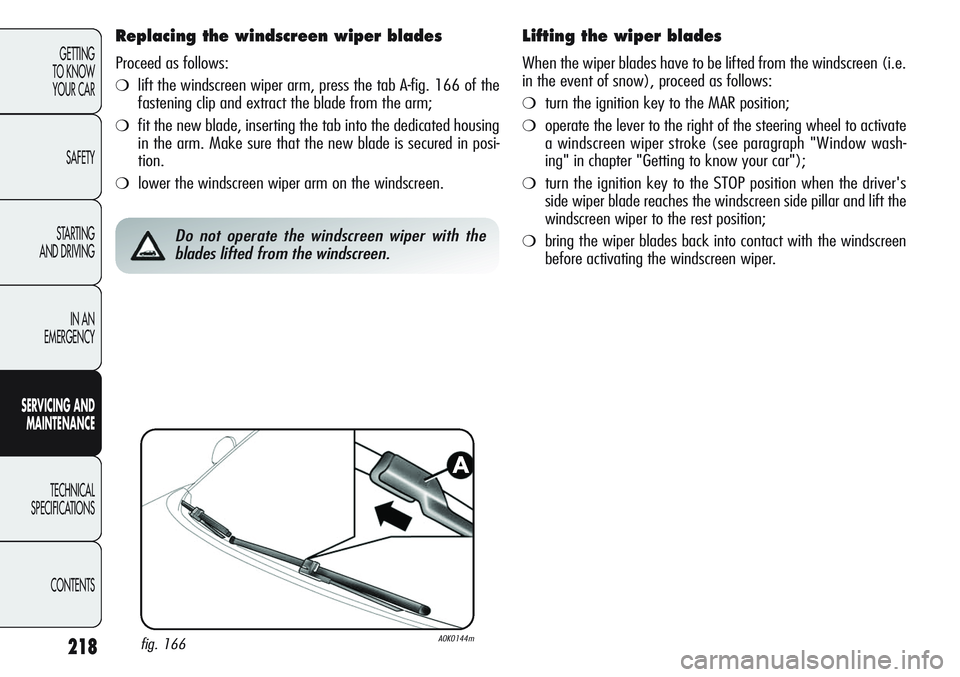

Replacing the windscreen wiper blades
Proceed as follows:
❍lift the windscreen wiper arm, press the tab A-fig. 166 of the
fastening clip and extract the blade from the arm;
❍fit the new blade, inserting the tab into the dedicated housing
in the arm. Make sure that the new blade is secured in posi-
tion.
❍lower the windscreen wiper arm on the windscreen.
Lifting the wiper blades
When the wiper blades have to be lifted from the windscreen (i.e.
in the event of snow), proceed as follows:
❍turn the ignition key to the MAR position;
❍operate the lever to the right of the steering wheel to activate
a windscreen wiper stroke (see paragraph "Window wash-
ing" in chapter "Getting to know your car");
❍turn the ignition key to the STOP position when the driver's
side wiper blade reaches the windscreen side pillar and lift the
windscreen wiper to the rest position;
❍bring the wiper blades back into contact with the windscreen
before activating the windscreen wiper.
fig. 166A0K0144m
Do not operate the windscreen wiper with the
blades lifted from the windscreen.

219
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

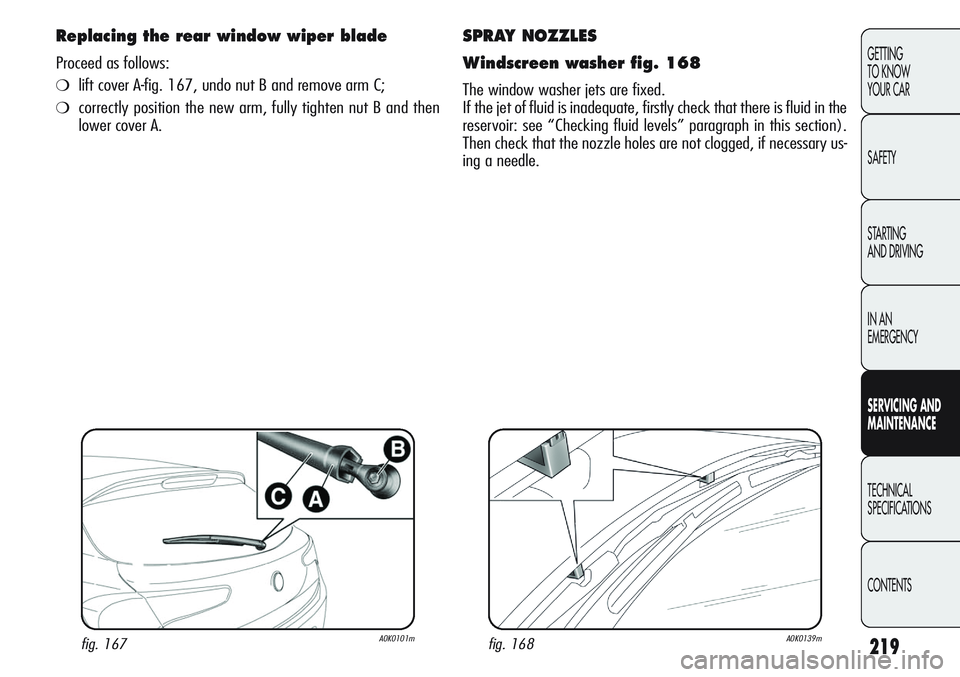

SPRAY NOZZLES
Windscreen washer fig. 168
The window washer jets are fixed.
If the jet of fluid is inadequate, firstly check that there is fluid in the
reservoir: see “Checking fluid levels” paragraph in this section).
Then check that the nozzle holes are not clogged, if necessary us-
ing a needle.
fig. 167A0K0101mfig. 168A0K0139m
Replacing the rear window wiper blade
Proceed as follows:
❍lift cover A-fig. 167, undo nut B and remove arm C;
❍correctly position the new arm, fully tighten nut B and then
lower cover A.

220
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Rear window washer fig. 169
The nozzle holder is located above the rear window. The rear win-
dow washer jets are fixed.
HEADLAMP WASHERS fig. 170
(on request for versions/markets, where provided)
These are located within the front bumper. They are activated when
the dipped beam and/or main beam headlights are on and the
windscreen washer is activated.
Check the condition and cleanliness of nozzles at regular intervals.
fig. 169A0K0102mfig. 170A0K0138m

221
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

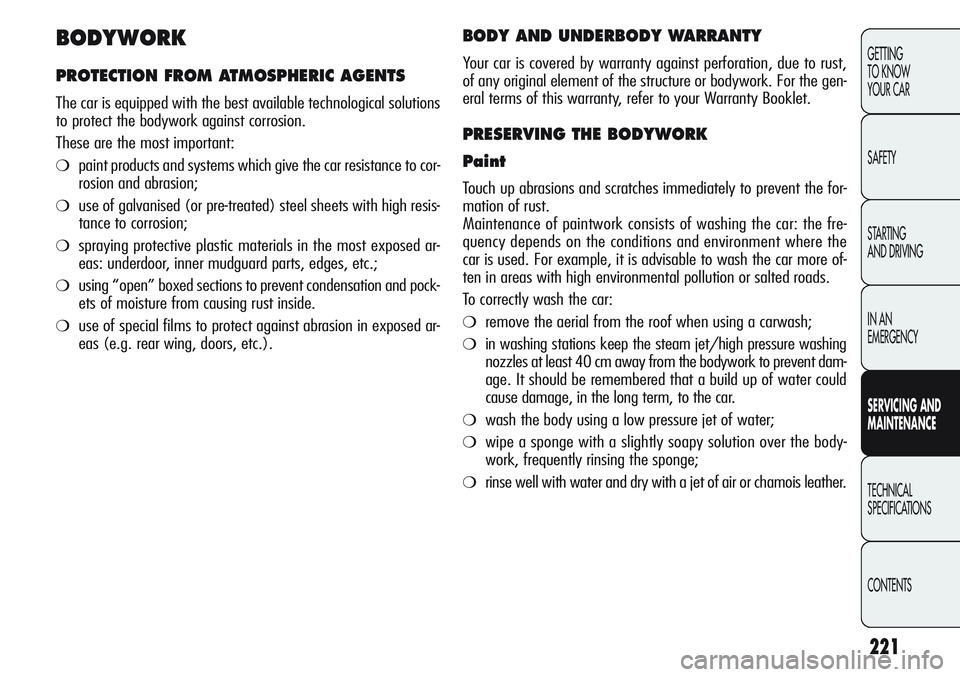

BODYWORK
PROTECTION FROM ATMOSPHERIC AGENTS
The car is equipped with the best available technological solutions
to protect the bodywork against corrosion.
These are the most important:
❍paint products and systems which give the car resistance to cor-
rosion and abrasion;
❍use of galvanised (or pre-treated) steel sheets with high resis-
tance to corrosion;
❍spraying protective plastic materials in the most exposed ar-
eas: underdoor, inner mudguard parts, edges, etc.;
❍using “open” boxed sections to prevent condensation and pock-
ets of moisture from causing rust inside.
❍use of special films to protect against abrasion in exposed ar-
eas (e.g. rear wing, doors, etc.).
BODY AND UNDERBODY WARRANTY
Your car is covered by warranty against perforation, due to rust,
of any original element of the structure or bodywork. For the gen-
eral terms of this warranty, refer to your Warranty Booklet.
PRESERVING THE BODYWORK
Paint
Touch up abrasions and scratches immediately to prevent the for-
mation of rust.
Maintenance of paintwork consists of washing the car: the fre-
quency depends on the conditions and environment where the
car is used. For example, it is advisable to wash the car more of-
ten in areas with high environmental pollution or salted roads.
To correctly wash the car:
❍remove the aerial from the roof when using a carwash;
❍in washing stations keep the steam jet/high pressure washing
nozzles at least 40 cm away from the bodywork to prevent dam-
age. It should be remembered that a build up of water could
cause damage, in the long term, to the car.
❍wash the body using a low pressure jet of water;
❍wipe a sponge with a slightly soapy solution over the body-
work, frequently rinsing the sponge;
❍rinse well with water and dry with a jet of air or chamois leather.

222
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

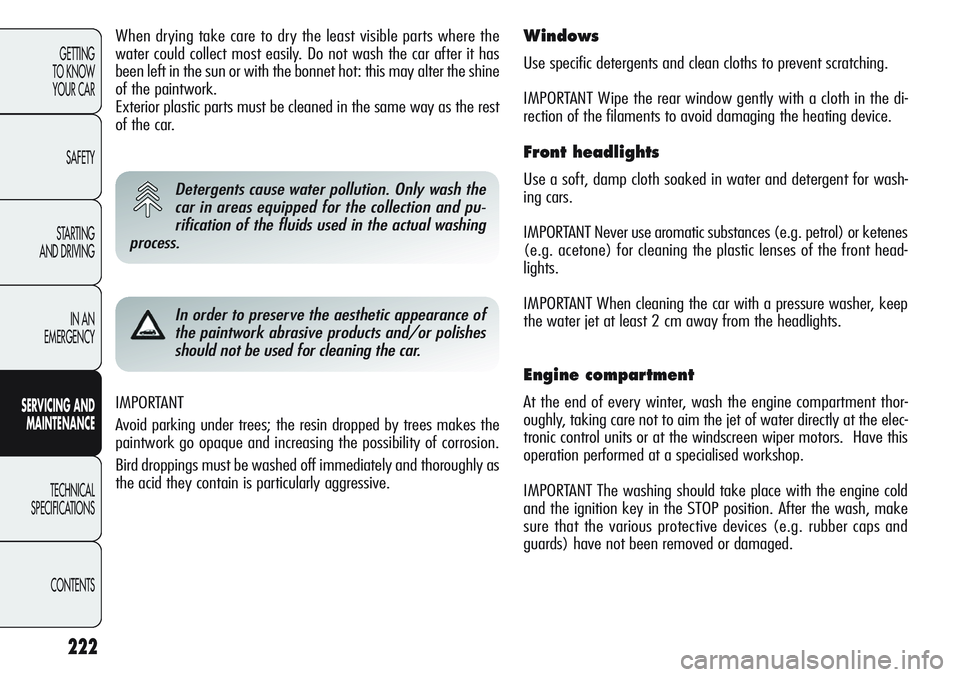

IMPORTANT
Avoid parking under trees; the resin dropped by trees makes the
paintwork go opaque and increasing the possibility of corrosion.
Bird droppings must be washed off immediately and thoroughly as
the acid they contain is particularly aggressive.
Windows
Use specific detergents and clean cloths to prevent scratching.
IMPORTANT Wipe the rear window gently with a cloth in the di-
rection of the filaments to avoid damaging the heating device.
Front headlights
Use a soft, damp cloth soaked in water and detergent for wash-
ing cars.
IMPORTANT Never use aromatic substances (e.g. petrol) or ketenes
(e.g. acetone) for cleaning the plastic lenses of the front head-
lights.
IMPORTANT When cleaning the car with a pressure washer, keep
the water jet at least 2 cm away from the headlights.
Engine compartment
At the end of every winter, wash the engine compartment thor-
oughly, taking care not to aim the jet of water directly at the elec-
tronic control units or at the windscreen wiper motors. Have this
operation performed at a specialised workshop.
IMPORTANT The washing should take place with the engine cold
and the ignition key in the STOP position. After the wash, make
sure that the various protective devices (e.g. rubber caps and
guards) have not been removed or damaged.
Detergents cause water pollution. Only wash the
car in areas equipped for the collection and pu-
rification of the fluids used in the actual washing
process.
When drying take care to dry the least visible parts where the
water could collect most easily. Do not wash the car after it has
been left in the sun or with the bonnet hot: this may alter the shine
of the paintwork.
Exterior plastic parts must be cleaned in the same way as the rest
of the car.
In order to preserve the aesthetic appearance of
the paintwork abrasive products and/or polishes
should not be used for cleaning the car.

223
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

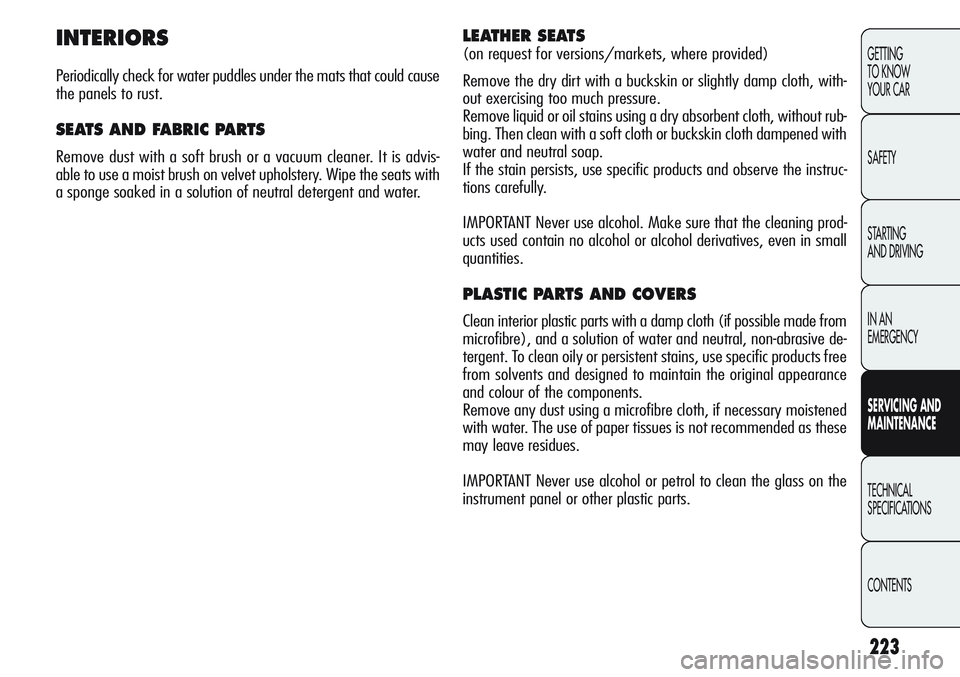

INTERIORS
Periodically check for water puddles under the mats that could cause
the panels to rust.
SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacuum cleaner. It is advis-
able to use a moist brush on velvet upholstery. Wipe the seats with
a sponge soaked in a solution of neutral detergent and water.
LEATHER SEATS
(on request for versions/markets, where provided)
Remove the dry dirt with a buckskin or slightly damp cloth, with-
out exercising too much pressure.
Remove liquid or oil stains using a dry absorbent cloth, without rub-
bing. Then clean with a soft cloth or buckskin cloth dampened with
water and neutral soap.
If the stain persists, use specific products and observe the instruc-
tions carefully.
IMPORTANT Never use alcohol. Make sure that the cleaning prod-
ucts used contain no alcohol or alcohol derivatives, even in small
quantities.
PLASTIC PARTS AND COVERS
Clean interior plastic parts with a damp cloth (if possible made from
microfibre), and a solution of water and neutral, non-abrasive de-
tergent. To clean oily or persistent stains, use specific products free
from solvents and designed to maintain the original appearance
and colour of the components.
Remove any dust using a microfibre cloth, if necessary moistened
with water. The use of paper tissues is not recommended as these
may leave residues.
IMPORTANT Never use alcohol or petrol to clean the glass on the
instrument panel or other plastic parts.

224
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

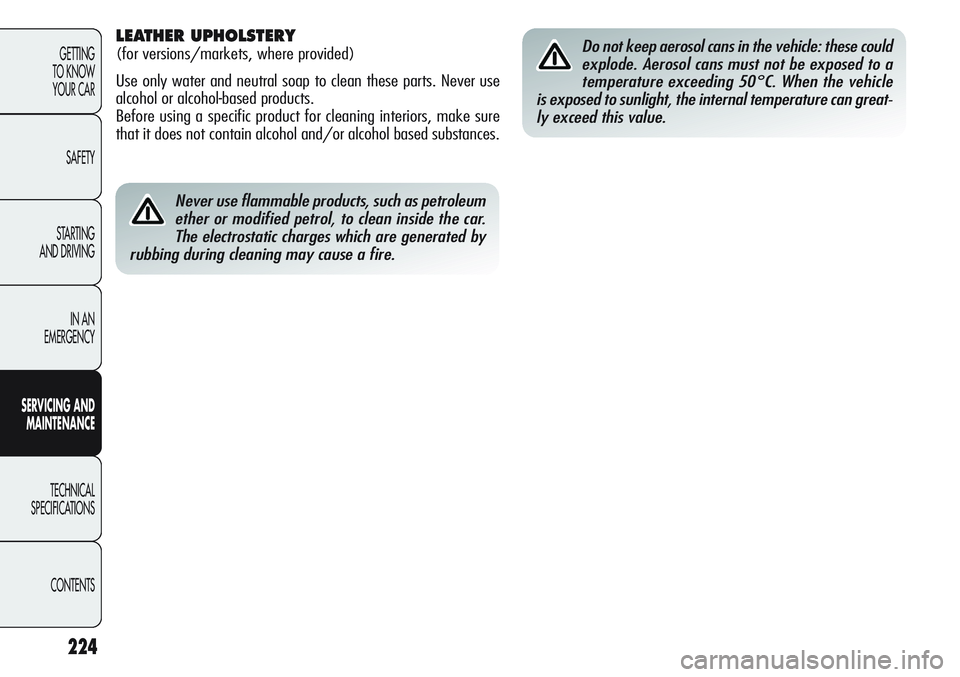

Never use flammable products, such as petroleum
ether or modified petrol, to clean inside the car.
The electrostatic charges which are generated by
rubbing during cleaning may cause a fire.
Do not keep aerosol cans in the vehicle: these could
explode. Aerosol cans must not be exposed to a
temperature exceeding 50°C. When the vehicle
is exposed to sunlight, the internal temperature can great-
ly exceed this value.LEATHER UPHOLSTERY
(for versions/markets, where provided)
Use only water and neutral soap to clean these parts. Never use
alcohol or alcohol-based products.
Before using a specific product for cleaning interiors, make sure
that it does not contain alcohol and/or alcohol based substances.
