technical specifications Alfa Romeo Giulietta 2011 Owner handbook (in English)

184
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

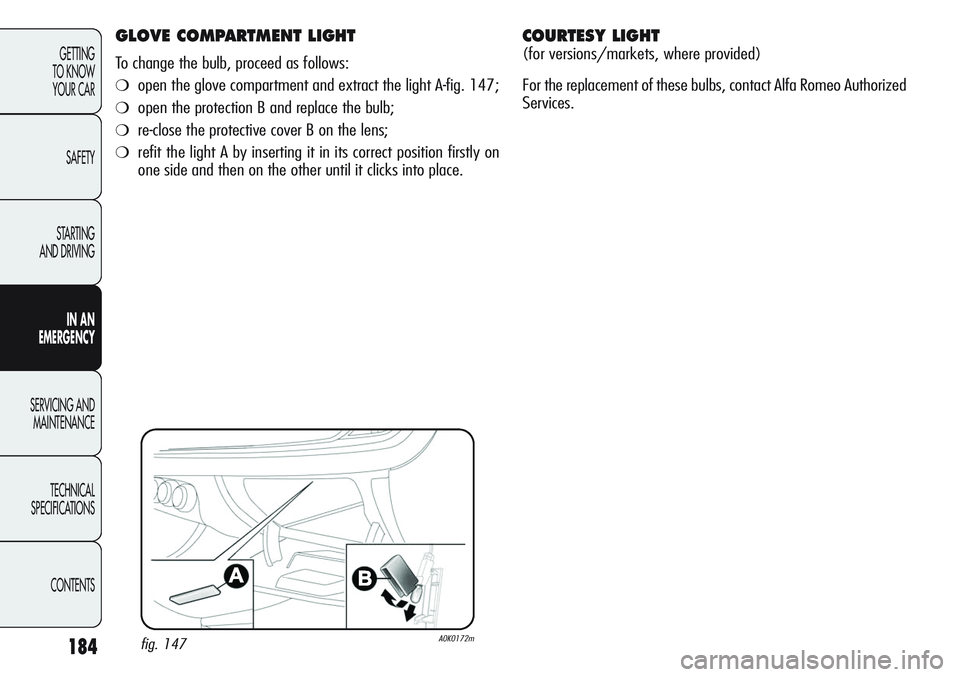

GLOVE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
❍open the glove compartment and extract the light A-fig. 147;
❍open the protection B and replace the bulb;
❍re-close the protective cover B on the lens;
❍refit the light A by inserting it in its correct position firstly on
one side and then on the other until it clicks into place.
fig. 147A0K0172m
COURTESY LIGHT
(for versions/markets, where provided)
For the replacement of these bulbs, contact Alfa Romeo Authorized
Services.

185
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

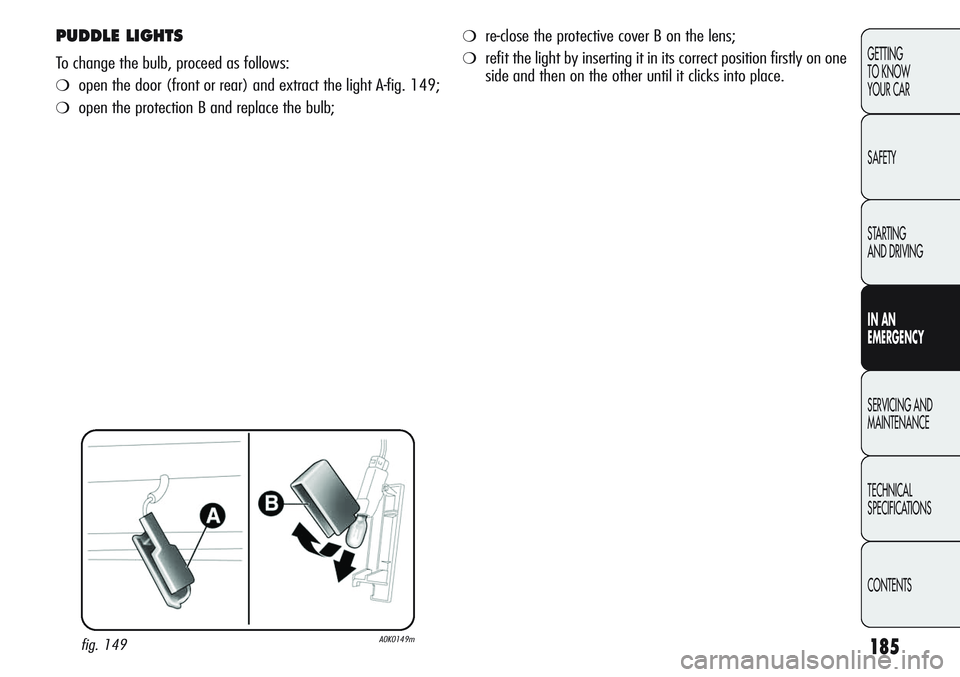

PUDDLE LIGHTS
To change the bulb, proceed as follows:
❍open the door (front or rear) and extract the light A-fig. 149;
❍open the protection B and replace the bulb;
fig. 149A0K0149m
❍re-close the protective cover B on the lens;
❍refit the light by inserting it in its correct position firstly on one
side and then on the other until it clicks into place.

186
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
CHANGING A FUSE
GENERAL INFORMATION
Fuses protect the electric system: they blow in the event of a
fault/intervention in the system. Check the state of the corre-
sponding fuse when a device does not work: the filament A-fig.
150 must be intact.
If it is, replace the blown fuse with a new one with the same am-
perage (same colour).
B = intact fuse.
C = fuse with damaged filament.
fig. 150A0K0042mfig. 151A0K0207m
Use the pliers A-fig. 151 under the engine compartment fusebox
lid to remove the fuses (see “Engine compartment fusebox” for
how to remove the lid).

187
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Contact Alfa Romeo Authorized Services should the
fuse blow again.
Never replace a blown fuse with metallic wires or
other material.
Never replace a fuse with another of higher am-
perage: FIRE RISK.
If a general protection fuse (MEGA-FUSE, MIDI-
FUSE, MAXI-FUSE) blows, contact Alfa Romeo
Authorized Services.
Remove the key from the ignition switch and switch
off all loads before replacing a fuse.
Contact Alfa Romeo Authorized Services if a safe-
ty system (air bags, brakes), engine system (en-
gine, gearbox) or steering system general pro-
tection fuse blows.

188
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
If you have to wash the engine compart-
ment, take care not to aim the jet of wa-
ter directly at the fuse box or windscreen
wiper motors.
FUSE LOCATION
Fuses are grouped together in three fuseboxes located in the engine compartment, on the dashboard and inside the boot.
Engine compartment fusebox fig. 153
This is located by the side of the battery: loosen the screws A-fig. 152 and remove the lid B to access the fuses. The number of the
electrical component corresponding to each fuse can be found on the back of the cover. After replacing the fuse, make sure you close
cover B on the fusebox.
fig. 152A0K0174mfig. 153A0K0231m

189
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Fusebox on dashboard
Insert a hand in the seat A-fig. 154 and lower the flap B to access the fuses. The fuses are located in the fusebox shown in fig. 155.
fig. 154A0K0206mfig. 155A0K0232m

190
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Boot fusebox
The fuse box (fig. 157) is located on the left side of the luggage compartment underneath the side cover. Contact Alfa Romeo Autho-
rized Services to access it.
fig. 157A0K0045m

7.5
7.5
7.5
7.5
15
15
7.5
7.5
10F91
F90
F12
F13
F12
F13
F93
F92
F32155
155
155
155
155
155
155
155
155
191
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

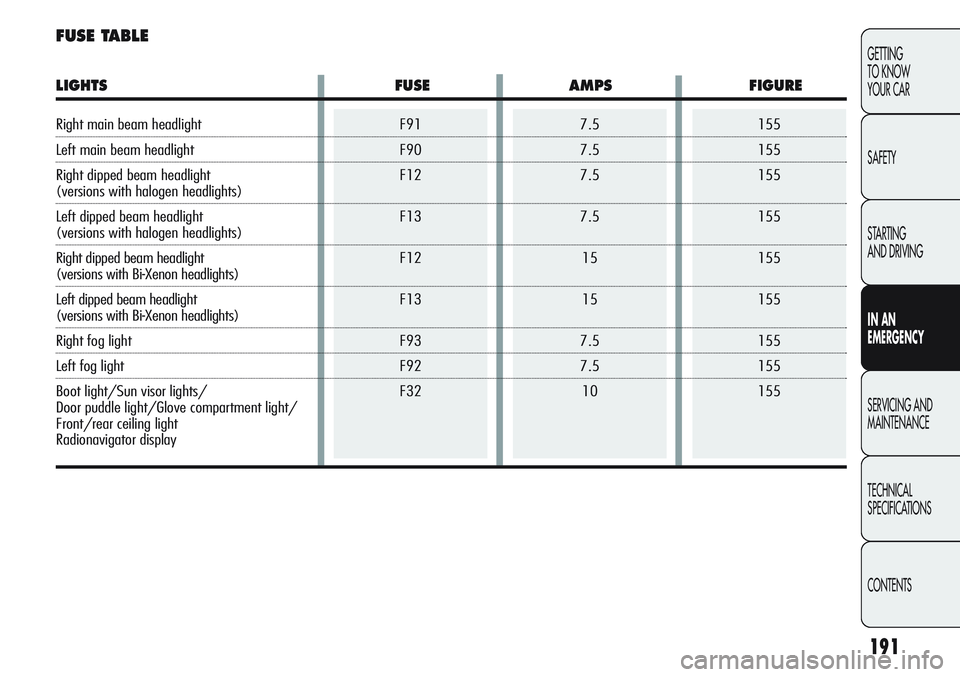

FUSE TABLE
LIGHTS FUSE AMPS FIGURE
Right main beam headlight
Left main beam headlight
Right dipped beam headlight
(versions with halogen headlights)
Left dipped beam headlight
(versions with halogen headlights)
Right dipped beam headlight
(versions with Bi-Xenon headlights)
Left dipped beam headlight
(versions with Bi-Xenon headlights)
Right fog light
Left fog light
Boot light/Sun visor lights/
Door puddle light/Glove compartment light/
Front/rear ceiling light
Radionavigator display

153
153
153
153
153
153
155
155
155
155
155
155
15530
15
7.5
30
15
20
5
20
20
10
7.5
20
5F09
F10
F19
F20
F21
F21
F31
F33
F34
F36
F37
F38
F42
192
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

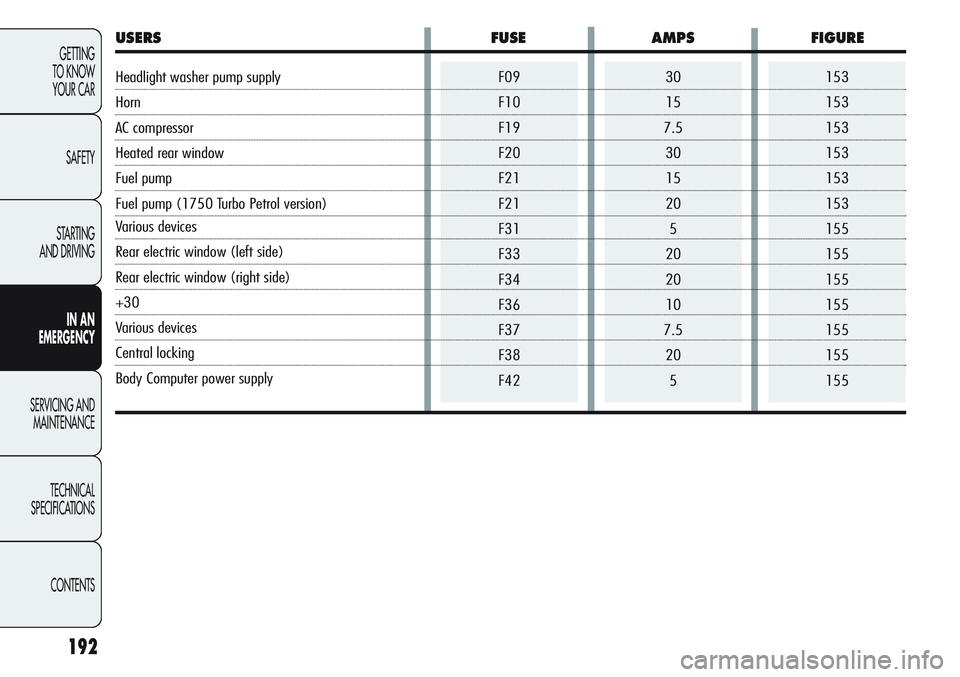

USERS FUSE AMPS FIGURE
Headlight washer pump supply
Horn
AC compressor
Heated rear window
Fuel pump
Fuel pump (1750 Turbo Petrol version)
Various devices
Rear electric window (left side)
Rear electric window (right side)
+30
Various devices
Central locking
Body Computer power supply

20
20
20
5
5
7.5
15
15
20
15
15
15
15
15
5
7.5155
155
155
155
155
155
157
157
157
157
157
157
153
153
153
153
193
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
F43
F47
F48
F49
F51
F53
F60
F61
F62
F63
F64
F65
F85
F86
F87
F88
USERS FUSE AMPS FIGURE
Two-way windscreen washer pump
Front electric window (driver side)
Front electric window (passenger side)
Various devices
Various devices
+30
Lumbar adjustments
Front seat heater
BOSE amplifier + Subwoofer
Left front seat movement
Right front seat movement
Electric sunroof
Cigar lighter/power socket
12V boot power socket
IBS Battery charge status sensor for Start&Stop system
External mirror defrosters
