GLOVE COMPARTMENT
COURTESY LIGHT
To change the bulb, proceed as follows:
❒open the glove compartment and
extract courtesy light A fig. 174;
❒open protection B and replace the
bulb;
❒refit protection B on the lens;❒refit courtesy light A by inserting it in
its correct position firstly on one side
and then pressing on the other until
it clicks into place.
COURTESY LIGHT
(for versions/markets, where provided)
For bulb replacement, contact an
Alfa Romeo Dealership.
REPLACING FUSESGENERAL INFORMATION
Fuses protect the electrical system:
they intervene (blow) in the event of a
failure or improper intervention on
the system.
When a device does not work, check
the condition of its protection fuse: the
filament A fig. 175 must be intact.
29)
30)
If it is not, replace the blown fuse with
another having the same amperage
(same colour).
129) 130) 131) 132) 133)
B = undamaged fuse.
C = fuse with damaged filament.
172
A0K0645
173
A0K0646
174
A0K0647
175
A0K0523
187

Use the pliers A fig. 176 under the
engine compartment junction unit lid to
remove the fuses (see “Engine
compartment junction unit” for how to
remove the lid).
VERSIONS WITH "ALFA
TCT" AUTOMATIC
TRANSMISSION
(for versions/markets, where provided)
The Alfa TCT transmission components
are protected by specific fuses. Contact
an Alfa Romeo Dealership if a fuse
needs replacing.FUSE LOCATION
Fuses are grouped together in three
fuse boxes located in the engine
compartment, dashboard and luggage
compartment.
Engine compartment fuse box
This is located next to the battery fig.
178: to access the fuses, undo screws
A fig. 177 and remove cover B.
The number identifying the electrical
component corresponding to each fuse
is on the back of the cover.
After replacing the fuse, make sure you
close cover B on the junction unit.176
A0K0524
177
A0K0525
178
A0K0231
188
IN AN EMERGENCY

Dashboard fuse box
To access the fuses fig. 180 insert a
hand in the housing A fig. 179 and
lower the flap B.179
A0K0527
180
A0K0244
189

Luggage compartment fuse box
The fuse box (fig. 181) is located on the
left side of the luggage compartment
underneath the side cover.For access, contact an Alfa Romeo
Dealership.181
A0K0529
190
IN AN EMERGENCY

ENGINE COMPARTMENT
FUSE BOX
fig. 178DEVICE PROTECTED FUSE AMPSHeadlamp washer pump power supply F09 30
HornF10 15
AC compressorF19 7,5
Heated rear window F20 30
Fuel pumpF21 15
Cigar lighter/power socket F85 15
12 V boot power socket F86 15
IBS Battery charge status sensor for Start&Stop system F87 5
External mirror defrosters F88 7,5
191

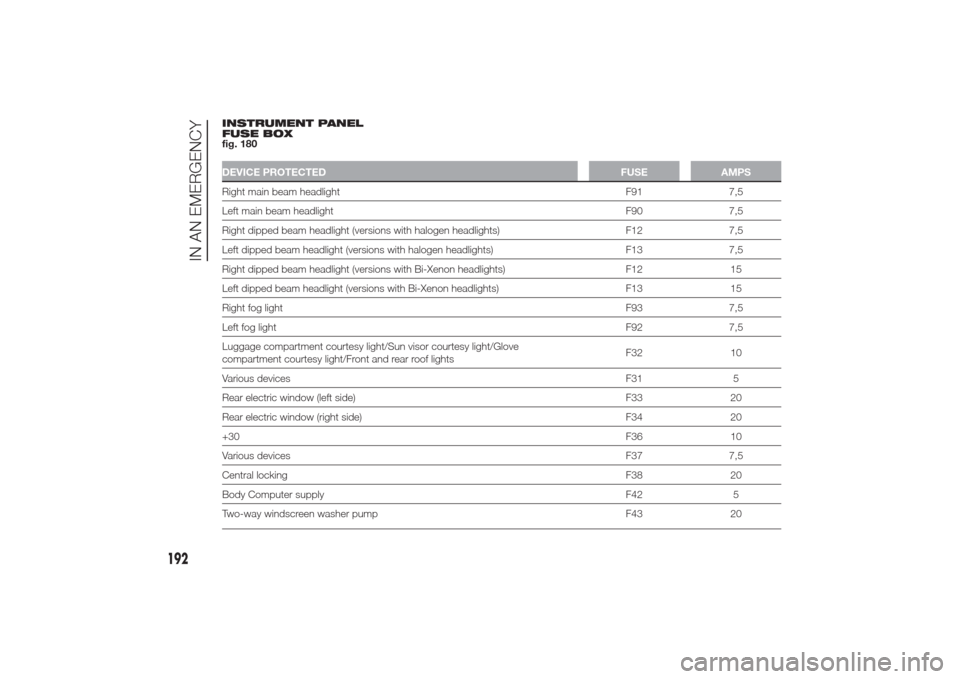

INSTRUMENT PANEL
FUSE BOX
fig. 180DEVICE PROTECTED FUSE AMPSRight main beam headlight F91 7,5
Left main beam headlight F90 7,5
Right dipped beam headlight (versions with halogen headlights) F12 7,5
Left dipped beam headlight (versions with halogen headlights) F13 7,5
Right dipped beam headlight (versions with Bi-Xenon headlights) F12 15
Left dipped beam headlight (versions with Bi-Xenon headlights) F13 15
Right fog lightF93 7,5
Left fog lightF92 7,5
Luggage compartment courtesy light/Sun visor courtesy light/Glove
compartment courtesy light/Front and rear roof lightsF32 10
Various devicesF31 5
Rear electric window (left side) F33 20
Rear electric window (right side) F34 20
+30F36 10
Various devicesF37 7,5
Central lockingF38 20
Body Computer supply F42 5
Two-way windscreen washer pump F43 20
192
IN AN EMERGENCY

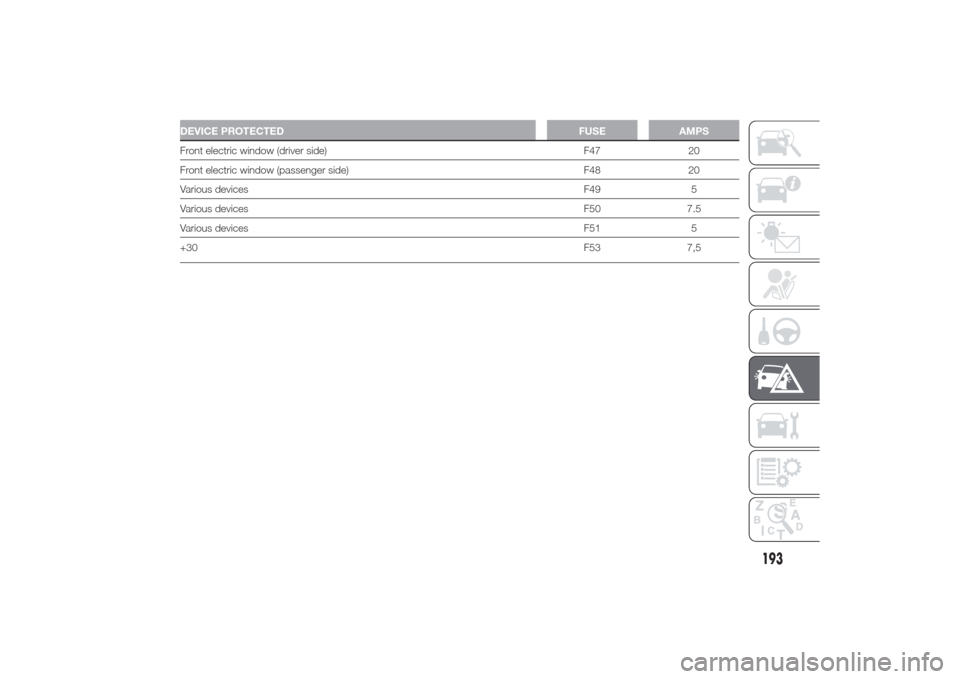

DEVICE PROTECTED FUSE AMPSFront electric window (driver side) F47 20
Front electric window (passenger side) F48 20
Various devicesF49 5
Various devicesF50 7.5
Various devicesF51 5
+30F53 7,5
193

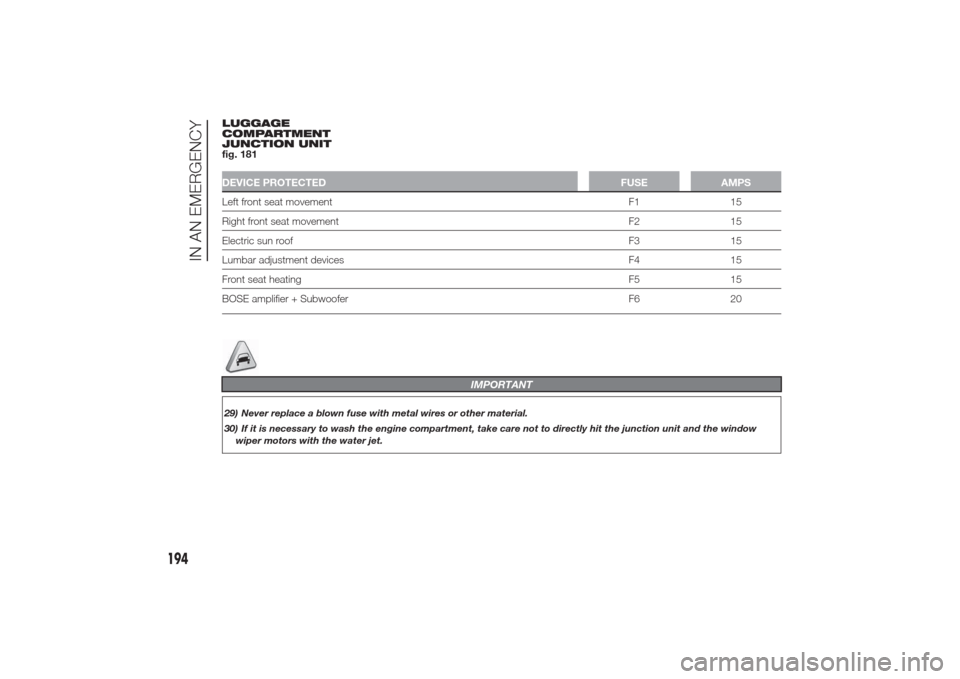

LUGGAGE
COMPARTMENT
JUNCTION UNIT
fig. 181DEVICE PROTECTED FUSE AMPSLeft front seat movement F1 15
Right front seat movement F2 15
Electric sun roofF3 15
Lumbar adjustment devices F4 15
Front seat heating F5 15
BOSE amplifier + Subwoofer F6 20
IMPORTANT
29) Never replace a blown fuse with metal wires or other material.
30) If it is necessary to wash the engine compartment, take care not to directly hit the junction unit and the window
wiper motors with the water jet.
194
IN AN EMERGENCY

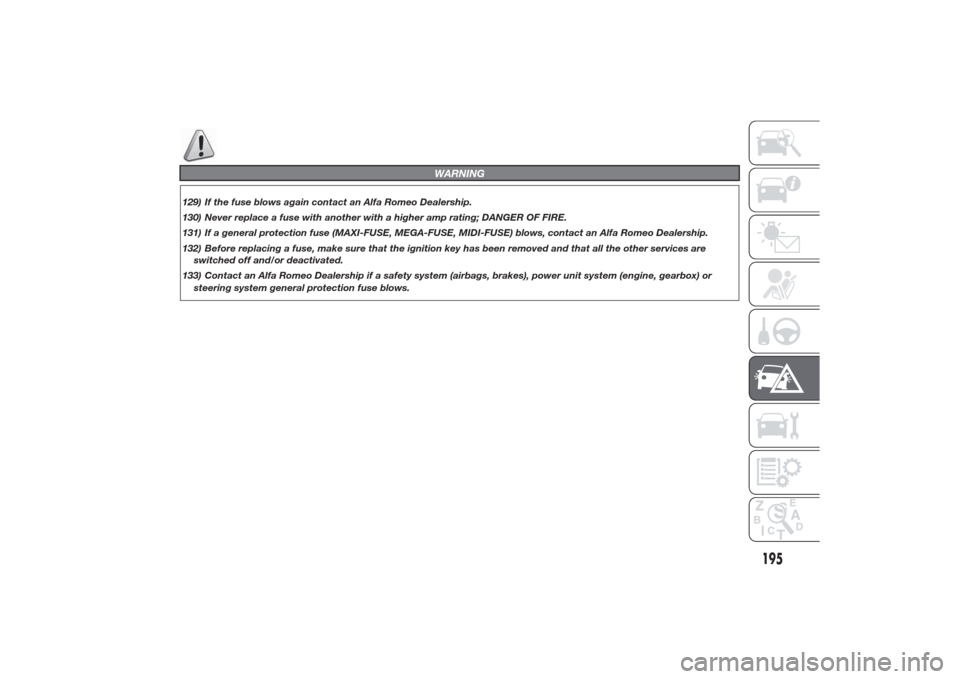

WARNING
129) If the fuse blows again contact an Alfa Romeo Dealership.
130) Never replace a fuse with another with a higher amp rating; DANGER OF FIRE.
131) If a general protection fuse (MAXI-FUSE, MEGA-FUSE, MIDI-FUSE) blows, contact an Alfa Romeo Dealership.
132) Before replacing a fuse, make sure that the ignition key has been removed and that all the other services are
switched off and/or deactivated.
133) Contact an Alfa Romeo Dealership if a safety system (airbags, brakes), power unit system (engine, gearbox) or
steering system general protection fuse blows.
195

BATTERY
RECHARGINGIMPORTANT The battery recharging
procedure is given as information only.
To carry out this operation contact
an Alfa Romeo Dealership.
IMPORTANT After turning the ignition
key to STOP, wait at least 1 minute
before disconnecting the electrical
supply to the battery.
Charging should be slow at a low
ampere rating for approximately 24
hours. Charging for a longer time may
damage the battery.
VERSIONS WITHOUT
Start&Stop SYSTEM
(for versions/markets, where provided)
To recharge, proceed as follows:
❒disconnect the negative battery
terminal;
❒connect the charger cables to the
battery terminals, observing the
polarity;
❒turn on the charger;
❒when it is recharged, turn the charger
off before disconnecting it from the
battery;
❒reconnect the negative battery
terminal.VERSIONS WITH
Start&Stop SYSTEM
(for versions/markets, where provided)
To recharge, proceed as follows:
❒disconnect the connector A fig. 182
(pressing the button B) from the
sensor C monitoring the battery
conditions, on the negative pole (–) D
of the battery;❒connect the positive cable (+) of the
battery charger to the positive battery
terminal E and the negative cable (–)
to sensor terminal D as shown;
❒turn on the battery charger. At the
end of the charging process, switch
the battery charger off;
❒after having disconnected the
charging device, reconnect
connector A to the sensor C as
shown.
