Alfa Romeo Giulietta 2014 Owner's Manual

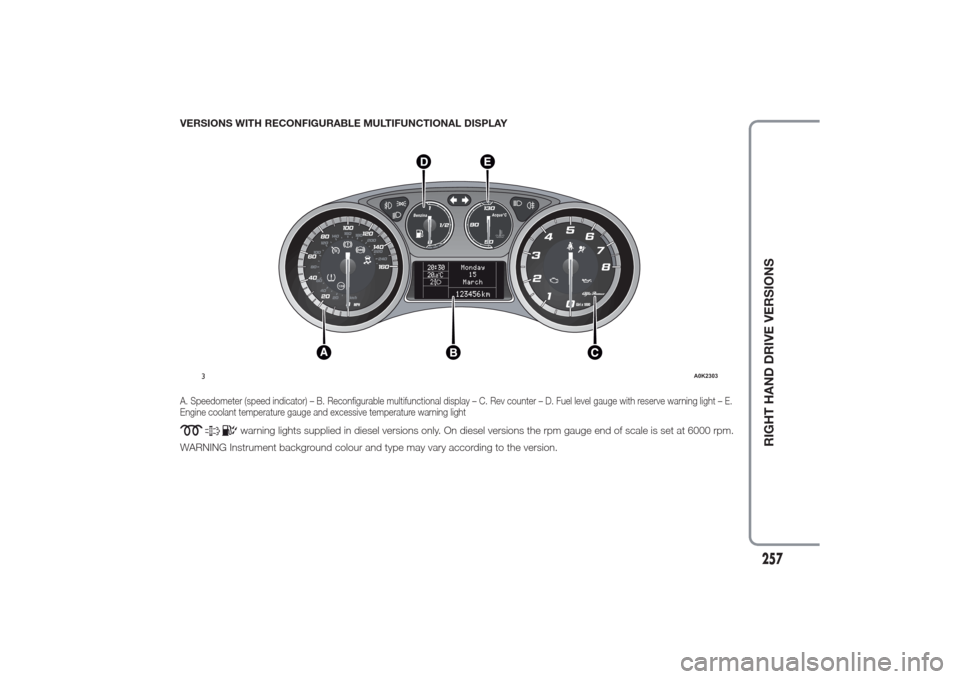

VERSIONS WITH RECONFIGURABLE MULTIFUNCTIONAL DISPLAYA. Speedometer (speed indicator) – B. Reconfigurable multifunctional display – C. Rev counter – D. Fuel level gauge with reserve warning light – E.
Engine coolant temperature gauge and excessive temperature warning light
warning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm.
WARNING Instrument background colour and type may vary according to the version.
3
A0K2303
257
RIGHT HAND DRIVE VERSIONS

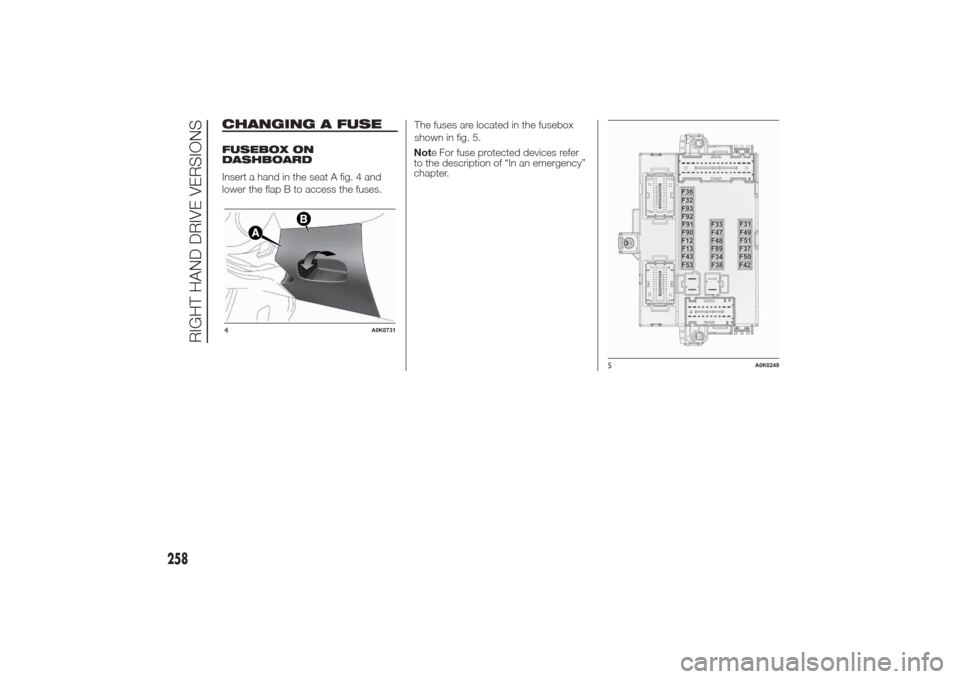

CHANGING A FUSEFUSEBOX ON
DASHBOARD
Insert a hand in the seat A fig. 4 and
lower the flap B to access the fuses.The fuses are located in the fusebox
shown in fig. 5.
Not
to the description of “In an emergency”
chapter.4
A0K0731
5
A0K0249
2
RIGHT HAND DRIVE VERSIONS
e For fuse protected devices refer
58

NOTES
