GETTING TO KNOW YOUR CAR
60
RECONFIGURABLE MULTIFUNCTION DISPLAY
The reconfigurable multifunction display
is able to display all the useful and neces-
sary information when driving and a menu
allows the following adjustments and/or
settings:
TIME
DATE
OUTSIDE TEMPERATURE
INFORMATION ABOUT VEHICLE CONDI-
TION
- Trip computer
- Lighting adjustment (rheostat)
- Display of failure messages with corre-
sponding symbol
- Display of warning messages with cor-
responding symbol (e.g.: possible ice
on road)
- Gear selected, for 2.0 JTS Selespeed
versions
- Engine oil level (JTD versions only)Reconfigurable multifunction
display menu
SPEED
- Activation/deactivation of the corre-
sponding indication (ON/OFF)
- Setting the speed limit
TRIP B
- Activation/deactivation of the corre-
sponding function (ON/OFF)
TIME
- Setting the hours
- Setting the minutes
DATE
- Setting the day
- Setting the month
- Setting the year
DST (SUMMER TIME)
- Activation/deactivation of summer
time
MODE 12/24
- Selecting the clock mode on 12 or 24
hours
RADIO
- Activation/deactivation of the follow-
ing items on the display:
frequency or RDS message of the
radio station selected, compact
disc and corresponding track selectedTELEPHONE
- Activation/deactivation of the follow-
ing items on the display:
incoming or outgoing phone call with
name and/or number of the sub-
scriber connected
NAVIGATION
- Activation/deactivation of the displays
and information concerning the route
to be followed
LANGUAGE
- Setting the language of the messages
shown on the display
UNITS
- Selection of the following units of mea-
sure: km, mi, °C, °F, km/l, l/100km,
mpg
BUZZER
- Buzzer volume adjustment
SERVICE
- Display of information concerning cor-
rect vehicle maintenance, strictly con-
nected with the Scheduled
Maintenance Programme
MENU OFF
- Exits the menu.

GETTING TO KNOW YOUR CAR
61
T
CONTROL BUTTONS (fig. 82-83)
To use the information the reconfigurable multifunction display is able to give (with the ignition key at MAR) you should familiarise with
the control buttons (on the plate at the side of the steering column and on the top of the right lever) using them as described below. Before
doing anything you are also advised to read this chapter in full.
fig. 82
fig. 83Press for less than 1 second (pulse) indicated with
Tin the following dia-
grams to move to the next screen
Press for more than 4 seconds indicated with
Uin the following diagrams to
reset and then start a new journey
To scroll the display and the related options, upwards or to increase the value
displayed depending on the case
To scroll the display and the related options, downwards or decrease the value
displayed according to the case Press for less than 1 second (pulse) indicated with
Qin the following dia-
grams, to confirm the choice required and/or move to the next screen or
access the Menu
Press for more than 2 seconds indicated with
Rin the following diagrams,
to confirm the choice required and return to the standard screen
A0A0022b
A0A0619b
IMPORTANTButtonsâandãacivate different functions depending on the follow-
ing situations:
- When the standard screen is activated, they allow adjustment of the inner lighting (rheo-
stat)
- Within the menu they allow scrolling up or down
- They make it possible to increase or decrease during setting operations.

GETTING TO KNOW YOUR CAR
63
If the display shows a failure message, see the details given in the
“Warning lights” chapter; if there are two or more failures, the display
shows them in cycle, one after the other. To eliminate the display of the
message and/or of the warning light repeated on the rev counter
by the reconfigurable multifunction display press button
Q.
INITIAL CHECK
Turning the ignition key to MAR, the reconfigurable multifunction display shows the message CHECK ACTIVE: the diagnostic phase of
all the electronic systems on the car has started; this lasts for about 4 seconds (for JTD versions only, the multifunction reconfigurable dis-
play is also able to show the engine oil level, see the “Engine oil level check” paragraph below). If no faults are detected, when the engine
has started, the display shows the OK message.
IMPORTANT If the reconfigurable multifunction display shows a failure message, see the details given in the “Warning lights” chapter.
Standard screen with
mechanical transmission Only JTD versionsStandard screen with
Selespeed transmission
The Programmed Maintenance
Schedule includes vehicle
maintenance every 20,000
km; this is shown automatical-
ly with the ignition key at
MAR, starting from 2,000
km (or miles) from this dead-
line and it is shown again
every 200 km.
If no failures
are presentIs the
engine
started?YES
NO

GETTING TO KNOW YOUR CAR
64
Engine oil level check
(JTD
16Vversions)
Turning the ignition key to MARthe
reconfigurable multifunction display shows
the engine oil level for 10 seconds. During
this phase, to clear the display and move
to the next screen, press
Q.
IMPORTANTTo make sure that the
engine oil level displayed is correct, carry
out the check with the vehicle on the level
ground.
(Fig. 84) refers to the correct engine
oil level display. As the oil level gradually
falls, the full bars go off leaving room for
the empty ones.
fig. 84
A0A9101g
fig. 85
A0A9102g
fig. 86
A0A9103g
(Fig. 85) refers to the display with an
oil level below the foreseen minimum. In
this condition the bars are all empty.
IMPORTANTIn this case the correct
engine oil level should be restored as soon
as possible, see “Checking levels” in the
“Vehicle Maintenance” chapter. (Fig. 86) refers to the display with an
oil level above the foreseen maximum. In
this condition the bars are all full.
IMPORTANTIn this case, contact Alfa
Romeo Authorised Services who will
restore the correct engine oil level.

GETTING TO KNOW YOUR CAR
65
ACCESS TO MENU SCREEN
After the INITIAL CHECK, with the car stationary and with the standard screen, it is possible to access the menu screen: press Q.
To navigate use the
âandãbuttons.
Setting the speed limit is also possible with the car on the move.
If the waiting time (no operation) is above 10 seconds, the standard screen or the screen that was active before pressing the
Qbut-
ton is restored automatically; all the operations confirmed are stored.
Display with mechanical
transmission
Display with
Selespeed transmissionIs the car
moving?
See next page to enter
speed limit.
SPEED
TRIP B
TIME
DATE
DST (SUMMER TIME)
MODE 12/24
RADIO
TELEPHONE
NAVIGATION
LANGUAGE
UNITS
BUZZER
SERVICE
MENU OFF
Q
Q
See
INITIAL CHECKNO
YES

GETTING TO KNOW YOUR CAR
67
TRIP B (ON/OFF)
With this option it is possible to turn ON or OFF the TRIP B function (partial trip) which displays the figures relating to
AVERAGE CONSUMPTION
B
,AVERAGE VELOCITY B,TRAVEL TIME B, andTRAVEL DISTANCE Bduring a “partial mission” contained in the “general mission”. For further informa-
tion see “General Trip - Trip B”.
Menu screen
Return to menu screen See INITIAL CHECK and ACCESS
TO THE MENU SCREEN
Return to
standard screenQ
Q R
R
â
ã
â
ã
Using the
âorãbuttons
choose activation
or deactivation
ON/OFF

GETTING TO KNOW YOUR CAR
70
DST (SUMMER TIME)
To activate/deactivate the summer time function (which corresponds to + 1 hour in relation to the daylight time), proceed as follows:
Menu screen
Return to menu screen
Return to
standard screen
Selecting and activating
the DST ON,
the display switches
from daylight time to summer
time
and vice versa, with no need
to intervene manually
on the TIME function described
previously.
Q
Q R
R
â
ã
â
ã
See INITIAL CHECK and ACCESS
TO THE MENU SCREEN

GETTING TO KNOW YOUR CAR
72
RADIO
In the RADIO DISPLAY ON condition, when the radio is turned on, the display repeats the display on the front panel of the radio itself. To
activate/deactivate this function, proceed as follows:
Menu screen
Return to menu screen
Return to
standard screenQ
Q R
R
â
ã
â
ã
See INITIAL CHECK and ACCESS
TO THE MENU SCREEN

GETTING TO KNOW YOUR CAR
73
TELEPHONE
In the TELEPHONE DISPLAY ON condition, when a phone call arrives, the display shows (if listed) the name and phone number of the
caller. To activate/deactivate this function, proceed as follows:
Menu screen
Return to menu screen
Return to
standard screenQ
Q R
R
â
ã
â
ã
See INITIAL CHECK and ACCESS
TO THE MENU SCREEN

GETTING TO KNOW YOUR CAR
74

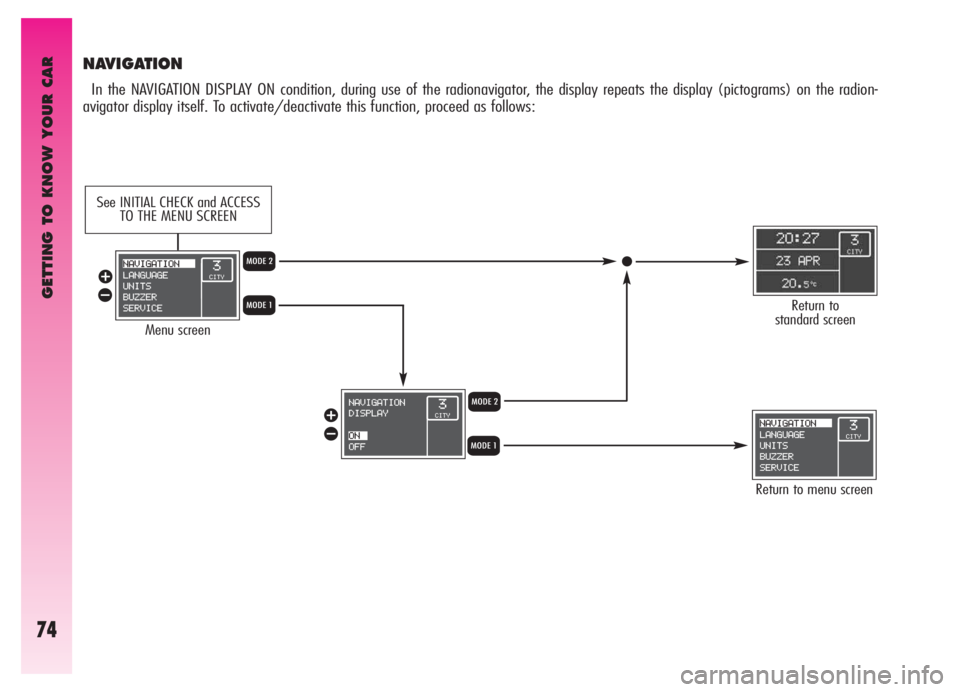

NAVIGATION
In the NAVIGATION DISPLAY ON condition, during use of the radionavigator, the display repeats the display (pictograms) on the radion-
avigator display itself. To activate/deactivate this function, proceed as follows:
Menu screen
Return to menu screen
Return to
standard screenQ
Q R
R
â
ã
â
ã
See INITIAL CHECK and ACCESS
TO THE MENU SCREEN
