230TECHNICAL DATA

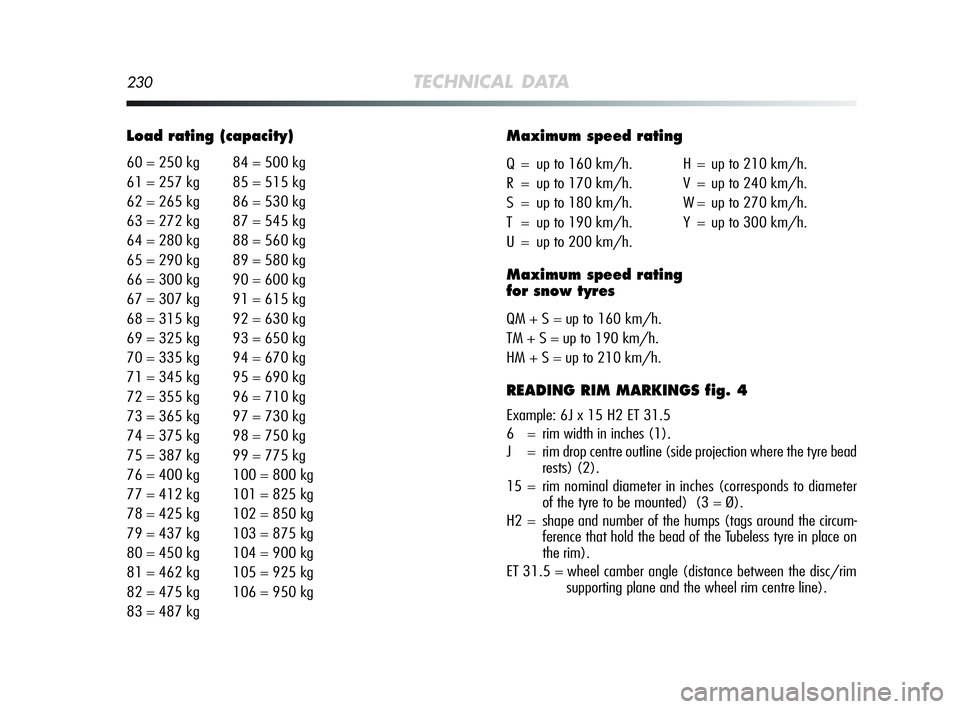

Load rating (capacity)
60 = 250 kg 84 = 500 kg
61 = 257 kg 85 = 515 kg
62 = 265 kg 86 = 530 kg
63 = 272 kg 87 = 545 kg
64 = 280 kg 88 = 560 kg
65 = 290 kg 89 = 580 kg
66 = 300 kg 90 = 600 kg
67 = 307 kg 91 = 615 kg
68 = 315 kg 92 = 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94 = 670 kg
71 = 345 kg 95 = 690 kg
72 = 355 kg 96 = 710 kg
73 = 365 kg 97 = 730 kg
74 = 375 kg 98 = 750 kg
75 = 387 kg 99 = 775 kg
76 = 400 kg 100 = 800 kg
77 = 412 kg 101 = 825 kg
78 = 425 kg 102 = 850 kg
79 = 437 kg 103 = 875 kg
80 = 450 kg 104 = 900 kg
81 = 462 kg 105 = 925 kg
82 = 475 kg 106 = 950 kg
83 = 487 kg
Maximum speed rating
Q = up to 160 km/h. H = up to 210 km/h.
R = up to 170 km/h. V = up to 240 km/h.
S = up to 180 km/h. W = up to 270 km/h.
T = up to 190 km/h. Y = up to 300 km/h.
U = up to 200 km/h.
Maximum speed rating
for snow tyres
QM + S = up to 160 km/h.
TM + S = up to 190 km/h.
HM + S = up to 210 km/h.
READING RIM MARKINGS fig. 4
Example: 6J x 15 H2 ET 31.5
6 = rim width in inches (1).
J = rim drop centre outline (side projection where the tyre bead
rests) (2).
15 = rim nominal diameter in inches (corresponds to diameter
of the tyre to be mounted) (3 = Ø).
H2 = shape and number of the humps (tags around the circum-
ference that hold the bead of the Tubeless tyre in place on
the rim).
ET 31.5 = wheel camber angle (distance between the disc/rim
supporting plane and the wheel rim centre line).
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 230

135/70 R16 4B x 16 ET 15
135/70 R16 4B x 16 ET 15
135/70 R16 4B x 16 ET 15
TECHNICAL DATA231
6
195/55 R16 87 H 195/55 R16 87 H (M+S)
205/45 R17 88W XL 205/45 R17 88 H (M+S)
215/45 R17 87W (*) 215/45 R17 87 H (M+S)
215/40 R18 89W XL (*) 215/40 R18 89 H (M+S)
195/55 R16 87 V 195/55 R16 87 H (M+S)
205/45 R17 88W XL 205/45 R17 88 H (M+S)
215/45 R17 87W (*) 215/45 R17 87 H (M+S)
215/40 R18 89W XL (*) 215/40 R18 89 H (M+S)
195/55 R16 87 H 195/55 R16 87 H (M+S)
205/45 R17 88W XL 205/45 R17 88 H (M+S)
215/45 R17 87W (*) 215/45 R17 87 H (M+S)
215/40 R18 89W XL (*) 215/40 R18 89 H (M+S
Versions fitted with 195/55 R16” and 205/45 R17” tyres can be fitted with reduced bulk snow chains with a maximum protrusion from the tyres
of 9 mm.
(*) Cannot be used with snow chains
7Jx16 ET 39
7Jx17 ET 39
7Jx17 ET 39
7
1/2 Jx18 ET 42
7Jx16 ET 39
7Jx17 ET 39
7Jx17 ET 39
7
1/2 Jx18 ET 42
7Jx16 ET 39
7Jx17 ET 39
7Jx17 ET 39
7
1/2 Jx18 ET 42

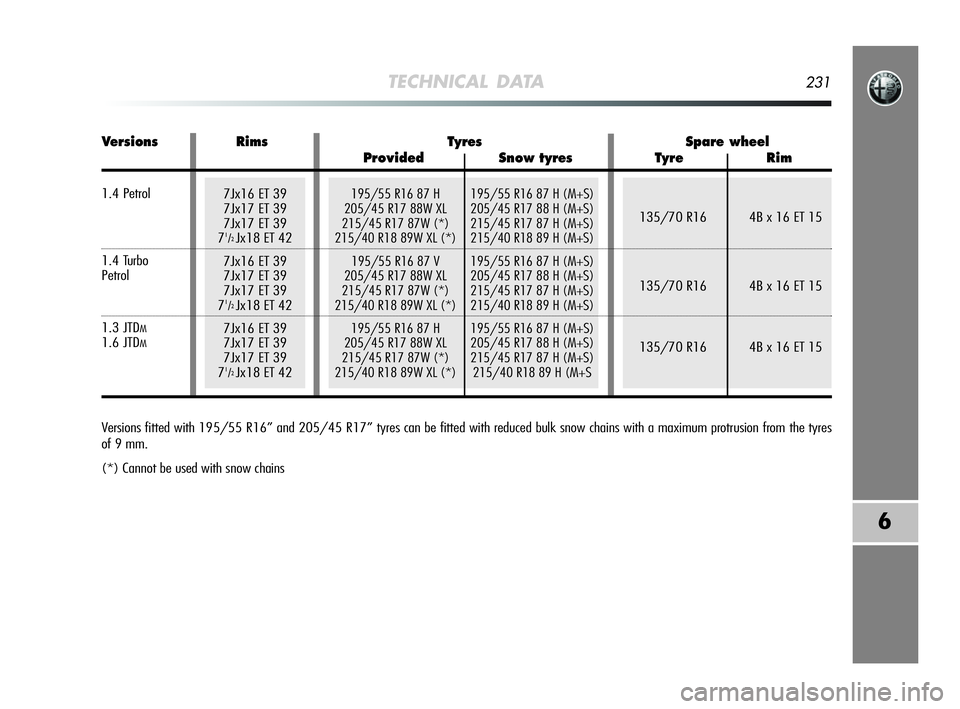

Versions Rims Tyres Spare wheel
Provided Snow tyres Tyre Rim
1.4 Petrol
1.4 Turbo
Petrol
1.3 JTDM1.6 JTDM
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 231

195/55 R16 87H
205/45 R17 88W XL
215/45 R17 87W
215/40 R18 89W XL
195/55 R16 87V
205/45 R17 88W XL
215/45 R17 87W
215/40 R18 89W XL
195/55 R16 87H
205/45 R17 88W XL
215/45 R17 87W
215/40 R18 89W XL
135/70 R162.3 2.3
2.3 2.3
2.3 2.3
2.3 2.3
2.5 2.3
2.8 2.5
2.6 2.3
2.7 2.4
2.5 (*)/2.6 (**) 2.3
2.8 2.5 (*)/2.3 (**)
2.6 2.3
2.7 2.3 (**)/2.4 (*)2.3 2.1
2.3 2.1
2.2 2.1
2.3 2.1
2.3 2.1
2.4 2.2
2.3 2.1
2.4 2.2
2.3 2.1
2.4 (*)/2.6 (**) 2.2
2.3 (*)/2.4 (**) 2.1 (*)/2.2 (**)
2.4 (*)/2.5 (**) 2.2
232TECHNICAL DATA
COLD TYRE INFLATION PRESSURES (bar)
(*) 1.3 JTDMversions
(**) 1.6 JTD
Mversions
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When running at speeds of higher than 160 km/h, inflate tyres at full load inflation values.
4.2
Versions Size PROVIDED TYRES
Medium load Full load
Front Rear Front Rear
1.4 Petrol
1.4 Turbo
Petrol
1.3 JTDM1.6 JTDM
Smallspare wheel
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 232

TECHNICAL DATA233
6
fig. 5A0J0202m

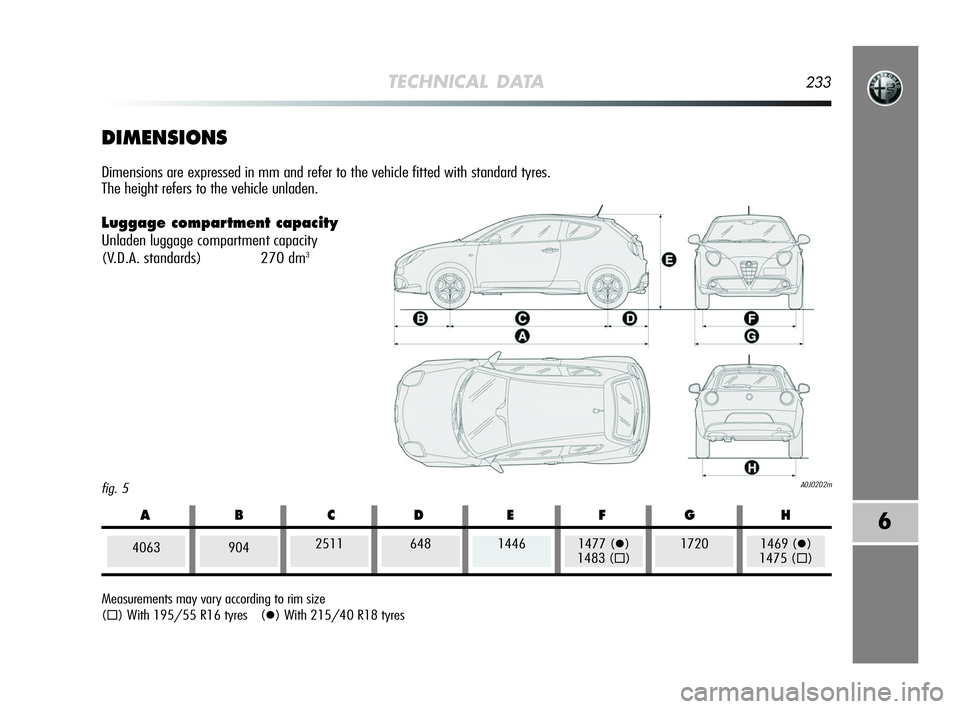

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the vehicle unladen.
Luggage compartment capacity
Unladen luggage compartment capacity
(V.D.A. standards) 270 dm3
406390425116481720
Measurements may vary according to rim size
(
) With 195/55 R16 tyres () With 215/40 R18 tyres
1477 ()
1483 ()1469 ()
1475 ()
ABCDEFG H
1446
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 233

1.4 Petrol
1.4 Turbo Petrol 120HP
1.4 Turbo Petrol 155HP
1.3 JTD
M
1.6 JTDM
234TECHNICAL DATA

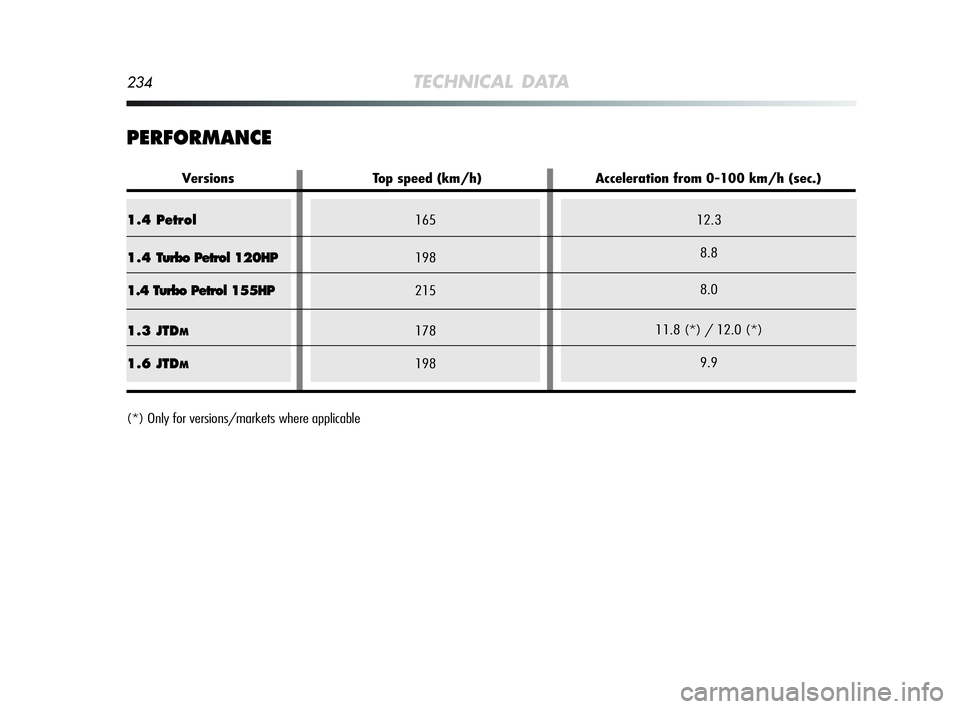

PERFORMANCE
165
198
215
178
19812.3
8.8
8.0
11.8 (*) / 12.0 (*)
9.9
Versions Top speed (km/h) Acceleration from 0-100 km/h (sec.)
(*) Only for versions/markets where applicable
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 234

TECHNICAL DATA235
6
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload with respect to the
maximum permitted load.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply with these limits.
1145 1145
480 560
950 950
850 850
1625 1705
500 500
400 400
40 40
60 601205 1205
480 560
1000 1000
850 850
1685 1765
1000 1000
400 400
40 40
60 601080 1080
480 560
850 850
850 850
1560 1640
500 500
400 400
40 40
60 601150 1150
480 560
950 950
850 850
1630 1710
1000 1000
400 400
40 40
60 60

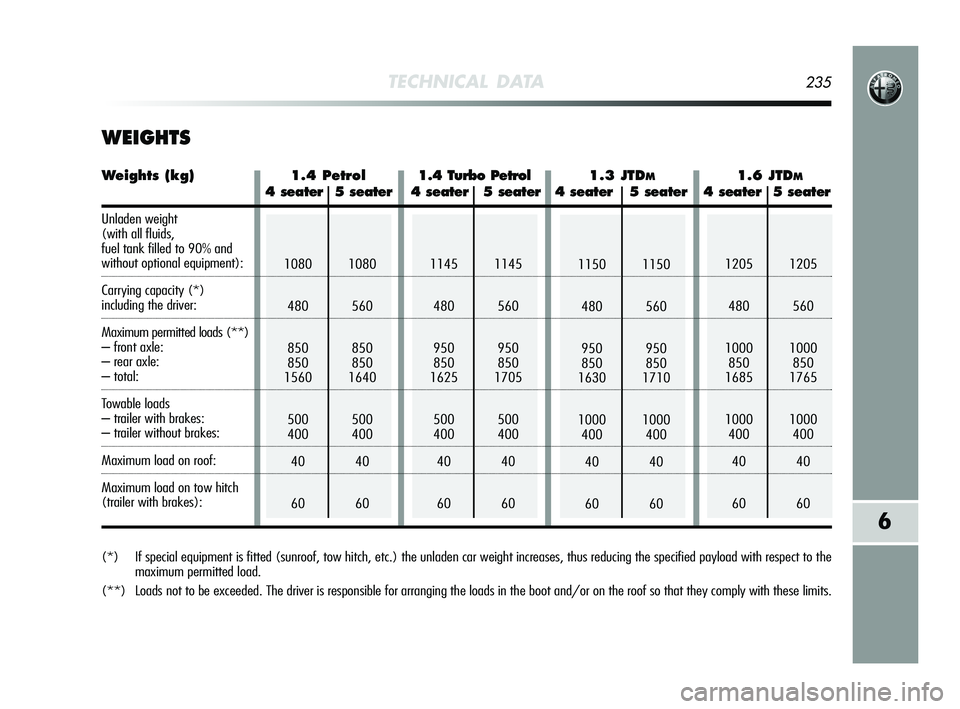

WEIGHTS
Weights (kg) 1.4 Petrol1.4 Turbo Petrol1.3 JTDM1.6 JTDM
4 seater 5 seater 4 seater 5 seater 4 seater 5 seater 4 seater 5 seater
Unladen weight
(with all fluids,
fuel tank filled to 90% and
without optional equipment):
Carrying capacity (*)
including the driver:
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch
(trailer with brakes):
221-240 Alfa MiTo GB 5-02-2009 12:04 Pagina 235

45 ()–
5-7 –
5.7 –
7.2 (
Õ)
4.3 (
) 3.8 ()
4.6 () 4.0 ()
1.8 (
❍)–
– 0.5
3
(6) –
Unleaded petrol not less than 95 R.O.N
(Specification EN228)
(
) Diesel fuel for motor vehicles
(Specification EN590)
Mixture of 50% demineralised water
and 50% PARAFLU UP (
▲)
SELENIA StAR P.E.
(
) SELENIA WR P.E.
TUTELA CAR TECHNYX
TUTELA CAR MATRYX (
❍)
TUTELA TOP 4
Mixture of water and fluid
TUTELA PROFESSIONAL SC 35
45 –
5-7 –
5.2 (*) –
6.0 (**) –
2.75 2.4
2.9(*)/3.3(**) 2.6(*)/2.95(**)
1.6(*) –
2.0(**) –
– 0.5
2.2
(4.5) –
236TECHNICAL DATA
CONSUMABLES
(▲) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UP and demineralised water.
(Õ) 1.3 JTDMversions
(*) 1.4 Petrol versions
(**) 1.4 Turbo Petrol versions
(***) values in brackets refer to versions with headlight washer.
1.4 Petrol 1.3 JTDMRecommended fuels
1.4 Turbo Petrol 1.6 JTDMand original lubricantslitres kg litres kg
Fuel tank:
including a reserve of:
Engine cooling system– with climate control:
Engine sump:
Engine sump and filter:
Gearbox/differential casing:
Hydraulic brake circuit withABS system:
Windscreen/rearscreen/headlight
washer reservoir: (***)
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 236

Synthetic-based oil, grade SAE 5W-40 ACEA C3.
FIAT 9.55535-S2 Classification
Synthetic-based oil, grade SAE 5W-30
FIAT 9.55535-S1 Classification
TECHNICAL DATA237
6
For diesel engines, in emergency cases where genuine products are not available, lubricants with min. performance
ACEA C2; are acceptable. If this is the case, the best engine performance is not guaranteed. We recommend replacing the lubricant as soon as possi-
ble at an Alfa Romeo Authorised Service Provider.
The use of products with characteristics that are not up to ACEA C3 and ACEA C2 standard could cause engine damage not covered by the warranty.
SELENIA StAR P.E.
Contractual Technical
Reference N
°F603.C07
SELENIA WR P.E.
Contractual Technical
Reference N
°F510.D07
According to
Scheduled
Servicing Plan
According to
Scheduled
Servicing Plan

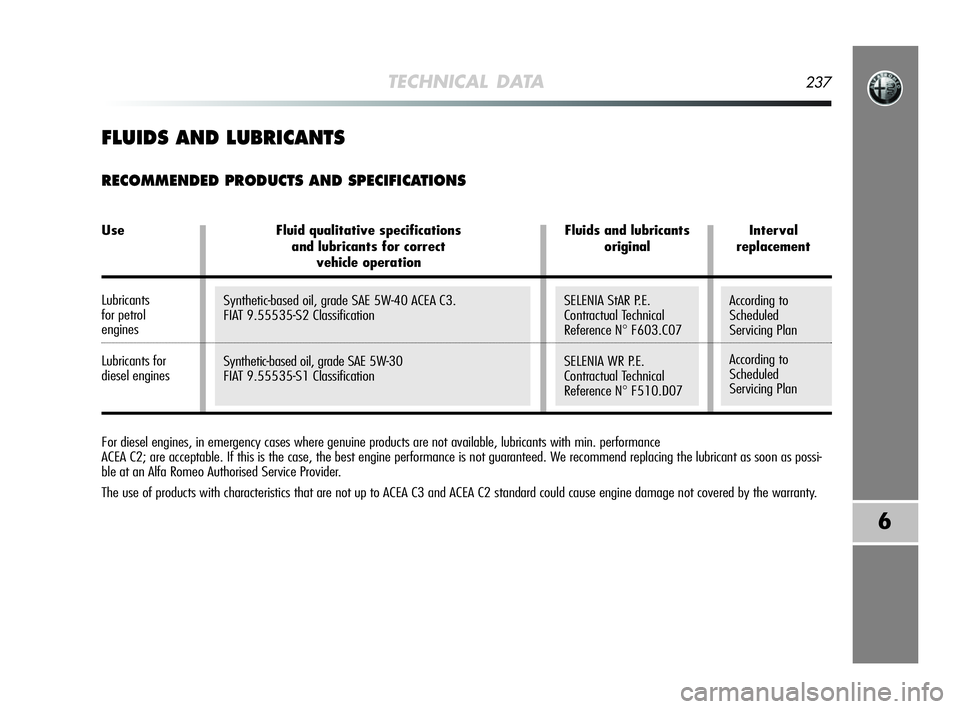

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid qualitative specifications Fluids and lubricants Interval
and lubricants for correct original replacement
vehicle operation
Lubricants
for petrol
engines
Lubricants for
diesel engines
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 237

Synthetic-based oil, grade SAE 75W-85.
FIAT 9.55550-MX3 qualification
Synthetic-based oil, grade SAE 75W-85.
FIAT 9.55550-MZ1 qualification
Grease for constant velocity joints with low
friction coefficient. Consistency N.L.G.I. 0-1.
FIAT 9.55580 qualification
Molybdenum disulphide grease, for use at
high temperatures. Consistency N.L.G.I. 1-2.
FIAT 9.55580 qualification
Synthetic fluid for braking and clutch systems
Exceeds specifications: FMVSS n
°116 DOT 4, ISO 4925,
SAE J 1704. FIAT 9.55597 qualification
Inhibited mono ethylene glycol-based antifreeze protection,
red, with organic formulation.
Passes CUNA NC 956-16, ASTM D 3306 specifications.
Additive for diesel fuel, protecting Diesel engines.
Mixture of alcohols and surfactants.
Exceeds CUNA NC 956-11 specification.
FIAT 9.55522 qualification
Manual gearboxes and
differentials (only
1.4 Petrol versions)
Manual gearbox and
differential
Constant velocity joints
differential-side
Constant velocity joints
wheel-side
Hydraulic brakes and
hydraulically operated
clutches
Cooling circuits
proportions of use:
50% water
50% PARAFLU UP (
❑)
To be mixed with diesel
(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
238TECHNICAL DATA
Fluid
for brakes
Protective
for radiators
Additive for
diesel
TUTELA CAR TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA CAR MATRYX
Contractual Technical
Reference N°F108.F02
TUTELA STAR 700
Contractual Technical
Reference N°F701.C07
TUTELA ALL STAR
Contractual Technical
Reference N°F702.G07
TUTELA TOP 4
Contractual Technical
Reference N°F001.A93
PARAFLU UP (
●)
Contractual Technical
Reference N°F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N°F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference N° F201.D02 Fluid for
windscreen/
rearscreen/
headlight
washer Lubricants and
grease for the
transmission
of drive Use Fluid qualitative specifications and lubricants Fluids and lubricants Applications
for correct vehicle operation original
(●) IMPORTANT Don’t use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UP and demineralised water.
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 238

TECHNICAL DATA239
6

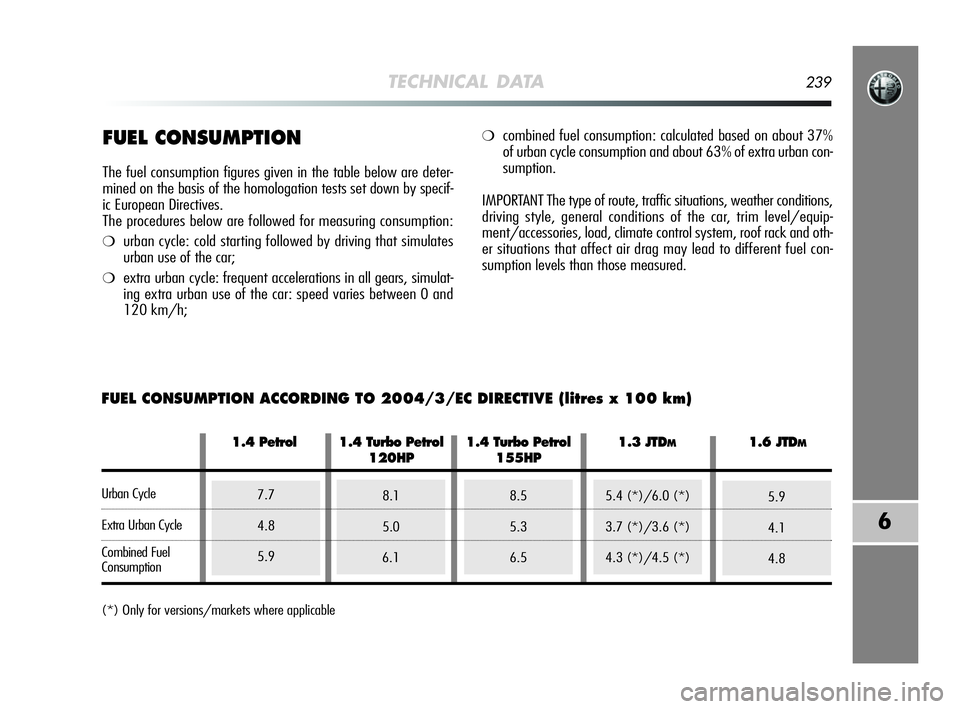

FUEL CONSUMPTION
The fuel consumption figures given in the table below are deter-
mined on the basis of the homologation tests set down by specif-
ic European Directives.
The procedures below are followed for measuring consumption:
❍urban cycle: cold starting followed by driving that simulates
urban use of the car;
❍extra urban cycle: frequent accelerations in all gears, simulat-
ing extra urban use of the car: speed varies between 0 and
120 km/h;
❍combined fuel consumption: calculated based on about 37%
of urban cycle consumption and about 63% of extra urban con-
sumption.
IMPORTANT The type of route, traffic situations, weather conditions,
driving style, general conditions of the car, trim level/equip-
ment/accessories, load, climate control system, roof rack and oth-
er situations that affect air drag may lead to different fuel con-
sumption levels than those measured.
FUEL CONSUMPTION ACCORDING TO 2004/3/EC DIRECTIVE (litres x 100 km)
7.7
4.8
5.98.5
5.3
6.55.9
4.1
4.88.1
5.0
6.15.4 (*)/6.0 (*)
3.7 (*)/3.6 (*)
4.3 (*)/4.5 (*)
(*) Only for versions/markets where applicable
1.4 Petrol 1.4 Turbo Petrol 1.4 Turbo Petrol 1.3 JTDM1.6 JTDM
120HP 155HP
Urban Cycle
Extra Urban Cycle
Combined Fuel
Consumption
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 239
