GETTING TO KNOW YOUR CAR7
1DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Air vent for side windows - 2. Adjustable air vent - 3. Exterior lighting control lever - 4. Instrument panel - 5. Windscreen wiper/rearscreen
wiper/trip computer control lever - 6. Radio (where provided) - 7. Adjustable air vents - 8. Hazard warning lights, door lock/unlock button -
9. Passenger front air bag - 10. Glove compartment - 11. Heating/ventilation/climate control system controls - 12. Gearbox lever -
13. “Alfa dna” system - 14. Ignition device - 15. Driver front knee air bag (where provided) - 16. Driver front air bag - 17. Steering lock
lever - 18. Fuse box access flap - 19. Control panel.
A0J0330mfig. 1
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 7
Page 186 of 250
IN AN EMERGENCY185
4
fig. 41A0J0127m

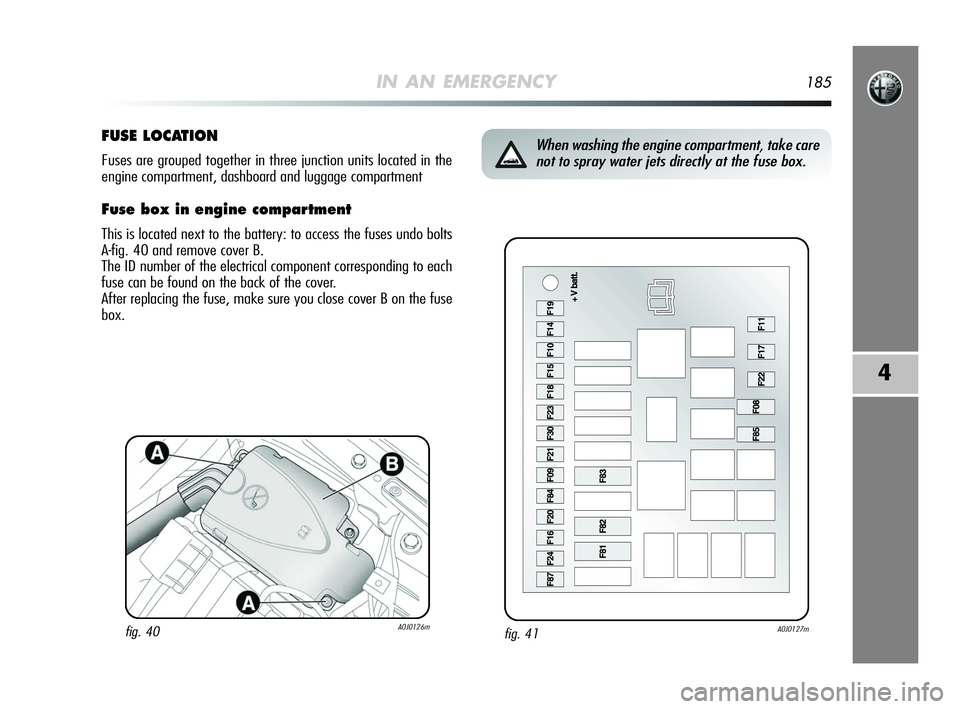

When washing the engine compartment, take care
not to spray water jets directly at the fuse box.FUSE LOCATION
Fuses are grouped together in three junction units located in the
engine compartment, dashboard and luggage compartment
Fuse box in engine compartment
This is located next to the battery: to access the fuses undo bolts
A-fig. 40 and remove cover B.
The ID number of the electrical component corresponding to each
fuse can be found on the back of the cover.
After replacing the fuse, make sure you close cover B on the fuse
box.
fig. 40A0J0126m
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 185
Page 187 of 250
186IN AN EMERGENCY

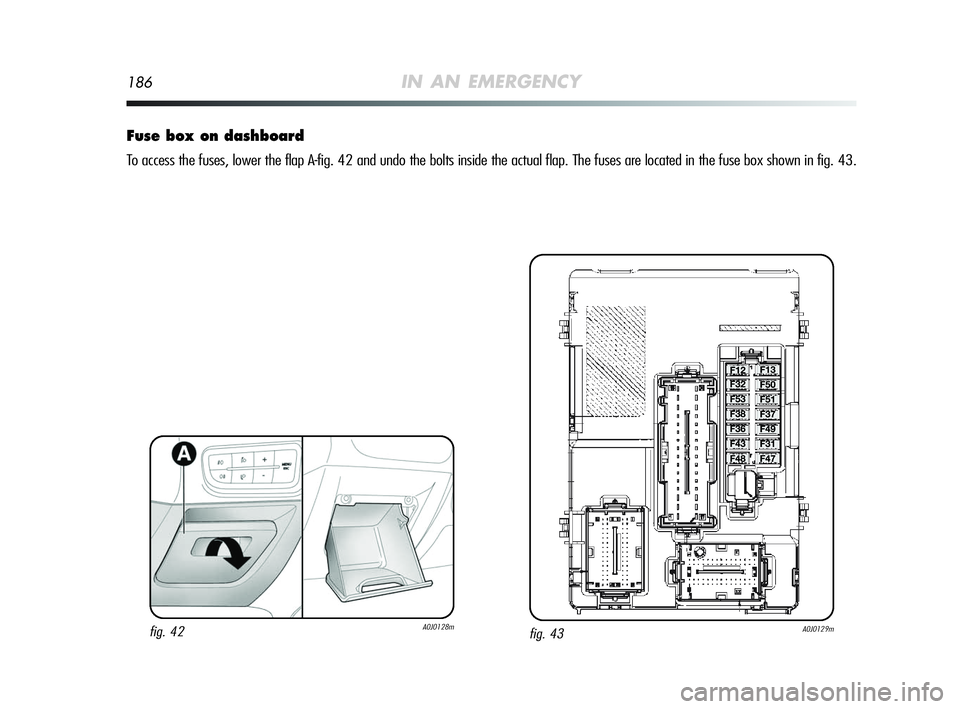

Fuse box on dashboard
To access the fuses, lower the flap A-fig. 42 and undo the bolts inside the actual flap. The fuses are located in the fuse box shown in fig. 43.
fig. 43A0J0129mfig. 42A0J0128m
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 186
Page 188 of 250
IN AN EMERGENCY187
4

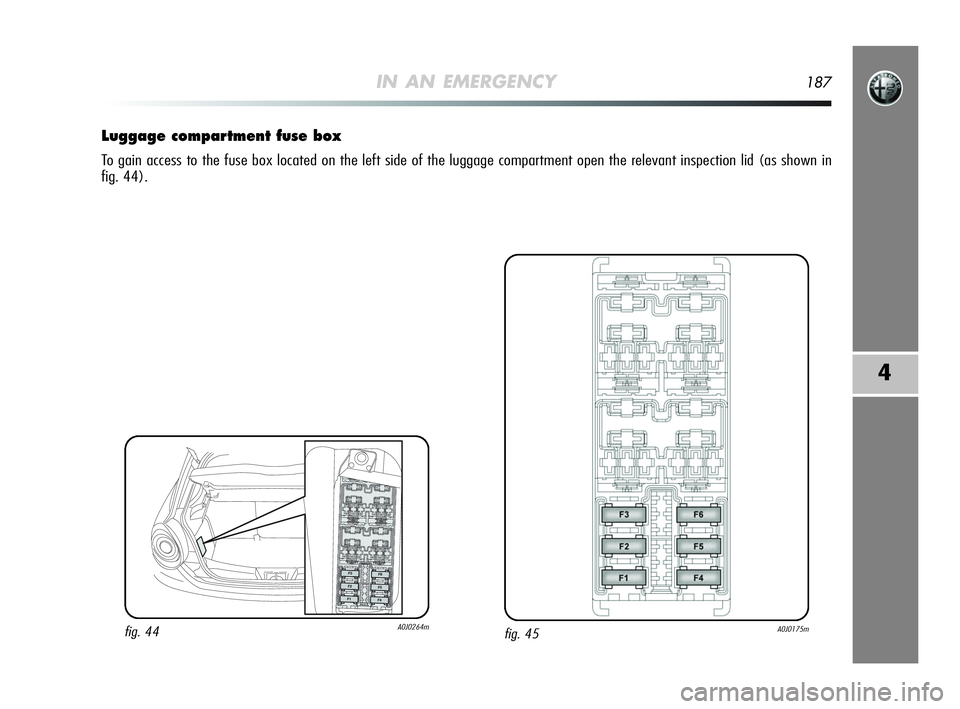

Luggage compartment fuse box
To gain access to the fuse box located on the left side of the luggage compartment open the relevant inspection lid (as shown in
fig. 44).
fig. 45A0J0175mfig. 44A0J0264m
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 187
Page 191 of 250
190IN AN EMERGENCY
F23
F24
F31
F36
F37
F38
F43
F47
F4820
5
5
10
5
15
20
20
2041
41
43
43
43
43
43
43
43
CONSUMERS FUSE AMPERE FIGURE
Braking system control unit (control unit and solenoid unit)
Electric steering control unit
(power supply + Key),
Brake system control unit (power supply + Key),
Yaw sensor on tunnel
INT/A key exhaust relay coils
on engine fuse box
Radio, Blue&Me
TMcontrol unit, Climate control unit,
Alarm control unit, Volume sensing system control unit,
EOBD external diagnostic socket,
Tyre pressure detection control unit
Instrument panel, Brake light switch,
Gas discharge headlights management system
Door lock motor on door,
Safe Lock motor on doors,
Tailgate unlocking motor
Windscreen / rearscreen washer pump
Electric window motor complete with
control unit (driver-side door)
Electric window motor complete with
control unit (passenger-side door)
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 190
Page 192 of 250
5
7.5
5
5
15
10
15
20
IN AN EMERGENCY191
4
43
43
43
43
45
45
45
45F49
F50
F51
F53
F4
F5
F6
F1
CONSUMERS FUSE AMPERE FIGURE
Parking sensors control unit, Tyre pressure
detection control unit, Rain/dusk sensor
on rear-view mirror, Electro-chrome sensor
on rear-view mirror, Seat belts fastened
warning light display on rear-view mirror,
Control panel illumination (Central control
panel, Driver-side control panel, Steering wheel
control panel, Blue&Me
TMcontrol panel),
Front seat heating pad activation switch,
Alarm system volume-sensing sensors control unit,
Electric sunroof control unit,
PND socket on dashboard
Air Bag system control unit
Clutch switch, Brake light
switch, relay coils on
engine fuse box, Control system on
internal heater/air conditioning unit,
Blue&Me
TMcontrol unit,
Radio wiring, Air flow meter,
Water in diesel fuel sensor
Instrument panel
Bose HI-FI system amplifier control unit
Bassbox subwoofer in spare wheel compartment
Left and right front seat heater
Electric sunroof opening system
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 191
Page 242 of 250
INDEX241
7
CBC system ................................... 110
Checking fluid levels ....................... 204.
Cigar lighter .................................. 90
Climatic comfort ............................. 63
CO
2emissions............................... 240
CODE card .................................... 47
Compliance for use.......................... 137
Control buttons .............................. 29
Controls........................................ 86
Courtesy lights .......................... 83-86
Courtesy mirror lights
– bulb replacement ...................... 182
Cruise Control ................................ 81
Current outlet ................................ 90
Dashboard...................................7-243
Devices........................................ 116
Dimensions................................... 233
Dipped beam headlights
– activation ................................ 76
– bulb replacement ...................... 177
Direction indicators
– activation ................................ 77
– replacement.............................
Display......................................... 26
Door lock device ............................ 87
Doors ........................................... 95
DST system ................................... 110
Electric power steering system ......... 114
Electric sunroof .............................. 92
Electronic Q2 (“E-Q2”) ................... 110
Engine (specifications) .................... 225
Engine codes
– bodywork versions .................... 224
Engine compartment (washing) ........ 218
ABS (system) .............................. 107
Air cleaner .................................... 211
Alarm ........................................... 53
“Alcohol Test” kit ........................... 148
Alfa “dna” (system) ....................... 111
Alfa Romeo CODE (system) ............. 46
Ashtray........................................ 91
ASR system ................................... 109
Automatic two-zone climate
control system ............................. 68
Battery
– tips for extending duration ......... 211
– recharging ............................... 193
– replacing ................................. 211
Bodywork (cleaning) ...................... 217
Bonnet .......................................... 103
Boot ............................................ 88
Boot light
– bulb replacement ...................... 180
Brake lights .................................. 178
Brakes......................................... 228
Bulb (replacement) ........................ 174
– general instructions ...................174
– bulb types ............................... 174
Bulb replacement ......................174-180
Capacities...............................124-236
Car maintenance ............................ 197
– Heavy-duty use of the car .......... 203
– service schedule....................... 198
– Scheduled
Carrying children in safety
– Isofix universal child restraint
system ................................... 139
– child seats ............................... 137
Car radio (wiring)........................... 115Engine oil ..................................... 209
EOBD system ................................ 114
External courtesy lights ................... 78
External lights ............................... 76
Fire extinguisher ........................... 91
Fix&Go Automatic kit ..................... 169
Flashing the headlights ................... 77
Fluids and lubricants ....................... 237
Fog lights
– activation ................................ 87
– bulb replacement ...................... 178
Follow me home (device) ............... 77
Front air bags ................................ 142
Front armrest ................................ 89
Front courtesy light
– activation ................................ 83
– bulb replacement ...................... 180
Fuel
– consumption ............................ 239
– fuel lock system ....................... 88
Fuel cap ....................................... 125
Fuel saving ................................... 154
Fuel system .................................. 227
Fuse replacement ........................... 183
Fuses (if a fuse blows) ................... 183
Gearbox (use of) .......................... 153
Glove box light
– bulb replacement ...................... 181
Handbrake.................................. 152
Hazard lights ................................. 86
Head restraints .............................. 59
Headlight alignment corrector ........... 105
Headlight washers
– activation ................................ 215
241-248 Alfa MiTo GB 12-11-2008 15:44 Pagina 241
Page 244 of 250
RIGH HAND DRIVE VERSION243

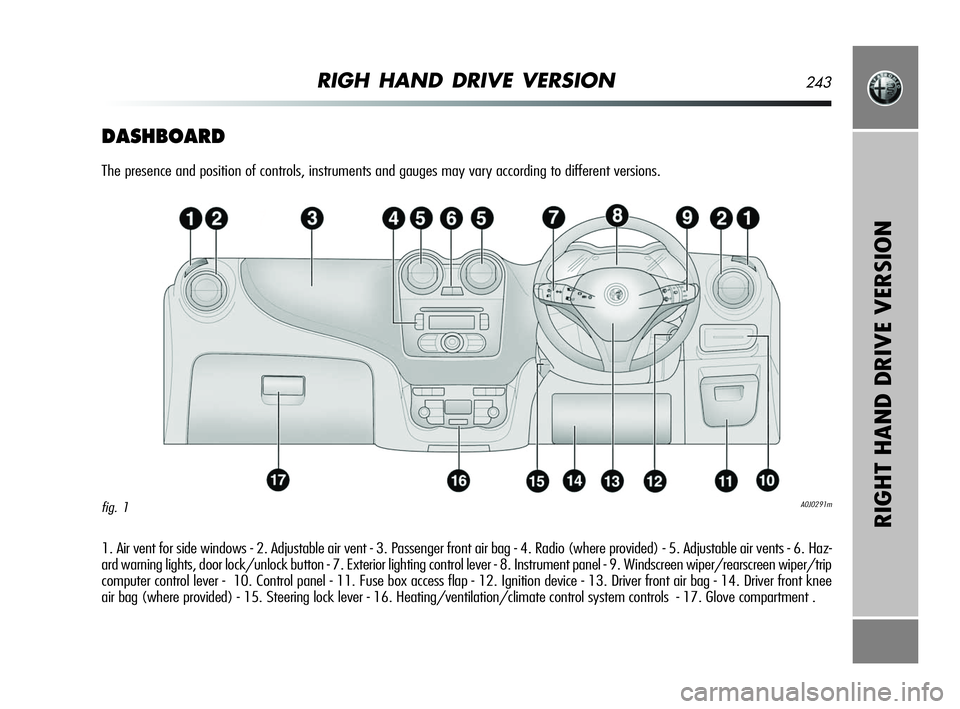

RIGHT HAND DRIVE VERSION
DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Air vent for side windows - 2. Adjustable air vent - 3. Passenger front air bag - 4. Radio (where provided) - 5. Adjustable air vents - 6. Haz-
ard warning lights, door lock/unlock button - 7. Exterior lighting control lever - 8. Instrument panel - 9. Windscreen wiper/rearscreen wiper/trip
computer control lever - 10. Control panel - 11. Fuse box access flap - 12. Ignition device - 13. Driver front air bag - 14. Driver front knee
air bag (where provided) - 15. Steering lock lever - 16. Heating/ventilation/climate control system controls - 17. Glove compartment .
A0J0291mfig. 1
241-248 Alfa MiTo GB 12-11-2008 15:44 Pagina 243
