maintenance schedule Alfa Romeo MiTo 2009 Owner handbook (in English)

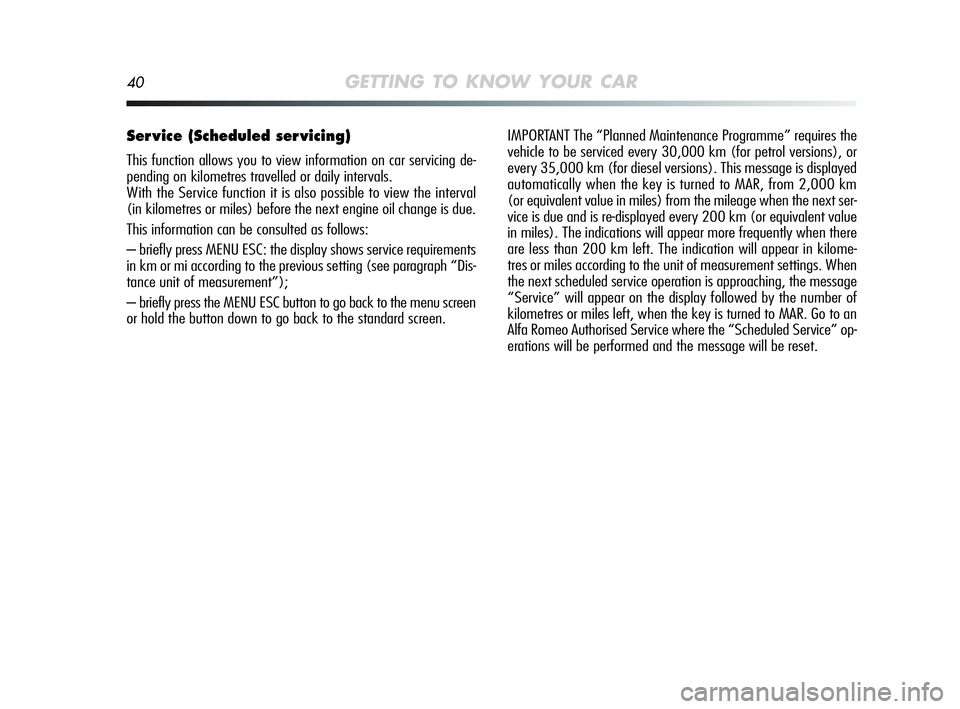

40GETTING TO KNOW YOUR CAR
Ser vice (Scheduled ser vicing)
This function allows you to view information on car servicing de-
pending on kilometres travelled or daily intervals.
With the Service function it is also possible to view the interval
(in kilometres or miles) before the next engine oil change is due.
This information can be consulted as follows:
– briefly press MENU ESC: the display shows service requirements
in km or mi according to the previous setting (see paragraph “Dis-
tance unit of measurement”);
– briefly press the MENU ESC button to go back to the menu screen
or hold the button down to go back to the standard screen.IMPORTANT The “Planned Maintenance Programme” requires the
vehicle to be serviced every 30,000 km (for petrol versions), or
every 35,000 km (for diesel versions). This message is displayed
automatically when the key is turned to MAR, from 2,000 km
(or equivalent value in miles) from the mileage when the next ser-
vice is due and is re-displayed every 200 km (or equivalent value
in miles). The indications will appear more frequently when there
are less than 200 km left. The indication will appear in kilome-
tres or miles according to the unit of measurement settings. When
the next scheduled service operation is approaching, the message
“Service” will appear on the display followed by the number of
kilometres or miles left, when the key is turned to MAR. Go to an
Alfa Romeo Authorised Service where the “Scheduled Service” op-
erations will be performed and the message will be reset.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 40

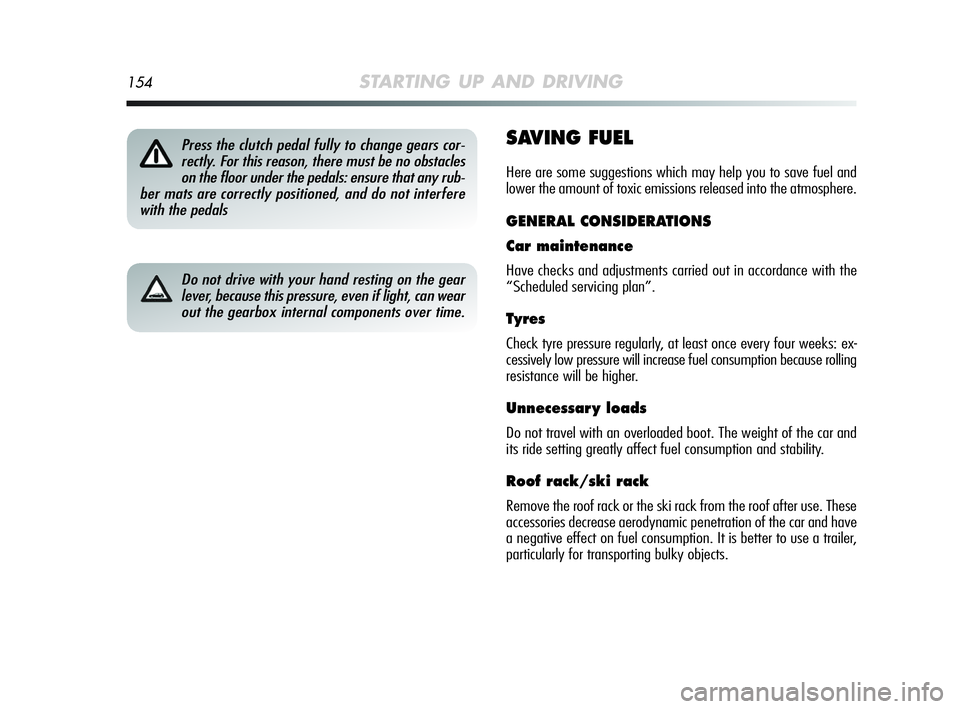

154STARTING UP AND DRIVING
SAVING FUEL
Here are some suggestions which may help you to save fuel and
lower the amount of toxic emissions released into the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in accordance with the
“Scheduled servicing plan”.
Tyres
Check tyre pressure regularly, at least once every four weeks: ex-
cessively low pressure will increase fuel consumption because rolling
resistance will be higher.
Unnecessar y loads
Do not travel with an overloaded boot. The weight of the car and
its ride setting greatly affect fuel consumption and stability.
Roof rack/ski rack
Remove the roof rack or the ski rack from the roof after use. These
accessories decrease aerodynamic penetration of the car and have
a negative effect on fuel consumption. It is better to use a trailer,
particularly for transporting bulky objects.
Press the clutch pedal fully to change gears cor-
rectly. For this reason, there must be no obstacles
on the floor under the pedals: ensure that any rub-
ber mats are correctly positioned, and do not interfere
with the pedals
Do not drive with your hand resting on the gear
lever, because this pressure, even if light, can wear
out the gearbox internal components over time.
149-158 Alfa MiTo GB 12-11-2008 15:41 Pagina 154

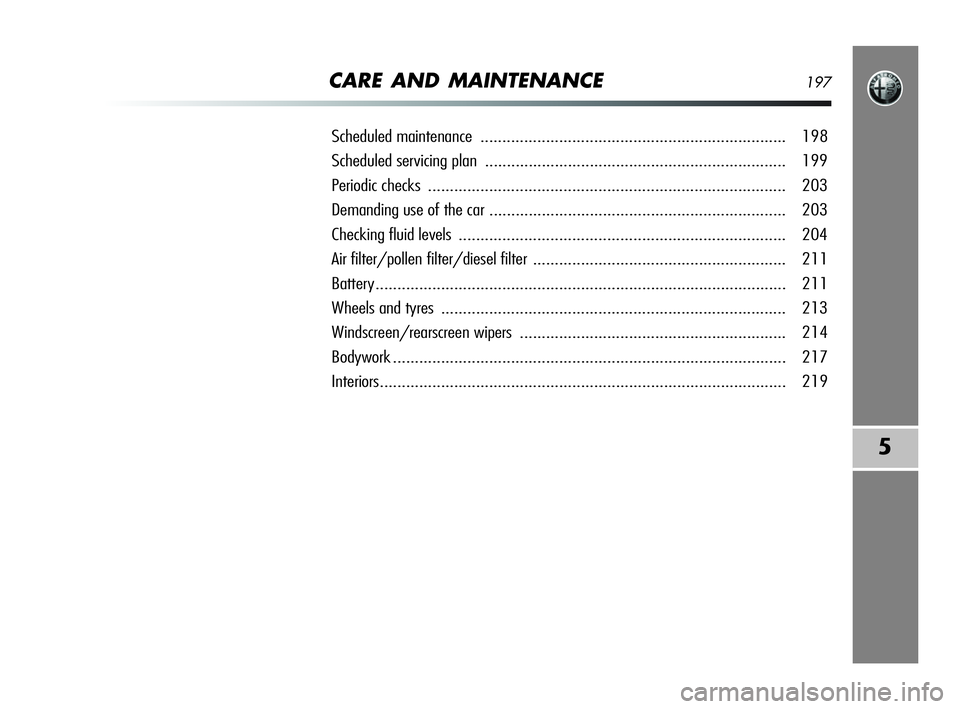

CARE AND MAINTENANCE197
5
Scheduled maintenance ...................................................................... 198
Scheduled servicing plan ..................................................................... 199
Periodic checks .................................................................................. 203
Demanding use of the car .................................................................... 203
Checking fluid levels ........................................................................... 204
Air filter/pollen filter/diesel filter.......................................................... 211
Battery.............................................................................................. 211
Wheels and tyres ............................................................................... 213
Windscreen/rearscreen wipers ............................................................. 214
Bodywork.......................................................................................... 217
Interiors............................................................................................. 219
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 197

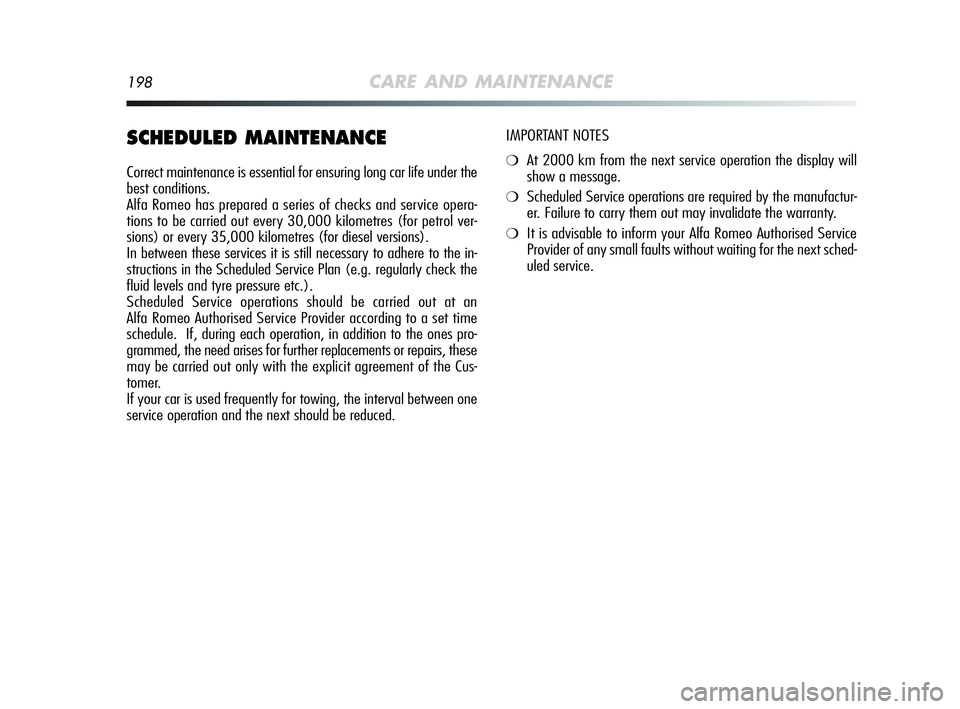

198CARE AND MAINTENANCE
SCHEDULED MAINTENANCE
Correct maintenance is essential for ensuring long car life under the
best conditions.
Alfa Romeo has prepared a series of checks and service opera-
tions to be carried out every 30,000 kilometres (for petrol ver-
sions) or every 35,000 kilometres (for diesel versions).
In between these services it is still necessary to adhere to the in-
structions in the Scheduled Service Plan (e.g. regularly check the
fluid levels and tyre pressure etc.).
Scheduled Service operations should be carried out at an
Alfa Romeo Authorised Service Provider according to a set time
schedule. If, during each operation, in addition to the ones pro-
grammed, the need arises for further replacements or repairs, these
may be carried out only with the explicit agreement of the Cus-
tomer.
If your car is used frequently for towing, the interval between one
service operation and the next should be reduced.IMPORTANT NOTES❍At 2000 km from the next service operation the display will
show a message.
❍Scheduled Service operations are required by the manufactur-
er. Failure to carry them out may invalidate the warranty.
❍It is advisable to inform your Alfa Romeo Authorised Service
Provider of any small faults without waiting for the next sched-
uled service.
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 198

CARE AND MAINTENANCE199
5
SCHEDULED SERVICING PLAN
PETROL VERSIONS
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses (exhaust - fuel - brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check cleanliness of locks, bonnet and boot, and
cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check timing belt condition
Visually inspect condition of auxiliary drive belt/s
Check tension and adjust auxiliary drive belt (versions with heater system)30 60 90 120 150 180
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
●●
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 199

200CARE AND MAINTENANCE
2 If the car is mainly used in cities or travels less than 10,000 km a year, change the engine oil and filter every
12 months.
30 60 90 120 150 180
●●● ●●●
●●● ●●●
●
●
●●● ●●●
●●●
●●● ●●●
●●●
●●● ●●●
1 For 1.4 Turbo Petrol versions, in order to guarantee correct operation and prevent serious damage to the
engine, it is essential to observe the following:
- only use spark plugs specifically certified for Turbo Petrol engines; all spark plugs should be of the same type and brand
(see the “Engine” paragraph);
- adhere strictly to the spark plug replacement intervals detailed in the Scheduled Service Plan;
- it is advisable to have this carried out by an Alfa Romeo Authorised Services.
Thousands of kilometres
Check exhaust emissions
Check engine management system operation (via diagnostic socket)
Replace auxiliary drive belt/s
Replace toothed timing drive belt (*)
Replace spark plugs 1
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months) 2
Change brake fluid (or every 24 months)
Change pollen filter (or every 24 months)
(*) Regardless of the number of kilometres covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates,
driving in the city, idling for a long time) or in any case every 5 years.
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 200

CARE AND MAINTENANCE203
5
PERIODIC CHECKS
Every 1,000 km or before long journeys, check and top up the fol-
lowing if necessary:
❍engine coolant level, brake fluid and windscreen washer fluid
❍tyre pressure and condition;
❍operation of lights (headlights, direction indicators, hazard
lights, etc.);
❍operation of the windscreen wiper/washer system, position
and wear of windscreen/rearscreen wiper blades;
Every 3,000 km check the following and top-up, if necessary: en-
gine oil level.
We recommend the use of FL Selenia products, designed and pro-
duced specifically for Alfa Romeo cars (see “Consumables” table
in chapter 6).
DEMANDING USE OF THE CAR
If you use the vehicle mainly under one of the following conditions:
❍trailer or caravan towing;
❍dusty roads;
❍repeated short distances (less than 7-8 km) and with exter-
nal temperatures below zero;
❍frequently idling the engine, travelling long distances at low
speeds or long term inactivity;
❍in cities;
perform the following inspections more frequently than shown on
the Scheduled Servicing Plan:
❍check front disc brake pad condition and wear;
❍check cleanliness of bonnet and boot locks, and cleanliness and
lubrication of linkages;
❍visually inspect the condition of: engine, gearbox, transmission,
pipes and hoses (exhaust – fuel supply - brakes) rubber ele-
ments (gaiters – hoses - bushes etc.);
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 203
