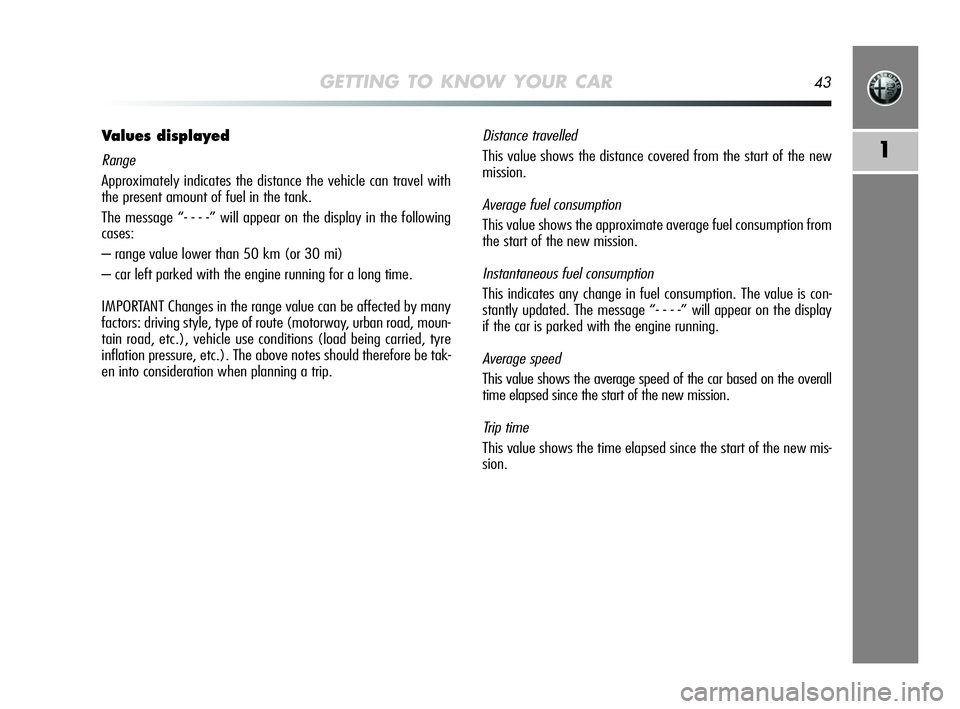

GETTING TO KNOW YOUR CAR43
1
Values displayed
Range
Approximately indicates the distance the vehicle can travel with
the present amount of fuel in the tank.
The message “- - - -” will appear on the display in the following
cases:
– range value lower than 50 km (or 30 mi)
– car left parked with the engine running for a long time.
IMPORTANT Changes in the range value can be affected by many
factors: driving style, type of route (motorway, urban road, moun-
tain road, etc.), vehicle use conditions (load being carried, tyre
inflation pressure, etc.). The above notes should therefore be tak-
en into consideration when planning a trip.
Distance travelled
This value shows the distance covered from the start of the new
mission.
Average fuel consumption
This value shows the approximate average fuel consumption from
the start of the new mission.
Instantaneous fuel consumption
This indicates any change in fuel consumption. The value is con-
stantly updated. The message “- - - -” will appear on the display
if the car is parked with the engine running.
Average speed
This value shows the average speed of the car based on the overall
time elapsed since the start of the new mission.
Trip time
This value shows the time elapsed since the start of the new mis-
sion.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 43

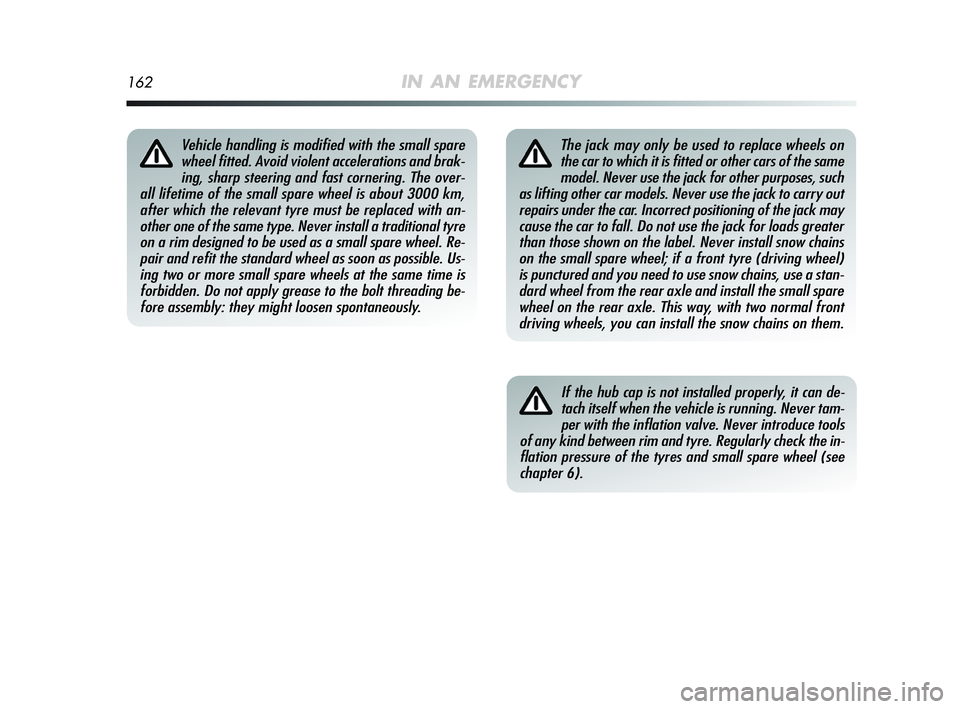

162IN AN EMERGENCY
The jack may only be used to replace wheels on
the car to which it is fitted or other cars of the same
model. Never use the jack for other purposes, such
as lifting other car models. Never use the jack to carry out
repairs under the car. Incorrect positioning of the jack may
cause the car to fall. Do not use the jack for loads greater
than those shown on the label. Never install snow chains
on the small spare wheel; if a front tyre (driving wheel)
is punctured and you need to use snow chains, use a stan-
dard wheel from the rear axle and install the small spare
wheel on the rear axle. This way, with two normal front
driving wheels, you can install the snow chains on them.
If the hub cap is not installed properly, it can de-
tach itself when the vehicle is running. Never tam-
per with the inflation valve. Never introduce tools
of any kind between rim and tyre. Regularly check the in-
flation pressure of the tyres and small spare wheel (see
chapter 6).
Vehicle handling is modified with the small spare
wheel fitted. Avoid violent accelerations and brak-
ing, sharp steering and fast cornering. The over-
all lifetime of the small spare wheel is about 3000 km,
after which the relevant tyre must be replaced with an-
other one of the same type. Never install a traditional tyre
on a rim designed to be used as a small spare wheel. Re-
pair and refit the standard wheel as soon as possible. Us-
ing two or more small spare wheels at the same time is
forbidden. Do not apply grease to the bolt threading be-
fore assembly: they might loosen spontaneously.
159-196 Alfa MiTo GB 12-11-2008 15:45 Pagina 162

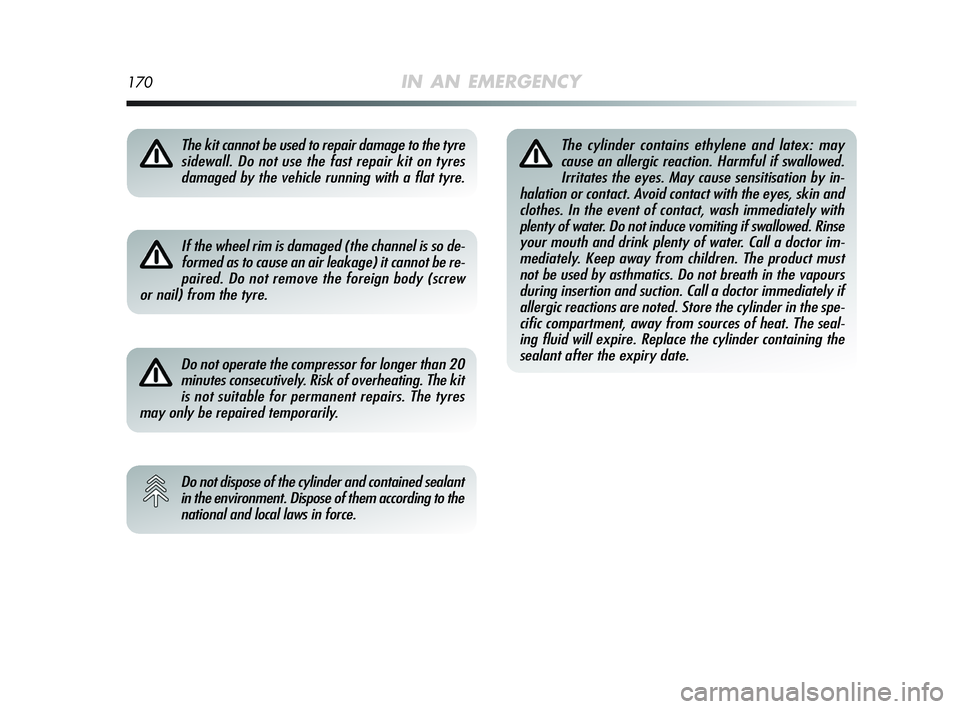

170IN AN EMERGENCY
The kit cannot be used to repair damage to the tyre
sidewall. Do not use the fast repair kit on tyres
damaged by the vehicle running with a flat tyre.
If the wheel rim is damaged (the channel is so de-
formed as to cause an air leakage) it cannot be re-
paired. Do not remove the foreign body (screw
or nail) from the tyre.
Do not operate the compressor for longer than 20
minutes consecutively. Risk of overheating. The kit
is not suitable for permanent repairs. The tyres
may only be repaired temporarily.
Do not dispose of the cylinder and contained sealant
in the environment. Dispose of them according to the
national and local laws in force.
The cylinder contains ethylene and latex: may
cause an allergic reaction. Harmful if swallowed.
Irritates the eyes. May cause sensitisation by in-
halation or contact. Avoid contact with the eyes, skin and
clothes. In the event of contact, wash immediately with
plenty of water. Do not induce vomiting if swallowed. Rinse
your mouth and drink plenty of water. Call a doctor im-
mediately. Keep away from children. The product must
not be used by asthmatics. Do not breath in the vapours
during insertion and suction. Call a doctor immediately if
allergic reactions are noted. Store the cylinder in the spe-
cific compartment, away from sources of heat. The seal-
ing fluid will expire. Replace the cylinder containing the
sealant after the expiry date.
159-196 Alfa MiTo GB 12-11-2008 15:45 Pagina 170

172IN AN EMERGENCY
❍inflate the tyre to the pressure shown in the paragraph entitled
“Wheels” in chapter 6. In order to obtain a precise reading,
check the pressure on pressure gauge B-fig. 18 with the com-
pressor off;
❍if a pressure value of a least 1.5 bars is not reached within 5
minutes, disconnect the compressor from the valve and current
socket, move the vehicle forwards by about 10 metres to dis-
tribute the sealant fluid in the tyre and repeat the inflation
procedure;
fig. 18A0J0114m
❍if a pressure value of a least 1.8 bars is not reached within 5
minutes of switching on the compressor, do not continue dri-
ving. Contact an Alfa Romeo Authorised Services;
❍after having driven for about 10 minutes, stop the car and check
the tyre pressure once more: remember to engage the hand-
brake;
❍if a pressure value of at least 1.8 bars is detected, restore the
correct pressure (with the engine running and the handbrake
engaged), and drive with care to an Alfa Romeo Authorised
Services.
159-196 Alfa MiTo GB 12-11-2008 15:45 Pagina 172

195/55 R16 87H
205/45 R17 88W XL
215/45 R17 87W
215/40 R18 89W XL
195/55 R16 87V
205/45 R17 88W XL
215/45 R17 87W
215/40 R18 89W XL
195/55 R16 87H
205/45 R17 88W XL
215/45 R17 87W
215/40 R18 89W XL
135/70 R162.3 2.3
2.3 2.3
2.3 2.3
2.3 2.3
2.5 2.3
2.8 2.5
2.6 2.3
2.7 2.4
2.5 (*)/2.6 (**) 2.3
2.8 2.5 (*)/2.3 (**)
2.6 2.3
2.7 2.3 (**)/2.4 (*)2.3 2.1
2.3 2.1
2.2 2.1
2.3 2.1
2.3 2.1
2.4 2.2
2.3 2.1
2.4 2.2
2.3 2.1
2.4 (*)/2.6 (**) 2.2
2.3 (*)/2.4 (**) 2.1 (*)/2.2 (**)
2.4 (*)/2.5 (**) 2.2

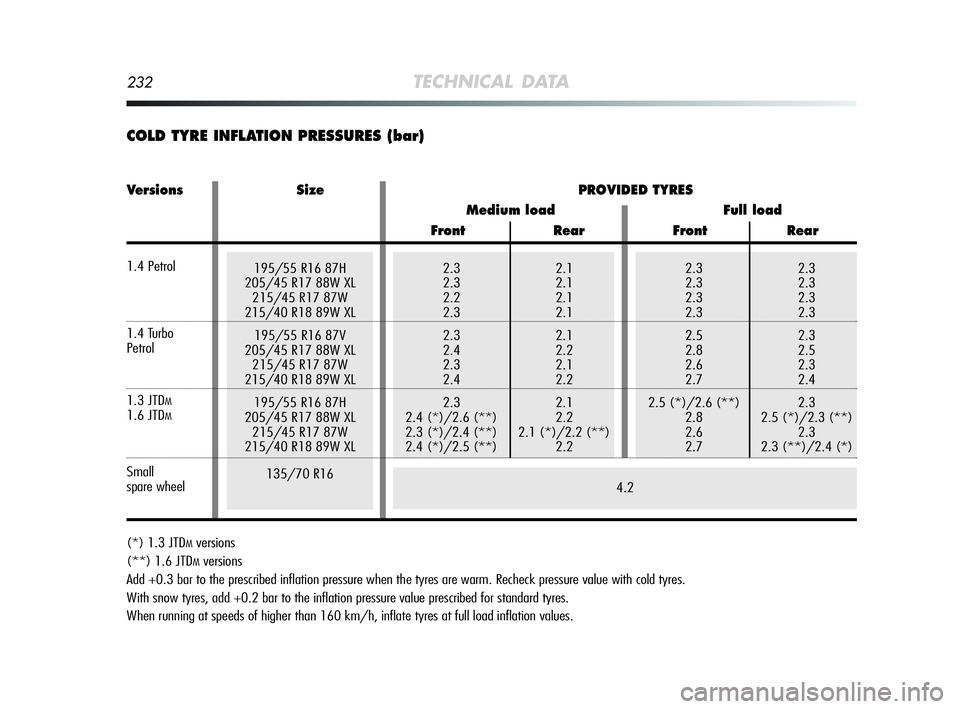

232TECHNICAL DATA
COLD TYRE INFLATION PRESSURES (bar)
(*) 1.3 JTDMversions
(**) 1.6 JTD
Mversions
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When running at speeds of higher than 160 km/h, inflate tyres at full load inflation values.
4.2
Versions Size PROVIDED TYRES
Medium load Full load
Front Rear Front Rear
1.4 Petrol
1.4 Turbo
Petrol
1.3 JTDM1.6 JTDM
Smallspare wheel
