IN AN EMERGENCY189
4
fig. 41A0J0204m
If you have to wash the engine compartment, take
care not to aim the jet of water directly at the fuse
box or windscreen wiper motors.FUSELOCAT ION
Fuses are grouped together in three junction units located in the
engine compartment, dashboard and luggage compartment
Fuseboxinengine compartment
This is located next to the battery: to access the fuses undo bolts
A-fig. 40 and remove cover B.
The ID number of the electrical component corresponding to each
fuse can be found on the back of the cover.
After replacing the fuse, make sure you close cover B on the fuse
box.
fig. 40A0J0126m
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 189

190IN AN EMERGENCY
Fuseboxondashboard
To access the fuses lower the lid A - fig. 42 and remove the cover B in the area C by releasing the inner retainers C and then the tabs D.
fig. 43A0J0205mfig. 42A0J0334m
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 190

F38
F43
F47
F48
F4915
20
20
20
543
43
43
43
43
194IN AN EMERGENCY
CONSUMERSFUSEAMPEREFIGURE
Door lock motor on door,
Safe Lock motor on doors,
Tailgate unlocking motor
Windscreen / rearscreen washer pump
Electric window motor complete with
control unit (driver-side door)
Electric window motor complete with
control unit (passenger-side door)
Parking sensors control unit, Tyre pressure
detection control unit, Rain/dusk sensor
on rear-view mirror, Electro-chrome sensor
on rear-view mirror, Seat belts fastened
warning light display on rear-view mirror,
Control panel illumination (Central control
panel, Driver-side control panel, Steering wheel
control panel, Blue&Me
TMcontrol panel),
Front seat heating pad activation switch,
Alarm system volume-sensing sensors control unit,
Electric sunroof control unit,
PND socket on dashboard
163-200 Alfa MiTo GB 2ed:163-200 Alfa MiTo GB 23-12-2009 12:39 Pagina 194

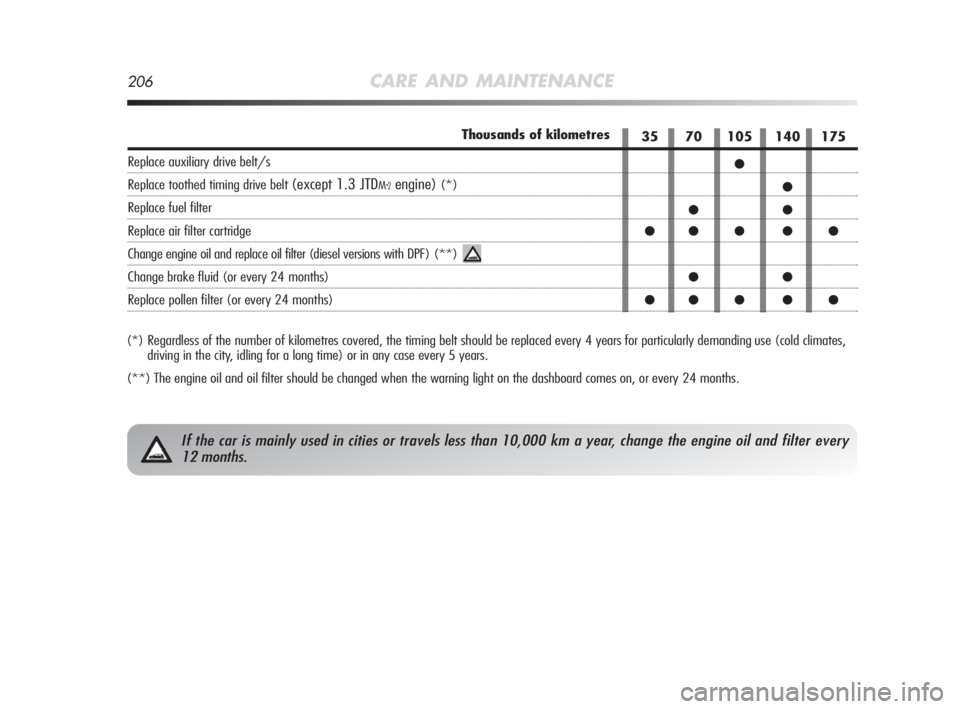

206CARE AND MAINTENANCE
(*) Regardless of the number of kilometres covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates,
driving in the city, idling for a long time) or in any case every 5 years.
(**) The engine oil and oil filter should be changed when the warning light on the dashboard comes on, or every 24 months.
Thousands of kilometres
Replace auxiliary drive belt/s
Replace toothed timing drive belt (except 1.3 JTDM-2engine)(*)
Replace fuel filter
Replace air filter cartridge
Change engine oil and replace oil filter (diesel versions with DPF) (**)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
35 70 105 140 175
●
●
●●
●● ● ● ●
●●
●● ● ● ●
If the car is mainly used in cities or travels less than 10,000 km a year, change the engine oil and filter every
12 months.
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 206

INDEX251
7
Capacities ................................. 128
– table capacities .................244-245
Car maintenance ......................... 201
– Heavy-duty use of the car ........ 207
– service schedule ..................... 202
Carrying children safely
– Isofix universal child
restraint system ..................... 143
– child seats ............................ 141
Car radio (wiring) ........................ 121
CBC system ................................ 110
Chassis marking .......................... 229
Checking fluid levels .................... 208
Cigar lighter ................................ 90
Climatic comfort .......................... 63
CO
2emissions ............................ 249
CODE card .................................. 47
Compliance for use ...................... 141
Control buttons ........................... 29
Controls
– door lock .............................. 87
– front fog lights ....................... 87
– fuel cut-off system ................. 88
– hazard warning lights ............. 86
– rear fog lights ........................ 87
Courtesy lights ........................ 83-86
Courtesy mirror lights
– bulb replacement ................... 186
Cruise Control ............................. 81
Current outlet ............................. 90ABS (system) ........................... 107
Air cleaner .................................. 217
Alarm ........................................ 53
“Alcohol Test” kit ........................ 152
Alfa “DNA” (system) ................... 111
Alfa Romeo CODE (system) .......... 46
Ashtray ...................................... 91
ASR system ................................ 109
At the filling station ...................... 129
Automatic two-zone climate
control system .......................... 68
Battery
– tips for extending duration ....... 217
– recharging ............................ 196
– replacing .............................. 217
Bodywork (cleaning) ................... 223
Bonnet ...................................... 103
Boot .......................................... 88
Boot light
– bulb replacement ................... 184
Brake lights ................................ 182
Brakes ....................................... 235
Bulb (replacement) ..................... 178
– general instructions ................ 178
– bulb types ............................ 178
Bulb replacement ....................178-184
Dashboard ............................ 7-243
Daylight lights (D.R.L.) ................. 76
Demanding useof thecar ............. 207
Devices ...................................... 120
Dimensions ................................ 240
Dipped beam headlights
– activation ............................. 76
– bulb replacement ................... 181
Direction indicators
– activation ............................. 77
– replacement .......................... 182
Display ...................................... 26
Dynamic Suspension ..................... 119
Door lock device .......................... 87
Doors ........................................ 95
DPF ........................................... 130
D.R.L. (daylightlights) ................. 76
DST system ................................ 110
Electric power steering system ...... 119
Electric sunroof ............................ 92
Electronic Q2 (“E-Q2”) ................ 110
Engine
– marking ............................... 229
– specifications ......................... 231
Engine codes
– bodywork versions ................. 230
Engine compartment (washing) ..... 223
251-260 Alfa MiTo GB 3ed:251-260 Alfa Mito GB 9-02-2010 11:28 Pagina 251

RIGHT HAND DRIVE VERSION255
7
DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Air vent for side windows - 2. Adjustable air vent - 3. Passenger front air bag - 4. Radio (for versions/markets, where provided) - 5. Ad-
justable air vents - 6. Hazard warning lights, door lock/unlock button - 7. Exterior lighting control lever - 8. Instrument panel - 9. Windscreen
wiper/rearscreen wiper/trip computer control lever - 10. Control panel - 11. Fuse box access flap - 12. Ignition device - 13. Driver front air
bag - 14. Driver front knee air bag (for versions/markets, where provided) - 15. Steering lock lever - 16. Heating/ventilation/climate con-
trol system controls - 17. Glove compartment .
A0J0291mfig. 1
251-260 Alfa MiTo GB 3ed:251-260 Alfa Mito GB 9-02-2010 11:28 Pagina 255
