Alfa Romeo MiTo 2010 Owner handbook (in English)

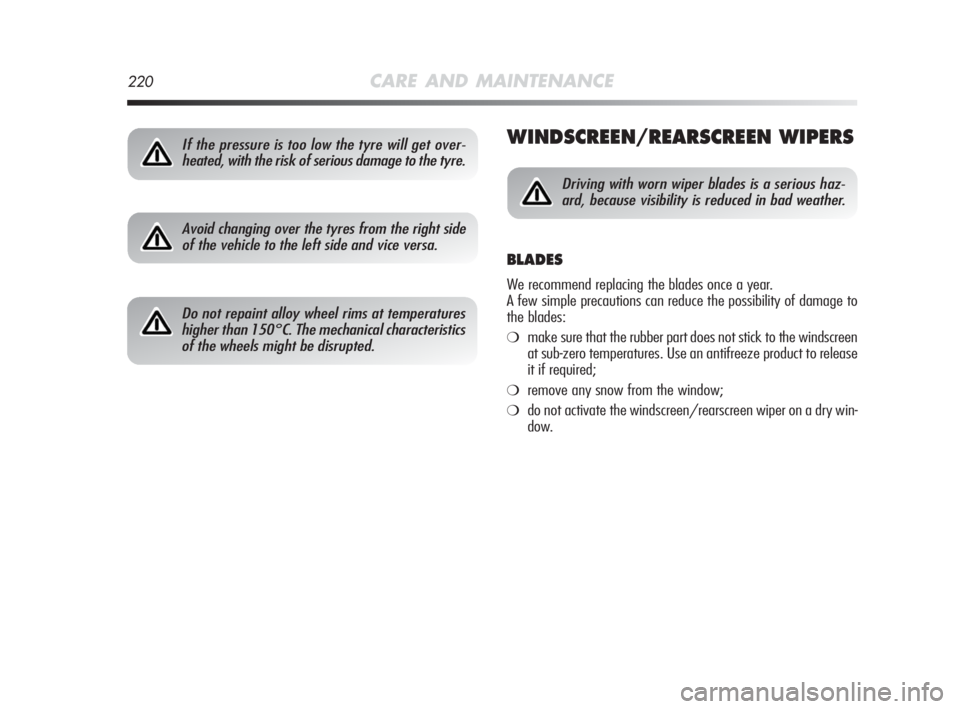

220CARE AND MAINTENANCE
WINDSCREEN/REARSCREEN WIPERS
Avoid changing over the tyres from the right side
of the vehicle to the left side and vice versa.
Do not repaint alloy wheel rims at temperatures
higher than 150°C. The mechanical characteristics
of the wheels might be disrupted.
Driving with worn wiper blades is a serious haz-
ard, because visibility is reduced in bad weather.
BLADES
We recommend replacing the blades once a year.
A few simple precautions can reduce the possibility of damage to
the blades:
❍make sure that the rubber part does not stick to the windscreen
at sub-zero temperatures. Use an antifreeze product to release
it if required;
❍remove any snow from the window;
❍do not activate the windscreen/rearscreen wiper on a dry win-
dow.
If the pressure is too low the tyre will get over-
heated, with the risk of serious damage to the tyre.
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 220

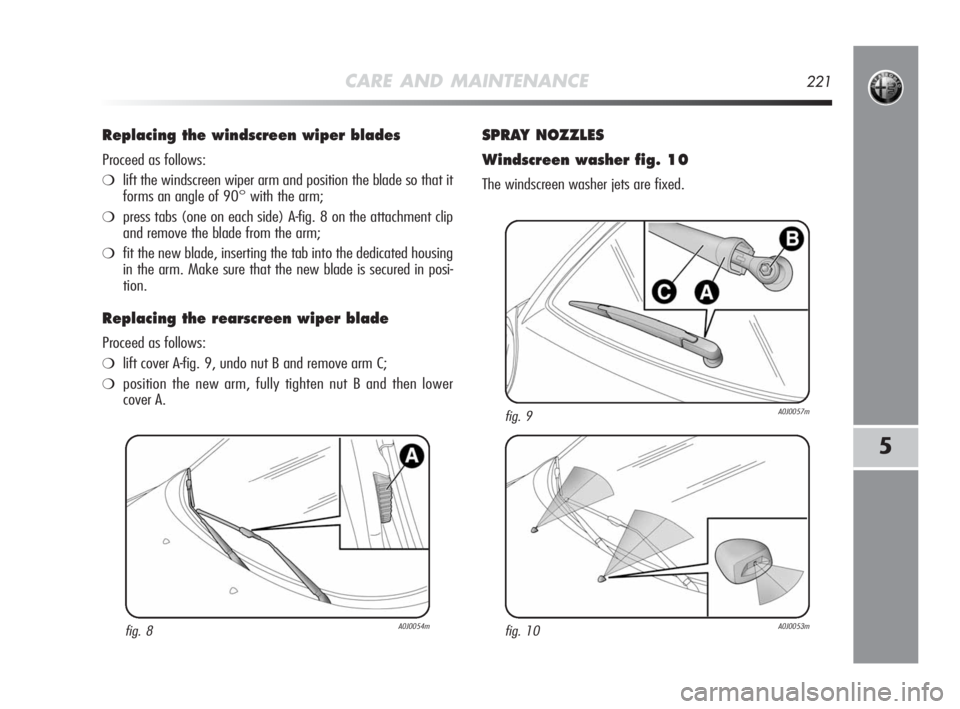

CARE AND MAINTENANCE221
5
Replacing the windscreen wiper blades
Proceed as follows:
❍lift the windscreen wiper arm and position the blade so that it
forms an angle of 90° with the arm;
❍press tabs (one on each side) A-fig. 8 on the attachment clip
and remove the blade from the arm;
❍fit the new blade, inserting the tab into the dedicated housing
in the arm. Make sure that the new blade is secured in posi-
tion.
Replacing the rearscreen wiper blade
Proceed as follows:
❍lift cover A-fig. 9, undo nut B and remove arm C;
❍position the new arm, fully tighten nut B and then lower
cover A.
SPRAY NOZZLES
Windscreen washer fig. 10
The windscreen washer jets are fixed.
fig. 8A0J0054m
fig. 9A0J0057m
fig. 10A0J0053m
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 221

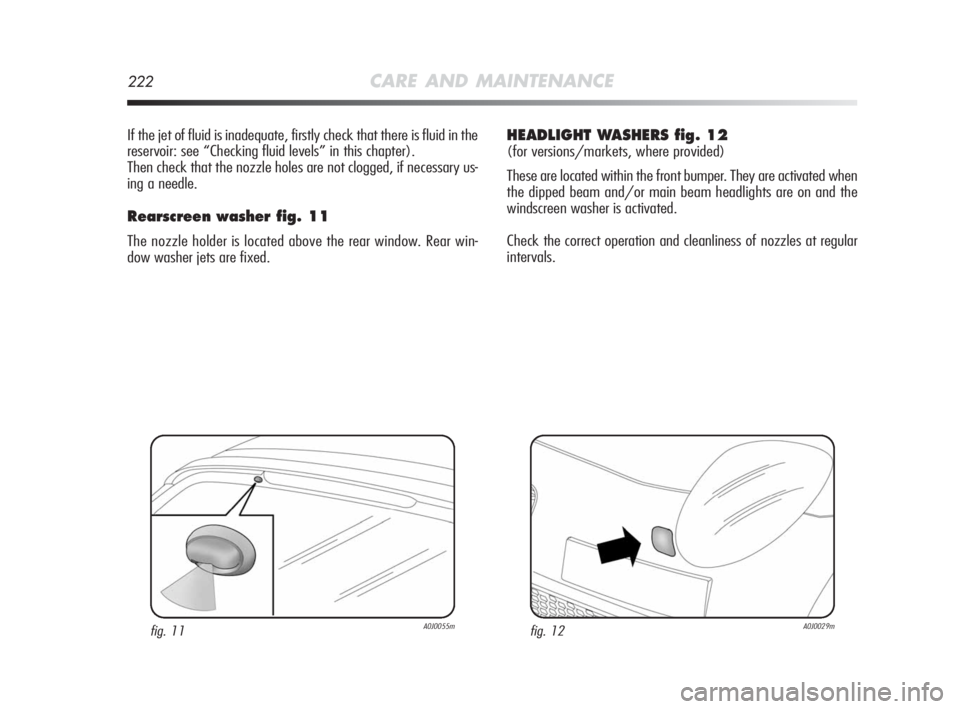

222CARE AND MAINTENANCE
If the jet of fluid is inadequate, firstly check that there is fluid in the
reservoir: see “Checking fluid levels” in this chapter).
Then check that the nozzle holes are not clogged, if necessary us-
ing a needle.
Rearscreen washer fig. 11
The nozzle holder is located above the rear window. Rear win-
dow washer jets are fixed.
HEADLIGHT WASHERS fig. 12
(for versions/markets, where provided)
These are located within the front bumper. They are activated when
the dipped beam and/or main beam headlights are on and the
windscreen washer is activated.
Check the correct operation and cleanliness of nozzles at regular
intervals.
fig. 11A0J0055mfig. 12A0J0029m
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 222

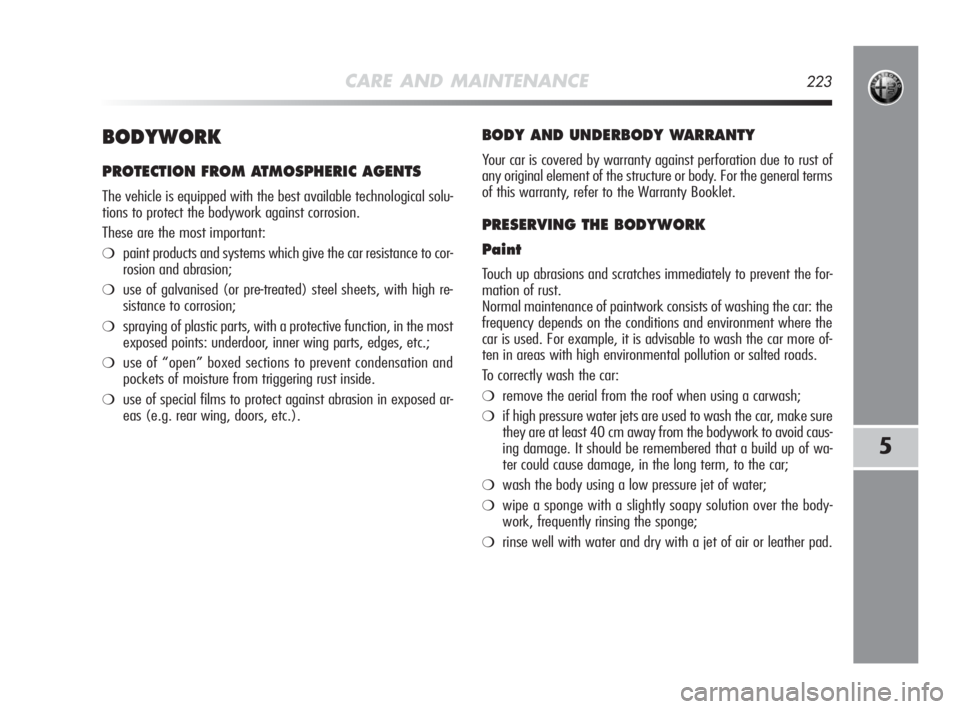

CARE AND MAINTENANCE223
5
BODYWORK
PROTECTION FROM ATMOSPHERIC AGENTS
The vehicle is equipped with the best available technological solu-
tions to protect the bodywork against corrosion.
These are the most important:
❍paint products and systems which give the car resistance to cor-
rosion and abrasion;
❍use of galvanised (or pre-treated) steel sheets, with high re-
sistance to corrosion;
❍spraying of plastic parts, with a protective function, in the most
exposed points: underdoor, inner wing parts, edges, etc.;
❍use of “open” boxed sections to prevent condensation and
pockets of moisture from triggering rust inside.
❍use of special films to protect against abrasion in exposed ar-
eas (e.g. rear wing, doors, etc.).
BODY AND UNDERBODY WARRANTY
Your car is covered by warranty against perforation due to rust of
any original element of the structure or body. For the general terms
of this warranty, refer to the Warranty Booklet.
PRESERVING THE BODYWORK
Paint
Touch up abrasions and scratches immediately to prevent the for-
mation of rust.
Normal maintenance of paintwork consists of washing the car: the
frequency depends on the conditions and environment where the
car is used. For example, it is advisable to wash the car more of-
ten in areas with high environmental pollution or salted roads.
To correctly wash the car:
❍remove the aerial from the roof when using a carwash;
❍if high pressure water jets are used to wash the car, make sure
they are at least 40 cm away from the bodywork to avoid caus-
ing damage. It should be remembered that a build up of wa-
ter could cause damage, in the long term, to the car;
❍wash the body using a low pressure jet of water;
❍wipe a sponge with a slightly soapy solution over the body-
work, frequently rinsing the sponge;
❍rinse well with water and dry with a jet of air or leather pad.
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 223

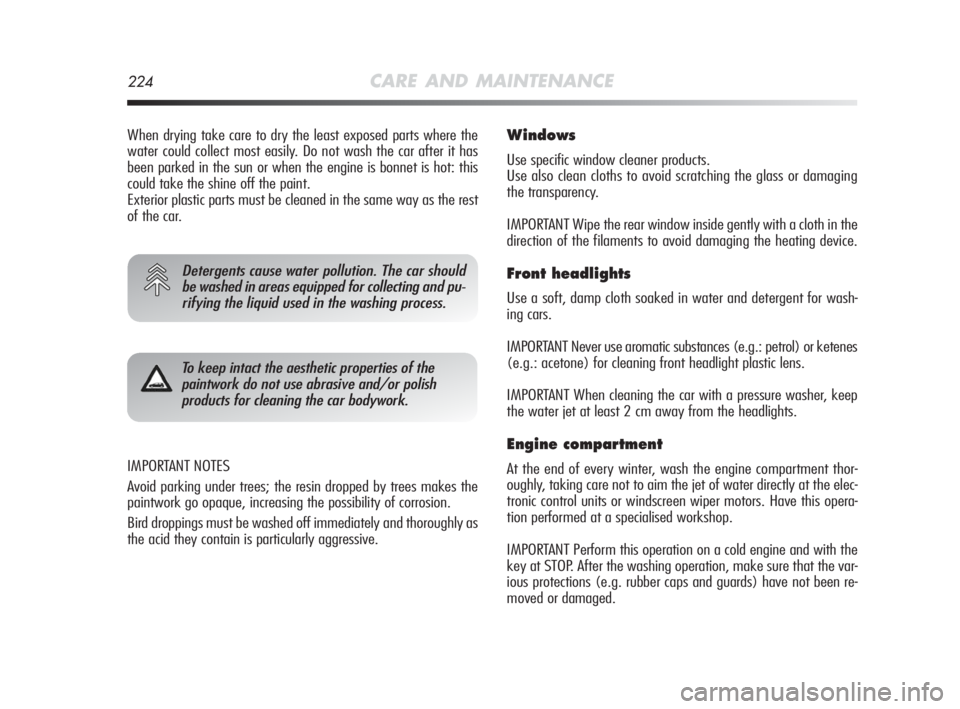

224CARE AND MAINTENANCE
IMPORTANT NOTES
Avoid parking under trees; the resin dropped by trees makes the
paintwork go opaque, increasing the possibility of corrosion.
Bird droppings must be washed off immediately and thoroughly as
the acid they contain is particularly aggressive.
Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching the glass or damaging
the transparency.
IMPORTANT Wipe the rear window inside gently with a cloth in the
direction of the filaments to avoid damaging the heating device.
Front headlights
Use a soft, damp cloth soaked in water and detergent for wash-
ing cars.
IMPORTANT Never use aromatic substances (e.g.: petrol) or ketenes
(e.g.: acetone) for cleaning front headlight plastic lens.
IMPORTANT When cleaning the car with a pressure washer, keep
the water jet at least 2 cm away from the headlights.
Engine compartment
At the end of every winter, wash the engine compartment thor-
oughly, taking care not to aim the jet of water directly at the elec-
tronic control units or windscreen wiper motors. Have this opera-
tion performed at a specialised workshop.
IMPORTANT Perform this operation on a cold engine and with the
key at STOP. After the washing operation, make sure that the var-
ious protections (e.g. rubber caps and guards) have not been re-
moved or damaged.
Detergents cause water pollution. The car should
be washed in areas equipped for collecting and pu-
rifying the liquid used in the washing process.
When drying take care to dry the least exposed parts where the
water could collect most easily. Do not wash the car after it has
been parked in the sun or when the engine is bonnet is hot: this
could take the shine off the paint.
Exterior plastic parts must be cleaned in the same way as the rest
of the car.
To keep intact the aesthetic properties of the
paintwork do not use abrasive and/or polish
products for cleaning the car bodywork.
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 224

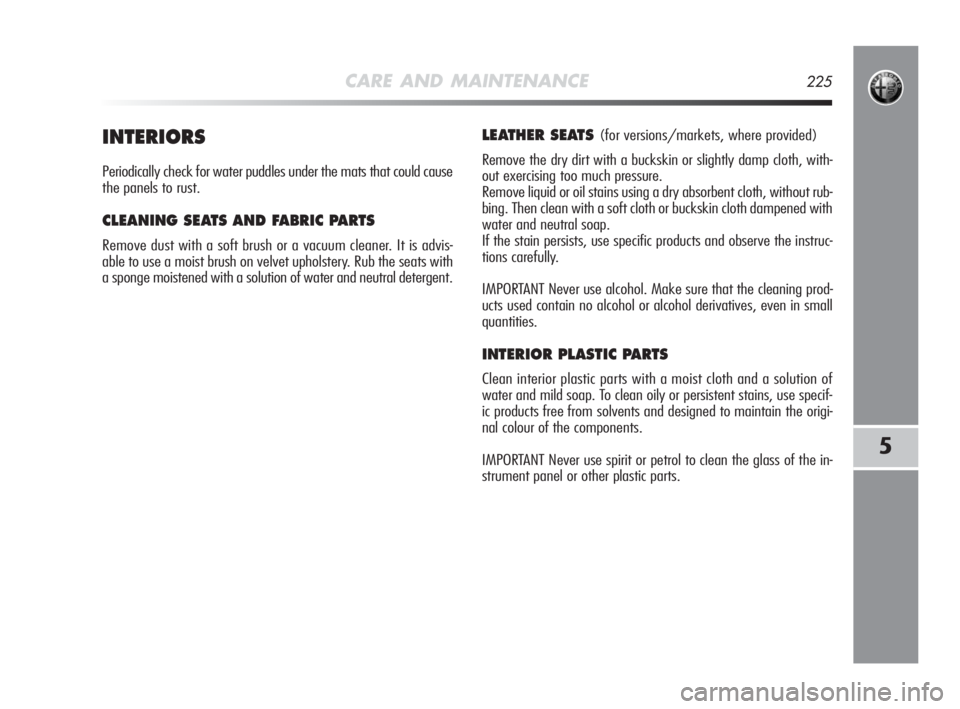

CARE AND MAINTENANCE225
5
INTERIORS
Periodically check for water puddles under the mats that could cause
the panels to rust.
CLEANING SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacuum cleaner. It is advis-
able to use a moist brush on velvet upholstery. Rub the seats with
a sponge moistened with a solution of water and neutral detergent.
LEATHER SEATS (for versions/markets, where provided)
Remove the dry dirt with a buckskin or slightly damp cloth, with-
out exercising too much pressure.
Remove liquid or oil stains using a dry absorbent cloth, without rub-
bing. Then clean with a soft cloth or buckskin cloth dampened with
water and neutral soap.
If the stain persists, use specific products and observe the instruc-
tions carefully.
IMPORTANT Never use alcohol. Make sure that the cleaning prod-
ucts used contain no alcohol or alcohol derivatives, even in small
quantities.
INTERIOR PLASTIC PARTS
Clean interior plastic parts with a moist cloth and a solution of
water and mild soap. To clean oily or persistent stains, use specif-
ic products free from solvents and designed to maintain the origi-
nal colour of the components.
IMPORTANT Never use spirit or petrol to clean the glass of the in-
strument panel or other plastic parts.
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 225

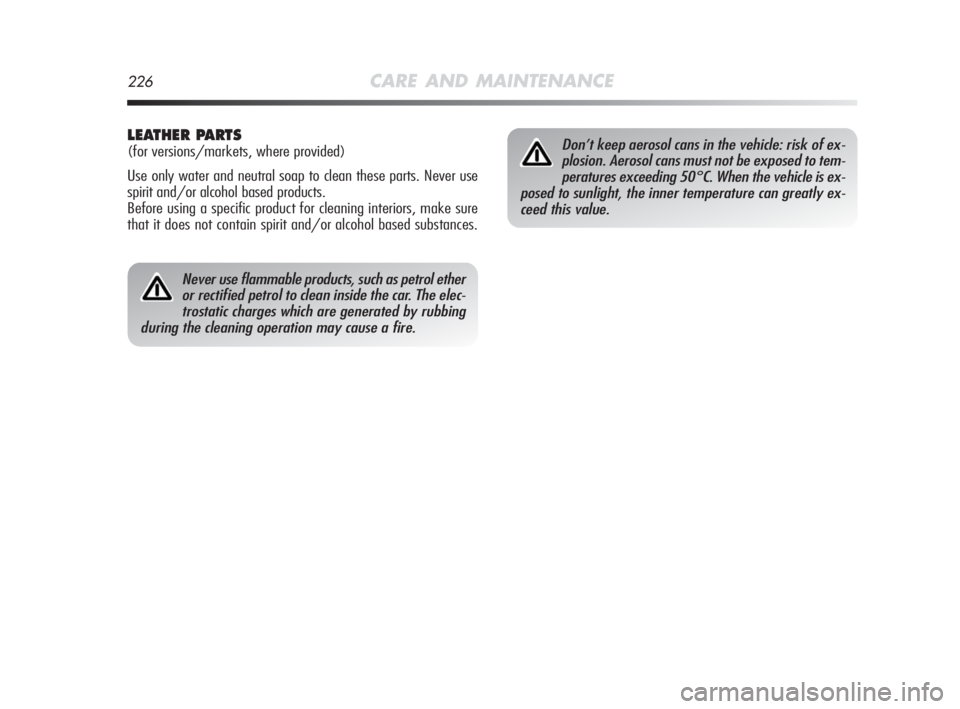

226CARE AND MAINTENANCE
Never use flammable products, such as petrol ether
or rectified petrol to clean inside the car. The elec-
trostatic charges which are generated by rubbing
during the cleaning operation may cause a fire.
Don’t keep aerosol cans in the vehicle: risk of ex-
plosion. Aerosol cans must not be exposed to tem-
peratures exceeding 50°C. When the vehicle is ex-
posed to sunlight, the inner temperature can greatly ex-
ceed this value.LEATHER PARTS
(for versions/markets, where provided)
Use only water and neutral soap to clean these parts. Never use
spirit and/or alcohol based products.
Before using a specific product for cleaning interiors, make sure
that it does not contain spirit and/or alcohol based substances.
201-226 Alfa MiTo GB 2ed:201-226 Alfa MiTo GB 23-12-2009 13:10 Pagina 226

Identification data .................................................................... 228
Engine codes - bodywork versions............................................... 230
Engine................................................................................... 231
Fuel system ............................................................................ 234
Transmission ........................................................................... 234
Brakes.................................................................................... 235
Suspension ............................................................................. 235
Steering ................................................................................. 235
Wheels .................................................................................. 236
Dimensions ............................................................................. 240
Performance ........................................................................... 241
Weights ................................................................................. 242
Consumables .......................................................................... 244
Fluids and lubricants ................................................................. 246
Fuel consumption.................................................................... 248
CO
2emissions ......................................................................... 249
6
TECHNICAL DATA227
227-250 Alfa MiTo GB 2ed:227-250 Alfa MiTo GB 23-12-2009 12:45 Pagina 227

IDENTIFICATION DATA
The vehicle identification details are:
❍Identification plate;
❍Chassis marking;
❍Bodytwork paint plate;
❍Engine marking.
IDENTIFICATION PLATE fig. 1
The plate is to be found on the left side of the boot floor and it
bears the following identification data:
B Homologation number.
C Vehicle type code.
D Chassis number.
E Maximum vehicle weight fully loaded.
F Maximum vehicle weight fully loaded with trailer.
G Maximum vehicle weight on front axle.
H Maximum vehicle weight on rear axle.
I Engine type.
L Body version code.
M Spare part code.
N Smoke opacity index (for diesel engines).
fig. 1A0J0161m
228TECHNICAL DATA
227-250 Alfa MiTo GB 2ed:227-250 Alfa MiTo GB 23-12-2009 12:45 Pagina 228

CHASSIS MARKING fig. 3
This is printed on the passenger compartment floor panel near
the front right seat. Move flap A forwards to access it.
The chassis marking includes:
❍vehicle type (ZAR 955000);
❍chassis number.
BODYWORK PAINT IDENTIFICATION PLATE
fig. 3
This plate is applied inside the boot and shows the following data:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Respray and touch up code.
ENGINE MARKING
The engine marking is stamped on the cylinder block and includes
the model and the chassis number.
fig. 2A0J0140mfig. 3A0J0138m
