IN AN EMERGENCY187
4

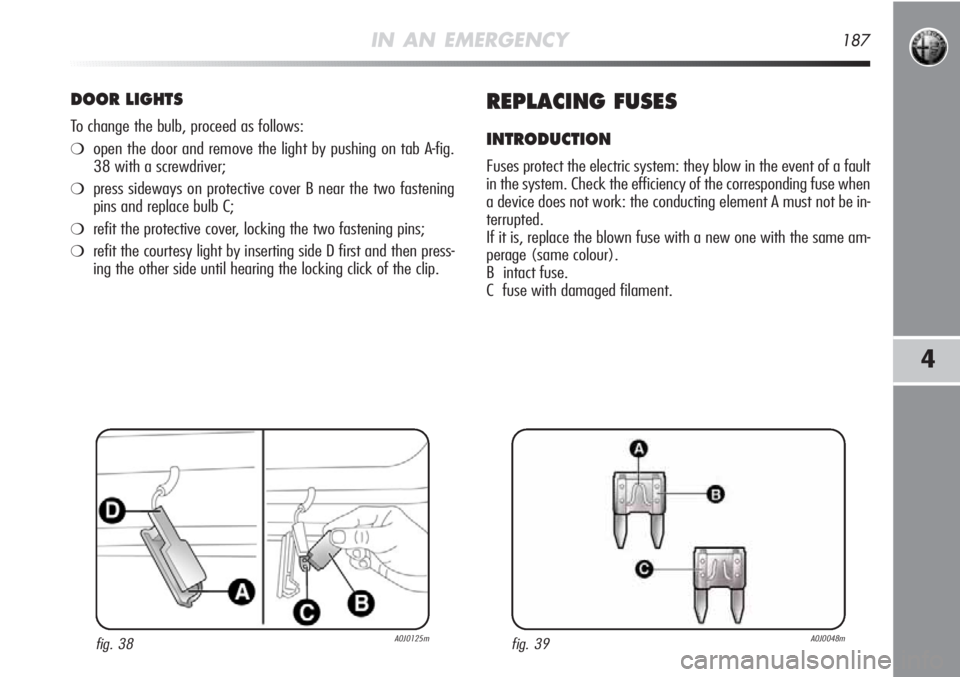

DOOR LIGHTS
To change the bulb, proceed as follows:
❍open the door and remove the light by pushing on tab A-fig.
38 with a screwdriver;
❍press sideways on protective cover B near the two fastening
pins and replace bulb C;
❍refit the protective cover, locking the two fastening pins;
❍refit the courtesy light by inserting side D first and then press-
ing the other side until hearing the locking click of the clip.
REPLACING FUSES
INTRODUCTION
Fuses protect the electric system: they blow in the event of a fault
in the system. Check the efficiency of the corresponding fuse when
a device does not work: the conducting element A must not be in-
terrupted.
If it is, replace the blown fuse with a new one with the same am-
perage (same colour).
B intact fuse.
C fuse with damaged filament.
fig. 39A0J0048mfig. 38A0J0125m

F38
F43
F47
F48
F4915
20
20
20
543
43
43
43
43
194IN AN EMERGENCY
CONSUMERS FUSE AMPERE FIGURE
Door lock motor on door,
Safe Lock motor on doors,
Tailgate unlocking motor
Windscreen / rearscreen washer pump
Electric window motor complete with
control unit (driver-side door)
Electric window motor complete with
control unit (passenger-side door)
Parking sensors control unit, Tyre pressure
detection control unit, Rain/dusk sensor
on rear-view mirror, Electro-chrome sensor
on rear-view mirror, Seat belts fastened
warning light display on rear-view mirror,
Control panel illumination (Central control
panel, Driver-side control panel, Steering wheel
control panel, Blue&Me
TMcontrol panel),
Front seat heating pad activation switch,
Alarm system volume-sensing sensors control unit,
Electric sunroof control unit,
PND socket on dashboard

INDEX253
7
Car maintenance......................... 201
– Heavy-duty use of the car ........ 207
– service schedule ..................... 202
Carrying children safely
– Isofix universal child
restraint system ..................... 143
– child seats ............................ 141
Car radio (wiring) ........................ 121
CBC system ................................ 110
Chassis marking .......................... 229
Checking fluid levels .................... 208
Cigar lighter................................ 90
Climatic comfort .......................... 63
CO
2emissions ............................ 249
CODE card .................................. 47
Compliance for use ...................... 141
Control buttons ........................... 29
Controls
– door lock.............................. 87
– front fog lights ....................... 87
– fuel cut-off system ................. 88
– hazard warning lights ............. 86
– rear fog lights ........................ 87
Courtesy lights ........................ 83-86
Courtesy mirror lights
– bulb replacement ................... 186
Cruise Control ............................. 81
Current outlet ............................. 90
ABS (system) ........................... 107
Air cleaner.................................. 217
Alarm ........................................ 53
Alfa “DNA” (system) ................... 111
Alfa Romeo CODE (system) .......... 46
Ashtray ...................................... 91
ASR system ................................ 109
At the filling station ...................... 129
Automatic two-zone climate
control system .......................... 68
Battery
– tips for extending duration ....... 217
– recharging............................ 196
– replacing .............................. 217
Bodywork (cleaning)................... 223
Bonnet ...................................... 103
Boot .......................................... 88
Boot light
– bulb replacement ................... 184
Brake lights ................................ 182
Brakes ....................................... 235
Bulb (replacement) ..................... 178
– general instructions ................ 178
– bulb types ............................ 178
Bulb replacement....................178-184
Capacities ................................. 128
– table capacities .................244-245
Dashboard............................ 7-243
Daylight lights (D.R.L.) ................. 76
Demanding use of the car ............. 207
Devices ...................................... 120
Dimensions ................................ 240
Dipped beam headlights
– activation............................. 76
– bulb replacement ................... 181
Direction indicators
– activation............................. 77
– replacement.......................... 182
Display ...................................... 26
Dynamic Suspension..................... 119
Door lock device .......................... 87
Doors ........................................ 95
DPF ........................................... 130
D.R.L. (daylight lights) ................. 76
DST system ................................ 110
Electric power steering system ...... 119
Electric sunroof ............................ 92
Electronic Q2 (“E-Q2”) ................ 110
Engine
– marking ............................... 229
– specifications ......................... 231
Engine codes
– bodywork versions ................. 230
Engine compartment (washing) ..... 223

RIGHT HAND DRIVE VERSION257
7

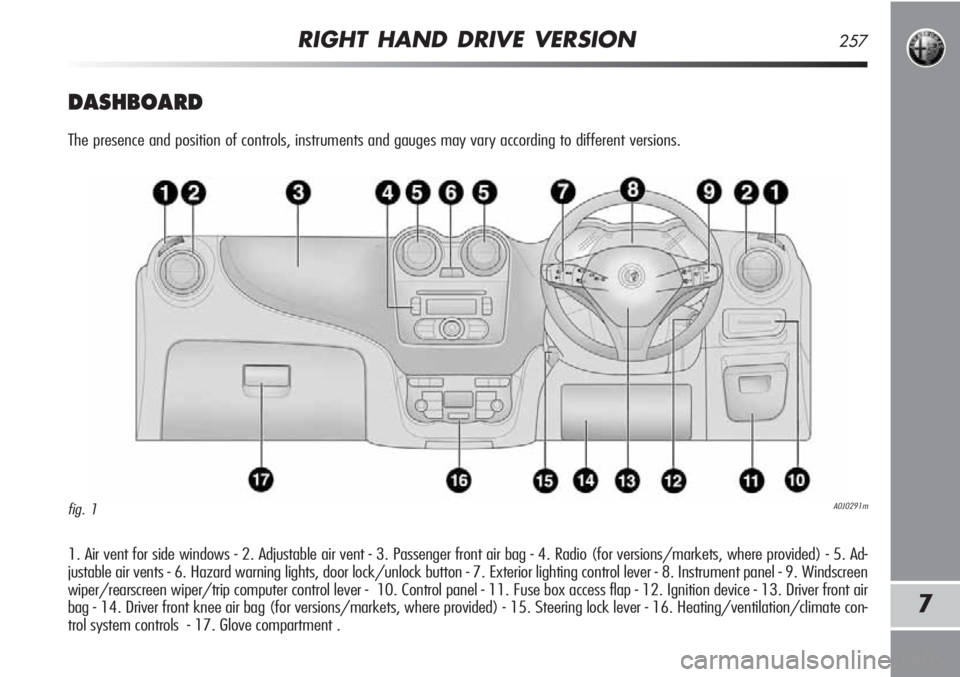

DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Air vent for side windows - 2. Adjustable air vent - 3. Passenger front air bag - 4. Radio (for versions/markets, where provided) - 5. Ad-
justable air vents - 6. Hazard warning lights, door lock/unlock button - 7. Exterior lighting control lever - 8. Instrument panel - 9. Windscreen
wiper/rearscreen wiper/trip computer control lever - 10. Control panel - 11. Fuse box access flap - 12. Ignition device - 13. Driver front air
bag - 14. Driver front knee air bag (for versions/markets, where provided) - 15. Steering lock lever - 16. Heating/ventilation/climate con-
trol system controls - 17. Glove compartment .
A0J0291mfig. 1
