60GETTING TO KNOW YOUR CAR
REAR HEAD RESTRAINTS
Two height-adjustable head restraints are provided for the back
seats (to adjust the height see the previous paragraph). On some
versions a head restraint is also provided for the central seat.
To remove the head restraints:
❍raise the head restraint to its maximum height;
❍press button A fig. 25 and then remove the head restraint by
sliding it upwards.
STEERING WHEEL
The steering wheel can be adjusted axially and vertically.
To carry out the adjustment: release lever A-fig. 26 by pushing it
forward (position 1) and adjust the steering wheel. Then lock lever
A by pulling it towards the steering wheel (position 2).
fig. 25A0J0083mfig. 26A0J0034m
Any steering wheel position adjustment should on-
ly be carried out with the car stationary and the
engine turned off.
Page 62 of 262
GETTING TO KNOW YOUR CAR61
1REARVIEW MIRRORS
INTERNAL MIRROR

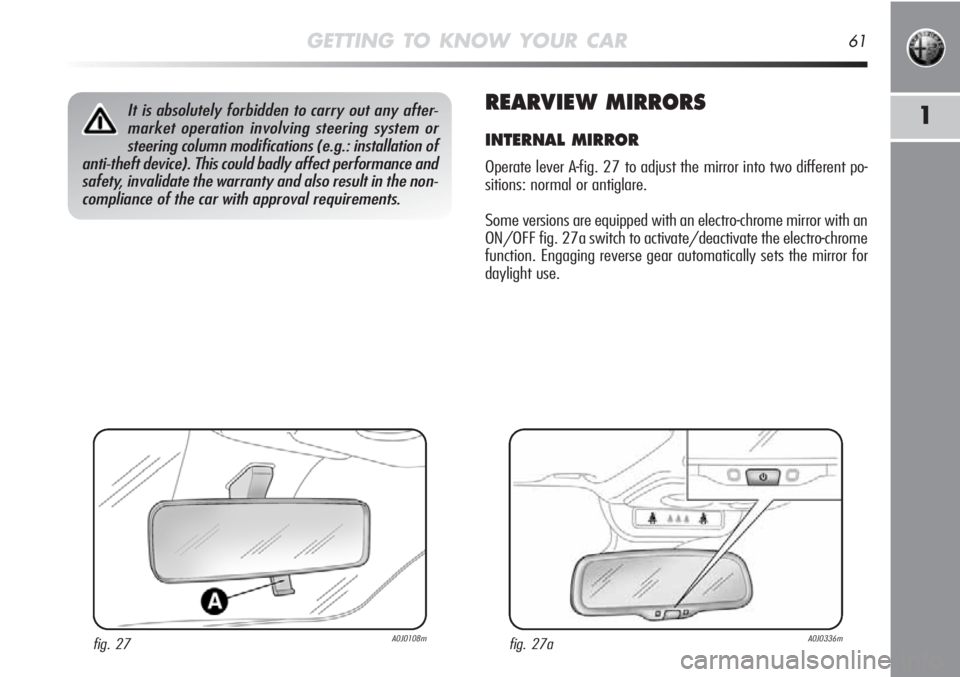

Operate lever A-fig. 27 to adjust the mirror into two different po-
sitions: normal or antiglare.
Some versions are equipped with an electro-chrome mirror with an
ON/OFF fig. 27a switch to activate/deactivate the electro-chrome
function. Engaging reverse gear automatically sets the mirror for
daylight use.
It is absolutely forbidden to carry out any after-
market operation involving steering system or
steering column modifications (e.g.: installation of
anti-theft device). This could badly affect performance and
safety, invalidate the warranty and also result in the non-
compliance of the car with approval requirements.
fig. 27aA0J0336mfig. 27A0J0108m
Page 63 of 262
62GETTING TO KNOW YOUR CAR
Electric mirror folding
(for versions/markets, where provided)
To fold back the mirrors press button C-fig. 28. Press the button
once again to bring the mirrors back to the driving position.
Manual mirror folding
If required, the mirrors can be folded back manually from posi-
tion 1-fig. 29 to position 2.
IMPORTANT When driving, the mirrors should always be in posi-
tion 1.
Adjusting the mirror
Door mirrors can be adjusted/folded away only if the ignition key
is in the MAR position. Select the mirror you wish to adjust using
device A-fig. 28:
❍device in position 1: left-hand mirror selected;
❍device in position 2: right-hand mirror selected.
To adjust the selected mirror, press button B in the four directions
shown by the arrows.
IMPORTANT Once adjustment is complete, rotate device A to posi-
tion 0 to prevent accidental movements.
fig. 28A0J0022mfig. 29A0J0035m
DOOR MIRRORS
As the driver’s door mirror is curved, it may slight-
ly alter the perception of distance.
Page 64 of 262
GETTING TO KNOW YOUR CAR63
1CLIMATIC COMFORT

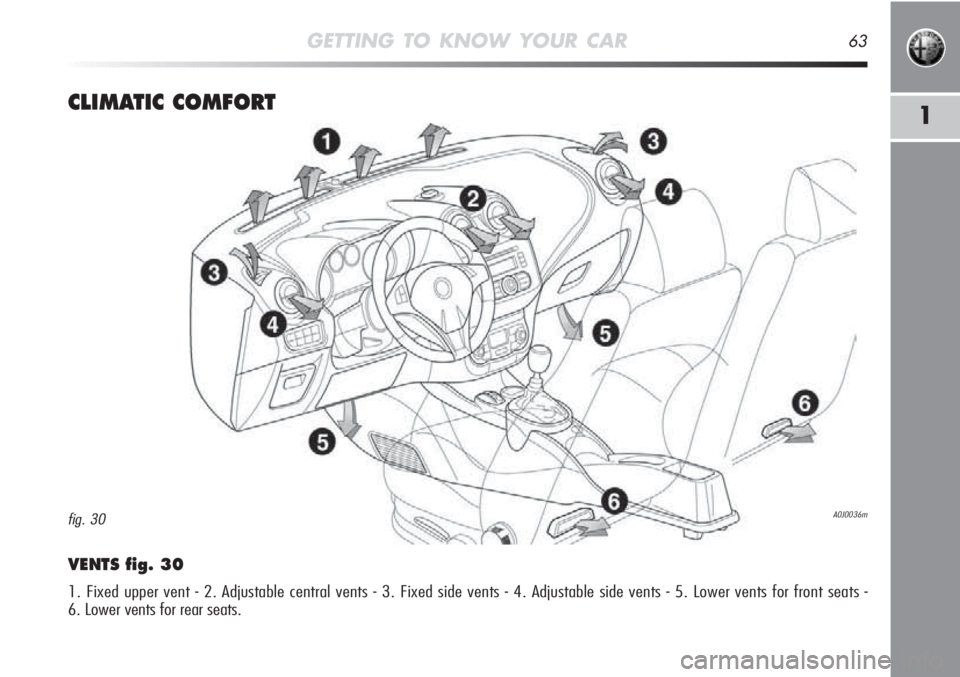

VENTS fig. 30
1. Fixed upper vent - 2. Adjustable central vents - 3. Fixed side vents - 4. Adjustable side vents - 5. Lower vents for front seats -
6. Lower vents for rear seats.
A0J0036mfig. 30
Page 65 of 262
64GETTING TO KNOW YOUR CAR
HEATING/CLIMATE CONTROL SYSTEM
CONTROLS fig. 31
A Air temperature adjustment knob
(red = hot/blue = cold);
B Fan activation/speed adjustment knob
p0 = fan off
1-2-3 = fan speed
4
-= maximum fan speed
C air distribution knob
¶air flow towards driver/passenger;
ßair flow towards driver/passenger and feet area;
©air flow towards front and rear feet area;
®air flow towards feet area and windscreen;
-air flow towards windscreen
D Air recirculation on/off button
E climate control on/off button
(only versions with manual climate control system)
F heated rear windscreen on/off button
A0J0074mfig. 31
Page 66 of 262
GETTING TO KNOW YOUR CAR65
1
PASSENGER COMPARTMENT VENTILATION
Proceed as follows to adjust the ventilation:
❍turn knob A to the blue section;
❍press button D to disable the air recirculation system (the LED
on the button should be off);
❍turn knob C to ¶;
❍turn knob B to the required speed.
CLIMATE CONTROL (cooling)
(only present on versions with manual
climate control)
Proceed as follows to cool the passenger compartment:
❍turn knob A to the blue section;
❍press button D to enable the air recirculation system (the LED
on the button should be on);
❍turn knob C to ¶;
❍press button E to switch on the climate control system and turn
knob B to at least 1 (1stspeed); to cool the passenger compart-
ment more quickly; turn knob B to 4
-(maximum fan speed).
Adjusting cooling
❍turn knob A to the right to increase the temperature;
❍press button D to disable the air recirculation system (the LED
on the button should be off);
❍turn knob B to reduce the fan speed.
WARMING THE PASSENGER COMPARTMENT
Proceed as follows:
❍turn knob A to the red section;
❍turn knob C to the desired symbol;
❍turn knob B to the required speed;
Rapid heating
Proceed as follows to rapidly heat the passenger compartment:
❍turn knob A to the red section;
❍press button D to enable the air recirculation system;
❍turn knob C to ©;
❍turn knob B to 4 -(maximum fan speed).
Then use the controls to maintain the required comfort conditions
and press button D to turn air recirculation off (button led off)
and to prevent misting up.
IMPORTANT When the engine is cold, it takes a few minutes to ob-
tain fast heating.
Page 67 of 262
66GETTING TO KNOW YOUR CAR
FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE WINDOWS)
The climate control system is very useful to make window demist-
ing faster. Adjust the controls as described previously and switch
on the climate control system by pressing button E.
Proceed as follows:
❍turn knob A to the red section;
❍turn knob B to 4 -(maximum fan speed);
❍turn knob C to -;
❍press button D to disable the air recirculation system (the LED
on the button should be off);
After demisting/defrosting, operate the controls to restore the re-
quired comfort.
Window demisting
The climate control system is very useful in preventing the win-
dows from misting up in the event of high levels of humidity.
In the event of considerable outside moisture and/or rain and/or
considerable differences in temperature inside and outside the pas-
senger compartment, perform the following preventive demisting
procedure:
❍turn knob A to the red section;
❍press button D to disable the air recirculation system (the LED
on the button should be off);
❍turn knob C to -with the possibility of moving it to position
®if demisting does not take place
❍turn knob B to the 2ndspeed.
Page 68 of 262
GETTING TO KNOW YOUR CAR67
1
DEMISTING/DEFROSTING
OF HEATED REAR WINDSCREEN
Press button F (() to activate/deactivate the function. The func-
tion is automatically deactivated after 20 minutes.
For versions/markets, where fitted, pressing the
(button also
activates the defrosting and defogging of the external rearview mir-
rors, the heated windscreen (where fitted) and the heated spray
nozzles (where fitted).
IMPORTANT Do not affix stickers to the inside of the rear window
over the heating filaments to avoid damage that might cause it
to stop working properly.
AIR RECIRCULATION
Press button D (T) so that the LED on the button lights up. It
is advisable to switch air recirculation on while standing in traffic
or in tunnels to prevent the introduction of polluted air.
Do not use the function for a long time, particularly if there are many
passengers on board, to prevent the windows from misting up.
IMPORTANT The air recirculation system makes it possible to reach
the required “heating” or “cooling” conditions faster. Do not use
the air recirculation function on rainy/cold days as it would con-
siderably increase the possibility of the windows misting inside.
LOOKING AFTER THE SYSTEM
Run the climate control system for at least 10 minutes every month
during the winter. Have the system checked by an Alfa Romeo
Authorised Service before the summer.
Page 69 of 262
68GETTING TO KNOW YOUR CAR
TWO-ZONE AUTOMATIC CLIMATE CONTROL SYSTEM (for versions/markets, where provided)
EFGABC
L
D
NHIM
A0J0037mfig. 32
CONTROLS fig. 32
A button for activating the MONO function (alignment of set tem-
peratures) driver/passenger;
B climate control compressor on/off button;
C air recirculation system on/off button;
D display;E climate control system off button;
F button for activating the MAX-DEF function (fast front window
defrosting/demisting);
G heated rear windscreen on/off button;
Page 70 of 262
GETTING TO KNOW YOUR CAR69
1
All these functions can be adjusted manually by operating the sys-
tem and selecting one or more functions and modifying their pa-
rameters. Automatic control of the manually changed functions
will be suspended: the system will only override your settings for
safety reasons.
Manual selections always have higher priority than automatic set-
tings and are stored until the user switches the system back to
automatic control by pressing AUTO, except for cases in which
the system intervenes for safety reasons.
You can adjust one function manually without affecting the auto-
matic control of the others. The amount of air introduced into the
passenger compartment is not affected by vehicle speed; it is elec-
tronically controlled by a fan. The air temperature is always auto-
matically controlled according to the temperature shown on the
display (except for when the system is off or in certain conditions
when the compressor is not running).
The system can be programmed manually :
❍air temperature on driver’s/passenger’s side;
❍fan speed (continuous variation);
❍air distribution to 7 positions (driver/passenger);
❍climate control compressor ON;
❍single-zone/two-zone distribution priority;
❍fast demisting/defrosting function;
❍air recirculation;
❍heated rear windscreen;
❍system deactivation. H AUTO function activation button (automatic operation) and pas-
senger-side temperature adjustment knob;
I air distribution button on passenger side;
L fan speed increase/decrease;
M Air distribution button on driver side;
N AUTO (automatic operation) function activation button and
knob for adjusting temperature on driver side.
DESCRIPTION
The two-zone automatic climate control system regulates the tem-
perature in the passenger compartment in two areas: the driver’s
side and the passenger’s side. In other words, the system keeps
the comfort level inside the car constant and compensates for any
variations in external conditions, including sun radiation detected
by a specific sensor.
The automatically controlled parameters and functions are:
❍air temperature delivered to driver/front passenger vents;
❍air distribution to driver/front passenger vents;
❍fan speed (continuous air flow variation);
❍compressor fan on (for cooling/dehumidifying the air);
❍air recirculation.
