Alfa Romeo MiTo 2012 Owner handbook (in English)
Manufacturer: ALFA ROMEO, Model Year: 2012, Model line: MiTo, Model: Alfa Romeo MiTo 2012Pages: 262, PDF Size: 6.46 MB
Page 41 of 262
40GETTING TO KNOW YOUR CAR
Ser vice (Scheduled ser vicing)
This function allows you to view information on car servicing de-
pending on kilometres travelled or daily intervals.
With the Service function it is also possible to view the interval
(in kilometres or miles) before the next engine oil change is due.
This information can be consulted as follows:
– briefly press MENU ESC: the display shows service requirements
in km or mi according to the previous setting (see paragraph “Dis-
tance unit of measurement”);
– briefly press the MENU ESC button to go back to the menu screen
or hold the button down to go back to the standard screen.IMPORTANT The “Planned Maintenance Programme” requires the
vehicle to be serviced every 30,000 km (for petrol versions), or
every 35,000 km (for diesel versions). This message is displayed
automatically when the key is turned to MAR, from 2,000 km
(or equivalent value in miles) from the mileage when the next ser-
vice is due and is re-displayed every 200 km (or equivalent value
in miles). The indications will appear more frequently when there
are less than 200 km left. The indication will appear in kilome-
tres or miles according to the unit of measurement settings. When
the next scheduled service operation is approaching, the message
“Service” will appear on the display followed by the number of
kilometres or miles left, when the key is turned to MAR. Go to an
Alfa Romeo Authorised Service where the “Scheduled Service” op-
erations will be performed and the message will be reset.
Page 42 of 262
GETTING TO KNOW YOUR CAR41
1
Passenger bag (Activation/Deactivation
of passenger-side front Air bag and Side bag
to protect chest/pelvis area)
This function can be used to activate/deactivate the passenger-
side air bag.
Proceed as follows:
– briefly press MENU ESC and, after displaying the message “Bag
pass: Off) (to deactivate) or Bag pass: On) (to activate) by press-
ing the buttons + and –, press the MENU ESC again;
– the confirmation request message will be displayed;
– press + or – to select (Yes) (confirming activation/deactivation)
or (No) (to abort);
– briefly press MENU ESC to confirm the setting and go back to
the menu screen or hold the button down to go back to the stan-
dard screen without storing the new settings.
Day lights (D.R.L.)
This function allows you to activate/deactivate the daylight lights.
Proceed as follows to switch this function on or off:
– briefly press MENU ESC to display a submenu;
– briefly press MENU ESC: (On) or (Off) will flash on the display
(according to previous setting);
– press + or – to change the setting;
– briefly press the MENU ESC button to go back to the submenu
screen or hold the button down to go back to the main menu screen
without storing the new settings;
– hold down MENU ESC to go back to the standard screen or main
menu, depending on which point in the menu you have reached.
Page 43 of 262
42GETTING TO KNOW YOUR CAR
Courtesy lights (Activation/deactivation of
“Courtesy lights”)
(for versions/markets, where provided)
This function allows the side lights, number plate lights and inter-
nal courtesy lights to be lit up for approximately 25 seconds when
the doors or luggage compartment are opened using the remote
control, with the following exceptions:
❍interruption after 5 seconds following doors closure
❍interruption following a locking operation using the remote con-
trol
❍interruption following any operation using the remote control
To activate / deactivate this function, proceed as follows:
– briefly press MENU ESC: “On” or “Off” will flash on the dis-
play (according to previous setting);
– press + or – to change the setting;
– briefly press the MENU ESC button to go back to the menu screen
or hold the button down to go back to the standard screen with-
out storing the new settings.
Exit Menu
This is the last function that closes the setting cycle listed in the ini-
tial menu screen. Briefly press MENU ESC to go back to the stan-
dard screen without storing new settings. Press – to return to the
first menu item.
TRIP COMPUTER
GENERAL FEATURES
The “Trip computer” is used to display information on car opera-
tion when the key is turned to MAR. This function allows you to
define two separate trips called “Trip A” and “Trip B” to monitor
the car’s complete mission (trip) in a mutually independent man-
ner. Both functions can be reset (reset - start of new mission).
“Trip A” can be used to display figures relating to:
– Range
– Distance travelled
– Average fuel consumption
– Instantaneous fuel consumption
– Average speed
– Travel time (driving time).
The “Trip B” function is used to display information relating to:
– Distance travelled B
– Average fuel consumption B
– Average speed B
– Travel time B (driving time).
“Trip B” functions may be excluded (see paragraph on “Trip B on”).
“Range” and “Instantaneous fuel consumption” cannot be reset.
Page 44 of 262
GETTING TO KNOW YOUR CAR43
1
Values displayed
Range
Approximately indicates the distance the vehicle can travel with
the present amount of fuel in the tank.
The message “- - - -” will appear on the display in the following
cases:
– range value lower than 50 km (or 30 mi)
– car left parked with the engine running for a long time.
IMPORTANT Changes in the range value can be affected by many
factors: driving style, type of route (motorway, urban road, moun-
tain road, etc.), vehicle use conditions (load being carried, tyre
inflation pressure, etc.). The above notes should therefore be tak-
en into consideration when planning a trip.
Distance travelled
This value shows the distance covered from the start of the new
mission.
Average fuel consumption
This value shows the approximate average fuel consumption from
the start of the new mission.
Instantaneous fuel consumption
This indicates any change in fuel consumption. The value is con-
stantly updated. The message “- - - -” will appear on the display
if the car is parked with the engine running.
Average speed
This value shows the average speed of the car based on the overall
time elapsed since the start of the new mission.
Tr i p t i m e
This value shows the time elapsed since the start of the new mis-
sion.
Page 45 of 262
44GETTING TO KNOW YOUR CAR

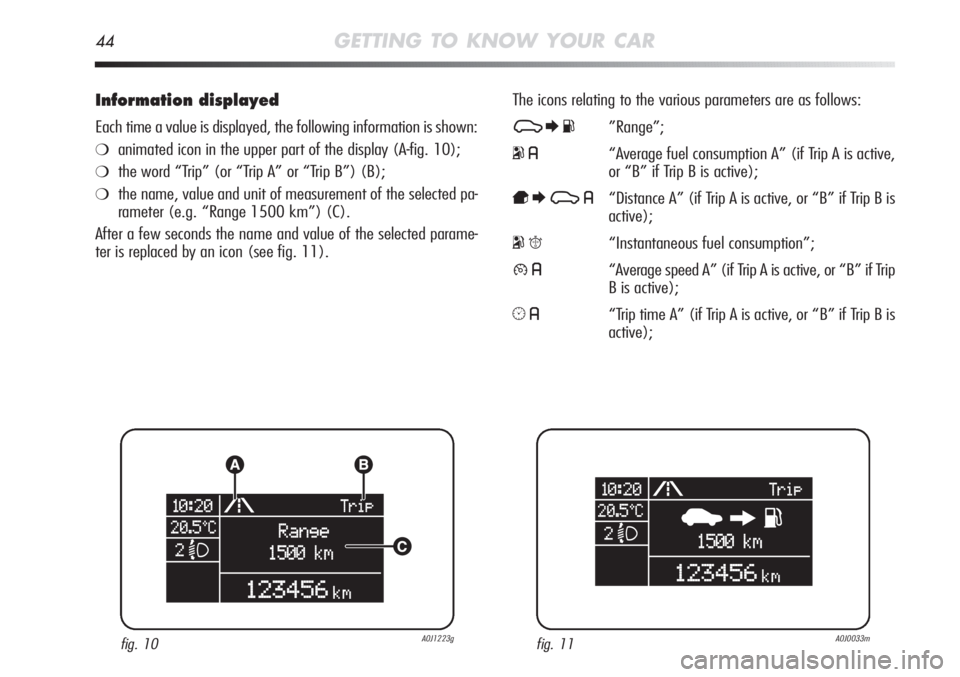

Information displayed
Each time a value is displayed, the following information is shown:
❍animated icon in the upper part of the display (A-fig. 10);
❍the word “Trip” (or “Trip A” or “Trip B”) (B);
❍the name, value and unit of measurement of the selected pa-
rameter (e.g. “Range 1500 km”) (C).
After a few seconds the name and value of the selected parame-
ter is replaced by an icon (see fig. 11).The icons relating to the various parameters are as follows:
7EK”Range”;
o6“Average fuel consumption A” (if Trip A is active,
or “B” if Trip B is active);
pE7 6“Distance A” (if Trip A is active, or “B” if Trip B is
active);
oq“Instantaneous fuel consumption”;
86“Average speed A” (if Trip A is active, or “B” if Trip
B is active);
56“Trip time A” (if Trip A is active, or “B” if Trip B is
active);
fig. 10A0J1223gfig. 11A0J0033m
Page 46 of 262
GETTING TO KNOW YOUR CAR45
1
TRIP 0.00 button
This is located on the right-hand lever fig. 12. With the ignition key
turned to MAR, this button allows you to view the previously de-
scribed parameters and also zero them to begin a new mission:
– brief press: display parameters;
– prolonged press: reset parameters and start a new mission.
New mission
The new mission begins after:
– “manual” resetting by the user, by pressing the relevant button;
– “automatic” resetting, when the “Trip distance” reaches
99999.9 km or when the “Travel time” reaches 999.59 (999
hours and 59 minutes);
– disconnection/reconnection of the battery.
IMPORTANT If the reset operation is carried out when “Trip A” is
being displayed, only the information associated with this function
is reset.
IMPORTANT If the reset operation is carried out when “Trip B” is
being displayed, only the information associated with this function
is reset.
Start trip procedure
With ignition key turned to MAR, carry out the reset operation by
pressing and holding down the TRIP 0.00 button for longer than
2 seconds.
Exit Trip
You can automatically exit the TRIP function once all the values
have been displayed, or by holding the MENU ESC button down
for more than 1 second.
fig. 12A0J0077m
Page 47 of 262
46GETTING TO KNOW YOUR CAR
SYMBOLS
Some vehicle components have coloured labels whose symbols in-
dicate precautions to be observed when using this component.
There is also a label under the bonnet that summarises all the sym-
bols.
ALFA ROMEO CODE SYSTEM
This is an electrical engine locking system which increases protec-
tion against an attempted theft of the car. It is automatically acti-
vated when the ignition key is extracted.
Each key contains an electronic device which modulates the sig-
nal emitted during ignition by an antenna built into the ignition de-
vice. This signal is the ‘password’ which changes at each ignition
and which the control unit uses to recognise the key and enable
ignition.
OPERATION
Each time the car is started by turning the ignition key to MAR, the
Alfa Romeo CODE system control unit sends an acknowledgement
code to the engine management control unit to deactivate the in-
hibitor.
The code is sent only if the Alfa Romeo CODE system control unit
has recognised the code transmitted from the key.
Each time the ignition key is turned to STOP, the Alfa Romeo
CODE system deactivates the functions of the engine management
control unit. If the code is not recognised correctly during ignition,
the
Ywarning light comes on in the instrument panel. In this
case turn the key to STOP and then to MAR; if the lock persists
try again with the spare set of keys. If you are still unable to
start the engine contact an Alfa Romeo Authorised Service.
Page 48 of 262
GETTING TO KNOW YOUR CAR47
1
Warning light Ycomes on when driving
❍If the Ywarning light comes on, this means that the sys-
tem is running a self-diagnosis test (caused, for example, by
a voltage drop).
❍If the Ywarning light remains on, contact an Alfa Romeo Au-
thorised Service.
THE KEYS
CODE CARD
(for versions/markets, where provided)
A CODE card fig.13 is provided together with the keys. On the card
you will find a mechanical code A and an electronic code B. Keep
the codes in a safe place, not in the vehicle.
The electronic components inside the key may be
damaged if the key is submitted to sharp knocks.
fig. 13A0J0212m
A
B
Page 49 of 262
48GETTING TO KNOW YOUR CAR
KEY WITHOUT REMOTE CONTROL
The metal insert A-fig.14 operates:
❍the ignition switch;
❍the door locks;
❍the opening and closing of the fuel cap.
fig. 14A0J0211mfig. 15A0J0072m
Press button B-fig. 15 only after moving the key
away from your body, especially your eyes, and
from objects which could get damaged (e.g. your
clothes). Do not leave the key unattended, because some-
one, a child especially, may accidentally press the button
while handling the key.
KEY WITH REMOTE CONTROL
(for versions/markets, where provided)
The metal insert A-fig.15 operates:
❍the ignition switch;
❍the door locks;
❍the opening and closing of the fuel cap.
Press button B to open/close the metal insert.
Page 50 of 262
GETTING TO KNOW YOUR CAR49
1
Door and luggage compartment lock release
Briefly press button Ë: door and luggage compartment lock release,
timed lighting of interior courtesy lights and double flashing of di-
rection indicators (for versions/markets, where provided).
Door locks are automatically released in the event of the inter-
vention of the fuel cut-off system.
Once the doors are locked, if one or more doors or the luggage
compartment are not closed correctly, the led and direction indi-
cators start flashing quickly.
Door and luggage compartment locking
Briefly press button Á: door and luggage compartment locking with
switching off of interior courtesy lights and single flashing of di-
rection indicators (for versions/markets, where provided).
If one or more doors are open, the doors will not be locked. This
situation is indicated by a rapid flashing of the direction indicators
(for versions/markets, where provided). If the luggage compart-
ment is open, the doors will, however, be locked.
When a speed of over 20 km/h is reached, the doors are auto-
matically locked if this specific function was set (only on versions
with multi-functional reconfigurable display).
When locking the doors, led A-fig. 16 switches on for several sec-
onds and than starts flashing (deterrence function).
Opening the luggage compartment
Press the Rbutton to open the luggage compartment from a
distance. Luggage compartment opening is indicated by double
flashing of direction indicators.
REQUESTING ADDITIONAL REMOTE CONTROLS
The system acknowledges up to 8 remote controls. If you ever
require a new remote control, contact an Alfa Romeo Authorised
Service and bring your CODE card (for versions/markets, where
provided), some ID and the vehicle ownership documents with you.
fig. 16A0J0027m
