REFUELLING
Petrol engines: only use unleaded petrol with an octane
value (RON) of no lower than 95.
Diesel engines: only use diesel fuel compliant with European
specification EN590. The use of other products or mixtures may
damage the engine beyond repair and consequently invalidate the
warranty.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is
engaged; set the gearshift lever to neutral; fully depress the
clutch pedal without pressing the accelerator, then turn the
ignition key to AVV and release it as soon as the engine has
started.
Diesel engines: turn the ignition key to MAR and wait for the
warning lights to go out; Ythenmturn the ignition key to AVV
and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter reaches high temperatures
during operation. Do not park on grass, dry leaves,
pine needles or other flammable material: fire risk.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that carries out a
continuous diagnosis of the emission-related components
in order to help protect the environment.
ELECTRICAL ACCESSORIES
If after having purchased your car you decide to add
accessories requiring electrical power (that may
otherwise cause the battery to gradually lose power),
please consult an Alfa Romeo Authorised Service. They
can calculate the overall electrical requirement and
check that the car’s electrical system can support the
required load
CODE CARD(for versions/markets, where provided)
Keep this in a safe place, not in the car. We
recommend that you always carry the electronic code
provided on the CODE card with you, in case you need
to perform an emergency start.
PROGRAMMED MAINTENANCE
Correct car maintenance is essential to ensure that the
performance, safety features, environmental
friendliness and low running costs stay in tip-top
condition over the years.
THE OWNER HANDBOOK CONTAINS…
... important information, tips and warnings on the
correct use and maintenance of your car over time as
well as safe driving. Particular attention should be paid
to information marked with the following symbols:
"(personal safety) #(environmental protection) â(car
integrity).
READ THIS CAREFULLY!
K



GETTING TO KNOW YOUR CAR7
1DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Air vent for side windows - 2. Adjustable air vent - 3. Exterior lighting control lever - 4. Instrument panel - 5. Windscreen wiper/rearscreen
wiper/trip computer control lever - 6. Radio (for versions/markets, where provided) - 7. Adjustable air vents - 8. Hazard warning lights,
door lock/unlock button - 9. Passenger front air bag - 10. Glove compartment - 11. Heating/ventilation/climate control system controls
12. Gearbox lever - 13. “Alfa DNA” system - 14. Ignition device - 15. Driver front knee air bag (for versions/markets, where provided)
16. Driver front air bag - 17. Cruise Control lever (for versions/markets, where provided) - 18. Fuse box access flap - 19. Control panel.
A0J0330mfig. 1

8GETTING TO KNOW YOUR CAR
INSTRUMENT PANEL AND ONBOARD INSTRUMENTS
AC
DE
B
VERSIONS WITH MULTIFUNCTIONAL DISPLAY
A Speedometer (speed indicator)
B Multifunctional display
C Rev counter
D Fuel level gauge with reserve warning light
E Engine coolant temperature gauge and excessive temperature warning light
mcWarning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm
WARNING Instrument background colour and type may vary according to the version.
A0J0349mfig. 2

GETTING TO KNOW YOUR CAR9
1
VERSIONS WITH RECONFIGURABLE MULTIFUNCTIONAL DISPLAY
A Speedometer (speed indicator)
B Reconfigurable multifunctional display
C Rev counter
D Fuel level gauge with reserve warning light
E Engine coolant temperature gauge and excessive temperature warning light
mcWarning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm
WARNING Instrument background colour and type may vary according to the version.
A0J0263mfig. 3

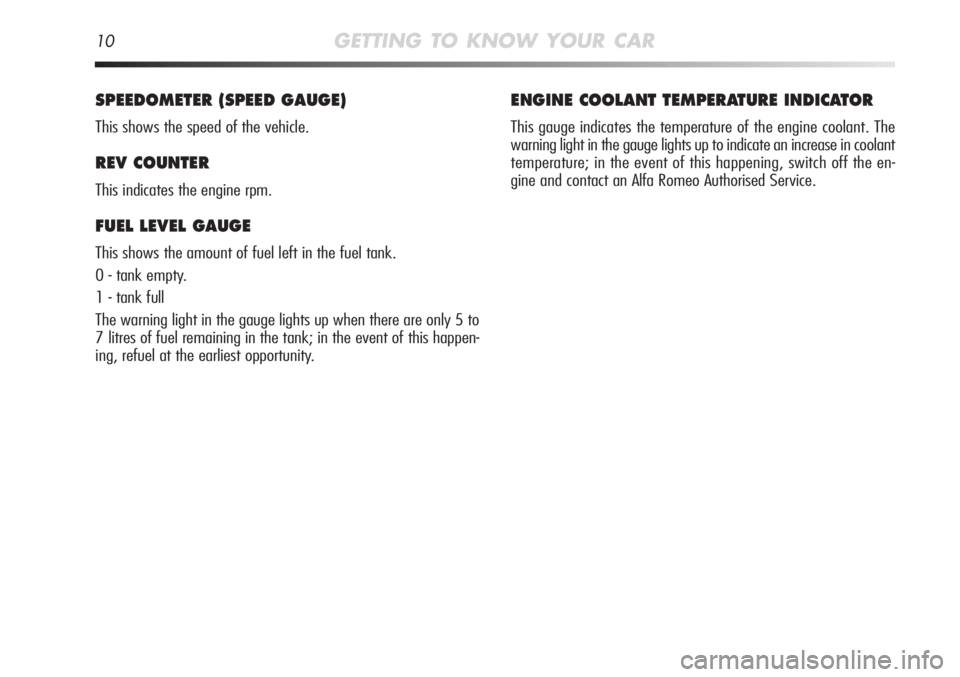

10GETTING TO KNOW YOUR CAR
SPEEDOMETER (SPEED GAUGE)
This shows the speed of the vehicle.
REV COUNTER
This indicates the engine rpm.
FUEL LEVEL GAUGE
This shows the amount of fuel left in the fuel tank.
0 - tank empty.
1 - tank full
The warning light in the gauge lights up when there are only 5 to
7 litres of fuel remaining in the tank; in the event of this happen-
ing, refuel at the earliest opportunity.
ENGINE COOLANT TEMPERATURE INDICATOR
This gauge indicates the temperature of the engine coolant. The
warning light in the gauge lights up to indicate an increase in coolant
temperature; in the event of this happening, switch off the en-
gine and contact an Alfa Romeo Authorised Service.

GETTING TO KNOW YOUR CAR11
1
INSTRUMENT PANEL WARNING LIGHTS
General warnings
The lighting up of a warning light is associated with a specific
message and/or buzzer when applicable. These indications are
brief and precautionary and as such must not be considered as
exhaustive and/or an alternative to the information contained in
the Owner Handbook, which you are recommended to read care-
fully in all cases. Always refer to the information in this chapter in
the event of a failure indication.
Low brake fluid level (red)
This warning light comes on when the ignition key is
turned to MAR, but it should go off after a few sec-
onds. The warning light (or symbol on the display) comes
on when the level of the brake fluid in the reservoir falls below
the minimum level due to possible leaks in the circuit.
The display will show the dedicated message.
Handbrake on (red)
This warning light comes on when the ignition key is turned to MAR,
but it should go off after a few seconds. The warning light (or sym-
bol on the display) comes on when the handbrake is on. If the
car is moving a buzzer is also triggered.
IMPORTANT If the warning light comes on with the vehicle in mo-
tion, check that the handbrake is not engaged.
x

12GETTING TO KNOW YOUR CAR
EBD failure (red)/(amber)
If warning lights xand>are lit up at the same
time with the engine running, this indicates an EBD
system failure or that the system is not available. Ear-
ly locking of the rear wheels may occur in the event
of violent braking, causing the car to swerve.
Under these circumstances drive with extreme caution
straight to the nearest Alfa Romeo Authorised Service to
have the system checked. The display will show the dedicated mes-
sage.x
>
Brake pad wear (amber)
The warning light (or symbol on the display) lights up
when the one or more brake pads show signs of wear;
under these circumstances have them replaced as soon
as possible. The display shows the dedicated message. It is advis-
able to have this operation carried out by an Alfa Romeo Autho-
rised Service. d
ABS system failure (amber)
This warning light comes on when the ignition key is
turned to MAR, but it should go off after a few sec-
onds. The warning light (or symbol on the display) lights
up when the system is inefficient. Under these circumstances the
braking system will work as normal without the extra performance
offered by the ABS system. Drive with caution and visit an Alfa
Romeo Authorised Service at your earliest convenience. The display
will show the dedicated message.>

EOBD/injection system failure
(amber)
Under normal conditions, the warning light comes on
when the ignition key is turned to MAR, but should go off
as soon as the engine is started.
If the warning light remains on or comes on whilst driving, this
means that the injection system is not working properly; in partic-
ular, if the warning light comes on constantly, this indicates a mal-
function in the supply/ignition system that could cause excessive
exhaust emissions, a possible loss of performance, poor driveabil-
ity and high fuel consumption.
On certain versions the dedicated message is displayed.
Under these conditions, the vehicle can continue travelling at mod-
erate speed without demanding excessive effort from the engine.
Prolonged use of the car with the warning light on may cause dam-
age. Contact your nearest Alfa Romeo Authorised Service as soon
as possible.
The warning light goes out after the fault is cleared, and the indi-
cation is stored in the system.
GETTING TO KNOW YOUR CAR17
1
Doors not closed correctly (red)
The warning light (or symbol on the display) lights up
when one or more doors or the boot tailgate are not
properly closed. A buzzer will sound when doors are open
and the car is moving. On some versions the warning light (or sym-
bol on the display) also lights up when the bonnet is not closed
correctly.´
Luggage compartment open
On some versions a message + symbol on the display
are shown when the luggage compartment is open.R
Bonnet open
On some versions a message + symbol on the display
are shown when the bonnet is open.S
U

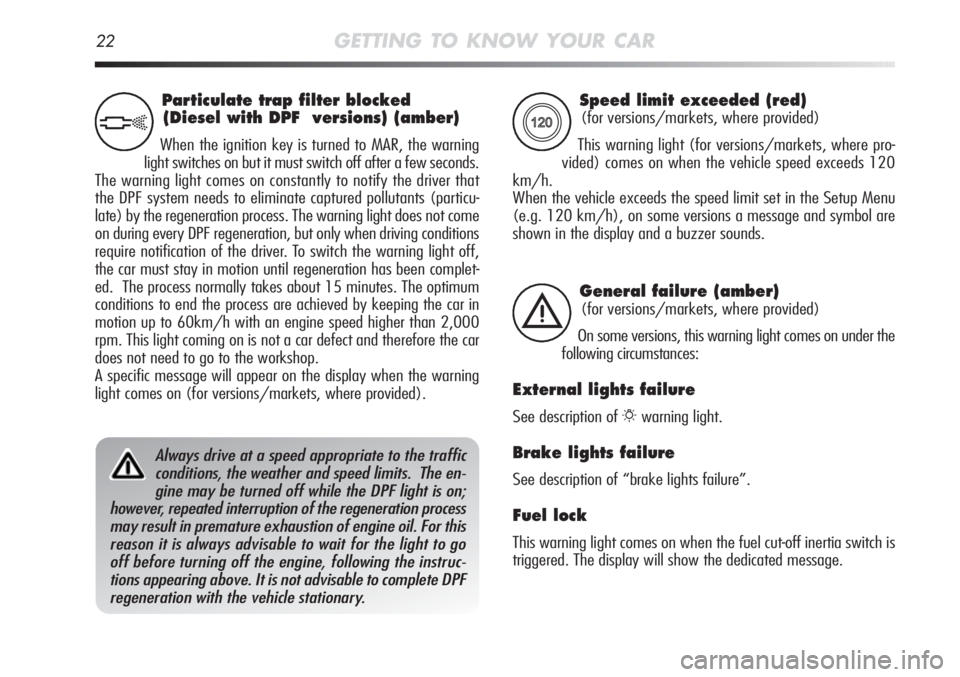

22GETTING TO KNOW YOUR CAR
Speed limit exceeded (red)
(for versions/markets, where provided)
This warning light (for versions/markets, where pro-
vided) comes on when the vehicle speed exceeds 120
km/h.
When the vehicle exceeds the speed limit set in the Setup Menu
(e.g. 120 km/h), on some versions a message and symbol are
shown in the display and a buzzer sounds.
X
General failure (amber)
(for versions/markets, where provided)
On some versions, this warning light comes on under the
following circumstances:
External lights failure
See description of 6warning light.
Brake lights failure
See description of “brake lights failure”.
Fuel lock
This warning light comes on when the fuel cut-off inertia switch is
triggered. The display will show the dedicated message.
è
Particulate trap filter blocked
(Diesel with DPF versions) (amber)
When the ignition key is turned to MAR, the warning
light switches on but it must switch off after a few seconds.
The warning light comes on constantly to notify the driver that
the DPF system needs to eliminate captured pollutants (particu-
late) by the regeneration process. The warning light does not come
on during every DPF regeneration, but only when driving conditions
require notification of the driver. To switch the warning light off,
the car must stay in motion until regeneration has been complet-
ed. The process normally takes about 15 minutes. The optimum
conditions to end the process are achieved by keeping the car in
motion up to 60km/h with an engine speed higher than 2,000
rpm. This light coming on is not a car defect and therefore the car
does not need to go to the workshop.
A specific message will appear on the display when the warning
light comes on (for versions/markets, where provided).
h
Always drive at a speed appropriate to the traffic
conditions, the weather and speed limits. The en-
gine may be turned off while the DPF light is on;
however, repeated interruption of the regeneration process
may result in premature exhaustion of engine oil. For this
reason it is always advisable to wait for the light to go
off before turning off the engine, following the instruc-
tions appearing above. It is not advisable to complete DPF
regeneration with the vehicle stationary.

GETTING TO KNOW YOUR CAR25
1
Dipped beam headlights (green)
This warning light comes on when the dipped beam
headlights are turned on.
Rear fog lights (amber)
This warning light comes on when the rear fog lights
are turned on.4
Front fog lights (green)
This warning light comes on when the front fog lights
are turned on.5
Side lights (green)
This warning light comes on when the side lights are
turned on.
Follow me home (green)
This warning light comes on (together with a message in the dis-
play), when this device is used.
3
2
Main beam headlights (blue)
This warning light comes on when the main beam head-
lights are turned on.1
Left direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved downwards and when the
hazard warning light button is pressed.
Right direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved upwards and when the haz-
ard warning light button is pressed.
R
E
