technical specifications Alfa Romeo MiTo 2014 Owner's Manual

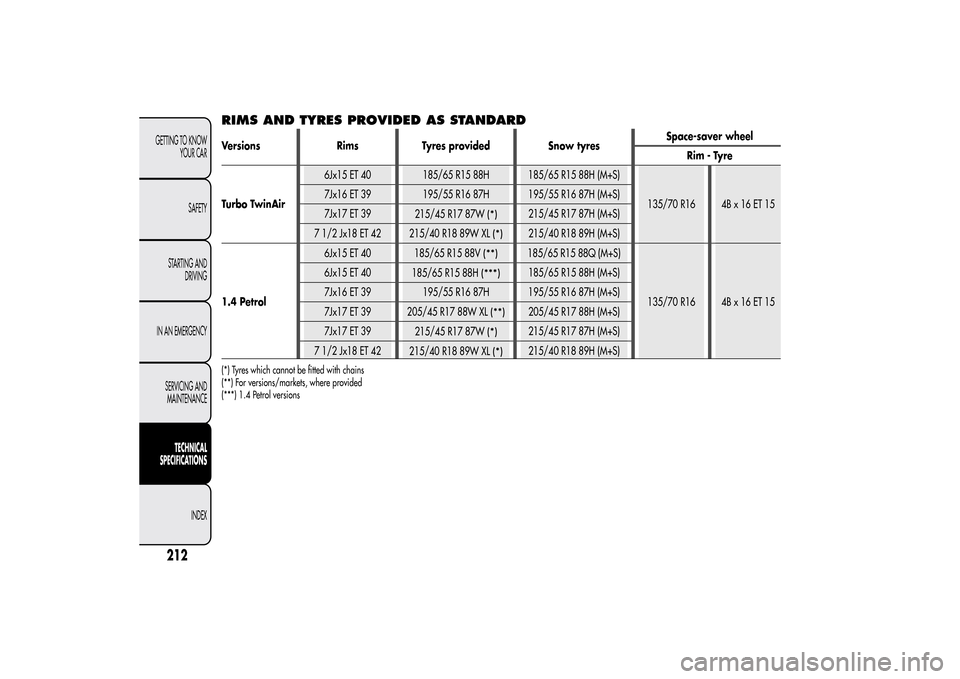

RIMS AND TYRES PROVIDED AS STANDARDVersions Rims Tyres provided Snow tyresSpace-saver wheel
Rim - Tyre
Turbo TwinAir6Jx15 ET 40 185/65 R15 88H 185/65 R15 88H (M+S)
135/70 R16 4B x 16 ET 15 7Jx16 ET 39 195/55 R16 87H 195/55 R16 87H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)
215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)
215/40 R18 89H (M+S)
1.4 Petrol6Jx15 ET 40
185/65 R15 88V
(**)
185/65 R15 88Q (M+S)
135/70 R16 4B x 16 ET 15 6Jx15 ET 40
185/65 R15 88H
(***)
185/65 R15 88H (M+S)
7Jx16 ET 39 195/55 R16 87H 195/55 R16 87H (M+S)
7Jx17 ET 39
205/45 R17 88W XL
(**)
205/45 R17 88H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)
215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)
215/40 R18 89H (M+S)
(*) Tyres which cannot be fitted with chains
(**) For versions/markets, where provided
(***) 1.4 Petrol versions
212GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

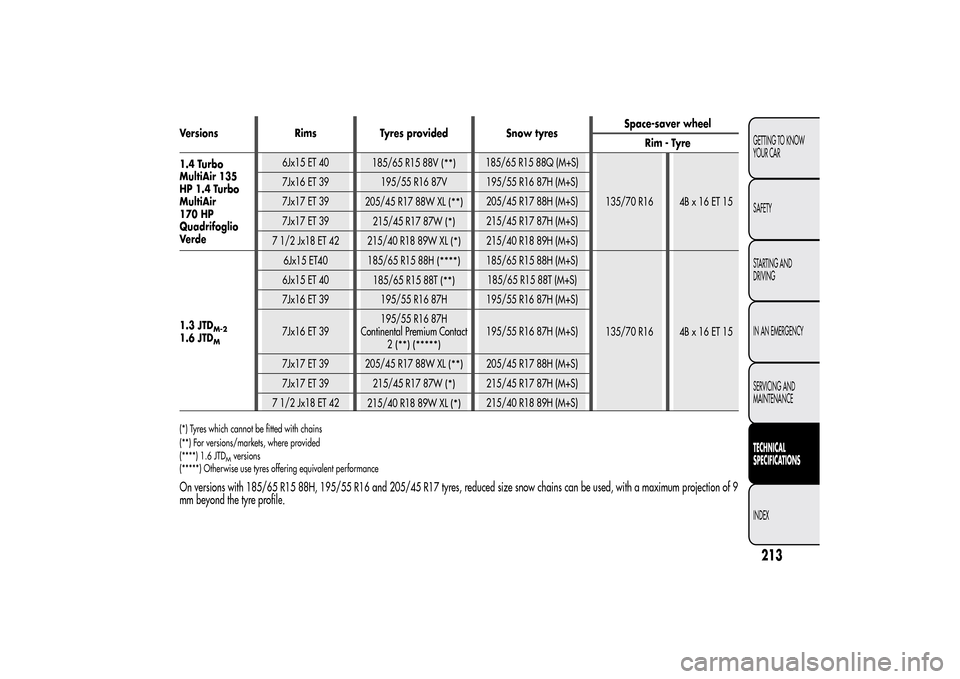

Versions Rims Tyres provided Snow tyresSpace-saver wheel
Rim - Tyre
1.4 Turbo
MultiAir 135
HP 1.4 Turbo
MultiAir
170 HP
Quadrifoglio
Ve r d e6Jx15 ET 40
185/65 R15 88V
(**)
185/65 R15 88Q (M+S)
135/70 R16 4B x 16 ET 15 7Jx16 ET 39 195/55 R16 87V 195/55 R16 87H (M+S)
7Jx17 ET 39
205/45 R17 88W XL
(**)
205/45 R17 88H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)
215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)
215/40 R18 89H (M+S)
1.3 JTD
M-2
1.6 JTD
M
6Jx15 ET40
185/65 R15 88H
(****)
185/65 R15 88H (M+S)
135/70 R16 4B x 16 ET 15 6Jx15 ET 40
185/65 R15 88T
(**)
185/65 R15 88T (M+S)
7Jx16 ET 39 195/55 R16 87H 195/55 R16 87H (M+S)
7Jx16 ET 39195/55 R16 87H
Continental Premium Contact
2
(**) (*****)
195/55 R16 87H (M+S)
7Jx17 ET 39
205/45 R17 88W XL
(**)
205/45 R17 88H (M+S)
7Jx17 ET 39
215/45 R17 87W
(*)
215/45 R17 87H (M+S)
7 1/2 Jx18 ET 42
215/40 R18 89W XL
(*)
215/40 R18 89H (M+S)
(**) For versions/markets, where provided (*) Tyres which cannot be fitted with chains
(****) 1.6 JTD
Mversions
(*****) Otherwise use tyres offering equivalent performance
On versions with 185/65 R15 88H, 195/55 R16 and 205/45 R17 tyres, reduced size snow chains can be used, with a maximum projection of 9
mm beyond the tyre profile.
213GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

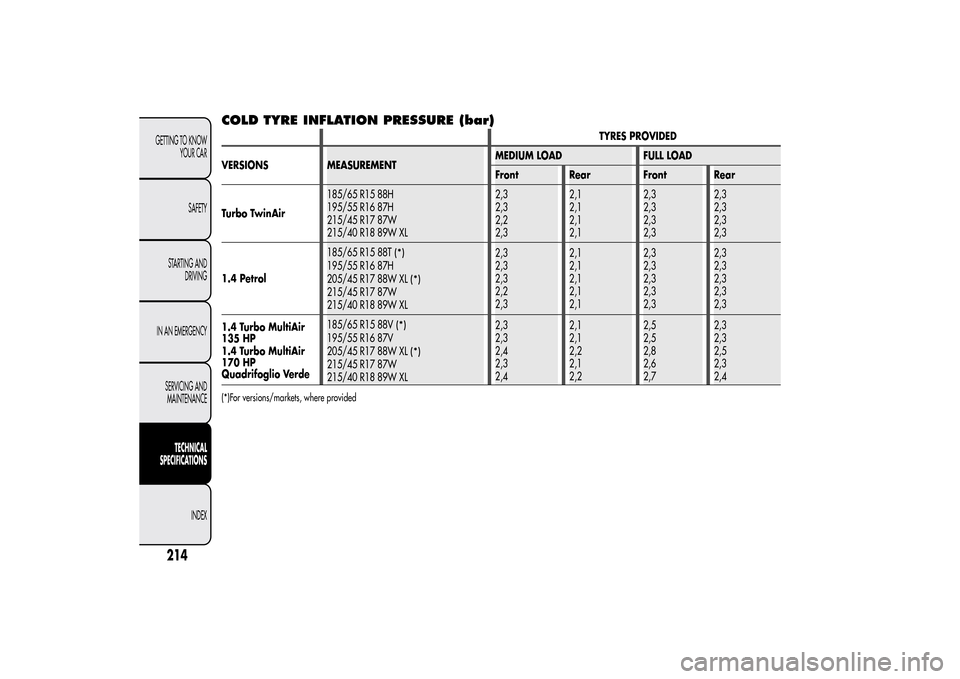

COLD TYRE INFLATION PRESSURE (bar)
TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear
Turbo TwinAir185/65 R15 88H
195/55 R16 87H
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,2
2,32,1
2,1
2,1
2,12,3
2,3
2,3
2,32,3
2,3
2,3
2,3
1.4 Petrol185/65 R15 88T
(*)
195/55 R16 87H
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,3
2,2
2,32,1
2,1
2,1
2,1
2,12,3
2,3
2,3
2,3
2,32,3
2,3
2,3
2,3
2,3
1.4 Turbo MultiAir
135 HP
1.4 Turbo MultiAir
170 HP
Quadrifoglio Verde185/65 R15 88V
(*)
195/55 R16 87V
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,4
2,3
2,42,1
2,1
2,2
2,1
2,22,5
2,5
2,8
2,6
2,72,3
2,3
2,5
2,3
2,4
(*)For versions/markets, where provided
214GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

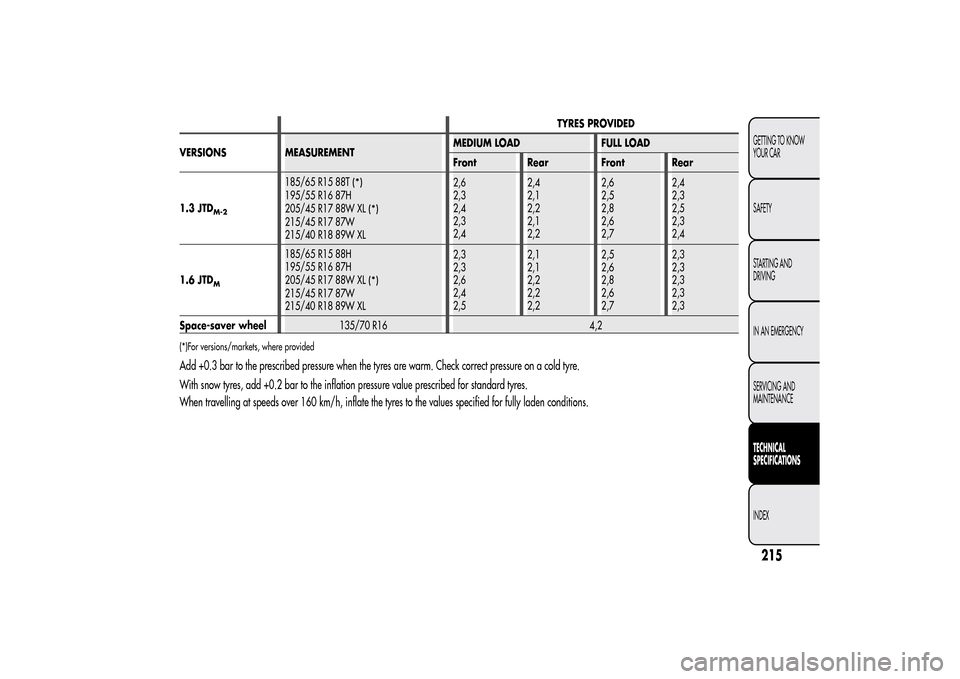

TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear
1.3 JTD
M-2
185/65 R15 88T
(*)
195/55 R16 87H
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,6
2,3
2,4
2,3
2,42,4
2,1
2,2
2,1
2,22,6
2,5
2,8
2,6
2,72,4
2,3
2,5
2,3
2,4
1.6 JTD
M
185/65 R15 88H
195/55 R16 87H
205/45 R17 88W XL
(*)
215/45 R17 87W
215/40 R18 89W XL2,3
2,3
2,6
2,4
2,52,1
2,1
2,2
2,2
2,22,5
2,6
2,8
2,6
2,72,3
2,3
2,3
2,3
2,3
Space-saver wheel135/70 R16 4,2
(*)For versions/markets, where providedAdd +0.3 bar to the prescribed pressure when the tyres are warm. Check correct pressure on a cold tyre.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When travelling at speeds over 160 km/h, inflate the tyres to the values specified for fully laden conditions.
215GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

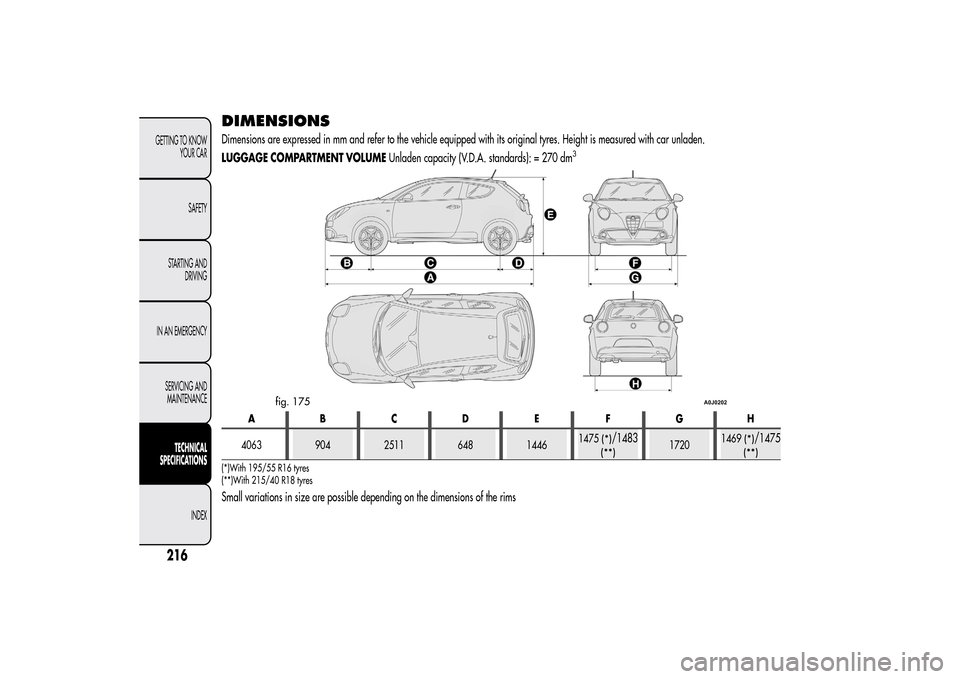

DIMENSIONSDimensions are expressed in mm and refer to the vehicle equipped with its original tyres. Height is measured with car unladen.
LUGGAGE COMPARTMENT VOLUMEUnladen capacity (V.D.A. standards): = 270 dm
3
AB CD E FGH
4063 904 2511 648 14461475
(*)/1483(**)
17201469
(*)/1475(**)
(*)With 195/55 R16 tyres
(**)With 215/40 R18 tyresSmall variations in size are possible depending on the dimensions of the rims
fig. 175
A0J0202
216GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

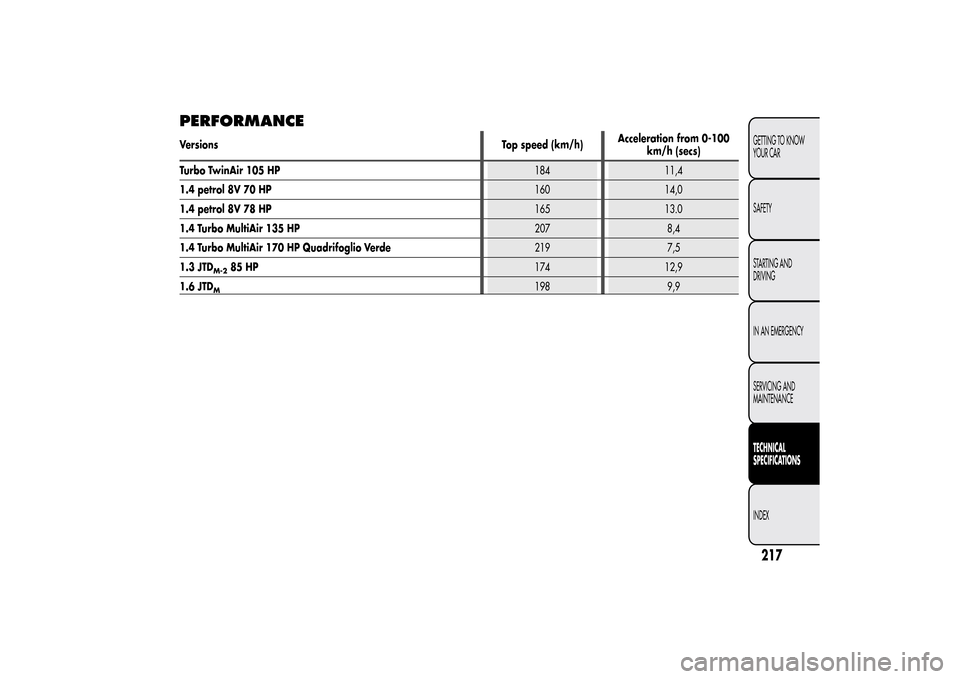

PERFORMANCEVersionsTop speed (km/h)Acceleration from 0-100
km/h (secs)
Turbo TwinAir 105 HP184 11,4
1.4 petrol 8V 70 HP160 14,0
1.4 petrol 8V 78 HP165 13.0
1.4 Turbo MultiAir 135 HP207 8,4
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde219 7,5
1.3 JTD
M-2
85 HP174 12,9
1.6 JTD
M
198 9,9
217GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

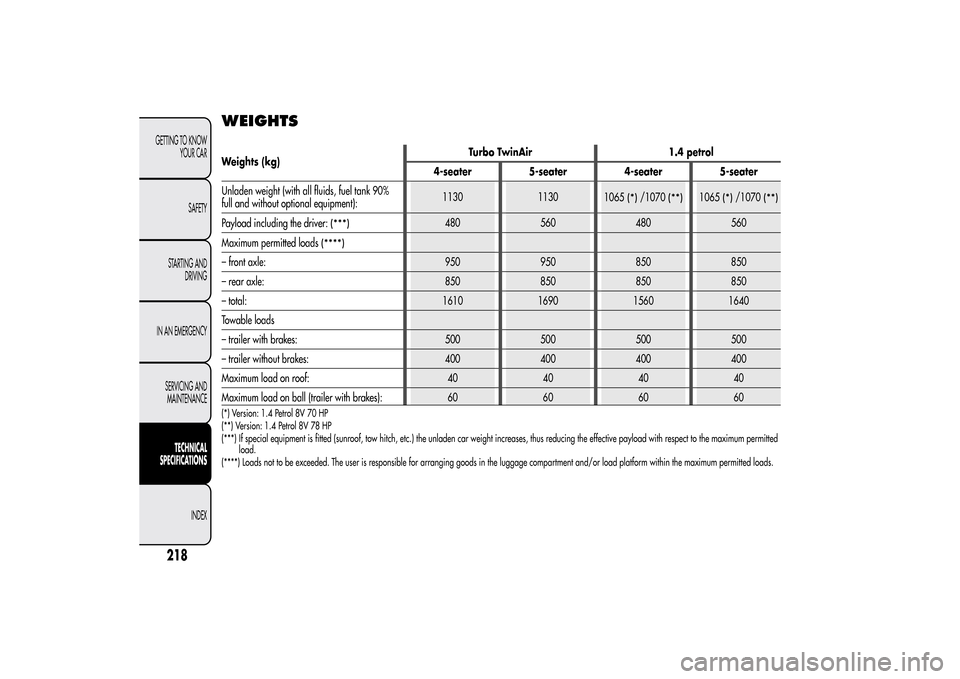

WEIGHTSWeights (kg)Turbo TwinAir 1.4 petrol
4-seater 5-seater 4-seater 5-seater
Unladen weight (with all fluids, fuel tank 90%
full and without optional equipment):1130 1130
1065
(*)
/1070
(**)
1065
(*)
/1070
(**)
Payload including the driver:
(***)
480 560 480 560
Maximum permitted loads
(****)
– front axle: 950 950 850 850
– rear axle: 850 850 850 850
– total: 1610 1690 1560 1640
Towable loads
– trailer with brakes: 500 500 500 500
– trailer without brakes: 400 400 400 400
Maximum load on roof: 40 40 40 40
Maximum load on ball (trailer with brakes): 60 60 60 60(*) Version: 1.4 Petrol 8V 70 HP
(**) Version: 1.4 Petrol 8V 78 HP
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect tothe maximum permitted
load.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
218GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

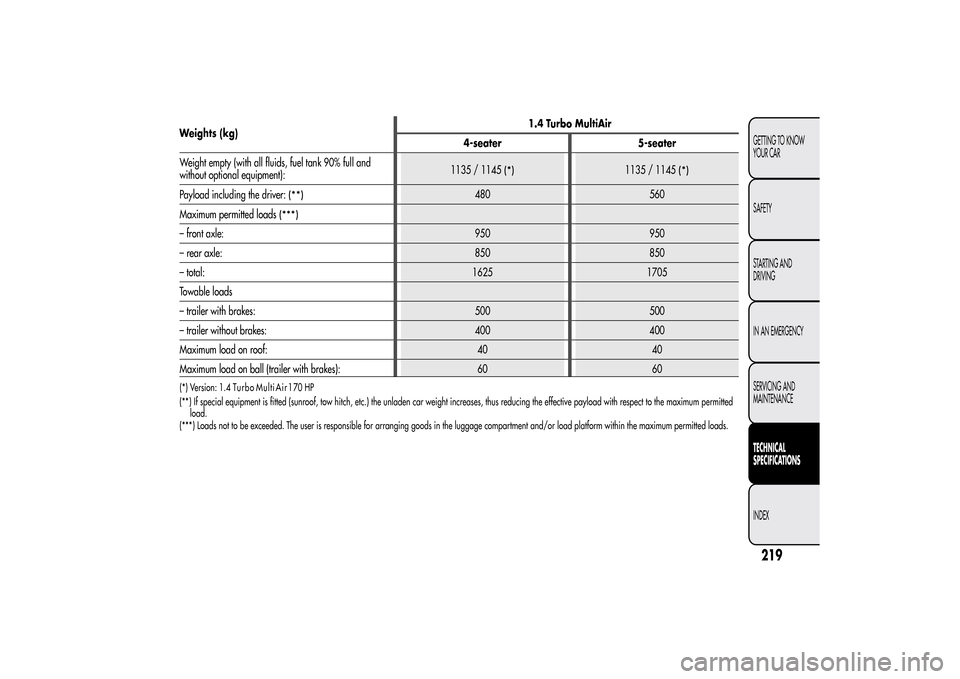

Weights (kg)1.4 Turbo MultiAir
4-seater 5-seater
Weight empty (with all fluids, fuel tank 90% full and
without optional equipment):
Payload including the driver:
(*)
480 560
Maximum permitted loads
(** )
– front axle: 950 950
– rear axle: 850 850
– total: 1625 1705
Towable loads
– trailer with brakes: 500 500
– trailer without brakes: 400 400
Maximum load on roof: 40 40
Maximum load on ball (trailer with brakes): 60 60(* ) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect to the maximum permitted
load.
(** ) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
219GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
*
*
*
*
1135 / 1145
(*)
1135 / 1145
(*)
(*) Version: 1.4 70 HPTurbo Multi Air 1

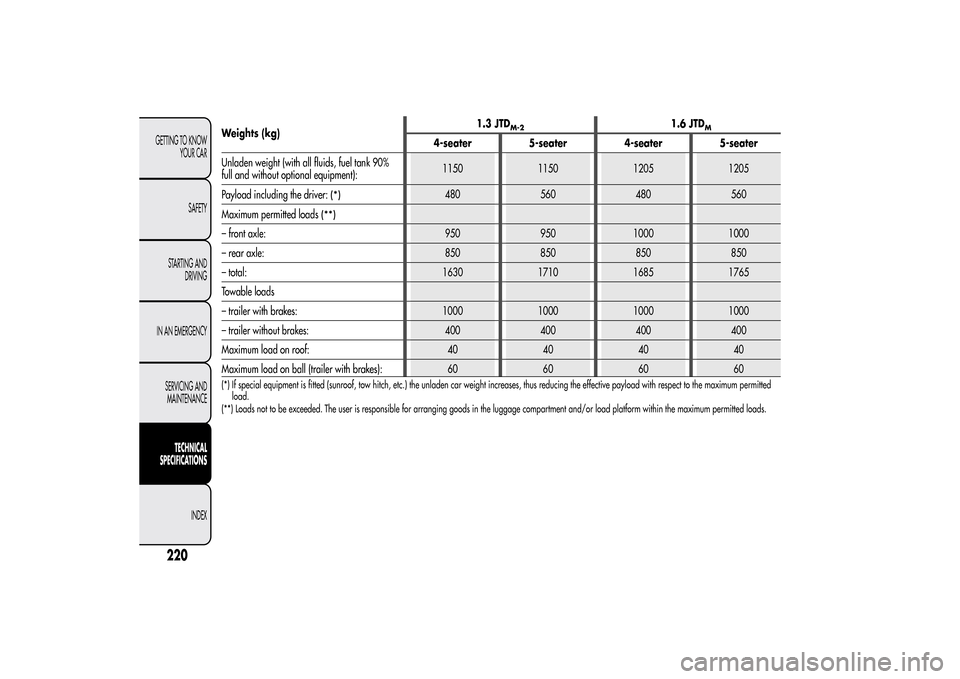

Weights (kg)1.3 JTD
M-2
1.6 JTD
M
4-seater 5-seater 4-seater 5-seater
Unladen weight (with all fluids, fuel tank 90%
full and without optional equipment):1150 1150 1205 1205
Payload including the driver:
(*)
480 560 480 560
Maximum permitted loads
(**)
– front axle: 950 950 1000 1000
– rear axle: 850 850 850 850
– total: 1630 1710 1685 1765
Towable loads
– trailer with brakes: 1000 1000 1000 1000
– trailer without brakes: 400 400 400 400
Maximum load on roof: 40 40 40 40
Maximum load on ball (trailer with brakes): 60 60 60 60(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect to the maximum permitted
load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
220GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

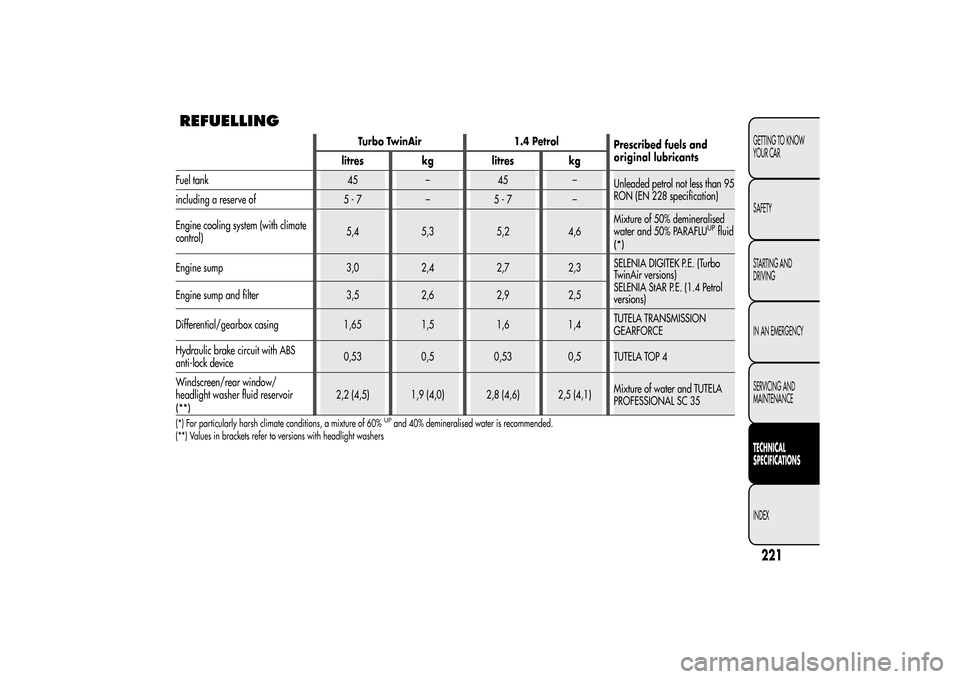

REFUELLING
221GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Turbo TwinAir 1.4 Petrol
Prescribed fuels and
litres kg litres kg
Fuel tank 45 – 45 –
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of 5 - 7 – 5 - 7 –
Engine cooling system (with climate
control)5,4 5,3 5,2 4,6Mixture of 50% demineralised
water and 50% PARAFLU
UPfluid
(*)
Engine sump 3,0 2,4 2,7 2,3SELENIA DIGITEK P.E. (Turbo
TwinAir versions)
SELENIA StAR P.E. (1.4 Petrol
versions) Engine sump and filter 3,5 2,6 2,9 2,5
Differential/gearbox casing 1,65 1,5 1,6 1,4TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
anti-lock device0,53 0,5 0,53 0,5 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid reservoir(**)
2,2 (4,5) 1,9 (4,0) 2,8 (4,6) 2,5 (4,1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
originallubricants
