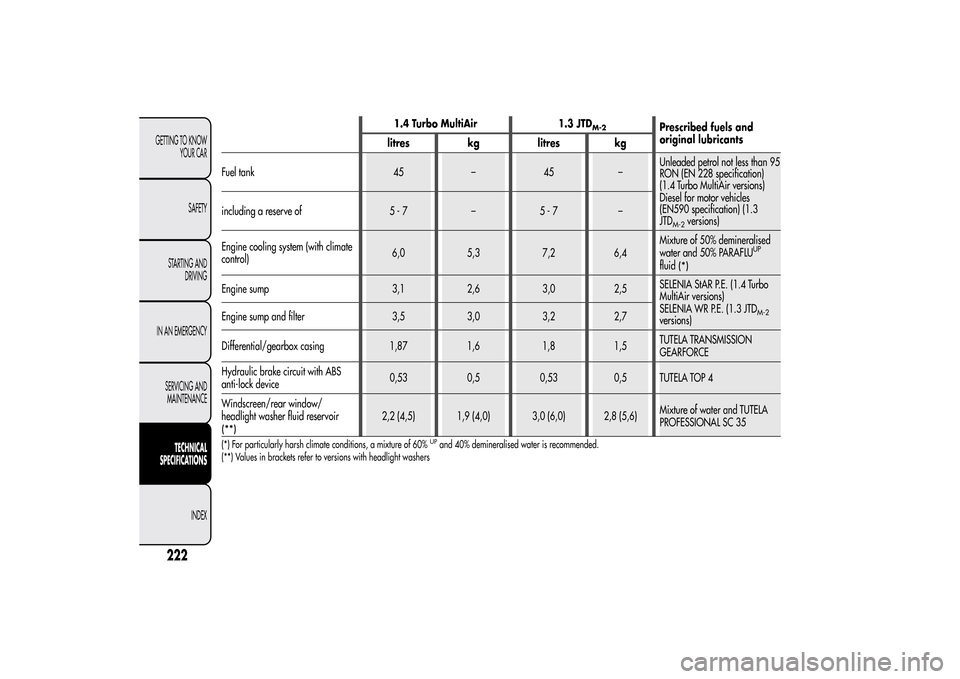

technical specifications Alfa Romeo MiTo 2014 Owner's Manual

1.4 Turbo MultiAir 1.3 JTD
M-2
Prescribed fuels and
original lubricants
litres kg litres kg
Fuel tank 45 – 45 –Unleaded petrol not less than 95
RON (EN 228 specification)
(1.4 Turbo MultiAir versions)
Diesel for motor vehicles
(EN590 specification) (1.3
JTD
M-2
versions) including a reserve of 5 - 7 – 5 - 7 –
Engine cooling system (with climate
control)6,0 5,3 7,2 6,4Mixture of 50% demineralised
water and 50% PARAFLU
UP
fluid
(*)
Engine sump 3,1 2,6 3,0 2,5SELENIA StAR P.E. (1.4 Turbo
MultiAir versions)
SELENIA WR P.E. (1.3 JTD
M-2
versions) Engine sump and filter 3,5 3,0 3,2 2,7
Differential/gearbox casing 1,87 1,6 1,8 1,5TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
anti-lock device0,53 0,5 0,53 0,5 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid reservoir
(**)
2,2 (4,5) 1,9 (4,0) 3,0 (6,0) 2,8 (5,6)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
222GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

1.6 JTD
M
Prescribed fuels and
original lubricants
litres kg
Fuel tank 45 –
Diesel for automotive engines
(EN 590 Specification)
including a reserve of 5 - 7 –
Engine cooling system (with climate control) 5,7 5,0Mixture of 50% demineralised water and
50% PARAFLU
UPfluid
(*)
Engine sump 4,3 3,6
SELENIA WR P.E.
Engine sump and filter 4,6 3,9
Gearbox casing/differential 1,87 1,6 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS anti-lock device 0,53 0,5 TUTELA TOP 4
Windscreen/rear window/headlight washer fluid
reservoir
(**)
3,0 (6,0) 2,8 (5,6)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
223GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

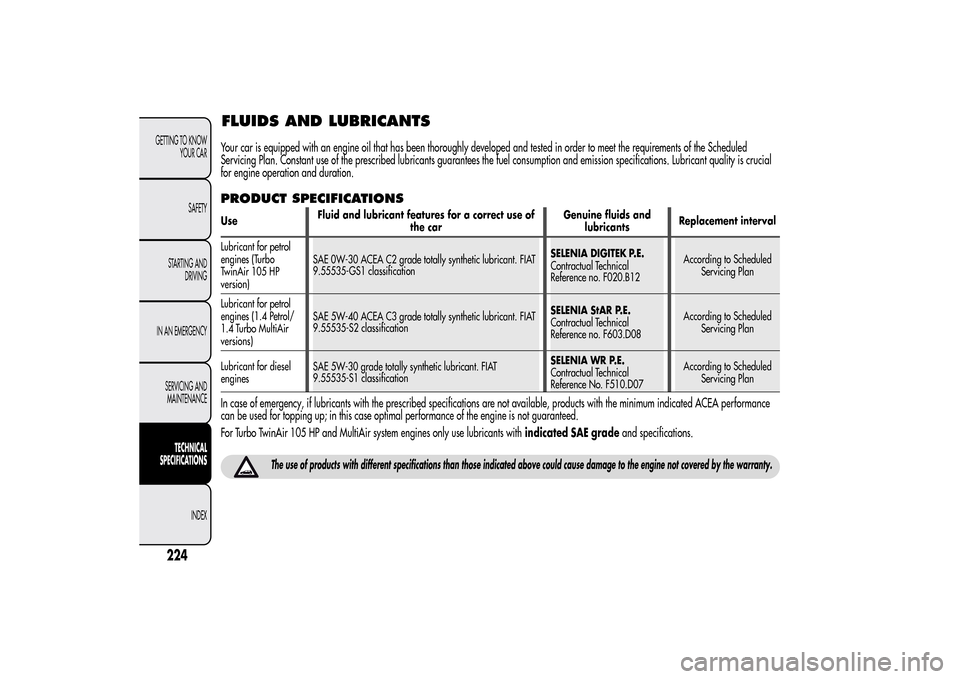

FLUIDS AND LUBRICANTS
224GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the Scheduled
Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is crucial
for engine operation and duration.PRODUCT SPECIFICATIONSUseFluid and lubricant features for a correct use of
the carGenuine fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (Turbo
TwinAir 105 HP
version)SAE 0W-30 ACEA C2 grade totally synthetic lubricant. FIAT
9.55535-GS1 classificationSELENIA DIGITE P.E.
Contractual Technical
Reference no. F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 Petrol/
1.4 Turbo MultiAir
versions)SAE 5W-40 ACEA C3 grade totally synthetic lubricant. FIAT
9.55535-S2 classificationSELENIA StAR P.E.
Contractual Technical
Reference no. F603.D08According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 5W-30 grade totally synthetic lubricant. FIAT
9.55535-S1 classificationSELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated ACEA performance
can be used for topping up; in this case optimal performance of the engine is not guaranteed.
For Turbo TwinAir 105 HP and MultiAir system engines only use lubricants withindicated SAE gradeand specifications.
The use of products with different specifications than those indicated above could cause damage to the engine not covered by the warranty.
K

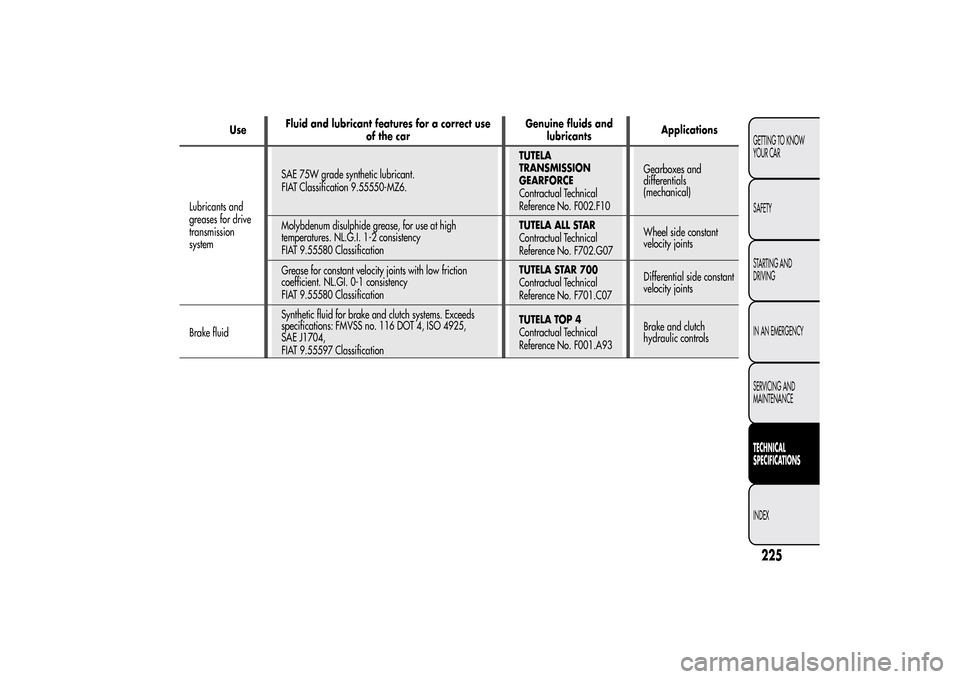

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplications
Lubricants and
greases for drive
transmission
systemSAE 75W grade synthetic lubricant.
FIAT Classification 9.55550-MZ6.TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Gearboxes and
differentials
(mechanical)
Molybdenum disulphide grease, for use at high
temperatures. NL.G.I. 1-2 consistency
FIAT 9.55580 ClassificationTUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low friction
coefficient. NL.GI. 0-1 consistency
FIAT 9.55580 ClassificationTUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Brake fluidSynthetic fluid for brake and clutch systems. Exceeds
specifications: FMVSS no. 116 DOT 4, ISO 4925,
SAE J1704,
FIAT 9.55597 ClassificationTUTELA TOP 4
Contractual Technical
Reference No. F001.A93Brake and clutch
hydraulic controls
225GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

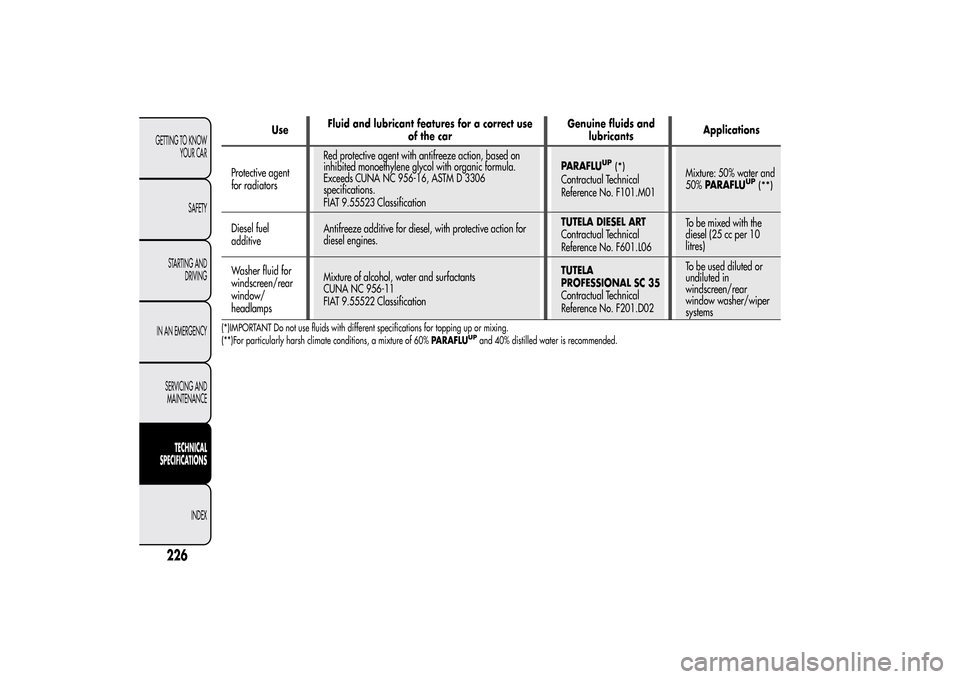

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplications
Protective agent
for radiatorsRed protective agent with antifreeze action, based on
inhibited monoethylene glycol with organic formula.
Exceeds CUNA NC 956-16, ASTM D 3306
specifications.
FIAT 9.55523 ClassificationPARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Mixture: 50% water and
50%PARAFLU
UP
(**)
Diesel fuel
additiveAntifreeze additive for diesel, with protective action for
diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with the
diesel (25 cc per 10
litres)
Washer fluid for
windscreen/rear
window/
headlampsMixture of alcohol, water and surfactants
CUNA NC 956-11
FIAT 9.55522 ClassificationTUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear
window washer/wiper
systems(*)IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**)For particularly harsh climate conditions, a mixture of 60%PARAFLU
UPand 40% distilled water is recommended.
226GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

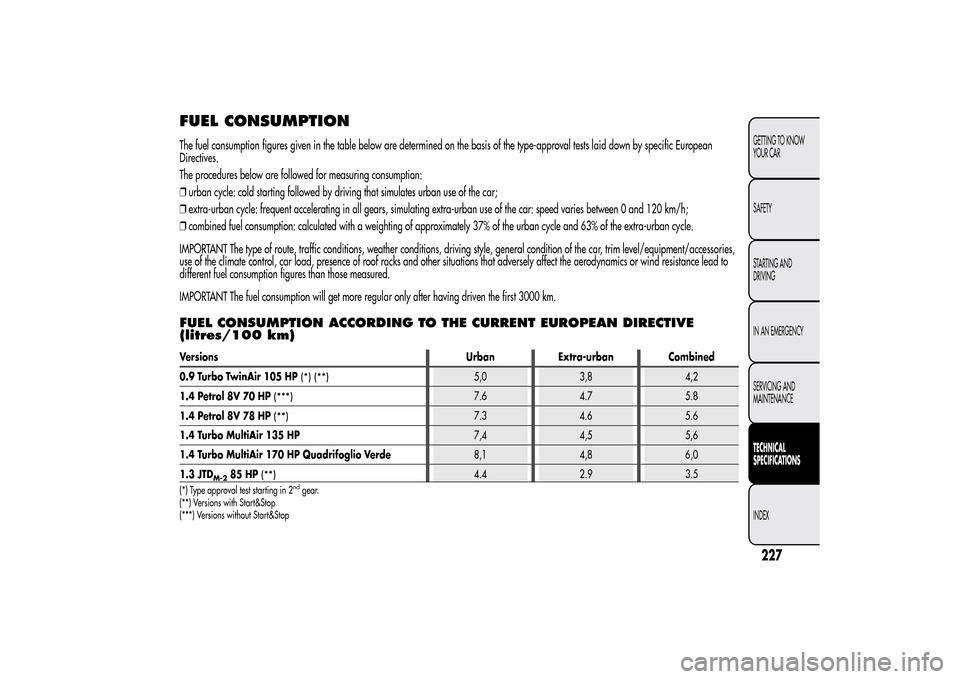

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific European
Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/accessories,
use of the climate control, car load, presence of roof racks and other situations that adversely affect the aerodynamics or wind resistance lead to
different fuel consumption figures than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)Versions Urban Extra-urban Combined
0.9 Turbo TwinAir 105 HP
(*) (**)
5,0 3,8 4,2
1.4 Petrol 8V 70 HP
(***)
7.6 4.7 5.8
1.4 Petrol 8V 78 HP
(**)
7.3 4.6 5.6
1.4 Turbo MultiAir 135 HP7,4 4,5 5,6
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde8,1 4,8 6,0
1.3 JTD
M-2
85 HP
(**)
4.4 2.9 3.5
(*) Type approval test starting in 2
ndgear.
(**) Versions with Start&Stop
(***) Versions without Start&Stop
227GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

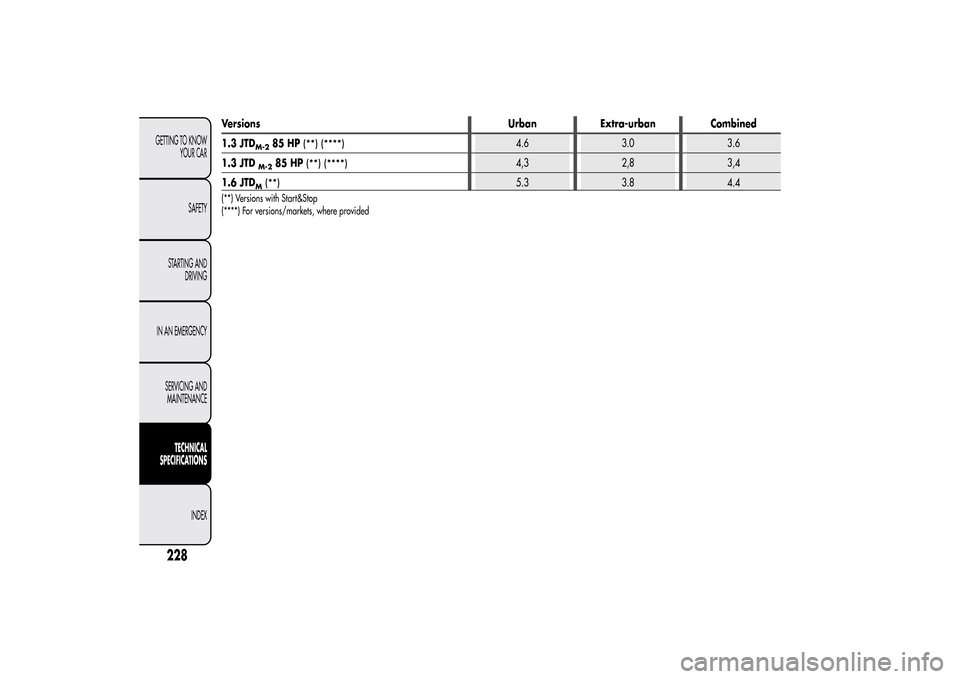

Versions Urban Extra-urban Combined
1.3 JTD
M-2
85 HP
(**) (****)
4.6 3.0 3.6
1.3 JTD
M-2
85 HP
(**) (****)
4,3 2,8 3,4
1.6 JTD
M(**)
5.3 3.8 4.4
(**) Versions with Start&Stop
(****) For versions/markets, where provided
228GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

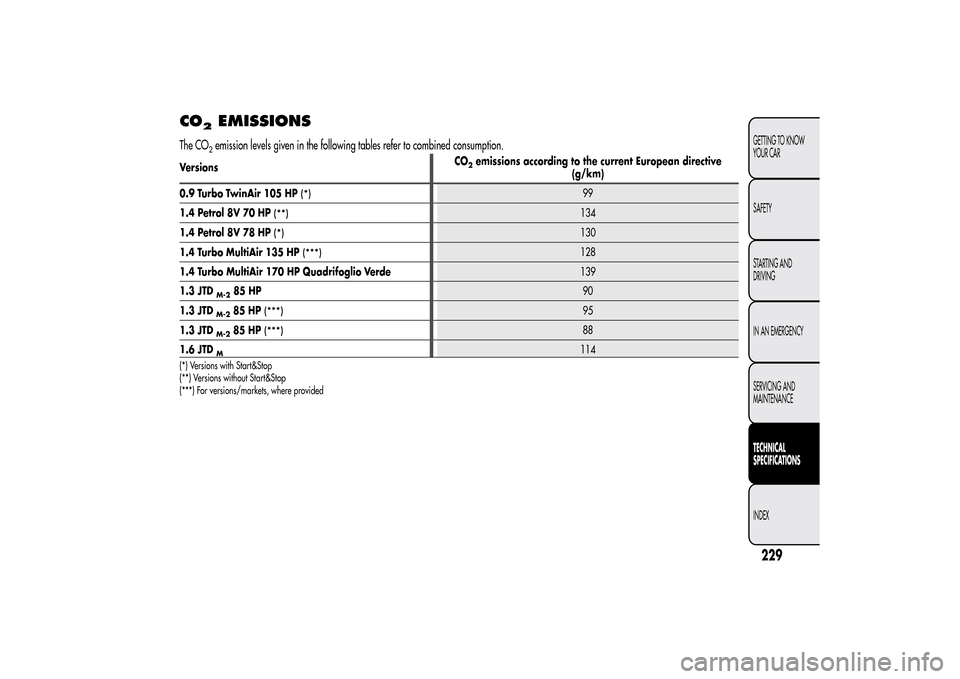

CO
2
EMISSIONS
The CO
2emission levels given in the following tables refer to combined consumption.
VersionsCO
2emissions according to the current European directive
(g/km)
0.9 Turbo TwinAir 105 HP
(*)
99
1.4 Petrol 8V 70 HP
(**)
134
1.4 Petrol 8V 78 HP
(*)
130
1.4 Turbo MultiAir 135 HP
(***)
128
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde139
1.3 JTD
M-2
85 HP90
1.3 JTD
M-2
85 HP
(***)
95
1.3 JTD
M-2
85 HP
(***)
88
1.6 JTD
M
114
(*) Versions with Start&Stop
(**) Versions without Start&Stop
(***) For versions/markets, where provided
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

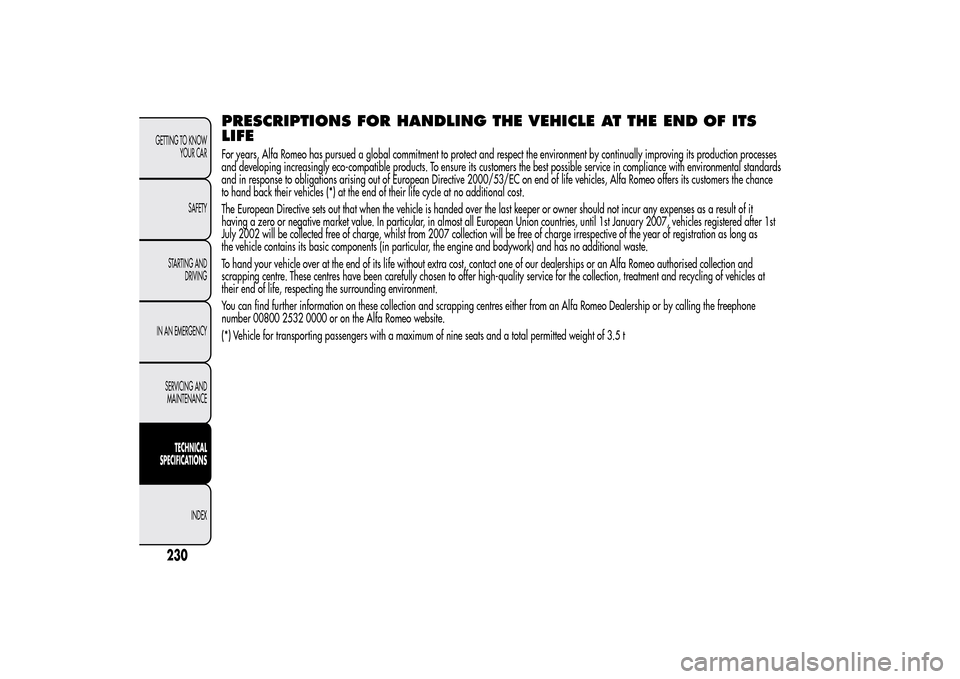

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS
LIFEFor years, Alfa Romeo has pursued a global commitment to protect and respect the environment by continually improving its production processes
and developing increasingly eco-compatible products. To ensure its customers the best possible service in compliance with environmental standards
and in response to obligations arising out of European Directive 2000/53/EC on end of life vehicles, Alfa Romeo offers its customers the chance
to hand back their vehicles (*) at the end of their life cycle at no additional cost.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as a result of it
having a zero or negative market value. In particular, in almost all European Union countries, until 1st January 2007, vehicles registered after 1st
July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as
the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships or an Alfa Romeo authorised collection and
scrapping centre. These centres have been carefully chosen to offer high-quality service for the collection, treatment and recycling of vehicles at
their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo Dealership or by calling the freephone
number 00800 2532 0000 or on the Alfa Romeo website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
230GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

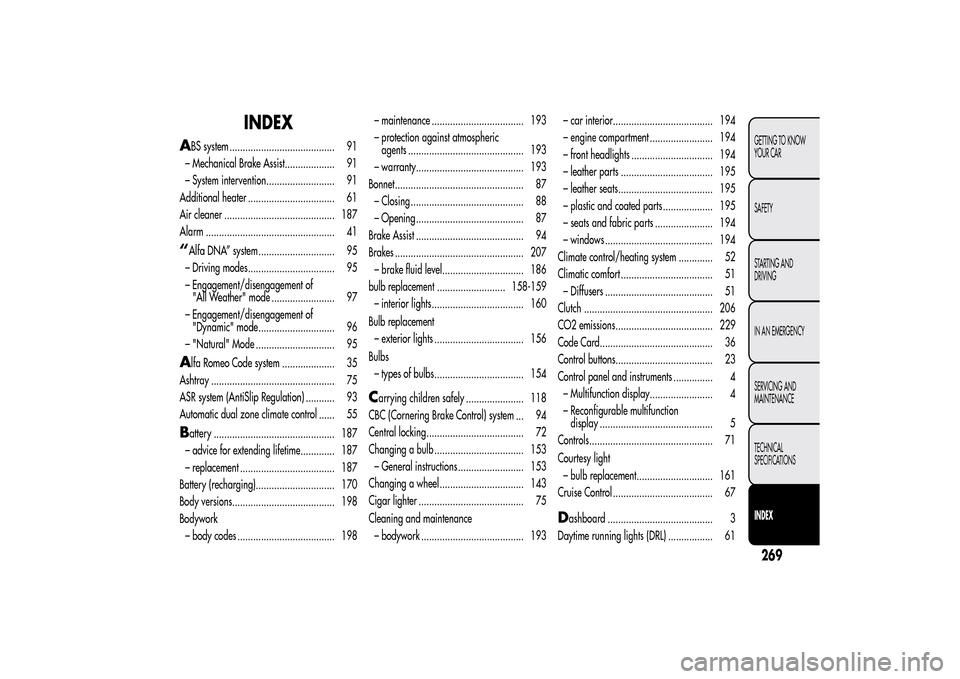

INDEX
A
BS system ........................................ 91
– Mechanical Brake Assist................... 91
– System intervention.......................... 91
Additional heater ................................. 61
Air cleaner .......................................... 187
Alarm ................................................. 41
“Alfa DNA” system ............................. 95
– Driving modes................................. 95
– Engagement/disengagement of
"All Weather" mode ........................ 97
– Engagement/disengagement of
"Dynamic" mode............................. 96
– "Natural" Mode .............................. 95A
lfa Romeo Code system .................... 35
Ashtray ............................................... 75
ASR system (AntiSlip Regulation) ........... 93
Automatic dual zone climate control ...... 55
Battery .............................................. 187
– advice for extending lifetime............. 187
– replacement .................................... 187
Battery (recharging).............................. 170
Body versions....................................... 198
Bodywork
– body codes ..................................... 198– maintenance ................................... 193
– protection against atmospheric
agents ............................................ 193
– warranty......................................... 193
Bonnet................................................. 87
– Closing ........................................... 88
– Opening ......................................... 87
Brake Assist ......................................... 94
Brakes ................................................. 207
– brake fluid level............................... 186
bulb replacement .......................... 158-159
– interior lights................................... 160
Bulb replacement
– exterior lights .................................. 156
Bulbs
– types of bulbs.................................. 154
Carrying children safely ...................... 118
CBC (Cornering Brake Control) system ... 94
Central locking..................................... 72
Changing a bulb .................................. 153
– General instructions ......................... 153
Changing a wheel ................................ 143
Cigar lighter ........................................ 75
Cleaning and maintenance
– bodywork ....................................... 193– car interior...................................... 194
– engine compartment ........................ 194
– front headlights ............................... 194
– leather parts ................................... 195
– leather seats.................................... 195
– plastic and coated parts ................... 195
– seats and fabric parts ...................... 194
– windows ......................................... 194
Climate control/heating system ............. 52
Climatic comfort ................................... 51
– Diffusers ......................................... 51
Clutch ................................................. 206
CO2 emissions..................................... 229
Code Card........................................... 36
Control buttons..................................... 23
Control panel and instruments ............... 4
– Multifunction display........................ 4
– Reconfigurable multifunction
display ........................................... 5
Controls............................................... 71
Courtesy light
– bulb replacement............................. 161
Cruise Control ...................................... 67
Dashboard ........................................ 3
Daytime running lights (DRL) ................. 61
269GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
