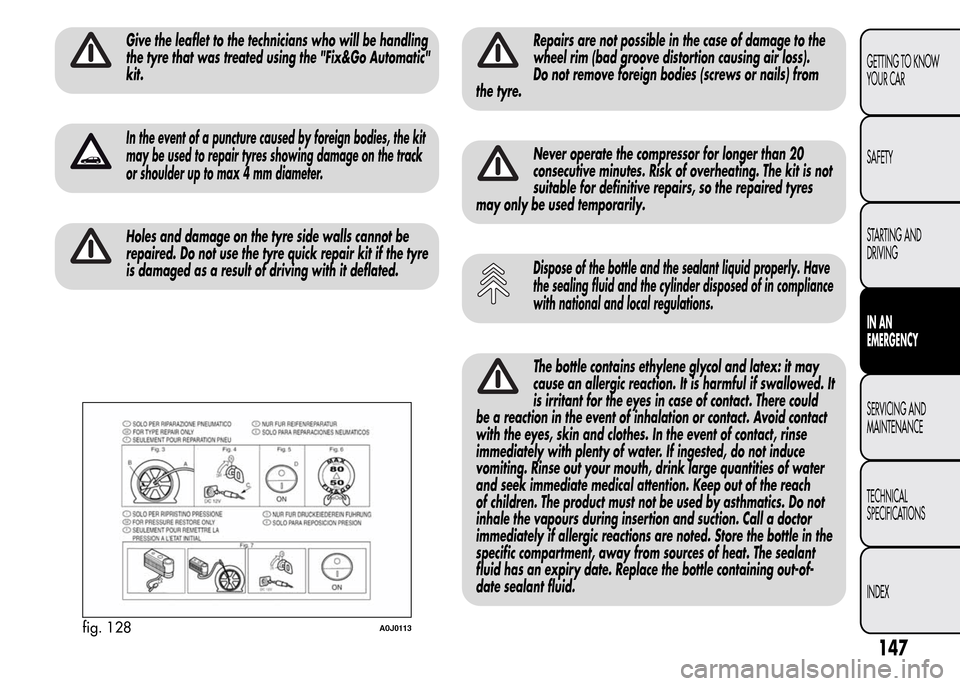

Alfa Romeo MiTo 2016 Owner's Manual

Give the leaflet to the technicians who will be handling
the tyre that was treated using the "Fix&Go Automatic"
kit.
In the event of a puncture caused by foreign bodies, the kit
may be used to repair tyres showing damage on the track
or shoulder up to max 4 mm diameter.
Holes and damage on the tyre side walls cannot be
repaired. Do not use the tyre quick repair kit if the tyre
is damaged as a result of driving with it deflated.
Repairs are not possible in the case of damage to the
wheel rim (bad groove distortion causing air loss).
Do not remove foreign bodies (screws or nails) from
the tyre.
Never operate the compressor for longer than 20
consecutive minutes. Risk of overheating. The kit is not
suitable for definitive repairs, so the repaired tyres
may only be used temporarily.
Dispose of the bottle and the sealant liquid properly. Have
the sealing fluid and the cylinder disposed of in compliance
with national and local regulations.
The bottle contains ethylene glycol and latex: it may
cause an allergic reaction. It is harmful if swallowed. It
is irritant for the eyes in case of contact. There could
be a reaction in the event of inhalation or contact. Avoid contact
with the eyes, skin and clothes. In the event of contact, rinse
immediately with plenty of water. If ingested, do not induce
vomiting. Rinse out your mouth, drink large quantities of water
and seek immediate medical attention. Keep out of the reach
of children. The product must not be used by asthmatics. Do not
inhale the vapours during insertion and suction. Call a doctor
immediately if allergic reactions are noted. Store the bottle in the
specific compartment, away from sources of heat. The sealant
fluid has an expiry date. Replace the bottle containing out-of-
date sealant fluid.
fig. 128A0J0113
147
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

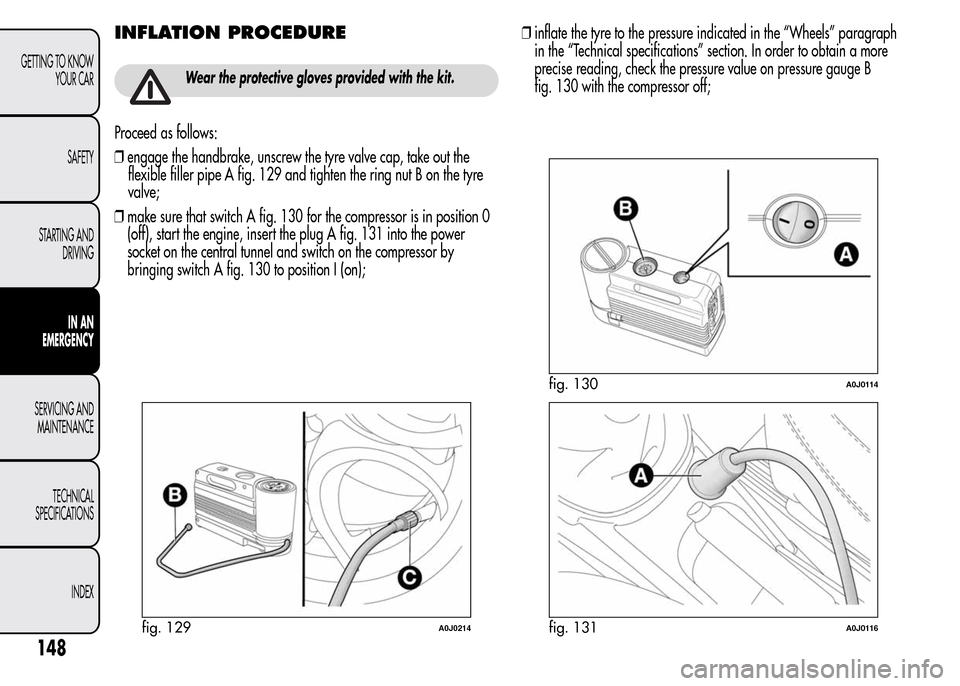

INFLATION PROCEDURE
Wear the protective gloves provided with the kit.
Proceed as follows:
❒engage the handbrake, unscrew the tyre valve cap, take out the
flexible filler pipe A fig. 129 and tighten the ring nut B on the tyre
valve;
❒make sure that switch A fig. 130 for the compressor is in position 0
(off), start the engine, insert the plug A fig. 131 into the power
socket on the central tunnel and switch on the compressor by
bringing switch A fig. 130 to position I (on);❒inflate the tyre to the pressure indicated in the “Wheels” paragraph
in the “Technical specifications” section. In order to obtain a more
precise reading, check the pressure value on pressure gauge B
fig. 130 with the compressor off;
fig. 129A0J0214
fig. 130A0J0114
fig. 131A0J0116
148
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒if after five minutes it is still impossible to reach at least 1.8 bar,
disengage the compressor from the valve and power socket, then
move the car forwards by approx. ten metres in order to distribute
the sealing fluid inside the tyre evenly, then repeat the inflation
operation;
❒if you still cannot obtain a pressure of at least 1.8 bar within 5
minutes from the compressor switching on, do not drive off and
contact Alfa Romeo Authorized Services;
❒after driving for about 10 minutes, stop and check the tyre pressure
again; remember to put the handbrake on;
❒if a pressure value of at least 1.8 bar is detected, restore the correct
pressure (with the engine running and the handbrake engaged),
resume driving and drive with great care to Alfa Romeo Authorized
Services.
Apply the adhesive label where it can be easily seen
by the driver as a reminder that the tyre has been
treated with the quick repair kit. Drive carefully,
particularly on bends. Do not exceed 80 km/h. Do not accelerate
or brake suddenly.
If the pressure has fallen below 1.8 bar, do not drive
any further: the Fix&Go Automatic quick tyre repair kit
cannot guarantee the correct hold because the tyre is
too damaged. Contact Alfa Romeo Authorized Services.
Inform the dealership that the tyre has been repaired
using the quick tyre repair kit. Give the leaflet to the
technicians who will be handling the tyre that was
repaired using the quick repair kit.
149
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

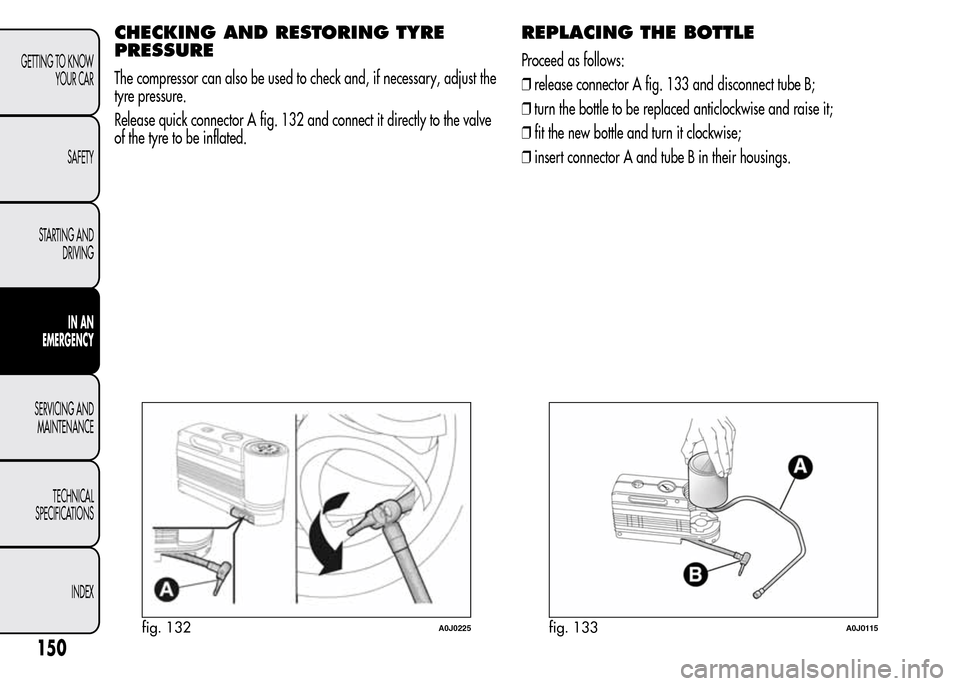

CHECKING AND RESTORING TYRE
PRESSURE
The compressor can also be used to check and, if necessary, adjust the
tyre pressure.
Release quick connector A fig. 132 and connect it directly to the valve
of the tyre to be inflated.
REPLACING THE BOTTLE
Proceed as follows:
❒release connector A fig. 133 and disconnect tube B;
❒turn the bottle to be replaced anticlockwise and raise it;
❒fit the new bottle and turn it clockwise;
❒insert connector A and tube B in their housings.
fig. 132A0J0225fig. 133A0J0115
150
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CHANGING A BULB
GENERAL INSTRUCTIONS
❒Before changing a bulb check the contacts for oxidation;
❒blown bulbs must be replaced with others of the same type and
power;
❒after replacing a headlight bulb, always check its alignment;
❒when a light is not working, check that the corresponding fuse is
intact before changing a bulb. For the location of fuses, refer to
the paragraph “Replacing fuses” in this section.
Halogen bulbs must be handled holding the metal part
only. Touching the transparent part of the bulb with your
fingers may reduce the intensity of the emitted light and
even reduce the lifespan of the bulb. In case of accidental contact, wipe
the bulb with a cloth moistened with alcohol and let the bulb dry.
Modifications or repairs to the electric system that are
not carried out properly or do not take the system
technical specifications into account can cause
malfunctions leading to the risk of fire.
Halogen bulbs contain pressurised gas which may
cause small fragments of glass to be projected
outwards if the bulb is broken.
IMPORTANT When the weather is cold or damp or after heavy rain or
washing, the surface of headlights or rear lights, may steam up and/or
form drops of condensation on the inside. This is a natural
phenomenon due to the difference in temperature and humidity
between the inside and the outside of the glass which does not indicate
a fault and does not compromise the normal operation of lighting
devices. The mist disappears quickly when the lights are turned on,
starting from the centre of the diffuser, extending progressively towards
the edges.
151
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

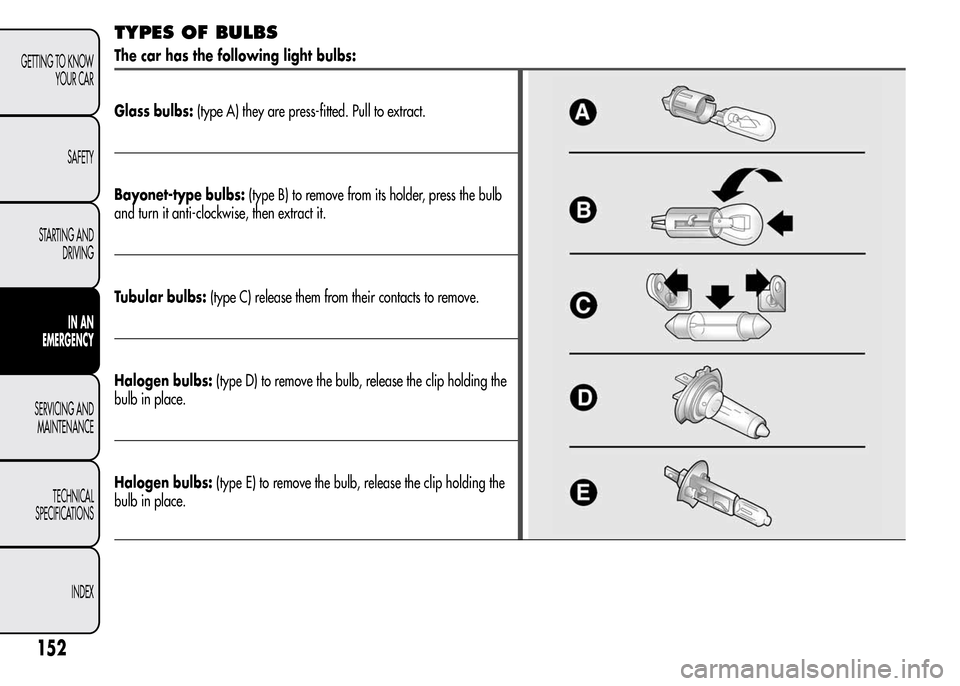

TYPES OF BULBS
The car has the following light bulbs:
Glass bulbs:(type A) they are press-fitted. Pull to extract.
Bayonet-type bulbs:(type B) to remove from its holder, press the bulb
and turn it anti-clockwise, then extract it.
Tubular bulbs:(type C) release them from their contacts to remove.
Halogen bulbs:(type D) to remove the bulb, release the clip holding the
bulb in place.
Halogen bulbs:(type E) to remove the bulb, release the clip holding the
bulb in place.
152
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

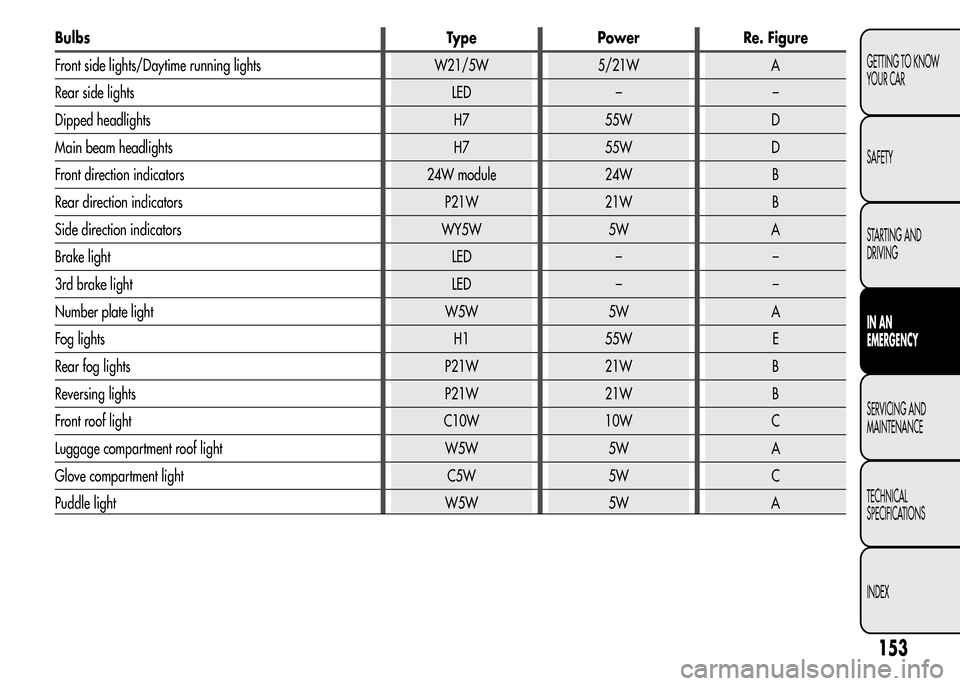

Bulbs Type Power Re. Figure
Front side lights/Daytime running lights W21/5W 5/21W A
Rear side lights LED – –
Dipped headlights H7 55W D
Main beam headlights H7 55W D
Front direction indicators 24W module 24W B
Rear direction indicators P21W 21W B
Side direction indicators WY5W 5W A
Brake light LED – –
3rd brake light LED – –
Number plate light W5W 5W A
Fog lights H1 55W E
Rear fog lights P21W 21W B
Reversing lights P21W 21W B
Front roof light C10W 10W C
Luggage compartment roof light W5W 5W A
Glove compartment light C5W 5W C
Puddle light W5W 5W A
153
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

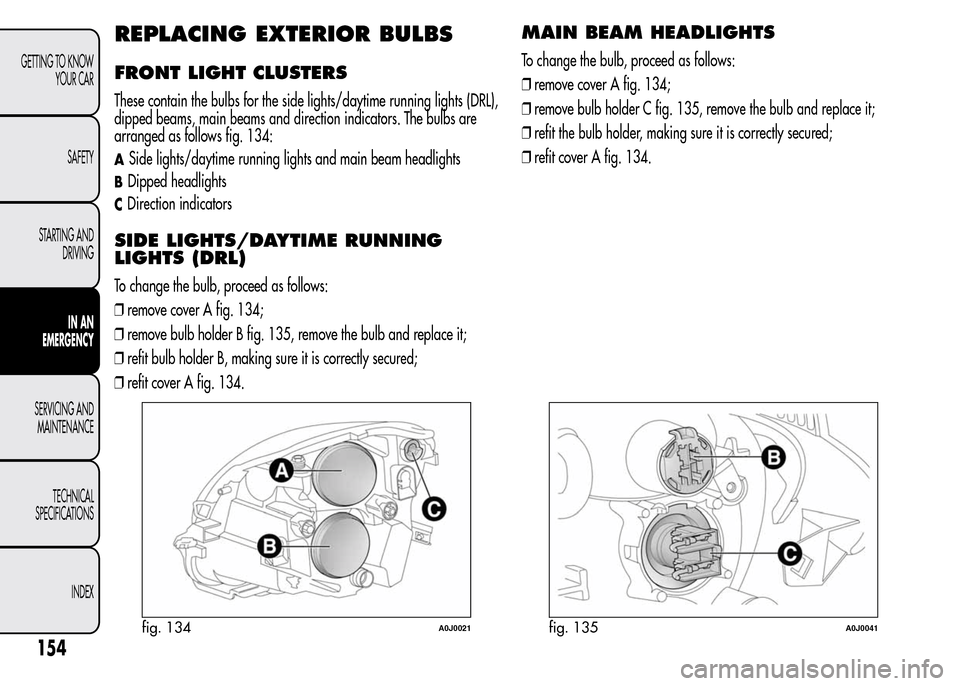

REPLACING EXTERIOR BULBS
FRONT LIGHT CLUSTERS
These contain the bulbs for the side lights/daytime running lights (DRL),
dipped beams, main beams and direction indicators. The bulbs are
arranged as follows fig. 134:
ASide lights/daytime running lights and main beam headlights
BDipped headlights
CDirection indicators
SIDE LIGHTS/DAYTIME RUNNING
LIGHTS (DRL)
To change the bulb, proceed as follows:
❒remove cover A fig. 134;
❒remove bulb holder B fig. 135, remove the bulb and replace it;
❒refit bulb holder B, making sure it is correctly secured;
❒refit cover A fig. 134.
MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove cover A fig. 134;
❒remove bulb holder C fig. 135, remove the bulb and replace it;
❒refit the bulb holder, making sure it is correctly secured;
❒refit cover A fig. 134.
fig. 134A0J0021fig. 135A0J0041
154
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

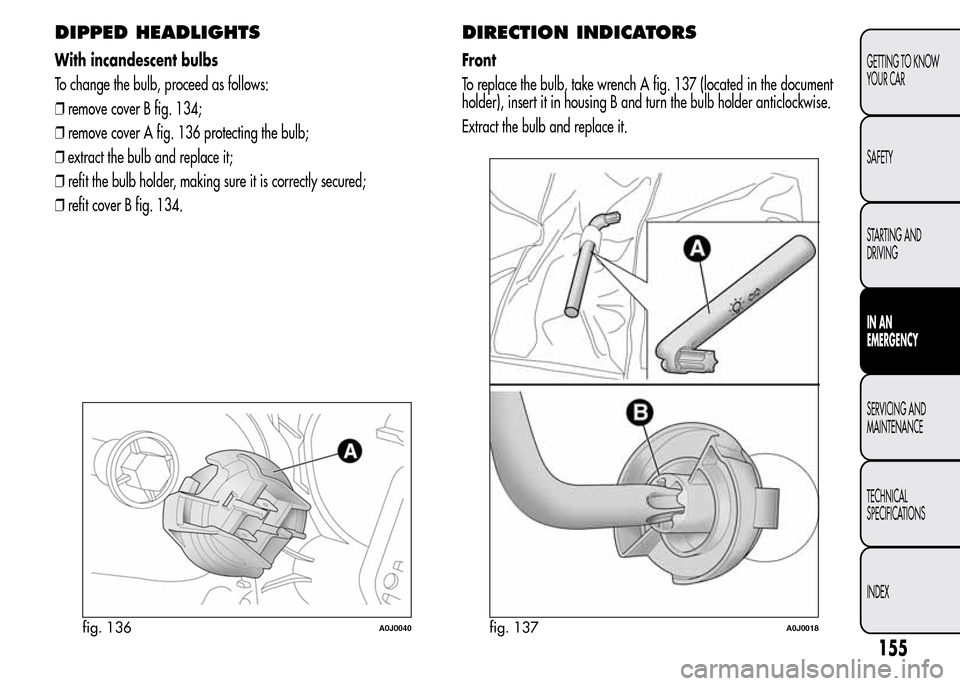

DIPPED HEADLIGHTS
With incandescent bulbs
To change the bulb, proceed as follows:
❒remove cover B fig. 134;
❒remove cover A fig. 136 protecting the bulb;
❒extract the bulb and replace it;
❒refit the bulb holder, making sure it is correctly secured;
❒refit cover B fig. 134.
DIRECTION INDICATORS
Front
To replace the bulb, take wrench A fig. 137 (located in the document
holder), insert it in housing B and turn the bulb holder anticlockwise.
Extract the bulb and replace it.
fig. 136A0J0040fig. 137A0J0018
155
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

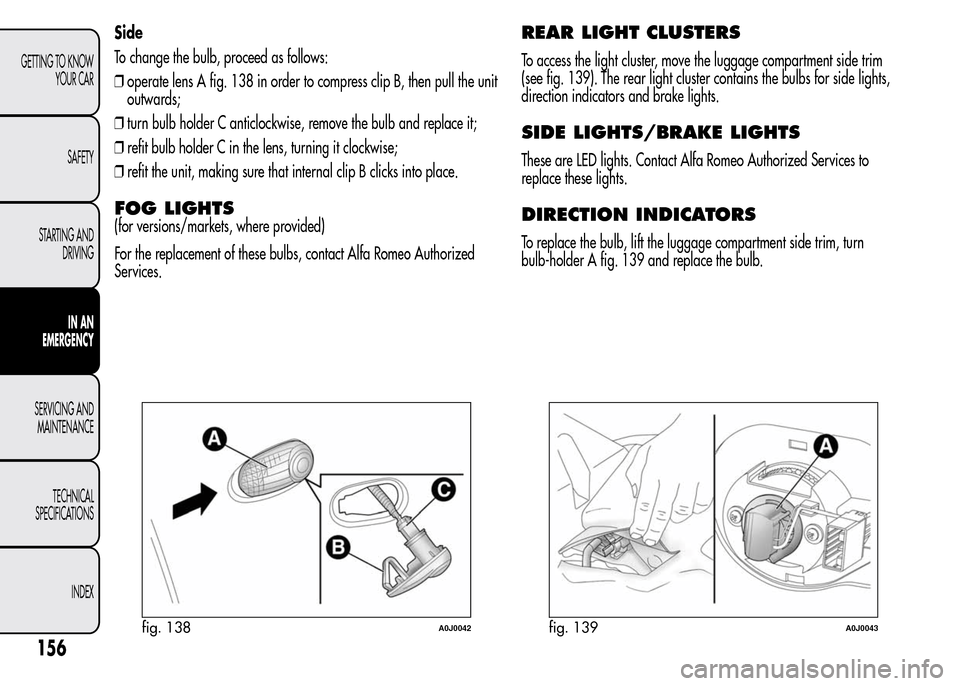

Side
To change the bulb, proceed as follows:
❒operate lens A fig. 138 in order to compress clip B, then pull the unit
outwards;
❒turn bulb holder C anticlockwise, remove the bulb and replace it;
❒refit bulb holder C in the lens, turning it clockwise;
❒refit the unit, making sure that internal clip B clicks into place.
FOG LIGHTS
(for versions/markets, where provided)
For the replacement of these bulbs, contact Alfa Romeo Authorized
Services.
REAR LIGHT CLUSTERS
To access the light cluster, move the luggage compartment side trim
(see fig. 139). The rear light cluster contains the bulbs for side lights,
direction indicators and brake lights.
SIDE LIGHTS/BRAKE LIGHTS
These are LED lights. Contact Alfa Romeo Authorized Services to
replace these lights.
DIRECTION INDICATORS
To replace the bulb, lift the luggage compartment side trim, turn
bulb-holder A fig. 139 and replace the bulb.
fig. 138A0J0042fig. 139A0J0043
