Alfa Romeo MiTo 2016 Workshop Manual

REAR VIEW MIRRORS
INTERNAL MIRROR
Operate lever A fig. 28 to adjust the mirror into two different positions:
normal or anti-glare.
Electrochromic interior mirror
(for versions/markets, where provided)
Some versions feature an electrochromic mirror fig. 29 with an
ON/OFF switch to activate/deactivate the electrochromic function.
When reverse gear is engaged, the mirror is automatically set for
daytime use.
DOOR MIRRORS
As the driver's door mirror is curved, it may slightly
alter the perception of distance.
Mirror adjustment
The mirrors can only be adjusted/folded with the ignition in the MAR
position.
Choose the desired mirror using device A fig. 30:
❒device in position 1: left mirror selected
❒device in position 2: right mirror selected.
To adjust the selected mirror, press B button in the four directions
shown by the arrows.
IMPORTANT Once adjustment is complete, rotate device A to position
0 to prevent accidental movements.
fig. 28A0J0108fig. 29A0J0336
47
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

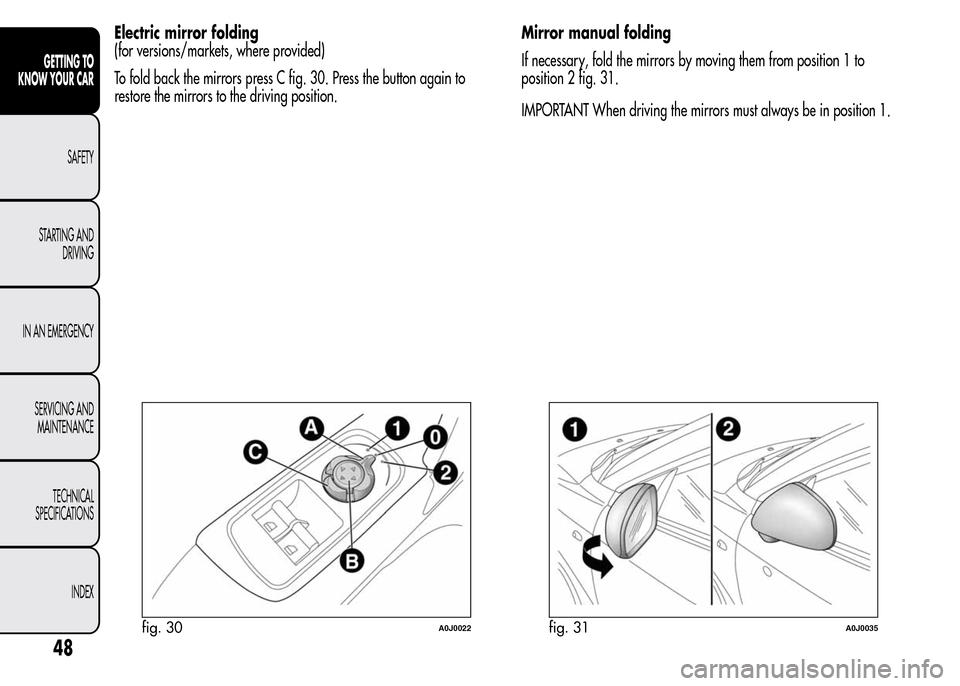

Electric mirror folding
(for versions/markets, where provided)
To fold back the mirrors press C fig. 30. Press the button again to
restore the mirrors to the driving position.Mirror manual folding
If necessary, fold the mirrors by moving them from position 1 to
position 2 fig. 31.
IMPORTANT When driving the mirrors must always be in position 1.
fig. 30A0J0022fig. 31A0J0035
48
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

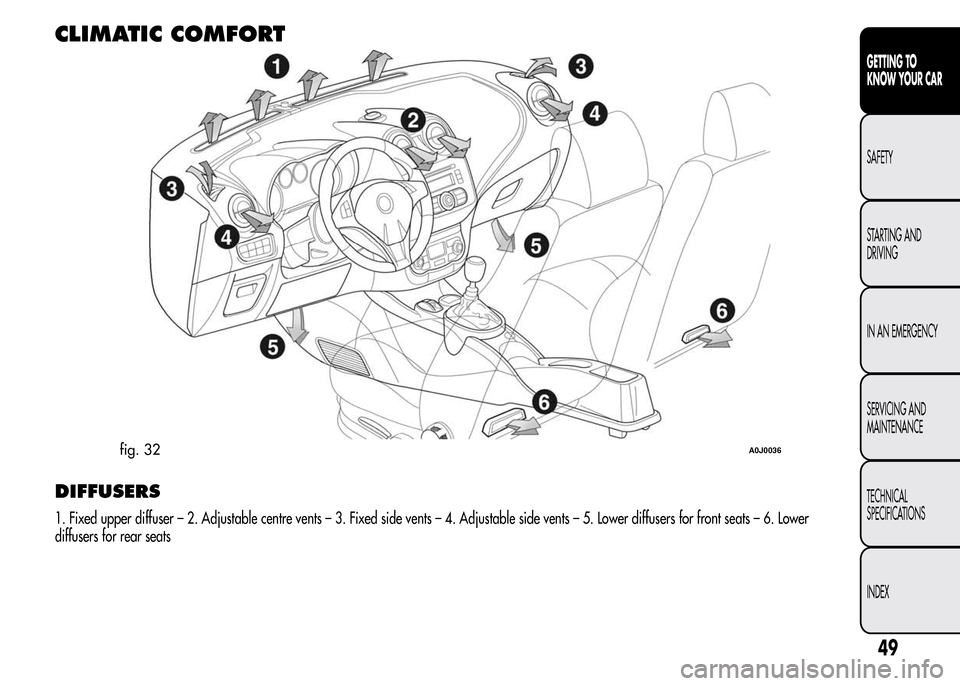

CLIMATIC COMFORT
DIFFUSERS
1. Fixed upper diffuser – 2. Adjustable centre vents – 3. Fixed side vents – 4. Adjustable side vents – 5. Lower diffusers for front seats – 6. Lower
diffusers for rear seats
fig. 32A0J0036
49
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

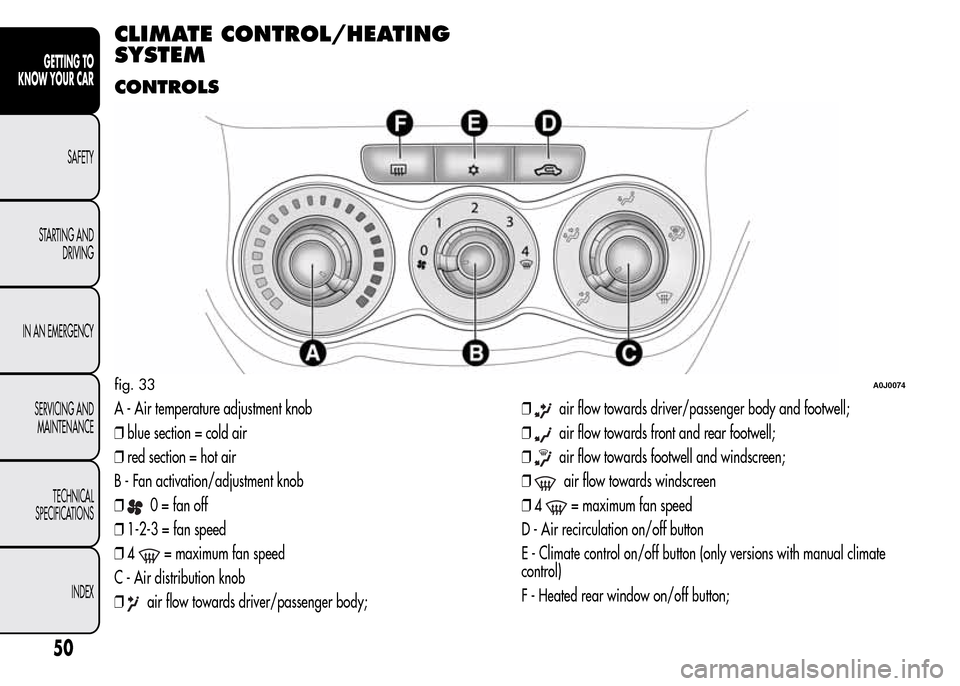

CLIMATE CONTROL/HEATING
SYSTEM
CONTROLS
A - Air temperature adjustment knob
❒blue section = cold air
❒red section = hot air
B - Fan activation/adjustment knob
❒
0 = fan off
❒1-2-3 = fan speed
❒4
= maximum fan speed
C - Air distribution knob
❒
air flow towards driver/passenger body;❒
air flow towards driver/passenger body and footwell;
❒
air flow towards front and rear footwell;
❒
air flow towards footwell and windscreen;
❒
air flow towards windscreen
❒4
= maximum fan speed
D - Air recirculation on/off button
E - Climate control on/off button (only versions with manual climate
control)
F - Heated rear window on/off button;
fig. 33A0J0074
50
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

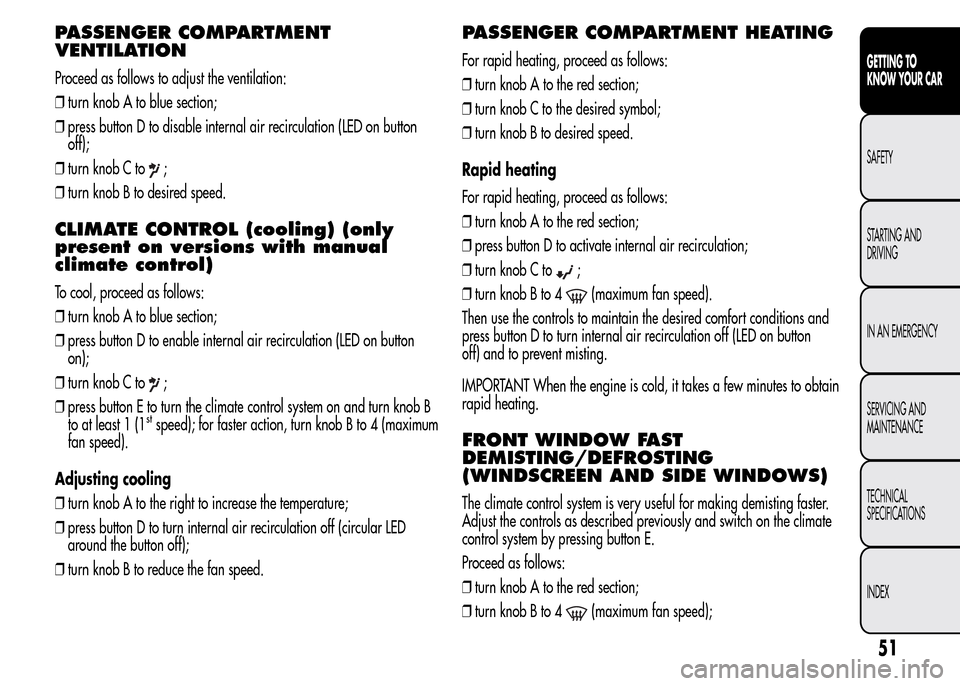

PASSENGER COMPARTMENT
VENTILATION
Proceed as follows to adjust the ventilation:
❒turn knob A to blue section;
❒press button D to disable internal air recirculation (LED on button
off);
❒turn knob C to
;
❒turn knob B to desired speed.
CLIMATE CONTROL (cooling) (only
present on versions with manual
climate control)
To cool, proceed as follows:
❒turn knob A to blue section;
❒press button D to enable internal air recirculation (LED on button
on);
❒turn knob C to
;
❒press button E to turn the climate control system on and turn knob B
to at least 1 (1
stspeed); for faster action, turn knob B to 4 (maximum
fan speed).
Adjusting cooling
❒turn knob A to the right to increase the temperature;
❒press button D to turn internal air recirculation off (circular LED
around the button off);
❒turn knob B to reduce the fan speed.
PASSENGER COMPARTMENT HEATING
For rapid heating, proceed as follows:
❒turn knob A to the red section;
❒turn knob C to the desired symbol;
❒turn knob B to desired speed.
Rapid heating
For rapid heating, proceed as follows:
❒turn knob A to the red section;
❒press button D to activate internal air recirculation;
❒turn knob C to
;
❒turn knob B to 4
(maximum fan speed).
Then use the controls to maintain the desired comfort conditions and
press button D to turn internal air recirculation off (LED on button
off) and to prevent misting.
IMPORTANT When the engine is cold, it takes a few minutes to obtain
rapid heating.
FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE WINDOWS)
The climate control system is very useful for making demisting faster.
Adjust the controls as described previously and switch on the climate
control system by pressing button E.
Proceed as follows:
❒turn knob A to the red section;
❒turn knob B to 4
(maximum fan speed);
51
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

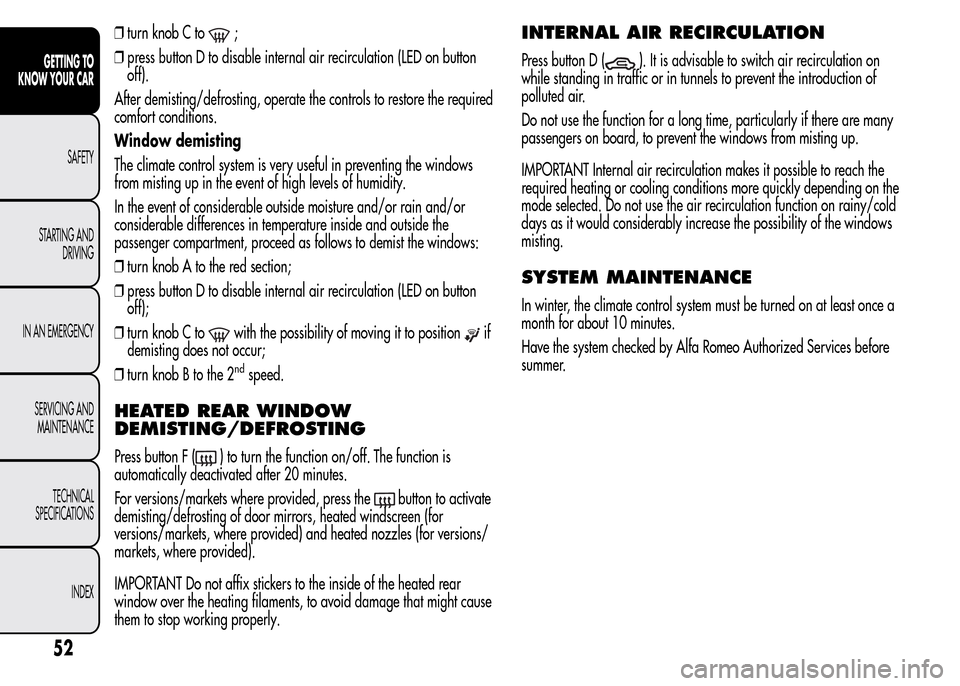

❒turn knob C to;
❒press button D to disable internal air recirculation (LED on button
off).
After demisting/defrosting, operate the controls to restore the required
comfort conditions.
Window demisting
The climate control system is very useful in preventing the windows
from misting up in the event of high levels of humidity.
In the event of considerable outside moisture and/or rain and/or
considerable differences in temperature inside and outside the
passenger compartment, proceed as follows to demist the windows:
❒turn knob A to the red section;
❒press button D to disable internal air recirculation (LED on button
off);
❒turn knob C to
with the possibility of moving it to positionif
demisting does not occur;
❒turn knob B to the 2
ndspeed.
HEATED REAR WINDOW
DEMISTING/DEFROSTING
Press button F () to turn the function on/off. The function is
automatically deactivated after 20 minutes.
For versions/markets where provided, press the
button to activate
demisting/defrosting of door mirrors, heated windscreen (for
versions/markets, where provided) and heated nozzles (for versions/
markets, where provided).
IMPORTANT Do not affix stickers to the inside of the heated rear
window over the heating filaments, to avoid damage that might cause
them to stop working properly.
INTERNAL AIR RECIRCULATION
Press button D (). It is advisable to switch air recirculation on
while standing in traffic or in tunnels to prevent the introduction of
polluted air.
Do not use the function for a long time, particularly if there are many
passengers on board, to prevent the windows from misting up.
IMPORTANT Internal air recirculation makes it possible to reach the
required heating or cooling conditions more quickly depending on the
mode selected. Do not use the air recirculation function on rainy/cold
days as it would considerably increase the possibility of the windows
misting.
SYSTEM MAINTENANCE
In winter, the climate control system must be turned on at least once a
month for about 10 minutes.
Have the system checked by Alfa Romeo Authorized Services before
summer.
52
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

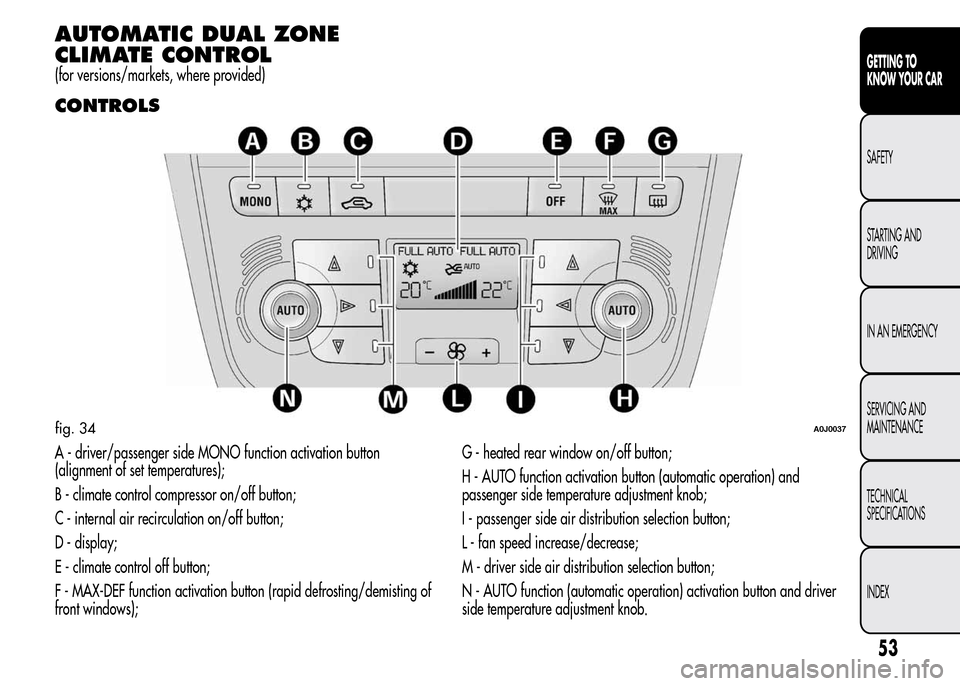

AUTOMATIC DUAL ZONE
CLIMATE CONTROL
(for versions/markets, where provided)
CONTROLS
A - driver/passenger side MONO function activation button
(alignment of set temperatures);
B - climate control compressor on/off button;
C - internal air recirculation on/off button;
D - display;
E - climate control off button;
F - MAX-DEF function activation button (rapid defrosting/demisting of
front windows);G - heated rear window on/off button;
H - AUTO function activation button (automatic operation) and
passenger side temperature adjustment knob;
I - passenger side air distribution selection button;
L - fan speed increase/decrease;
M - driver side air distribution selection button;
N - AUTO function (automatic operation) activation button and driver
side temperature adjustment knob.
fig. 34A0J0037
53
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

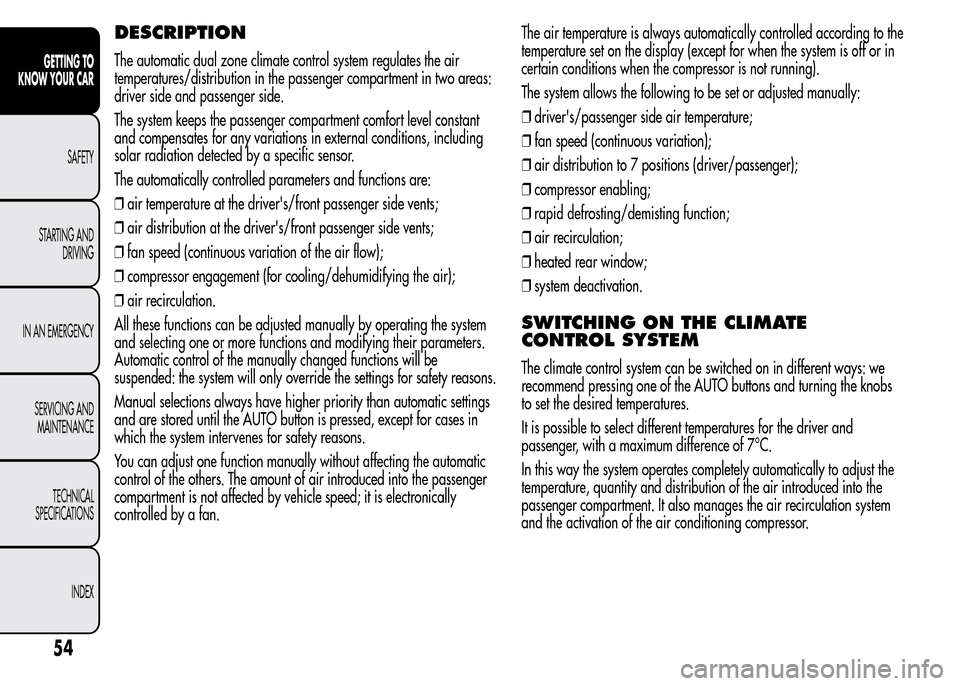

DESCRIPTION
The automatic dual zone climate control system regulates the air
temperatures/distribution in the passenger compartment in two areas:
driver side and passenger side.
The system keeps the passenger compartment comfort level constant
and compensates for any variations in external conditions, including
solar radiation detected by a specific sensor.
The automatically controlled parameters and functions are:
❒air temperature at the driver's/front passenger side vents;
❒air distribution at the driver's/front passenger side vents;
❒fan speed (continuous variation of the air flow);
❒compressor engagement (for cooling/dehumidifying the air);
❒air recirculation.
All these functions can be adjusted manually by operating the system
and selecting one or more functions and modifying their parameters.
Automatic control of the manually changed functions will be
suspended: the system will only override the settings for safety reasons.
Manual selections always have higher priority than automatic settings
and are stored until the AUTO button is pressed, except for cases in
which the system intervenes for safety reasons.
You can adjust one function manually without affecting the automatic
control of the others. The amount of air introduced into the passenger
compartment is not affected by vehicle speed; it is electronically
controlled by a fan.The air temperature is always automatically controlled according to the
temperature set on the display (except for when the system is off or in
certain conditions when the compressor is not running).
The system allows the following to be set or adjusted manually:
❒driver's/passenger side air temperature;
❒fan speed (continuous variation);
❒air distribution to 7 positions (driver/passenger);
❒compressor enabling;
❒rapid defrosting/demisting function;
❒air recirculation;
❒heated rear window;
❒system deactivation.
SWITCHING ON THE CLIMATE
CONTROL SYSTEM
The climate control system can be switched on in different ways: we
recommend pressing one of the AUTO buttons and turning the knobs
to set the desired temperatures.
It is possible to select different temperatures for the driver and
passenger, with a maximum difference of 7°C.
In this way the system operates completely automatically to adjust the
temperature, quantity and distribution of the air introduced into the
passenger compartment. It also manages the air recirculation system
and the activation of the air conditioning compressor.
54
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

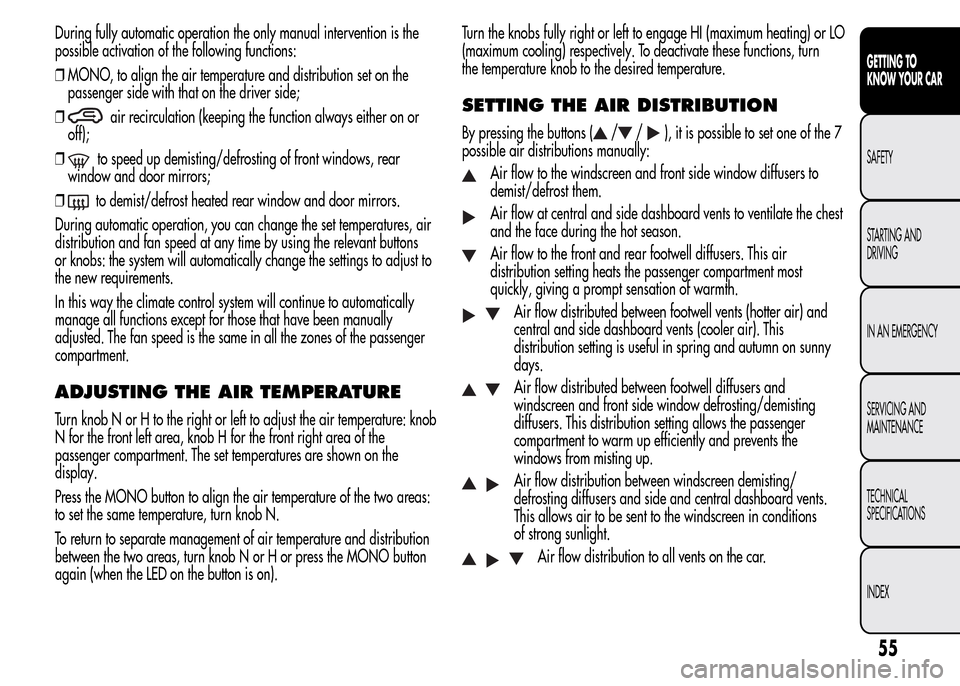

During fully automatic operation the only manual intervention is the
possible activation of the following functions:
❒MONO, to align the air temperature and distribution set on the
passenger side with that on the driver side;
❒
air recirculation (keeping the function always either on or
off);
❒
to speed up demisting/defrosting of front windows, rear
window and door mirrors;
❒
to demist/defrost heated rear window and door mirrors.
During automatic operation, you can change the set temperatures, air
distribution and fan speed at any time by using the relevant buttons
or knobs: the system will automatically change the settings to adjust to
the new requirements.
In this way the climate control system will continue to automatically
manage all functions except for those that have been manually
adjusted. The fan speed is the same in all the zones of the passenger
compartment.
ADJUSTING THE AIR TEMPERATURE
Turn knob N or H to the right or left to adjust the air temperature: knob
N for the front left area, knob H for the front right area of the
passenger compartment. The set temperatures are shown on the
display.
Press the MONO button to align the air temperature of the two areas:
to set the same temperature, turn knob N.
To return to separate management of air temperature and distribution
between the two areas, turn knob N or H or press the MONO button
again (when the LED on the button is on).Turn the knobs fully right or left to engage HI (maximum heating) or LO
(maximum cooling) respectively. To deactivate these functions, turn
the temperature knob to the desired temperature.
SETTING THE AIR DISTRIBUTION
By pressing the buttons (//), it is possible to set one of the 7
possible air distributions manually:
Air flow to the windscreen and front side window diffusers to
demist/defrost them.
Air flow at central and side dashboard vents to ventilate the chest
and the face during the hot season.
Air flow to the front and rear footwell diffusers. This air
distribution setting heats the passenger compartment most
quickly, giving a prompt sensation of warmth.
Air flow distributed between footwell vents (hotter air) and
central and side dashboard vents (cooler air). This
distribution setting is useful in spring and autumn on sunny
days.
Air flow distributed between footwell diffusers and
windscreen and front side window defrosting/demisting
diffusers. This distribution setting allows the passenger
compartment to warm up efficiently and prevents the
windows from misting up.
Air flow distribution between windscreen demisting/
defrosting diffusers and side and central dashboard vents.
This allows air to be sent to the windscreen in conditions
of strong sunlight.
Air flow distribution to all vents on the car.
55
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

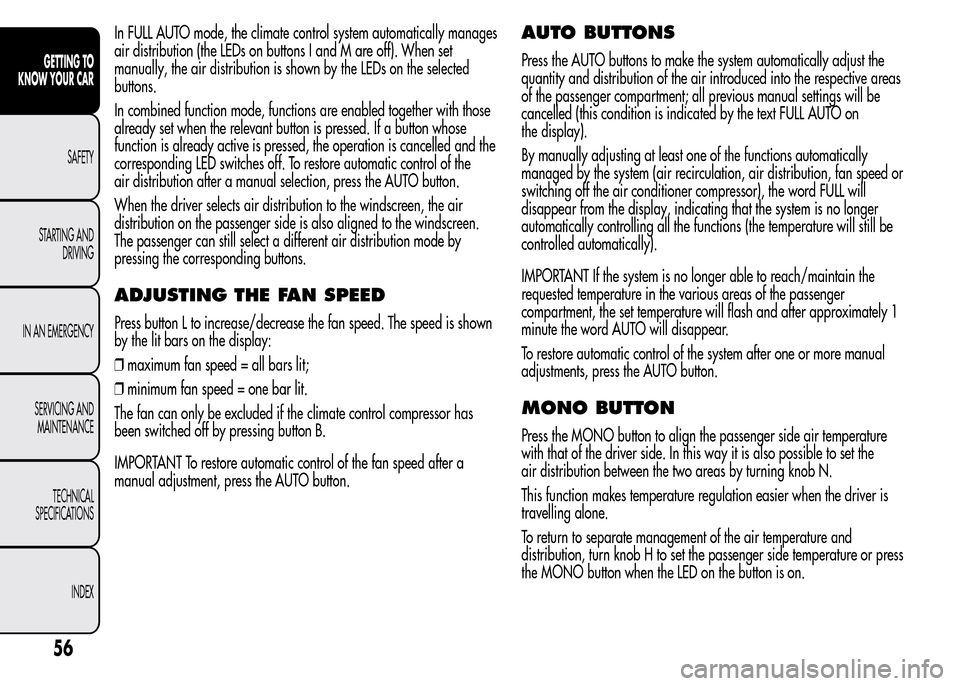

In FULL AUTO mode, the climate control system automatically manages
air distribution (the LEDs on buttons I and M are off). When set
manually, the air distribution is shown by the LEDs on the selected
buttons.
In combined function mode, functions are enabled together with those
already set when the relevant button is pressed. If a button whose
function is already active is pressed, the operation is cancelled and the
corresponding LED switches off. To restore automatic control of the
air distribution after a manual selection, press the AUTO button.
When the driver selects air distribution to the windscreen, the air
distribution on the passenger side is also aligned to the windscreen.
The passenger can still select a different air distribution mode by
pressing the corresponding buttons.
ADJUSTING THE FAN SPEED
Press button L to increase/decrease the fan speed. The speed is shown
by the lit bars on the display:
❒maximum fan speed = all bars lit;
❒minimum fan speed = one bar lit.
The fan can only be excluded if the climate control compressor has
been switched off by pressing button B.
IMPORTANT To restore automatic control of the fan speed after a
manual adjustment, press the AUTO button.
AUTO BUTTONS
Press the AUTO buttons to make the system automatically adjust the
quantity and distribution of the air introduced into the respective areas
of the passenger compartment; all previous manual settings will be
cancelled (this condition is indicated by the text FULL AUTO on
the display).
By manually adjusting at least one of the functions automatically
managed by the system (air recirculation, air distribution, fan speed or
switching off the air conditioner compressor), the word FULL will
disappear from the display, indicating that the system is no longer
automatically controlling all the functions (the temperature will still be
controlled automatically).
IMPORTANT If the system is no longer able to reach/maintain the
requested temperature in the various areas of the passenger
compartment, the set temperature will flash and after approximately 1
minute the word AUTO will disappear.
To restore automatic control of the system after one or more manual
adjustments, press the AUTO button.
MONO BUTTON
Press the MONO button to align the passenger side air temperature
with that of the driver side. In this way it is also possible to set the
air distribution between the two areas by turning knob N.
This function makes temperature regulation easier when the driver is
travelling alone.
To return to separate management of the air temperature and
distribution, turn knob H to set the passenger side temperature or press
the MONO button when the LED on the button is on.
56
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
