Page 251 of 276

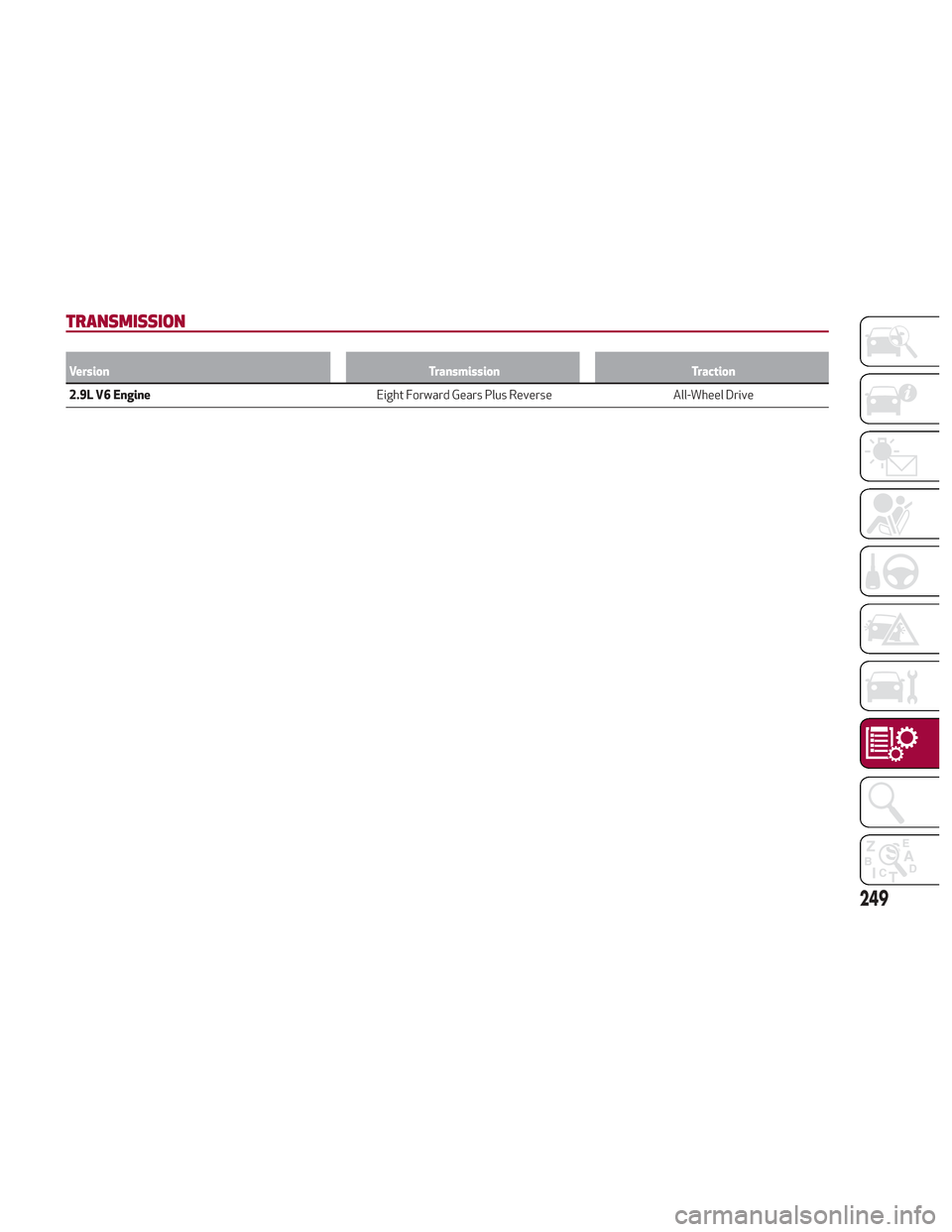

Alfa Romeo Stelvio 2018  Owners Manual TRANSMISSION
VersionTransmissionTraction
2.9L V6 Engine Eight
 Forward Gears Plus ReverseAll-Wheel Drive
249

Page 252 of 276

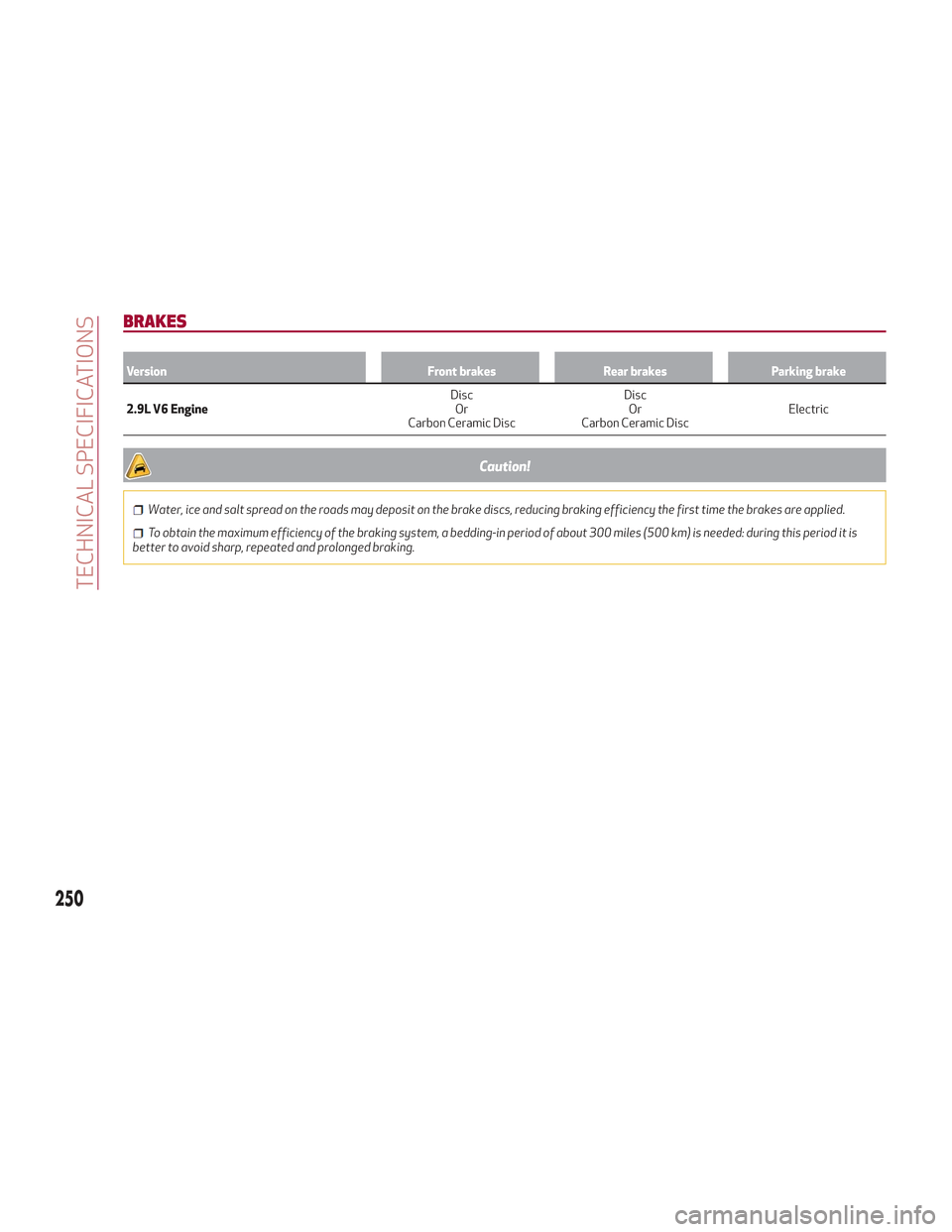

Alfa Romeo Stelvio 2018  Owners Manual BRAKES
VersionFront brakesRear brakesParking brake
2.9L V6 Engine Disc
Or
Carbon
 Ceramic DiscDisc
Or
Carbon Ceramic Disc Electric
Caution!
Water, ice and salt spread on the roads may deposit on the b

Page 253 of 276

Alfa Romeo Stelvio 2018  Owners Manual SUSPENSION
VersionFrontRear
2.9L V6 Engine Independent
 wheel double-wishbone
suspension Independent wheel with multilink system
251

Page 254 of 276

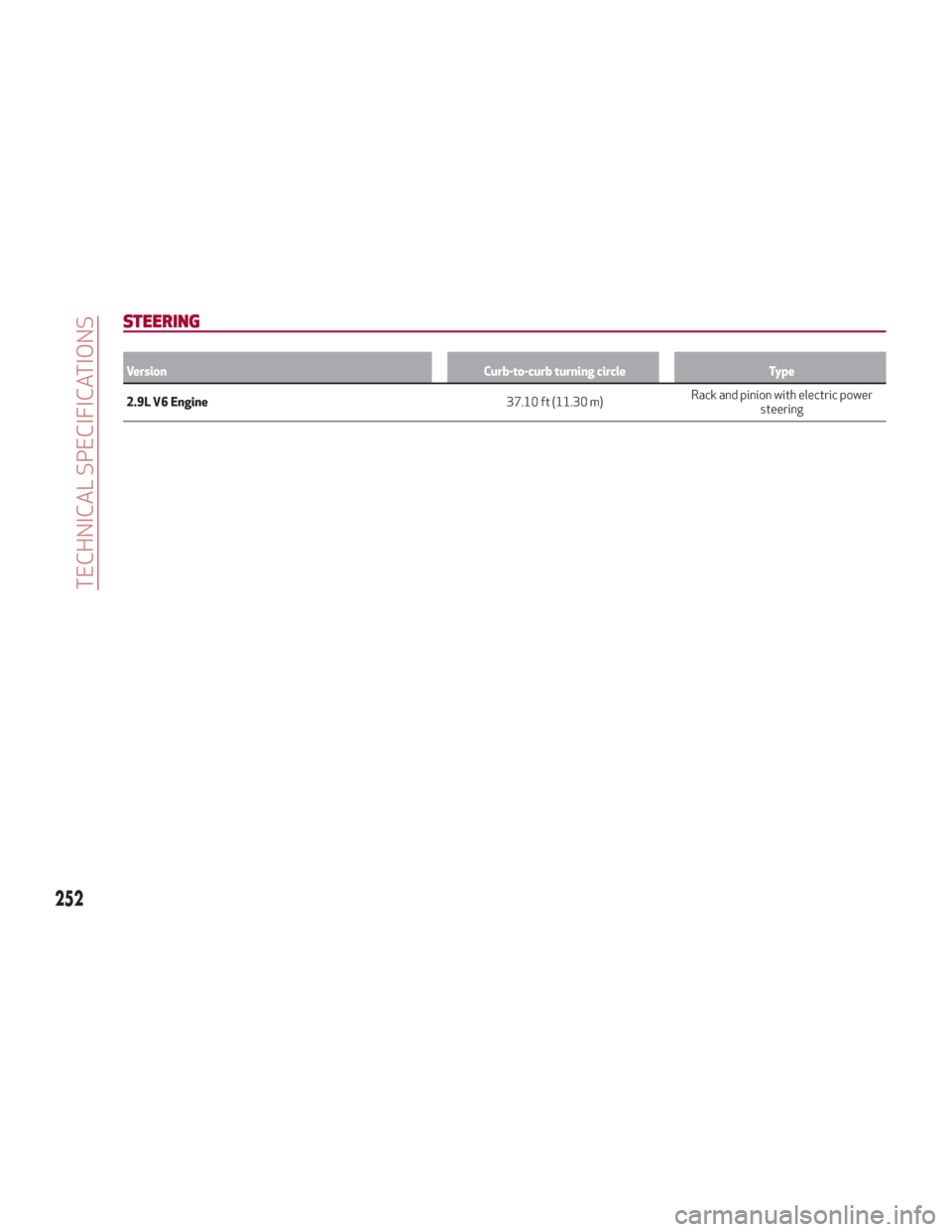

Alfa Romeo Stelvio 2018  Owners Manual STEERING
VersionCurb-to-curb turning circleType
2.9L V6 Engine 37.10
 ft (11.30 m)Rack and pinion with electric power
steering
252
TECHNICAL SPECIFICATIONS

Page 255 of 276

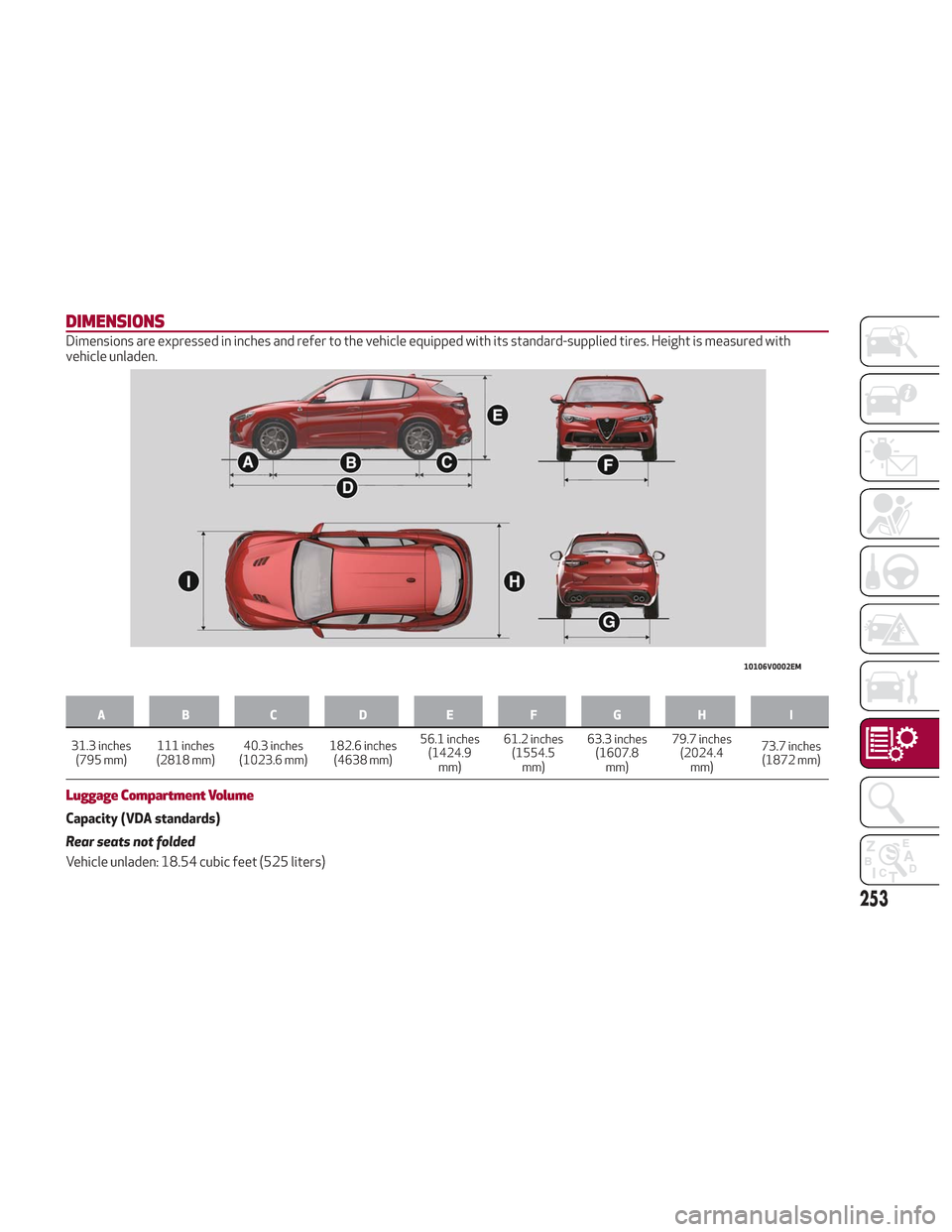

Alfa Romeo Stelvio 2018  Owners Manual DIMENSIONS
Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with
vehicle unladen.
AB C D EFGH I
31.3 inches (795
 mm) 111 inche

Page 256 of 276

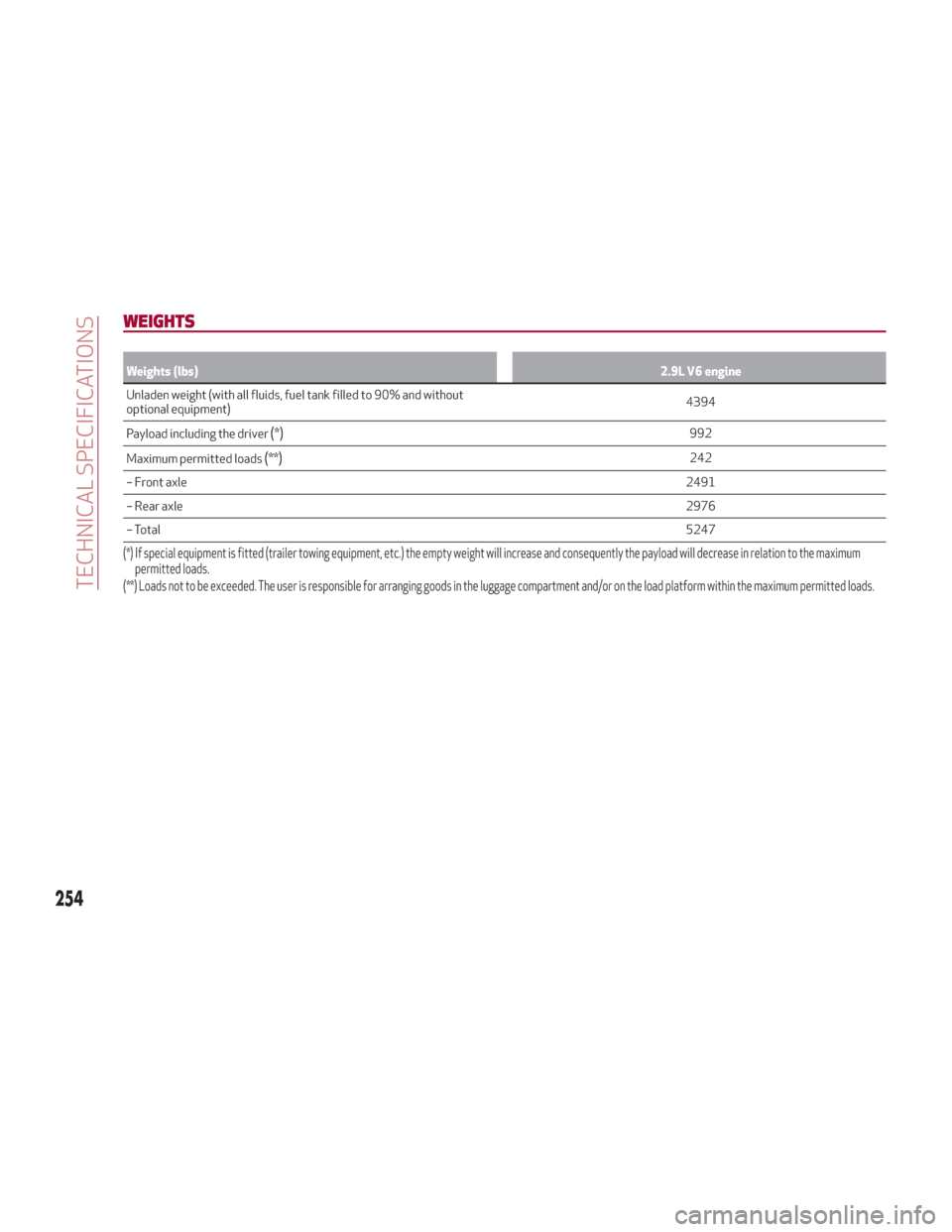

Alfa Romeo Stelvio 2018  Owners Manual WEIGHTS
Weights (lbs)2.9L V6 engine
Unladen weight (with all fluids, fuel tank filled to 90% and without
optional
 equipment) 4394
Payload including the driver
(*)992
Maximum permitted loads
(**)242
â

Page 257 of 276

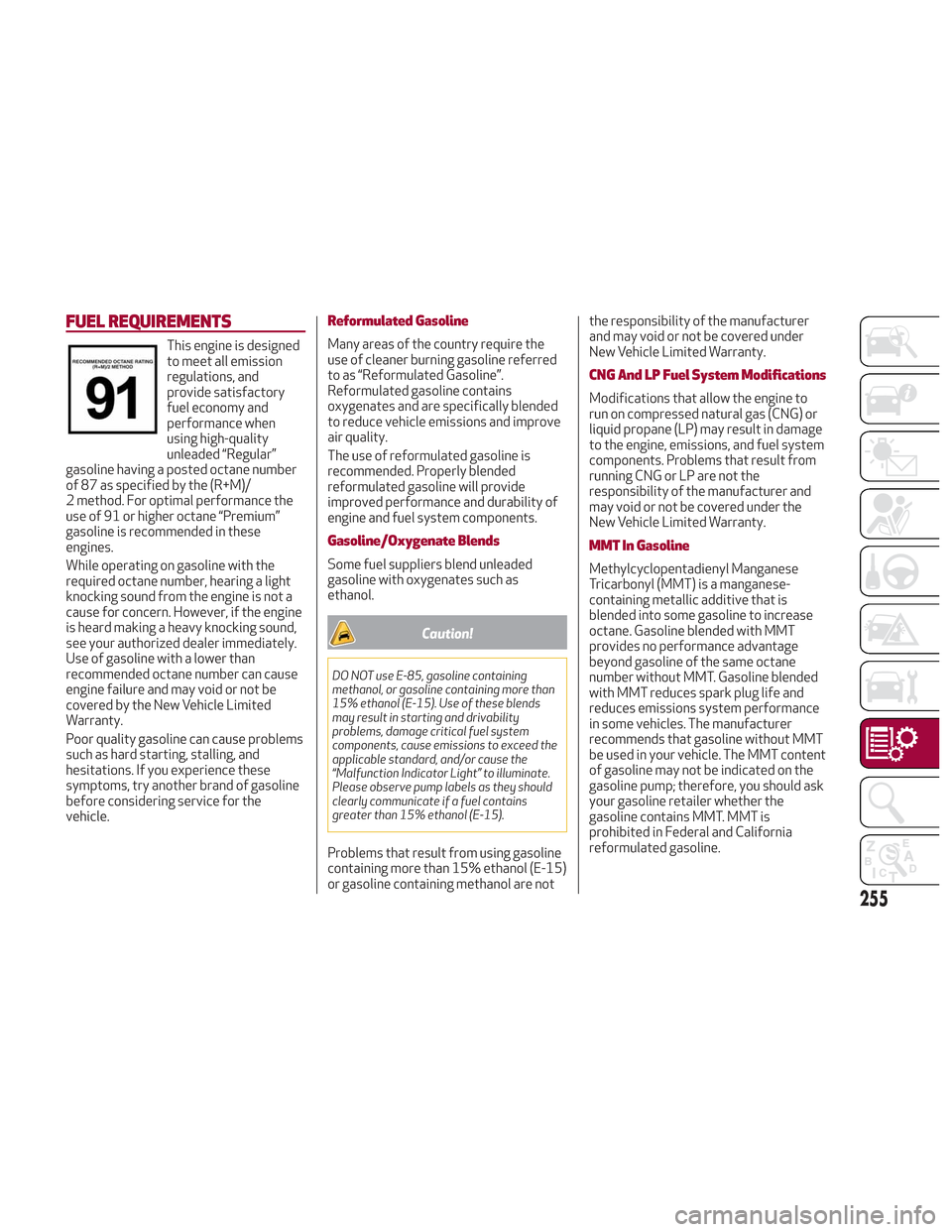

Alfa Romeo Stelvio 2018  Owners Manual FUEL REQUIREMENTS
This engine is designed
to meet all emission
regulations, and
provide satisfactory
fuel economy and
performance when
using high-quality
unleaded “Regular”
gasoline having a poste

Page 258 of 276

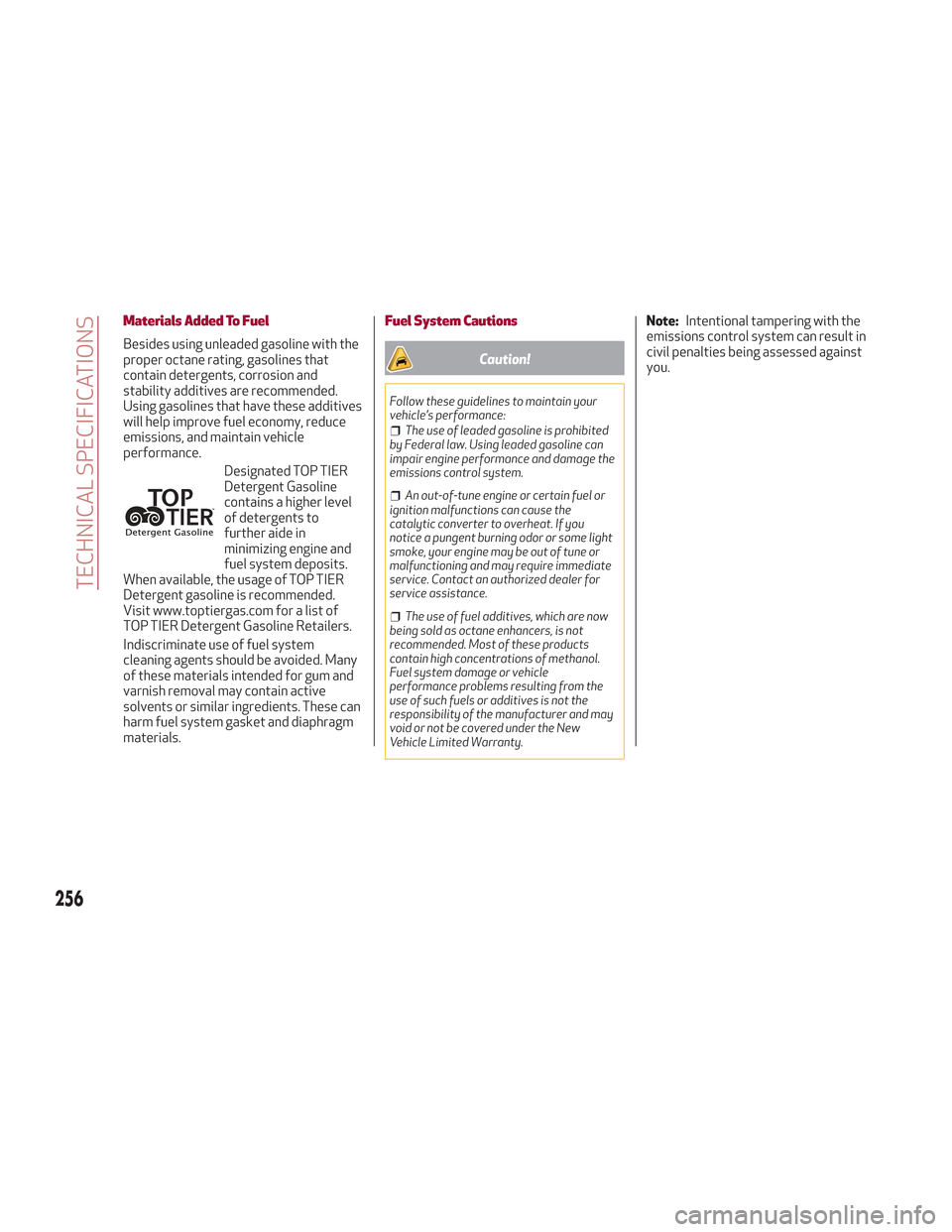

Alfa Romeo Stelvio 2018  Owners Manual Materials Added To Fuel
Besides using unleaded gasoline with the
proper octane rating, gasolines that
contain detergents, corrosion and
stability additives are recommended.
Using gasolines that have t

Page 259 of 276

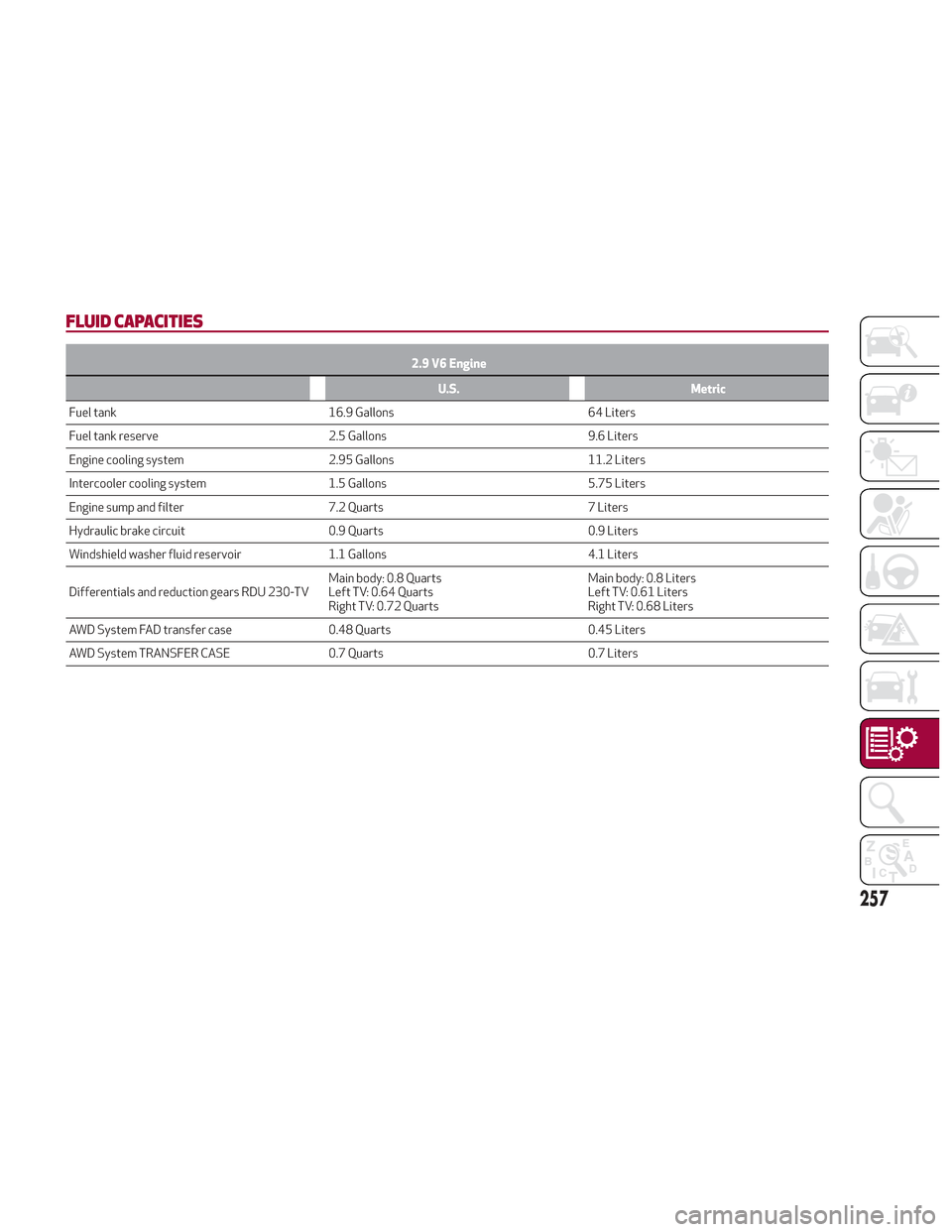

Alfa Romeo Stelvio 2018  Owners Manual FLUID CAPACITIES
2.9 V6 EngineU.S. Metric
Fuel tank 16.9 Gallons64 Liters
Fuel
 tank reserve 2.5 Gallons 9.6 Liters
Engine cooling system 2.95 Gallons11.2 Liters
Intercooler cooling system 1.5 Gallons

Page 260 of 276

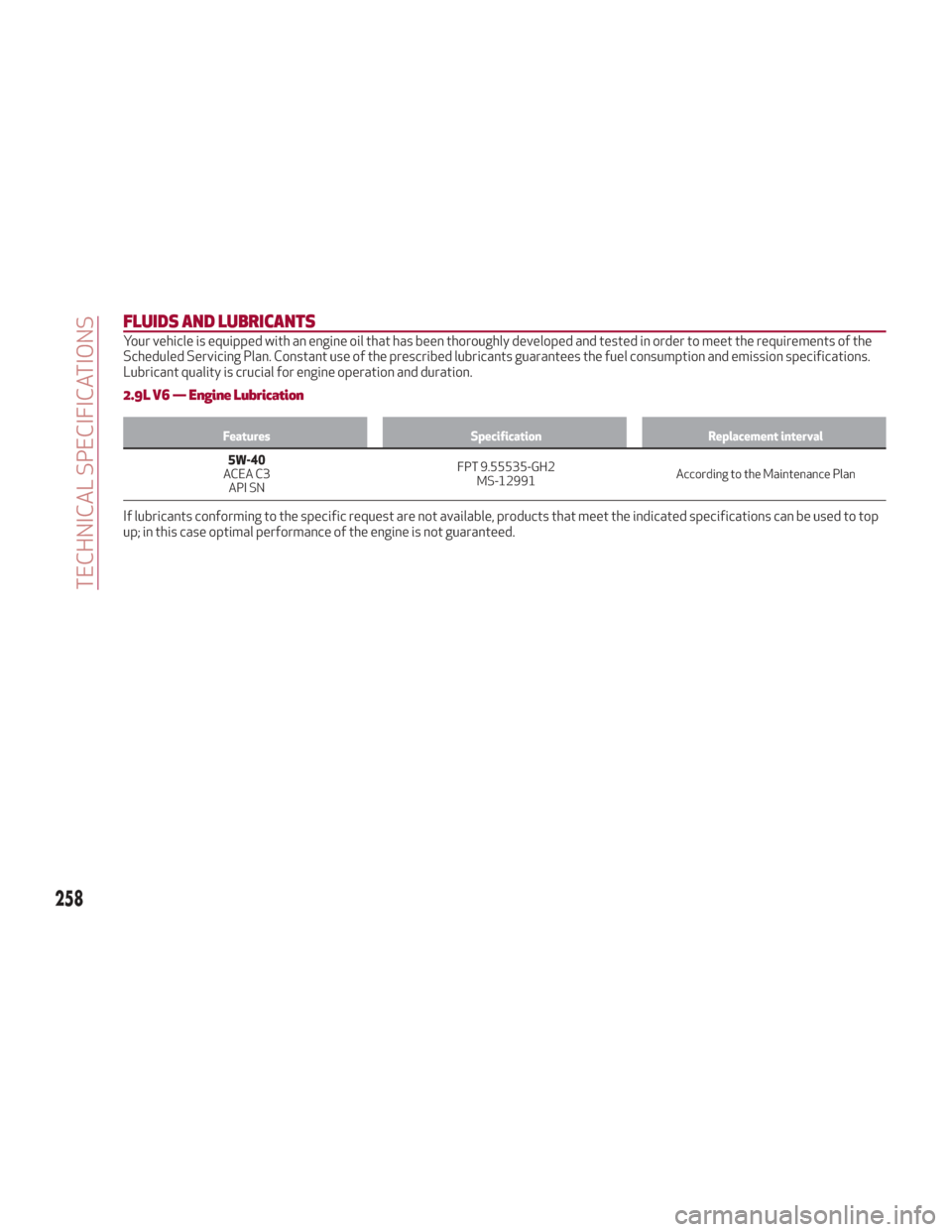

Alfa Romeo Stelvio 2018  Owners Manual FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the p
