KNOWING YOUR CAR
INSTRUMENT PANEL............................10
DASHBOARD FOR RIGHT-HAND DRIVE VERSION . . ........11
THEKEYS...................................12
IGNITION DEVICE..............................13
ENGINE IMMOBILIZER...........................14
ALARM.....................................15
DOORS.....................................15
SEATS.....................................19
HEAD RESTRAINTS.............................23
STEERING WHEEL..............................23
REAR VIEW MIRRORS...........................24
EXTERNAL LIGHTS .............................26
INTERIOR LIGHTS..............................31
WINDSCREEN WIPER . ...........................31
CLIMATE CONTROL SYSTEM.......................33
WINDOW WINDERS.............................35
ELECTRIC SUNROOF............................36
BONNET....................................38
LUGGAGE COMPARTMENT TAILGATE..................39
Page 12 of 244
INSTRUMENT PANEL

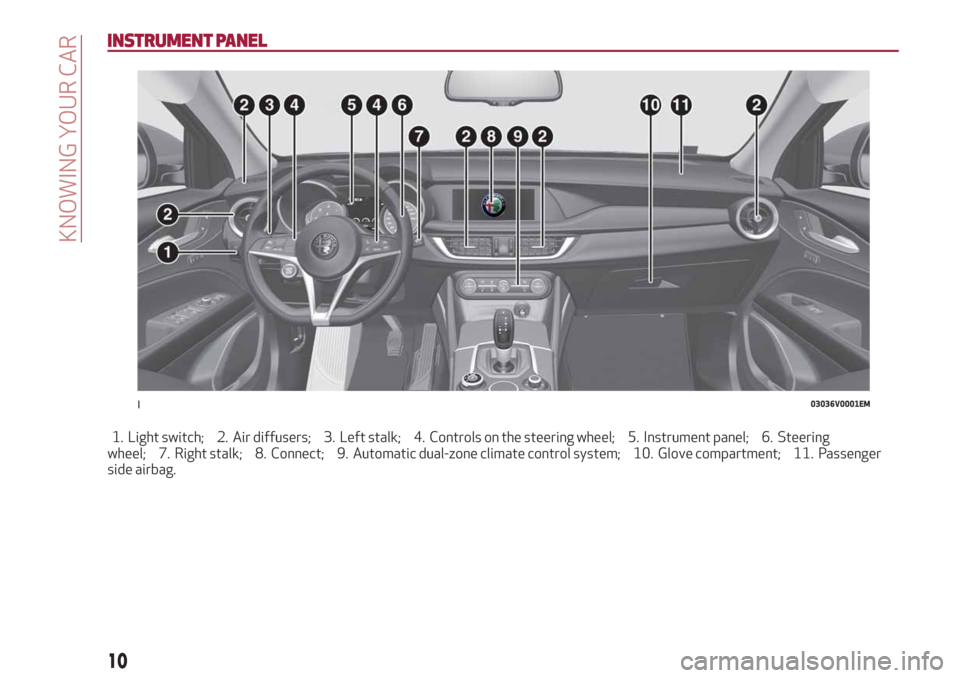

1. Light switch; 2. Air diffusers; 3. Left stalk; 4. Controls on the steering wheel; 5. Instrument panel; 6. Steering
wheel; 7. Right stalk; 8. Connect; 9. Automatic dual-zone climate control system; 10. Glove compartment; 11. Passenger
side airbag.
103036V0001EM
10
KNOWING YOUR CAR
Page 13 of 244
DASHBOARD FOR RIGHT-HAND DRIVE VERSION

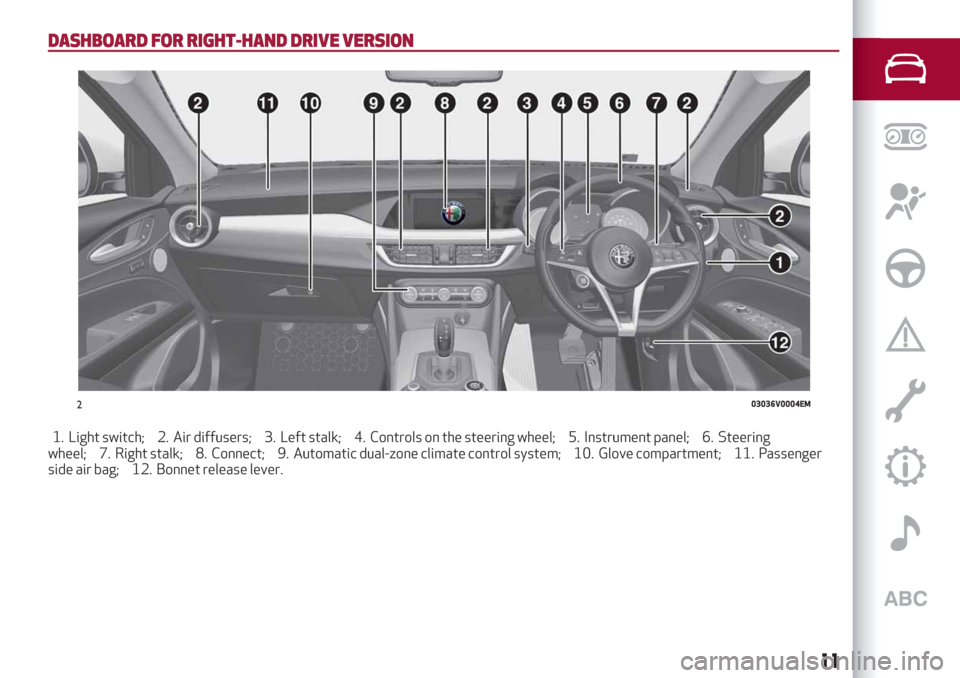

1. Light switch; 2. Air diffusers; 3. Left stalk; 4. Controls on the steering wheel; 5. Instrument panel; 6. Steering
wheel; 7. Right stalk; 8. Connect; 9. Automatic dual-zone climate control system; 10. Glove compartment; 11. Passenger
side air bag; 12. Bonnet release lever.
203036V0004EM
11
Page 14 of 244
THE KEYS
ELECTRONIC KEY
1)
1)
The car is equipped with two electronic
keys with the Keyless Start
fig. 3 function.
Briefly press the
button: unlocking of
doors and tailgate, timed switching-on of
internal lights and single flashing of
direction indicators (if activated from the
Connect system).
The doors can always be unlocked by
putting the metal insert inside the driver
side door lock.
Briefly press the
button: locking of
doors and tailgate, timed switching-off of
internal lights and double flashing ofdirection indicators (if activated from
Connect system).
Rapidly press the
button twice to
open the tailgate remotely. The direction
indicators will flash twice to indicate that
the tailgate has been opened.
Automatic window opening/closing
function
(where provided)
Prolonged pressing of button
: all
windows open.
Prolonged pressing of button
: all
windows closed.
REQUEST FOR ADDITIONAL KEYS
If you need a new electronic key, go to an
Alfa Romeo Dealership, taking an ID
document and the car ownership
documents.
IMPORTANT
1)The electronic components inside the key
may be damaged if the key is subjected to
strong shocks. In order to ensure complete
efficiency of the electronic devices inside the
key, it should never be exposed to direct
sunlight.
IMPORTANT
1)Used batteries may be harmful to the
environment if not disposed of correctly.
They must be disposed of as specified by law
in the special containers or taken to an Alfa
Romeo Dealership, which will take care of
their disposal.
304016S0010EM
12
KNOWING YOUR CAR
Page 15 of 244
IGNITION DEVICE
OPERATION
1) 2) 3) 4) 5)
To activate the starter switch fig. 4, the
electronic key must be inside the
passenger compartment.
The ignition device has the following
possible states:
STOP: engine off, steering locked.
Some electrical devices (e.g. central door
locking system, alarm, etc.) are still
available;
ON (single button press): all electrical
devices are available. This state can be
selected by pressing the ignition device
button once, without pressing the brake
pedal;
AVV: engine starting. This state can be
selected by pressing the starter buttononce with the brake pedal pressed.
NOTE With the starter switch ON, if
30 minutes pass with P (Park) mode
engaged and the engine stopped, the
starter switch will automatically move to
the STOP position.
NOTE With the engine running, it is
possible to go away from the car taking
the electronic key with you. The engine
will still be running. The vehicle will
indicate the absence of the key on board
when the door is closed.
For more information on the engine
start-up, see the description in the
"Starting the engine" paragraph, in the
"Starting and driving" chapter.
IMPORTANT If the battery was
disconnected, do not start the engine
immediately after reconnecting the
terminals, but press the start button,
without operating the pedals, to turn on
the instrument panel and then start the
engine.
The
symbol on the instrument panel
will remain on, indicating that the
steering must be initialised. To do this,
turn the steering wheel from one end to
the other and bring it back to the centre
position within 30 seconds from starting
the engine. If any red warning lights on
the instrument panel remain lit, stop theengine, wait for at least 5 seconds and
repeat the starting procedure described
above.
STARTING WITH FLAT KEY BATTERY
If the remote control battery is flat,
proceed as follows to start the vehicle:
lift the front armrest;
lay the key over the profile at the
bottom of the compartment.
STEERING LOCK(where provided)
Activation
The steering lock is engaged when the
driver door is opened with the ignition
device button at STOP.
Deactivation
The steering lock disengages when the
ignition device is pressed and the
electronic key is recognised.
WARNING
1)Always take the key with you when you
leave your vehicle to prevent someone from
accidentally operating the controls.
Remember to engage the electric parking
brake. Never leave children unattended in
the vehicle.
404026V0001EM
13
Page 16 of 244
2)It is absolutely forbidden to carry out any
after-market operation involving steering
system or steering column modifications
(e.g. installation of anti-theft device) that
could adversely affect performance,
invalidate the warranty, cause SERIOUS
SAFETY PROBLEMS and also result in the
car not meeting type-approval
requirements.
3)Before leaving the vehicle, ALWAYS
engage the handbrake. On versions
equipped with automatic transmission,
activate mode P (Park) and press the ignition
device to set it to STOP. When leaving the
vehicle, always lock all the doors by pressing
the button on the handle.
4)For versions equipped with the Keyless
Start system, do not leave the electronic key
inside or near the car or in a place accessible
to children. Do not leave the vehicle with the
ignition device in ON position. A child could
activate the electric window winders, other
controls or even start the vehicle.
5)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by the Alfa Romeo Dealership
before driving again.ENGINE IMMOBILIZER
The Engine Immobilizer system prevents
unauthorised use of the vehicle
preventing to start the engine.
The system does not need to be
enabled/activated: operation is
automatic, regardless of the fact that the
vehicle's doors are locked or unlocked.
When the ignition device is set to ON, the
Engine Immobilizer system identifies the
code transmitted by the key. If the code
is recognised as valid, the Engine
Immobilizer system enables engine
starting.
When the ignition device is brought back
to STOP, the Engine Immobilizer system
deactivates the control unit controlling
the engine, thus preventing its starting.
For the correct engine starting
procedures, see the instructions in the
"Starting the engine" paragraph,
"Starting and driving" chapter.Irregular operation
If, during starting, the key code is not
correctly recognised, theicon is
displayed on the instrument panel (see
the instructions in the "Warning lights and
messages" paragraph, "Knowing the
instrument panel" chapter). This
condition leads to the engine switching
off after 2 seconds. In this case, bring the
ignition device to STOP and then to ON; if
it is still blocked, try with the other keys
provided. If it is still not possible to start
the engine, contact an Alfa Romeo
Dealership.
If the
icon is displayed while driving,
this means that the system is running a
self-diagnosis (e.g. due to a voltage drop).
If the display persists, contact an Alfa
Romeo Dealership.
14
KNOWING YOUR CAR
Page 17 of 244
ALARM
(where provided)
Activation of the alarm triggers the
acoustic warning and the direction
indicators.
IMPORTANT The alarm is adapted to
meet requirements in various countries.
SWITCHING ON THE ALARM
With the doors, bonnet and tailgate
closed and the ignition device turned to
STOP, point the electronic key towards
the vehicle and press and release button
.
Except on some versions for specific
markets, the system produces a visual
and acoustic warning and enables door
locking.
With the alarm on, the warning lights on
the front door handle trims flash fig. 5.
TURNING THE ALARM OFF
Press thebutton.
IMPORTANT The alarm does not switch
off when the central opening is activated
using the metal insert in the key.
DISABLING THE ALARM
To completely disable the alarm (e.g.
during a long period of car inactivity), lock
the doors by turning the metal insert,
found inside the electronic key, in the
door lock.
DOORS
LOCKING/UNLOCKING DOORS FROM
THE INSIDE
Central locking/unlocking
If all doors are closed properly, they will
automatically be locked once the vehicle
has exceeded approximately 12 mph
(20 km/h) ("Auto relock" function active).
Press the
button on the driver side,
passenger side or rear (where provided)
door panel trims fig. 6 to lock the doors.
With doors locked, press the
button
on the front door panel trims to unlock
them.
504046V0001EM
604056V0001EM
15
Page 18 of 244
LOCKING/UNLOCKING DOORS FROM
THE OUTSIDE
Locking from the outside
With the doors closed, press the
button on the key.
In any case, the doors can be locked with
all the doors closed and the tailgate open.
When the button
on the key is
pressed, all the locks are closed, including
that of the open tailgate. The latter will
be locked when it is closed.
2)
Door unlocking from the outside
Press button
on the key.
PASSIVE ENTRY(where provided)
3)
The Passive Entry system can identify
the presence of an electronic key near
the doors and the tailgate.
The system enables the doors (or the
tailgate) to be locked/unlocked without
pressing any buttons on the electronic
key.
The key is detected only after the system
recognizes the presence of a hand in one
of the front handles. If the detected key
is valid, the doors and the tailgate are
unlocked (the elements that open depend
on the Connect system settings).
Where the function is provided, graspingthe handle of the driver's door unlocks
the driver's door only, or all the doors,
depending on the mode set in the
Connect system.
Door locking
To lock the doors, proceed as follows:
make sure that you have the
electronic key and are close to the driver
or passenger side door handle;
press the "door lock" button fig. 7 on
the handle: this will lock all the doors and
the tailgate. Door locking will activate the
alarm as well (where provided).
IMPORTANT After pressing the "door
locking" button, you need to wait two
seconds before the doors can be
unlocked again using the door handle. It is
therefore possible to check whether the
vehicle is locked correctly by pulling the
door handle within 2 seconds. The doors
will not be unlocked again.The car doors and tailgate can be locked
in any case by pressing the
button on
the electronic key or on the car’s inner
door panel.
Driver side door emergency opening
If the electronic key does not work, e.g.
because its battery is flat or the vehicle
battery is flat, the emergency metal
insert inside the key can anyway be used
to operate the lock, unlocking the driver
side door.
To extract the metal insert, proceed as
follows:
Pressing in the points indicated in
fig. 8 extract the cover pulling
downwards;
remove the key insert from its housing
fig. 9;
insert the metal insert in the driver
side door lock and turn it to unlock the
door.
704056S0003EM
804016S0002EM
16
KNOWING YOUR CAR
Page 19 of 244
Do not simultaneously push the
lock/unlock door button fig. 7 and pull the
handle, (see fig. 10 ).
POWER LOCK(where provided)
6)
This safety device inhibits the operation
of the interior door handles and the door
locking/unlocking button.
It thereby prevents the opening of the
doors from inside the passenger
compartment, serving as an obstacle to
break-in attempts (e.g. broken window).
We recommend that you activate the
device each time you park your vehicle.
Activating the device
The device is enabled on all the doors by
pressing the
button on the key twice
quickly.
The direction indicators flash 3 times to
let you know that the device is active.
If one or more of the doors are not closed
correctly, the device will not activate,
thus preventing a person from getting
stuck inside the passenger compartment
by entering the vehicle through, and then
closing, the open door.
Deactivating the device
The device disengages automatically:
when the doors are unlocked (pressing
button
on the key with remote
control);
when the ignition device is set to ON.
CHILD SAFETY DEVICE
7) 8)
This system prevents the rear doors from
being opened from the inside.
This device fig. 11 can be engaged only
with the doors open:
position: device engaged (door
locked);
position: device not engaged (door
may be opened from the inside).
The device remains engaged even if the
doors are electrically unlocked.
IMPORTANT The rear doors cannot be
opened from the inside when the child
safety device is engaged.
904016S0003EM
1004056S0004EM
1104056S0007EM
17
Page 20 of 244
UNLOCKING THE DOORS WITH A FLAT
BATTERY
Proceed as follows to unlock the doors if
the car battery is flat.
Rear doors and passenger door
Proceed as follows:
insert the metal insert of the
electronic key in the release device
housing fig. 12;
turn the key clockwise for the right
door locks or anticlockwise for the left
door locks;
remove the key from the housing.
Proceed in one of the following ways to
realign the door lock device (only when
the battery charge has been restored):
press thebutton on the electronic
key;
press thebutton on the door panel;
open by inserting the key insert in the
driver's door lock;
operate the internal door handle.
IMPORTANT For the rear doors, if the
child lock device was engaged and the
previously described locking procedure
carried out, operating the internal handle
will not open the door but will only realign
the lock release device. To open the door,
the outside handle must be used. The
door central locking/unlocking buttons
are not deactivated when the emergency
lock is engaged.
WARNING
6)Once the Power Lock system is engaged,
it is impossible to open the doors from inside
the vehicle. Before getting out of the car,
please therefore check that there is no-one
left inside.
7)NEVER leave children unattended inside
the car, let alone leave the car with the doors
unlocked in a place that children can access
easily. Children may seriously, or even
fatally, injure themselves. Also ensure that
children do not inadvertently operate the
electric parking brake, the brake pedal or the
transmission lever.8)Always use this device when carrying
children. After engaging the child lock on
both rear doors, check for effective
engagement by trying to open a door with
the internal handle.
IMPORTANT
2)Make sure to take the key with you once a
door or the tailgate is locked, to prevent
locking the same key inside the vehicle. If the
key has been locked in, it can only be
recovered using the second provided key.
3)The operation of the recognition system
depends on various factors, such as, for
example, any electromagnetic wave
interference from external sources (e.g.
mobile phones), the charge of the battery in
the electronic key and the presence of metal
objects near the key or the car. In these
cases it is still possible to unlock the doors
by using the metal insert in the electronic key
(see description on the following pages).
1204056S0008EM
18
KNOWING YOUR CAR
