Alfa Romeo Stelvio 2019 Service Manual

LUGGAGE COMPARTMENT
TAILGATE

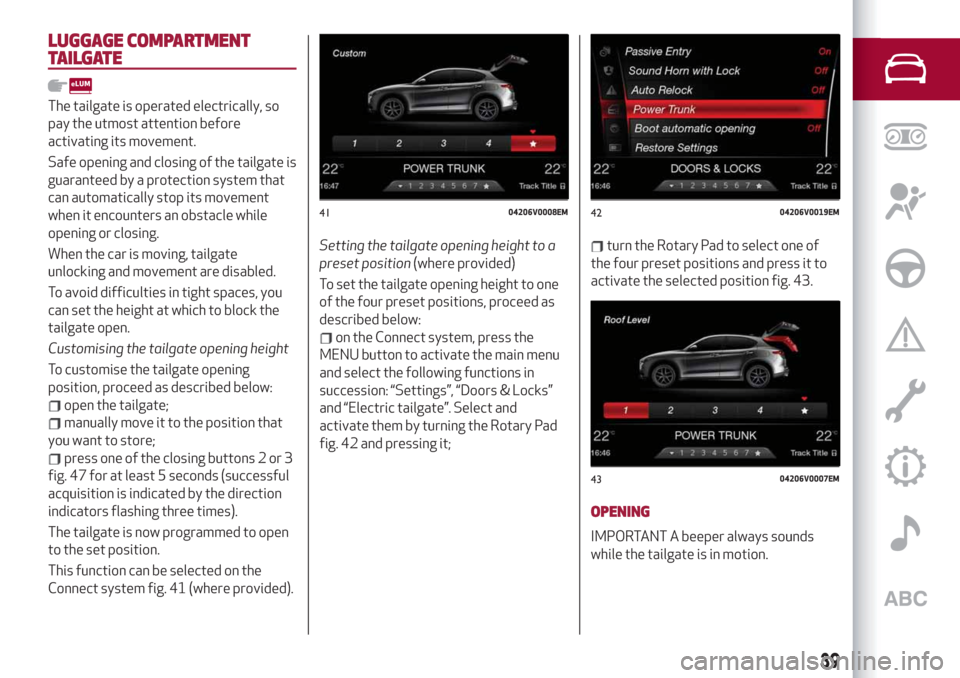

The tailgate is operated electrically, so
pay the utmost attention before
activating its movement.
Safe opening and closing of the tailgate is
guaranteed by a protection system that
can automatically stop its movement
when it encounters an obstacle while
opening or closing.
When the car is moving, tailgate
unlocking and movement are disabled.
To avoid difficulties in tight spaces, you
can set the height at which to block the
tailgate open.
Customising the tailgate opening height
To customise the tailgate opening
position, proceed as described below:
open the tailgate;
manually move it to the position that
you want to store;
press one of the closing buttons 2 or 3
fig. 47 for at least 5 seconds (successful
acquisition is indicated by the direction
indicators flashing three times).
The tailgate is now programmed to open
to the set position.
This function can be selected on the
Connect system fig. 41 (where provided).Setting the tailgate opening height to a
preset position(where provided)
To set the tailgate opening height to one
of the four preset positions, proceed as
described below:
on the Connect system, press the
MENU button to activate the main menu
and select the following functions in
succession: “Settings”, “Doors & Locks”
and “Electric tailgate”. Select and
activate them by turning the Rotary Pad
fig. 42 and pressing it;
turn the Rotary Pad to select one of
the four preset positions and press it to
activate the selected position fig. 43.
OPENING
IMPORTANT A beeper always sounds
while the tailgate is in motion.
4104206V0008EM4204206V0019EM
4304206V0007EM
39

Opening from the outside
When unlocked, the tailgate can be
opened from outside the vehicle by
pressing the electric opening button
fig. 44 located between the number plate
lights, for about one second until you hear
the unlocking click, or by quickly pressing
the
button on the remote control
twice.
Opening from the inside
When it is locked, the tailgate can be
opened from inside the car by lifting the
button 1 fig. 45 on the driver’s door panel
trim.
IMPORTANT You can stop the tailgate
moving by pressing the same button
again.
BOOT EMERGENCY OPENING

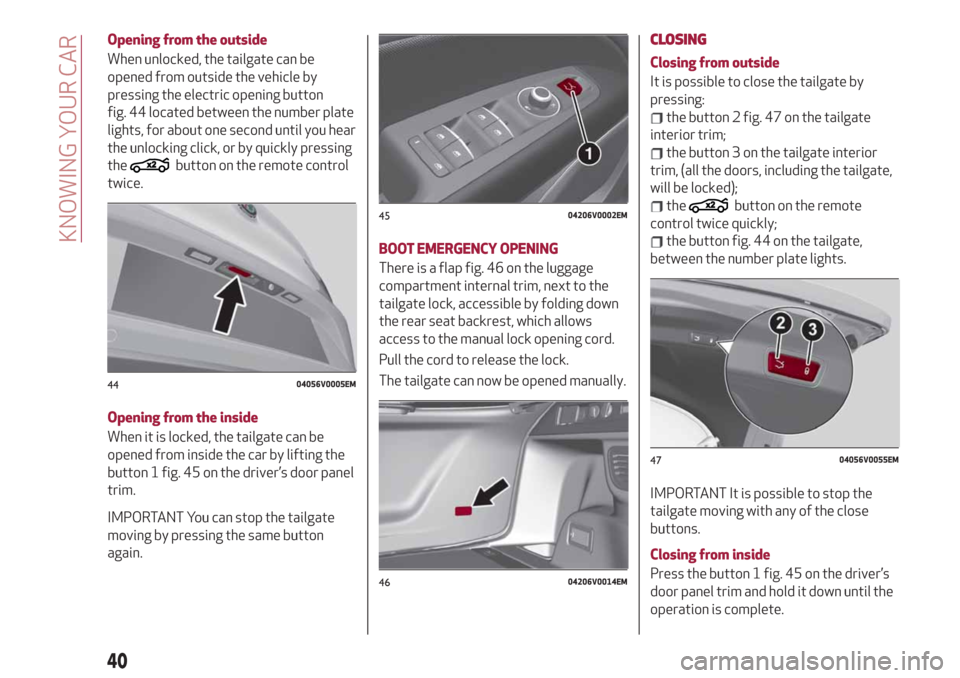

There is a flap fig. 46 on the luggage
compartment internal trim, next to the
tailgate lock, accessible by folding down
the rear seat backrest, which allows
access to the manual lock opening cord.
Pull the cord to release the lock.
The tailgate can now be opened manually.
CLOSING
Closing from outside
It is possible to close the tailgate by
pressing:
the button 2 fig. 47 on the tailgate
interior trim;
the button 3 on the tailgate interior
trim, (all the doors, including the tailgate,
will be locked);
thebutton on the remote
control twice quickly;
the button fig. 44 on the tailgate,
between the number plate lights.
IMPORTANT It is possible to stop the
tailgate moving with any of the close
buttons.
Closing from inside
Press the button 1 fig. 45 on the driver’s
door panel trim and hold it down until the
operation is complete.
4404056V0005EM
4504206V0002EM
4604206V0014EM
4704056V0055EM
40
KNOWING YOUR CAR

IMPORTANT It is possible to stop the
tailgate moving by releasing the button.
AUTOMATICALLY OPENING AND
CLOSING THE ELECTRICALLY
OPERATED TAILGATE IN “HANDS FREE”
MODE
(where provided)
To operate the system in “Hands free”
mode, proceed as follows:
if the doors are locked or unlocked, the
system must recognize the electronic key
fob near the tailgate;
go to the rear of the car, in the centre
and about 20 in (50 cm) from the tailgate;
move your foot under the bumper,
simulating a kick. When you have done
this movement, withdraw your leg. To
activate the movement, both sensors
must detect your leg fig. 48.If it is closed, the electrically
operated/Hands free tailgate:
unlocks and opens completely;
with another movement of the foot, it
stops;
a further movement of the foot
reverses the direction and closes the
tailgate completely, if you do not stop it
again.
If it is open, with a movement of the foot,
the electrically operated/Hands free
tailgate:
closes completely;
another movement of the foot before
it closes completely will stop it;
if the tailgate was stopped, another
movement of the foot reverses the
direction and opens it completely.
You can activate/deactivate the
automatic tailgate opening and closing
function in “Hand Free” mode on the
Connect system by pressing the MENU
button to select the Main menu, and
selecting the following items in
succession: “Settings”, “Doors & Locks”
and “Automatic tailgate opening”. Select
them by turning the Rotary Pad and
pressing it.
IMPORTANT Before lifting the foot off
the ground, make sure that you are in
stable position. Do not touch any part of
the car. There is a risk of injury from
touching, for example, the very hot
exhaust system.
IMPORTANT To conserve the battery
charge, avoid performing this operation
repeatedly with the engine off.
IMPORTANT To prevent accidentally
opening the tailgate when washing the
car at a car wash station or using a
high-pressure cleaner, use the Connect
system to disable the “Automatic tailgate
opening” function.
TAILGATE INITIALISATION
IMPORTANT If the battery is
disconnected or the protection fuse
blows, the tailgate opening/closing
mechanism must be reinitialised as
follows:
close all the doors and the tailgate;
press thebutton on the remote
control;
press thebutton on the remote
control.
4804206V0015EM
41

This page is intentionally left blank

This section of the handbook gives you all the information you
need to understand, interpret and use
the instrument panel correctly.
KNOWING THE INSTRUMENT PANEL
CONTROL PANEL AND ON-BOARD INSTRUMENTS .........44
DISPLAY....................................46
WARNING LIGHTS AND MESSAGES . ..................51

CONTROL PANEL AND ON-BOARD INSTRUMENTS
VERSIONS WITH 3.5” TFT DISPLAY

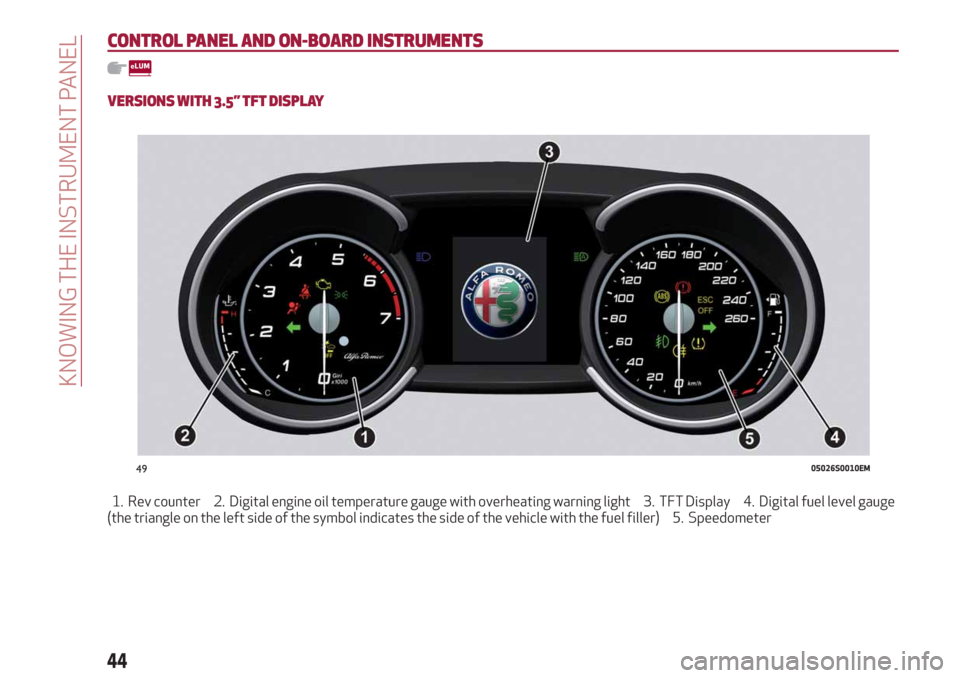

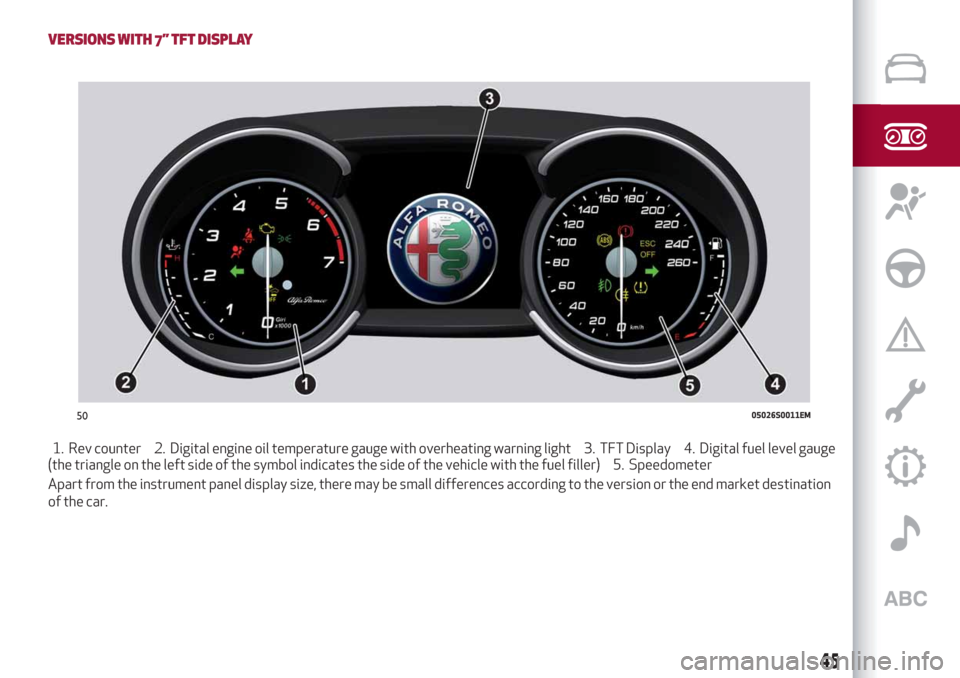

1. Rev counter 2. Digital engine oil temperature gauge with overheating warning light 3. TFT Display 4. Digital fuel level gauge
(the triangle on the left side of the symbol indicates the side of the vehicle with the fuel filler) 5. Speedometer
4905026S0010EM
44
KNOWING THE INSTRUMENT PANEL

VERSIONS WITH 7” TFT DISPLAY
1. Rev counter 2. Digital engine oil temperature gauge with overheating warning light 3. TFT Display 4. Digital fuel level gauge
(the triangle on the left side of the symbol indicates the side of the vehicle with the fuel filler) 5. Speedometer
Apart from the instrument panel display size, there may be small differences according to the version or the end market destination
of the car.
5005026S0011EM
45

DISPLAY
DESCRIPTION
The vehicle can be equipped with a 3.5" or 7" TFT Display.
RECONFIGURABLE TFT DISPLAY
During operation, the display is divided into multiple sections which show driving data, warnings and failure indications. This shows
the display layout, identifying the various sections.
1. Transmission information. 2. Front, side anti-collision systems, Cruise Control. 3. Speed limit warning
light. 4. Reconfigurable main area. 5. Compass. 6. Odometer. 7. Failure/information symbols (e.g. danger of ice, open doors,
ABS operation, etc.). 8. Range (7" TFT Display only). 9. Light icons (dipped beam/high beam) (solo 7” TFT Display).
5105036S0115EM
46
KNOWING THE INSTRUMENT PANEL

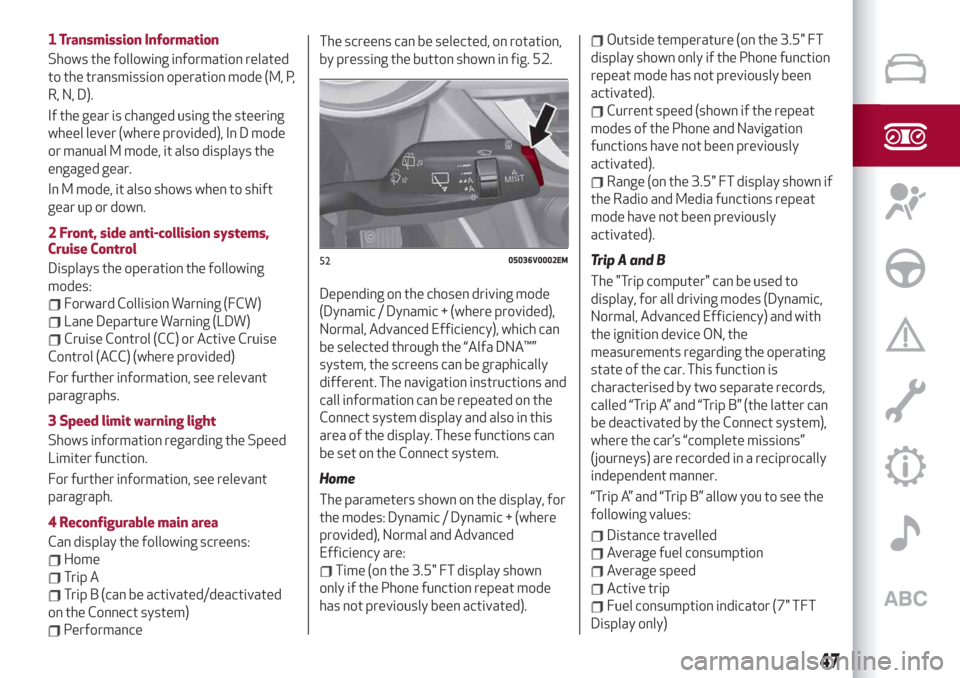

1 Transmission Information
Shows the following information related
to the transmission operation mode (M, P,
R, N, D).
If the gear is changed using the steering
wheel lever (where provided), In D mode
or manual M mode, it also displays the
engaged gear.
In M mode, it also shows when to shift
gear up or down.
2 Front, side anti-collision systems,
Cruise Control
Displays the operation the following
modes:
Forward Collision Warning (FCW)
Lane Departure Warning (LDW)
Cruise Control (CC) or Active Cruise
Control (ACC) (where provided)
For further information, see relevant
paragraphs.
3 Speed limit warning light
Shows information regarding the Speed
Limiter function.
For further information, see relevant
paragraph.
4 Reconfigurable main area
Can display the following screens:
Home
Trip A
Trip B (can be activated/deactivated
on the Connect system)
PerformanceThe screens can be selected, on rotation,
by pressing the button shown in fig. 52.
Depending on the chosen driving mode
(Dynamic / Dynamic + (where provided),
Normal, Advanced Efficiency), which can
be selected through the “Alfa DNA™”
system, the screens can be graphically
different. The navigation instructions and
call information can be repeated on the
Connect system display and also in this
area of the display. These functions can
be set on the Connect system.
Home
The parameters shown on the display, for
the modes: Dynamic / Dynamic + (where
provided), Normal and Advanced
Efficiency are:
Time (on the 3.5" FT display shown
only if the Phone function repeat mode
has not previously been activated).
Outside temperature (on the 3.5" FT
display shown only if the Phone function
repeat mode has not previously been
activated).
Current speed (shown if the repeat
modes of the Phone and Navigation
functions have not been previously
activated).
Range (on the 3.5" FT display shown if
the Radio and Media functions repeat
mode have not been previously
activated).
Trip A and B
The "Trip computer" can be used to
display, for all driving modes (Dynamic,
Normal, Advanced Efficiency) and with
the ignition device ON, the
measurements regarding the operating
state of the car. This function is
characterised by two separate records,
called “Trip A” and “Trip B” (the latter can
be deactivated by the Connect system),
where the car’s “complete missions”
(journeys) are recorded in a reciprocally
independent manner.
“Trip A” and “Trip B” allow you to see the
following values:
Distance travelled
Average fuel consumption
Average speed
Active trip
Fuel consumption indicator (7" TFT
Display only)
5205036V0002EM
47

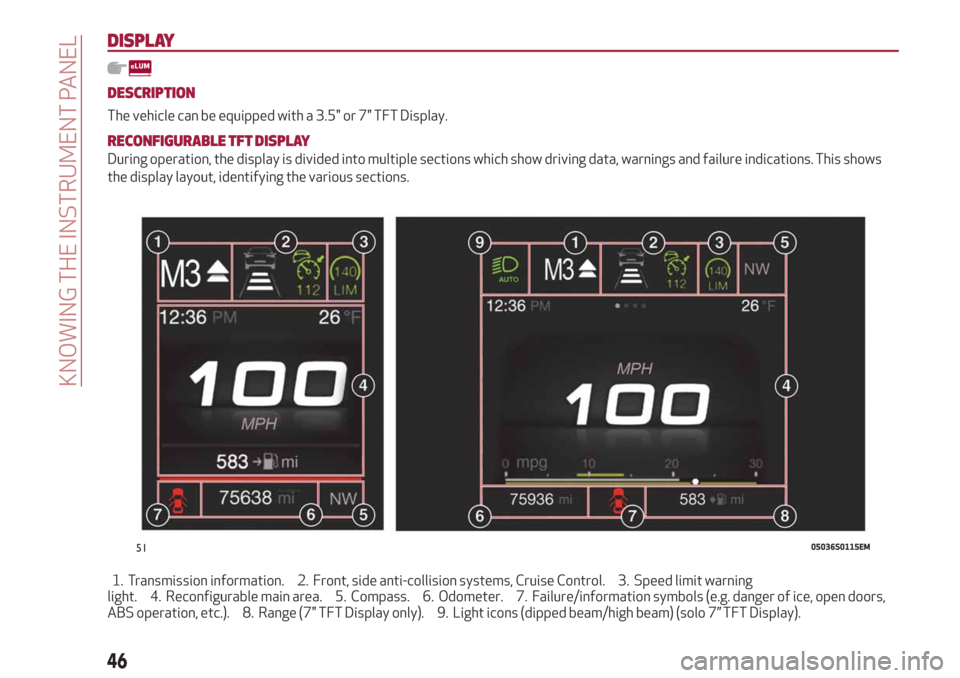

To reset the values, press and hold down
the button on the right stalk fig. 52.
Performance
The displayed parameters are different
in function from the active mode, and the
modes can be selected through the “Alfa
DNA™” system and are as follows:
Normal: The screen graphically
reproduces some parameters closely
linked to the efficiency of the driving
style, with a view to limiting consumption;
Advanced Efficiency: The three central
icons on the screen indicate the
effectiveness of the driving style, linked
to the following parameters:
acceleration, deceleration and gear
shifts, with a view to limiting
consumption. The bar below the icons
shows current consumption and the
green line represents the optimal area.
The globe (7" TFT Display) lights up
gradually according to lower
consumption.
Dynamic / Dynamic + (where
provided): The displayed parameters are
related to car stability, the graphs
illustrate the trend of the
longitudinal/lateral accelerations
(G-meter information), considering
gravity acceleration as a reference unit.
Lateral acceleration peaks are also
indicated.5 Compass
Views the position indicating the cardinal
point.
6 Milometer
Indicates the total kilometres (or miles)
travelled.
7 Failure warning lights
Area dedicated to displaying failures, the
following symbols could be displayed on
rotation:
Low criticality symbols (yellow amber).
High criticality symbols (red).
8 Car range (7" TFT Display only)
Indicates the kilometres (or miles) left
before the fuel tank is empty.
9 Light icons (7” TFT Display only)
Displays the icon related to the active
mode among the following:
dipped beam headlights;
main beam headlights;
Auto low beam headlights;
Auto main beam headlights.PARAMETERS SET BY USER
A series of user-programmable functions
can be set using the Connect system.
The basic settings only are described:
Units & Language
Time & Date
Control panel
To access the list with the
aforementioned items, proceed as
follows: from the main menu, activated
by pressing the MENU button fig. 53,
select the function "Settings", by turning
and pressing the Rotary Pad.
Turn the Rotary Pad to choose the
desired option and press to activate it.
5305036V0040EM
48
KNOWING THE INSTRUMENT PANEL
