“Smart washing” function
Pull the stalk towards the steering wheel
(unstable position) to activate a washing
cycle.
Hold the stalk pulled to activate both the
windscreen washer jet and the
windscreen wiper with a single
movement, until the stalk is released.
REAR WINDOW WIPER/WASHER
Engaging reverse gear with the
windscreen wiper operating activates a
single cycle of the rear window wiper.
Moving the stalk fig. 34 (it only has
unstable positions):
towards the instrument panel
activates the rear window washer (a brief
push activates one washing cycle,
keeping the stalk pushed washes
continuously until the stalk is released);
downwards activates/deactivates
continuous rearscreen wiper operation.
RAIN SENSOR
This is located behind the interior rear
view mirror, in contact with the
windscreen and can detect the presence
of rain and, consequently, manage the
cleaning of the windscreen in accordance
with the amount of water on the screen.
Activation/deactivation
9) 10)
Rotating the ring nut fig. 34 to position
oractivates the rain sensor.
The activation of the sensor is signalled
by a flick of the wiper (indicating that the
command has been acquired).
Use the ring fig. 34 or turn the ignition
device to STOP to turn off the system.
19)
WARNING
19)Make sure the device is switched off
whenever the windscreen must be cleaned.
IMPORTANT
7)Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor cut-out
switch, which prevents operation for a few
seconds, may intervene. If operation is not
subsequently restored, even after restarting
the engine, contact an Alfa Romeo
Dealership.
8)Do not operate the windscreen wiper with
the blades lifted from the windscreen.
9)Do not activate the rain sensor when
washing the car in an automatic car wash.
10)Make sure the device is switched off if
there is ice on the windscreen.
32
KNOWING YOUR CAR

SCHEDULED SERVICING
Correct servicing is crucial for
guaranteeing a long life for the vehicle
under the best conditions.
For this reason, Alfa Romeo has planned
a series of checks and maintenance
operations at fixed distance intervals
and, for versions/markets, where
provided, at fixed time intervals, as
described in the Service Schedule.
Before each service, it is always
necessary to carefully follow the
instructions in the Scheduled Servicing
Plan (e.g. periodically check level of
fluids, tyre pressure, etc.).
Scheduled Servicing is offered by an Alfa
Romeo Dealership according to a set
time schedule. If, during each operation,
in addition to the ones scheduled, the
need arises for further replacements or
repairs, these may be carried out with the
owner's explicit consent only.
IMPORTANT Scheduled Servicing
operations are required by the
Manufacturer. Failure to have them
carried out may invalidate the warranty.
It is advisable to inform the Alfa Romeo
Dealership of any small operating
irregularities without waiting for the next
service.
REGULAR
CHECKS
Every
year
or
620
miles
(
1,000
km)
or

before
long
journeys,
check
and
top
up,
if

necessary:
engine
coolant
level;
brake
fluid
level
(if
insufficient,
see
an

Alfa
Romeo
dealership
as
soon
as

possible);
low
AdBlue
diesel
emissions
additive

(UREA)
level
warning
(2.2
JTD
versions

only);
windscreen washer fluid level;
tyre inflation pressure and condition;
operation of lighting system
(headlights,
direction
indicators,
hazard

warning
lights,
etc.);
operation
of
screen
washing/wiping

system
and
positioning/wear
of
wiper

blades.
…ˆ
‹Š
‹Š
‹Š€…
Ž
„1860
miles
(
3,000
km)

}Š€


»Šƒ…Š
ˆ
}Š€
}Ž








‚

‚‹ˆˆ‹“…Šƒ
‹Š€…





€‘






‰…ˆ







€…
‹‚
…Š}





…Š

…Š}
the
following
checks
must
be
carried
out

more
often
than
indicated
in
the

Scheduled
Servicing
Plan:
check
front
and
rear
disc
brake
pad

condition
and
wear;
check
cleanliness
of
bonnet
and

tailgate
locks,
cleanliness
and
lubrication

of
linkage;
visually
inspect
conditions
of:
engine,

gearbox,
transmission,
pipes
and
hoses

(exhaust/fuel
system/brakes)
and

rubber

elements
(gaiters/sleeves/bushes,
etc.);
check
battery
charge
and
battery
fluid

level
(electrolyte);
visually
inspect
conditions
of
the

accessory
drive
belts;
check
and,
if
necessary,
change
engine

oil
and
replace
oil
filter;
check
and,
if
necessary,
replace
pollen

filter;
check
and,
if
necessary,
replace
air

cleaner;
check
and,
if
necessary,
replace
the

Bad
Fuel
filter

(where
provided).170
SERVICING AND CARE

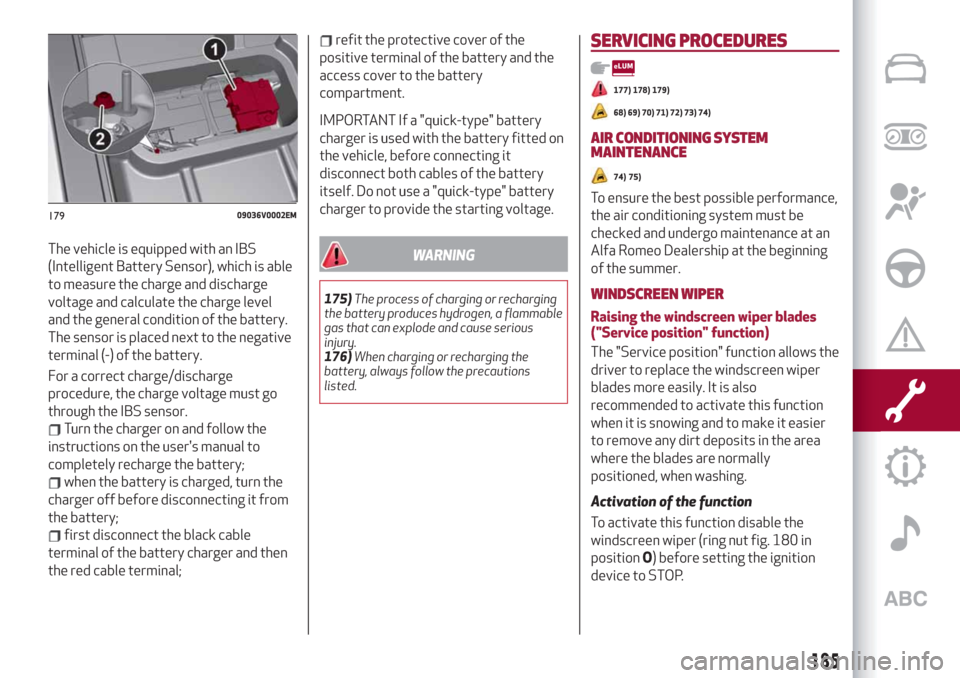

The vehicle is equipped with an IBS
(Intelligent Battery Sensor), which is able
to measure the charge and discharge
voltage and calculate the charge level
and the general condition of the battery.
The sensor is placed next to the negative
terminal (-) of the battery.
For a correct charge/discharge
procedure, the charge voltage must go
through the IBS sensor.
Turn the charger on and follow the
instructions on the user's manual to
completely recharge the battery;
when the battery is charged, turn the
charger off before disconnecting it from
the battery;
first disconnect the black cable
terminal of the battery charger and then
the red cable terminal;
refit the protective cover of the
positive terminal of the battery and the
access cover to the battery
compartment.
IMPORTANT If a "quick-type" battery
charger is used with the battery fitted on
the vehicle, before connecting it
disconnect both cables of the battery
itself. Do not use a "quick-type" battery
charger to provide the starting voltage.
WARNING
175)The process of charging or recharging
the battery produces hydrogen, a flammable
gas that can explode and cause serious
injury.
176)When charging or recharging the
battery, always follow the precautions
listed.
SERVICING PROCEDURES
177) 178) 179)
68) 69) 70) 71) 72) 73) 74)
AIR CONDITIONINGSYSTEM
MAINTENANCE
74) 75)
To ensure the best possible performance,
the air conditioning system must be
checked and undergo maintenance at an
Alfa Romeo Dealership at the beginning
of the summer.
WINDSCREEN WIPER
Raising the windscreen wiper blades
("Service position" function)
The "Service position" function allows the
driver to replace the windscreen wiper
blades more easily. It is also
recommended to activate this function
when it is snowing and to make it easier
to remove any dirt deposits in the area
where the blades are normally
positioned, when washing.

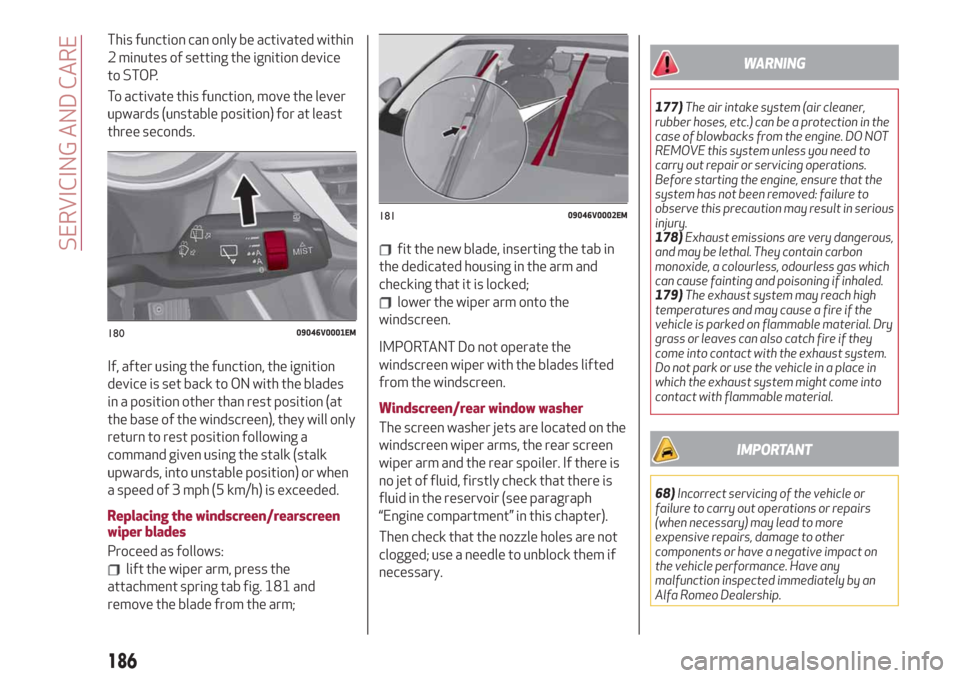

Activation of the function
To activate this function disable the
windscreen wiper (ring nut fig. 180 in
positionO) before setting the ignition
device to STOP.
17909036V0002EM
185

This function can only be activated within
2 minutes of setting the ignition device
to STOP.
To activate this function, move the lever
upwards (unstable position) for at least
three seconds.
If, after using the function, the ignition
device is set back to ON with the blades
in a position other than rest position (at
the base of the windscreen), they will only
return to rest position following a
command given using the stalk (stalk
upwards, into unstable position) or when
a speed of 3 mph (5 km/h) is exceeded.
Replacing the windscreen/rearscreen
wiper blades
Proceed as follows:
lift the wiper arm, press the
attachment spring tab fig. 181 and
remove the blade from the arm;
fit the new blade, inserting the tab in
the dedicated housing in the arm and
checking that it is locked;
lower the wiper arm onto the
windscreen.
IMPORTANT Do not operate the
windscreen wiper with the blades lifted
from the windscreen.
Windscreen/rear window washer
The screen washer jets are located on the
windscreen wiper arms, the rear screen
wiper arm and the rear spoiler. If there is
no jet of fluid, firstly check that there is
fluid in the reservoir (see paragraph
“Engine compartment” in this chapter).
Then check that the nozzle holes are not
clogged; use a needle to unblock them if
necessary.
WARNING
177)The air intake system (air cleaner,
rubber hoses, etc.) can be a protection in the
case of blowbacks from the engine. DO NOT
REMOVE this system unless you need to
carry out repair or servicing operations.
Before starting the engine, ensure that the
system has not been removed: failure to
observe this precaution may result in serious
injury.
178)Exhaust emissions are very dangerous,
and may be lethal. They contain carbon
monoxide, a colourless, odourless gas which
can cause fainting and poisoning if inhaled.
179)The exhaust system may reach high
temperatures and may cause a fire if the
vehicle is parked on flammable material. Dry
grass or leaves can also catch fire if they
come into contact with the exhaust system.
Do not park or use the vehicle in a place in
which the exhaust system might come into
contact with flammable material.
IMPORTANT
68)Incorrect servicing of the vehicle or
failure to carry out operations or repairs
(when necessary) may lead to more
expensive repairs, damage to other
components or have a negative impact on
the vehicle performance. Have any
malfunction inspected immediately by an
Alfa Romeo Dealership.
18009046V0001EM
18109046V0002EM
186
SERVICING AND CARE

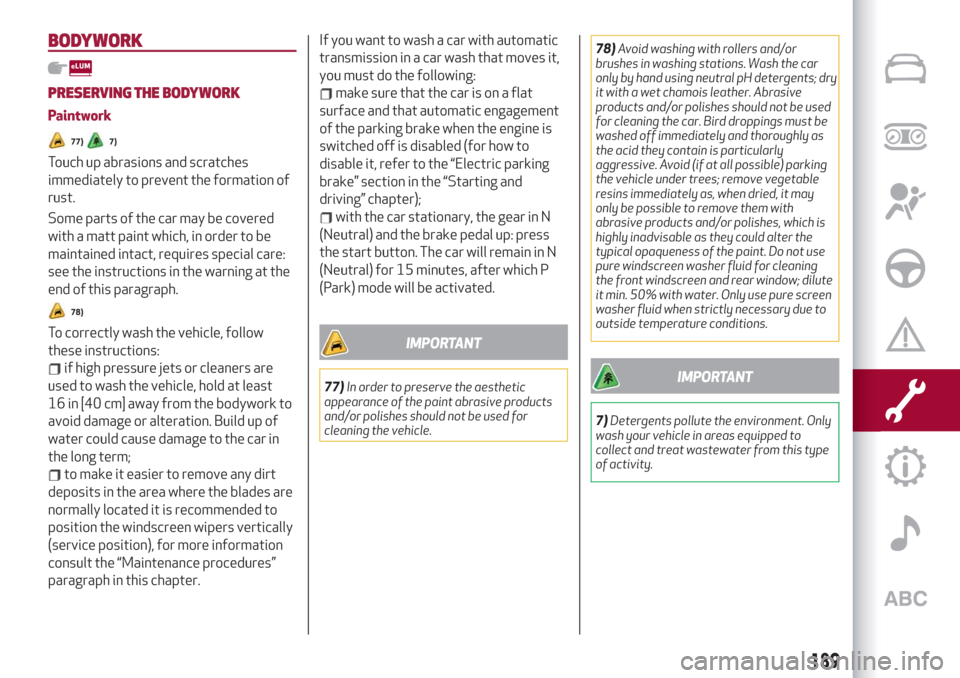

BODYWORK
PRESERVING THE BODYWORK
Paintwork
77)7)
Touch up abrasions and scratches
immediately to prevent the formation of
rust.
Some parts of the car may be covered
with a matt paint which, in order to be
maintained intact, requires special care:
see the instructions in the warning at the
end of this paragraph.
78)
To correctly wash the vehicle, follow
these instructions:
if high pressure jets or cleaners are
used to wash the vehicle, hold at least
16 in [40 cm] away from the bodywork to
avoid damage or alteration. Build up of
water could cause damage to the car in
the long term;
to make it easier to remove any dirt
deposits in the area where the blades are
normally located it is recommended to
position the windscreen wipers vertically
(service position), for more information
consult the “Maintenance procedures”
paragraph in this chapter.If you want to wash a car with automatic
transmission in a car wash that moves it,
you must do the following:
make sure that the car is on a flat
surface and that automatic engagement
of the parking brake when the engine is
switched off is disabled (for how to
disable it, refer to the “Electric parking
brake” section in the “Starting and
driving” chapter);
with the car stationary, the gear in N
(Neutral) and the brake pedal up: press
the start button. The car will remain in N
(Neutral) for 15 minutes, after which P
(Park) mode will be activated.
IMPORTANT
77)In order to preserve the aesthetic
appearance of the paint abrasive products
and/or polishes should not be used for
cleaning the vehicle.78)Avoid washing with rollers and/or
brushes in washing stations. Wash the car
only by hand using neutral pH detergents; dry
it with a wet chamois leather. Abrasive
products and/or polishes should not be used
for cleaning the car. Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly
aggressive. Avoid (if at all possible) parking
the vehicle under trees; remove vegetable
resins immediately as, when dried, it may
only be possible to remove them with
abrasive products and/or polishes, which is
highly inadvisable as they could alter the
typical opaqueness of the paint. Do not use
pure windscreen washer fluid for cleaning
the front windscreen and rear window; dilute
it min. 50% with water. Only use pure screen
washer fluid when strictly necessary due to
outside temperature conditions.IMPORTANT
7)Detergents pollute the environment. Only
wash your vehicle in areas equipped to
collect and treat wastewater from this type
of activity.
189

Towing trailers..............137
TPMS (Tyre Pressure Monitoring
System)..................82
Tyres (inflation pressure)........197
Use of the Owner Handbook.......4
Vehicle changes/alterations.......5
Vehicle identification number.....192
Warning lights and messages......51
Washer fluid for
windscreen/headlights........182
Weights..................200
Wheels and tyres.............188
Window bag................107
Windscreen wiper .............31
Replacing wiper blades.......186
