Page 229 of 421

ASTON MARTIN DB7 1997 Workshop Manual
O" D^?
Body and Trim
Contents
Contents
Body and Trim
Body Repair
Potential Risks
Precautions
General Repair Notes
Steel Body Parts - Repair, Remove and Replace
RTM Body Parts
Body Panel an

Page 234 of 421

ASTON MARTIN DB7 1997 Workshop Manual
Body and Trim
Body Panel and Trim Removal 5^7
Body Panel and Trim Removal
The following diagrams show the fixings for all
removeable body and trim panels.
Sheet 1. Front Apron
Sheet 2. Front Un

Page 332 of 421

ASTON MARTIN DB7 1997 Workshop Manual
^2?
Air Conditioning Repair Procedures
Hose - Compressor to Evaporator/Air-Con Unit Renew
8.1.06.1 Hose-Compressor
to
Evaporator
Renewal
Procedure

1.
Open the bonnet and fit a wing cover.

^2?
Air Conditioning Repair Procedures
Hose - Compressor to Evaporator/Air-Con Unit Renew
8.1.06.1 Hose-Compressor
to
Evaporator
Renewal
Procedure

1.
Open the bonnet and fit a wing cover.

2.
Depressurise the air conditioning systenn.
3. Remove the hose to evaporator valve clamping

plate,
disconnect the hose from the valve, remove
and discard the 'O' ring
seal.

4.
Fit a blanking plug to the evaporator valve. Release
the evaporator hose securing clips.
5. Remove the compressor outlet port retaining bolt.
6. Disconnect the hose from the compressor, discard
the hose complete with 'O' ring seals.
7. Connect the hose to the evaporator valve and
tighten clamp onto the hose.
8. Route the hose to the compressor, fit a new 'O' ring
seal and connect it to the compressor.
9. Position the outlet port retaining plate on the
compressor, fit and tighten the securing bolt.

10.
Refit the hose to the clips.

11.
Charge the air conditioning system.

12.
Remove the wing cover and close the bonnet.
8.2.01.1 Air Conditioning Unit Renewal

1.
Disconnect the battery earth
lead.

2.
Drain the engine coolant into a suitable container.
3. Depressurise the air conditioning system.

4.
Disconnect the high and low pressure hoses and
expansion valve from the air conditioning unit (see
expansion valve renewal).
5. Slacken the coolant hose to the heater matrix pipe
securing clips and disconnect the hoses from the
matrix. (This will require the removal of the air
intake hose for access.)
6. Remove the following items from inside the car:
front seats
underscuttle panels/knee bolsters
glove box assembly
facia trim (walnut trim)
radio and ashtray
centre console switch panel assembly
instrument panel and surround trim
steering wheel and column
facia assembly complete
hoses - distribution box to door vents
facia support frame
Details and drawings of the above operations can
be found in the electrical and trim sections.
Disconnect the vacuum hoses from the blower
motors, water valve and reservoir.
Un-clip the electrical harness from the air
conditioningunit, release theelectrical connections
and reposition the harness to allow removal of the
unit.
Displace and remove the footwell ventilator ducts
and hoses (Fig. 1-1).
May 1996 8-55

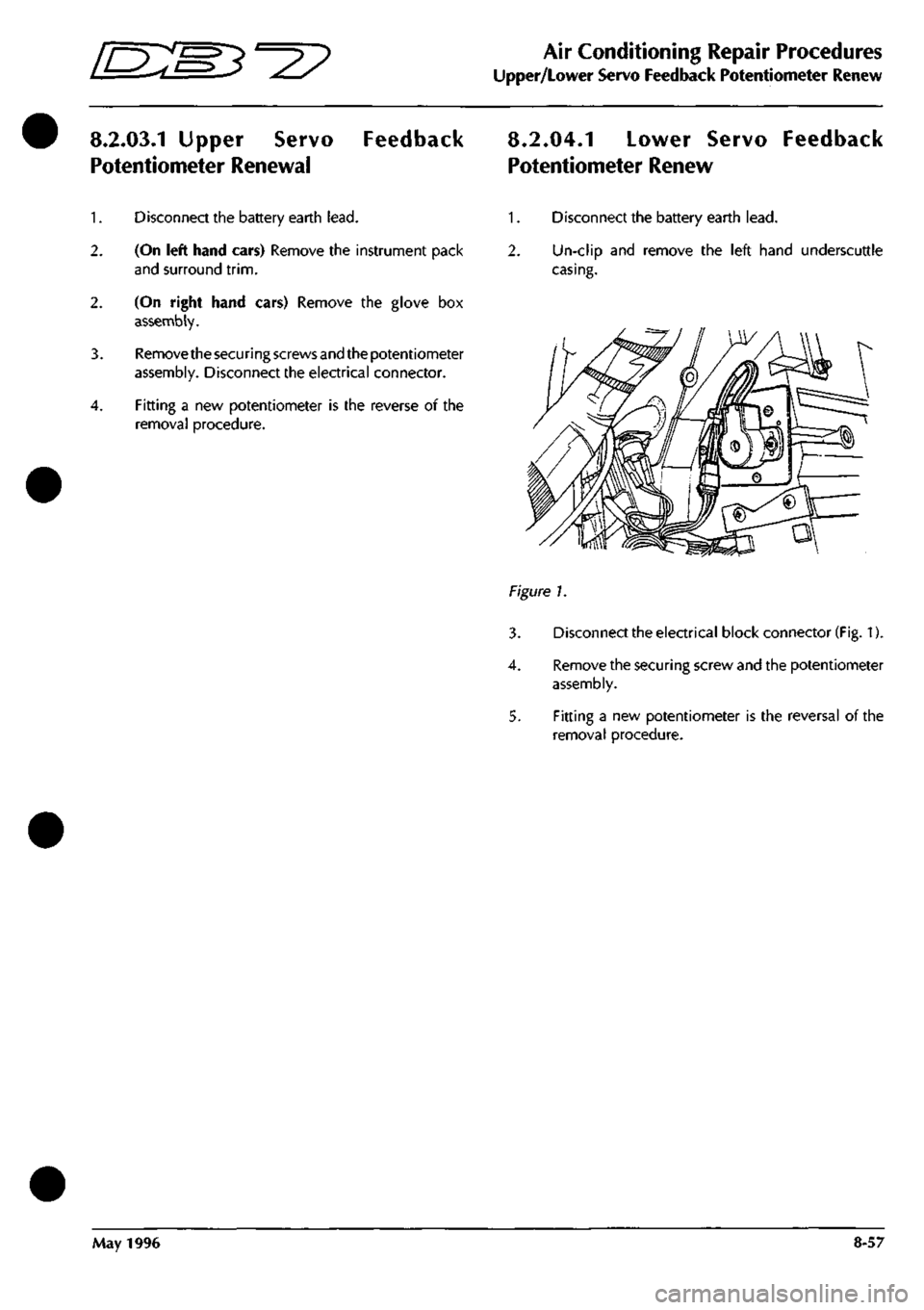

Page 334 of 421

ASTON MARTIN DB7 1997 Workshop Manual
^?
Air Conditioning Repair Procedures
upper/Lower Servo Feedback Potentiometer Renew

8.2.03.1
Upper Servo Feedback
Potentiometer Renewal

8.2.04.1
Lower Servo Feedback
Potentiometer Renew

Page 336 of 421

$ASTON MARTIN DB7 1997 Workshop Manual nzm^=2? Air Conditioning Repair Procedures Blower Motor Renewal 8.2.07.1 Ambient Temperature Sensor Renew ?\gure 1. The ambient temperature sensor is located in the left hand side of the ai$

Page 339 of 421

ASTON MARTIN DB7 1997 Workshop Manual
Air Conditioning Repair Procedures
Water Temperature Switch/Heater Matrix Renew •=2?
8.2.12.1 Water Temperature Switch
Renewal

1.
Disconnect the battery earth
lead.

2.
Un-clip and remove

Page 340 of 421

ASTON MARTIN DB7 1997 Workshop Manual
^>
Air Conditioning Repair Procedures
Electronic Control Module/Vacuum Solenoid Renewal
8.2.14.1 Electronic Control Module
Renew
8.3.01.1 Vacuum System Solenoid
Renewal

1.
Disconnect the bat

^>
Air Conditioning Repair Procedures
Electronic Control Module/Vacuum Solenoid Renewal
8.2.14.1 Electronic Control Module
Renew
8.3.01.1 Vacuum System Solenoid
Renewal

1.
Disconnect the battery earth
lead.

2.
Remove the right hand underscuttle casing.
3. (On left hand cars) Removethe glove box assembly.
3. (On right hand cars) Remove the instrument pack
and surround
trim.

4.
Disconnect the earth wire and three block
connectors from the control module (Fig.
1
-2).
5. Remove the securing screws and module from the
air conditioning unit (Fig. 1-1).
Fitting a new module
is
the reversal of the removal
procedure.
The flaps in the cabin air distribution vents and the
water valve in the pipe line from the engine coolant
system to the heater matrix are all operated by
vacuumactuators.The vacuumfor these issupplied
by four solenoids mounted in a manifold pack
located behind the front left hand footwell outlet.
Failureof a solenoid will require replacement of the
manifold pack.
Procedure

1.
Disconnect the battery earth
lead.

2.
Remove the following:
• glove box and lid
• facia trim (walnut strip)
• radio and ashtray
• centre console switch assembly
• left hand underscuttle casing/knee bolster
Detai
Is
ofthe above operations can be found in the
trim and the electrical sections.

2.
Remove thefixings joining the centre console to the

facia.
This allows the front of the console to be
repositioned for access.
3. Disconnect the ducting from the left hand footwell
outlet.

4.
Remove the two plastic fixings that secure the
slotted footwel
I
outlet and
si
ide the outlet out ofthe
unit.
7. Cut the tie strap holding the vacuum lines and
electrical harness to the underside of the air
conditioning unit.
8. Remove the screws that secure the manifold pack
to the underside of the air conditioning unit and
slide out the plate complete with the manifold
pack.

10.
To fit a new manifold pack reverse the steps for the

removal.

May 1996 8-63
