AUDI A3 1995 8L / 1.G AEB ATW Engines Technical Data

00-1


Technical data

Engine identification


The engine code and serial number are stamped on the left side on the
cylinder block above the oil filter.
A sticker with the engine code and serial number is attached to the
cylinder head cover.
The engine code is also listed on the vehicle data label.
Note:
The engine identification is also stamped on the front engine mounting
bracket (visible after removing cover above fuel injectors).
Pa
ge 1 of 3 Technical data
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.00.1

00-2

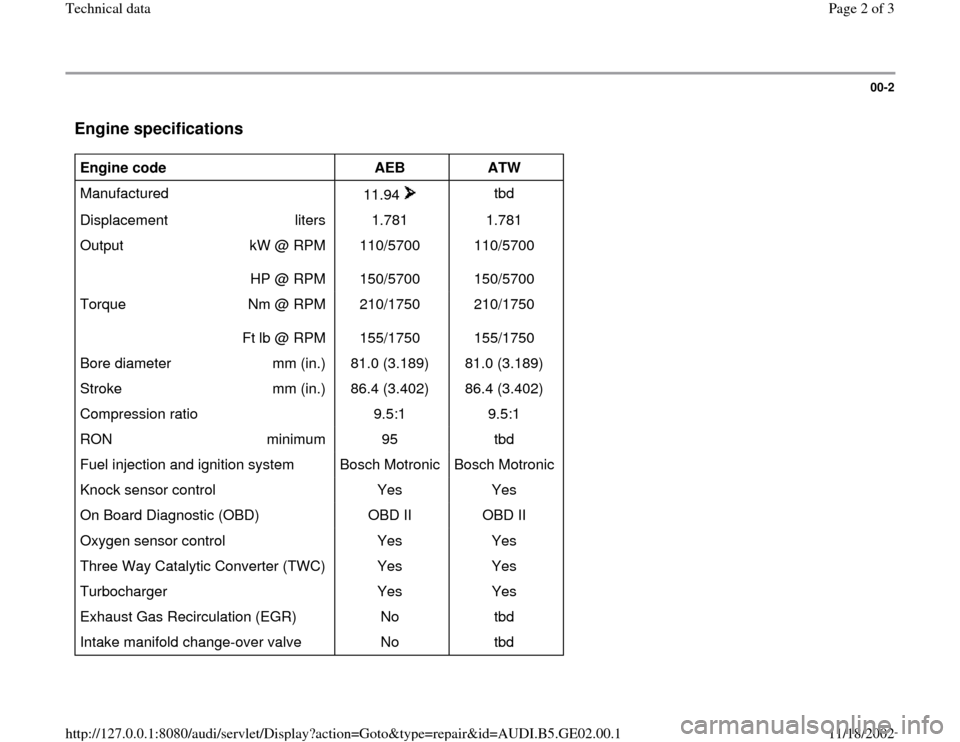

Engine specifications

Engine code
AEB
ATW
Manufactured
11.94
tbd
Displacement liters 1.781 1.781
Output kW @ RPM
HP @ RPM 110/5700
150/5700 110/5700
150/5700
Torque Nm @ RPM
Ft lb @ RPM 210/1750
155/1750 210/1750
155/1750
Bore diameter mm (in.) 81.0 (3.189) 81.0 (3.189)
Stroke mm (in.) 86.4 (3.402) 86.4 (3.402)
Compression ratio 9.5:1 9.5:1
RON minimum 95 tbd
Fuel injection and ignition system Bosch Motronic Bosch Motronic
Knock sensor control Yes Yes
On Board Diagnostic (OBD) OBD II OBD II
Oxygen sensor control Yes Yes
Three Way Catalytic Converter (TWC) Yes Yes
Turbocharger Yes Yes
Exhaust Gas Recirculation (EGR) No tbd
Intake manifold change-over valve No tbd
Pa
ge 2 of 3 Technical data
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.00.1

00-3

Engine code
AEB
ATW
Camshaft adjustment No No
Valve timing: at 1mm valve lift and 0 mm valve lash:
Intake valve opens after TDC
18
tbd
Intake valve closes after BDC
28 tbd
Exhaust valve opens before BDC
28 tbd
Exhaust valve closes before TDC
8 tbd
