Lifting the vehicle
Important safety precautions
Be aware of the following hazards before lifting the vehicle with a
workshop hoist or floor jack:
• The vehicle should never be lifted or jacked up from underneath
the engine oil pan, the transmission housing, the front or rear axle
or the body side members. This could lead to serious damage.
• Use lifting equipment with padded contact surfaces to avoid
damage to the underbody or chassis frame.
• Alternatively, cover the contact surfaces on workshop hoist or
floor jack with rubber pads before lifting.
• Before driving over a workshop hoist, check that the vehicle
weight does not exceed the permissible lifting capacity of the hoist.
• Before driving over a workshop hoist, ensure that there is suffi­
cient clearance between the hoist and low parts of the vehicle.
& WARNING
To reduce the risk of serious injury and vehicle damage:
• Always lift the vehicle only at the special workshop hoist and
floor jack lift points illustrated
~ fig. 203 and=> fig. 204.
• Failure to lift the vehicle at these points could cause the vehicle
to tilt or fall from a lift if there is a change in vehicle weight distri­
bution and balance. This might happen, for example, when heavy
components such as the engine block or transmission are removed.
• When removing such heavy components, anchor vehicle to
hoist or add corresponding weights to maintain the center of
gravity. Otherwise, the vehicle might tilt or slip off the hoist,
causing serious personal injury. •

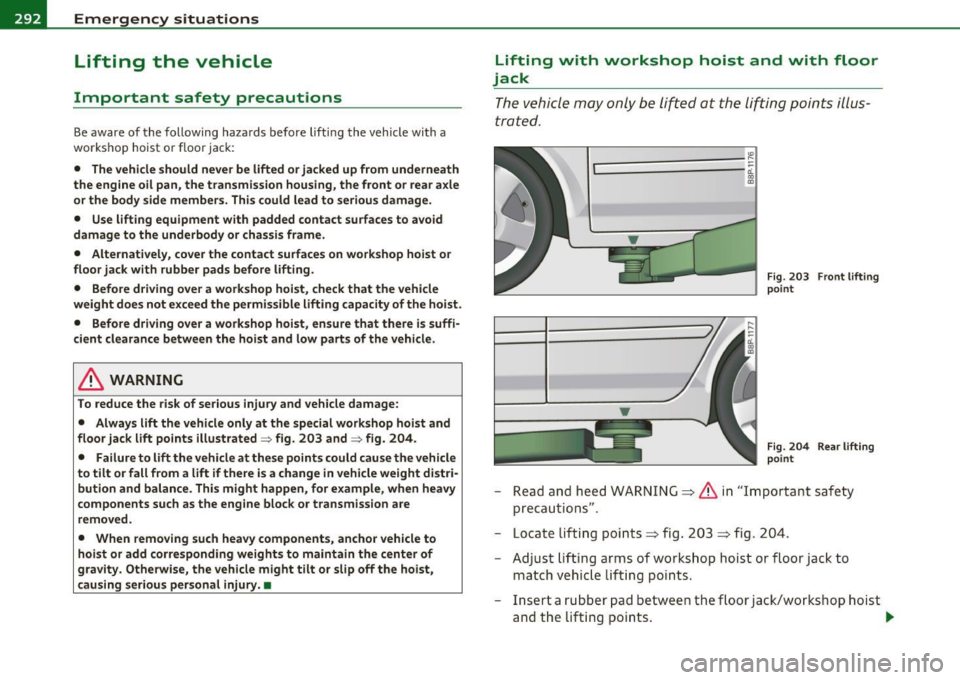

Lifting with workshop hoist and with floor
jack
The vehicle may only be lifted at the lifting points illus­
trated.
-L==-=--=--=--=--=-----_-_- __,--~ cf..
,,
ex, m
Fig. 203 Front lifting
point
Fig. 204 Rear lifting
point
- Read and heed WARNING=> & in "Important safety
precautions".
- Locate lifting points=> fig. 203 => fig . 204 .
- Adjust lifting arms of workshop hoist or floor jack to
match vehicle lifting points.
- Insert a rubber pad between the floor jack/workshop hoist
and the lifting points. -.,,

_______________________________________________ E_ m_ e_r_, g::;._ e_n _ c""' y:.- s_ it_u_ a_t _ i_o _n_ s __ _

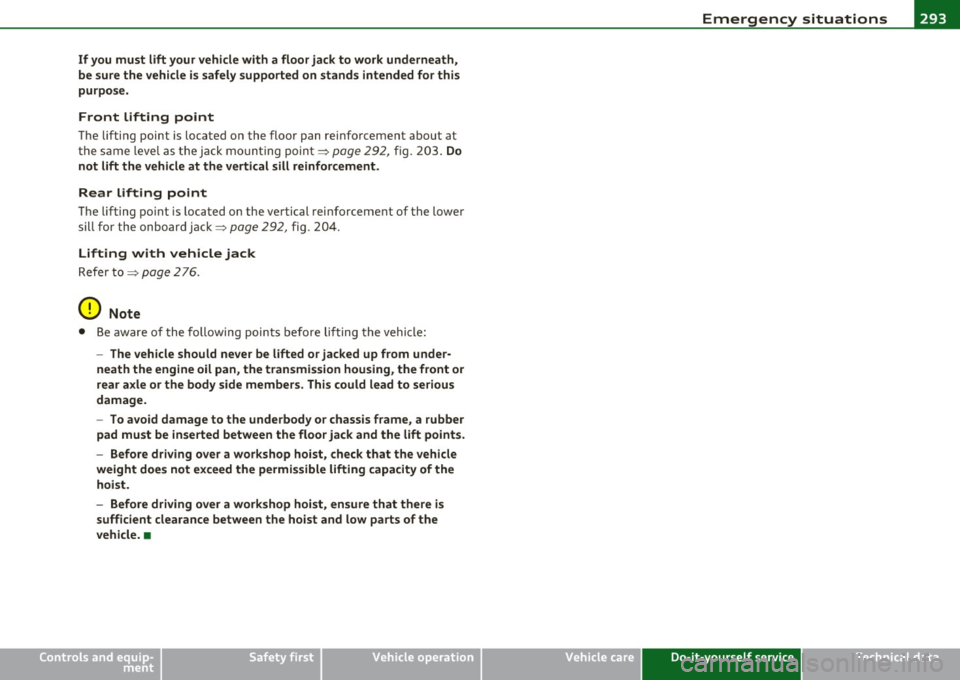

If you must lift your vehicle with a floor jack to work underneath,
be sure the vehicl e is safely supported on stand s intended for this
purpo se .
Front lifting point
The lifting point is located on the floor pan reinforcement about at
t he s ame leve l as the jack mo unting point~
page 292, fig. 2 03. Do
not lift the vehicle at th e vertical sill re inforcement.
Rear lifting point
The lifting po int is located on the ve rtical reinforcement of the lower
sill fo r the onboard ja ck ~
page 29 2, fig. 2 04.
Lifting with vehicle jack
Refe r to ~ page 2 76 .
0 Note
• Be aware of the following points before lifting the vehicle:
- The vehicle should never be lifted or jacked up from under ­
neath the engine oil pan , the tran smission housing , the front or
rear axle or the body side members. This could lead to serious
damage.
- To avoid damage to the underbody or chassis frame, a rubber
pad must be inse rted between the floor ja ck and the lift points.
- Before dr iving ov er a workshop hoist , check that the vehicle
weight does not exceed the permissible lifting capacity of the hoist.
- Before driving over a work shop hoi st, en sure that there is
sufficient clearance between the hoist and low parts of the
vehicle. •
