AUDI A3 2012 Owner´s Manual

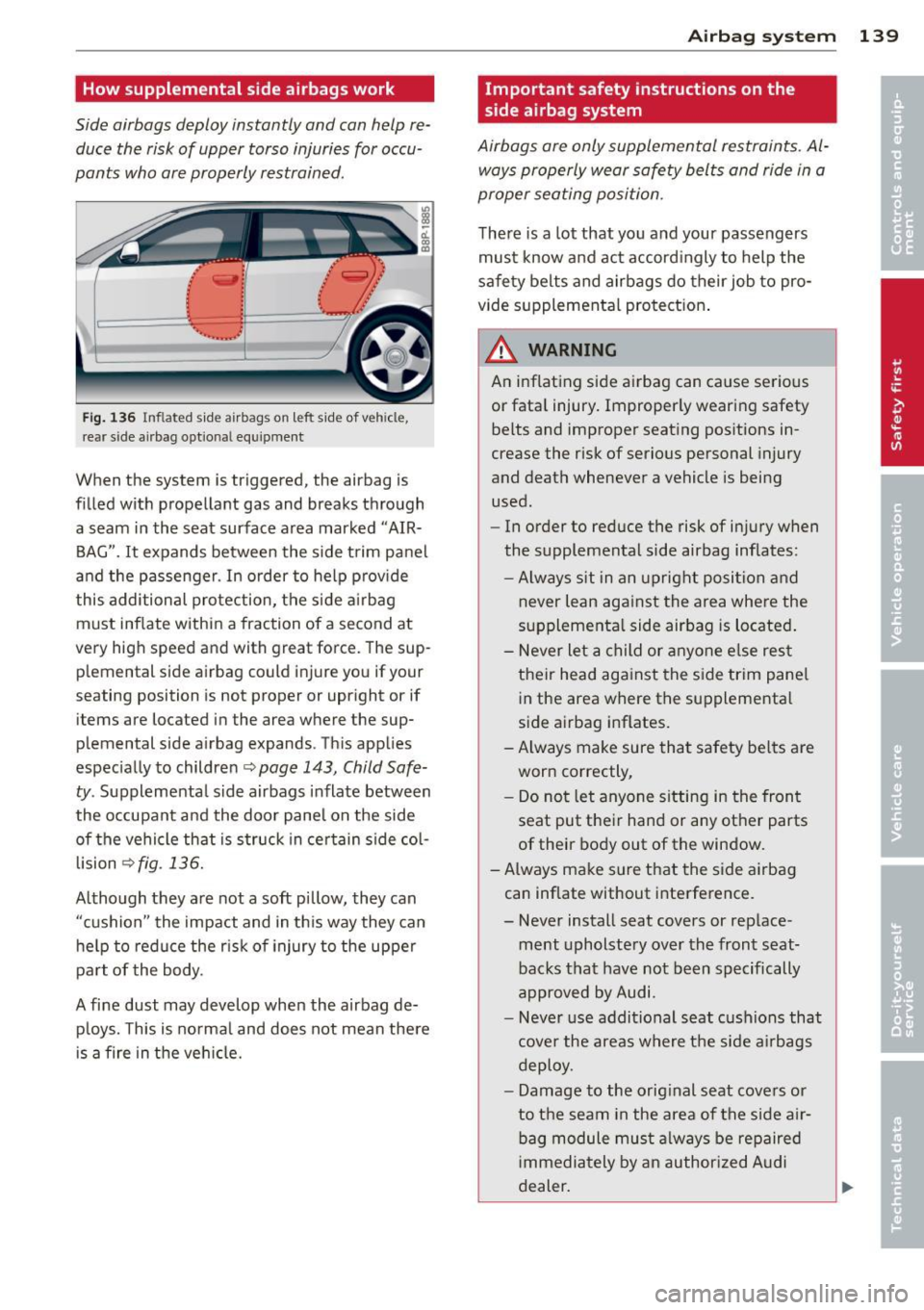

How supplemental side airbags work
Side airbags deploy instantly and can help re­duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig. 136 Inflated s ide airbags on left side of veh icle,
rear side airbag optional equipmen t
When the system is triggered, the airbag is
filled with propellant gas and breaks through
a seam in the seat surface area marked "AIR­
BAG".
It expands between the side trim panel
and the passenger . In order to help provide
this additional protection, the side airbag must inflate within a fraction of a second at
very high speed and with great force. The sup­
plemental side airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the sup­
plemental side a irbag expands. This app lies
especially to children
~ page 143, Child Safe­
ty .
Supplemental side airbags inflate between
the occupant and the door panel on the side of the vehicle that is struck in certain side col­
l ision
~fig. 136.
Although they are not a soft pillow, they can
"cush ion" the impact and in this way they can
help to reduce the risk of injury to the upper
pa rt of the body.
A fine dust may develop when the airbag de­ ploys. This is normal and does not mean there
is a fire in the vehicle.
Airbag system 139
Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection.
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
- Always make sure that safety belts are
worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
-Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.

140 Airbag system
-Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates .
- Never place or attach accessories or
other objects (such as cup holders, tel ­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position .
- Always use the built-in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag dep loyment and can cause personal
injury in an accident .
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat ­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident
q page 143, Child Safety .
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­
rectly measure increasing air pressure in­
side the doors when air escapes through larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
- Always make certain that openings are
covered or filled if additiona l speakers
or other equipment is installed in the inside door panels.
- Always have work on the doors done by
an authorized Audi dea ler or qualified
workshop.
Side curtain airbags
Description of curtain airbags
The curtain airbags can provide supplemental
protection to properly restrained occupants .
Fig. 137 Cur tain airbag , drive r's sid e: s ide cu rtain a ir­
bag locat ion
The side curtain airbags are located on both
sides of the interior above the front and rear
side windows
c;, fig. 137 . T hey are identified
by the word "AIRBAG " on the windshield
frame and the center roof pillar .
The side curtain airbag system supplements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck
liJI,

in a side collision. The side curtain ai rbag in ­
f lates in side impacts and on ly when the vehi­
cle acce lerat ion reg istered by the contro l unit
is high enough. If th is rate is be low the refer ­
ence value programmed into the control un it,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­ sult of the collision . It is not possible to de­
f ine an a irbag tr igger ing range that will cover
every possible angle of impac t, since the ci r­
cumstances wi ll vary conside rably between
one co llision and another . Important factors
include, for examp le, the nat ure ( hard o r soft)
of the impacting object, the ang le of impact,
veh icle speed, etc.
c:> page 141.
Aside from the ir normal safety function , safe ­
ty belts work to he lp keep the driver or front
passenger in posit ion in the event of a co lli­
sion so that the side curtain airbags can pro­
vide protection.
The airbag system is not a s ubstitute for yo ur
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the airbag system can
only help to protect you if you are wearing
your safety belt and wear ing it prope rly. Thi s
i s another reason why you sho uld always wear
your safety bel ts, not just beca use the law re­
q uir es you to do so
<=:>page 113, General
notes.
It
is important to rememb er that while the
side curta in a irbag sys tem is designed to he lp
r educe the like lihood of se rious injur ies, other
in ju ries, for example, swell ing, bruising, and
minor abrasions can a lso be associated with
these airbags upon deployment. Remember
too, these a irbags w ill dep loy on ly once and
only in certain kinds of accide nts - your safety
be lts are a lways there to offer protection .
The side curtain airbag sy stem ba sically
consi sts of:
- The electronic control mod ule and external
s ide impact sensors
- The side curtain airbags ab ove the front and
rear side w indows
A irba g sy stem 141
- The a irbag indicator light in the instrument
pane l
T he airbag system is mon itored e lec troni cally
to make ce rtain i t is func tioning prope rly at all
times . Each time you turn on the ignit ion, the
airbag system indicator light will come on for
a few seconds (self diagnostics).
The side curtain airbag is not activated :
-if the ignition is turned off ,
- in side co llisions whe n the accele ration
meas ured by the sensor is too low,
- in rea r-end collisions,
- in rollovers.
A WARNING
- Safety belts and the airbag system will
only provide protection w hen occupants
a re in the proper seating posi tion
c:> page 61, General re commendation s.
- If th e air bag ind icator lig ht comes on
when the vehicle is being used, h ave the
sys tem inspected immedi ately by your
author ized A udi dealer. The s ide cur tain
airbag may not wo rk proper ly even w hen
the vehicle acce lerat ion in a side collision
is high enoug h to activate the airbag.
How side curtain airbags work
Side curtain airbags ca n work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
Fi g. 13 8 Illust rat io n o f pri nc iple: I nflated s ide c urtai n
a irbags o n the le ft sid e
The side c urtai n airbags inflate betwee n the
occupant and the windows on the s ide of the ..,.

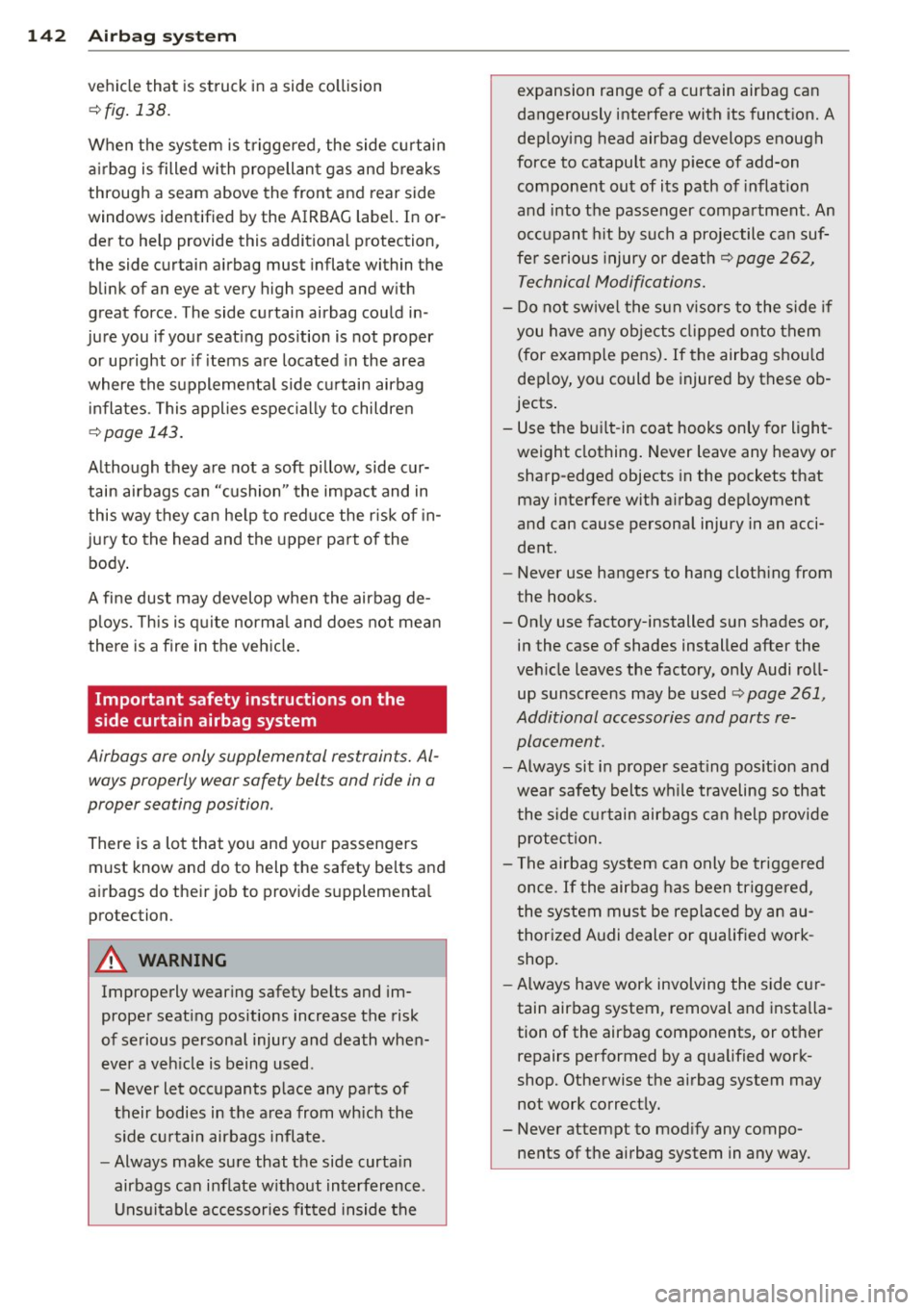

142 Airbag sys te m
vehicle that is struck in a side co llision
~ fig . 138.
When the system is triggered , the side c urtain
a irbag is filled wi th propellant gas and b reaks
through a seam above the front and rear side
windows ide ntified by the AIRBAG label. In or­
der to help provide this additional protection,
the side curtain airbag must inflate within the
blink of an eye at very high speed and w ith
great force. The side curtain airbag could in­
jure you if your seat ing pos ition is not proper
or upright or if items are located in the area
where the suppleme nta l side cu rtain airbag
i nflates . This applies espe cial ly to childre n
~page 143.
Although they are not a soft pillow, side cur­
tain airbags can "cushion" the impact and in
this way they ca n he lp to redu ce the r isk of in­
ju ry to the head and the upper part of the
body .
A fine dust may develop when the airbag de­ p loys. This is q uite norma l and does not mean
there is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints . Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and do to help the safety belts and
a irbags do the ir job to provide s upplementa l
protection.
A WARNING
Improperly wearing safety belts and im­
prope r seat ing positions increase the risk
of serious personal injury and death when­
ever a veh icle is being used .
- Never let occupants p lace any parts of
their bodies in the a rea from wh ich the
side cu rtain airbags inflate.
- Always make sure that the side curta in
airbags can inflate w ithout interference .
Unsuitable accessor ies fitted inside the expansion range of a curtain airbag can
dangerously interfere with its funct
ion. A
deploying head airbag develops enough
force to catapult any p iece of add-on
component out of its path of infla tion
and into the passenger compa rtment. An
o ccu pant hit by such a projectile can suf­
fe r serious injury or death~
page 262,
Technical Modifications.
- Do not swive l the sun visors to the side if
you have any objects clipped onto them
(for examp le pens). If the airbag should
deploy, you could be injured by these ob­
jects .
- Use the bui lt -in coat hooks only for light ­
weight clothing . Never leave any heavy o r
sharp-edged objects in the pockets that
may interfere with a irbag dep loyment
and can cause personal injury in an acci­
dent.
- Never use hangers to hang cloth ing from
the hooks.
- Only use factory-installed sun shades or,
in the case of shades installed after the
veh icle leaves the factory, on ly Audi roll­
up sunscreens may be used
~ page 261,
Additional accessories and parts re­
placement.
- Always sit in proper seat ing pos ition and
wear safety belts wh ile traveling so that
the side curtain airbag s can help p rov ide
p rotec tion.
- T he a irbag system can only be triggered
once .
If the airbag has been triggered,
t he system mus t be rep lace d by an au­
thor ized A udi dealer or qualified work ­
shop .
- Always have work involving the side c ur­
tain airbag system, removal and insta lla­
tion of the airbag components, or ot her
repairs performed by a qua lified work­
shop. Otherwise the airbag system may
not work correct ly.
- Never attempt to modify any compo­
nents of the airbag system in any way .

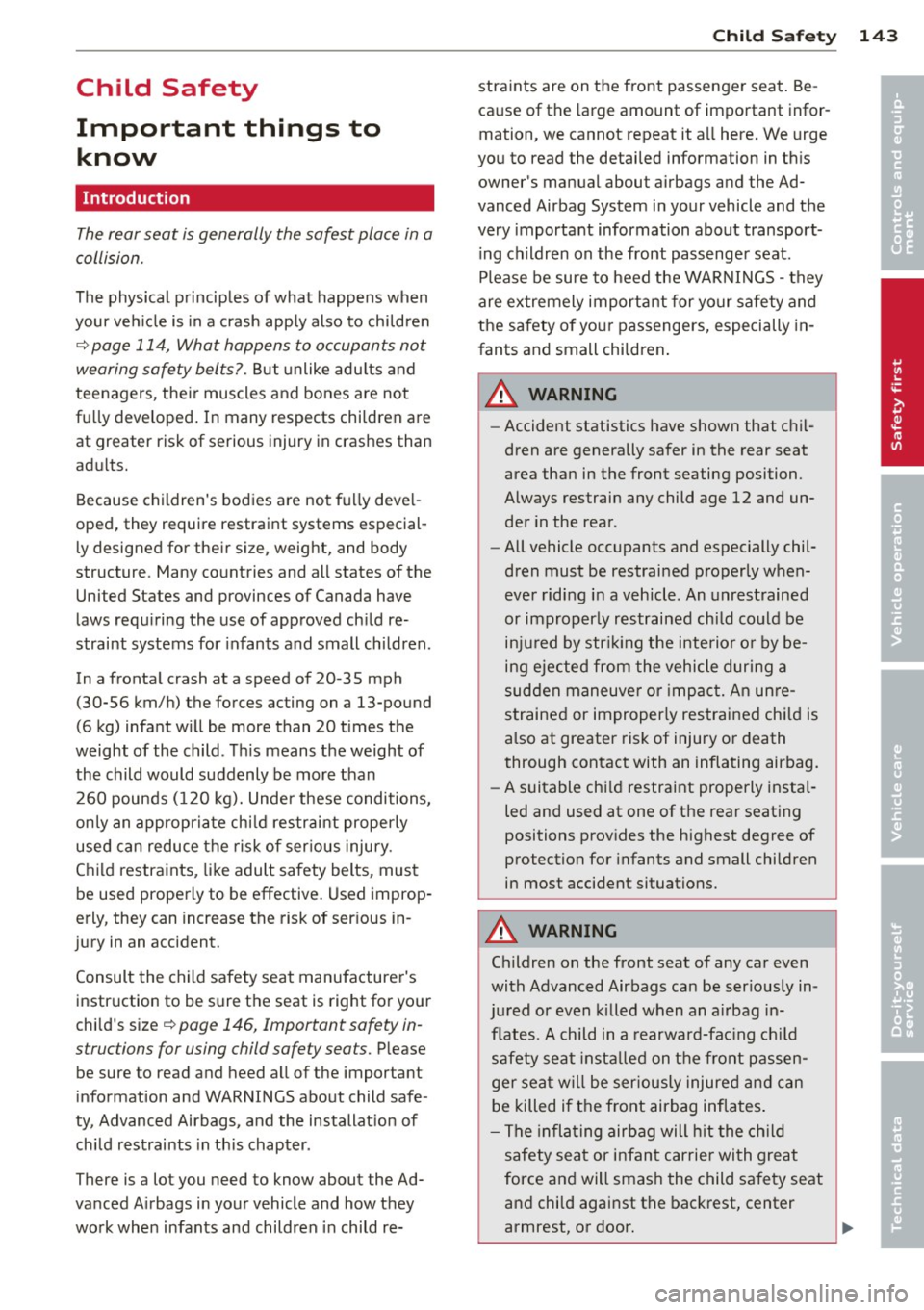

Child Safety
Important things to know
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
¢ page 114, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenagers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adu lts.
Because children's bod ies are not fully deve l­
oped, they require restraint systems especial­ ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small children .
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child . This means the weight of
the child would suddenly be more than
260 pounds (120 kg). Under these conditions,
on ly an appropriate chi ld restraint properly
used can reduce the risk of ser ious injury .
Child restraints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in ­
jury in an accident.
Consult the child safety seat manufacturer's
instruction to be sure the seat is right for your
child 's size ¢
page 146, Important saf ety in­
struc tions for using child safety seats.
P lease
be sure to read and heed all of the important
information and WARNINGS about child safe­
ty, Advanced Airbags, and the installat ion of
chi ld restraints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work when infants and children in child re-
Child Sa fet y 143
straints are on the front passenger seat . Be­
cause of the large amount of important infor­
mation, we cannot repeat it a ll here . We urge
you to read the detailed information in this owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat .
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small chi ldren .
.A, WARNING
-Accident statistics have shown that chil ­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­ der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle . An unrestrained
or improperly restrained chi ld could be
injured by str ikin g the interior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An un re ­
strained or improper ly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal­
led and used at one of the rear seating
positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an a irbag in­
flates. A child in a rearward-fac ing ch ild
safety seat installed on the front passen­
ger seat will be ser iously injured and can
be killed if the front airbag inflates .
- The inflating airbag will h it the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, or door.
•
•

144 Child Safety
-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your authorized Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced
Airbag System" in compliance with United
States Federal Motor Vehicle Safety Standard (FMVSS) 208 as applicable at the time your
vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system , all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush ­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the .,..

seat. The weight of a child restraint and its
"footprint" vary for different kinds of child re­
straints and for the different models of the
same kind of child restraint offered by child restra int manufacturers.
The weight ranges for the individual types, makes and mode ls of ch ild restra ints that the
NHTSA has specified in the Safety Standard
together with the we ight ranges of typical in­
fants and typical 1 year -old child have been
stored in the control unit of the Advanced A ir­
bag System . When a chi ld restraint is being
used on the front passenge r seat with a typi­
cal 1 year -old ch ild, the A dvanced Airbag Sys­
tem compares the we ight measured by the
weight sensing mat with the information stor­
ed in the electronic control unit.
The electron ic contro l unit al so registers the
tension on the front passenger safety be lt.
The tension on the safety be lt for the front
passenger seat will be different for an adult
who is properly using the safety belt as com­
pared to the tension on the be lt when it is
used to attach a child restraint to the seat.
T he sensor below the latch for the safety belt
for the front seat passenger measures the
tension on the belt . T he input from this sen­
sor is t hen used w ith the we ight to "decide",
whether there is a ch ild restraint with a typ ica l
1 year-o ld child on the front passenger seat
and whether or not the airbag must be turned
off .
Child restraints and Advanced Airbags
Regard less of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with an airbag . Always be sure
that the chi ld restraint is p roperly instal led at
one of the rear seat ing pos itions . If in excep­
tional ci rcumstances you must use it on the
front passenger seat, carefu lly read all of the
information on child safety and Advanced Air­
bags and heed a ll of the app licable WARN­
INGS. Make certain that the child restraint is
correctly recognized by the weight-sensing
Child Sa fet y 145
mat inside the front passenger seat, that the
front passenger airbag is turned off and that
the a irbag status is always correct ly signaled
by the
PAS SENGE R AIR BAG OFF light.
Many types and models of child restraints
have been available over t he years, new mod­
els are introduced regu larly incorporating new
and improved des igns and o lder models are
taken out of product ion. Ch ild restraints are
not standard ized . Child restraints of the same
type typ ically have d ifferent weights and sizes
and different 'footpr ints,' the size and shape
of the bottom of the ch ild restrai nt that sits
o n the seat, when they a re insta lled on a veh i­
cle seat. These diffe rences make it v irtually
impossible to certify compliance with the re­
quirements for advanced airbags with each
and every ch ild restraint that has ever been
sold in the past or will be sold over the course
of the useful life of your veh icle.
For this reason, the United States National
Highway Traffic Safety Adm inistrat ion has
published a list of spec ific type, makes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System in your veh icle with the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These chi ld restraints are :
Subpart A - Car bed child restraints
Model
Angel Guard Angel Ride AA 2403FOF
Manufactured on or
after
September 25, 2007
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century SmartF it December 1, 1999
4543
Cosco Arriva September 25, 2007
22-013PAW and base
22-999WHO
Evenf lo Discovery Ad- December 1, 1999
just Right 212
I
j
•
•
....

146 Child Saf ety
-Model Manufactured on or
a fter
Ev enflo First Choice December 1, 1999
204
G ra co Infant 8457 December 1, 1999
Graco Snugride September 25, 2007
Peg Perego Primo Vi -September 25, 200 7
aggio SIP I MUN00US
Subpart C -Forward-facing and
con vert ibl e child re straint s
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summit Deluxe September 25, 2007
High Back Booster
2 2-26 2
Cosco High Back September 25, 2007
I Booster 22-209
E venflo Tribu te V September 25, 200 7
379xxxx
Evenflo Medallion December 1, 1999
1 254
Evenflo Generations September 25, 2007
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo
A WARNING
T o reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child rest raint is installed o n the front pas­
senge r seat and the ignition is switched
on .
- Take the child rest raint off the front pas­
senger seat and install it properly at one
of the rea r seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on. -
Have the airbag system inspected by
your author ized Audi dealer immed iate­
ly .
@ Tips
The child seats listed in categories A to C
have been statically tested by Audi on ly for
the Advanced A irbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the dr iver, you are responsib le for the safe­
ty of everybody in the veh icle, especially ch il­
dren:
... Always use the right chi ld safety seat for
each child and always use it properly
c::;,page 148.
.,. Always carefully follow the child safety seat
manufacturer's instruct ions on how to route
the safety belt properly through the c hild
safety seat .
.,. When using the vehicle sa fe ty belt to ins tall
a ch ild safe ty seat, yo u m ust first a ctivate
t he convertib le locking retractor on the
safety belt to prevent the child safety seat
from moving
¢ page 152 .
.,. Push the ch ild safety seat down with your
full weight to get the safety be lt really tight
so that the seat cannot move forward or
sideways more than one inch (2 .5 cm) .
.,. If a st rap o r tet he r is be ing used to tie the
child safety seat to the front passenger
seat , m ake sure tha t it is not so tight th at i t
causes the weigh t-se ns ing ma t to measure
more weight than is act ually on the seat.
Always remember: Even tho ugh yo ur vehicle is
equipped wi th an A dvan ced Air bag system, all
children, especially those 1 2 years and young ­
er, shou ld always ride in the back seat proper-
ly restrained for their age and size. ..,.

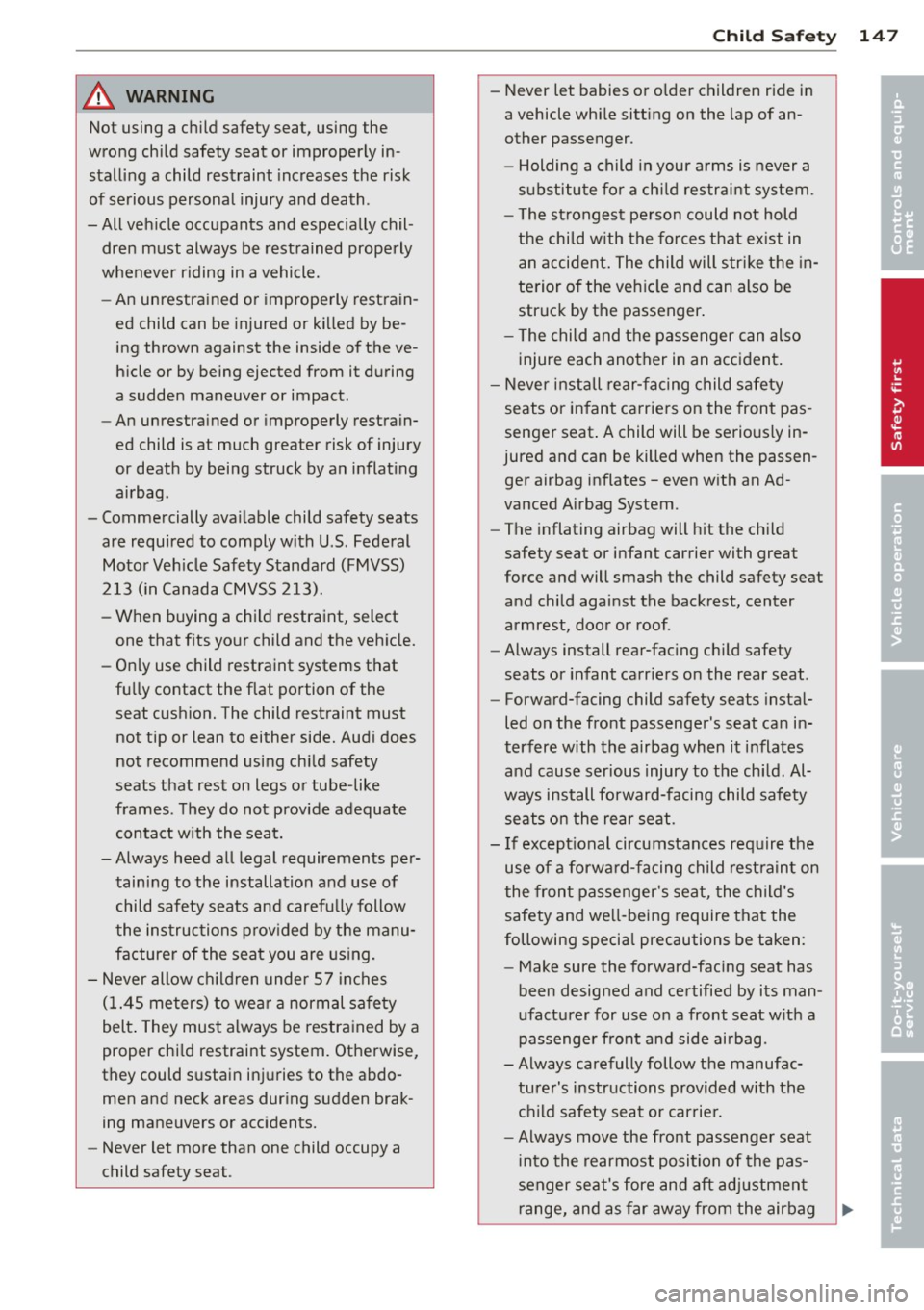

A WARNING
1
Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death .
-All vehicle occupants and especially chil­ dren must always be restrained properly
whenever riding in a vehicle.
- An unrestrained or improperly restrain­
ed child can be injured or killed by be­
ing thrown against the inside of the ve­
hicle or by being ejected from it during
a sudden maneuver or impact.
- An unrestrained or improperly restrain­
ed child is at much greater risk of injury
or death by being struck by an inflating
airbag.
- Commercially available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select
one that fits your child and the vehicle.
- Only use child restraint systems that
fully contact the flat portion of the
seat cushion. The child restraint must
not tip or lean to either side. Audi does
not recommend using child safety
seats that rest on legs or tube-like
frames . They do not provide adequate
contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system. Otherwise,
they could sustain injuries to the abdo­
men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a
child safety seat .
Child Safety 147
-Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger.
- Holding a child in your arms is never a
substitute for a child restraint system .
- The strongest person could not hold
the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be
struck by the passenger.
- The child and the passenger can also
injure each another in an accident.
- Never install rear-facing child safety
seats or infant carriers on the front pas­
senger seat . A child will be seriously in­
jured and can be killed when the passen­
ger airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof .
-Always install rear-facing child safety
seats or infant carriers on the rear seat .
- Forward-facing child safety seats instal­
led on the front passenger's seat can in­
terfere with the airbag when it inflates
and cause serious injury to the child.
Al­
ways install forward-facing child safety
seats on the rear seat .
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child 's
safety and well-being require that the
following special precautions be taken:
- Make sure the forward-facing seat has
been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufac­
turer's instructions provided with the
child safety seat or carrier.
- Always move the front passenger seat
into the rearmost position of the pas­
senger seat's fore and aft adjustment range, and as far away from the airbag •
•
•
•

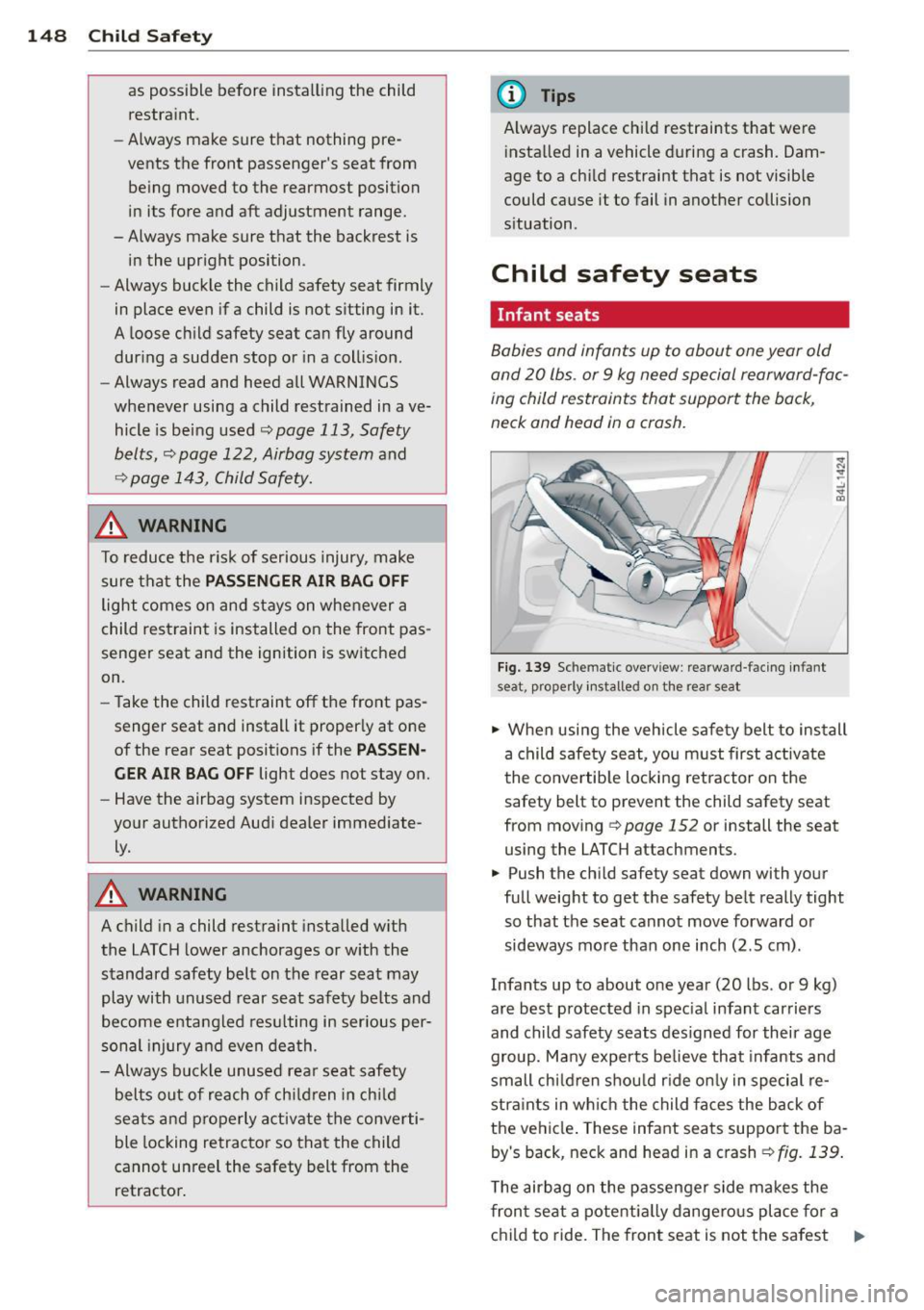

148 Child Safet y
as possible before insta lling the child
restra int.
- Always make sure t hat nothing pre­
vents the front passenger's seat from
being moved to the rearmost position
in its fore and aft adjustment range.
- Always make sure that the backrest is in the upright position .
- Always buck le the child safety seat firmly
in place even if a child is not s itting in it.
A loose ch ild safety seat ca n fly around
dur ing a sudden stop or in a coll is ion.
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
<=:>page 113, Safety
belts,<=:> page 122, Airbag system
and
<=;> page 143, Child Safety.
A WARNING
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light comes on and stays on whe never a
child rest raint is installed on the front pas ­
senge r seat and the ignition is switched
on.
- Take the child rest raint off t he front pas ­
senger seat and install it proper ly at one
of the rear seat positions if the
PAS SEN­
G ER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Audi dealer immediate­ ly.
A WARNING
-
A child in a child restraint installed w ith
the LATCH lower anchorages or w ith the
standard safety belt on the rear seat may play with unused rear seat safety belts and
become enta ngled resu lting in ser ious per­
sonal inj ury and even dea th.
- Always buck le unused rear seat safety
bel ts out of reach of ch ildren in ch ild
sea ts and p roperly activate the conve rti­
ble locking retrac to r so that the child
cannot un reel the safety belt from the
retracto r.
(D Tips
Always replace chi ld restraints that were
i nstalled in a vehicle d uring a crash. Dam -
age to a chi ld restraint that is not visible
could cause it to fail in another collision
s ituation.
Chi Ld safety seats
Infant seats
Babies and infants up to about one year old
and
20 lbs. or 9 kg need special rearward-fac­
ing child restraints that support the back,
neck and head in a crash.
F ig . 13 9 Schema tic overview : rearward -facing infan t
seat, properly installed o n the rear seat
.. When using the vehicle safe ty belt to install
a child safety seat, you m ust first activate
the convertib le locking retractor on the
safety belt to prevent the child safety seat
from mov ing <=:>
page 152 or install the seat
using the LATCH attachments .
.. Push the chi ld safety seat down with your
full weight to get the safety be lt really tight
so that the seat cannot move forwa rd or
sideways mo re than one inch (2 .5 cm).
Infants up to about one year (20 lbs . or 9 kg)
are best protected in spec ial infant car riers
and ch ild safety seats designed for their age
group. Many experts believe that infants and
small chi ld ren shou ld r ide o nly in special re­
stra ints in wh ich the child faces the back of
the vehicle . These infant seats suppo rt the ba­
by's back, neck and head in a c rash
<=:> fig. 139 .
The airbag on the passenger side makes the
fron t se at a pote ntia lly d angero us place for a
c h ild to ride. The front seat is not the safest ..,..
