Wheels


—The tire must flex more if the
tire pressure is too low or if
the vehicle speed or load are
too high. This heats the tire up
too much. This increases the
risk of an accident because it
can cause the tire to burst and
result in loss of vehicle con-
trol.
—Incorrect tire pressure increas-
es tire wear and has a negative
effect on driving and braking

behavior, which increases the
risk of an accident.
@ Note
Replace lost valve caps to re-
duce the risk of damage to the
tire valves.

© For the sake of the envi-
ronment
Tire pressure that is too low in-
creases fuel consumption.
Ncw deem] 1c
Please note that the information
contained in the following table
was correct at the time of print-
ing, and the information is sub-
ject to change. If there are any
differences, you should always
Make sure that the tire designa-
tion on your tire matches the des-
ignation on the tire pressure label
and the tire pressure table.

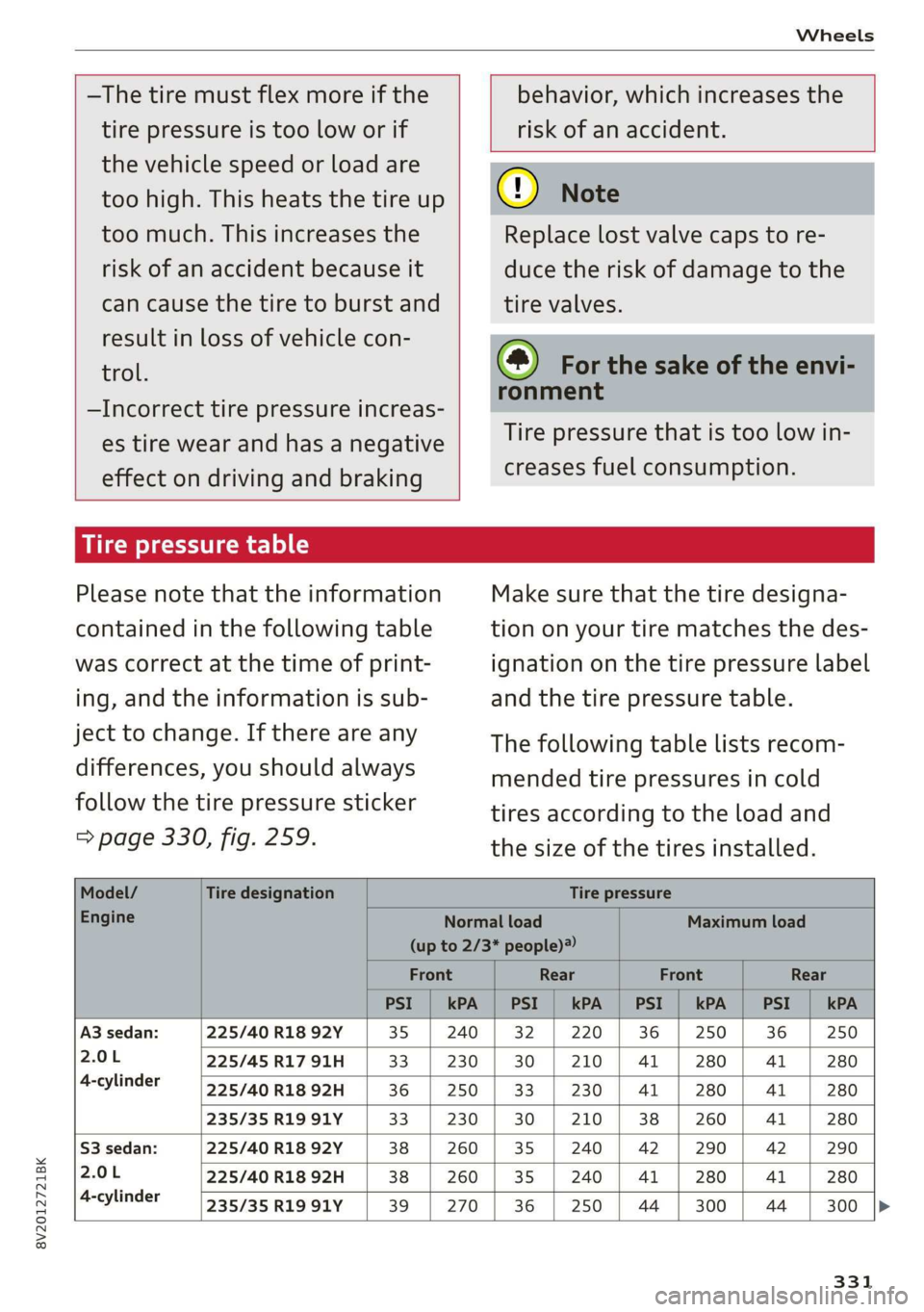

The following table lists recom-
mended tire pressures in cold








follow the Ei pressure sticker tires according to the load and
= page 330, fig. 259. the size of the tires installed.
Model/ Tire designation Tire pressure
Engine Normal load Maximum load
(up to 2/3* people)”
Front Rear Front Rear
PSI | kPA | PSI | kPA | PSI | kPA | PSI | kPA
A3 sedan: 225/40 R18 92Y 35 | 240 | 32 | 220 | 36 | 250 | 36 | 250
2.0L 225/45 R17 91H 33. | 230 | 30 | 210 | 41 | 280 | 41 | 280
4-cylinder 225/40 R18 92H 36 | 250 | 33 | 230 | 41 | 280 | 41 | 280
235/35 R19 91Y 33 | 230 | 30 | 210 | 38 | 260 | 41 | 280
S3 sedan: 225/40 R18 92Y 38 | 260 | 35 | 240 | 42 | 290 | 42 | 290
2.0L 225/40 R18 92H 38 | 260 | 35 | 240 | 41 | 280 | 41 280
4-cylinder — [335/35R1991Y | 39 | 270 | 36 | 250 | 44 | 300 | 44 | 300 |p

331

Wheels

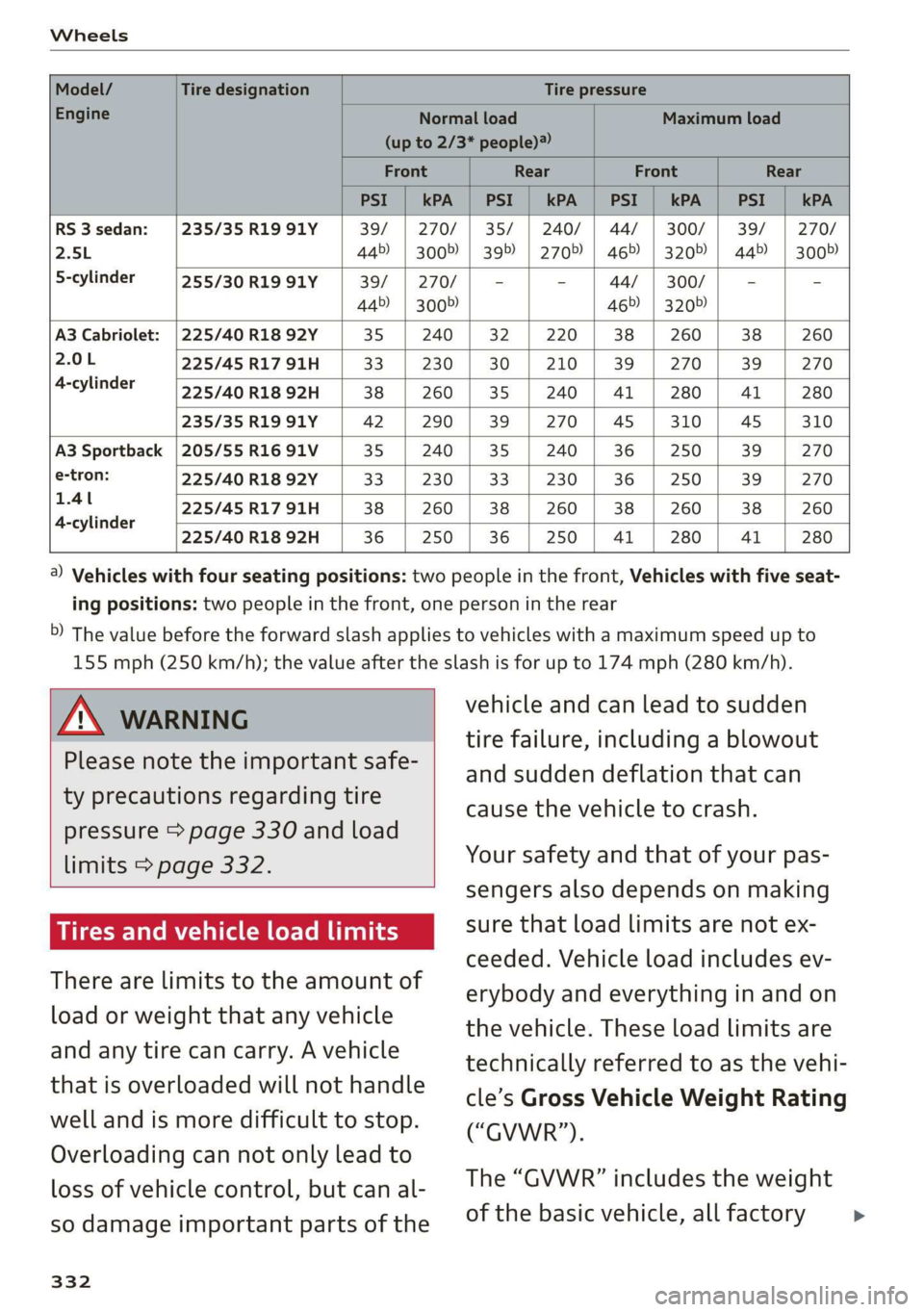

Model/ Tire designation Tire pressure
Engine Normal load Maximum load
(up to 2/3* people)?
Front Rear Front Rear
PSI | kPA | PSI kPA | PSI | kPA | PSI | kPA
RS 3sedan: /|235/35R1991Y 39/ | 270/ | 35/ | 240/ | 44/ | 300/ | 39/ | 270/
2.5L 44>) | 300%) | 395) | 2705) | 46>) | 3205) | 445) | 3005)
5-cylinder 255/30 R19 91Y 39/ | 270/ | - - 44/ | 300/ - -
445) | 3005) 465) | 320»)
A3 Cabriolet: |225/40 R18 92Y 35 | 240 | 32 | 220 | 38 | 260 38 260
2.0L 225/45 R17 91H 33. | 230 | 30 | 210 | 39 | 270 | 39 | 270
4-cylinder 225/40 R18 92H 38 | 260 | 35 | 240 | 41 | 280 | 41 | 280
235/35 R19 91Y 42 | 290 | 39 | 270 | 45 | 310 | 45 310
A3 Sportback | 205/55 R16 91V 35 | 240 | 35 | 240 | 36 | 250 39 270
e-tron: 225/40 R18 92Y 33 | 230 | 33 | 230 | 36 | 250 39 270
ae 225/45R1791H | 38 | 260 | 38 | 260 | 38 | 260 | 38 | 260
4-cylinder
225/40 R18 92H 36 | 250 | 36 | 250 | 41 | 280 | 41 280

@) Vehicles with four seating positions: two people in the front, Vehicles with five seat-
ing positions: two people in the front, one person in the rear
5) The value before the forward slash applies to vehicles with a maximum speed up to
155 mph (250 km/h); the value after the slash is for up to 174 mph (280 km/h).

Z\ WARNING
Please note the important safe-
ty precautions regarding tire
pressure > page 330 and load
limits > page 332.
Tires and vehicle load limits
There are limits to the amount of
load or weight that any vehicle
and any tire can carry. A vehicle
that is overloaded will not handle
well and is more difficult to stop.
Overloading can not only lead to
loss of vehicle control, but can al-
so damage important parts of the

332
vehicle and can lead to sudden
tire failure, including a blowout
and sudden deflation that can
cause the vehicle to crash.
Your safety and that of your pas-
sengers also depends on making
sure that load limits are not ex-
ceeded. Vehicle load includes ev-
erybody and everything in and on
the vehicle. These load limits are
technically referred to as the vehi-
cle’s Gross Vehicle Weight Rating
(“GVWR”).
The “GVWR” includes the weight
of the basic vehicle, all factory >

Wheels


the tread to separate and even cause the tire
to burst, increasing the risk of an accident.
— The tire pressure monitoring system does
not warn about damage or defects in the
tire construction that could cause the tire to
burst, for example. Inspect your tires regu-

larly.
Note that the tire pressure also depends on the
temperature of the tire. The tire pressure increas-
es as the engine becomes warmer while driving.

Z\ WARNING
Read and follow the important information
and notes > page 339.

@) Tips
— If tires are replaced, the sensors and valves
do not need to be removed or replaced. Only
replace the valve stem and, if necessary, the
valve and the wheel electronics. If you have
questions, see an authorized Audi dealer or
authorized Audi Service Facility.
— An incorrect display or a malfunction in the
tire pressure monitoring system can occur
after using the tire mobility kit. Have the
sensors replaced by an authorized Audi
dealer or authorized Audi Service Facility.
— For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
=> page 377.
Displaying tire pressures and temperatures
Applies to: vehicles with tire pressure monitoring system
Requirement: you must be driving the vehicle.

> Select in the Infotainment system: the [MENU
button > Vehicle > left control button > Service
& checks > Tire pressure monitoring > Display
tire pressure.

The current tire pressures are shown in green,
yellow or red numbers in the Infotainment sys-
tem:
— Green: the current tire pressure and the speci-
fied tire pressure are approximately the same.
— Yellow: the current tire pressure is lower than
the specified tire pressure.
— Red: the current tire pressure is much lower
than the specified tire pressure.
The specified tire pressure is the last tire pressure
that was stored > page 341.
340
@) Tips
The tire pressure or temperature is not dis-
played while the vehicle is stationary and in
adaptation mode. Dashes --.-- are shown in
place of the pressure and temperature.
ON ic deste oy
Applies to: vehicles with tire pressure monitoring system
If the @ indicator light turns on, the pressure in
at least one tire is too low or new sensors were
not adapted:
@ Indicator light turns on after turning the
ignition on
The tire pressure is too low compared to the
specified pressure.
> Check and store the tire pressure(s) the next
time it is possible > page 341.
@ Indicator light turns on while driving
Wheels with new sensors were not adapted or
the tire pressure has reached a critical level com-
pared to the specified pressure.
> Avoid unnecessary steering and braking maneu-
vers.
> Adapt your driving style to the situation.
> Stop as soon as possible and check the tire(s).
> If it is possible to continue driving, see an au-
thorized Audi dealer or authorized Audi Service
Facility immediately and have your tire(s) re-
paired or replaced.

ZA\ WARNING
Read and follow the important information

and notes > page 339.

8V2012721BK
Emergency assistance

> Lift the cargo floor using the plastic handle @)
until the cargo floor engages behind the tabs
@ in both side panels > fig. 263 (upper image).
> Fold the cargo floor back before closing the
luggage compartment lid.
Vehicle tool kit and cargo floor cover
Applies to: vehicles with version 2
The vehicle tool kit, tire mobility kit* and com-
pressor* are stored in the luggage compartment
under the cargo floor cover @) > fig. 262.
> Engage the plastic hook () in the luggage com-
partment seal > fig. 263.
> Fold the cargo floor back before closing the
luggage compartment lid.


Z\ WARNING
Applies to: vehicles with jack
Improper use of the vehicle jack can cause se-
rious personal injuries.
— Never use the screw driver hex head to tight-
en wheel bolts, since the bolts cannot attain
the necessary tightening torque if you use
the
hex head, potentially causing an acci-
dent.
— The factory-supplied jack is intended only
for your vehicle model. Under no circum-
stances
should it be used to lift heavy
vehicles or other loads; you risk injuring
yourself.
— Never start the engine when the vehicle is
raised, which could cause an accident.
— Support the vehicle securely with appropri-
ate stands if work is to be performed under-
neath the vehicle; otherwise, there is a po-
tential risk for injury.
— Never use the jack supplied with your Audi
on another vehicle, particularly on a heavier
one. The jack is only suitable for use on the
vehicle it came with.

G) Tips
The vehicle jack* does not require any mainte-
nance.
Vehicle tool kit/tire mobility kit/
eyes
Applies to: vehicles with plug-in hybrid drive
0) Bb + 3
> i a

Fig. 264 Luggage compartment: side trim panel
The vehicle tool kit, tire mobility kit and the com-
pressor are located in the side trim panel @) and
in the luggage compartment.
G) Tips
The vehicle must not be operated without the
tire repair set.
Tire mobility kit
Applies to: vehicles with tire mobility kit
> Read and follow the important safety precau-
tions in > page 348.
> Set the parking brake.
> Move the selector lever into the "P" position.
> Check if a repair with the tire mobility kit is pos-
sible > page 349.
Using the tire mobility kit
Applies to: vehicles with tire mobility kit

B8K-1475



Fig. 265 Tire: tire damage that cannot be repaired
349

Emergency assistance

Replacing wheels
Before changing a wheel
Observe the following precautions for your own
and your passenger's safety when changing a
wheel.
>» After you experience a tire failure, pull the car
well away from moving traffic and try to reach
level ground before you stop > A\.
> All passengers should leave the car and move
toa safe location (for instance, behind the
guardrail) > A\.
> Engage the parking brake to prevent your vehi-
cle from rolling unintentionally > A\.
> Move selector lever to position P > /\.
> If you are towing a trailer, unhitch the trailer
from your vehicle.
> Take the jack* > page 348 and the spare tire*
=> page 357 out of the luggage compartment.

ZA\ WARNING
You or your passengers could be injured while
changing a wheel if you do not follow these
safety precautions:
— If you have a flat tire, move a safe distance
off the road. Turn off the engine, turn the
emergency flashers on and use other warn-
ing devices to alert other motorists.
— Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
—To help prevent the vehicle from moving
suddenly and possibly slipping off the jack*,
always fully set the parking brake and block
the front and back of the wheel diagonally
opposite the wheel being changed. When
one front wheel is lifted off the ground,
placing the Automatic Transmission in P
(Park) will not prevent the vehicle from mov-
ing.
— Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack”.
— Always store the vehicle tool kit, the jack*
and the replaced tire in the luggage com-
partment > page 60.

352
G) Tips
Obey all laws.
Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order.
1. Remove the decorative wheel cover*. For
more details see also > page 353, Decorative
wheel covers or > page 353, Wheels with
wheel bolt caps.
2. Loosen the wheel bolts > page 353.
3. Locate the proper mounting point for the
jack* and align the jack* below that point
=> page 354.
4. Raise the car with the jack* > page 354.
Remove the wheel with the flat tire and then
install the spare > page 355.
6. Tighten all wheel bolts lightly.
Lower the vehicle with the jack*.
8. Use the wheel bolt wrench and firmly tighten
all wheel bolts > page 353.
9. Replace the decorative wheel cover*.
wn
=

ZA WARNING
Always read and follow all WARNINGS and in-
formation > A\ in Raising the vehicle on
page 355 and > page 356.
After changing a wheel
A wheel change is not complete without the do-
ing the following.


> Always store the vehicle tool kit, the jack* and
the replaced tire in the luggage compartment
=> page 60.
> Check the tire pressure on the spare wheel im-
mediately after mounting it.
> As soon as possible, have the tightening tor-
ques on all wheel bolts checked with a torque
wrench. The correct tightening torque is
90 ft lb (120 Nm).
> Have the flat tire replaced as soon as possible.

8V2012721BK
Emergency assistance


» Wind the jack up further until the flat tire — Do not raise the vehicle until you are sure
comes off the ground > A\. the jack is securely engaged.
— Passengers must not remain in the vehicle
when it is jacked up.
— Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
Position the vehicle jack only under the designat-
ed lifting points on the sill > fig. 271. There is ex-
actly one location for each wheel. The jack must
not be positioned at any other location > AS ©.


An unstable surface under the jack can cause the — Make sure jack position is correct, adjust
vehicle to slip off the jack. Always provide a firm as necessary and then continue to raise
base for the jack on the ground. If necessary the jack.
place a sturdy board or similar support under the
jack. On hard, slippery surfaces (such as tiles) @) Note
use a rubber mat or similar to prevent the jack
from slipping owl, Do not Lift the vehicle by the sill. Position the
vehicle jack only at the designated lifting
A WARNING points on the sill. Otherwise, your vehicle will
be damaged.

— You or your passengers could be injured
while changing a wheel if you do not follow
Peon es imteen ene: Taking the wheel off/installing the spare
— Position the vehicle jack only at the desig- Follow these instructions step-by-step for chang-
nated lifting points and align the jack. ing the wheel.
Otherwise, the vehicle jack could slip and
cause an injury if it does not have suffi-
cient hold on the vehicle.
— A soft or unstable surface under the jack
may cause the vehicle to slip off the jack.
Always provide a firm base for the jack on
the ground. If necessary, use a sturdy
board under the jack.
— On hard, slippery surface (such as tiles)
use a rubber mat or similar to prevent the
jack from slipping.
— Only raise your vehicle with the vehicle
jack provided by the factory. If you use a
vehicle jack for another vehicle, your vehi-
cle can slide and cause injury.
— Changes in load can affect the height of
the vehicle.
— Never start the engine when the vehicle is
raised, which could cause an accident.
— Support the vehicle securely with appro-
priate stands if work is to be performed
underneath the vehicle; otherwise, there is
a potential risk for injury.
—To help prevent injury to yourself and your
passengers:
2 R + 4
0 a

Fig. 273 Changing a wheel: using the screwdriver handle
(with the blade removed) to turn the bolts
6 &
Tt
“ oO oO

~
Fig. 274 Changing a wheel: alignment pin inside the top
hole

After you have loosened all wheel bolts and
raised the vehicle off the ground, remove and re-
place the wheel as follows:


355

Fuses and bulbs

Fuses and bulbs
Fuses
(ener aye mates

Fuse color identification








Fig. 280 Left side of the engine compartment: fuse cover
A fuse that has blown will have metal strips that
have burned through.
The fuses are located behind a cover in the steer-
ing column area > fig. 279 or under a cover on
the left side of the engine compartment
> fig. 280.
> Switch the ignition and all electrical equipment
off.
> Check the following table to see which fuse be-
longs to the equipment > page 361.
> Remove the cover.
> Remove the plastic clip from the fuse panel
cover in the engine compartment > fig. 280.
> Remove the fuse using the plastic clamp.
> Replace the blown fuse with a fuse that has the
same amp rating.
>» Reinsert the cover.
360

Color Current rating
in amps
Black a
Purple 3
Light brown 5
Brown 15
Red 10
Blue 15
Yellow 20
White or transparent [25
Green 30
Orange 40
5| | A\ WARNING
Do not repair fuses and never replace a blown
fuse with one that has a higher amp rating.
This can cause damage to the electrical sys-

tem and increases the risk of fire.

(!) Note
If a new fuse burns out again shortly after you
have installed it, have the electrical system
checked as soon as possible by an authorized
Audi dealer or authorized Audi Service Facili-
ty.
@ Tips
— The following table does not list fuse loca-
tions that are not used.
— Some of the equipment listed in the follow-
ing tables applies only to certain model ver-
sions or certain optional equipment.

8V2012721BK
Fuses and bulbs

Fuse assignment - Interior

No. Equipment



RAZ-0793,
PO ee
15°16°17-18 19 20 21
PZ ply lip y ips}
ei Hes ole” So}
32°33 34 35 36 37
F15
Electronic steering column lock, conven-
ience access control module

F16 TV tuner, telephone antenna

F17 Instrument cluster

F18 Rearview camera

F1I9 Vehicle positioning

F20
Engine components, AdBlue, charging sys-
tem

F221
Steering column, steering wheel heating
switch module

F24
Right vehicle electrical system control
module

F25 Driver's side front/rear power windows

F26 Seat heating

F27 Vehicle electrical system control module

F28 Power top control module


Fig. 281 Vehicle interior: fuse assignment
F29
Vehicle electrical system control module,
interior lighting


No. Equipment
F30 Diagnostic connector


FL Engine components, AdBlue

F2 Seat adjustment
F32
Front camera, parking system, ACC sensor,
lane change assist


F4
Infotainment control panel, Infotainment
components
F33 Airbag


FS Gateway

Fo
Selector lever (automatic transmission),
steering lock
F34
Hold assist button, interior sound, back-up
light switch, temperature sensor, neck
heating and sockets, power top operation
button


Air conditioning/heating controls, auxiliary F35
Air quality sensor, automatic dimming
rearview mirror, diagnostic connector, cen-












F7 |heating, rear window defogger, tire pres- ter console power supply
sure monitor F36 | Right headlight (LED, Matrix LED)
Electromechanical parking brake switch, F37 | Left headlight (LED, Matrix LED)
light switch, rain/light sensor, anti-theft F38 | High-voltage battery
ae ene eee dent F39 | Passenger's side front/rear power windows
range control F40 | Cigarette lighter, sockets
F9 |Steering column electronics F41 | Passenger's side safety belt tensioner
F10 | Infotainment system display F42 | Central locking area
Tl Left vehicle electrical system control mod- F44 al ee
ule, airbag FAS | Driver's side seat adjustment
F12 | Infotainment components F47 | Rear window wiper
F13 | Driver's side safety belt tensioner, airbag F48 | Outer sound actuator
F14 | Heating and A/C system blower control
361

Fuses and bulbs


No. | Equipment No. | Equipment

Clutch sensor, engine start, high-voltage
F49 3
battery, power electronics

F52 F53 Level control system control module


Rear window defogger

The power seats* are protected via circuit break-
ers that automatically switch on after a few sec-
onds after the overload has been reduced.
Fuse assignment - Engine compartment

RAZ-0794)
1 0
&
F:}
vi
6
5
4
5}


Fig. 282 Engine compartment: fuse assignment


No. | Equipment
F3 | Engine control module
FA Engine components, engine cooling, aux-
iliary heater, exhaust treatment

Engine components, fuel tank system
(diesel), CNG cut-off valve
Brake light switch
E5

Fo

Engine components, water pumps, tank
F7 ; . ee cae
system (gasoline engine), electrification

F8
F9
Heat oxygen sensor

Engine components, exhaust door, glow
time control module

F10 | Fuel control module, fuel pump

362
F13 | Transmission fluid pump

F15 |Horn

Power and control electronics, engine
components, ignition coil, options mod-
ule
F1l6

Electronic Stabilization Control (ESC), en-
F17
gine control module

Terminal 30 (voltage reference), battery
F18
es
monitoring

FIO F20
F21
Windshield wipers

Anti-theft alarm system

Automatic transmission

Terminal 50 diagnosis, engine control
F22
module

F23 | Engine start

Vacuum pump, water pump, high pres-
F31. 2
sure pump, fuel injectors

F33
F34
F35
F36
F37
Brake pressure reservoir, recuperation

Brake booster

Climate control system

Left front headlamp

Parking heater


F38 | Right front headlamp

Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for
you.
It is becoming increasingly more and more diffi-
cult to replace vehicle light bulbs since in many
cases, other parts of the car must first be re-
moved before you are able to get to the bulb.
This applies especially to the light bulbs in the
front of your car which you can only reach
through the engine compartment.
Sheet metal and bulb holders can have sharp
edges that can cause serious cuts, parts must be
correctly taken apart and then properly put back
together to help prevent breakage of parts and >

8V2012721BK
Fuses and bulbs

long term damage from water that can enter
housings that have not been properly resealed.
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for
you, since your dealer has the proper tools, the
correct bulbs and the expertise.
Gas discharge lamps (Xenon lights)
Due to the high electrical voltage, have the bulbs
replaced by a qualified technician. Headlights
with Xenon light are identified by the high volt-
age sticker.
LED headlights*
LED headlights require no maintenance. Please
contact your authorized Audi dealer if a bulb
needs to be replaced.

ZA\ WARNING
Changing Xenon lamps without the necessary
equipment can cause serious personal injury.
— Bulbs are pressurized and can explode when
being changed. Potential risk of injury!
— On vehicles equipped with gas discharge
bulbs (Xenon light) life-threatening injuries
can result from improper handling of the
high-voltage portions of such lamps!
— Only your authorized Audi dealer or quali-
fied workshop should change the bulbs in
gas discharge lamps. There are parts with
sharp edges on the openings and on the
bulb holders that can cause serious cuts. If
you are uncertain about what to do, have the
work performed by an authorized Audi deal-
er or qualified workshop. Serious personal
injury may result from improperly per-
formed work.

@ Tips
—If you still prefer to replace the light bulbs
yourself, be aware that the engine compart-
ment is a hazardous area to work in > A\ in
General information on page 304.
—Itis best to ask your authorized Audi dealer
whenever you want to change a bulb.
363
