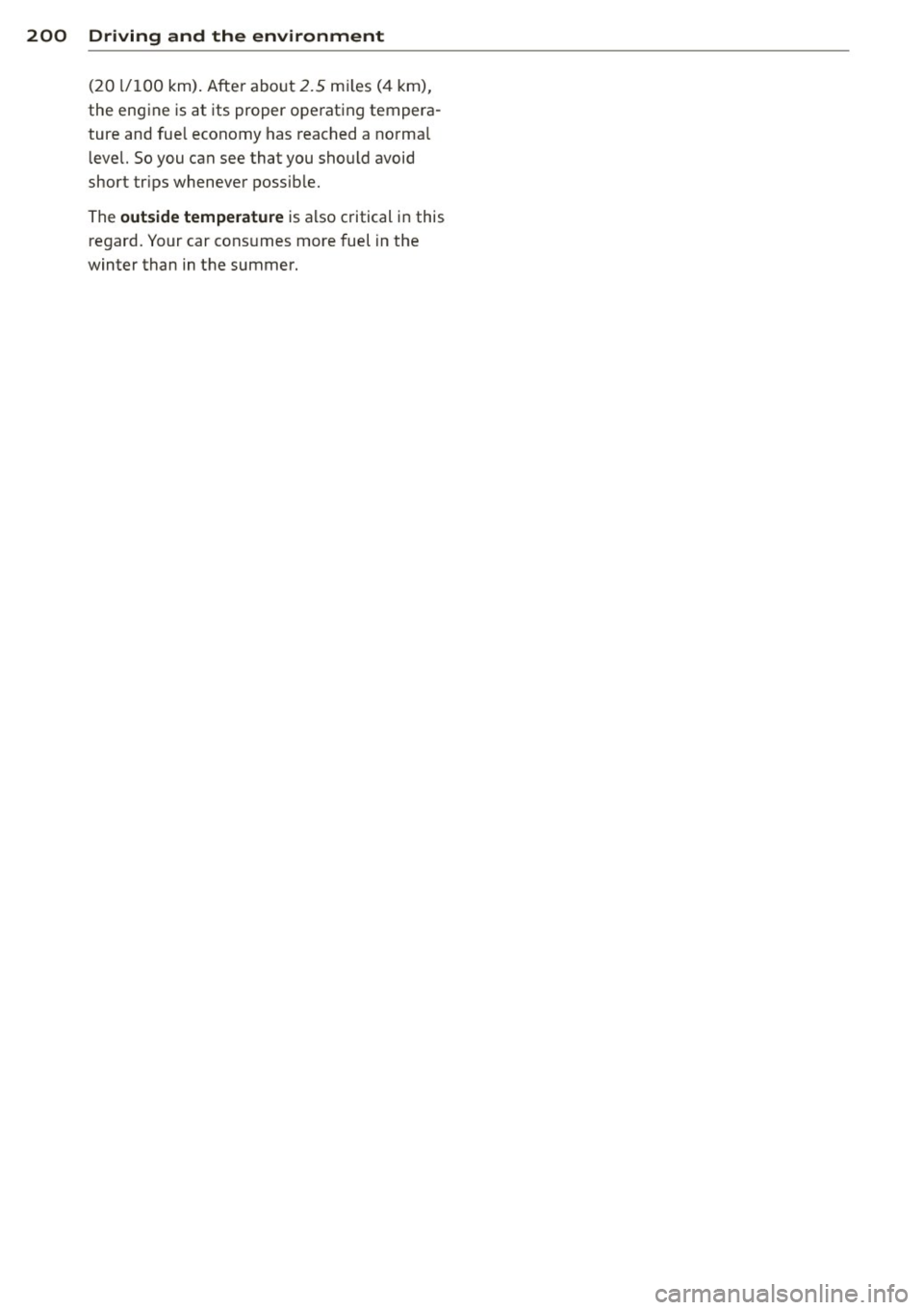

200 Driving and the environment
(20 l/100 km). After about 2.5 m iles (4 km),
the engine is at its proper operating tempera­
ture and fuel economy has reached a normal
level. So you can see that you should avoid
short trips whenever possible.
The
outside temperature is also critical in this
regard. Your car cons umes more fuel in the
winter than in the summer.

M N
" > co ,...., \!) ..,.,
,...., ..,., ,....,
Trailer towing Driving with a trailer
General information
Your Audi was designed primarily for passen­
ger transportation .
If you plan to tow a tra iler, p lease remember
that the addit ional load will affect durab ility,
economy and performance .
Trailer towing not on ly places more stress on
the vehicle, it also calls for more concentra­
tion from the driver.
F or this reason, a lways fo llow the operating
a n d driving instr uctions provided and use
common sense.
Technical requirements
Traile r hitch
Use a weight-carrying hitch conforming to the
gross trailer we ight. The hitch must be suita­
b le for your veh icle and trailer and must be
mounted secure ly on t he veh icle's chassis at a
technically sound location . Use only a t railer
h itch w ith a removab le ball moun t. A lways
check with the tr ailer hitch man ufac tur er to
make sure that you are using the correct
hitch.
Do not use a bumper hitch.
T he hitc h must be installed in such a way that
it does not inte rfe re with the impac t-absorb­
i ng b umper syst em. No modifica tions should
be made to the vehicle exhaus t and b rake sys­
tems . From t ime to time, check that a ll hitch
mo unt ing bolt s remain securely fas tened.
W hen you are not tow ing a trailer, remove the
trai le r hi tch ball moun t. T h is prevents the
hi tch from causing damage sho uld your ve hi­
cle be str uck from be hind
¢ &. .
Trailer brakes
If yo ur tra iler is equ ipped w it h a braking sys­
tem, check to be su re that it conforms to a ll
r eg ulat io ns .
Trailer towin g 201
The trailer hyd ra ulic bra ke system must not be
direct ly connected to the vehicle's hydraulic
brake system .
Safety chains
Alw ays use saf ety chains between your ve hicle
and t he tra ile r.
Trailer lights
Tra iler lights must meet all reg ulations . Be
su re to check with your Audi dea ler fo r cor re ct
wir ing, swi tches and relays.
Mirrors
If you a re unable to see the traffic behind you
u sing the regula r outside m irrors, then you
must i nsta ll ext ended mir rors . It is important
t h at you
always have clea r vis ion to the rear .
.8, WARNING
-
Afte r removing the trailer hit ch, do no t
s tore i t in yo ur vehicle . In case of sudden
b raking, the h itch cou ld fly forwar d an d in­
ju re you or yo ur passengers .
Operating instructions
Maximum trailer weight
A tra ile r fo r you r vehicle is limited to a ty pical
cl ass 1 or class 2 tra ile r.
Trailer load distribution
B e sure the loa d in the tr aile r is held secure ly
i n place to p reven t it from shift ing forw ard,
ba ckward or sideways.
Never allow a passenger to ride in a trailer
¢ &. in Driving instru ctions on page 20 2.
Engine cooling system
Towing a trailer makes the engine work hard­
er . It is impo rtant that the cooling system's
perfo rmance is up to the additional load .
Make sure that the coo ling syst em has enough
f lui d.
Tire pressure
When towing a trailer , inflate the tires of your
vehicle to t he cold tire pressure listed under .,..
•
•
•

202 Trailer towing
"Full load" on the label located on the driver's
side B-pillar (visible when the door is open).
Inflate trailer tires to trai ler and t ire manufac ­
turers' specif ications.
Lights
Check to make sure both vehicle and trailer
lights are working properly.
Safety chains
Be sure trailer safety chains are properly con­
nected from the trailer to the hitch on the ve­
hicle. Leave enough slack in the chains to per­
mit turning corners. When you install safety
chains, make sure they wi ll not drag on the
road when you are driving.
The chains should cross under the trailer
tongue to prevent it from dropping in case of
separation from the hitch.
Driving instructions
Driving with a trailer always requires extra
care and consideration.
To obtain the best possible handling of vehicle
and trailer, please note the following:
.. Do not tow a loaded tra iler when your car it­
self is not loaded.
.,. Be espec ially car efu l when passing other
vehicles.
.. Observe speed limits.
.. Do not drive at the maximum permissible
speed.
.. Always apply brakes early .
.. Monitor the temperature gauge.
Weight distribution
Towing a loa ded trai ler with an empty ca r re­
sults in a high ly unstable distribution of
weight . If this cannot be avoided, drive at very
low speeds only to avoid the risk of losing
steering control.
A "balanced" rig is easier to operate and con­
trol. This means that the tow vehicle should be loaded to the extent poss ible and permissi­
ble, while keeping the trailer as light as possi­
ble under the circumstances . Whenever possi- ble,
transfer some cargo to the luggage com­
partment of the tow vehicle while observing
tong ue load requirements and vehicle loading
considerations.
Speed
T he higher the speed, the more difficult it be­
comes for the driver to control the rig. Do not
drive at the maximum permissible speed . Re­
duce your speed even more if load, weather or
wind conditions are unfavorable -particularly
when going downhill.
Reduce vehicle speed
immediately if the trail­
er shows the slightest sign of sway ing.
Do not
try to stop the swaying by accelerating.
Observe speed limits . In some areas, speeds
for vehicles towing trai lers are lower than for
regular vehicles .
Always apply brakes early. When driving
downhi ll, shift into a lower gear to use the en­
gine braking effect to s low the vehicle. Use of
the brakes alone can cause them to overheat
and fail.
Coolant temperature
The coolant temperature gauge~ page 12
must be observed carefu lly. The coolant tem­
perature can increase if you drive on long in­
clines in a low gear at high engine speeds. Re­
duce your speed immediately if the LEDs in
the top part of the d isplay turn on .
For more information about indicator lights,
refer to. ~
page 19 .
A WARNING
Anyone not properly restrained in a mov­
ing vehicle is at a much greater risk in an
accident. Never let anyone ride in your car
who is not properly wearing the restraints
provided by Audi.
Trailer towing tips
Important to know
Your vehicle handles differently when towing
a trai ler because of the additional weight and ..,.

M N
" > co ,...., \!) 1.1"1 ,...., 1.1"1 ,....,
different weight distribution. Safety, perform­
ance and economy wi ll greatly depend on how
carefu lly you load your trailer and operate
your rig.
Before you actually tow your trailer, practice
turning, stopping and backing up in an area
away from traffic. Keep practicing until you
have become comp letely familiar with the way
your vehicle- trailer combination behaves and
responds .
Backing up is d ifficult and requires practice.
Backing up with a trai ler generally requires
stee ring action opposite to that when backing
up your vehicle without a trailer .
Maintain a greater distance between your ve­
hicle and the one in front of you. You will need
more room to stop. To compensate for the
trailer, you will need a larger than normal
turn ing radius.
When passing, remember that you cannot ac­
celerate as fast as you normally would be­
cause of the added load. Make sure you have
enough room to pass . After passing, allow
p lenty of room for your tra iler before chang­
ing lanes again.
Avoid jerky starts, sharp turns or rapid lane
changes.
(D Tips
- Do not tow a tra iler during the break-in
period of your vehicle.
- If you tow a trailer, your Audi may re­
quire more frequent maintenance due to
the extra load
¢ page 282 .
Parking on a slope
Do not park on a slope with a trailer. If i t can­
not be avoided, do so only after doing the fol ­
lowing:
When parking:
.. Apply the foot brake.
.. Have someone place chocks under both the
vehicle and the trailer wheels.
Trailer towing 203
.. With chocks in place, slowly release the
brakes until the wheel chocks absorb the
load .
.. Turn the wheels towards the curb.
.. Apply the parking brake.
.. Select the P selector lever posit ion.
When re starting after parking:
.. App ly the foot brake.
.. Start the engine.
.. Select the
0/5 selector lever position.
.. Release the parking brake and slowly pull
out and away from the wheel chocks .
.. Stop and have someone retr ieve the wheel
chocks.
(D Tips
If you move the selector lever of the auto­
matic transmission to
P before applying
the parking brake and before blocking the
whee ls, you may have to use more force
lat er to move the lever out of the
P posi­
tion.
•
•
•

210 Checking and Filling
Checking and Filling
Fuel supply
Applies to vehicles: with gasoline engine
Using the right fuel helps keep the environ­
ment clean and prevents engine damage.
Fuel recommendation
The fuel recommended for your vehicle is un­
leaded premium
grade gasoline . Audi recom­
mends using TOP TIER Detergent Gasoline
with a minimum octane rating of 91 AKI (95
RON). For more information on TOP TIER De­
tergent Gasoline, please go to the off icia l
website (www.toptiergas.com).
The recommended gasoline octane rating for
your engine can a lso be found on a label locat­
ed on the inside of the fuel filler flap. This rat­
ing may be specified as AKI or RON.
Your vehicle may also be operated using un­ leaded regular gasoline with a minimum oc­
tane rating of
87 AKI/91 RON. However, using
87 AKI/91 RON octane fuel w ill slightly re­
duce eng ine performance.
Use unleaded gasoline only. Unleaded gaso­
line is available throughout the USA, Canada,
and in most European countries. We recom­
mend that you do not take your vehicle to
areas or countries where unleaded gasoline
may not be ava ilable .
For more informat ion on refueling your vehi­
cle, see
c:> page 211 .
Octane rating
Octane rating indicates a gasoline's ability to
res ist engine damaging "knock" caused by
premature ign ition and detonation. Therefore,
buying the correct grade of gasoline is very
important to help prevent possible engine
damage and a loss of engine performance .
Gasoline most commonly used in the United
States and Canada has the following octane
ratings that can usually be found on the filler
pump:
- Prem ium Grade : 91- 96 AKI -
Regular Grade:
87 -90 AKI
E xplanation of the abbreviations:
AK I=
Anti Knock Index = (R +M)/2 = (RON
+MON)/2
RON= Research Octane Number
MON = Motor Octane Number.
(D Note
- Do not use any fuel w ith octane rat ings
lower than
87 AK I or 91 RON otherwise
expensive engine damage will occur .
- Do
not us e leaded gasoline. The use of
leaded gasoline w ill severely damage
your vehicle's catalytic converter and its
ability to control exhaust emissions.
Blended gasoline
Applies to vehicles: with gasoline engine
Use of gasoline containing alcohol or
MTBE (methyl tertiary butyl ether)
You may use unleaded gasoline blended with
alcohol or MTBE (commonly referred to as
oxygenates) if the blended mixture meets the
follow ing criteria:
Blend of gasoline methanol (wood alcohol or
methyl alcohol)
-Anti -knock index must be 87 AKI or higher.
- Blend must contain no more than 3% meth-
anol.
- Blend must contain more than 2% co-sol -
vents .
Blend of gasoline and ethanol (grain alcohol
or ethyl alcohol)
-Anti-knock index must be 87 AKI or higher.
- Blend must not co nta in more than 15%
ethanol.
Blend of gasoline and MTBE
-Anti-knock index must be 87 AKI or higher.
- Blend must contain not more than 15%
MTBE.
Seasonally adjusted gasoline

M N
" > co ,...., \!) ..,.,
,...., ..,., ,....,

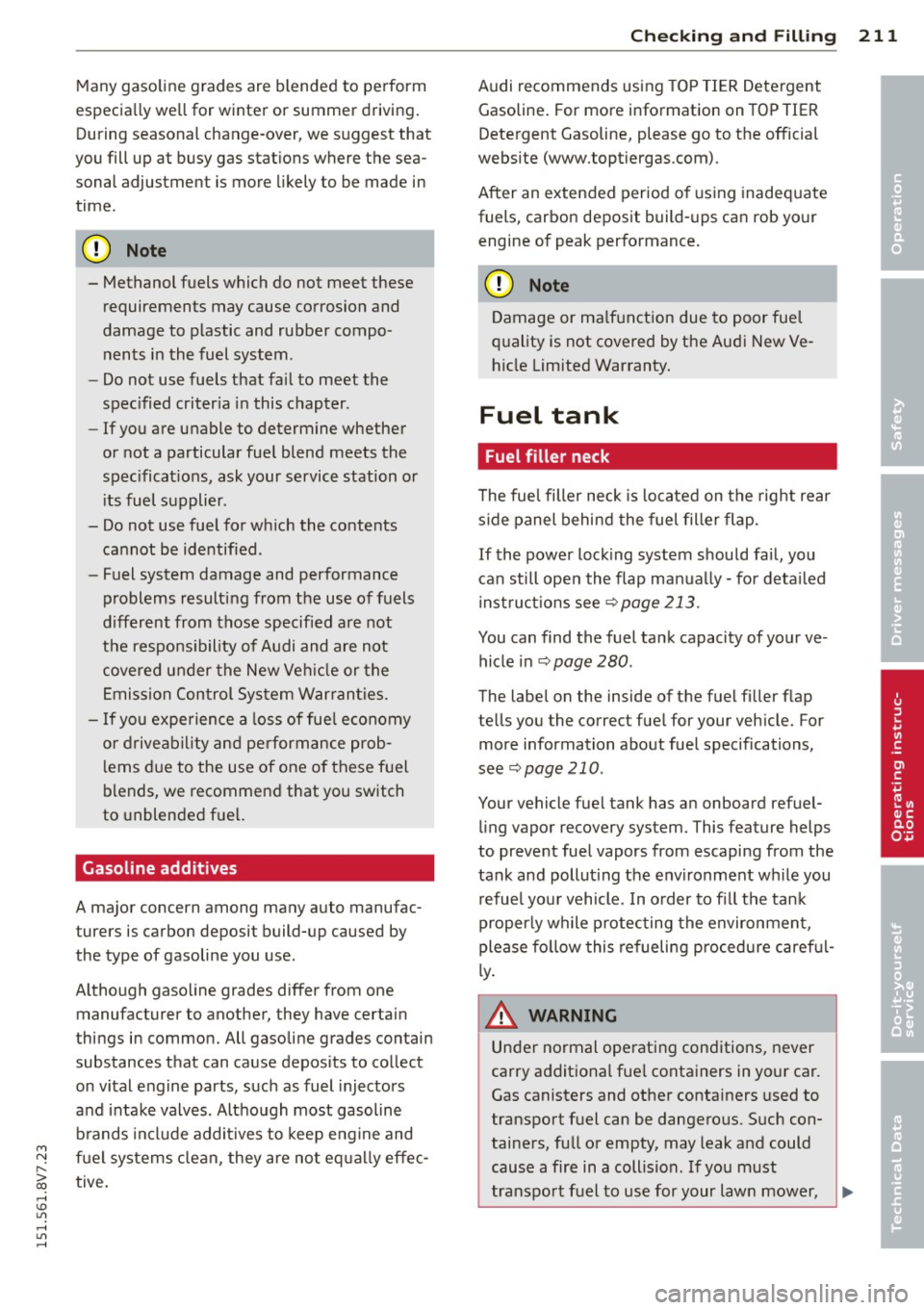

Many gasoline grades are blended to perform
especially well for winter or summer driving. During seasonal change-over , we suggest that
you fill up at busy gas stations where the sea­ sonal adjustment is more likely to be made in
time.
Q;) Note
- Methanol fuels which do not meet these requirements may cause corrosion and
damage to plastic and rubber compo ­
nents in the fuel system .
- Do not use fuels that fail to meet the
specified criteria in this chapter .
- If you are unable to determine whether
or not a particular fuel blend meets the
specificat ions, ask your service station or
i ts fuel supp lier .
- Do not use fuel for which the contents cannot be identified .
- Fuel system damage and performance
problems resulting from the use of fuels
different from those specified are not
the responsibility of Audi and are not
covered under the New Vehicle or the
Emission Control System Warranties.
- If you experience a loss of fuel economy
or driveability and performance prob­
lems due to the use of one of these fuel
blends, we recommend that you switch
to unblended fuel.
Gasoline additives
A major concern among many auto manufac­
turers is carbon deposit build-up caused by
the type of gasoline you use .
Although gasoline grades differ from one manufacturer to another, they have cer tain
things in common. All gasoline grades contain substances that can cause deposits to collect
on vital engine parts, such as fuel injectors
and intake valves. Although most gasoline
brands include additives to keep engine and
fuel systems clean, they are not equally effec­
tive.
Checking and Filling 211
Audi recommends using TOP TIER Detergent
Gasoline . For more information on TOP TIER
Detergent Gasoline, please go to the official
website (www .toptiergas .com) .
After an extended period of using inadequate
fuels, carbon deposit build-ups can rob your engine of peak performance.
CJ) Note
Damage or malfunction due to poor fuel
quality is not covered by the Audi New Ve­
hicle Limited Warranty.
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel filler flap.
If the power locking system should fail, you
can still open the flap manually -for detailed
instructions see~
page 213.
You can find the fuel tank capacity of your ve ­
hicle in
~ page 280.
The label on the inside of the fuel filler flap
tells you the correct fuel for your vehicle. For
more information about fuel specifications,
see
~ page 210 .
Your vehicle fuel tank has an on board refuel­
ling vapor recovery system. This feature helps
to prevent fuel vapors from escaping from the
tank and polluting the environment while you refuel your vehicle. In order to fill the tank
properly while protecting the environment,
please follow this refueling procedure careful­
ly .
A WARNING ~
Under normal operating conditions, never
carry additional fuel containers in your car.
Gas canisters and other containers used to
transport fuel can be dangerous. Such con­
tainers, full or empty, may leak and could
cause a fire in a collision . If you must
transport fuel to use for your lawn mower, ..,.
•
•
•

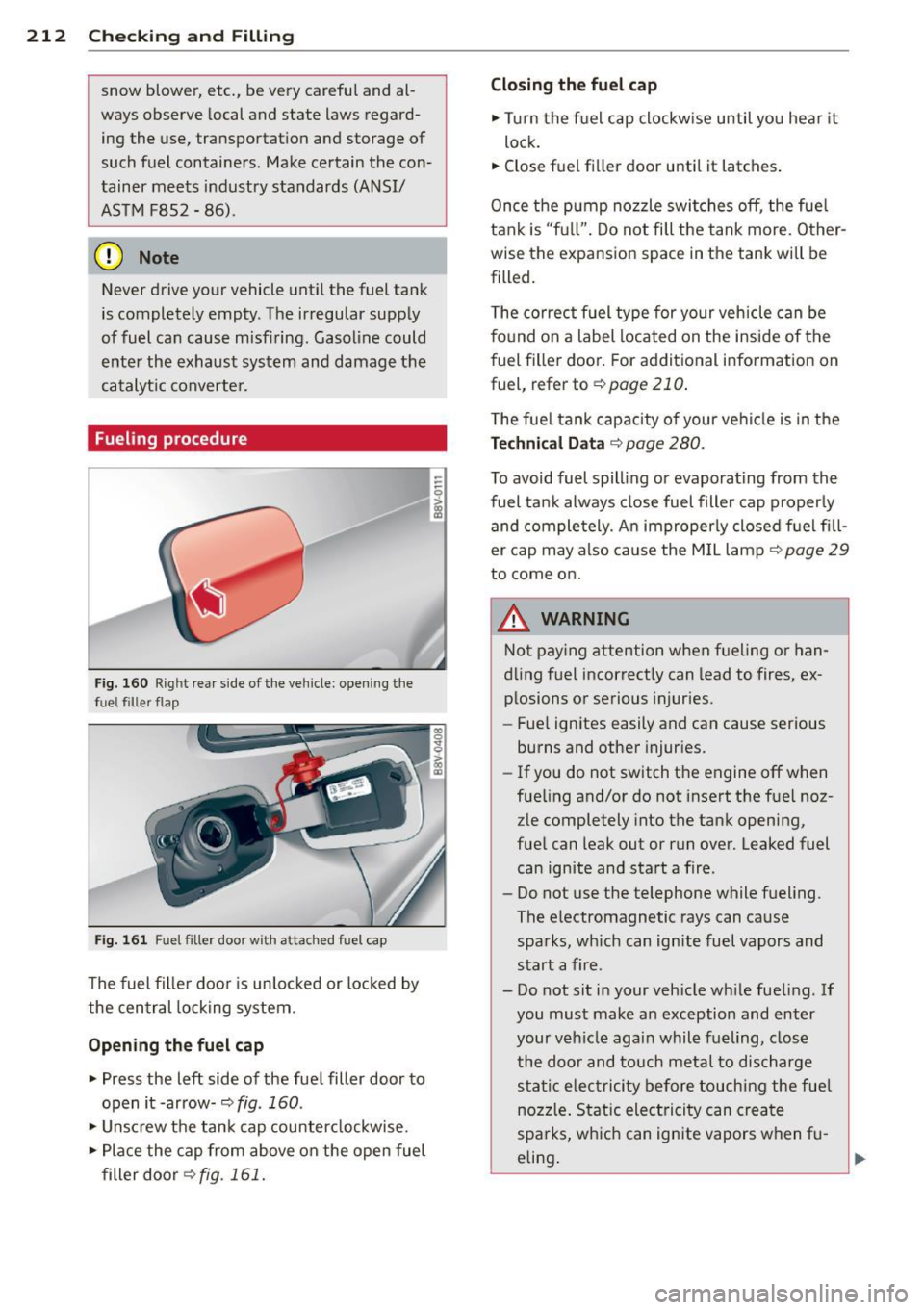

212 Checking and Fill in g
snow blower, etc., be very careful and al­
ways observe local and state laws regard­ ing the use, transportation and storage of
such fuel containers . Make certain the con­
tainer meets industry standards (ANSI/
ASTM F852 -86) .
(D Note
Never drive your vehicle until the fuel tank
is completely empty . The irregular supply
of fuel can cause misfiring. Gasoline could
enter the exhaust system and damage the
catalyt ic converter.
Fueling procedure
Fig. 160 R ig ht rea r side of the veh icle: open ing the
fue l filler f lap
Fig. 161 F u el filler door w ith attached fuel cap
The fuel filler door is unlocked or locked by
the central locking system.
Opening th e fu el cap
.,. Press the left side of the fuel filler door to
open it -arrow-
c::> fig. 160 .
• Unsc rew the tank cap counterclockwise.
• Place the cap from
above on the open fuel
filler door
c::> fig . 161.
Clo sin g th e fu el ca p
.,. Turn the f uel cap clockw ise until you hea r it
lock.
.,. Close f uel fil ler door until it latches .
Once the pump nozzle switches off, the fue l
tank is "fu ll". Do not fill the tank more. Other­
wise the expansion space in the tank will be
filled.
The correct fuel type for your vehicle can be
f ound on a label located on the inside of the
fuel filler door. For additional information on
fuel, refer to
c::> page 210 .
The fue l tank capacity of your vehicle is in the
Techni cal D ata c::> page 280.
To avoid fuel spill ing or evaporating from the
fuel tank always close fuel filler cap properly and completely. An improperly closed fuel fi ll­
er cap may also cause the M IL lamp
c::> page 29
to come on .
A WARNING
Not paying attention when fueling or han­
d ling fuel incorrect ly can lead to fires, ex­
plosions or serious injuries.
- Fue l ignites easily and can cause serious
burns and other injuries.
- If you do not switch the engine off when
fue ling and/or do not insert the fuel noz­
zle completely into the tank opening ,
fuel can leak out or run over. Leaked fuel can ignite and start a fire .
- Do not use the telephone while fueling.
The electromagnetic rays can cause
sparks, wh ich can ignite fuel vapors and
start a fire.
- Do not sit in your vehicle while fueling . If
you must make an exception and enter
your veh icle again while fueling, close
the door and touch metal to discharge
s tatic electricity before touching the fue l
nozz le . Static electricity can create
sparks, wh ich can ignite vapors when fu-
eling . .,._

....,
N
r--. > co
rl I.O
"' rl
"' rl

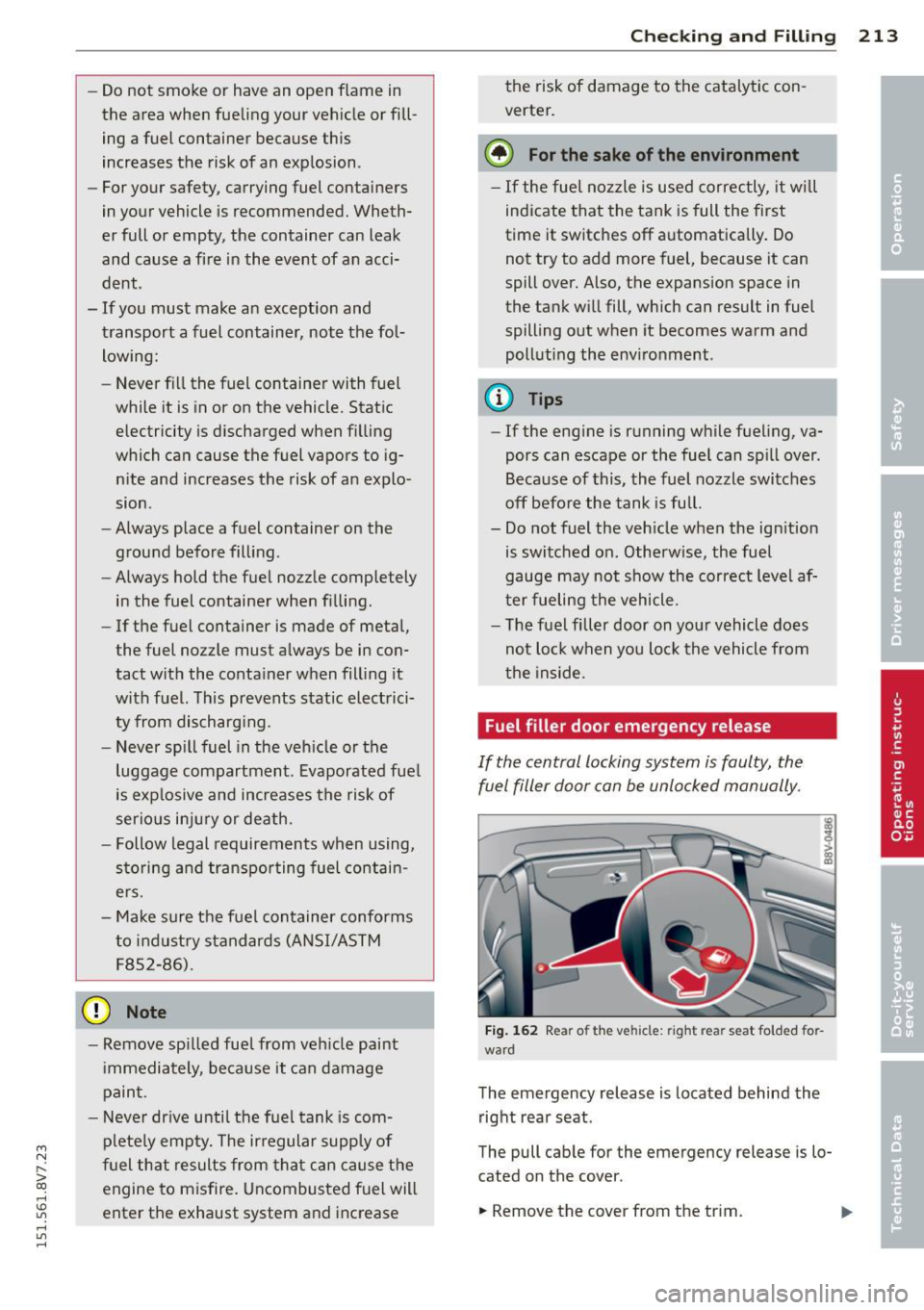

-Do not smoke or have an open flame in
the area when fueling your vehicle or fill­
ing a fuel container because this
increases the risk of an explosion .
- For your safety, carrying fuel containers
in your vehicle is recommended. Wheth­
er full or empty, the container can leak
and cause a fire in the event of an acci­
dent .
- If you must make an exception and
transport a fuel container, note the fol­
lowing:
- Never f ill the fuel container with fuel
while it is in or on the vehicle. Static
electricity is discharged when filling
which can cause the fuel vapors to ig­
nite and increases the risk of an explo ­
s10n .
- Always place a fuel container on the
ground before filling .
- Always hold the fuel nozzle completely
in the fuel container when filling.
- If the fuel container is made of metal,
the fuel nozzle must always be in con­
tact with the container when filling it
with fuel. This prevents static electrici­
ty from discharg ing.
- Never sp ill fuel in the vehicle or the
luggage compartment. Evaporated fuel
is exp losive and increases the risk of
serious injury or death .
- Follow legal requirements when using,
storing and transporting fuel contain­
ers.
- Make sure the fuel container conforms
to indust ry standards (ANSI/ASTM
F852-86).
(D Note
-Remove spilled fuel from vehicle paint
immediately, because it can damage
paint.
- Never drive until the fuel tank is com­
pletely empty. The irregular supply of
fuel that results from that can cause the
engine to misfire. Uncombusted fuel will
enter the exhaust system and increase
Checking and Filling 213
the risk of damage to the catalytic con­
verter.
@ For the sake of the environment
- If the fuel nozzle is used correctly , it will
indicate that the tank is full the first
time it switches off automatically. Do
not try to add more fuel, because it can
spill over. Also, the expansion space in
the tank will fill , which can result in fuel
spilling out when it becomes warm and
polluting the environment.
(D Tips
- If the engine is running while fueling, va­
pors can escape or the fuel can spill over .
Because of this, the fuel nozzle switches
off before the tank is full.
- Do not fuel the vehicle when the ign ition
is switched on . Otherwise, the fuel
gauge may not show the correct level af­
ter fueling the vehicle .
- The fuel filler door on your vehicle does
not lock when you lock the vehicle from
the inside .
Fuel filler door emergency release
If the central locking system is faulty, the
fuel filler door can be unlocked manually .
Fig. 162 Rear of the vehi cle: ri ght rea r seat folded for­
wa rd
The emergency release is located behind the
right rear seat .
The pull cable for the emergency release is lo­
cated on the cover .
.,. Remove the cover from the trim.

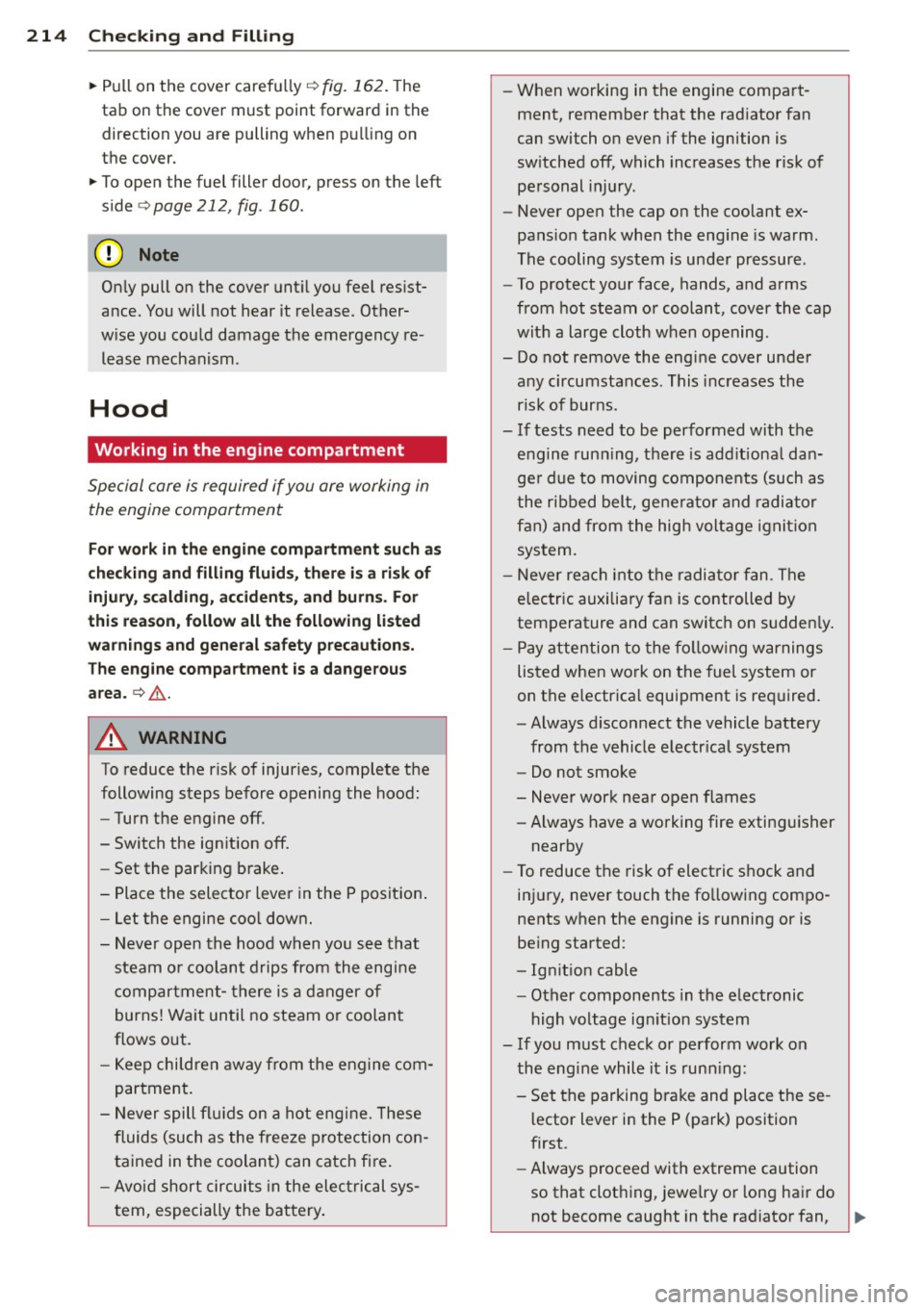

214 Check ing and F illin g
•Pullon the cover carefu lly ¢ fig. 162. The
tab on the cover must point forward in the direction you are pulling when pu lling on
the cover.
• To open the fuel filler door, press on the left
side
¢ page 212, fig . 160 .
{Q) Note
Only pull on the cover unt il you feel resist­
ance. You will not hear it release . Other­
w ise you could damage the emergency re­
lease mechanism.
Hood
Working in the engine compartment
Special care is required if you are working in the engine compartment
F o r w ork in th e eng in e c omp artm ent su ch as
c h ecking and fi llin g fluid s, t he re i s a risk of
inj ury, sca lding, accid ents, a nd b urn s. Fo r
thi s re aso n, follow all the follow in g listed
war ning s and ge neral safety p recaution s.
T he engine compartment is a d ang ero us
area. ¢,& .
A WARNING
To reduce the risk of injur ies, complete the
following steps before opening the hood:
- Turn the engine off.
- Switch the ignition off.
- Set the parking brake.
- Place the selector lever in the P position .
- Let the engine coo l down.
- Never open the hood when you see that
steam o r coolant drips from the engine
c ompartment- there is a danger of
burns! Wait until no steam or coolant
flows out.
- Keep chi ldren away from the engine com­
partment.
- Never spill flu ids on a hot eng ine. These
fluids (such as the freeze protection con­
tained in the coolant) can catch fire .
- Avo id short circuits in the electrical sys­
tem, especially the battery . -
When working in the engine compart­
ment, remember that the radiator fan
can switch on even if the ignition is
sw itched off, which increases the risk of
personal injury.
- Never open the cap on the coolant ex­
pans ion tank when the eng ine is warm.
The cooling system is unde r pressure.
- To protect your face, hands, and arms
from hot steam or coolant, cover the cap
with a large cloth when opening .
- Do not remove the engine cover under any circumstances. This increases the
risk of burns .
- If tests need to be performed with the engine runn ing, there is add itiona l dan­
ge r due to moving components (such as
the ribbed belt, generator and radiator
fan) and from the high voltage ignit ion
system.
- Never reach into the radiator fan. The
electric auxilia ry fan is controlled by
temperature and can switch on sudden ly .
- Pay attention to the fo llow ing warnings
listed when work on the fuel system or
on the e lectrica l equipment is required.
- Always disconnect the vehicle battery
from the vehicle e lectr ical system
- Do not smoke
- Never work near open flames
- Always have a working fire exting uisher
nearby
- To reduce the risk of electric s hock and
inj ury, never touch the fo llowing compo­
nents when the engine is running or is
be ing started :
- Ig nition cable
- Other compone nts in the electronic
high voltage ign it ion system
- If you must check or perform work on the eng ine while it is runn ing:
- Set the parking brake and place these­
lector lever in the P (park) position
first.
- Always proceed with extreme caution
so that clot hing, jewe lry or long hai r do
not become caught in the radiator fan, ..,.

....,
N
r--. > co
rl I.O
"' rl
"' rl
fan belt or other moving components or do not come into contact w ith hot
components. T ie back long hair before
beginning work and do not wear cloth­ ing that can hang down into the en­
g ine .
- Limit your exposure to exhaust and
chemicals to as short a time as poss ible
c::;, &. .
& WARNING
California P ropos ition 65 Warning:
- Engine exhaust, some of its constituents,
and certain veh icle components conta in
o r emit chemicals known to the State of
Californ ia to cause cancer and b irth de ­
fec ts and reproduct ive harm . In addition,
certain fluids conta ined in vehicles and
certain products of component wear con­
tain or emit chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
- Battery posts, terminals and related ac­
cessories contain lead and lead com­ pounds , chemicals known to the State of
Californ ia to cause cancer a nd reproduc ­
t ive harms . Wash hands after handling .
(D Note
When filling fluids, be sure not to m ix the
fluids up. Othe rwise severe malfunctions
and e ng ine damage will occur .
@ For the sake of the environment
You should regularly check the ground un­
der your vehicle in orde r to detect leaks
quickly . If there are visible spots from oil
or other fluids, b ring your veh icle to an au­
thori zed Audi dealer or qualified repair fa­
cility to be checked .
Checking and Fillin g 215
Opening the hood
The hood is released from the interior .
Fig. 163 Se ct io n fro m t he dr iver 's footwell : release Lev ·
er
Fi g. 1 64 Rocke r sw it ch under t he hood
Make sure the wiper arms are not raised up
from the windshield. Otherwise the paint could be damaged .
... With the drive r's door open, pull the lever
be low the instrument panel in the direction
of the arrow
¢ fig. 163.
.,. Raise the hood slightly c::;, ,A .
.,. Press the lever under the hood upward
¢ fig . 164 . This releases the catch .
.,. Open the hood .
& WARNING
Never open the hood whe n you see that
steam or coo lant drips from the engine
compartment -there is a danger of b urns!
Wait unti l no steam or coolant flows o ut.
- Never open the hood when you see that
steam or coolant dr ips from the engine
compartment- there is a danger of burns! Wait until no steam or coo lant
flows out.
-
