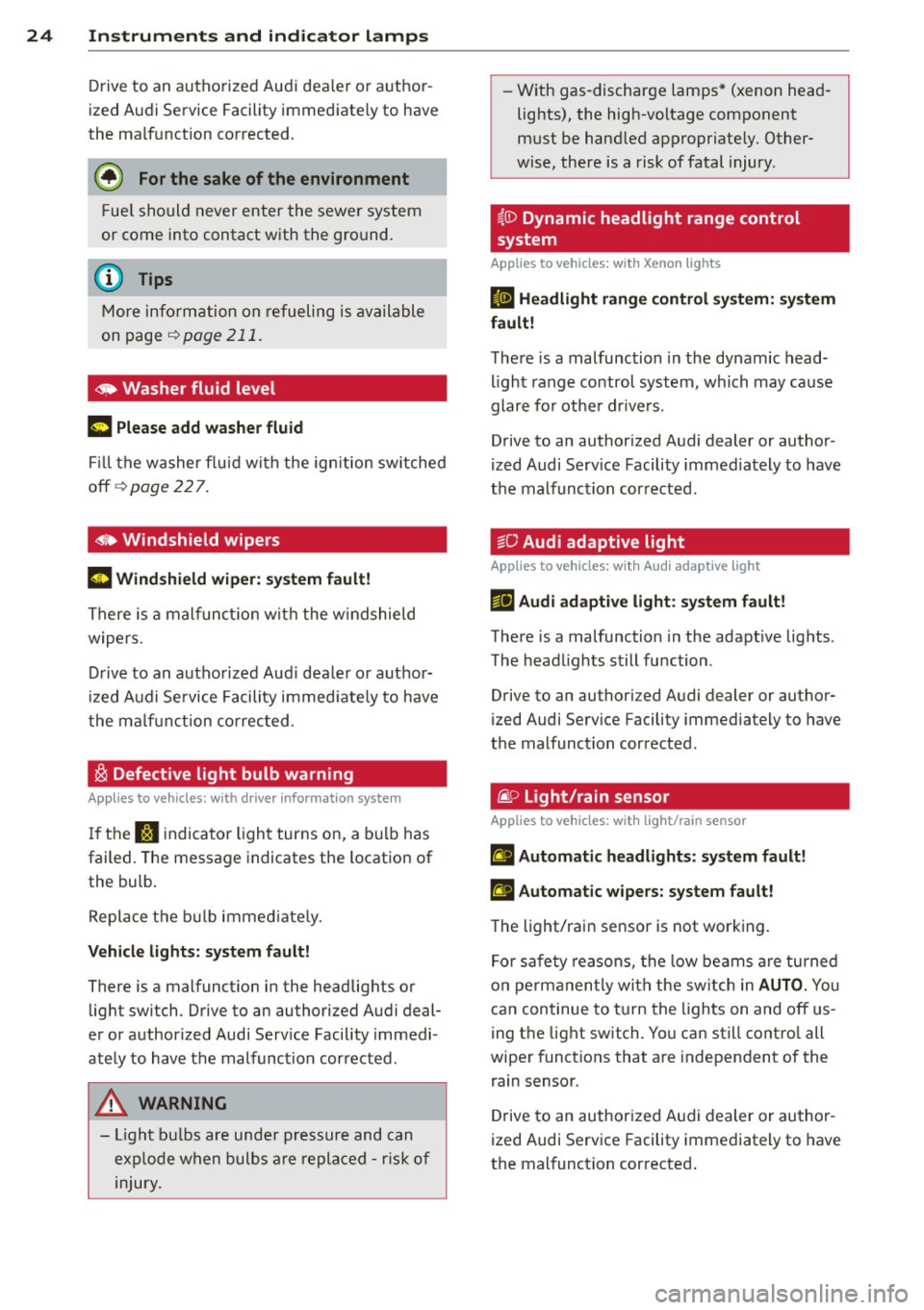

Page 26 of 302
24 Instruments and indicator lamps
Drive to an authorized Audi dea le r o r author
ized Audi Service Facility immediate ly to have
the malfunction corrected.
@ For the sake of the environment
Fuel should never enter the sewer system
or come into contact with the ground.
@ Tips
More info rmation on refueling is available
on page
i:!>poge 211.
~ Washer fluid level
1- ) Please add washer fluid
Fill the washer fluid with the ign ition switched
off ¢
page 22 7.
6 Windshield wipers
m Windshield wiper: system fault!
There is a malfunct ion with the w indshield
wipers.
Drive to an authorized Aud i dealer or author
ized Audi Service Facility immed iate ly to have
the ma lf uncti on corrected .
~ Defective light bulb warning
Applies to vehicles: with driver informatio n system
If the J:i indicator light turns on, a bulb has
failed. The message indicates the location of
the bulb .
Replace the bulb immed iately.
Vehicle lights: system fault!
There is a malfunction in the headlights or
light switch . Drive to an authorized Audi deal
er or authorized Audi Service Facility immedi
ately to have the malfunction corrected.
A WARNING
-
- Light bulbs are under pressure and can
exp lode when bulbs are replaced -risk of
injury. -
With gas-discharge lamps* (xenon head
lights), the high-voltage component
must be handled appropriately. Other
wise, there is a risk of fatal injury .
i,ID Dynamic headlight range control
system
Applies to vehicles: with Xenon lights
II Headlight range control system: system
fault!
There is a malfunction in the dynamic head
li ght range control system, which may cause
glare for other drivers.
Drive to an authorized Audi dealer or author
ized Audi Serv ice Facility immediately to have
the malfunction corrected.
go Audi adaptive light
Applies to vehicles: with Audi adaptive light
&fl Audi adaptive light: system fault!
There is a malfunction in the adapt ive lights .
The headlights still function .
Drive to an authori zed Audi dealer or author
ized Audi Service Facility immediately to have
the malfunction corrected .
@:> Light/rain sensor
Applies to vehicles : with light/rain sensor
El Automatic hea dlights: system fault!
t!I Automatic wipers: system fault!
The light/rain sensor is not working.
For safety reasons, the low beams are turned
on permanently with the switch in
AUTO. You
can continue to turn the lights on and off us
ing the light switch. You can still contro l all
wiper funct ions that are independent of the
rain sensor .
Drive to an authorized Audi dealer or author
ized Audi Service Facility immediately to have
the malfunction corrected .
Page 51 of 302
....,
N
r--. > co
rl I.O
"' rl
"' rl
Lights and Vision
Exterior Lighting
Switching lights on and off
Fig. 42 Instrument panel: lig ht switc h (example)
The headlights only work when the ignition is
switched on. The headlights turn off automat ically when the engine is switched on or when
the ignition is switched off. Only the side marker lights stay on .
A warning symbol will appear in the driver in
formation display if the system is not func
tioning correctly <=>
page 24.
Light switch ·'ti- ·
Turn the switch¢ fig. 42 to the corresponding
position . When the lights are switched on, the
respective symbol turns on.
0 -lights off. In some countries, the day time
running lights* are turned on and off together
with the ign ition.
- USA models: The daytime running lights
switch on automatically when the ignition is
switched on and the light switch¢
fig. 42 is
in the
O position or the AUTO position (on ly
in daylight). The
Daytime running lights
can be switched on and off in the MMI
¢ page 51 ¢ ,& .
-Canada models: The daytime running lights
switch on automatically when the ignition is
switched on and the light switch¢
fig. 42 is
in the
0, the :Do: or the AUTO position (only
in daylight) ¢
,&.
AUTO* • Automatic headlights switch on and
off depend ing on brightness, for example in
tw ilight, during rain or in tunnels. In vehicles Lights
and Vision 49
with integrated daytime running lights*, ei
ther the daytime running lights or the head
li ghts will turn on automat ically, depending
on the amount of light (may vary depending
on the country).
: Do : -Parking lights
iD -Low beam headlights
The following w ill happen in these light
switch positions when you lock the vehicle:
-io -Low beam: the entire exterior lights
sw itch off
- AUTO*: the Coming home* function is
turned on ¢
page 51
Fog lights*/rear fog light(s)
Press the corresponding button¢ fig. 42:
JO· Front fog lights* (not pictured). This but
ton replaces the button for all-weather
lights
q;!D . When the fog lights are switched
on, the
JO symbol in the button illuminates.
0$ -Rear fog light(s) . When the rear fog lights
are switched on, the
0$ symbol in the button
illuminates.
All-weather lights*
apples to vehicles with LED headlights.
Press the corresponding button
<;?P c;, fig. 42
on the light switch.
~io -All-weather lights . The symbol <;;t,;D in the
button lights up when all-weather lights are
switched on.
In vehicles with all-weather lights, the front
lights are adjusted automatically so that you
are less likely to see glare from your own
headlights, for example when driving on a wet
road .
Headlight range control system
The head light range adjusts automatically
when there is a change in vehicle load and
during braking and accelerating so that the
headlights do not cause glare for oncoming
traff ic.
Page 52 of 302
50 Lights an d Vi sion
Audi adapt ive light *
The adaptive light on ly functions when the
light switch is in the AU TO position. You can
deactivate adaptive light in the MMI
r::!.> poge
51 .
When switched on, adapt ive light adjusts to
curves depending on the vehicle speed and
steering wheel ang le . This provides better
lighting throug h the curve . The system oper
ates in a speed r ange from approximately
6 mph (10 km/h) to 68 mph (110 km/h).
Static co rnering light* (vehicles with adaptive
light) -the corn ering light switches on auto
matica lly when the steering wheel is turned at
a certa in angle at speeds up to approximately
44 mph (70 km/h) and when the turn signal is
activated at speeds up to approximately
25 mph (40 km/h). The area to the s ide of the
vehicle is il luminated better when turning .
Speed dependent light distr ibution* -The
speed dependent light distribution adapts the
light in towns and on highways or express
ways. Intersect ions can also be ill uminated on
ve hicl es w ith a navigation system *.
Highwa y light funct ion *
(Vehicles with adaptive light or L ED head
lights) -This function adapts the light ing for
h ighway driving based on vehicle speed .
_&. WARNING
-Automati c headlights* are only intended
to assist the dr iver . T hey do not re lieve
the drive r of responsibility to check the
head lights and to turn them on man ually
according to the current light and visibili
ty conditions. For examp le, fog cannot
be detected by the light sensors. So al
ways switch on the low beam under
these weather conditions and when driv ing in the dark
fD.
- Acc idents could occur if you cannot see
the road ahead of you well and if others
on the road cannot see you . A lways
swit ch you r headlights o n so that yo u can see the road ahead of you and others can
see your vehicle from beh
ind.
- Please observe legal regulations when
using the lighting systems described.
(D Note
The rear fog lights shou ld only be turned
on in accordance with t raffic regu lations,
to prevent glare for traffic behind your ve hicle.
(D Tips
- The light sensor for the automatic head
lights * is in the rea rview mir ror mount.
Therefore, do not place any stickers in
this area o n the windshield .
- Some functions of the exterior lighting
can be adjusted
c> page 51.
-If you tu rn off the ignition whi le the ex
terior lights are on and open the door,
you will hear a warning tone.
- The tail lights do not sw itch on when the
daytime r unning lights switch on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera
ture difference between the inside and
outside. They w ill clear shortly after
switching them on . This does not affect
the serv ice life of the lighting.
- A message w ill appea r in the i nstrument
cluster if there is a malfunction in the
light senso r
r::!.> page 24.
Emergency flasher
Fig . 4 3 Ins trume nt panel: e mergency f las her button
N
I

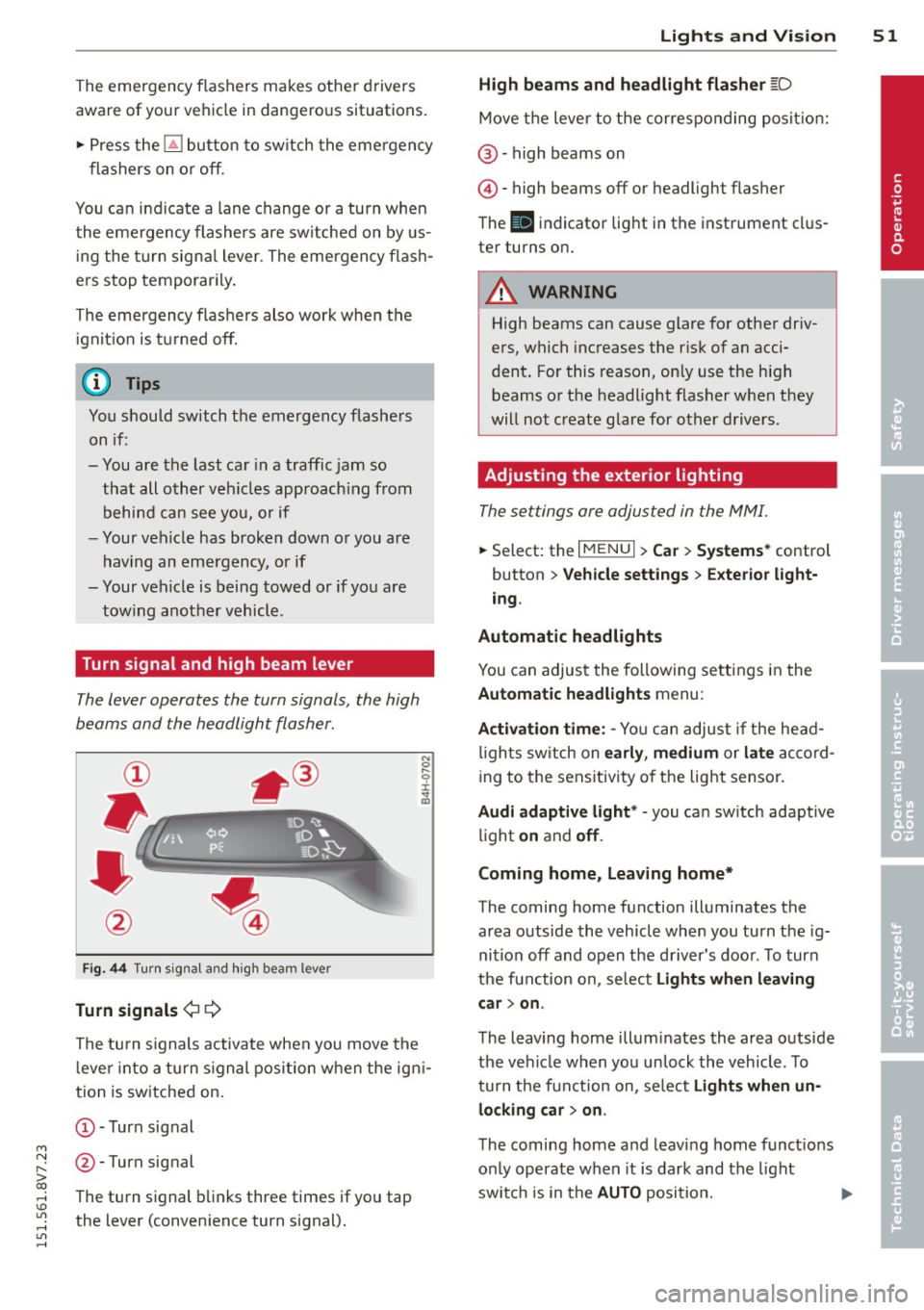

Page 53 of 302
M N ,....
> co ,...., \!) ..,.,
,...., ..,., ,....,
The emergency flashers makes other drivers
aware of your vehicle in dangerous situations.
.,. Press the~ button to sw itch the emergency
f lashers on or off.
You can indicate a lane change or a turn when
the eme rgency flashers are sw itched on by us
i ng the turn signa l lever. The emergency flash
ers stop temporarily .
The emergency flashers also work when the ignit io n is tu rned off.
(D Tips
You should switch the emergency flashers
on if:
- You are the last ca r in a traffic jam so
that all other veh icles approach ing from
behind can see you, or if
- Your vehicle has broken down or you are
having an emergency, or if
- Your vehicle is being towed or if you are
tow ing another vehicle .
Turn signal and high beam lever
The lever operates the turn signals, the high
beams and the headlight flasher.
Fig. 44 Turn sig na l and high beam lever
Turn signal s¢¢
The turn s ignals activate when you move the
l ever into a turn s ignal position when the igni
tion is switched on.
(D-Turn signal
@-Turn signal
The turn signal blinks three times if you tap
the lever (convenience turn signal).
Lights and Visi on 5 1
High beams and headlight flasher [D
Move the lever to the correspo nding posit io n:
@ -high beams on
©-high beams off or headlight flasher
T he
II indicator light in the instrument cl us
ter turns on.
A WARNING
High beams can cause glare for other driv
ers, which increases the risk of an acci
dent. For this reason, on ly use the high
beams or the headlight flasher when they
will not create glare for other drivers.
Adjusting the exterior lighting
The settings ore adjusted in the MMI.
... Select: the I MENU I> Car> Syste ms* control
button
> Vehicle sett ings > Exte rior light
ing .
Automatic headlights
You can adjus t the following se ttings in the
Automatic headlights menu :
Activation time : -Yo u can adjust if the head
l igh ts sw itch on
ea rly , medium or la te ac co rd
ing to the sens itivity o f the light sensor.
Audi adapti ve light * -you ca n sw itch adaptive
li gh t
on and off .
Coming home, Leaving home*
The coming home function illuminates the
area outside the vehicle whe n you tu rn the ig
nition off and open the d river 's doo r. T o turn
the function on, se lect
Light s when l eaving
c ar > on .
The leaving home illum inates the area outs ide
the vehi cle when you un lock the vehicle . To
turn the function on, se lect
Light s when un
locking car > on .
The coming home and leaving home funct ions
on ly operate when it is dark and the light
switch is in the
AUTO position. ..,.
•

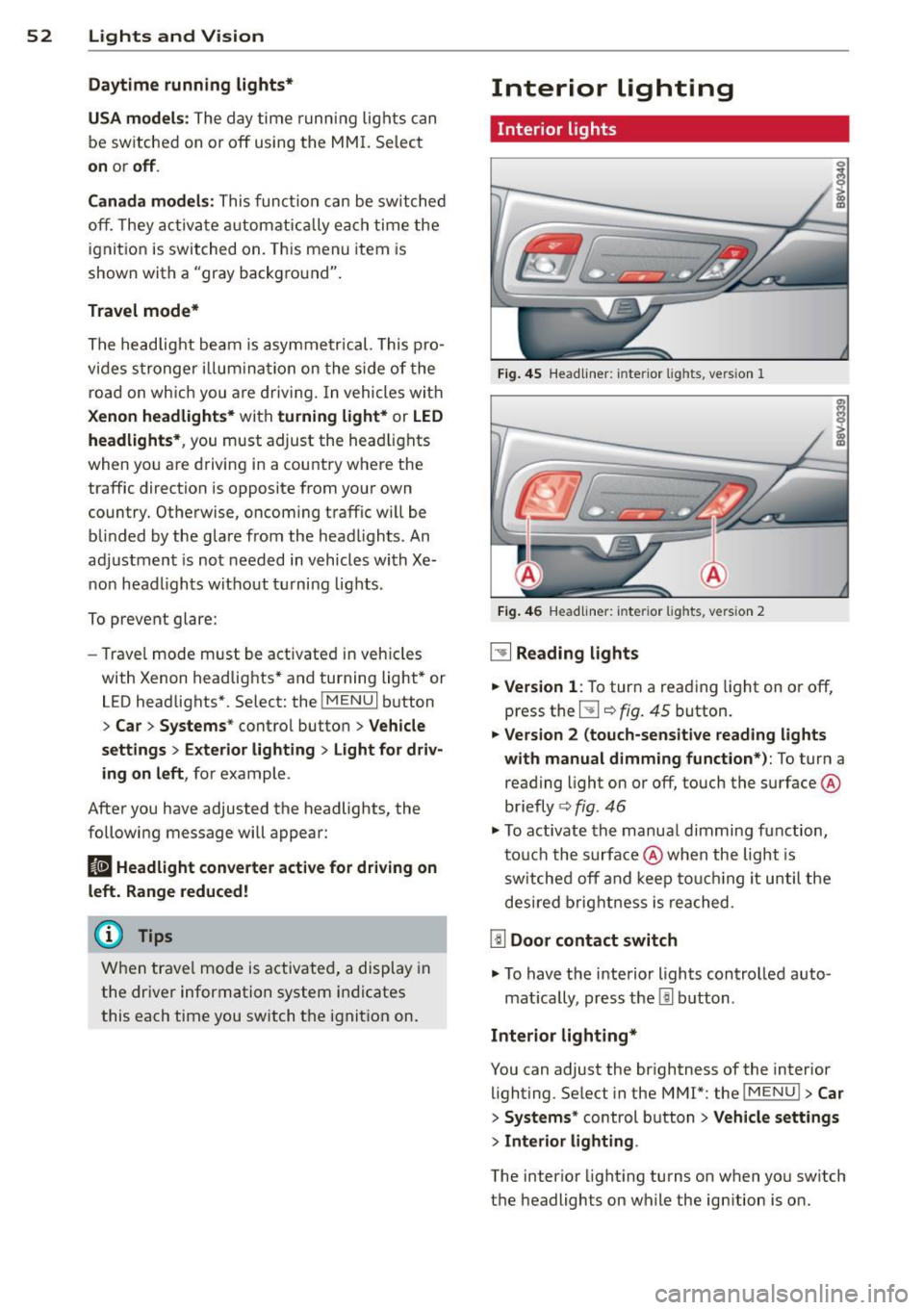

Page 54 of 302
52 Lights and Vision
Daytime running lights*
USA models:
The d ay time runni ng lights can
b e sw itche d on o r off using the MM I. Select
on or off .
Canada models:
T his funct ion can be switche d
off. They ac tiva te a utomat ic all y ea ch tim e the
igni tion is swit ched on. This menu item is
shown with a "gray backg ro und" .
Travel mode*
The headlight beam is asy mme trical. This pro
vides s tronger illum ina tio n on the s ide of the
ro ad o n wh ich you are driv ing. In vehicles wi th
Xenon headlights* with turning light* or LED
headlights* ,
you must adjust the hea dlights
when yo u are d riving in a country w here the
traffic direction is opposite from you r own
country. Othe rwise, oncom ing traffic w ill be
b lin ded by the gla re from the head lights. An
ad justment is not needed in vehicles with Xe
non head lights without t urning lights .
To prevent glare:
- Trave l mode m ust be act ivated in veh icles
with Xenon headlights* and turning light * or
LED headlights *. Select: the iME NUI b utton
> Car > Systems * contro l butto n > Vehicle
settings
> Exterior lighting > Light for driv
ing on left ,
for example .
After you have adjusted the headlights, the
following message will appear:
B Headlight converter active for driving on
left. Range reduced!
(D Tips
W hen trave l mode is activ ate d, a display in
the dr iver inf orm ation system i ndicates
this each time you switch t he ignit ion on .
Interior lighting
Interior l ight s
Fig. 4 5 Headliner: in te rior lights, vers ion 1
Fi g. 46
Headli ne r: int eri or ligh ts, versio n 2
~ Reading lights
.. Version
1: To tur n a reading light on or off,
press the
5J ¢ fig. 45 button.
.. Version 2 (touch-sensitive reading lights
with manual dimming function*):
To turn a
reading light on or off , touch the surface @
briefly ¢
fig. 46
.. To activate th e manua l dimming function,
t ouc h the surface @when the light is
s w itched off and keep to uchi ng it until the
des ired brig htn ess i s reached.
[ID Door contact switch
.. To have the interio r lights controlled auto -
mat ica lly, press the
l!l b utton .
Interior lighting*
You can adjust the brightness of the interior
lighting. Se lect in the MMI*: the iME NUI
> Car
> Systems* control b utton > Vehicle settings
> Interior lighting .
The interior light ing turns on when yo u sw itch
t h e headlights on while the ign ition is o n.

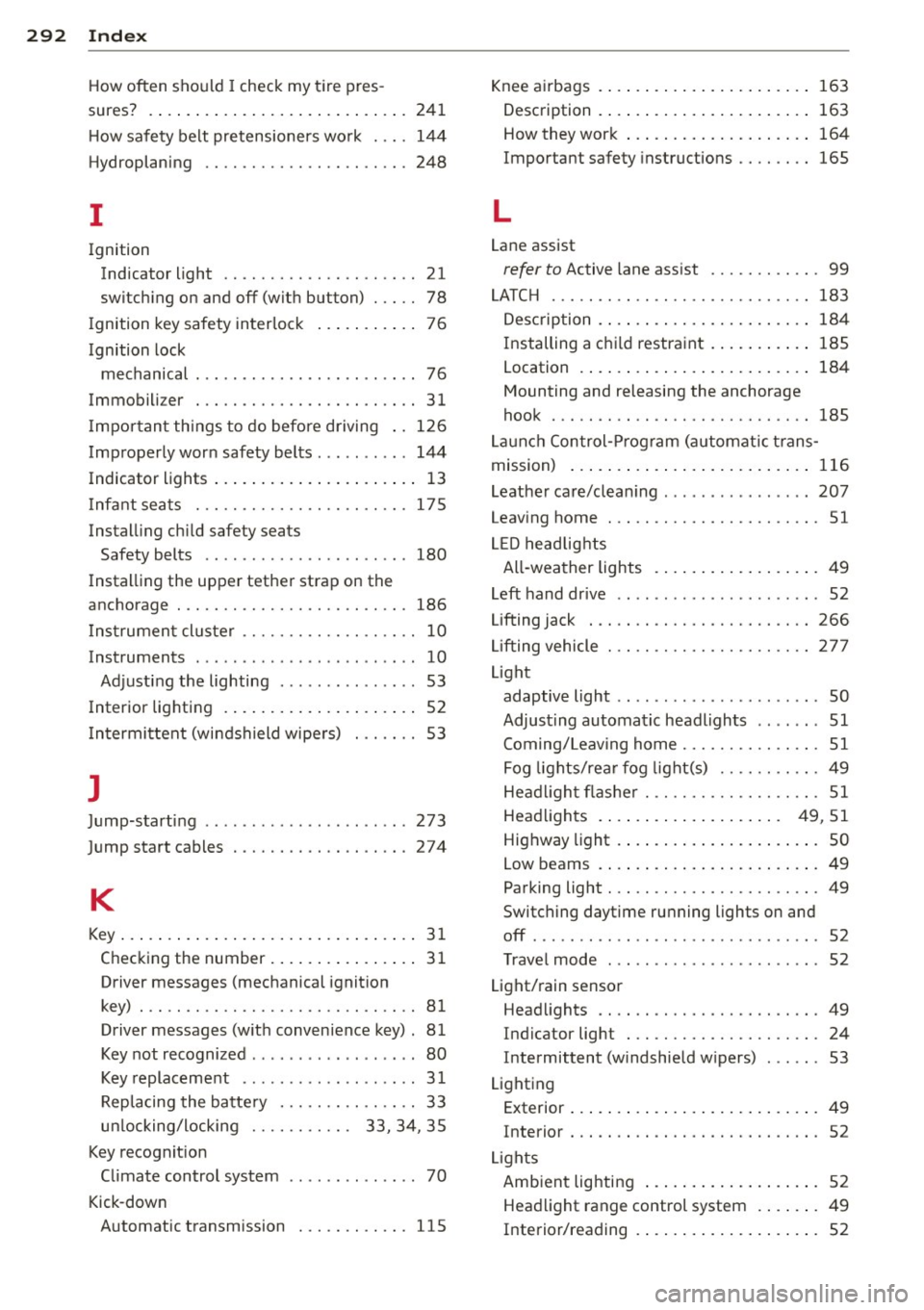

Page 294 of 302
292 Index
How often should I check my tire pres -
sures? . ..... ... ............. ..... .
241
How safety belt pretensioners work ... . 144
Hydroplaning ................. .... . 248
I
Ignition
Indicator light . . . . . . . . . . . . . . . . . . . . .
21
switching on and off (with button) ..... 78
Ignition key safety interlock . . . . . . . . . . . 76
Ignition lock mechanical . . . . . . . . . . . . . . . . . . . . . . . . 76
Immobili zer . . . . . . . . . . . . . . . . . . . . . . . .
31
Important things to do before driving .. 126
Improperly worn safety belts ....... .. . 144
Indicator lights ...................... 13
Infant seats . . . . . . . . . . . . . . . . . . . . . . . 17 5
Installing child safety seats Safety belts . . . . . . . . . . . . . . . . . . . . . .
180
Installing the upper tether strap on the
anchorage . .. ............. .. .. .. ...
186
Instrument cluster ......... .... .... .. 10
Instruments .... .... ...... .. .. .. .. .. 10
Adjusting the lighting ......... .. .... 53
Interior lighting .............. ..... .. 52
Intermittent (windshield wipers) . . . . . . . 53
]
Jump-starting
Jump start cables 273
274
K
Key
..... .... ................ ..... .. 31
Checking the number ....... ... .... .. 31
Driver messages (mechanical ignition
key) . .. .. .. .. . .......... .. .. .... ..
81
Driver messages (with convenience key) . 81
Key not recognized . . . . . . . . . . . . . . . . . . 80
Key replacement . . . . . . . . . . . . . . . . . . . 31
Replacing the battery ..... .. .. .. .. .. 33
unlocking/locking . . . . . . . . . . .
33, 34, 35
Key recognition
Climate control system . . . . . . . . . . . . . . 70
Kick-down Automatic transmission ... .. .. .....
115
Knee airbags .... .. ............. .... 163
Description . ..... ................ . 163
How they work ... ................ . 164
Important safety instructions ........ 165
L
Lane assist
refer to Active lane assist ........... . 99
LATCH ... .. .. .. .. ............. .. ..
183
Description .. .. .. .. .............. . 184
Installing a child restraint ........ ... 185
Location . . . . . . . . . . . . . . . . . . . . . . . . . 184
Mounting and releasing the anchorage
hook ..... .... .. .. ........... ....
185
Launch Control-Program (automatic t rans-
m1ss1on) ....... .. .. .............. .
116
Leather care/cleaning ............... . 207
Leaving home .................... .. .
51
LED headlights
All-weather lights ................ .. 49
Left hand drive . . . . . . . . . . . . . . . . . . . . . .
52
Lifting jack . .... ............... .... 266
Lifting vehicle . .. .. .. ........... .. .. 277
Light adaptive light . . . . . . . . . . . . . . . . . . . . . . SO
Adjusting automatic headlights ...... .
51
Coming/Leaving home .......... .... . 51
Fog lights/rear fog light(s) .... ...... . 49
Headl ight flasher .... .......... .. .. .
51
Headlights . . . . . . . . . . . . . . . . . . . . 49, 51
Highway light .... ................ .. SO
Low beams . ..... ................ .. 49
Parking light .................... .. . 49
Switching daytime running lights on and
off . .. ... ... .. .. .. ..... ...... .. .. .
52
Travel mode . . . . . . . . . . . . . . . . . . . . . . . 52
Light/rain sensor
Headlights .... .. ................. . 49
Indicator light ... ............. .....
24
Intermittent (windshield wipers) ..... . 53
Lighting
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . .
52
Lights
Ambient lighting . . . . . . . . . . . . . . . . . . .
52
Headlight range control system ... ... . 49
Interior/reading . . . . . . . . . . . . . . . . . . . .
52
Page 295 of 302
M N ,....
> co ,...., \!) ..,.,
,...., ..,., ,....,
Locking/unlock ing
by remote contro l
.............. .. .. 33
with the central locking switch .. .. .. .. 35
with the convenience key . . . . . . . . . . . . . 34
wi th the door lock ........ .... .. .. .. 35
L ong -term memory .............. .. .. 27
L ow beam
I ndicator light . . . . . . . . . . . . . . . . . . . . . 24
Low beams .. .... ............. .. .. .. 49
L ower universal anchorages (Canada) . .. 183
L uggage compartment .. .... .. .. .. .. .. 65
Cargo net .................. .... ... 68
I ncreasing the size . . . . . . . . . . . . . . . . . . 66
L oading .. .. ................. .. .... 65
Reversible mat .............. ... .. .. 69
Socket ..... .. .............. ... .... 64
Storage hooks . . . . . . . . . . . . . . . . . . . . . 68
Stowing luggage ......... .. .. .. .. . 132
Tie-downs . . . . . . . . . . . . . . . . . . . . . . . . . 67
L uggage compartment lid
Centra l locking . . . . . . . . . . . . . . . . . . . . . 38
Emergency release ................. 261
L umbar support . . . . . . . . . . . . . . . . . 60, 61
M
Maintenance ............... ... ... .. 282
Maintenance intervals
with driver information system .. .. .. .. 13
Mirror Digital compass switching on and
off ... 57
dimming ... ................ ... .... 56
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . 53
Mirror compass ............ .... .. .... 57
Mirrors Adjusting the exterior mirrors . .. ... ... 55
Monitoring the Advanced Airbag System 158
Motor stopping (driver messages with mechani-
cal ignition key) .............. .... .. 81
Multifunction steering wheel ..... . ... .. 27
On-board computer ........... ... ... 27
N
Natural leather care/cleaning .. .. .. .. . 207
Navigation system
CD-ROM player . . . . . . . . . . . . . . . . . . . . . 65
Index 293
New tires and wheels
NHTSA 248
Contacting .. .. .. ................. 134
Number of seats . .. ................. 138
Number of vehicle keys ............... 31
0
Occupant protection .. .. ......... .. .. . 95
Occupant seating posi tions ....... .. .. 127
Octane rating ..... ................ . 210
Odometer ........ .. ................ 11
Oil Indicator light . .. ............. .... . 23
also refer to Engine oil . . . . . . . . 217, 218
Oil change interval
with driver information system . . . . . . . . 13
On-Boa rd-D iagnost ic System (OBD)
System indicator light (MIL) ..... .. .. . 29
On-board computer . . . . . . . . . . . . . . . . . . 26
Operation (multifunction steer ing
wheel) .. .. .. .. .... ... .. ..... ..... . 27
On-Board Diagnostic System (OBD)
Data Link Connector (DLC) ......... .. . 30
On Board Diagnostic System (OBD)
E lectronic speed limiter .............. 30
Open ing .... .. .. .. .. .. ........... .. . 31
Fuel filler door ... .. ........... .... 212
Hood ..... .. .. .. .... ............. 215
Luggage compartment lid . . . . . . . . . . . . 38
Windows ......................... 38
Open ing/closing
with the centra l locking sw itch ... .. .. . 35
with the conven ience key ........ .. .. . 34
with the door lock ................ .. 35
Operate your vehicle economically and
minimize pollution ..... ......... .. .. 198
Other equipment (efficiency program) .. . 29
Outside temperature disp lay . . . . . . . . . . . 11
Overview (cockpit) . . . . . . . . . . . . . . . . . . . . 8
p
Paint damage
206
Paint No ..... ..... .. .............. . 279
Parking aid Cleaning sensors/came ra lenses .... .. 205
•
•
•
