Note: - When installing, turn the cover flange in direction of arrow as shown in
illustration.
- Connect the return line inside on the cover flange.
Always use new O-rings. Lubricate O-rings with fuel or coat with a lubricant.Place the new gasket (dry) for the cover flange into the opening of the
fuel tank.
- Wrap sender for fuel gauge -G wiring once around the supply line (in
fuel tank) and install on cover flange.
Pa
ge 41 of 49 Fuel su
pp
ly system, servicin
g (vehicles with front wheel drive and 1.8 ltr. turbo or 2.8 ltr. en
gine
)
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.2
Page 42 of 49
20-46
Note:
-Arrow 1- applies to vehicles with All-Wheel Drive (Not applicable). - Connect cover flange to fuel tank
Installation for vehicles with Front-Wheel Drive: -arrow 2- must be
opposite -arrow 3-.
Note:
Ensure that hose guide (item 7 Page 20
-28
) is kept in position while
tightening the union nut. - Tighten union nut with 3217 wrench.
60 Nm
- Connect wiring and harness connector.
Pa
ge 42 of 49 Fuel su
pp
ly system, servicin
g (vehicles with front wheel drive and 1.8 ltr. turbo or 2.8 ltr. en
gine
)
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.2
Page 43 of 49
20-47
Note:
Ensure that fuel hoses fit tight.
- Connect Ground strap to Battery with ignition
switched OFF.
- After connecting Battery, input radio anti-theft
code
Radio operating instructions
- Run door windows up to stop using the window
switches.
- Operate all window lifters again for at least 1
second in "closed" position to activate automatic
up/down.
- Set the clock.
Tightening torque
Component
Nm
Union nut for cover flange 60
Pa
ge 43 of 49 Fuel su
pp
ly system, servicin
g (vehicles with front wheel drive and 1.8 ltr. turbo or 2.8 ltr. en
gine
)
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.2
Page 44 of 49
20-48
Sender for fuel gauge -G, checking
Vehicles with front wheel drive and 1.8 ltr.
turbo or 2.8 ltr. engine
Note:
Checking signal between sender for fuel gauge -
G and fuel gauge.
Repair Manual, Electrical Equipment, Repair
Group 90
Required special tools, testing equipment
and auxiliary equipment
Fluke 83 Multimeter
VW 1594 Adaptor kit
- Remove connector flange cover under luggage
compartment trim.
- Unlatch and disconnect 4-pin harness connector -1-.
Pa
ge 44 of 49 Fuel su
pp
ly system, servicin
g (vehicles with front wheel drive and 1.8 ltr. turbo or 2.8 ltr. en
gine
)
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.2
Page 45 of 49
20-49

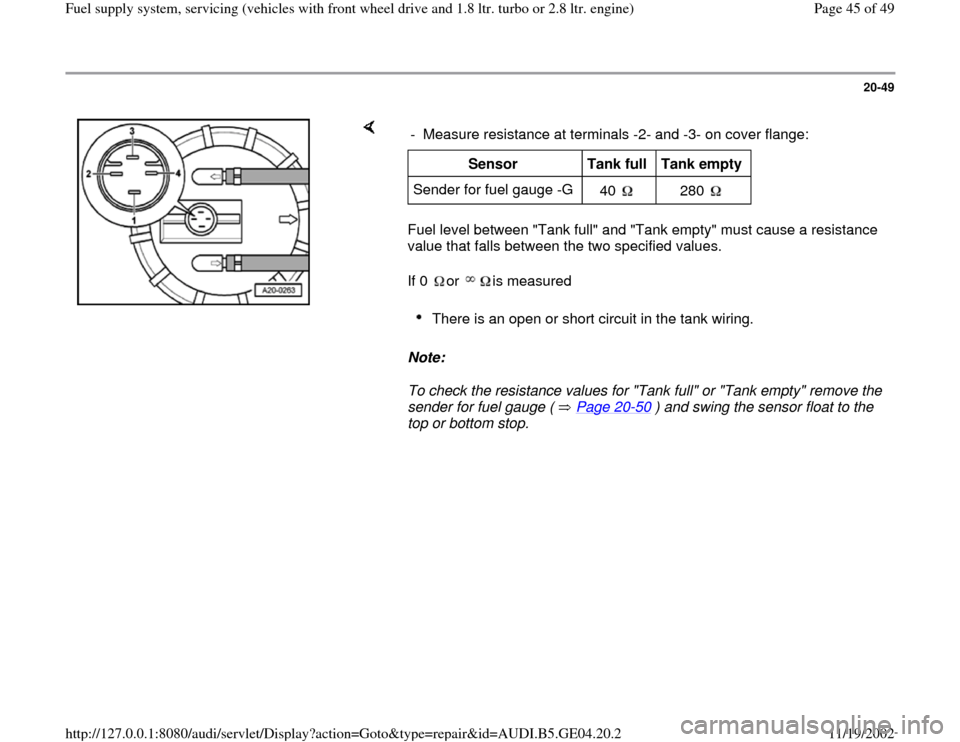

Fuel level between "Tank full" and "Tank empty" must cause a resistance
