AUDI A4 1996 B5 / 1.G Parking Brake Cable Front Wheel Drive Workshop Manual
Manufacturer: AUDI, Model Year: 1996, Model line: A4, Model: AUDI A4 1996 B5 / 1.GPages: 5, PDF Size: 0.15 MB

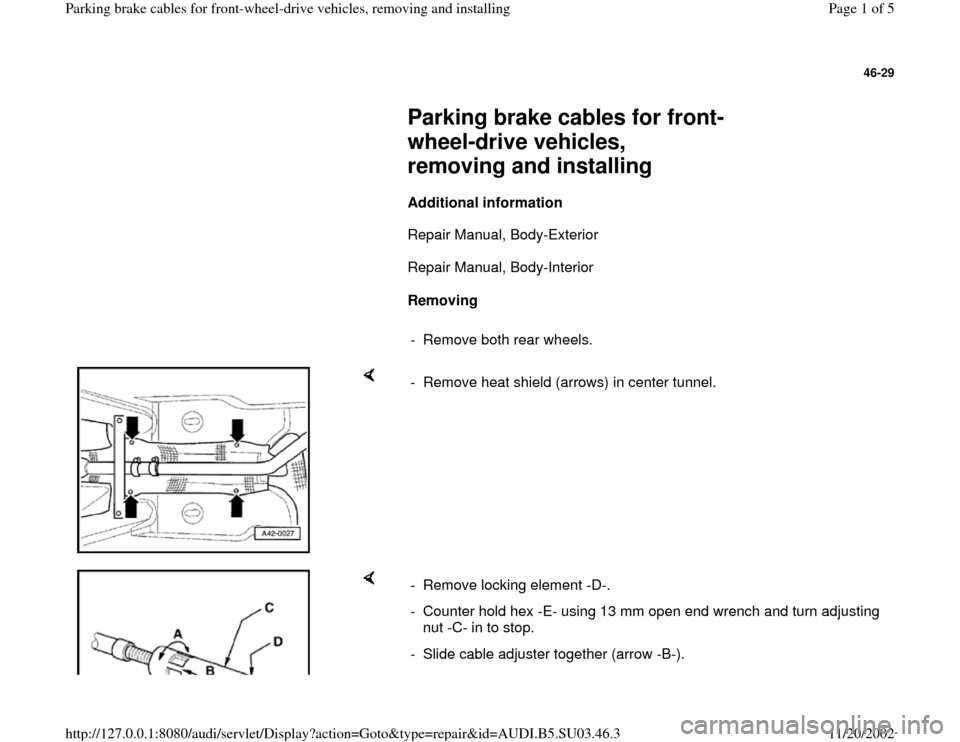

Page 1 of 5
46-29
Parking brake cables for front-
wheel-drive vehicles,
removing and installing
Additional information
Repair Manual, Body-Exterior
Repair Manual, Body-Interior
Removing
- Remove both rear wheels.
- Remove heat shield (arrows) in center tunnel.
- Remove locking element -D-.
- Counter hold hex -E- using 13 mm open end wrench and turn adjusting
nut -C- in to stop.
- Slide cable adjuster together (arrow -B-).
Pa
ge 1 of 5 Parkin
g brake cables for front-wheel-drive vehicles, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU03.46.3

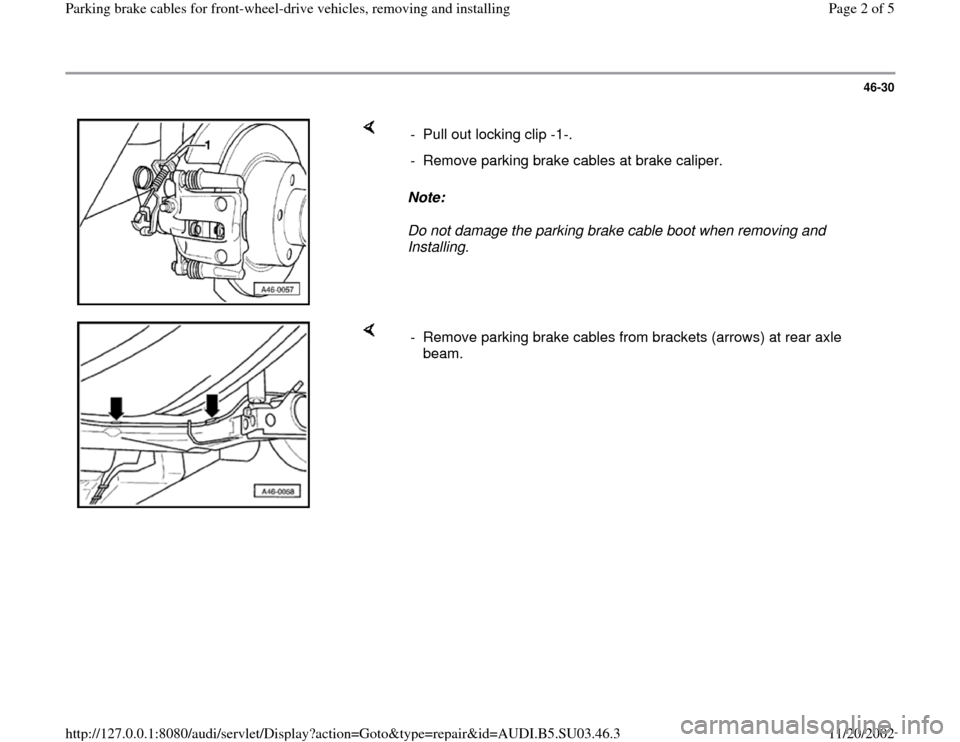

Page 2 of 5
46-30
Note:
Do not damage the parking brake cable boot when removing and
Installing. - Pull out locking clip -1-.
- Remove parking brake cables at brake caliper.
- Remove parking brake cables from brackets (arrows) at rear axle
beam.
Pa
ge 2 of 5 Parkin
g brake cables for front-wheel-drive vehicles, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU03.46.3

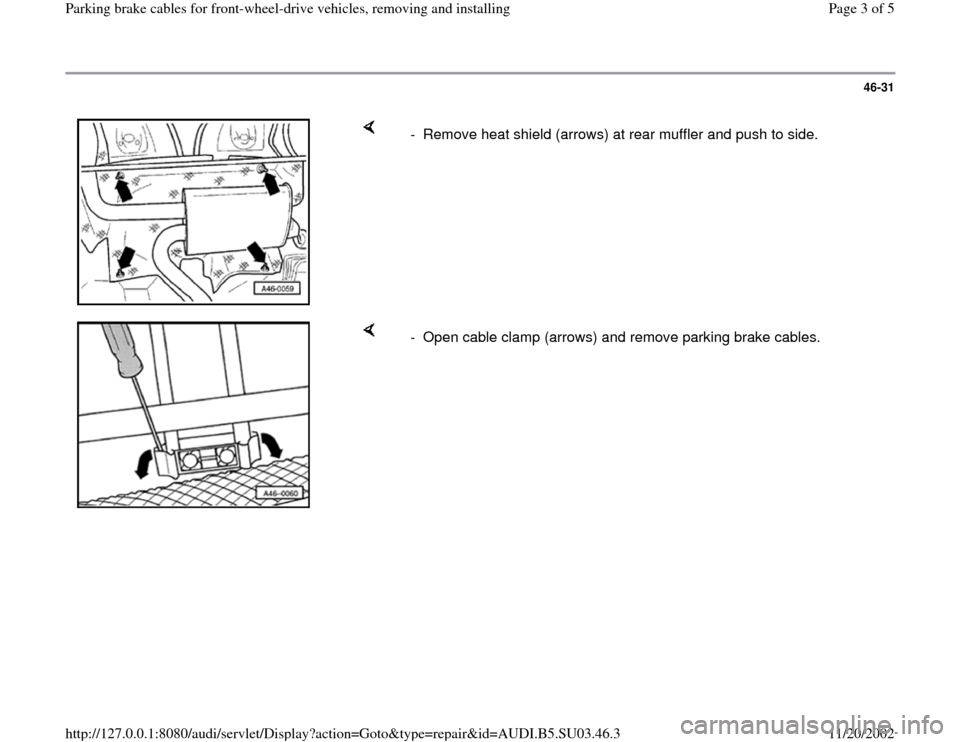

Page 3 of 5
46-31
- Remove heat shield (arrows) at rear muffler and push to side.
- Open cable clamp (arrows) and remove parking brake cables.
Pa
ge 3 of 5 Parkin
g brake cables for front-wheel-drive vehicles, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU03.46.3

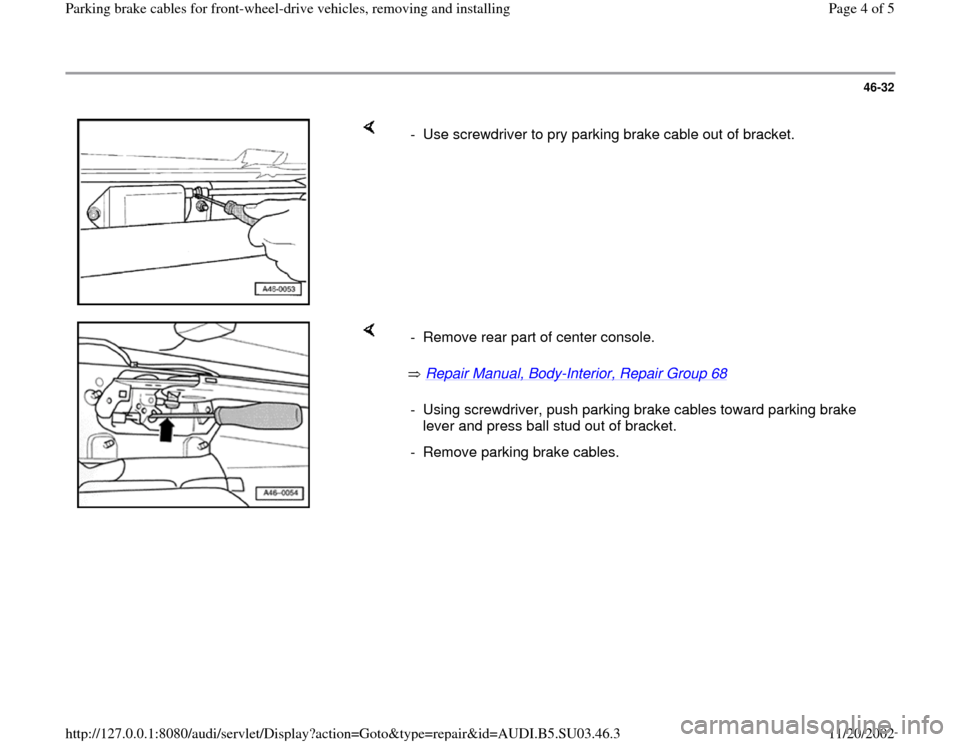

Page 4 of 5
46-32
- Use screwdriver to pry parking brake cable out of bracket.
Repair Manual, Body
-Interior, Repair Group 68
- Remove rear part of center console.
- Using screwdriver, push parking brake cables toward parking brake
lever and press ball stud out of bracket.
- Remove parking brake cables.
Pa
ge 4 of 5 Parkin
g brake cables for front-wheel-drive vehicles, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU03.46.3

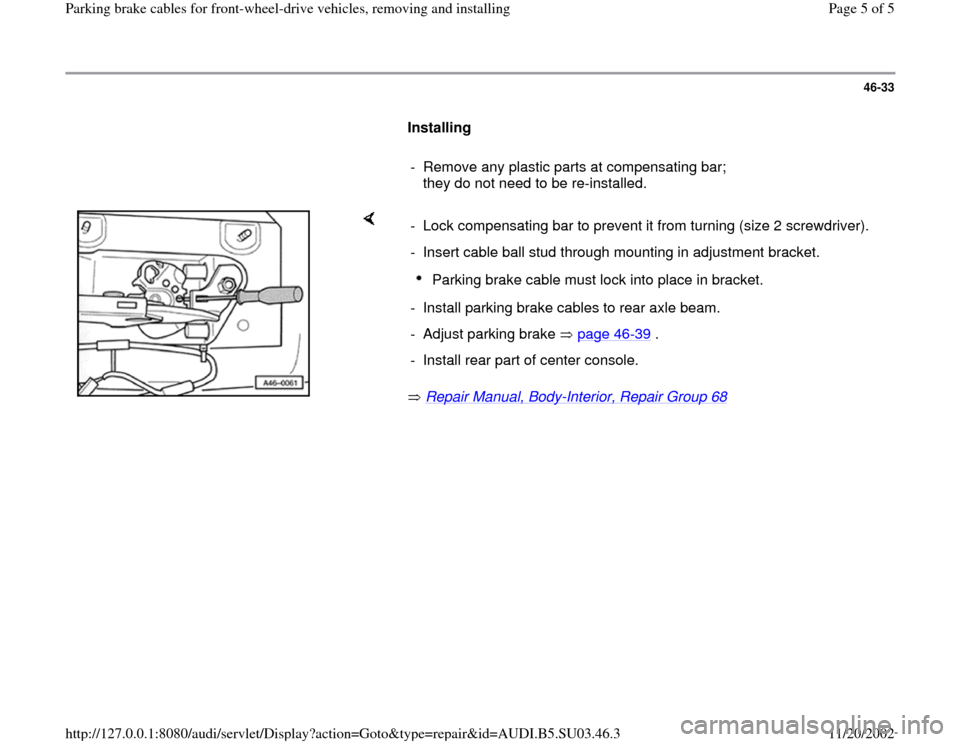

Page 5 of 5
46-33
Installing
- Remove any plastic parts at compensating bar;
they do not need to be re-installed.
Repair Manual, Body
-Interior, Repair Group 68
- Lock compensating bar to prevent it from turning (size 2 screwdriver).
- Insert cable ball stud through mounting in adjustment bracket.
Parking brake cable must lock into place in bracket.
- Install parking brake cables to rear axle beam.
- Adjust parking brake page 46
-39
.
- Install rear part of center console.
Pa
ge 5 of 5 Parkin
g brake cables for front-wheel-drive vehicles, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU03.46.3
