Driveshaft, servicing

CAUTION!

Refer to general repair instructions   Page 00
-14
 .

Do not bend the driveshaft more than 25  at
the center universal joint, otherwi

Page 2 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual For complaints (noise or vibrations), first
check whether correct adjustment of the
driveshaft resolves the problem before
replacing the driveshaft.
     After removing the driveshaft from the rea

Page 3 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-69

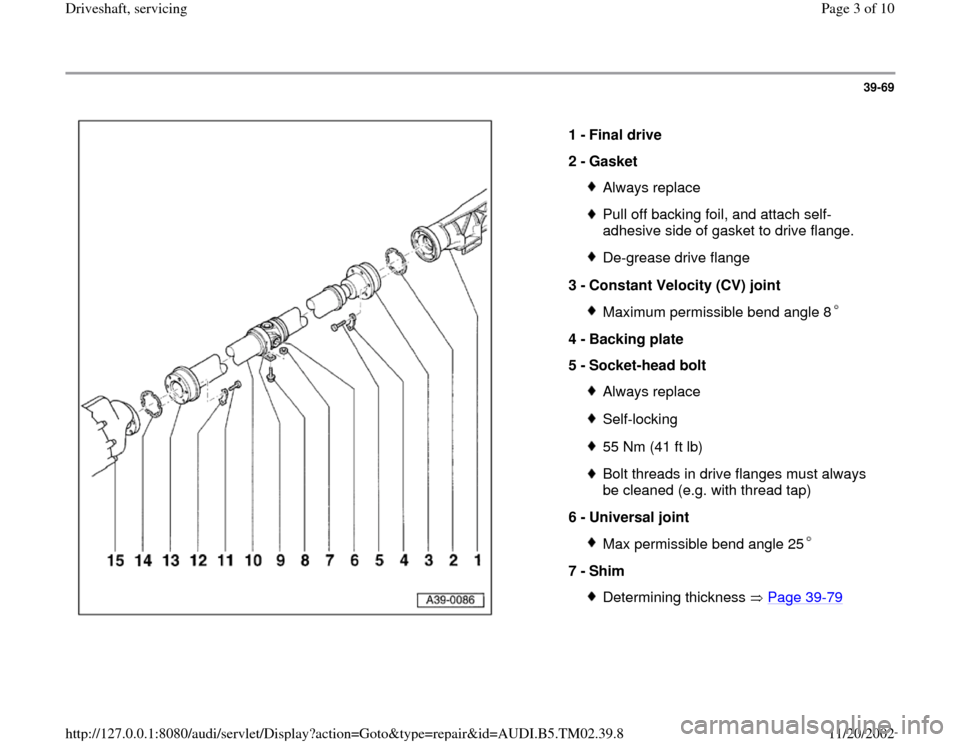

1 -
Final drive
2 -
Gasket
Always replacePull off backing foil, and attach self-
adhesive side of gasket to drive flange. De-grease drive flange
3 -
Constant Velocity (CV) joint Maximu

Page 4 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-70


8 -
Hex bolt
23 Nm (17 ft lb)
9 -
Driveshaft center bearing
10 -
14Driveshaft Adjusting  Page 39
-79
11 -
16Socket-head bolt
Always replaceSelf-locking55 Nm (41 ft lb)Bolt threads in

Page 5 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-71

Driveshaft, removing and installing


Special tools and equipment

3298 alignment fixture for all wheel drive
driveshaft
     3139/2 adapter

- Observe all cautions

Page 6 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-72

Removing

-  Remove heat shield above driveshaft.

-  Remove heat shield for driveshaft from cover of Torsen differential
(arrows).

Note:
Marking the shaft is only nec

Page 7 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-73

-  Remove three upper mounting bolts on each
driveshaft constant velocity joint.

-  Loosen mounting bolts of center bearing
slightly.

-  Install two 3139/2 adapters, in 329

Page 8 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-74

-  Remove driveshaft at transmission drive flange
using assembly tool.

Note:
     Driveshaft must always be kept in extended
position for transportation and storage.

Ins

Page 9 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-75

Notes continued:

To prevent imbalance, the flanges of the driveshaft (arrow -A-) and of
the final drive (arrow -B-) must be installed so that the factory color
markings (or the m

Page 10 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Driveshaft Service Workshop Manual 39-76

-  Align exhaust system free of stress.
       Repair Manual, Engine Mechanical, Repair
Group 26
Tightening torques

Component

Tightening
torque
Driveshaft to trans
