Page 76 of 366

01-55
Output on GST and/or on VAG
1551 scan tool Possible malfunction cause
Malfunction repair
P0172 / 16556
System too Rich (Bank 1) Malfunction P0175 / 16559
"System too Rich (Bank 2)"
Also in DTC memory
No
Yes
- Fuel pressure too high; check system
pressure and residual pressure page 24
-
20
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check
DTC memory again
MIL Status:
MIL lights up after 2 Trips Fuel injector (Bank 1) does
not close and/or leaks
- Check fuel injection quantity of fuel
injectors and for leaks page 24
-33
For troubleshooting Display
groups 005, 007, 009 and 010
Malfunction cause found: Yes
- Erase DTC memory, test drive and check
DTC memory again
Note:
If the malfunction "P0172 / 16556" is set, the oxygen sensor control has dropped below the learning value limit in the "lean"
direction, but the (HO2S) still recognizes "mixture too rich".
Pa
ge 76 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 77 of 366

01-56
Output on GST and/or on
VAG 1551 scan tool Possible malfunction cause
Malfunction repair
P0173 / 16557
Fuel Trim Malfunction (Bank 2) Air leak in the area of the manifold
- Find and repair leak
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and
check DTC memory again
Oil diluted (fuel in the oil) because
of frequent cold starts for driving short
distances
- Check and change oil if necessary
MIL Status:
MIL lights up after 2 Trips Malfunction cause found: Yes
No
- Erase DTC memory, test drive and
check DTC memory again
Mass Air Flow (MAF) sensor -G70-
supplies false signal
- Check Mass Air Flow (MAF) sensor -
G70- page 24
-81
For troubleshooting Display
groups 006, 008, 009 and 010
Malfunction cause found: Yes
No
Continued next page
- Erase DTC memory, test drive and
check DTC memory again
Oil burning with faulty piston
Repair Manual, 2.8 Liter V6 2V Engine
Mechanical, Engine Code(s): AFC, Repair - Check compression pressure
Pa
ge 77 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

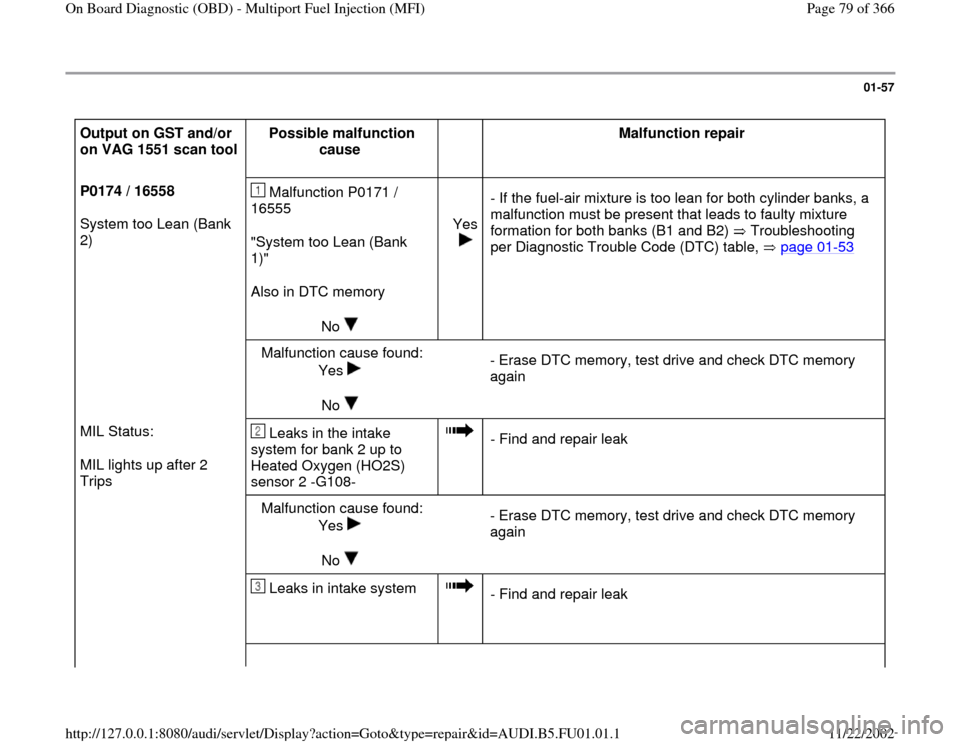

Page 79 of 366

01-57
Output on GST and/or
on VAG 1551 scan tool
Possible malfunction
cause
Malfunction repair
P0174 / 16558
System too Lean (Bank
2) Malfunction P0171 /
16555
"System too Lean (Bank
1)"
Also in DTC memory
No
Yes
- If the fuel-air mixture is too lean for both cylinder banks, a
malfunction must be present that leads to faulty mixture
formation for both banks (B1 and B2) Troubleshooting
per Diagnostic Trouble Code (DTC) table, page 01
-53
Malfunction cause found:
Yes
No
- Erase DTC memory, test drive and check DTC memory
again
MIL Status:
MIL lights up after 2
Trips Leaks in the intake
system for bank 2 up to
Heated Oxygen (HO2S)
sensor 2 -G108-
- Find and repair leak
Malfunction cause found:
Yes
No
- Erase DTC memory, test drive and check DTC memory
again
Leaks in intake system
- Find and repair leak
Pa
ge 79 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 83 of 366

01-59
Output on GST and/or on VAG
1551 scan tool Possible malfunction
cause
Malfunction repair
P0175 / 16559
System too Rich (Bank 2) Malfunction P0172 /
16556
"System too Rich (Bank 1)"
Also in DTC memory
No
Yes
- Fuel pressure too high. Check system
pressure and residual pressure page 24
-20
Malfunction cause found:
Yes
No
- Erase DTC memory, test drive and check
DTC memory again
MIL Status:
MIL lights up after 2 Trips Fuel injector (Bank 2)
does not close or leaks
- Check fuel injection quantity and for leaks
page 24
-33
For troubleshooting Display
groups 006, 008, 009 and 010
Malfunction cause found:
Yes
- Erase DTC memory, test drive and check
DTC memory again
Notes:
If the malfunction "P0175 / 16559" is set, the oxygen sensor control has dropped below the learning value limit in the "lean"
direction, but the (HO2S) still recognizes "mixture too rich".
Pa
ge 83 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 84 of 366

01-60
Output on GST and/or on
VAG 1551 scan tool Possible malfunction
cause
Malfunction repair
P0171 / 16555
System too Lean (Bank 1) Malfunction P1250 /
17658 "Fuel Level Too
Low" also in DTC memory
No
Yes
- For malfunctions that can be caused by fuel problems
(e.g. fuel system too lean), the malfunction "Fuel Level
Too Low" is also set if there is less than 12 liters (12.7 qt.)
fuel in the tank check tank level and fill tank if necessary
P0174 / 16558
System too Lean (Bank 2) Malfunction cause found:
Yes
No
- Erase DTC memory, test drive and check DTC memory
again
MIL Status:
MIL lights up after 2 Trips Large air leak quantity
in intake system to Mass
Air Flow (MAF) sensor -
G70-
- Determine cause of air leak and repair
For troubleshooting
Display groups 005, 006,
007, 008, 009 and 010
Malfunction cause found:
Yes
No
Continued next page
- Erase DTC memory, test drive and check DTC memory
again
Pa
ge 84 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 86 of 366

01-62
Output on GST and/or on VAG
1551 scan tool Possible malfunction cause
Malfunction repair
P0300 / 16684
Random Misfire Detected
_______________________
P0301 / 16685
Cylinder 1 Misfire Detected Malfunction P1250 / 17658 "Fuel
Level Too Low" also in DTC memory
No
Yes
- For malfunctions that can be caused by
fuel problems (e.g. fuel system too lean),
the malfunction "Fuel Level Too Low" is
also set if there is less than 12 liters (12.7
qt.) fuel in the tank check tank level and
fill tank if necessary
_______________________
P0302 / 16686
Cylinder 2 Misfire Detected Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check
DTC memory again
_______________________
P0303 / 16687
Cylinder 3 Misfire Detected
_______________________ Are other Diagnostic Trouble
Codes (DTC) present in the DTC
memory (e.g fuel injector, heated
oxygen sensor probes, fuel system
etc.) when combustion misfiring is
recognized
No Yes
- The combustion misfiring that has been
recognized is a resulting malfunction from
the stored Diagnostic Trouble Codes (DTC)
First repair this malfunction according to
Diagnostic Trouble Code (DTC) table
MIL Status:
MIL lights up or blinks
For troubleshooting Display
groups 031, 038, 039
Malfunction cause found: Yes
No
Continued next page
- Erase DTC memory, test drive and check
DTC memory again
Pa
ge 86 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 89 of 366

01-65
Output on GST and/or on VAG
1551 scan tool Possible malfunction cause
Malfunction repair
P0300 / 16684
Random Misfire Detected
_______________________
P0304 / 16688
Cylinder 4 Misfire Detected Malfunction P1250 / 17658 "Fuel
Level Too Low" also in DTC
memory
No
Yes
- For malfunctions that can be caused by
fuel problems (e.g. fuel system too lean), the
malfunction "Fuel Level Too Low" is also set
if there is less than 12 liters (12.7 qt.) fuel in
the tank check tank level and fill tank if
necessary
_______________________
P0305 / 16689
Cylinder 5 Misfire Detected Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check
DTC memory again
_______________________
P0306 / 16690
Cylinder 6 Misfire Detected
_______________________ When combustion misfiring is
recognized, are there other
Diagnostic Trouble Codes (DTC)
(e.g. fuel injector, Oxygen Sensor
Proben, Fuel system etc.) in DTC
memory
No Yes
- The combustion misfiring that has been
recognized is a resulting malfunction from
the stored Diagnostic Trouble Codes (DTC)
First repair this malfunction according to
Diagnostic Trouble Code (DTC) table
MIL Status:
MIL lights up or blinks
For troubleshooting Display
groups 031, 038, 039
Malfunction cause found: Yes
No
Continued next page
- Erase DTC memory, test drive and check
DTC memory again
Pa
ge 89 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 92 of 366

01-68
Output on GST and/or
on VAG 1551 scan tool Possible malfunction cause
Malfunction repair
P0322 / 16706
Ignition/Distributor Engine
Speed Input Circuit No
Signal Malfunction P1339 / 17747
"Crankshaft Pos./Engine Speed
Sensors Cross connected" also in
DTC memory
No
Yes
- 3-pin harness connector on Crankshaft Position
(CKP) sensor -G4- and engine speed (RPM) sensor
-G28- transposed disconnect both connectors and
connect correctly; installation location page 28
-7
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check DTC
memory again
MIL Status:
MIL lights up
immediately
Harness connector for engine
speed (RPM) sensor -G28- loose
or corroded due to moisture in the
harness connector
- Check harness connector for tight fit and contact
corrosion, if necessary reconnect and/or clean,
installation page 28
-7
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check DTC
memory again
Holding socket for engine
speed (RPM) sensor -G28- loose
or -G28- incorrectly adjusted
- Check mounting
- Adjust engine speed bracket page 28
-23
Malfunction cause found: Yes
No
Continued next page
- Erase DTC memory, test drive and check DTC
memory again
Pa
ge 92 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 94 of 366

01-70
Output on GST and/or on
VAG 1551 scan tool Possible malfunction cause
Malfunction repair
P0327 / 16711
Knock Sensor 1 Circuit Low
Input (Bank 1 or Single
Sensor) Malfunction P0332 / 16716
"Knock Sensor 2 Circuit Low Input"
Also in DTC memory
No
Yes
- Check knock sensor 1 -G61- and knock
sensor 2 -G66- page 28
-29
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check
DTC memory again
MIL Status:
MIL lights up immediately
Harness connector for Knock Sensor
(KS) 1 -G61- loose or corroded due to
moisture in the harness connector
- Check harness connector for tight fit and
contact corrosion, if necessary reconnect
and/or clean, installation location page 24
-1
For troubleshooting
Display group 015
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check
DTC memory again
Knock Sensor (KS) 1 -G61- loose
- Check mounting of knock sensor 1 -G61-
and if necessary retighten use insert
3247; tightening torque 20 Nm (15 ft lb)
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and check
DTC memory again
Pa
ge 94 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
Page 97 of 366

01-72
Output on GST and/or
on VAG 1551 scan tool
Possible malfunction cause
Malfunction repair
P0332 / 16716
Knock Sensor 2 Circuit
Low Input (Bank 2) Malfunction P0327 / 16711 "Knock
Sensor 1 Circuit Low Input (Bank 1 or
Single Sensor)" also in DTC memory
No
Yes
- Check knock sensor 1 -G61- and knock
sensor 2 -G66- page 28
-29
Malfunction cause found: Yes
No
- Erase DTC memory, test drive, and after
test drive, check DTC memory again
MIL Status:
MIL lights up
immediately
Harness connector for Knock Sensor
(KS) 2 -G66- loose or corroded due to
moisture in the harness connector
- Check harness connector for tight fit and
contact corrosion, if necessary reconnect
and/or clean, installation location page 24
-
1
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and after test
drive, check DTC memory again
For troubleshooting
Display group 016
Knock Sensor (KS) 2 -G66- loose
- Check mounting of knock sensor 2 -G66-
and if necessary retighten use insert 3247;
tightening torque 20 Nm (15 ft lb)
Malfunction cause found: Yes
No
- Erase DTC memory, test drive and after test
drive, check DTC memory again
Pa
ge 97 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1
