Page 19 of 34

AUDI A4 1997 B5 / 1.G AWM Engine Charge Pressure Leak Test Workshop Manual 21-30 Checking power supply Note: The power supply for the recirculating valve is via the fuel pump relay. Test requirements: Fuse for recirculating valve OK.

Page 21 of 34

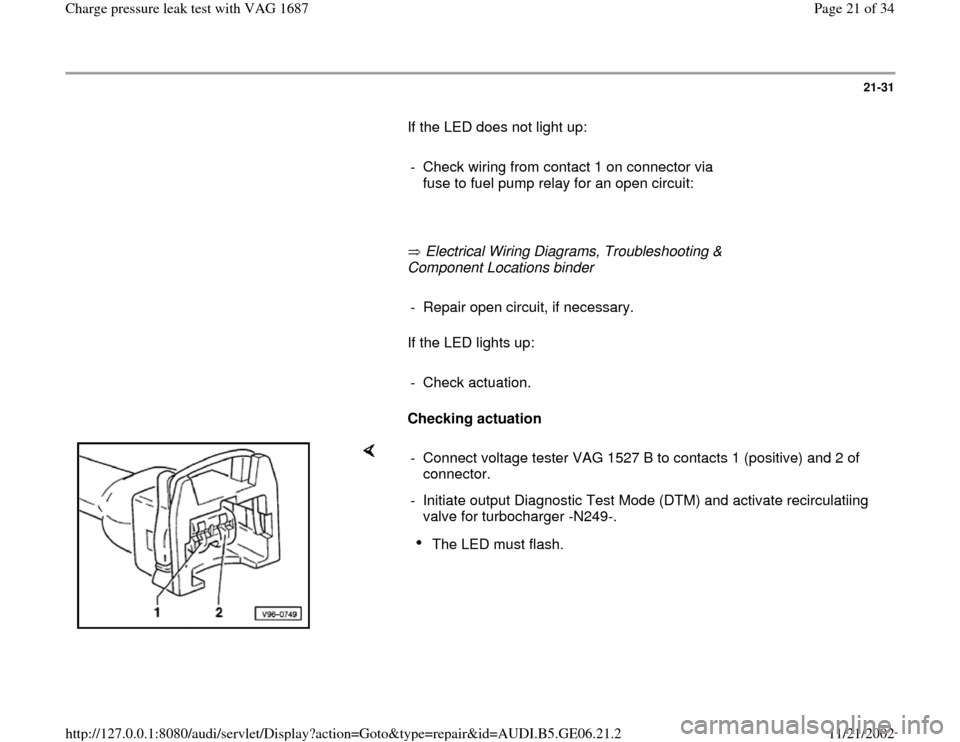

AUDI A4 1997 B5 / 1.G AWM Engine Charge Pressure Leak Test Workshop Manual 21-31 If the LED does not light up: - Check wiring from contact 1 on connector via fuse to fuel pump relay for an open circuit: Electrical Wiring Diagrams, Troubleshooti

Page 26 of 34

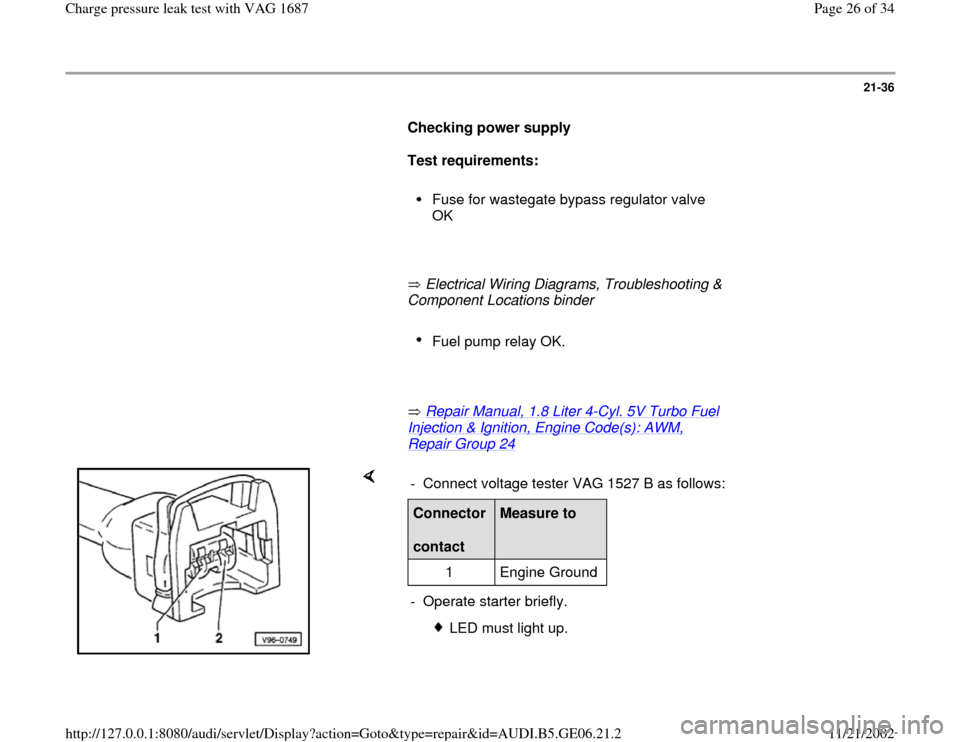

AUDI A4 1997 B5 / 1.G AWM Engine Charge Pressure Leak Test Workshop Manual 21-36 Checking power supply Test requirements: Fuse for wastegate bypass regulator valve OK Electrical Wiring Diagrams, Troubleshooting & Component Locations bin

Page 27 of 34

AUDI A4 1997 B5 / 1.G AWM Engine Charge Pressure Leak Test Workshop Manual 21-37 If the LED does not light up: - Check wiring from contact 1 on connector via fuse to fuel pump relay for open circuit: Electrical Wiring Diagrams, Troubleshooting
