AUDI A4 1997 B5 / 1.G Suspension Wheel Alignment Owner's Manual

44-22

Rear axle camber (all-wheel-drive
vehicles), adjusting

Wheel alignment specifications page 44
-13


Note:
The maximum adjustment range is 90 to the left or right of the center
position. - Loosen mounting nuts -1-.
- Adjust camber by turning eccentric bolt.- Tighten mounting nut, check camber again and if necessary re-adjust.
Pa
ge 21 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-23

Rear axle toe (all-wheel-drive vehicles),
setting

Wheel alignment specifications page 44
-13


- Loosen mounting nut -1-.

Notes:

The maximum adjustment range is 90 to the
left or right of the center position.

Adjusting the individual toe settings
automatically alters the thrust angle of the axle.

- Adjust individual toe settings as necessary by turning eccentric bolt.
- Tighten mounting nut, check settings again and if necessary re-adjust.
Pa
ge 22 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-24

Front axle camber, adjusting

The camber cannot be adjusted.
By moving the subframe it is possible to center
the camber uniformly within the specified
tolerance range.

- Remove noise insulation panel.

- Remove bolts -3- and -4-.

- Install VAG1941 camber adjustment tool.
Tightening torque of bolts -1-: 10 Nm (7 ft lb)
Pa
ge 23 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-25


- Loosen bolts -1-, -2-, -5-, -6-, -7- and -8-.

Wheel alignment specifications page 44
-13
. - Turn bolt -2- until specifications are achieved.
- Relieve tension on bolt -2- and check readings obtained. If necessary,
correct camber again.
Pa
ge 24 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-26

Removing VAG1941 camber adjustment tool

At least two bolts must always be tightened so
that the position of the subframe does not
change.
Bolts -5-, -6-, -7- and -8- must always be
replaced.

CAUTION!
Whenever the camber is adjusted, all wheel alignment settings must
be re-checked. - Tighten bolts -7- and -8-.

Tightening torque: 110 Nm (81 ft lb) + 1/4-turn (90 )- Remove VAG1941 camber adjustment tool.
- Tighten both forward bolts -5- and -6-.

Tightening torque: 110 Nm (81 ft lb) + 1/4-turn (90 )- Tighten bolts -1-, -2-, -3- and -4-.
Tightening torque: 60 Nm (44 ft lb)
Pa
ge 25 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-27

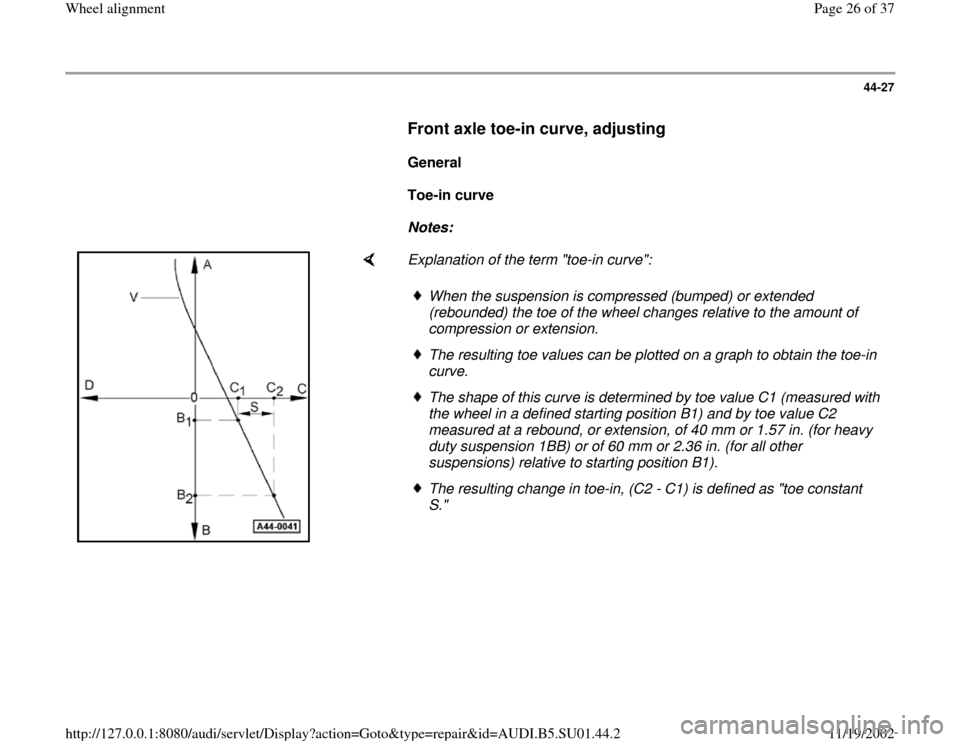

Front axle toe-in curve, adjusting


General

Toe-in curve

Notes:

Explanation of the term "toe-in curve":
When the suspension is compressed (bumped) or extended
(rebounded) the toe of the wheel changes relative to the amount of
compression or extension. The resulting toe values can be plotted on a graph to obtain the toe-in
curve. The shape of this curve is determined by toe value C1 (measured with
the wheel in a defined starting position B1) and by toe value C2
measured at a rebound, or extension, of 40 mm or 1.57 in. (for heavy
duty suspension 1BB) or of 60 mm or 2.36 in. (for all other
suspensions) relative to starting position B1). The resulting change in toe-in, (C2 - C1) is defined as "toe constant
S."
Pa
ge 26 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-28

Sport suspension 1BE

Notes:
The toe-in curve must also be checked in the following cases (in addition
to those specified in table page 44
-10
): A Spring compression
B Spring extension (rebound)
B1 Defined starting position (vehicle at curb weight)
On vehicles with sport suspension, suspension must be extended
20 mm (0.78 in.) to this position.
B2 Vehicle suspension extended 60 mm (2.36 in.) compared to position
B1 page 44
-31
C Toe-in
C1 Toe-in measured in position B1
C2 Toe-in measured in position B2
D Toe-out
V Toe-in curve
S Toe constant, C2 - C1
If the vehicle has been in an accident or sustained damage to the
suspension components and/or bodywork. If the vehicle does not maintain direction of travel over bumps and
when braking or accelerating.
Pa
ge 27 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-29

Standard suspension 1BA, special
suspension (1BC) and heavy duty
suspension 1BP

On vehicles with standard running gear, the toe-in measurement C1 is
measured in the defined starting position (vehicle at curb weight) B1
page 44
-30
.
Heavy duty suspension 1BB (vehicle ride height 20 mm higher)
On vehicles with heavy duty suspension 1BB:
B2 Vehicle suspension extended 60 mm (2.36 in.) compared to position
B1
C2 Toe-in measured in position B2
C1 Toe-in measured in position B1 (defined starting position) page 44
-32
C2 Toe-in measured in position B2
Pa
ge 28 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-30

Setting suspension to starting position B1 (
page 44
-27
) on vehicles with standard
suspension (1BA), special suspension (1BC)
and heavy duty suspension (1BP)

Note:
Depending on the type of wheel alignment
equipment used, it may be necessary to raise the
front of the vehicle in order to position the
VAG1925 spacer. After lowering the vehicle
again the suspension must be bounced.

Do not raise the vehicle using the above procedure
The vehicle is now in the defined starting position B1 (for vehicles with
standard suspension (1BA), special suspension (1BC) and heavy duty
suspension (1BP). - Insert VAG1925 spacer together with VAG1925/4 adapters and screw
both threaded spindles out until they just rest against front subframe
bolts (arrow).
Pa
ge 29 of 37 Wheel ali
gnment
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.44.2

44-31

Setting suspension to starting position B1 (
page 44
-27
) on vehicles with sport
suspension

Note:
Depending on the type of wheel alignment
equipment used, it may be necessary to raise the
front of the vehicle in order to position the
VAG1925 spacer. After lowering the vehicle
again the suspension must be bounced.

Make sure vehicle is not raised using the above procedure - Insert VAG1925 spacer together with VAG1925/4 adapters and screw
both threaded spindles out until they just rest against front subframe
bolts (arrow).
- Raise vehicle at front lifting points.

The vehicle is now in defined starting position B1 (for vehicles with sport
suspension). - Insert VAG1925/6 adapter onto VAG1925/4 adapter for spacer gauge.
- Lower vehicle onto adapters.
