AUDI A4 1998 B5 / 1.G AFC Engine Cylinder Head And Valve Drive Service Workshop Manual 15-3


Cylinder head and valve drive,
servicing Component layout

Note:
Always replace all seals and gaskets.
1 -
Bearing cap
Installation position   page 15
-20
2 -
17 Nm (13 ft lb)
3 -

Page 2 of 2

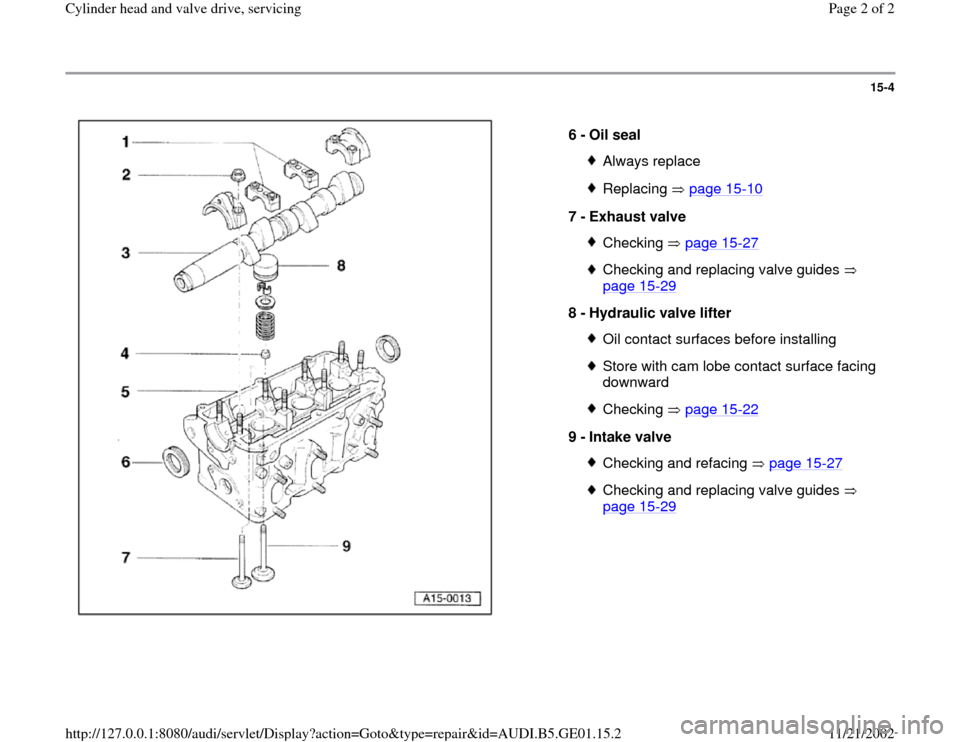

AUDI A4 1998 B5 / 1.G AFC Engine Cylinder Head And Valve Drive Service Workshop Manual 15-4


6 -
Oil seal
Always replaceReplacing  page 15
-10
7 -
Exhaust valve
Checking  page 15
-27
Checking and replacing valve guides
page 15
-29

8 -
Hydraulic valve lifter
Oil contact su
